King Run Mobile Fueling Trucks LHD / RHD 4x4 ALL Wheel Drive

King Run Mobile Fueling Trucks LHD / RHD 4x4 ALL Wheel Drive
Tank volume 12000L-15000L
Tank material Carbon steel
Tank thickness 5mm

Price: $ 36000  -  39000
Discount Price: $ 33000  -  35000
FOB:
Quantity:

  • DRZ5
  • DRZ
  • 8705909990

4*4 Oil Diesel Bowser

Dongfeng 4x4 ALL Wheel Drive Diesel Road Tanker Truck for Diesel Transportation With PTO Fuel Pump 10-12CBM 190HPoil tank trucks-21- Ton road tankeroil tank trucks-24- Ton road tankeroil tank trucks-22- Ton road tanker




Vehicle Model DRZ5162GYYE4X4 Vehicle Brand DRZE
Overall dimensions 8500X2470X3040mm Curb weight 7900kg
Tank dimensions 5500×2250×1350mm Tank volume 12000L



Chassis parameters
Chassis model EQ5162GLJ Chassis brand DONGFENG
Overall dimensions 8200 x 2470x 2850mm Wheel base 4500mm
Front/rear wheel track 1940/1860mm Front/rear suspension 1250/2450 mm
Approach/departure angle 25/18° Maximum speed 88km/h
Chassis Manufacturer Dongfeng Motor Company
Cab Configuration A row and a half deluxe cab(with sleeping berth),allowable 3 passengers
Color Blue,other color is optional
Engine Model B190 33
Emission Euro 3
Type 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
Rated power 190hp,rated power speed 2500rpm
Displacement 5900ml
Max.torque 640N.m
Bore x stroke 102x120mm
Manufacturer Dongfeng Cummins Engine Co., Ltd.
Tire Size 10.00R20 steel wire tire
Number 6+1 nos
Frame 250(7+5)mm, parts are double layers.
Fuel tank 200L,steel
Front axle 4.5T drive axle
Rear axle 10.0T
Drive form 4X4
Rated voltage 24V,DC
Transmissions 8 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration
If there is a slight change in the chassis parameters above,please take the actual product as the standard



Fuel tank structure parameters
Tank dimensions 5500×2250×1350mm Tank volume 12000L
Tank material Carbon steel Tank thickness 5mm


Color and Logo Optional
Standard configuration Chassis, carbon steel fuel tank, sub frame,oil pump, two aluminum alloy flow valves, tool box, manhole,climbing ladder, fire extinguisher, oil hose.
Selective configuration Aluminum alloy fuel tank, flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system,divided into several bins.

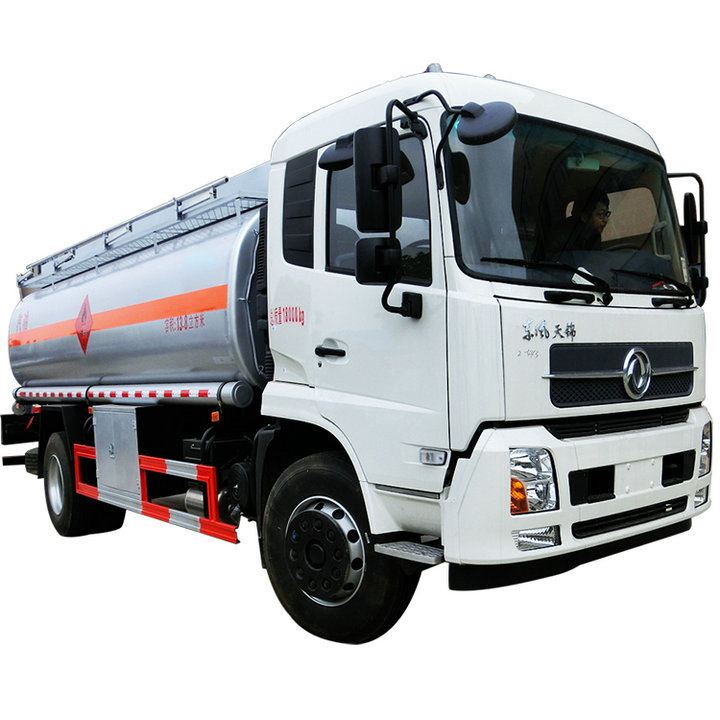

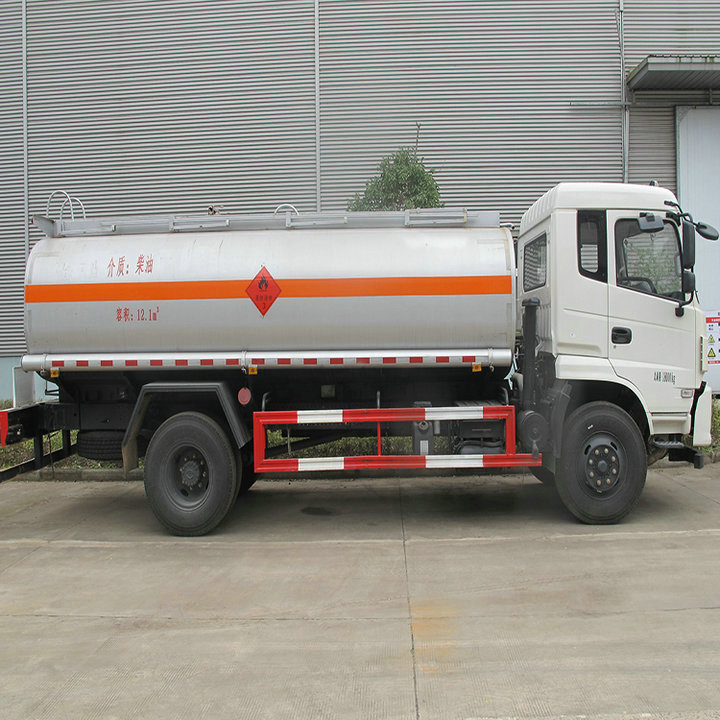

 Truck Photo show:
4x4 Full Wheel Drive Oil Tanker Truck Capacity 10CBM 190HP



FAQ
·MOQ:1 SET
·Delivery date:25 workdays after we received deposit.


Other Products
  • DFAC Aluminium Alloy Oil Liquid Tank Truck 28000 - 32000L Loading Capacity

  • DFAC Aluminium Alloy Oil Liquid Tank Truck 28000 - 32000L Loading Capacity

  • IVECO 21000 Liters Fuel Delivery Trucks , Petrol Tank Truck With Diesel Engine

  • IVECO 21000 Liters Fuel Delivery Trucks , Petrol Tank Truck With Diesel Engine

  • Forland Transport Liquid Tank Truck / Mobile Refueling Truck 3000L-4000L

  • Forland Transport Liquid Tank Truck / Mobile Refueling Truck 3000L-4000L

  • FAW 8X4 Aluminum Road Liquid Tank Truck For Fuel Transportation 30000L

  • FAW 8X4 Aluminum Road Liquid Tank Truck For Fuel Transportation 30000L



  •  FOTON Petroleum Oil / Gasoline Delivery Truck , Crude Oil Tanker Truck 32000L

  •  FOTON Petroleum Oil / Gasoline Delivery Truck , Crude Oil Tanker Truck 32000L

15,000 Litres (4,000 Gallons) Diesel Bowser, Truck Tank Fuel, Petrol Delivery

Fuel Tanker Dongfeng ( 15,000 Litres )

General

Vehicle Brand

DRZ

Chassis Brand

Dongfeng

Overall Dimension

8800 * 2480 * 2950 mm

GVW / Kerb Weight

1,600 kg / 6,505 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel

Engine Brand

Cummins engine

Power

180 Ps (132 KW)

Displacement

4500 ml

Emission Standard

Euro III

Chassis

Drive Type

4X2, left or right hand drive

Transmission

6-speed front, 1 reverse

Wheelbase/No. of axle

4700 mm / 2

Tyre Specification

9.00-20

Tyre Number

6 tyres and 1 spare tyre

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Tank Capacity

15,000 Litres ( About 4,000 gallons)

Tank Material

Carbon steel

Pump

Fuel pump equipped for overhead delivery

Suction Head

6 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..

Optional

** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.



shipping parking

Packaging & Shipping_1.jpg

1, attached parts and tools put into standard export box.

2, Oil Tank Truck will be cleaned and covered with wax before delivery.

3, Oil Tank Truck will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers` requirements.

5,some small Oil Tank Truck can be put into container according to its overall dimensions.
