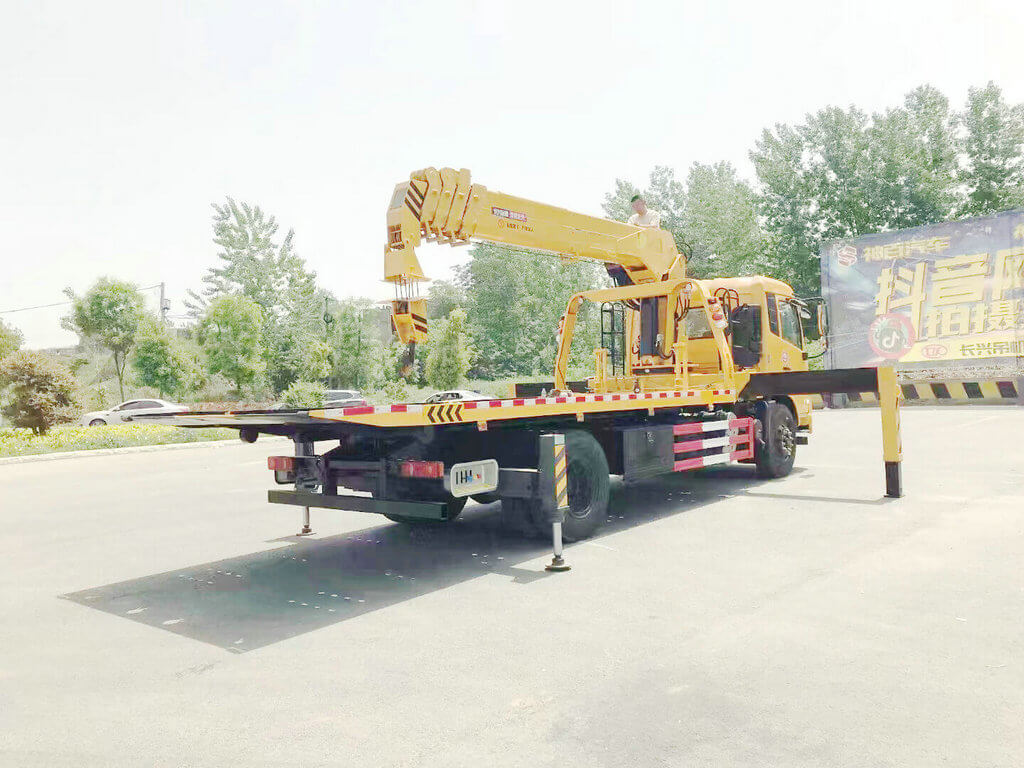

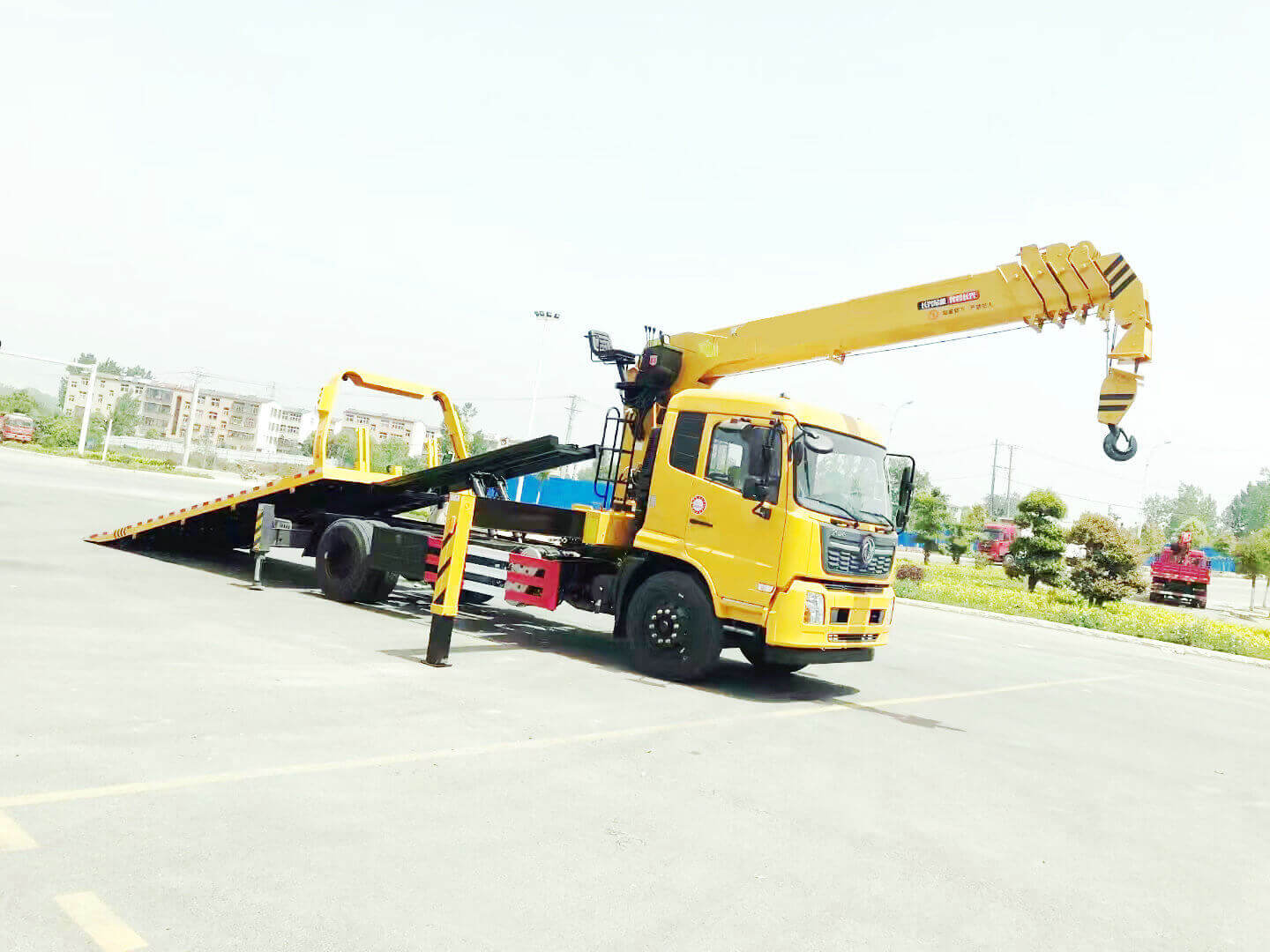

King Run Flatbed Tow Wrecker Truck with 8ton Recovery Winch 8ton Rescue Crane
Views: 1632 Author: Dong Runze Special Vehicle Publish Time: 2021-12-30 Origin: www.truckinchina.com
King Run Flatbed Tow Wrecker Truck with 8ton Recovery Winch 8ton Rescue Crane
| Product name | Dongfeng 4X2 Tow Trucks With 8 / 10 Ton boom Crane (Wrecker With Crane) | Max Speed | 89km/h | Crane | 8/10 ton boom crane |
| Chassis Brand | Dongfeng | Axles | 2 | Arms sections | 4 |
| Rated loading weight | 10000KG | Engine Brand | Dongfeng | Max lifting capacity | 10 ton |
| Curb weight | 12000KG | Horse Power | 200hp | Max lifting height | 15.6 m |
| Dimensions | 7000x2550x3650mm | Emissions | 4160ml | Max working radius | 13.6 m |
| Cargo body dimension | 4200x2460 | Cab | one and half row | Operation pressure | 25 mpa |
| Wheelbase | 4200mm | Tire | 6 | Deadweight of crane | 3970KG |
| Drive type | 4X2 | Gross weight | 18000kg | Rotation angle | 360 full rotation |
| Note: the Chassis, Engine and Crane all support Customization | |||||
Wholesaler 4X2 Rescue Wrecker Truck with Hydraulic 8 ton Lifting Crane Flatbed Tow Truck
King Run Tilt Tray Rollback Flatbed Tow Truck with 8ton Recovery Hydraulic Winch 8ton Crane
1. Purpose of 8-10 ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 8-10ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 8-10ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
| General Technical Parameters | |||
| Overall Dimension | 9440x2480x2760 (mm) | ||
| Gross Vehicle Weight | 12495kg | ||
| Curb Weight | 10000kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | Dongfeng | |
| Cabin | Row and half, Right Hand Driving | ||
| Engine | Model | ISD180 50, 4 Cylinders | |
| Power | 132KW/180HP | ||
| Emission Standard | EURO 3/4/5/6/ | ||
| Displacement | 4.5L | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4.5T/9T | ||
| Wheel Base | 4700(mm);5000mm | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 9.00R20, 10.20R206 Pieces with 1 Spare Tire | ||
| Maximum Speed | 110(km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 6000x2400 (mm) | |
| Max. Loading Weight | 8000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 6000 (kg) | ||
| Length of Steel Cable | 35 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Boom Type | Telescopic Boom | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars 6. Outrigger 2pcs | ||
| Parameters of the Crane | ||
| Item | Unit | Value |
| Max Lifting Capacity | kg | 8000@2.5m |
| Max lifting height | M | 14 |
| Max working range | M | 11.5 |
| Max Lifting Moment | T.M | 20 |
| Recommend Power | kw | 27 |
| Max Oil Flow of Hydraulic System | L/min | 55 |
| Max Pressure of Hydraulic System | Mpa | 27 |
| Oil Tank Capacity | L | 160 |
| Crane Weight | kg | 3315 |
| Installation Space | mm | 1200 |
| Rotation Angle | ° | 360° All Rotation |
