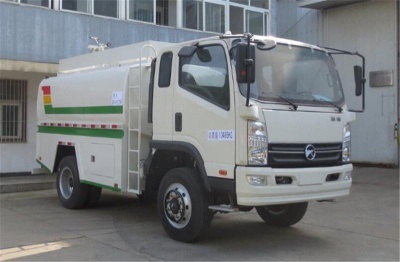

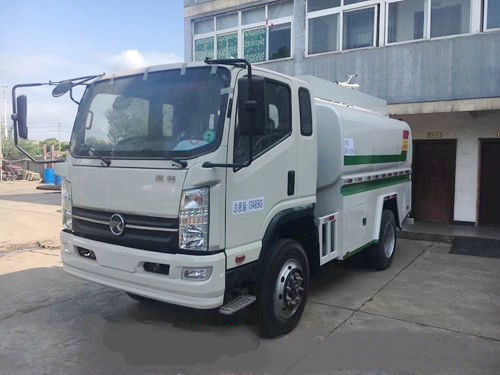

Kama All Wheel Drive 4X4 Fire Spraying Truck with Fire Pump Water Tank 4900 L
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T
Dongfeng Off Road 6x6 AWD Water Tanker Fire Truck 4000L ( 1000 Gallons) For Forest Fire Fighting
Cell /+8615271357675
The pictures are for your reference only
HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6500Liters Water Foam Tank

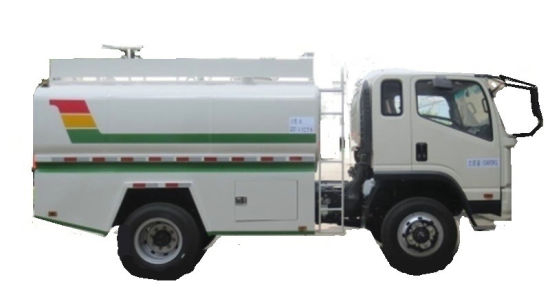

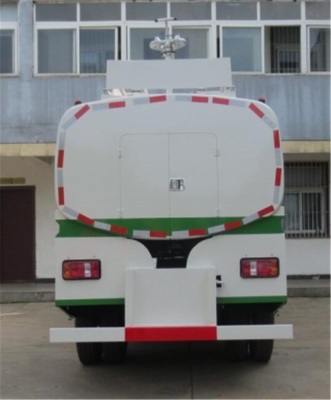

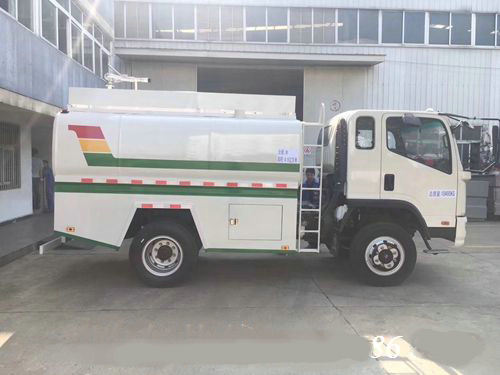

4x4 water tank fire vehicle
1. External dimensions: 6160 mm x 2180 mm x 2880/3380 mm.
2. Number of passengers: 3.
3. Water tank: volume 4900 L.

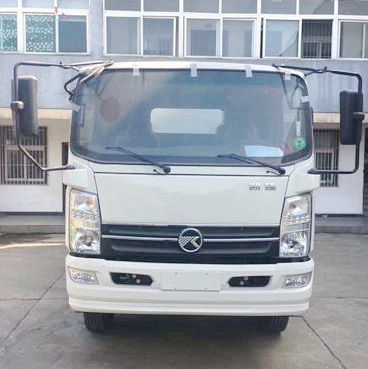

KAMA 4x4 chassis:
1. Model: kaima KMC2100A32P5.
2. Drive type: 4 x 4.
3. Wheelbase: 3200mm.
4. Engine:
The model is 4dx23-140e5, with four cylinders, water cooling, high pressure common rail, and pressurized medium-cold diesel engine.
The rated output power is: 105KW.
Emission standard: EURO 5
5. Gearbox: mechanical manual transmission, 5 forward gears.
6. Steering system: left, hydraulic power steering, steering wheel height and Angle adjustable.
7. Braking system
Driving braking: vacuum assisted braking.
Parking brake: central drum brake.
Auxiliary brake: engine exhaust brake.
8. Maximum speed: 90km/h.
3. Power extractor: full power clamping device, solenoid valve control, splash lubrication.
Iv. Driving room
1. Structure: overall steel frame welding flat head cab, fixed type.
2. Layout: single row of double doors, the number of passengers is 3.
3. Equipment: in addition to the original equipment, there is also a power grab switch, side marker light switch, hand throttle, etc.
Five, the jacket
(1) tank body
1. Volume: 4900L (water)
2. The structure:
Fangfang welding structure, with built-in anti - swinging baffle and sea - proof hole.
Manhole and manhole cover 1 set, diameter of 500 mm.
The water injection pipe is located on the right side of the tank, with a diameter of DN65.
One of the blowdown pipes is located at the bottom of the tank, with a diameter of DN25.
3. Material: welded with high-quality carbon steel material, with a thickness of 3mm and a thickness of 4mm. (according to customer needs: the inner wall is all embalmed and durable).
Technical specifications chassis KMC2100A32P5
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | 4DX23-140E5 | 3857 cc | 3.9 L | 236 cuin | 105 kW | 143 hp | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory (Branch) |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Maximum speed | 90 km/h | 56 mph | ||
| ABS | have | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 3980 kg | 4 t | 8,774 lbs | |
| Gross vehicle weight rating | 10495 kg | 10.5 t | 23,137 lbs | |
| Axle load distribution | 3460 kg / 7035 kg 3.5 t / 7 t 7,628 lbs / 15,510 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 5970 mm | 19′8″ | ||
| Overall width | 2160 mm | 7′2″ | ||
| Overall height | 2590 mm | 8′6″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 3200 mm | 10′6″ | ||
| Front track | 1790 mm | 5′11″ | ||
| Rear track | 1655 mm | 5′6″ | ||
| Front overhang | 1300 mm | 4′4″ | ||
| Rear overhang | 1470 mm | 4′10″ | ||
| Angle of approach | 18° | |||
| Angle of departure | 21° | |||
| Leaf springs | 7 / 9+5 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 8.25-20 14PR, 8.25R20 14PR | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 3 | |||
| Steering control | steering wheel | |||
4,000 litres | |||
Tank Material | Carbon steel | ||

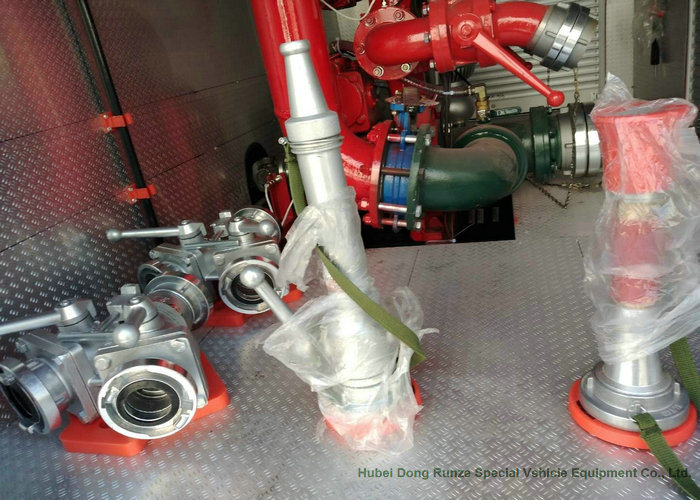

Fire Pump | Flow speed | 30 L/s | |
Pressure | 1.0 MPa | ||
Fire Cannon | Flow speed | 30 L/s | |
Shot | 55 m | ||
Suction Head | 6 m | ||
Hose | High quality, wire strengthened hose, with cooper wire, anti-static | ||

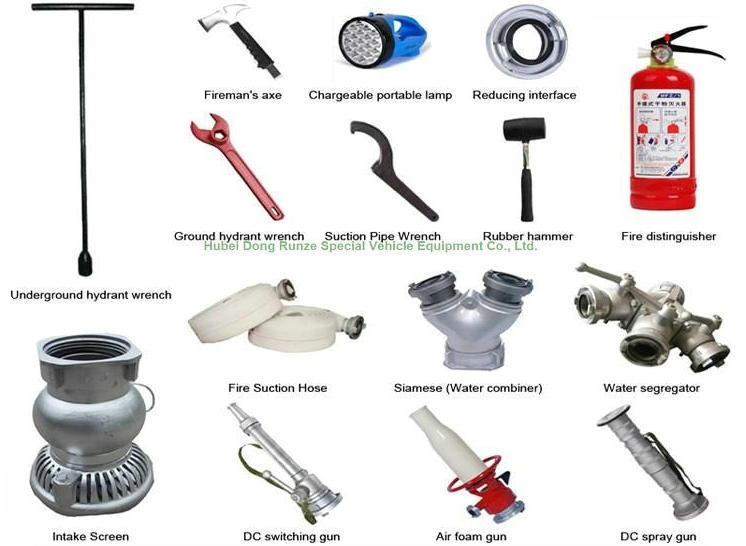

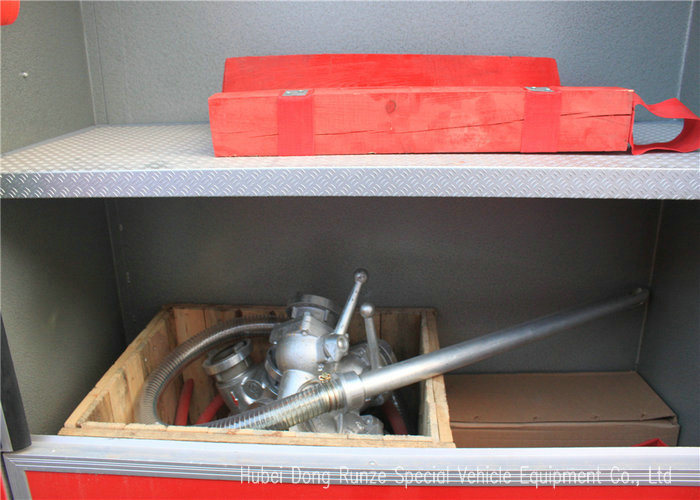

All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment, halligan bars.… | |||
Optional | Ladders, floodlights... | ||
| Fire truck | ||||||||||
| Here the price is for standard configuration. Selective configuration and any change according to the buyer's requirements please confirm the price with our company. | ||||||||||
| Standard configuration | Chassis,sub frame, van body,America DOPPON paint baking varnish,national standard equipment box, 25 units national standard fire-fighting equipment,fire | |||||||||
| pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type | ||||||||||
| lights, reel, common tools,rear climbing ladder,water tank. | ||||||||||
| Selective configuration | foam type,dry powder type,stainless tank,other requirements. | |||||||||
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | |
| L | mm | mm | RMB | USD | ||||||
| DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 | 135800 | |
| DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 | 101200 | |
| DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 122300 | |
| DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 170400 | |
| DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 | 123300 | |
| DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 147400 | |
| DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 192500 | |
| DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 249700 | |
| DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 159400 | |
| DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 247700 | |
| DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 | 212600 | |
| DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 | 197500 | |
| DRZ5070GXFSGQ | I.S.U.Z.U | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 | 218100 | |
| DRZ5160GXFSGQ | I.S.U.Z.U | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 | 457300 | |
| DRZ5250GXFSGQ | I.S.U.Z.U | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 | 621800 | |
| DRZ50703GXFSGQ | I.S.U.Z.U | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 | 182000 | |
| DRZ51609GXFSGQ | I..SU.Z.U | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 378000 | |
| DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 | 401600 | |
| DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 | 295300 | |
| DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 | 476800 | |
| DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 | 473300 | |
| Chassis | Tank volume water / foam (m³) | Units price FOB USD | Engine Model | Power (KW) | axes | wheelbase | Number of spring | Tire specifications | Fire water cannons | Fire pump model type |
| QL11009KARY | 3.1 | 39425 | 4HK1-TCG40 | 139 | 2 | 3815 | 8/10+6 | 235/75R17.5 | CB10/40 | PS40 |
| EQ1126KJ1 | 4 | 36852 | B190 30 | 136 | 2 | 4700 | 8/10+7 | 9.00-20 | CB10/40 | PS40 |
| DFL1140B2 | 5.5 | 42662 | B190 30 | 132 | 2 | 4500 | 7/9+6,8/10+8 | 9.00-20 | CB10/40 | PS40 |
| FVR34J2 QL1160AMFRY | 5.5 | 74202 | 6HK1-TCNG40 | 177 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PS40 |
| EQ1141KJ | 5.5 | 37184 | B190 30 | 136 | 2 | 4500 | 8/10+8 | 10.00-20 | CB10/40 | PS40 |
| ZZ1167M4617C | 8 | 63578 | WD615.92E | 196 | 2 | 4600 | 10/9+6 | 11.00-20 18PR | CB10/60 | PS50 |
| ZZ1166M4616C1 | 8 | 59428 | WD615.92E | 196 | 2 | 4600 | 9/9+6 | 11.00-20 | CB10/60 | PS50 |
| ZZ1257N4347C | 11.5 | 75530 | WD615.95E | 247 | 3 | 4325+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PS50 |
| ZZ1256M4646C | 11.5 | 71380 | WD615.92E | 196 | 3 | 4325+1350 | 9/12,10/12,10/- | 11.00-20 | CB10/60 | PS50 |
| CXA34T QL1250DRFZY | 12 | 99932 | 6HK1-TCSG40 | 206 | 3 | 5100+1300 | 9/10 | 11.00-20-18PR | CB10/60 | PS50 |
| ZZ1257S4647C | 12 | 76991 | WD615.96E | 276 | 3 | 4600+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PS50 |
| QL11009KARY | 2.1+0.885 | 39425 | 4HK1-TCG40 | 139 | 2 | 3815 | 8/10+6 | 235/75R17.5 | CB10/40 | PL32 |
| EQ1126KJ1 | 2.5+1.33 | 36852 | B190 30 | 136 | 2 | 4700 | 8/10+7 | 9.00-20 | CB10/40 | PL32 |
| DFL1140B2 | 3.5+1.77 | 42662 | B190 30 | 132 | 2 | 4500 | 7/9+6,8/10+8 | 9.00-20 | CB10/40 | PL32 |
| EQ1141KJ | 3.5+1.77 | 37765 | B190 30 | 136 | 2 | 4500 | 8/10+8 | 10.00-20 | CB10/40 | PL32 |
| FVR34J2 QL1160AMFRY | 4+1.322 | 74202 | 6HK1-TCNG40 | 191 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PL32 |
| ZZ1167M4617C | 6+1.77 | 63512 | WD615.92E | 196 | 2 | 4600 | 10/9+6 | 11.00-20 18PR | CB10/60 | PL48 |
| ZZ1166M4616C1 | 6+1.77 | 59428 | WD615.92E | 196 | 2 | 4600 | 9/9+6 | 11.00-20 | CB10/60 | PL48 |
| ZZ1257N4347C | 8.5+2.66 | 75530 | WD615.95E | 247 | 3 | 4325+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PL48 |
| ZZ1256M4646C | 8.5+2.66 | 71380 | WD615.92E | 196 | 3 | 4325+1350 | 9/12,10/12,10/- | 11.00-20 | CB10/60 | PL48 |
| CXA34T QL1250DRFZY | 9+2.65 | 99932 | 6HK1-TCSG40 | 191 | 3 | 5100+1300 | 9/10 | 11.00-20-18PR | CB10/60 | PL48 |
| ZZ1257S4647C | 12+3.54 | 76991 | WD615.96E | 276 | 3 | 4600+1350 | 10/12,4/12 | 11.00-20 18PR | CB10/60 | PL48 |
| FVR34J2 QL1160AMFRY | 5.52+0.28 | 74202 | 6HK1-TCNG40 | 177 | 2 | 4500 | 9/14 | 10.00R20-16PR | CB10/40 | PL32 |
| FVR34J2 QL1160AMFRY | 6HK1-TCNG40 | 177 | 2 | 4500 | 9/14 | 10.00R20-16PR | ||||
| NKR77LLLWCJAY | 4HK1-TC | 96 | 2 | 3360 | 8/6+5 | 7.50-15 | ||||
| NJ1056SHXN6 | SOFIM8140.43S3 | 92 | 2 | 3600 | -/5+5,-/4+3,-/5+3 | 6.50R16C |
