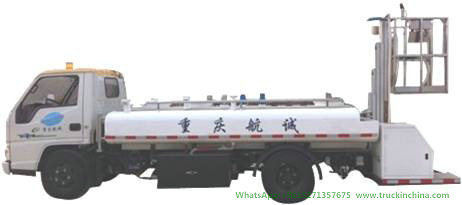

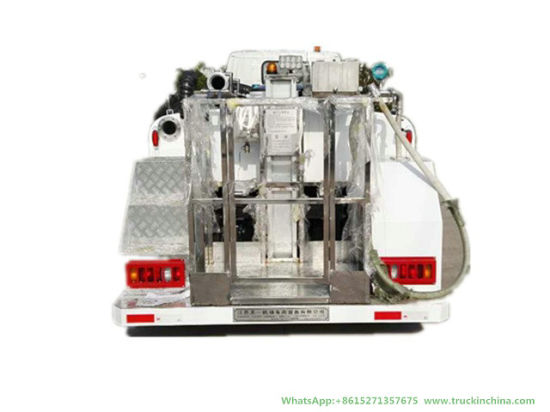

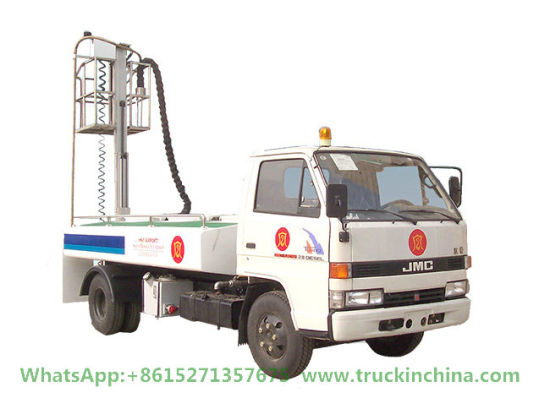

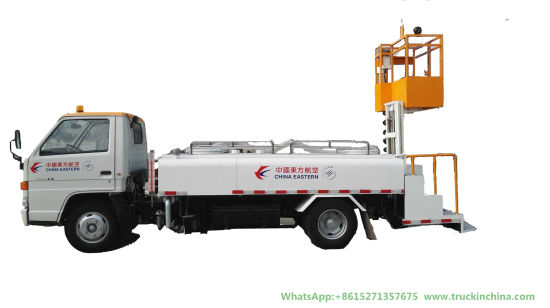

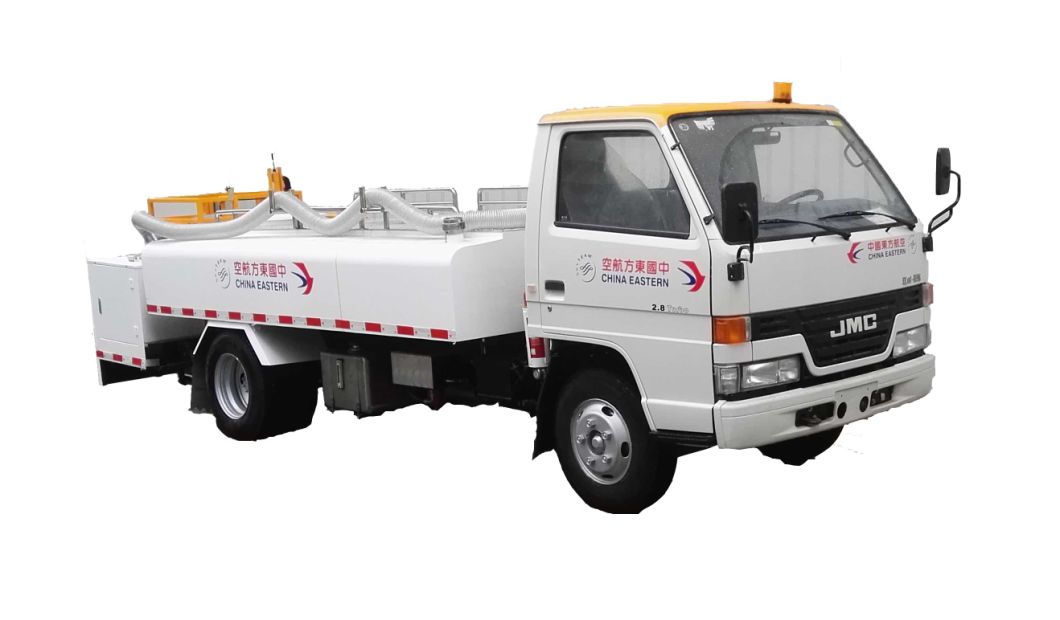

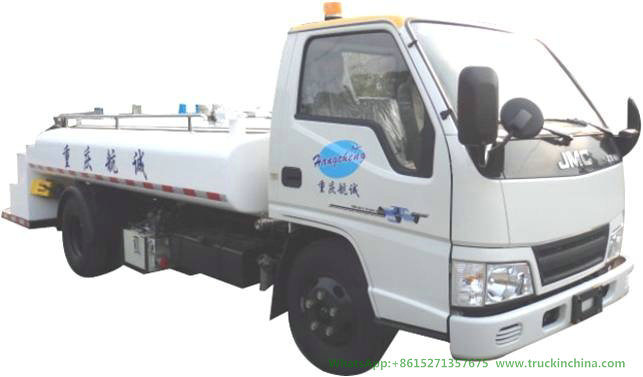

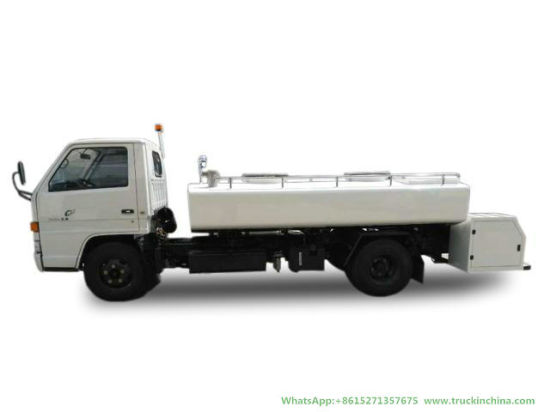

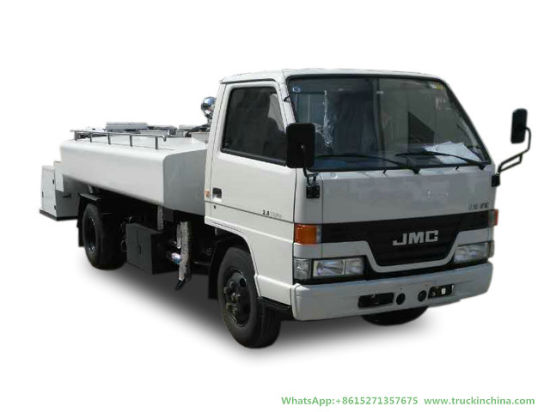

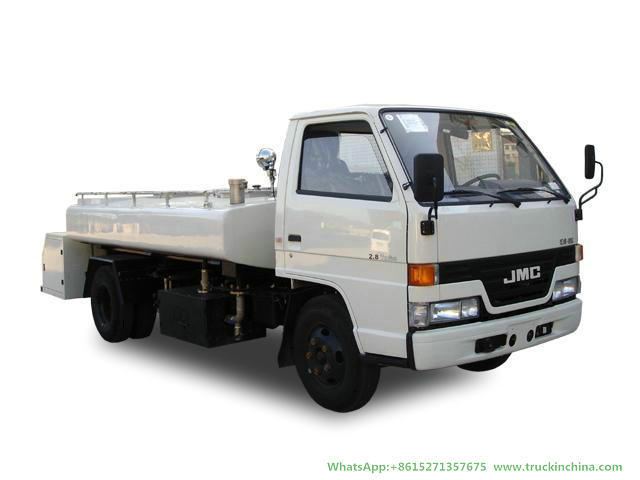

Jmc Aircraft Lavatory Service Truck Clean Water Tank 1200L Sewage Tank 3000L (Aircraft Sewage Tanker With Vacuum Pump Electric Diesel Vehicle)
Jmc Aircraft Lavatory Service Truck Clean Water Tank 1200L Sewage Tank 3000L (Aircraft Sewage Tanker With Vacuum Pump Electric Diesel Vehicle)
Aircraft Sewage Truck Aircraft Vacuum Toilets lav truck
Aircraft Sewage Truck Aircraft Vacuum Toilets lav truck
| Quantity: | |
|---|---|
-
DRZ5080
-
JMC
-
8705
-
Shanghai, China
-
T/T
-
Roro

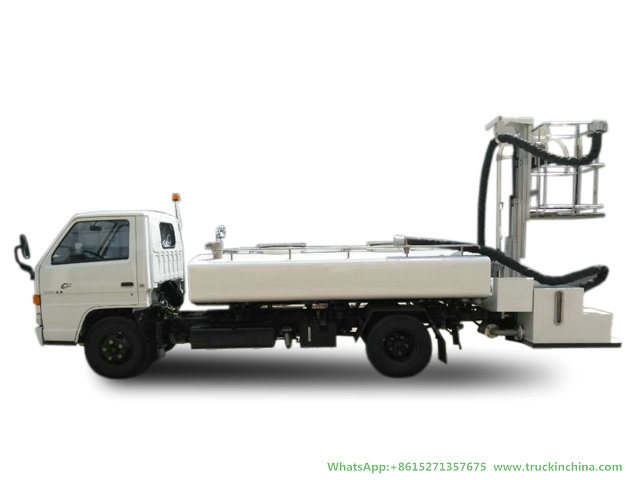

JMC Aircraft Lavatory Service Truck Clean Water Tank 950L Sewage Tank 1450L( Aircraft Sewage Tanker With Vacuum Pump Electric Diesel Vehicle )
Lavatory service truck is designed to withstand the airport complex environment, simply to operated and easy to maintain. The lavatory servicing truck with closed cab and heating systems is equipped with latest electric and hydraulic circuits. The unit is equipped with a lift platform in the rear and used and servicing up to B747. The tank is mounted to the chassis with rubber shock absorbers to insulate it from vibration and shock during driving.
Aviation Equipment
MH/T6014-1999 Portable Water Vehicle
IATA AHM 970 Function specification for Portable Water Vehicle IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
IATA AHM 915 Standard Control device
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment CCAR-137-CA-R3 Administrative provisions for civil airport equipment
AP-137-CA-2015-02 Survey arrangement for civil airport equipment GB3847-2005·Emission limits and measurement methods for compressed-combustion engine
GB20891-2014 Emission limits and measurement methods for diesel engine
Applicable aircrafts
It is applicable to A300,A310,A318,A319,A320,A330,A340,B707, B727,B737,B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,
MD80 type aircraft except A380.
Main performance indexes:
Project performance index
Configuration II (October 31, 2019) - configuration I (June 1, 2018)
Engine manufacturer Jiangling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: jx493zlq5 jx493zlq4
Volume of clean water tank (L) 950 950
Volume of sewage tank (L) 1450 1450
Water supply flow (L / min) ≥ 120 ≥ 100
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 3850 3850
Boundary dimension (L × w × h) (mm): 6650 × 1880 × 2060 6630 × 1880 × 2080
Maximum speed (km / h) 69 68
Other performance - Minimum turning diameter (mm): 13600
Chassis manufacturer Jiangling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: jx1061tg25 jx1060tg24

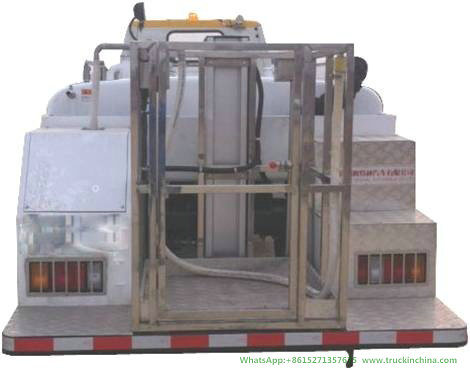

Lifting height of working platform (mm): 450 ~ 2800 520 ~ 2150
Outer diameter of channel circle (mm) 15000--
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, exhaust smoke meets the requirements of GB 3847-2005; exhaust pollutants meet the requirements of GB 17691-2005 phase IV limit, exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) ---
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd
Model jc528 jc528t8
GWS40D
Main performance indexes:
Project performance index
Configuration II (October 31, 2019) - configuration I (June 1, 2018)
Engine manufacturer Jiangling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: jx493zlq5 jx493zlq4
Volume of clean water tank (L) 950 950
Volume of sewage tank (L) 1450 1450
Water supply flow (L / min) ≥ 120 ≥ 100
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 3850 3850
Boundary dimension (L × w × h) (mm): 6650 × 1880 × 2060 6630 × 1880 × 2080
Maximum speed (km / h) 69 68
Other performance - Minimum turning diameter (mm): 13600
Chassis manufacturer Jiangling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: jx1061tg25 jx1060tg24
Lifting height of working platform (mm): 450 ~ 2800 520 ~ 2150
Outer diameter of channel circle (mm) 15000--
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, exhaust smoke meets the requirements of GB 3847-2005; exhaust pollutants meet the requirements of GB 17691-2005 phase IV limit, exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) ---
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd
Model jc528 jc528t8
WXQ5050GWS
Main performance indexes:
Project performance index
Configuration III (2019-10-09) - configuration II (2017-10-25) - configuration I
Engine manufacturer Jiangling Automobile Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: jx493zlq5 4jb1cn jx493zlq4
Volume of clean water tank (L) 1000 1000 1000
Volume of sewage tank (L) 2000 2000
Water supply flow (L / min) 180 180 180
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg) 3500 3660 3620
Boundary dimension (L × w × h) (mm): 6800 × 1900 × 2150 7040 × 1900 × 2230 6800 × 1900 × 2150
Maximum speed (km / h) 80 80 80
Other properties ----
Chassis manufacturer Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: jx1061tg25 ql1053hary jx1051tg24
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Outer diameter of channel circle (mm): 14500 15000 15000
Engine emission: exhaust pollutants shall meet the requirements of phase V of GB 17691-2005, and exhaust smoke shall meet the requirements of gb3847-2005. .
Volume of circulating water tank (L) 200 200 200
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd. Qingling Automobile Co., Ltd
Model jc528 msb-5mt jc528t8
Aircraft sewage vehicle
Aircraft sewage vehicle (electric type) Main performance indexes:
Electric Powered Water Serve Truck
JSTY5050GWS
JSTY5050GWS
Main performance indexes:
Project performance index
Engine manufacturer Jiangling Automobile Co., Ltd
Model: jx493zlq5
Volume of clean water tank (L) 1000
Volume of sewage tank (L) 2000 / 2200 (with / without vacuum pump)
Water supply flow (L / min) ≥ 150
Water supply pressure (MPA) 0.345
Curb weight (kg): 3600
Boundary dimension (L × w × h) (mm): 6550 × 1900 × 2150
Maximum speed (km / h) 80
Other performance optional vacuum pump
Chassis manufacturer Jiangling Automobile Co., Ltd
Model: jx1061tg25
Lifting height of working platform (mm): 400 ~ 2800
Outer diameter of channel circle (mm) 15500
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) 200 / 0 (with / without vacuum pump)
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd
Model JC528
WGWS30
TK-WS30 WGWS30
Main performance indexes:
Project performance index
Configuration five (September 13, 2019) - configuration four - configuration three - configuration two - configuration one
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd. Jiangling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: 4kh1cn5ls jx493zlq5 jx493zlq4 4jb1cn JX493ZLQ3
Volume of clean water tank (L): 1000 1000 1000 1000 1000
Sewage tank volume (L) 1600 1600 1600 1600 1600 1600
Water supply flow (L / min): 170 170 120 170
Water supply pressure (MPA) 0.345 0.345 0.3 0.345 0.3
Curb weight (kg): 3650 3600 3600 3600 3580
Boundary dimension (L × w × h) (mm): 7000 × 1880 × 2350 6935 × 1882 × 2300 7060 × 1882 × 2300 7005 × 1880 × 2300 6925 × 1882 × 2300
Maximum speed (km / h): 90 80 80 80 85
Other properties -----
Chassis manufacturer Qingling Automobile Co., Ltd. Jiangling Automobile Co., Ltd
Model: ql1070a6hay jx1051tg25 jx1051tg24 ql1053harry jx1050tgb23
Lifting height of working platform (mm): 400-3000 400-3000 400-3000 400-3000 400-3000
Outer diameter of channel circle (mm) 15000 16000 - --
Engine emissions: exhaust pollutants meet the limit requirements of gb17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005--
Volume of circulating water tank (L) ----
Gearbox manufacturer Qingling Automobile Co., Ltd. getrak (Jiangxi) transmission system Co., Ltd. Jiangling Automobile Co., Ltd
Model: msb-5mt jc528 jc528t8 msb-5mt jc528t6
Main performance indexes:
Project performance index
Configuration III (2018-04-19) - configuration II (2017-03-31) - configuration I
Engine manufacturer Jiangling Automobile Co., Ltd. Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: jx493zlq5 4jb1cn jx493zlq4
Volume of clean water tank (L) 1000 1000 1000
Volume of sewage tank (L) 2000 2000
Water supply flow (L / min) 130 130 130
Water supply pressure (MPA) 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35 0.25 ~ 0.35
Curb weight (kg) 3700 3700 3670
Boundary dimension (L × w × h) (mm): 6880 × 2100 × 2150 6835 × 2100 × 2210 6700 × 2100 × 2150
Maximum speed (km / h) 60 70 60
Other performance optional vacuum pump optional vacuum pump optional vacuum pump
Chassis manufacturer Jiangling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model jx1061tg25 ql10603hary jx1061tg24
Lifting height of working platform (mm): 380 ~ 2900 380 ~ 2900 380 ~ 2900 380 ~ 2900
Outer diameter of channel circle (mm) 15000 15000 15000
The engine emissions meet the requirements of the fifth stage of GB 17691-2005,
Volume of circulating water tank (L) 150 150 150
Gearbox manufacturer: getrak (Jiangxi) transmission system Co., Ltd. Qingling Automobile Co., Ltd
Model jc528 msb-5mt jc528t8
| No. | Project name | Design value | Note |
| 1 | Total length(mm) | 7315 | |
| 2 | Total width(mm) | 2200 | |
| 3 | Total height(mm) | 2360 | |
| 4 | Wheelbase(mm) | 3815 | |
| 5 | Wheelbase(front/rear)(mm) | 1680/1650 | |
| 6 | Front hanger(mm) | 1100 | |
| 7 | Rear hanger(mm) | 2440 | |
| 8 | Approach angle (°) | 19 | |
| 9 | departure angle (°) | 5 | |
| 10 | Min. ground clearance | 200 | |
| 11 | Curb weight(kg) | 4060 | |
| 12 | Total weight(kg) | 8190 | |
| 13 | Outside diameter of channel round(mm) | 15600 | |
| 14 | Max. speed(km/h) | 60 | |
| 15 | tank volume(L) | 4000 | |
| 16 | Water supply rate(L/min) | ≥150 | |
| 17 | Min. height of work platform (mm) | 385 | |
| 18 | Max. height of work platform (mm) | 3800 | |
| 19 | Material of water tank | Stainless steel plate 1Cr18Ni9Ti/4mm |
