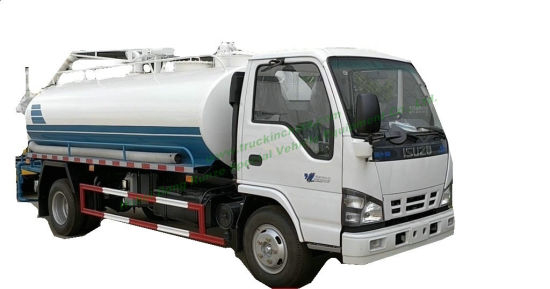

|Samll 4X2 Isuzu Vacuum Tanker Septic Tank 4000L |
|General ||Vehicle |
| ISUZU |
|Overall Dimension ||6000 x 2000 x 2710 mm |
|GVW / Kerb Weight ||7,300 kg / 4,350 kg |
|Cab ||Cab Capacity ||3 persons allowed |
|Air Conditioner ||Air conditioner equipped |
|Engine ||Fuel Type ||Diesel |
|Engine Brand ||ISUZU, 4KH1 CN5 |
|Power ||120 HP / 130HP (88 KW / 96KW) |
|Displacement ||2999 ml |
|Emission Standard ||Euro III , Euro IV |
|Chassis ||Drive Type ||4X2, left hand drive |
|Transmission ||ISUZU gear box, no overhaul within 500,000km |
|Wheelbase/No. of axle ||3360 mm / 2 |
|Tyre Specification ||7.00-16 |
|Tyre Number ||6 tyres and 1 spare tyre |
|Max Speed ||100 km/h |
|Paint ||Metallic paint |
|Superstructure ||Vacuum Tank Capacity ||4,5,6,m3 |
|Tank Material ||Mild steel |
|Suction Head ||7 m |
|Vacuum Pump ||High efficiency, vacuum rare up to 93%, quick suction and discharge |
|Suction Hose ||High quality, wire strength hose |
|Install vacuum Pump drive by engine through PTO, hydraulic system, multi-way valve, pressure gauges, water-gas separator, oil-gas separator, oil tank reservoir, level inspection window and suction hose. |
|Rear door can be hydraulic opened for complete discharge of solid stuff. |
|All other standard accessories: Tool kit, English manual... |
|Optional ||1. Tank material be mild steel, |
2. vacuum pump
The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres septic tank truck
, sewage suction truck, toilet truck
, sewer truck
, vacuum truck
Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.
1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick∁lete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
brand new high pressure vacuum suction truck
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
