JMC road sweeper
Views: 1265 Author: Dong Runze Special Vehicle Publish Time: 2017-11-10 Origin: Dong Runze Special Vehicle
JMC road sweeper
China 4cbm Jmc Isuzu Street Sweeper Truck Euro4, Find details about China Road Sweeper, StreetCleaning Sweeper from 4cbm Jmc Isuzu Street Sweeper Truck Euro4
4x2 LHD N800 series truck chassis, and truck chassis model of JX1083TK25, 152hp diesel Euro Ⅴ diesel engine, 38115mm wheelbase, etc.
And the auxiliary engine is with 77.5Kw. Square shape van structure, stainless steel water tank and wastes van, 4 sets of middle-installed sweeping brushes and rear-installed sucking disk, with the function of spraying dust-settling, etc.
Product model | road sweeper truck for good sale | |
gatbage tank capacity | 5CBM | |
water tanker capacity | 2CBM | |
Product parameters | Total mass(Kg) | 8210 |
Rated weight(Kg) | / | |
Curb weight(Kg) | 5765 | |
Overall dimension(mm) | 6830*2250*2650 | |
Carriage dimensions (mm) | / | |
Chassis parameters | Chassis model | JX1080HARY |
Fuel type | Diesel | |
Emission standard | Euro 5 | |
Engine parameters | Engine model | JX4D30A5H |
Manufacturer | JMC | |
Displacement(ml) | 2892 | |
Power(Kw) | 152HP | |
Main Parameters
| Rated person of Cab | 2 |
Number of axles | 2 | |
Wheelbase(mm) | 3815 | |
Axle load(Kg) | 2950/5260 | |
Tires No. | 6 | |
Tyre size | 7.50-16 14PR | |
Max. speed(Km/h) | 95 | |
Approach angle /Departure angle (°) | 20/16 | |
Front overhang /Rear overhang (mm) | 1115/1960 | |
Front track/Rear track(mm) | 1685/1640 | |

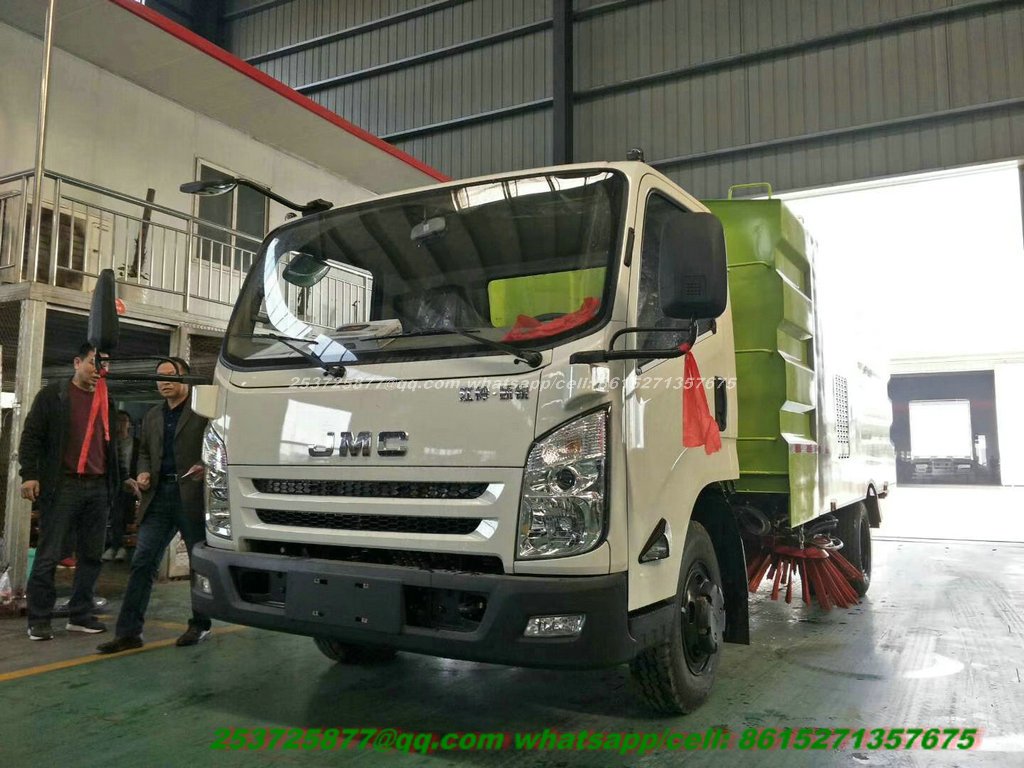

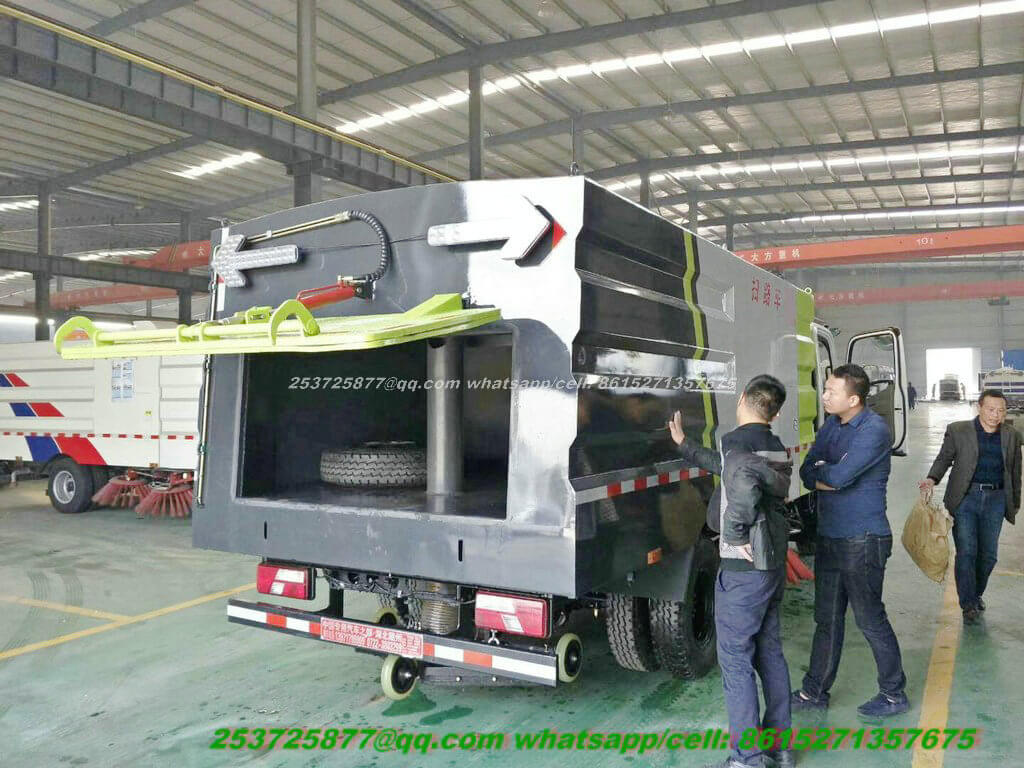

More pictures of hot sale JMC road sweeper truck for sale(2m3 water tank+7m3 wastes van) as below
The main parts of the sweeper truck are of engine, draught fan, suction nozzle, sweeper brushes, control panel, hydraulic system, etc.
| JMC street sweeper truck for sale | |||
| Total mass(kgs) | 8210 | Volume (m3) | Water tank: 2m3 Wastes van: 7m3 |
| Rated mass(kgs) | 2215 | Overall dimension(L*W*H) (mm) | 6830×2220×2650 |
| Curb mass(kgs) | 5800 | Seated person | 3 |
| Approach/departure angle (°) | 20/13 | Front/rear suspension(mm) | 1155/1860 |
| Axle nos. | 2 | Wheelbase(mm) | 3815 |
| Axle load(kgs) | 2950/5260 | Max speed(km/h) | 100 |
| Truck chassis main parameters | |||
| Truck chassis model | JX1083TK25 | Manufacturer | JMC company |
| Overall dimension(L*W*H)(mm) | 6930×2115×2305 | Tyre nos. | 6 |
| Approach/departure angle (°) | 20/13 | Tire specification | 7.50R16LT 14PR |
| Steel spring | 8/7+7,9/9+8 | Front tread(mm) | 1680 |
| Fuel type | Diesel | Rear tread(mm) | 1640 |
| Emission standard | Euro Ⅴ | ||
| Engine model | Manufacturer | Displacement (ml) | Power (kw) |
| JX4D30A5H | JMC | 2892 | 112 |
| Sweeping ability | |
| Auxiliary engine | JX493G |
| Engine Power | 57 kW/ 77.5hp |
| Max speed | ≥95km/h |
| Sweeping width | ≥3-3.3 m |
| Clean water tanker volume | 1-1.5m3 |
| Wastes van volume | 3.5-4.5 m3 |
| Working speed | 3～15km/h |
| Max working ability | 50000 m2/h |
| Max sucking particle size | 100 mm |
| Sweeping efficiency | ≥99% |
| Road sweeper truck structure | The truck is installed with middle 4pcs cleaning brushes, and rear part with suction mouth, so the truck cleaning effect is good and the truck water tanker and garbage box made by SS340 stainless steel. Garbage box and the water tank is an integral structure, water tank in the dustbin garbage box bottom plate bottom pretilt angle up to 12°, easy to dump clean. Garbage box is arranged on the top of the guide groove and a larger area of the filtering net, can fully improve the efficiency of dust removal, so that garbage piles evenly, increase effective capacity, reduced due to a blocked filter and the air resistance. |
The Hydraulic System is for Dumping the Dusts and Garbage, including hydraulic pump, hydro cylinder, overflow valve, throttle valve, hydraulic control one-way valve, balance valve, pressure retaining valve, reversing valve, handlance, hydraulic oil tank, oil hose, etc.
The Volume of the Hydraulic Oil Tank is 60L and the Oil Return and Filter Function is available.
The Sweeping Brushes Has the Automatic Obstacle Evasion and Restoration Functions. The Brushes will automatically Draw Back when Encounter Obstacles and Return to Working Status after Crossing the Obstacles. The Revolving Speed of Brushes Can be Adjusted. The Sweeping Width is 3.5M
Assistant Cummins Engine is used to drive the Fan and Hydraulic System for the Continuity of Cleaning during Driving. Transmission between the Assistant Engine and the Fan is of Automatic Clutch for the Operational Reliability and Longer Service Life of the Engine.
The Dedusting System includes Three Parts: Sprinkler Devices above the Round Brush, Spraying Nozzle inside the Suction Plate, and the Round Misting Device inside the Dust Tank.
JMC 9CBM Street Sweeper
| The Parameters of JMC 9CBM Street Sweeper | |
| Overview | |
| Name | Street Sweeper |
| Dimension(LxWxH) | 6900X2320X2450(mm) |
| Total Mass | 14315Kg |
| Rated Payload | 10000Kg |
| Kerb Weight | 4315Kg |
| Passenger | 3 |
| Approach/Departure Angle | 20/13 |
| The Parameters of Chassis | |
| Manufacture/Model | JMC/EQ1070TJ9AD3 |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 4200 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1835/1640(mm) |
| Tyre | 8.50-16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1180/1920(mm) |
| Leaf Spring Number | 11/9+7, 8/10+7 |
| The Paremeters of Engine | |
| Manufacturer/Model | Jiangxi IZUSU/CY4102-E3C |
| Rated Power | 160hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 5000ml |
| Emission Standard | Euro4 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 680N.m |
| Velocity | 2800rpm |
| The Parameters of Equipment | |
| Assistant Engine | JMC493-G3/77hp |
| Sweeping Width | 2.8-3.5m |
| Sweeping Speed | 3-20km/h |
| Sweeping Capacity | 60000 m2/h |
| Carbage Container Cubage | 7m3 |
| Water Container Cubage | 2m3 |
| Max. Diameter of Particle | 120mm |
| Draught Fan | Maintenance free |
| Hydraulic Pressure Motor | Italy BMR125 |
| Hydraulic Pressure Valve | Taiwan SWH-G02 |
| Control Switch | Schneider |
