DRZ5021TXFQC06
JMC
8705309000

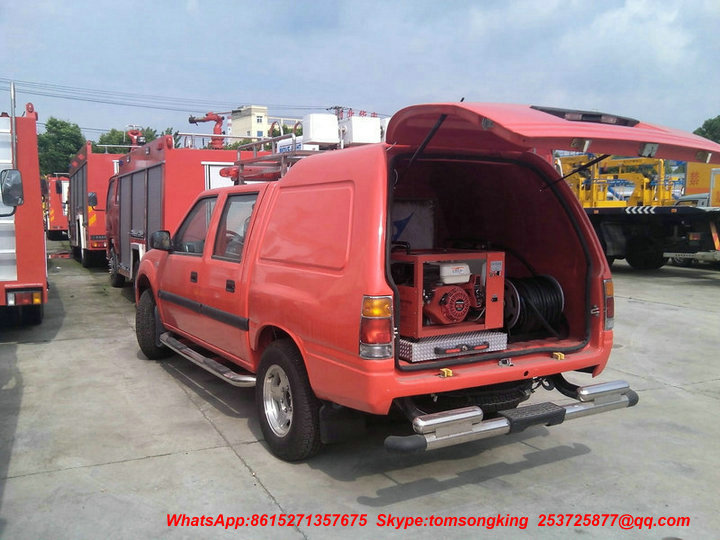

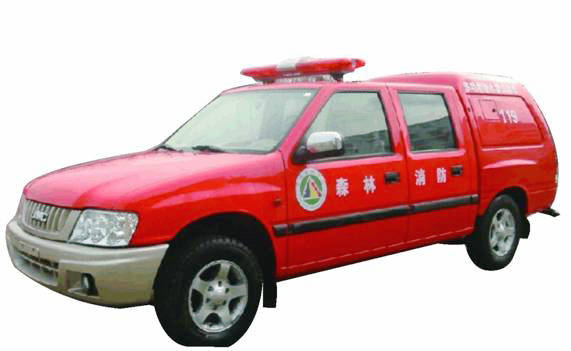

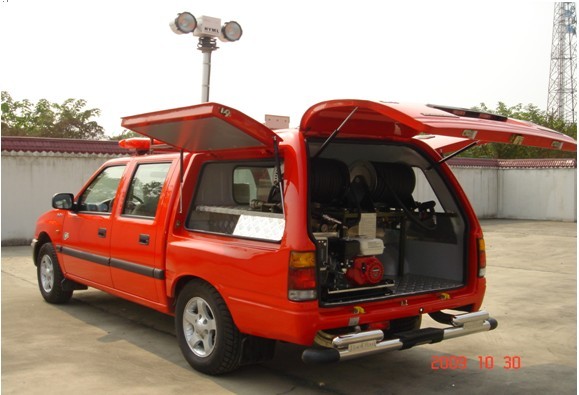

JMC Pickup Fire Truck 4x4 All Wheel Drive Euro 5 with Water mist fire engine
Germany FEV and Ford jointly developed Teng Leopard 3.0 world-class commercial vehicle power,
power torque 92KW / 280Nm, 400,000 km without overhaul

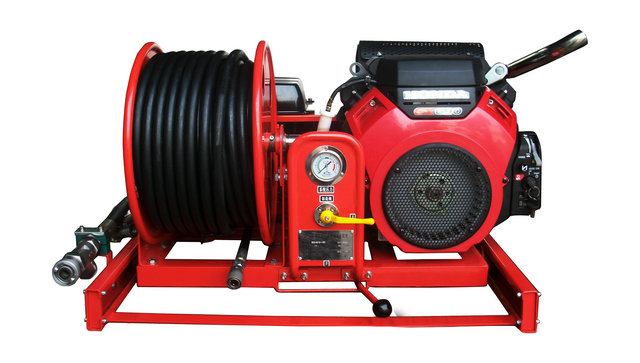

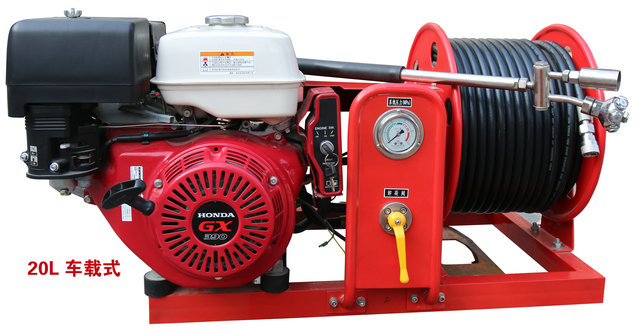

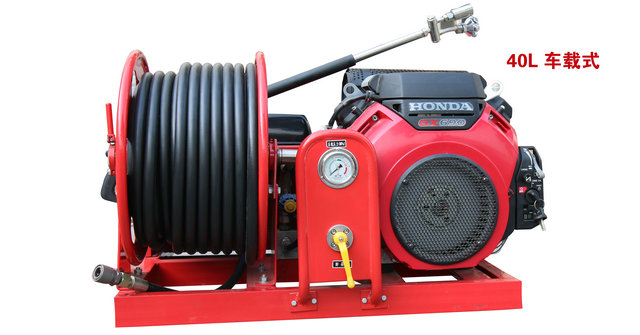

Motor pump water mist system:
Type of extinguishing agent: water and anti-dissolved water film (AFFF-AR) foam extinguishing agent mixture. Water drop diameter (um) 7-100.
Extinguishing agent tank capacity: 250L water, 12L foam, 1-5% mixing concentration adjustable design; The foaming multiple was greater than or equal to 5,25 %.
Working pressure of the system: 3.5 + 0.5mpa, and the spraying distance is greater than 13m and the fine mist is greater than 8m; Dual spray gun, double pipe, hose length is greater than 50m.
Motor pump starting mode: 12V DC power/hand start, rated power (KW) 4.0, fuel tank volume (L) 3.6.
Continuous injection time (min) is greater than 8.
Lighting system:
Dimensions (mm) : 1100 x 930 * 230, power (W) 300.
Light source: metal halide lamp, light flux (lm) 20000 x 2, start-up time < 30 s power supply: 12 v.
Lifting method: pneumatic telescopic rod, maximum lifting height (mm) 4600, horizontal and vertical rotation Angle (0-340 °),
The wireless remote control is within 30 meters.
Vehicle tools:
Crowbar, multi-purpose axe, nail, fiber-handle round head hammer each.
[product advantages]
1. Low water consumption, rapid fire fighting and high efficiency. Micro droplet spray penetration is strong, foam range is far away. Wide range of application, the combustion gas can be completely controlled, for the burning liquid has a particularly good save effect.
2. The low-pressure working system is of high security and the recoil force is small, so the low working pressure will not create the air entrainment into the fire, reducing the risk of the jet impact to disperse the burning debris. The front part of the cab is a long row of warning lights: the power of the alarm is 100W, and the top and rear of the car are equipped with 24V and 60W fire lamps, and equipped with flashlights. The crew room, equipment box and pump room are equipped with floodlight.
JMC Pickup Fire Truck 4x4 All Wheel Drive Euro 5 with Water mist fire engine
Germany FEV and Ford jointly developed Teng Leopard 3.0 world-class commercial vehicle power,
power torque 92KW / 280Nm, 400,000 km without overhaul
Motor pump water mist system:
Type of extinguishing agent: water and anti-dissolved water film (AFFF-AR) foam extinguishing agent mixture. Water drop diameter (um) 7-100.
Extinguishing agent tank capacity: 250L water, 12L foam, 1-5% mixing concentration adjustable design; The foaming multiple was greater than or equal to 5,25 %.
Working pressure of the system: 3.5 + 0.5mpa, and the spraying distance is greater than 13m and the fine mist is greater than 8m; Dual spray gun, double pipe, hose length is greater than 50m.
Motor pump starting mode: 12V DC power/hand start, rated power (KW) 4.0, fuel tank volume (L) 3.6.
Continuous injection time (min) is greater than 8.
Lighting system:
Dimensions (mm) : 1100 x 930 * 230, power (W) 300.
Light source: metal halide lamp, light flux (lm) 20000 x 2, start-up time < 30 s power supply: 12 v.
Lifting method: pneumatic telescopic rod, maximum lifting height (mm) 4600, horizontal and vertical rotation Angle (0-340 °),
The wireless remote control is within 30 meters.
Vehicle tools:
Crowbar, multi-purpose axe, nail, fiber-handle round head hammer each.
[product advantages]
1. Low water consumption, rapid fire fighting and high efficiency. Micro droplet spray penetration is strong, foam range is far away. Wide range of application, the combustion gas can be completely controlled, for the burning liquid has a particularly good save effect.
2. The low-pressure working system is of high security and the recoil force is small, so the low working pressure will not create the air entrainment into the fire, reducing the risk of the jet impact to disperse the burning debris. The front part of the cab is a long row of warning lights: the power of the alarm is 100W, and the top and rear of the car are equipped with 24V and 60W fire lamps, and equipped with flashlights. The crew room, equipment box and pump room are equipped with floodlight.
JX1020 /4*4
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
---|---|---|---|---|---|---|---|
1 | JX493ZLQ4C | 2 771 cc | 2.8 L | 169 cu in | 80 kW | 109 hp | Jiangling Motors Co., Ltd. (JMC) |
2 | JX493ZLQ4F | 2 771 cc | 2.8 L | 169 cu in | 72 kW | 98 hp | Jiangling Motors Co., Ltd. (JMC) |
3 | JX493ZLQ4G | 2 771 cc | 2.8 L | 169 cu in | 80 kW | 109 hp | Jiangling Motors Co., Ltd. (JMC) |
Performance | ||||
---|---|---|---|---|
Maximum speed | 120 km/h | 75 mph | ||
ABS | have |
Capacity | ||||
---|---|---|---|---|
Rated load capacity | 235 kg | 0.2 t | 518 lbs |
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 1780 kg | 1.8 t | 3,924 lbs | |
Gross vehicle weight rating | 2390 kg | 2.4 t | 5,269 lbs | |
Axle load distribution | 1030 kg / 1360 kg 1 t / 1.4 t 2,271 lbs / 2,998 lbs |
Dimensions | ||||
---|---|---|---|---|
Overall length | 4990 mm | 16′5″ | ||
Overall width | 1850 mm | 6′1″ | ||
Overall height | 1755 mm | 5′10″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 2 | |||
Wheelbase | 3025 mm | 10′0″ | ||
Front track | 1445 mm | 4′9″ | ||
Rear track | 1425 mm | 4′9″ | ||
Front overhang | 795 mm | 2′8″ | ||
Rear overhang | 1170 mm | 3′11″ | ||
Angle of approach | 29° | |||
Angle of departure | 17° | |||
Leaf springs | - / 6 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 4 | |||
Tyres dimension | 215/70R15C, 215/75R15 |
JDF5021TXFQC06
JX1035TSD4
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
---|---|---|---|---|---|---|---|
1 | JX4D30A4L | 2892 cc | 2.9 L | 177 cu in | 92 kW | 126 hp | Jiangling Motors Co., Ltd. (JMC) |
Performance | ||||
---|---|---|---|---|
Fuel | diesel fuel | |||
Maximum speed | 150 km/h | 94 mph | ||
ABS | optional |
Capacity | ||||
---|---|---|---|---|
Rated load capacity | 480 kg | 0.5 t | 1,058 lbs |
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 1770 kg | 1.8 t | 3,902 lbs | |
Gross vehicle weight rating | 2575 kg | 2.6 t | 5,677 lbs | |
Axle load distribution | 1120 kg / 1455 kg 1.1 t / 1.5 t 2,469 lbs / 3,208 lbs |
Dimensions | ||||
---|---|---|---|---|
Overall length | 5140 mm | 16′11″ | ||
Overall width | 1690 mm | 5′7″ | ||
Overall height | 1700 mm | 5′7″ |
Cargo body | ||||
---|---|---|---|---|
Cargo body length | 1480 mm | 4′11″ | ||
Cargo body width | 415 mm | 1′5″ | ||
Cargo body height | 1470 mm | 4′10″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 2 | |||
Wheelbase | 3025 mm | 10′0″ | ||
Front track | 1435 mm | 4′9″ | ||
Rear track | 1440 mm | 4′9″ | ||
Front overhang | 840 mm | 2′10″ | ||
Rear overhang | 1275 mm | 4′3″ | ||
Angle of approach | 30° | |||
Angle of departure | 21° | |||
Leaf springs | - / 6 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 4 | |||
Tyres dimension | LT 215/75 R15, P235/75R15 |
Miscellaneous | ||||
---|---|---|---|---|
Seating capacity | 2+3 | |||
Steering control | steering wheel |
JX1020 /4*4
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
---|---|---|---|---|---|---|---|
1 | JX493ZLQ4C | 2 771 cc | 2.8 L | 169 cu in | 80 kW | 109 hp | Jiangling Motors Co., Ltd. (JMC) |
2 | JX493ZLQ4F | 2 771 cc | 2.8 L | 169 cu in | 72 kW | 98 hp | Jiangling Motors Co., Ltd. (JMC) |
3 | JX493ZLQ4G | 2 771 cc | 2.8 L | 169 cu in | 80 kW | 109 hp | Jiangling Motors Co., Ltd. (JMC) |
Performance | ||||
---|---|---|---|---|
Maximum speed | 120 km/h | 75 mph | ||
ABS | have |
Capacity | ||||
---|---|---|---|---|
Rated load capacity | 235 kg | 0.2 t | 518 lbs |
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 1780 kg | 1.8 t | 3,924 lbs | |
Gross vehicle weight rating | 2390 kg | 2.4 t | 5,269 lbs | |
Axle load distribution | 1030 kg / 1360 kg 1 t / 1.4 t 2,271 lbs / 2,998 lbs |
Dimensions | ||||
---|---|---|---|---|
Overall length | 4990 mm | 16′5″ | ||
Overall width | 1850 mm | 6′1″ | ||
Overall height | 1755 mm | 5′10″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 2 | |||
Wheelbase | 3025 mm | 10′0″ | ||
Front track | 1445 mm | 4′9″ | ||
Rear track | 1425 mm | 4′9″ | ||
Front overhang | 795 mm | 2′8″ | ||
Rear overhang | 1170 mm | 3′11″ | ||
Angle of approach | 29° | |||
Angle of departure | 17° | |||
Leaf springs | - / 6 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 4 | |||
Tyres dimension | 215/70R15C, 215/75R15 |
JDF5021TXFQC06
JX1035TSD4
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
---|---|---|---|---|---|---|---|
1 | JX4D30A4L | 2892 cc | 2.9 L | 177 cu in | 92 kW | 126 hp | Jiangling Motors Co., Ltd. (JMC) |
Performance | ||||
---|---|---|---|---|
Fuel | diesel fuel | |||
Maximum speed | 150 km/h | 94 mph | ||
ABS | optional |
Capacity | ||||
---|---|---|---|---|
Rated load capacity | 480 kg | 0.5 t | 1,058 lbs |
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 1770 kg | 1.8 t | 3,902 lbs | |
Gross vehicle weight rating | 2575 kg | 2.6 t | 5,677 lbs | |
Axle load distribution | 1120 kg / 1455 kg 1.1 t / 1.5 t 2,469 lbs / 3,208 lbs |
Dimensions | ||||
---|---|---|---|---|
Overall length | 5140 mm | 16′11″ | ||
Overall width | 1690 mm | 5′7″ | ||
Overall height | 1700 mm | 5′7″ |
Cargo body | ||||
---|---|---|---|---|
Cargo body length | 1480 mm | 4′11″ | ||
Cargo body width | 415 mm | 1′5″ | ||
Cargo body height | 1470 mm | 4′10″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 2 | |||
Wheelbase | 3025 mm | 10′0″ | ||
Front track | 1435 mm | 4′9″ | ||
Rear track | 1440 mm | 4′9″ | ||
Front overhang | 840 mm | 2′10″ | ||
Rear overhang | 1275 mm | 4′3″ | ||
Angle of approach | 30° | |||
Angle of departure | 21° | |||
Leaf springs | - / 6 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 4 | |||
Tyres dimension | LT 215/75 R15, P235/75R15 |
Miscellaneous | ||||
---|---|---|---|---|
Seating capacity | 2+3 | |||
Steering control | steering wheel |
