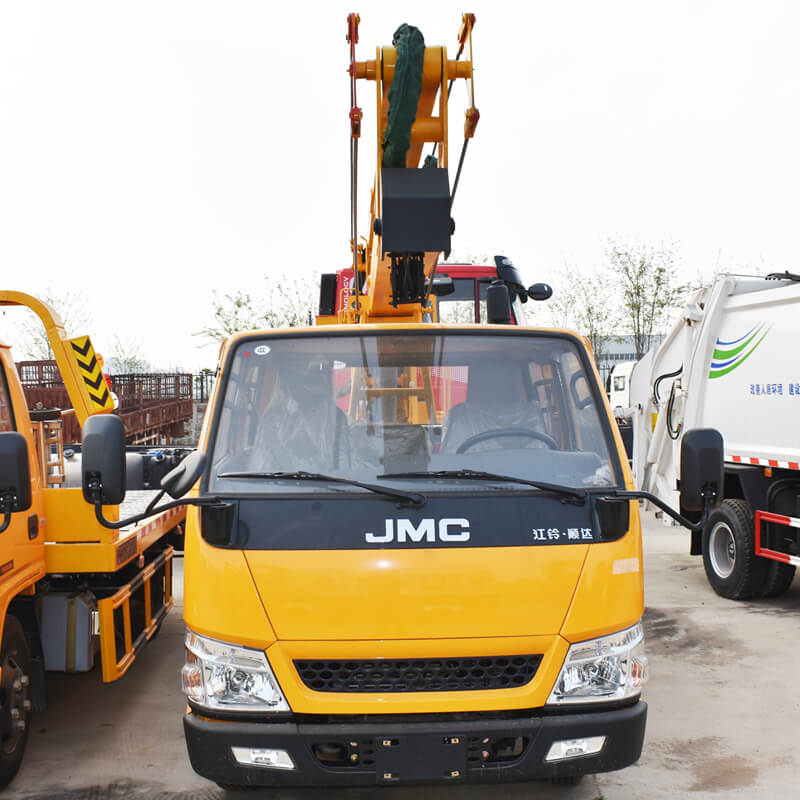

JMC Aerial Platform Truck 12 - 14 -16m
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5051JGKJ3
-
Dong run
-
8705909990
boom trucks aerial bucket truck
aerial work platforms are available of 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Features:
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.
ERUO3
| Main parameters | Product model | DRZ5051JGKJ3 |
| Gross weight (kg) | 5390 | |
| Curb weight (kg) | 5000 | |
| Cab seats | 3 | |
| Number of axles | 2 | |
| Overall dimension(mm) | 7300X2000X3100 | |
| Wheel base(mm) | 3360 | |
| Max speed (km/h) | 105 | |
| Steering | Left hand drive or right hand drive | |
| Chassis parameters | Chassis model | JX1060TJ20D3 |
| Brand | JMC | |
| Fuel | diesel | |
| Number of wheels (mm) | 6 | |
| Tire specification | 7.00R16LT | |
| Engine displacement (ml) | 2771 | |
| Engine power (kw) | 80 | |
| Emission standard | Euro II | |
| Upper | High meters (m) | 16 |
| Max. Out reach (m) | 11 | |
| Max. lifting weight (kg) | 1000 | |
| Rotating speed | 0~2 r/min | |
| The whole boom outreaching time | ≤30 S |
Euro4
Key Words: cost of aerial platform truck, truck mounted aerial work platforms for sale, aerial work platform price, aerial work platform trucks manufacturer, aerial truck with basket from China
| Aerial Work Platform JMC (14-16M) | ||
| General | Vehicle Brand | Dong run |
| Chassis Brand | JMC | |
| Overall Dimension | 7600 x 1980 x 3100 mm | |
| GVW / Kerb Weight | 5,935 kg / 5,610 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | JMC engine, JX493ZLQ4 | |
| Power | 109Ps (80KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive or right hand drive |
| Transmission | 5 forward gears & 1 reverse | |
| Wheelbase/No. of axle | 3815 mm / 2 | |
| Tyre Specification | 7.00R16LT | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 14m - 16 m | |
| Outriggers | 4pcs, H-type; Hydraulically extend and retract | |
| Slewing | 360° continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at base and operator’s cage. | ||
| Optional | Insulated cage; Cargo box; Hoist hook with cables. | |
ERUO5 JDF5060JGK16J5
