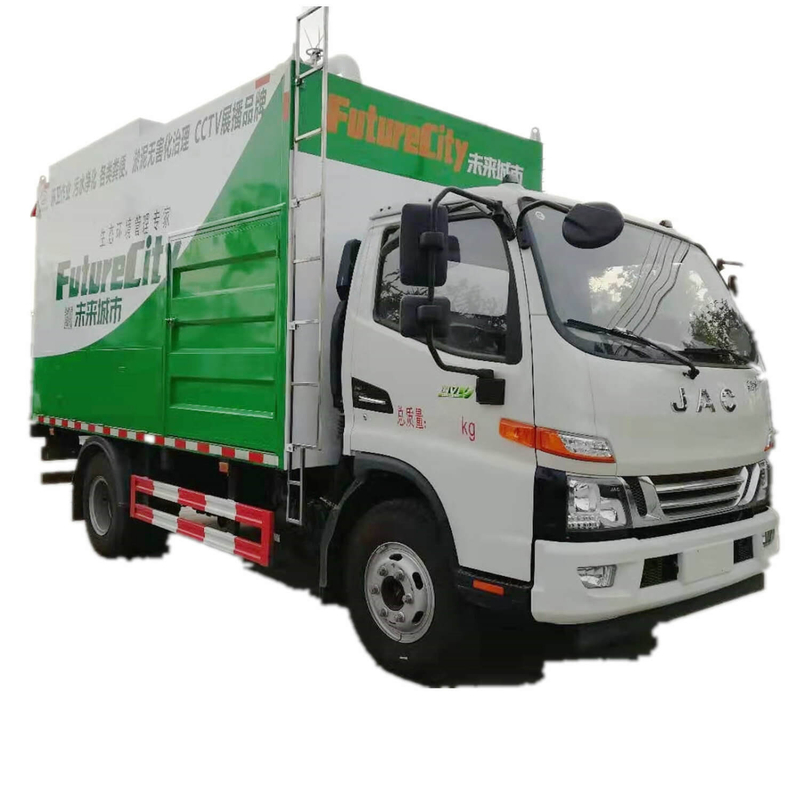

JAC Wastewater Purification Sewage Sludge Treatment Biosolids System Vacuum Sewer Cleaning Jetting Truck

JAC Municipal Wastewater Treatment Sewage Sludge Biosolids Sewer Vacuum Truck
Dewatered Biosolids or Sludge
Price: $ 90000
Discount Price: $ 88000
Availability:
Quantity:

  • Shanghai, China

  • 80000

  • T/T

  • 1

JAC Municipal Wastewater Treatment Sewage Sludge Biosolids Sewer Vacuum Truck

Dewatered Biosolids or Sludge


Wastewater Sewage Sludge Treatment Biosolids Loading System Sewer Vacuum Cleaning Jetting Truck

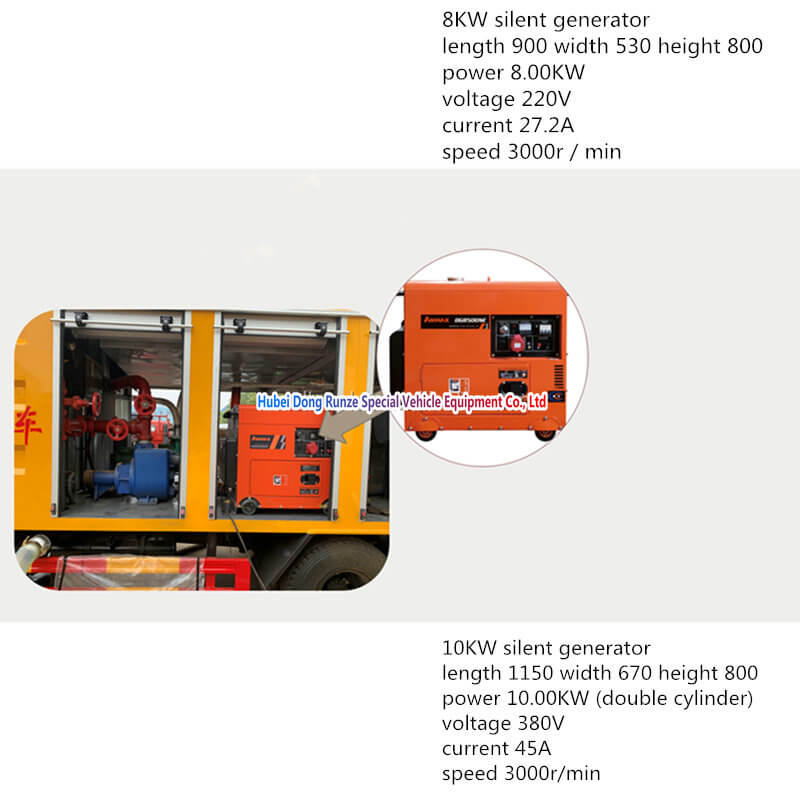

Wastewater purification vehicle (4)Wastewater purification vehicle (2)Wastewater purification vehicle (3)

Dongfeng Sewage Treatment Truck Sewage Septic Tank Truck Waste Water Purification Truck for Fecal Water Separation
This Truck mounted ingenious machine turns feces into Clean water

Production of Municipal Sewage Sludge

Municipal wastewater, or sewage, refers to water that has been used in urban and suburban area homes or businesses for washing, bathing, and flushing toilets. Municipal wastewater also may include water from industrial sources. To remove chemicals or pollutants resulting from industrial processes, industrial contributors to municipal wastewater systems must pretreat their wastewater before it is discharged into the sewerage system. The wastewater is conveyed via the sanitary sewerage system to a centralized wastewater treatment plant (sometimes called a Publicly Owned Treatment Works, or POTW). At the POTW, the sewage passes through a series of treatment steps that use physical, biological, and chemical processes to remove nutrients and solids, break down organic materials, and destroy pathogens (disease-causing organisms) in the water. The rejuvenated water is released to streams and rivers, or may be sprayed over large areas of land.

Preliminary treatment of raw sewage involves screening to remove large objects such as sticks, bottles, paper, and rags, and a grit removal stage during which inorganic solids (sand, grit, cinders) rapidly settle out of the water. The screenings and grit removed in this stage of treatment typically are landfilled and do not become part of the sewage sludge.

Primary treatment involves gravity sedimentation and flotation processes that remove approximately half of the solid material that enters this stage. Solid material (both organic and inorganic) that settles out during this stage of treatment is drawn from the bottom and constitutes the primary sludge. In most POTWs, the floating material (oil, grease, wood, and vegetable matter) that is skimmed from the water surface during primary treatment is disposed of separately and does not become part of the primary sludge.

Secondary treatment is a carefully controlled and accelerated biological process in which naturally occurring microorganisms are used to degrade (break down or digest) suspended and dissolved organic material in the wastewater. This material is converted into carbon dioxide that is released to the atmosphere and into microbial cell mass.

In secondary sedimentation basins, the microbial cell mass settles to the bottom and is removed. This mainly organic material is called secondary sludge.

Some treatment plants also include tertiary treatment steps designed to further reduce plant nutrients (nitrogen and phosphorus), suspended solids, or biological oxygen demand in the wastewater. Chemically precipitated phosphorus and filtration produce a tertiary sludge.

Finally, the water undergoes disinfection treatment to destroy pathogenic microorganisms. The rejuvenated water is then released to a stream or river or may be sprayed over large areas of land.

Introduction to purification treatment vehicle · H3
model H3
Introduction purification treatment  function: solid-liquid separation, liquid medicine mixing, fecal classification system and independent power generation.
The biggest advantages of this model:
1The whole equipment and core parts are made of 304 stainless steel, which increases the service life of the equipment and reduces the maintenance cost.
2The front-end garbage separation adopts the spiral extrusion separation technology, which has made a breakthrough in the previous technology. The parts are movable assembly and combination, which is convenient for disassembly, maintenance and repair, and fundamentally solves the problem of "blockage".

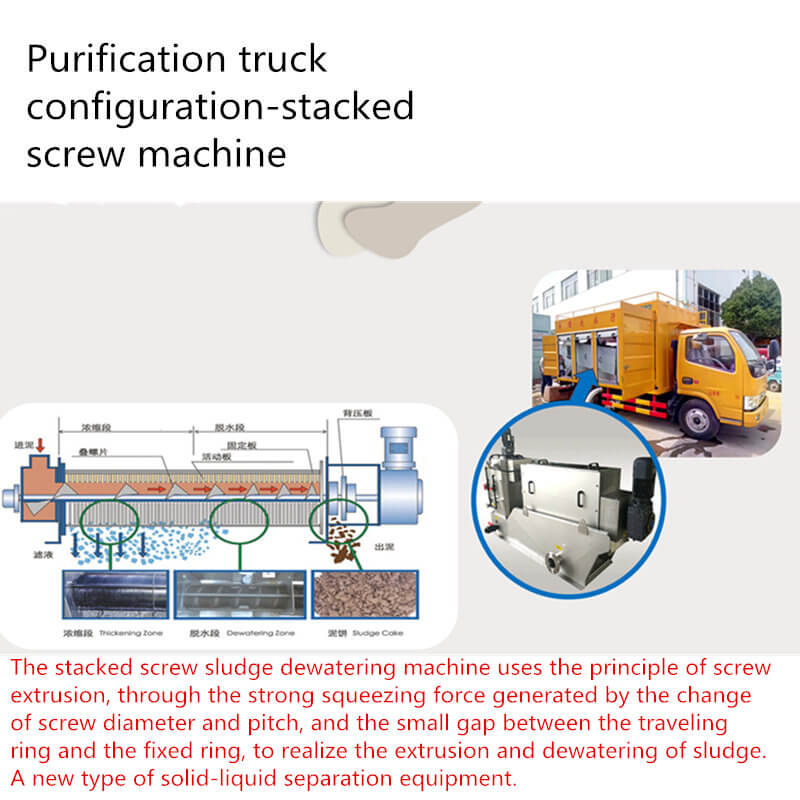

3The fecal water separation system adopts the stacked screw sludge dewatering technology. Through technical improvement, the screw two-way operation is successfully realized, which skillfully avoids the common blockage problem of the traditional dehydrator.At the same time, the treatment speed is improved and the moisture content of mud cake is reduced.
4Two models have been introduced. On the basis of the original carbon steel, an all stainless steel product has been added to increase customer selectivity.
Incidental
parts
One generator, one electric box, one set of fecal suction pipe and four sets of joints




Standard technical parameters of sewage hardening processor · H3 in septic tank
Serial number entry name Company parameter
1 Overall dimension (length)×wide×High) m 4.2*2.2*2.4
2 Vehicle specification m 5995*2200*3600
3 the stipulated number of personnel people 3
4 Curb weight t 5.5
5 Loading volume ≥3.16
6 Compression box (long)×wide×High) m 1.72*0.8*0.9
7 Front end press set 1
8 Vacuum pump kw 7.5
9 Dosing pump kw 1
10 Maximum negative pressure of vacuum pump KPa - 80
11 Liquid medicine suction pump kw 0.75
12 Vacuum pump water tank (L * w * h) m 1.5*0.23*0.85
13 Inspection port (length * width) m 0.57*0.47
14 Height of slag outlet m 1.35
15 Maximum pumping speed m³/h 50
16 Maximum processing speed m³/h 20
17 Maximum suction lift m 8
18 Max Power consumption Degree / h 18
19 Equipment generator kw 30
20 Maximum fuel consumption L 4
21 Ring test compressor (diameter) mm 350
22 Liquid medicine mixer kw 0.4*3
23 Mixing mixer kw 0.4*1,1.1*1
24 Motor inductor w 0.01
25 Electric gate valve w 180
26 Dongfeng chassis model model EQ1070SJ3BDF
27 Vehicle engine model YC4E115-50
28 Chassis power kw 85
29 wheelbase mm 3306
30 Tire specification
7.50-16 8PR
31 Vehicle license plate
Yellow card
32 emission standard
Euro 3-6


Dongfeng Sewage Treatment Truck Sewage Septic Tank Truck Wastewater Treatment Purification Truck for Fecal Water Separation "Sewage Sludge" or "Biosolids"

Generator configuration parameters
★★ technical specifications and parameters of 30kW Weifang series diesel generator set ★★★
★ technical parameters of generator set:
Unit model: hq30gf Steady state voltage regulation rate (%): ≤± 1
Output power: 30KW Voltage fluctuation rate (%): ≤± 0.5
Power factor: cosΦ=0.8 (lag) Transient voltage regulation rate (%): + 20 ~ - 15
Output voltage: 400V / 230V Voltage stabilization time (s): ≤ 1
Output current: 54a Steady state frequency adjustment rate (%): ≤± 1
Rated frequency: 50Hz Frequency fluctuation rate (%): ≤± 0.5
Rated speed: 1500rpm Transient frequency adjustment rate (%): + 10 ~ - 7
Fuel grade: (standard) 0# light diesel (normal temperature) Frequency stabilization time (s): ≤ 3
Overall dimension: 1650×six hundred and fifty×1300(L×W×H (mm, Ref.) Fuel consumption (100% load): 224g / kW · H
Unit weight: 600kg (Reference) Noise (lp7m): 105dB (a)
★ technical parameters of diesel engine:
Brand / origin: Weifang Diesel Engine Cooling mode: closed water circulation cooling
Oil engine model: zh4100d Oil supply mode: direct injection
Number of cylinders / lifting structure: 4 / L type Speed regulation mode: mechanical speed regulation
Cylinder bore stroke: 100×115 mm Air inlet mode: natural suction
Compression ratio: 19.0:1 Overload capacity: 110%
Start mode: DC12V electric start Speed: 1500rpm
★ technical parameters of generator:
Motor brand: Protection grade: IP21
Motor model: hqf-30 Wiring mode: three-phase four wire, Y-type connection
Rated power: 30KW Regulation mode: AVR (automatic voltage regulator)
Rated voltage: 400V / 230V Output frequency: 50Hz
Insulation class: Class H Output factor: cosΦ=0.8 (lag)
