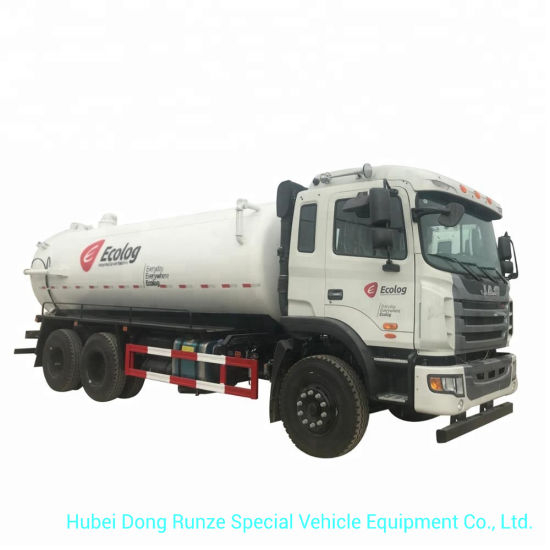

JAC Cesspit Emptier Vacuum Tanker Truck Tank Capacity 15000L to 18000liters Euro 5.6 Standard
| Quantity: | |
|---|---|
-
DRZ
-
JAC OBM ODM
-
8509
-
Shanghai, China
-
800
-
T/T
JAC Cesspit Emptier Vacuum Tanker Truck Tank Capacity 15000l to 18000Liters
For Cesspool Emptier
carbon - stainless steel
RHD OR LHD 6x4 - 6x6

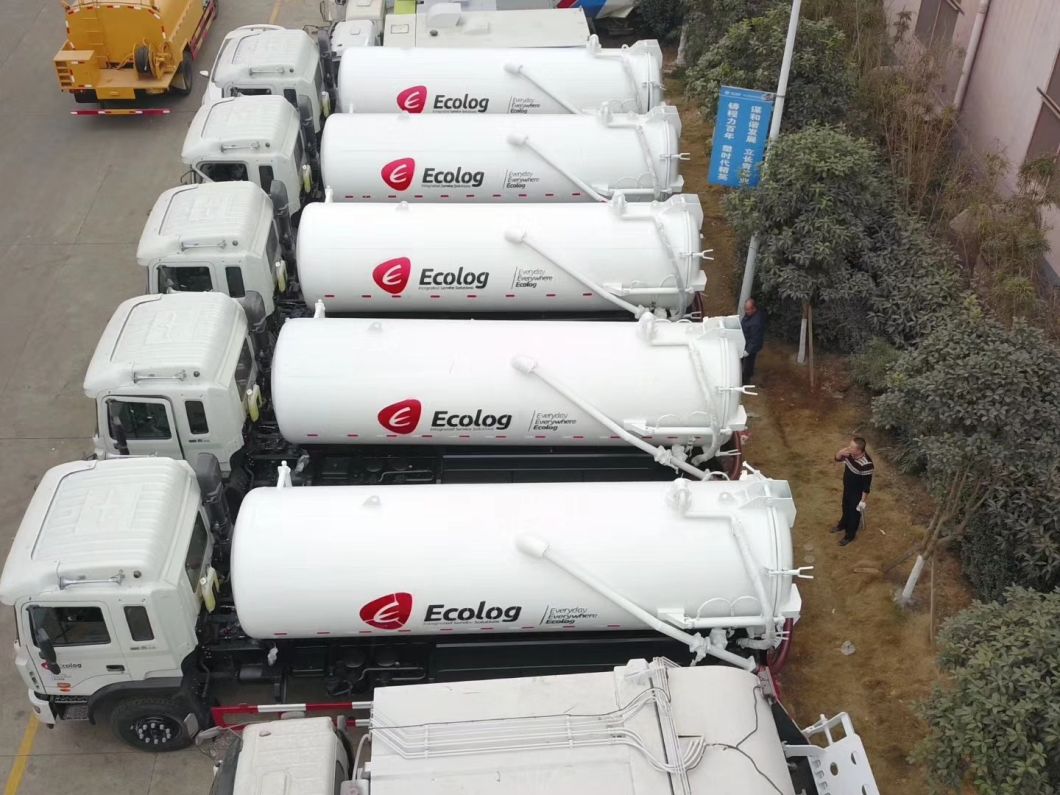

The pictures are for your reference only.
Sewage suction truck capacity from 3000 litres to 20,000 litres
Fecal suction truck capacity from 3000 litres to 10,000 litres
septic tank truck, sewage suction truck, toilet truck,sewer truck, vacuum truck Detailed Product Description
Products Technical Specification | ||
Type | 18cbm sewage suction sewer fecal tanker truck | |
Brand | JAC | |
Cab | One row, four doors,with A/C,electrical windows | |
Model | HFC1251P2K3E | |
Vehicle Description | ||
Overall dimensions(mm) | 9000X25000X3160 | |
G.V.W (kg) | 25000 | |
Curb weight (kg) | 15500 | |
Max speed (Km/h) | 90 | |
Front / Rear axle | 7 tons /18tonsX2 | |
Type of fuel | Diesel | |
Tire | 12.00R20 | |
Engine | ||
Engine model | CA6DLD-26E5 | |
Maximum power | 194kw(260hp) | |
Displacement | 6.6L | |
Emission Standard | Euro 5-6 | |
Up-parts Description | ||
TankCapacity | 15000l to 18000Liters | |
Material | High quality carbon steel plate, anti-rust treatment. Optional:stainless steel | |
Structure | Welding, there is clapboard inner | |
Equipment | Four-way change valve fitted to pump Drain separator Fully opening rear door Sight galsses at top and bottom of tank Ladder: for access to top of tank complete with cat walk on top of tank | |
Working funciton | Suction depth | >7 m |
Suciton time | 250 s | |
Pressure | >11.0Mpa | |
Lifting time | <45s | |
Cover opening | <25s | |
Suction pipe | 7m length and 100mm in diameter | |
Accoessories | Rear wheel arches complete with Mudguards | |
Rear drip tray | ||
Heavy-duty rear bumper | ||
CAMC vacuum sewage suction truck
1. Equipped with hydraulically opened rear lid with self-discharge, high vacuum degree an sucking range.
2. Equipped with self-priming and self-draining vacuum pump (ratin rotate speed=1400r/m, min rotate speed>800r/m,max suction lift> 6m, vacuum>500mmhg, clockwise)
3. Time for full suction<5min
| Item | unit | parameter | |||
| Vehicle model | DRZ5250GXWE vacuum sewage suction truck | ||||
| Chassis model | HN1250HB31C | ||||
| Overall dimensions | mm | 9400*2500*3700 | |||
| Factual cubage | L | 16000-18000 (16cbm-18cbm) | |||
| GVW | kg | Appro×12490 | |||
| Rated loading capacity | Appro×10000 | ||||
| Mass in working order | Appro×12000 | ||||
| Body internal dimensions | mm | 5500*200 | |||
| Wheel base | 4350-1350 | ||||
| F/R track base | 1250/2450 | ||||
| Approach/departure angle | ° | 34/18 | |||
| Exhaust/hp | ml/kw | 6600/194 | |||
| Max speed | km/h | 90 | |||
| Tire specification | 12.00R20 | Engine type | CA6DLD-26E5 | ||
| Traction system | 6×4 | transmission | 12-speed with over drive | ||
| Number of axles | 3 | Electric system | 24v | ||
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
| Equipment | Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) | ||||
| Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment | |||||
| Time for full sucktion<5min | |||||
| Engine | Weichai or CAMC brand Environmental Protection,supercharge,diesel engine | ||||
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
Looking forward to receiving your inquiry!
