IVECO.Roll Back Flatbed Wrecker Or Wheel lift Wrecker With Broken Car Carrier For Towing Truck 5Ton
Optional 4x4 Offroad AWD Integrated Lift 3Ton Ask for better price
4x2 left driving or 4x4 offroad The pictures are for your reference only.

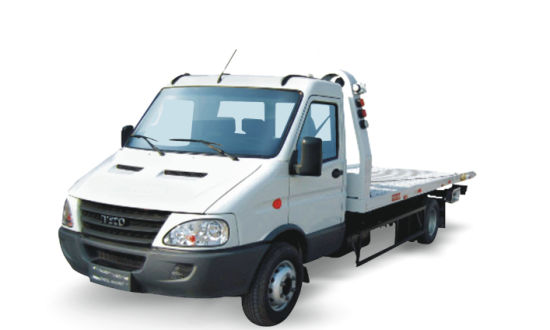

flat bed recovery truck
Flat plate wrecker information
Tech 1
| Main information |
| Product Name: | IVECO. Flatbed car Carrier
IVECO.Tow Truck
IVECO. Wrecker |
| Itme No. | | DRZ5050TQZNJ |
| Chassis No. | | NJ1054AJC |
| Overall Size | mm | 7860×2300×2467(mm) |
| Total Weight | kg | 5200 |
| Curb weight | kg | 3505 |
| Cab-by the number | people | 3 |
| Approach/departure angle | ° | 22.5/9 |
| Front/rear suspension | mm | 960/2560 |
| Number of axles | pcs | 2 |
| Wheelbase | mm | 3950 |
| Front / Rear tread | mm | 1695/1540 |
| Maximum speed | km/h | 125 |
| Tire No. | pcs | 6 |
| Tyre Specification | | 6.50R16LT |
| Engine information |
| Brand | | IVECO |
| Model | | SOFIM8140.43S4 |
| Displacement | cc | 2798 |
| Rated Power | kw/hp | 95/130 |
| Superstructure |
| Truck Lifting Capacity | kg | 3000 |
| Carrier Bed Length | m | 5.6 |
| Carrier Bed Width | m | 2.7 |
Tech 2
Sliding platform wrecker tow truck could handing two breakdown or damaged cars at one time. the sliding platform could make 8° load angle to hauling the car onto the bed.
| Lifting organ | Max lifting capacity (kg) | 4000 |
| Max lifting height (mm) | 3630 |
| Lift-hoist telescope length (mm) | 1600 |
| Winch rating pulling capacity (kg) | 3500 |
| Length of steel (m) | 21 |
| Hoisting organ | Max under-hoist useful length (mm) | 1700 |
| Rated under-hoist capacity (kg) | 1450 |
| Full extended max under-hoisting capacity (kg) | 600 |
| Rated under-pulling capacity (kg) | 5300 |

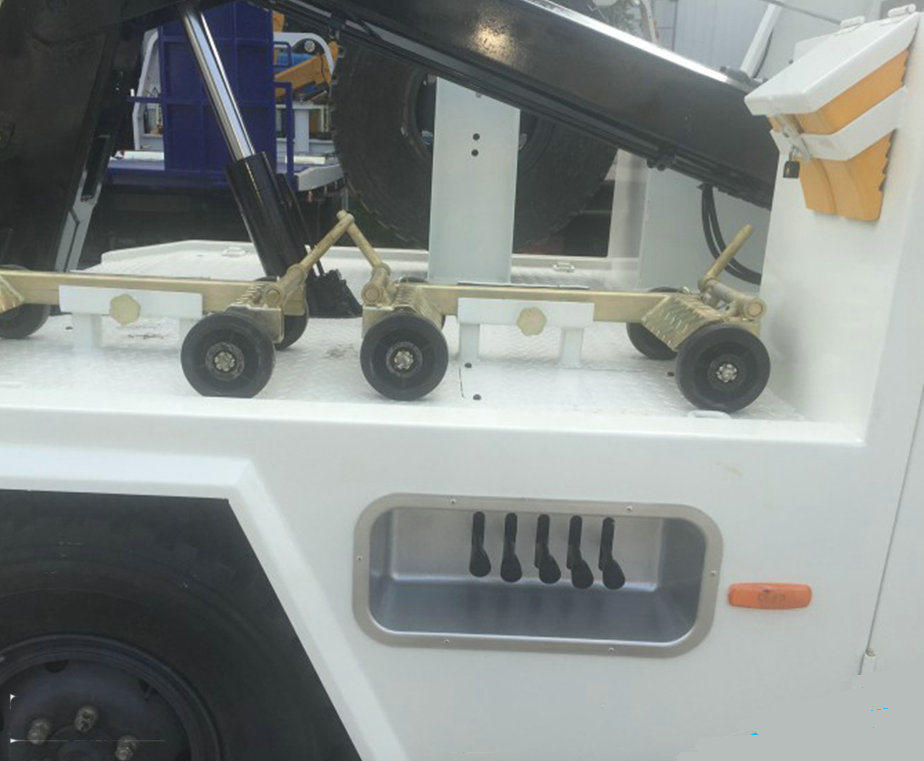

| accessories | Front Supporting forks 1set, Rear supporting fork 1 set, supporting fork 2 sets, forked standard 2 sets |
Tech 3

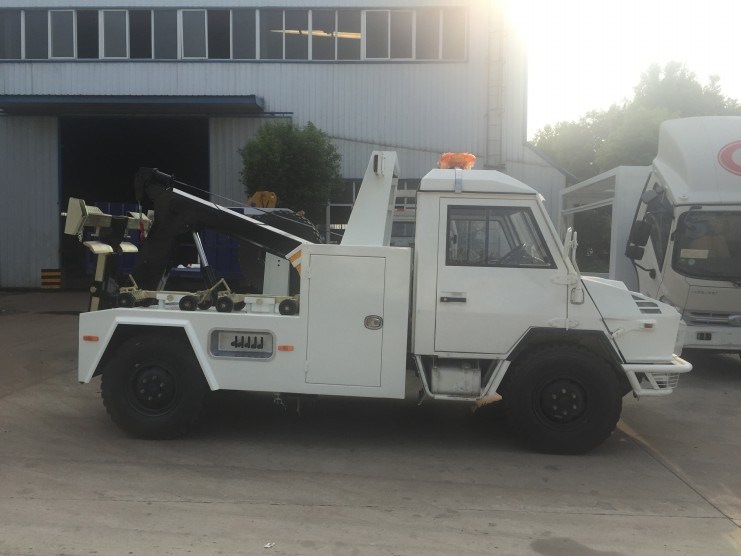

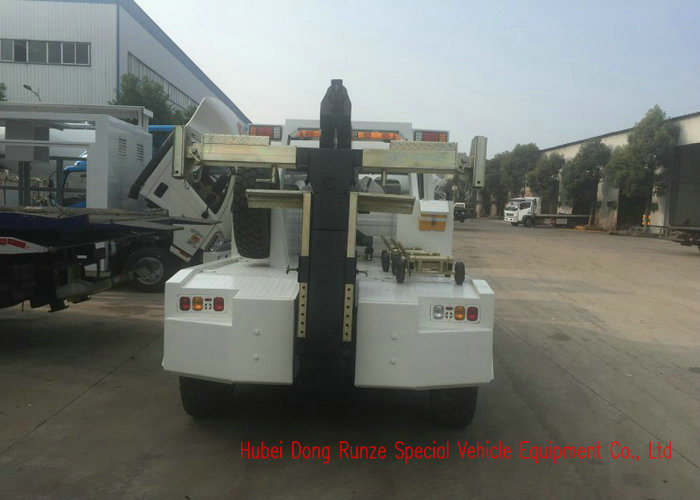

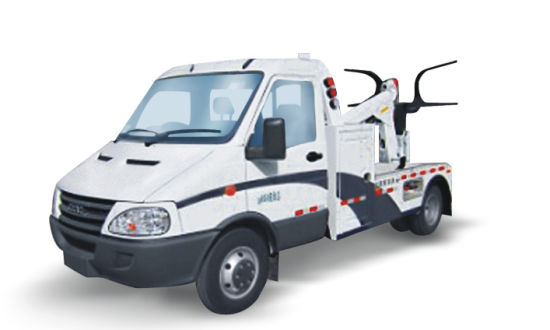

3 Ton Iveco. Integrated Wrecker Truck
| Truck Specification |
| Chassis model | DRZ5041TQZN5 |
| Cab | IVECO. CABIN |
| Driving Type | 4x2 left driving or 4x4 offroad |
| Max Speed (km/h) | 98 |
| Overall dimension(mm) | 5400x2000x2300 |
| Mass in working order( kg) | 3800 |
| GVW( kg) | 4480 |
| Wheelbase(mm) | 3310 |
| F/R track base (mm) | 1695/1540 |
| F/R overhang (mm) | 960/1130 |
| Approach/Departure Angel | 22.5/12 |
| Tire | 6.50R16 |
| Clutch | Single-plate dry diaphragm spring clutch |
| Steering | Hydraulic steering with power assistance |
| Gear box | 5 speed gear box |
| Bridge | Front axle | 1650kgs |
| Rear axle | 2830kgs |
| Enging | Model | SOFIM8140.43S5 |
| Horse power | 130HP |
| Displacement | 2798L |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy |
| Eletric system | 24v |
| Upper-Body specification |
| Hydraulic Under Lift at Rear |
| Fully Retracted Lifting weight(kg) | 3000KGS |
| Fully Extend Lifting Weight(kg) | 1680KGS |
| Max. Rated towing weight(kg) | 6495KGS |
| Max effective length of boom(mm) | 1520 |
| Extension traveling of boom (mm) | 600 |
| Boom structure |
| Maximum lifting height(mm) | 2700 |
| Fully Retracted Lifting weight(kg) | 3000 |
| Fully Extended Lifting weight(kg) | 600 |
| Extension traveling of hoisting boom(mm) | 1540 |
| Hydraulic winches & steel cables |
| Type: | Planetary type |
| Quantity (set) | 1 |
| Max. Pulling power of winch(kgs) | 3000 |
| Length of steel cable(m) | 25 |
| Speed of winch (m/min) | 3.23 |
| Diameter of winch(cm) | 11 |
| Hydraulic Outriggers |
| Quantity | 2 |
| type | in-built with power elevation &extension |
| Power take off |
| Type | PTO drive from transmission |
| Wrecker Operation |
| Description | Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. |
| Hydraulic System |
| Description | uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. |
| Safety Device |
| Auto brake for winch | Automatic safe brake in case winch / Engine fail. |
| Hydraulic valves | Necessary hydraulic pressure relief & lock valve/ valves |
There are five commonly used wrecker tow truck , usually depending on the type or size of the recovery wrecker :
First type : Boom towing truck
- use adjustable arms and winches to retract vehicles from ditches, embankments, or any vehicle that cannot arrive safely. Some booms are fixed, some heavy rotating racks, hydraulic telescopic tubes, others. In the past boom, trucks used the "hook chain" system, the chain around the frame or axle, and then hoisted by the winch. A heavy rubber pad is attached to the truck and truck so that it can be towed onto other bridges." Slings and belts are an evolution, replacing parts of chains with rubber belts. slings did not use too much today because they could shave bumper cars. But they are sometimes used in wrecker accidents carrier or have one or two front wheels or rear wheels missing or pickups and other vehicles have steel bumpers. Equipped with all wheel drive, the truck is towed away, unable to use the machine string, because it can make the car power transmission system problems.
Second type :Wheel lift wrecker towing truck
(also called "glasses") - from the chain hook technique to generate a large metal frame, can be installed in the front or rear under the cradle, rendering vehicles by pneumatic or hydraulic hoist can drag the ground clear front or rear. The device usually picks up the wheel of the vehicle (i.e., front wheel, if it is front wheel drive, rear wheel, if it is rear wheel drive), and contacts the tire. wheel lift wrecker tow truck are common in china; cradles are like glasses. Medium and heavy-duty trucks use variations, "underlift" or "chassis lift", in which the elevator shaft or frame is not the wheel. A forklift truck can be used as an adapter or a lift chassis.
Third type :Integration towing truck (also known as "Self Loader wrecker equipment", "Snatcher towing vehicle", "quick choice tow truck" or "roll back wrecker") - the arm and wheel lift together. Used of light trucks to recover or stop vehicles. Most of the truck's cab equipment is controlled so that the pickup truck does not leave the truck to connect the vehicle. heavy trucks are also manufactured using integrated lifts.

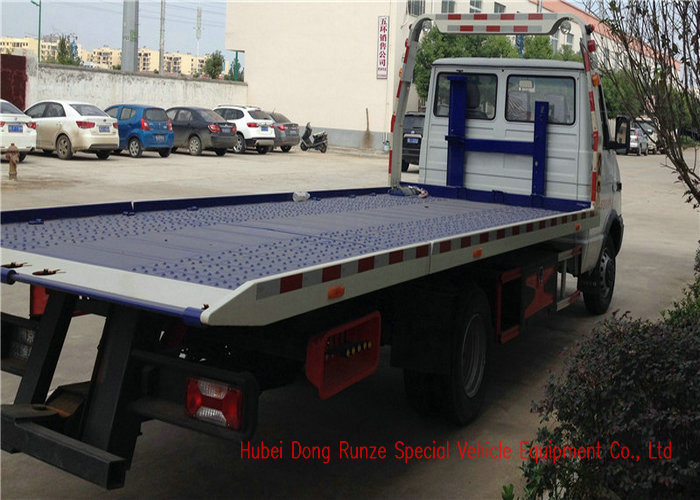

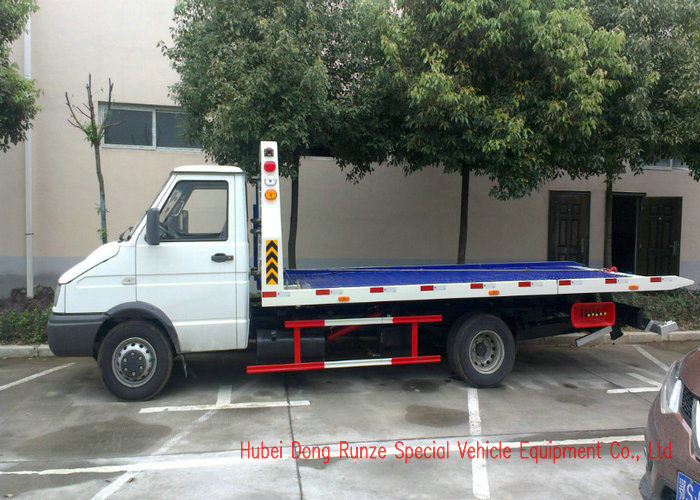

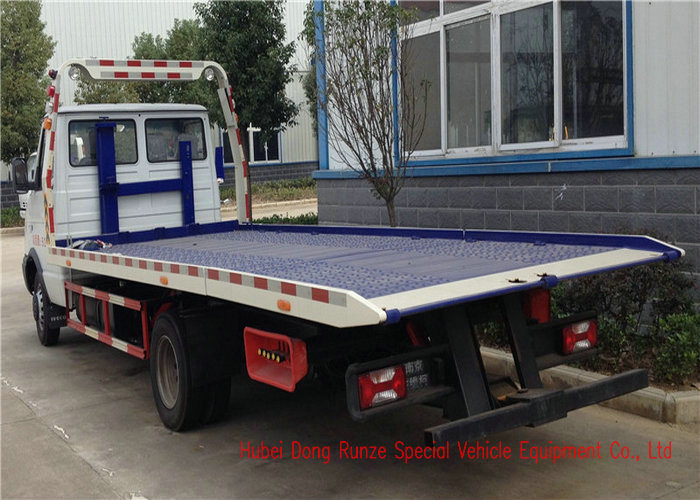

Forth type --Flat plates wrecker truck (also known as "rolling back tow truck" or "sliding tow truck") - the entire back of the truck is fitted with a bed that can be hydraulically tilted down to the ground, allowing the vehicle to be placed under its own power or pulled up by the winch. [9] because they carry, rather than traction vehicles, it can be completely fixed; in the United States, they carry serious damage to car accidents.
Fifth type ---Lifting platform wrecker truck the derricks lift the vehicle vertically and use the wheel lift to load it on the bed. In Europe, this car can eliminate the parallel parking of vehicles.
