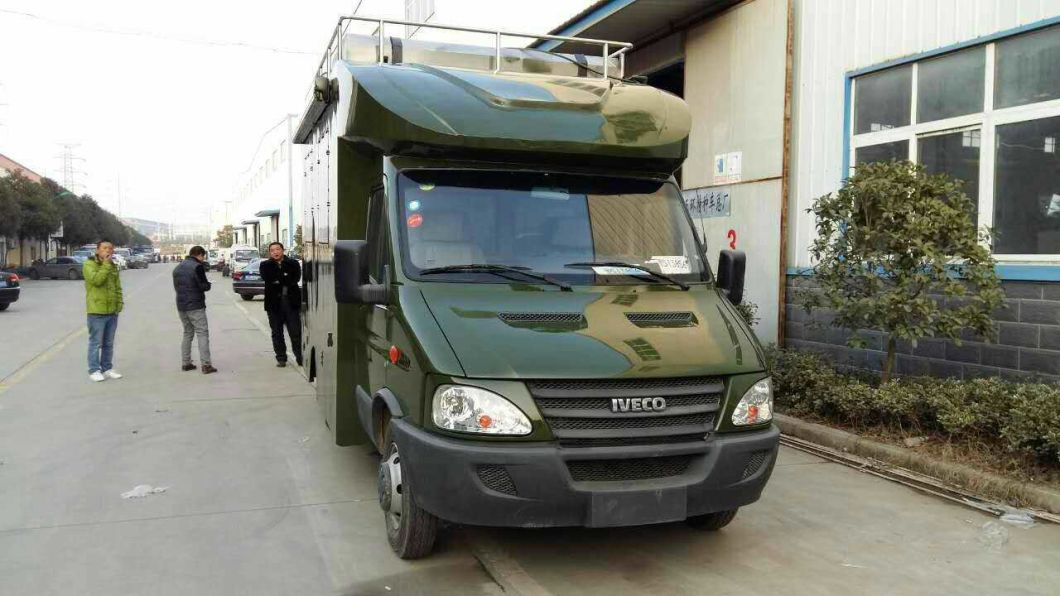

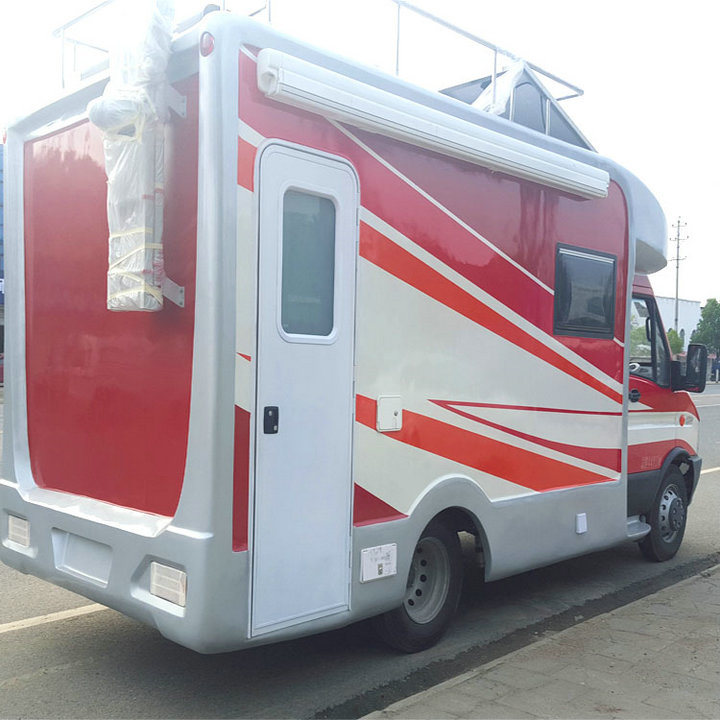

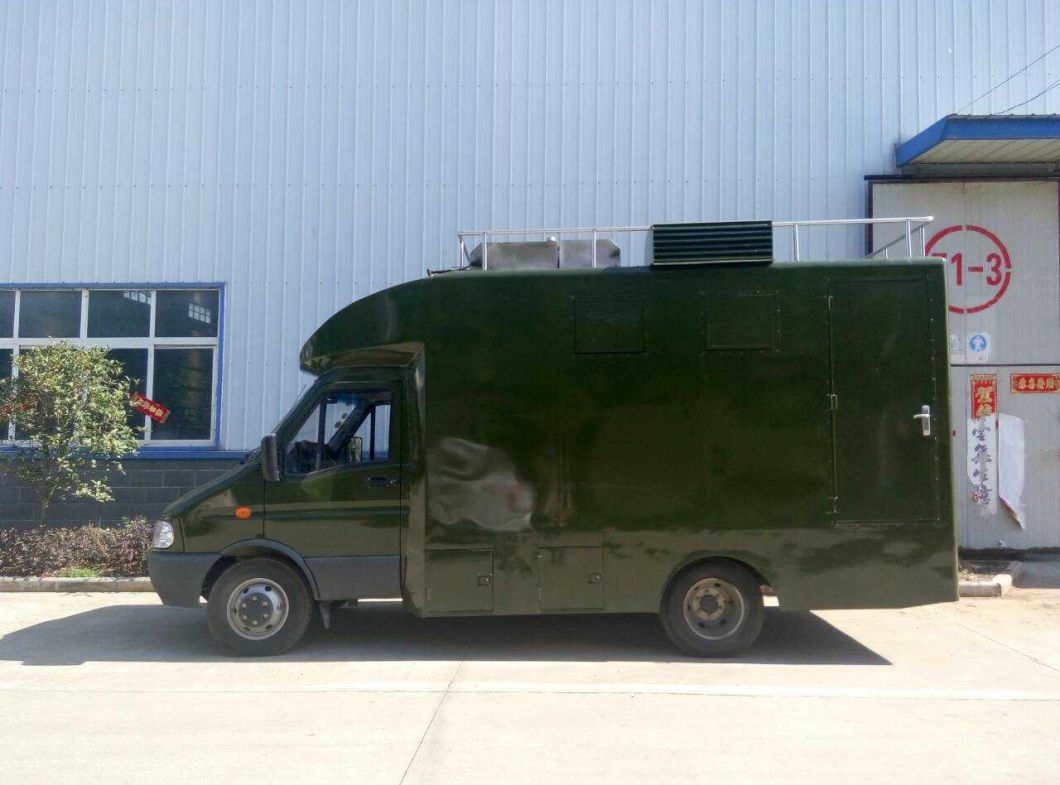

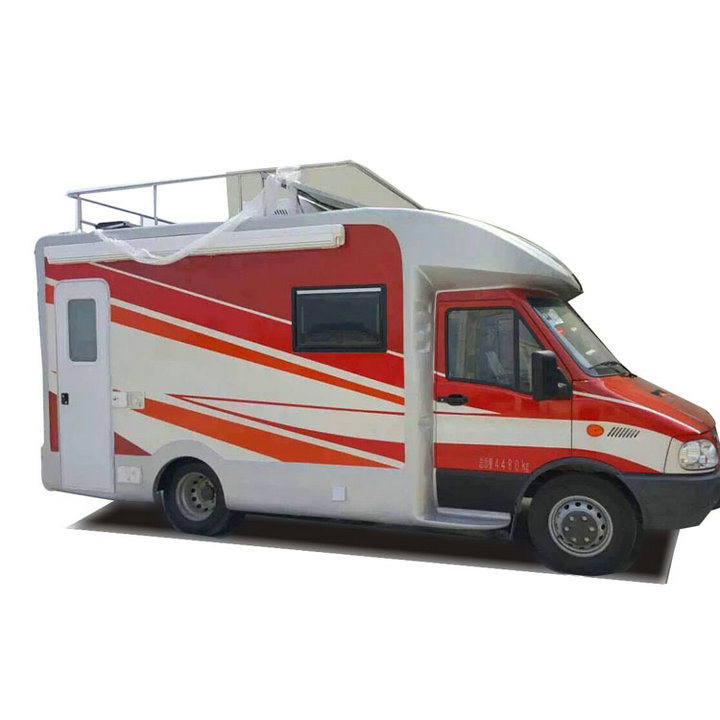

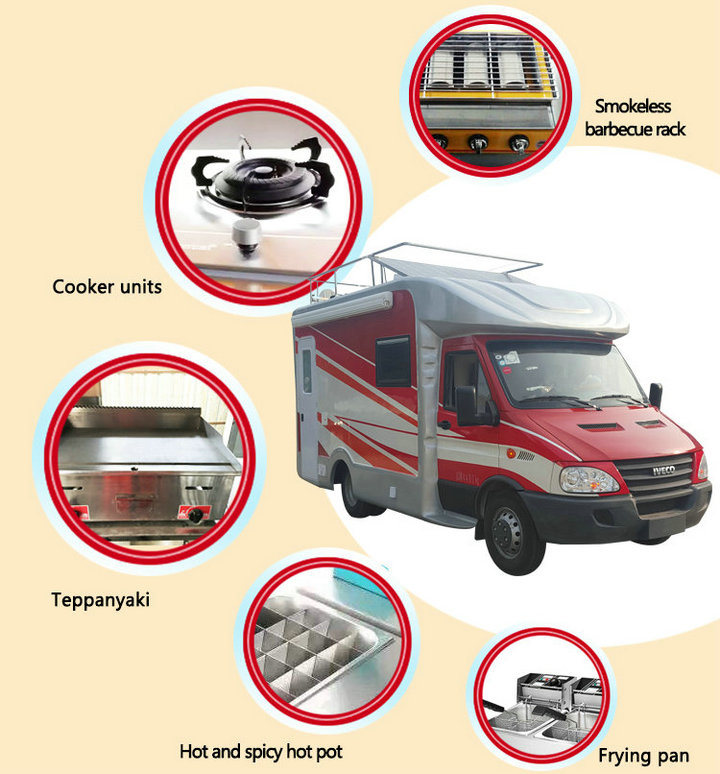

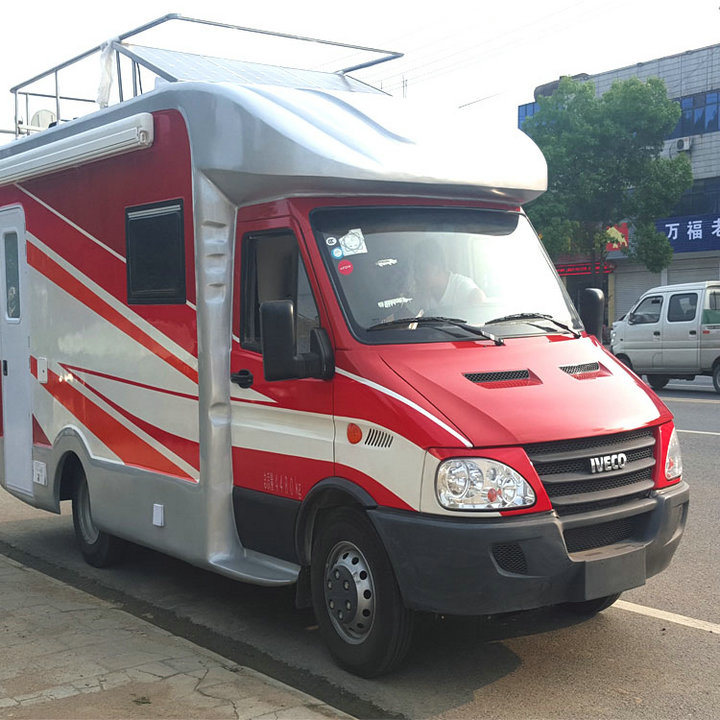

Iveco Diesel Luxury Mobile Kitchen (Catering Trucks)
Iveco Diesel Luxury Mobile Kitchen (Catering Trucks)
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T

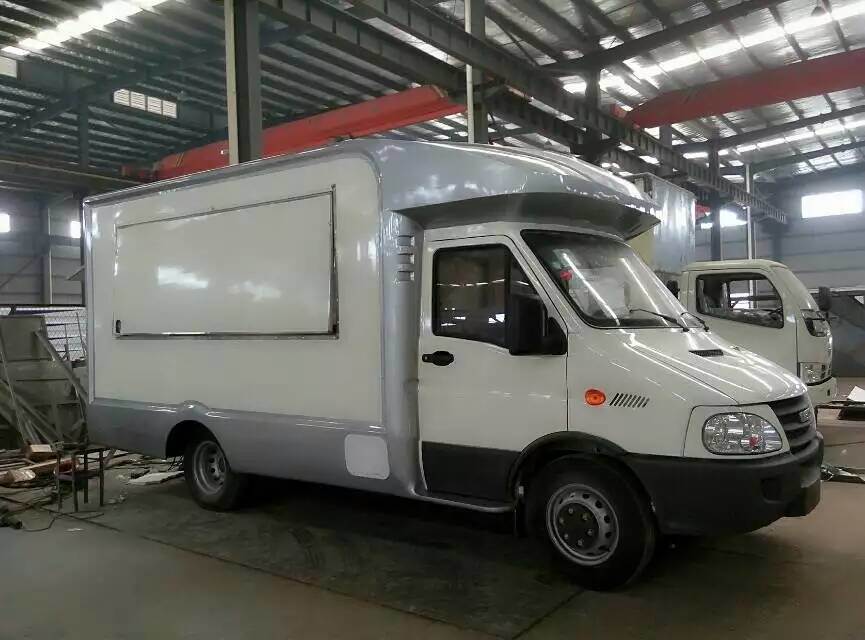

IVECO Diesel Luxury Mobile Kitchen (Catering Trucks )
| [ Main Technical Parameters ] | ||||||
| Production name | DRZ5040XCCNJ5 New IVECO Diesel Luxury transport mobile kitchen catering trucks vending restaurant | |||||
| GVW(kg) | 4480 | Rated weight (Kg) | ||||
| Curb weight (kg) | 4285 | Cab seats (man) | 3 | |||
| Overall dimensions(mm) | 5995x2240,2310x2800,3000 | Cabinet size(mm) | 3650×2120×1960 | |||
| Approach / departure angle(°) | 20/12 | F/R overhang(mm) | 1000/1685 | |||
| Number of axles | 2 | Wheel base(mm) | 3310 | |||
| Axle-load(Kg) | 1650/2830 | Max speed(Km/h) | 120 | |||
| [ Chassis Technical Parameters ] | ||||||
| Chassis model | NJ1045DFCZ | Chassis Name | ||||
| Brand | IVECO | Manufacturer | Nanjing Auto | |||
| Tire specification | 6.50R16LT | Number of tire | 6 | |||
| Front track base(mm) | 1695 | Rear track base(mm) | 1540,1754 | |||
| Fuel Type | Diesel | Emission standard | Euro IV | |||
| Gearbox | 5 forward gears and 1reverse | |||||
| Cab | Single row, left steering wheel | |||||
| Engine model | Engine Manufacturer | Displacement (ml) | Max power(Kw) | Max Horsepower(hp) | ||
| SOFIM8140.43E4 | Nanjing IVECO | 2798 | 100 | 136 | ||

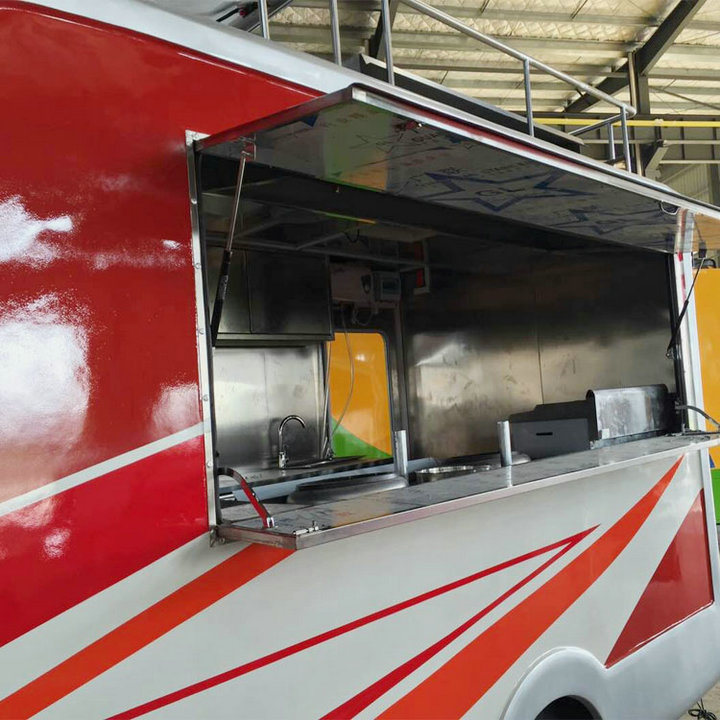

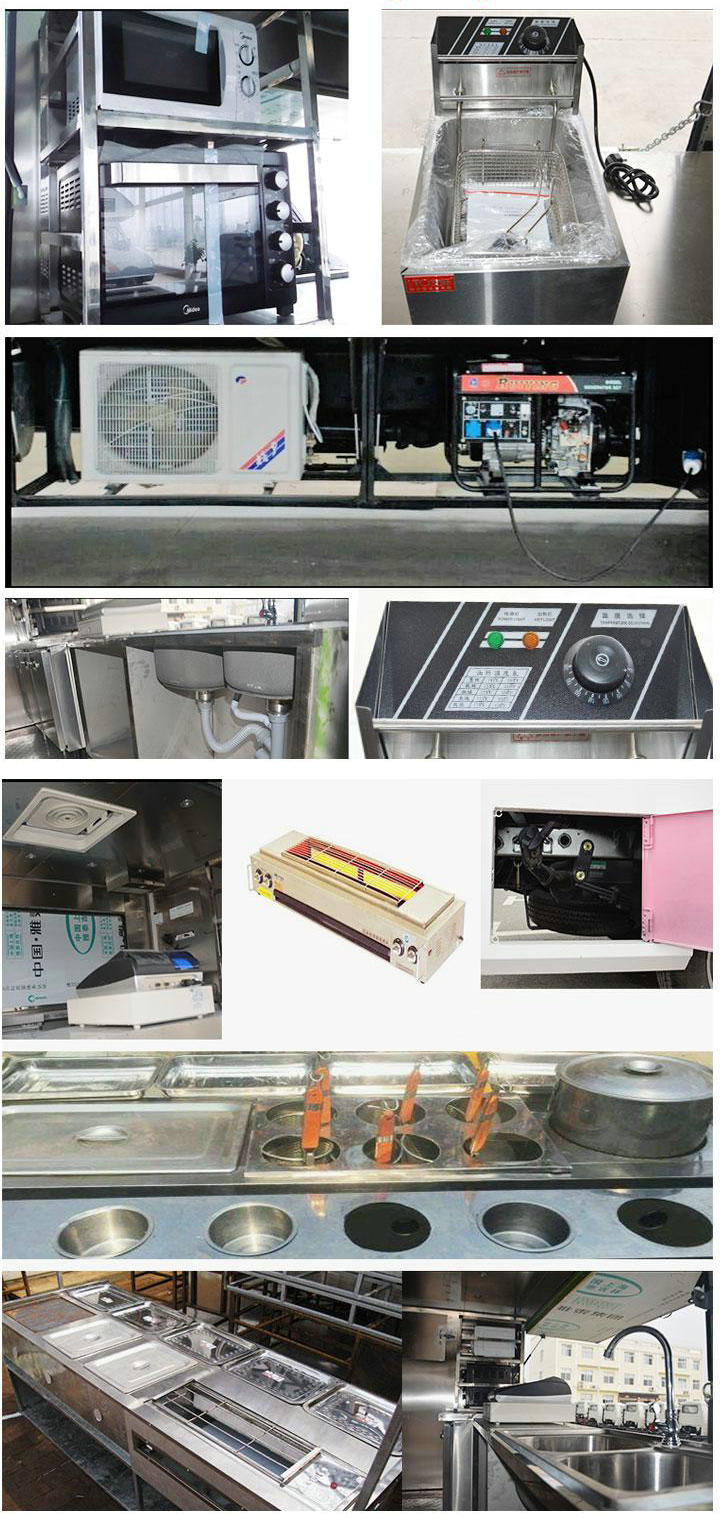

| Configuration Instructions : | The compartments is made of cold-rolled steel sheet or glass fiber reinforced plastic material , the compartments with heat insulation function , and the floor made of skidproof , waterproof and wear-resistant aluminum checkered plate ; The top of the compartments is closed and can not open , but the left and right side and the back can be expanded and there is vending bar on both left and right side. The internal compartments is installed with LED vending floodlights or two columns spotlight (5pcs / column), top exhaust fan,megaphone, master switch, USB interface, large space locker; The outside of the compartments is installed two loudspeakers, 105A battery, 220V external power supply interface , 15m external power supply cord, telescopic truck pedal; different truck color and skin stickers are optional . | |||||
Food Truck
| Truck name | Mobile Food truck | Drive type | 4*2 |
| Steering Wheel | left hand drive | Overall Dimension | 5650x1830x2900 |
| Gross Weight | 3490 | Cabinet inner size | 3800x1750x1850 |
| Curb Weight | 3360kg | Wheelbase | 3300mm |
| Max speed | 95km/h | Chassis model | SC1035DC4 |
| Engine model | DAM13R | Displacement / Power | 1299ml/73kw |
| Model Number | Euro 4 | Fuel Type | Gasoline |
| Tire specification | 185R14LT 6PR | Transmission | 5 forward gears, 1 reverse gear |
Cell :+8615271357675
