Isuzu14-18 Meters Aerial Work Platform Truck

Quantity:
  • Shanghai, China
  • 10000
  • T/T
  • Aerial Work Platform Truck
  • Manual
  • 6x4
  • New
  • 7.00r16
  • I.S.U.Z.U
  • 200L
  • LHD
  • 12-18m
  • 1000kg
  • 3360 mm
  • 130HP
  • I. S. U. Z. U.
  • Nil
  • 18m, 20m, 24m 22m
  • China
  • 8705909990
  • H
  • ISO9000, CCC
  • Euro 5 - 6
  • 150-250hp
  • 20T
  • Diesel

ISUZU14-18 Meters Aerial Work Platform Truck Aerial Working Trucks for Street Lights maintenance

Japan Truck Aerial Work Platform Truck (ISUZU-High Lifting Truck 12 -18meters Manlift Basket)

Custermizing Crane Truck With Bucket Lift for Electric working

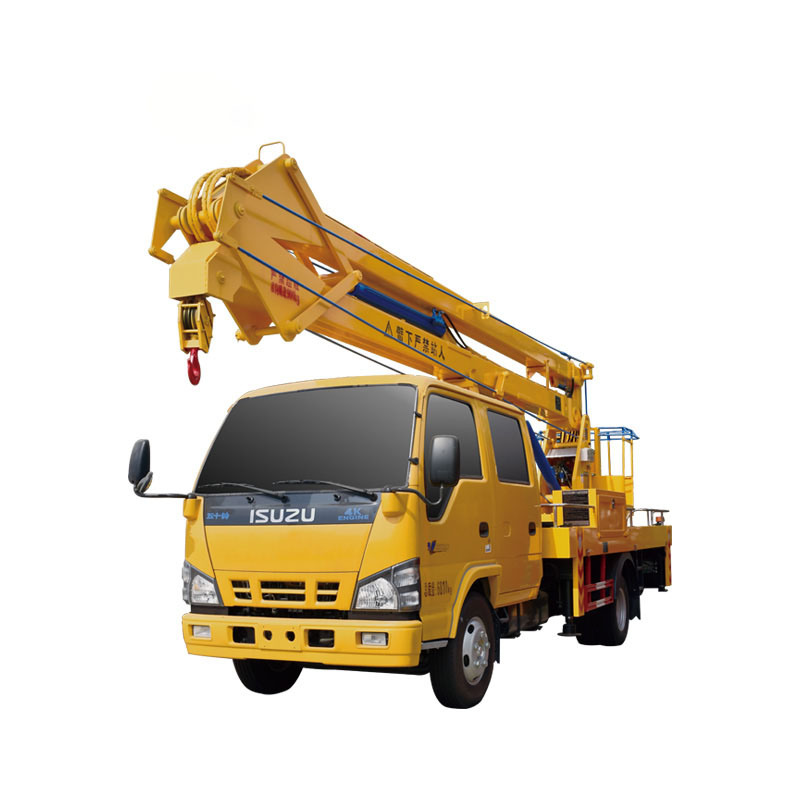

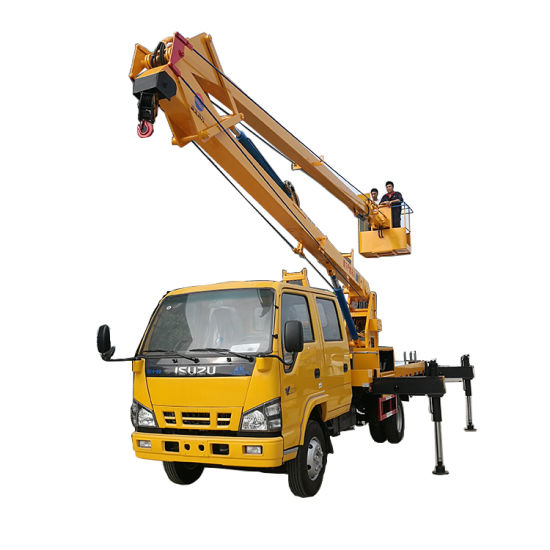

Isuzu14-18 Meters Aerial Work Platform Truck

Aerial Platform

Isuzu14-18 Meters Aerial Work Platform Truck


Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:

Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.


Ask for better price

Cell /+8615271357675

Vehicle Parameters
General Vehicle Model DRZ5040JGK12Q
Vehicle Brand DRZ
Chassis Brand Qing ling ISUZU
Overall Dimension(mm) 5998×2000×2960
GVW/Curb Weight(kg) 4495 /4170
Chassis Parameters
Cab Cab Seat 2
Air Conditioner Optional
Engine Fuel Type diesel
Engie Model 4KH1CN5LS
Engine Brand Qing ling
Power 72hp
Displacement(cc) 2999
Emmission Standard Euro3
Chassis Drive Type 4*2
Transmission 5 speed, Manual
Wheelbase(mm) 3360
Tyre Specification 6.50-16
Tyre No.(pcs) 6+1
Max Speed(km/h) 99
Paint Yellow

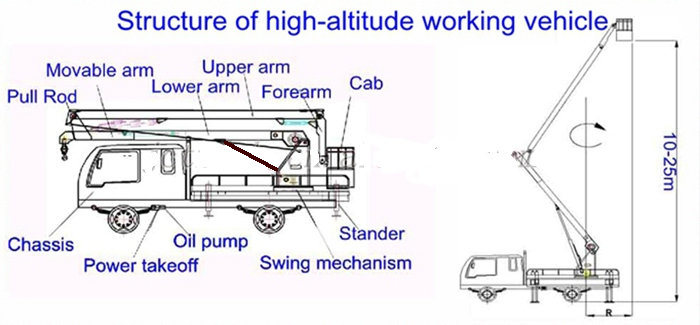

Aerial platform structure parameters
working height(m) 12 Maximum working radius(m) 6
Arm Material carbon steel Q345 Arm Thickness
Working height at Max.working radius(m) 6.4 Working radius at Max.working height(m)
Outrigger distance(mm) 2880*3560 Platform average rise speed(m/s) ≤0.4
Platform average fall speed(m/s) ≤0.4 Rotation speed (1r/min) 1
Arm structure type Three section Outrigger stretch time (s) 40
Rotation 360°continuous rotary Outrigger H type,independently
Remarks
1. truck chassis brand is selectable 2.The outrigger operation box is equipped with a lighting device to facilitate work at night and configure the vehicle's bidirectional level to ensure the vehicle's level and ensure safety.3.The boom rotation is designed as a one-piece swivel to avoid assembly gaps during reassembly in production, and increases the space of the platform.4.Front and rear H-shaped legs, good stability, can be operated simultaneously or individually, standard washing boxes for all models 5.Upper arm limit device, when the upper arm exceeds the safety angle, the boom will be in a self-locking state to ensure the safety of the operator 6.Up and down steps are equipped on the side(aluminum alloy platform optional )7.The thickened cylinder seat and the boom cylinder block are all specially thickened to ensure the stability of the boom 8.Sectional coating to ensure the paint quality of the vehicle 9.All cutting parts are CNC laser cutting

FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height:

Japan 18 meters aerial work platform truck/truck unloading platform
Vehicle brand
DRZ
Chassis brand
i suzu
Allowable person in cab
2+3
Color
Optional
Front/Rear axle load
2T/4T
Wheel base
3360(mm)
Tire specification
7.00R16
Traction system
4*2
Engine power
115(km/h)
Emission standard
Euro 5
Working height
12-18(m)
Max working radius
8.3(m)
Boom type
Two section folding arm
Rotation Angle
360(°)
Rated loading in the bucket
200(kg)
Loading of hook
1000(kg)
Supporting leg
Four H type hydraulic legs
Control mode
Hydraulic control or electronic control
MOQ
1set
Warranty
2 years

Japan 18 meters aerial work platform truck/truck unloading platform

ISUZU 14m -16m Aerial Working Platform Truck Folding Work Platform Specifications

1.Working height can be 11m,12m,14m,16m,18m,20m.
2.Boom number:within 12m is two section folding arm,over 12m is three section folding arm.
3.Cabin type:single row or double rows
Specification of QL High Altitude Operation Truck 14-16m
Item Specification Item Specification
General
Truck Name QL High Altitude Operation Truck Overall Dimension (mm) 6880x1980x3100
Truck Model QL1070A5HWY Wheel Base (mm) 3360

Traction System

4 x 2 Gross Weight (kg) 6080
Cab Capacity 1+1+3 Curb Weight (kg) 5755
Transmission manual Front Wheel Tread (mm) 1504
Chassis Brand QL Rear Wheel Tread (mm) 1425
Tyre Model 7.00-16 14PR;
7.00R16 14PR
Approach Angle (°) 24
Quantity of Tyre 6 Departure Angle (°) 16
Quantity of Axles 2 Front Overhang (mm) 1015
Max Speed (km/h) 110 Rear Overhang (mm) 2155
Chassis
Chassis Model QL1070A5HWY Leaf Spring 8/6+5
Engine (Motor)
Brand QL Type of Fuel Diesel
Model 4KH1CN5HS Displacement (ml) 2999
Power (kw) 96 Emission Standard Euro 5-6
Equipments
Max Operation Height (m) 14-16 Arm Rotation Angle 360°
Max Operation Radius (m) 7.2 (360°) Arm Rotating Speed (r/min) 0-2
Operation Stage Dimension (mm) 1100x570x1000 Support Legs 4 H-shap legs(2 front & 2 rear)
Operation Stage Rating Loading Weight (kg) 200 Operation Control System Electrically hydraulic control
Hook Loading Weight (kg) ≥1000 Type of Working Arm 3 section arms

NOTE:

1. Any part can be customized depending on customers' demand.

2. 12 months whole vehicle warranty

3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.

Isuzu14-18 Meters Aerial Work Platform Truck

Isuzu14-18 Meters Aerial Work Platform Truck


Isuzu14-18 Meters Aerial Work Platform Truck
Isuzu14-18 Meters Aerial Work Platform Truck
Isuzu14-18 Meters Aerial Work Platform Truck
Isuzu14-18 Meters Aerial Work Platform Truck
Isuzu14-18 Meters Aerial Work Platform Truck
Isuzu14-18 Meters Aerial Work Platform Truck

Specification:

ISUZU mounted Crane truck ( 3.2Ton boom crane SQ3SK2Q)

General

Vehicle Brand

DONG RUN ZE TRUCKS

Chassis Brand

I.S.U.Z.U

Overall Dimension

6500 * 2100 * 3100 mm

GVW / Kerb Weight

7,300kg / 4,000kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

I.S.U.Z.U

Power

130 HP (88 KW) 4KH1

Displacement

2999 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (Left hand drive ONLY)

Transmission

Manual MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

4000*1900*500 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

3200 kg

Slewing Angle

360° All rotation

Crane Weight

1229kg

Installation Space

850 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual...

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

Items Parameter
Truck Model 5070JSQ2
Crane Parameter Max Lifting Capacity 3200 kg
Max Lifting Moment 6.8 T.M
Recommend Power 14 kw
Max Oil Flow of Hydraulic System 25 L/min
Max Pressure of Hydraulic System 20 Mpa
Oil Tank Weight 30 L
Crane Weight 1229 kg
Installation Space 850 mm
Rotation Angle 360° All Rotation
Cargo Body Thickness Side 2mm
Floor 3mm

Similar Key Words: hydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck

www.truckinchina.com

PACKING & DELIVERY

Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform



Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.

The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
