ISUZU Trucks Telescopic Boom with 22m-24m height of the platfrom Aerial Working Trucks for Street Lights maintenance
Japan Truck Aerial Work Platform Truck (ISUZU-High Lifting Truck 18 -22meters Manlift Basket)
Brand Japan Crane Truck With Bucket Lift for Electric Companies With I.SUZU Engine Crane Truck With Bucket Lift for Electric Companies
Custermizing Crane Truck With Bucket Lift for Electric working
Telescopic Aerial Platform
fully Hydraulically Operate Arial Work Platforms
22m Aerial Working Truck
Color: white Cabin, white Body
Drive type: LHD
Cabin: with A/C
Engine Brand: 4HK1-TC50
Engine power: 151KW / 205HP
Max.Working Height: 22m
With A/C Power steering
for street Lights maintenance, Landscping trees.
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Functions of ISUZU Aerial Platform Truck 22m-24 :
ISUZU Aerial Platform Trucks also Name Bucket Lift Trucks, Articulated boom Lift Truck, Basket crane trucks, Truck Mounted Lift Truck. it used for maintenance of traffic Lights, Steet Lights, ladnscaping trees, cleaning setting signboard and other high aerial works.

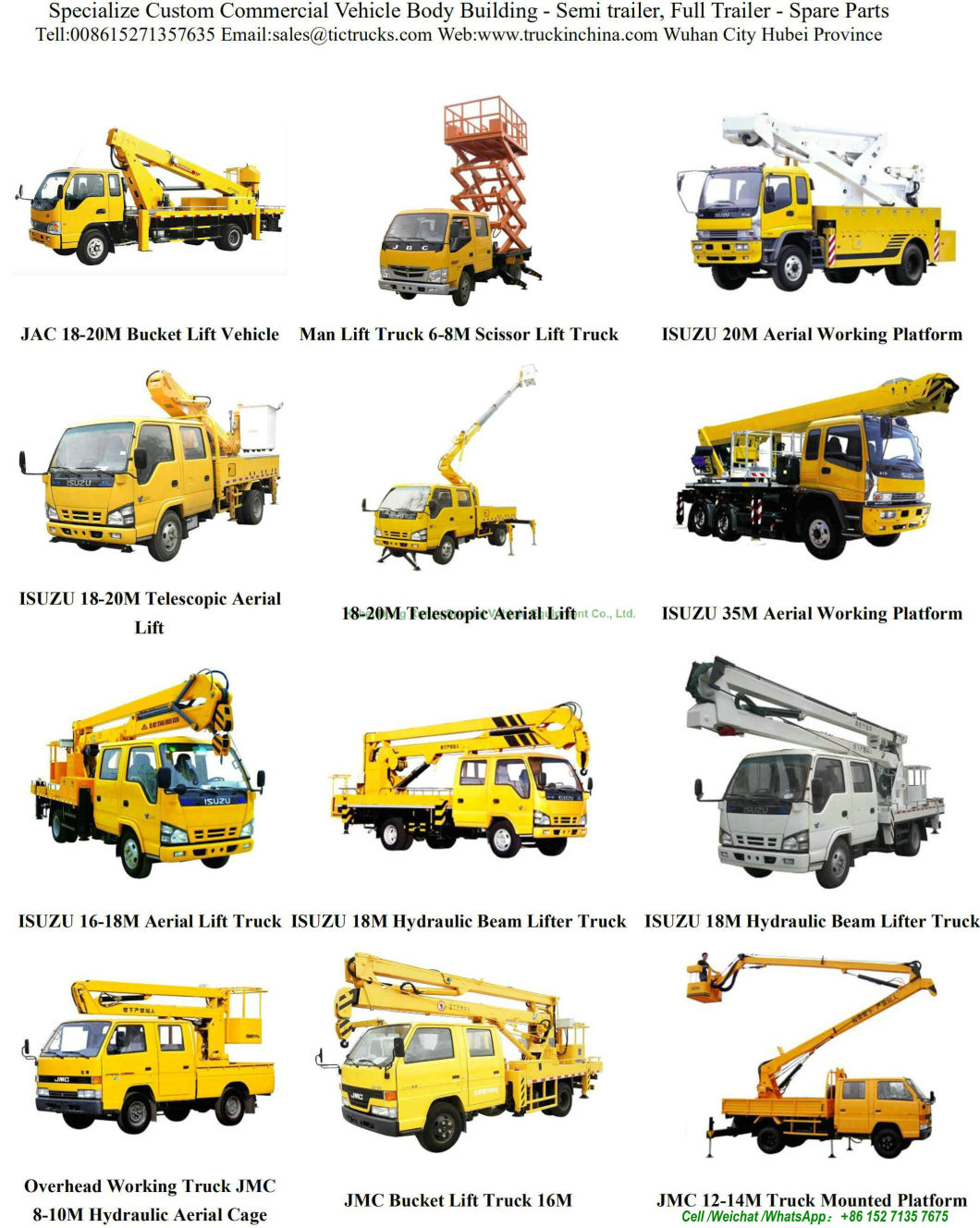

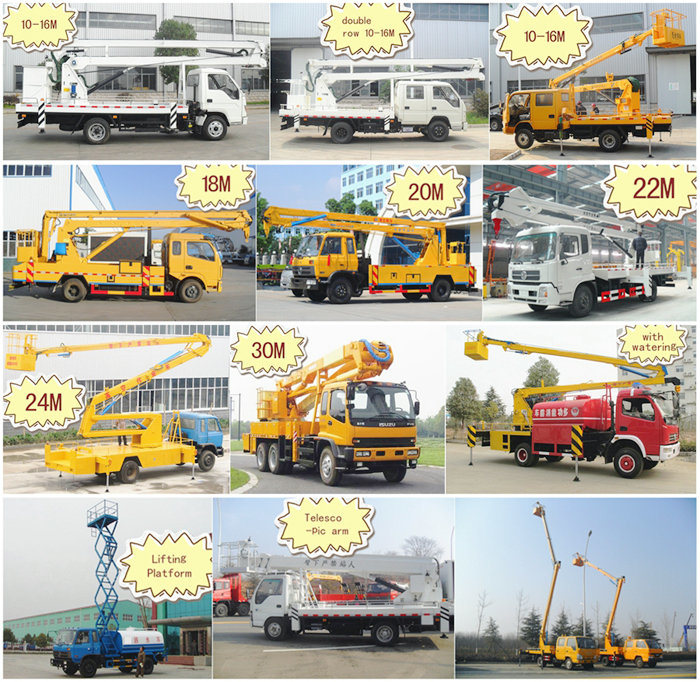

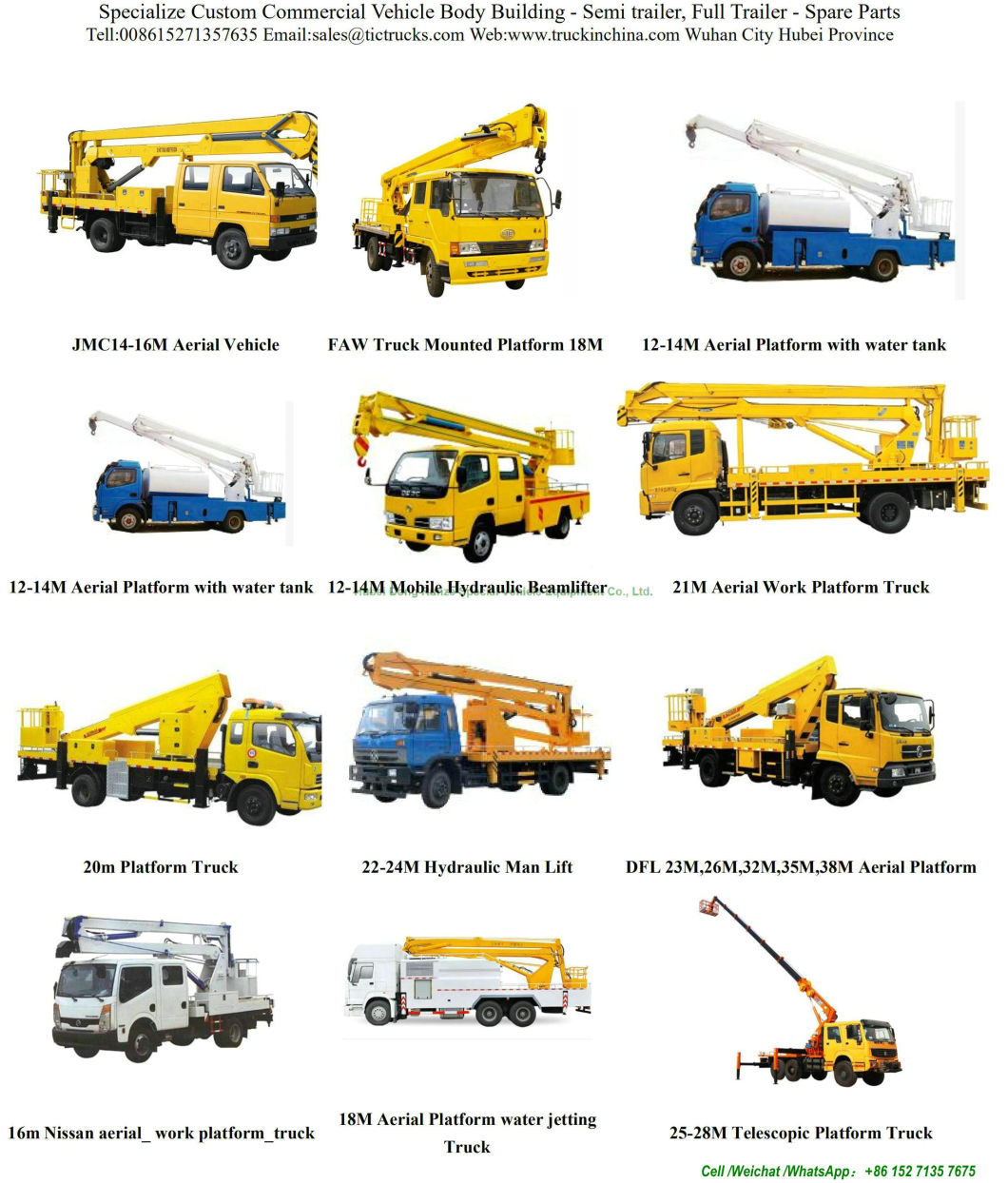

we have Knuckled boom Aerial Platform and telescopic platform trucks for choice from 6m to 24m available.
Features of ISUZU Aerial Platform Trucks:
ISUZU Aerial Platform Trucks ensures perfect driving performance;
working cage can be made of structure or reinforced fiberglass (insulated cage);
working cage can rotate 90 degree in left and right;
4pcs outriggers and front support improve operation stability and safety;
safety devices are available, such as relief valves, balance valves, double way hydraulic locks, motor emergency system. ect.
wireless motor control system is availalbe;
|Products Technical Specification of Products Technical Specification of Aerial Working Trucks |
ISUZU FTR street lights maintenance trucks.
|Type||22m arieal working truck|
|Cab||With A/C, on bed|
|Curb weight(vehicle) (kg)||14300|
|Max speed (Km/h)||110|
Diesel, 4-cylinder in line with water cooling,
|Max. power/rotated speed||151(KW)|
|Company of engine||ISUZU Motor|
|Emission level||Euro 5|
|Front axle||Elliot I-beam type 6.3T|
|Rear axle||Driving axle, 13T|
|Number of leaf spring of suspension||15/17|
|Front overhang / rear overhang||1335/2890|
|Front tread / rear tread||1960/1855|
|Approach angle /Departure angle||15/17|
|Gear box||6-speed with over drive|
|Brake system||Air braking|
|Operation control system||Power Steering|
|Aerial wrking parameter|
|Max. working height||22m|
|Max. working radius||7.5m|
|Loading weight of working hook||200kg|
|Supporting legs||4sets hydraulic supporting legs|

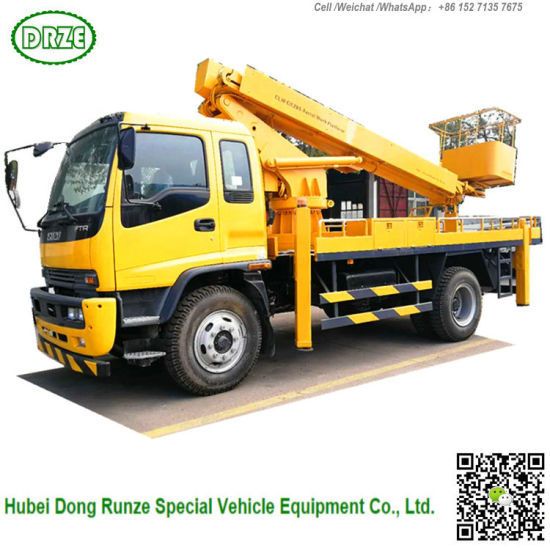

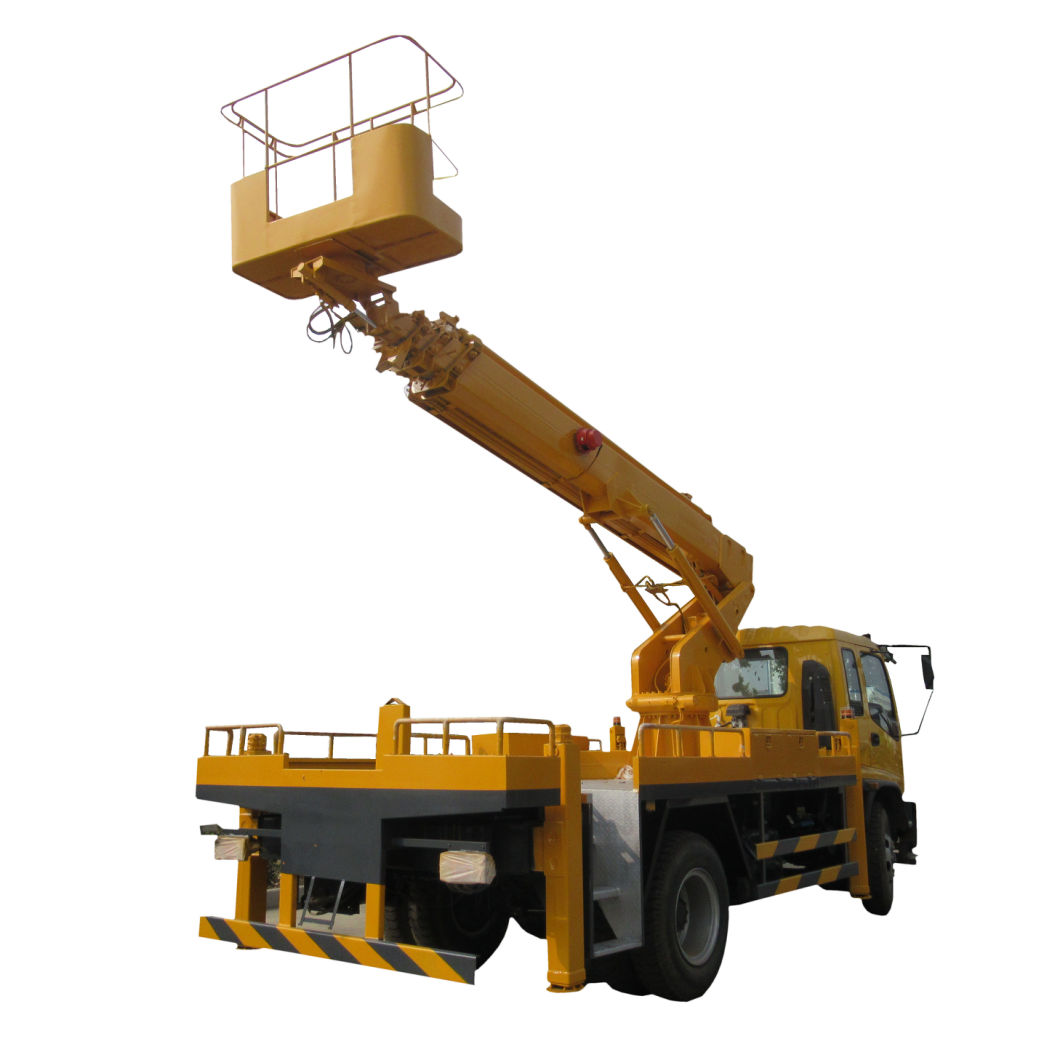

Pictures of ISUZU Aerial Platform Trucks for Street Lights Maintenance:

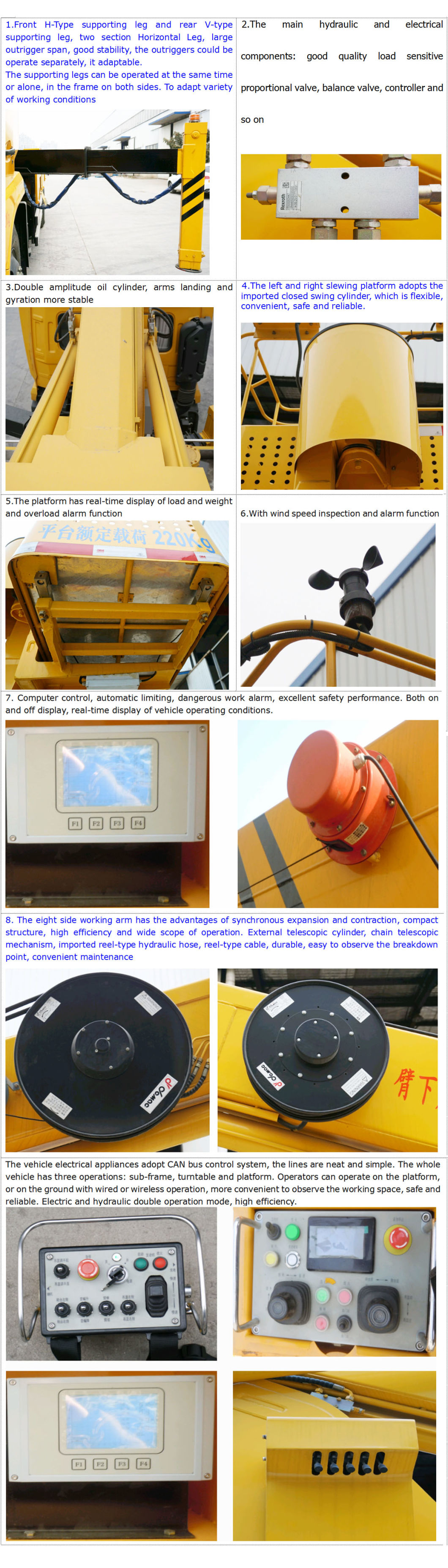

1. Working platform can rotary 90degree left and right. Convenient and flexible work, wide range working.
2. The working platform has the weight function and real time display. Overload alarm.
3. Five telescopic boom, four section booms synchronous expansion, high operation efficiency, wide range working.
4. Hexagon section working boom, high strength material produce, better reliability.
5. Equip DC emergency electric pump, to provide emergency protection.
6. Equip with wireless communication, convenient staffs communication on the ground and working platform, to improve working efficiency.
7. Equip with a large screen display on the ground and working platform. Real-time display the vehicle operators.
8. Equip strobe lights, lamp
9. Electric hydraulic operation mode, high operation efficiency
10. The rotating device can be adjusted easily.
11. Rotating platform can be rotated 360 degree.
|23m telescopic boom truck|
|Main parameter||Loading capacity of working platform||kg||220|
|Max. Working height||m||23|
|Working radius of Max. Working height||m||5.05|
|Max. Working Radius||m||12.6|
|Working height of Max. Working radius||m||5.6|
|Main Equipment of FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height|
|Working platform and fence||Antiskid walking board and stainless steel fence|
|PTO system||Pneumatic operation|
|Working platform size||1100x700x1150|
|Boom style||Five telescopic boom, four section booms synchronous expansion|
|Boom lifting style||Boom lifting up and down|
|Rotation device||360 degree Continuous rotation|
|Supporting landing||H, adjusted separately|
|Operation||Remote control on the working platform or on the ground, electric operation. Hydraulic operation turntable.|
|Control system||Load sensitive proportional control system, stepless speed regulation.|
|Leveling system||Hydraulic automatic leveling.|

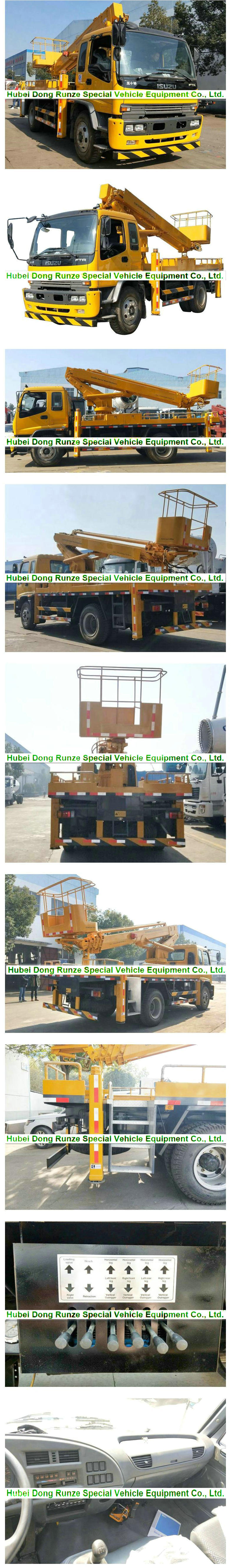

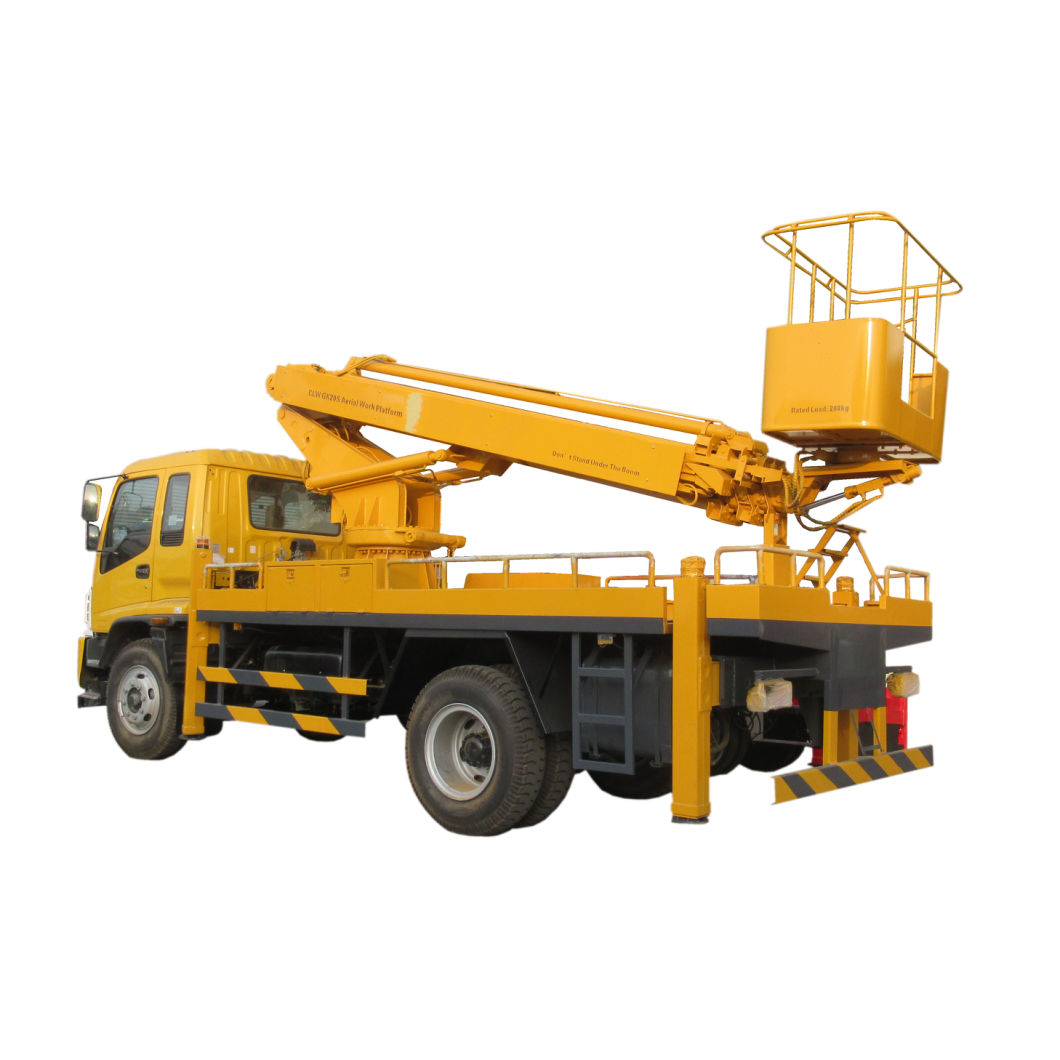

Acutal pictures of FTR ISUZU Telescopic Boom Aerial Working Truck 22 - 23m Working Height
|Product name||Aerial bucket truck||Options|
|Brand||Hubei Dong Runze Special Vehicle Equipment Co., Ltd|
|Max Working Height||20 meters|
|Boom Type||Telescopic boom|
|Section of Boom||5-section||12~32m|
|Working Raduim||14.7 meters|
|Platform bucket load||max 200kg, 1000x680x1200mm|
|Chassis Brand||I.SU.ZU FTR||Dongfeng, Forland,Sinotruk,etc|
|Drive cab||Single cab, LHD, with a sleeper|
|Engine||190hp Euro 4 diesel engine|
|Transmission||MT, 6 forward gears and 1 rear gear|
|Others||Power window, central lock, A/C|
|Tire||9.00-20 radial tire, 6+1|
|Main Safety System|
|Emergency pump||Included, When the engine and main pump fail, workers can be sent back to the ground|
|Engine on/off on basket||Included|
|Automatic interlock device||Basket and gound control lock, the two can't operation at same time|
|Level detection function||Real-time detection of whether the vehicle is horizontal|
|Emergency stop device|| |
For emergency stop operation
|Night safety warning device||There are engineering strobes and lights on the vehicle|
|Vehicle level status tester||Can detect the horizontal and vertical tilt of the vehicle|
ISUZU mounted Crane truck ( 3.2Ton boom crane SQ3SK2Q)
DONG RUN ZE TRUCKS
6500 * 2100 * 3100 mm
GVW / Kerb Weight
7,300kg / 4,000kg
2 persons allowed
Heating/cooling air conditioner
130 HP (88 KW) 4KH1
Euro 4 or 5
4X2, (Left hand drive ONLY)
Manual MSB 5 speed levers with 1 reverse
Wheelbase/No. of axle
3360 mm / 2
6 tires and 1 spare tire
Cargo Box Dimension
Telescpoic boom crane
Max Lifting Capacity
360° All rotation
English or Your language
All standard accessories: Basic tool kit, English manual...
** Knuckle boom crane.
** Hydraulic tipper box.
** Box thickness according to requirement.
** Box height could be nominated
|Crane Parameter||Max Lifting Capacity||3200 kg|
|Max Lifting Moment||6.8 T.M|
|Recommend Power||14 kw|
|Max Oil Flow of Hydraulic System||25 L/min|
|Max Pressure of Hydraulic System||20 Mpa|
|Oil Tank Weight||30 L|
|Crane Weight||1229 kg|
|Installation Space||850 mm|
|Rotation Angle||360° All Rotation|
