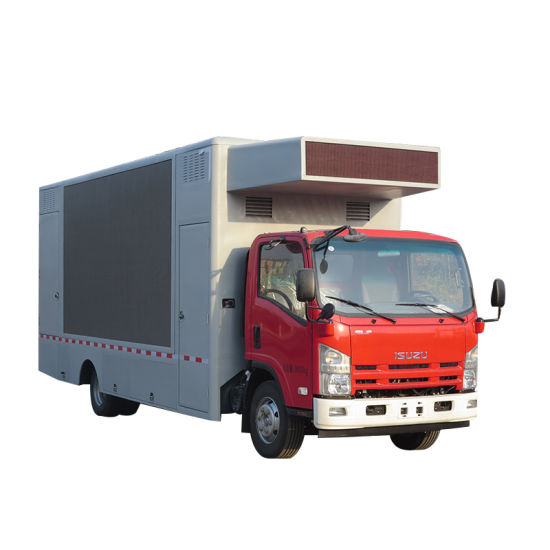

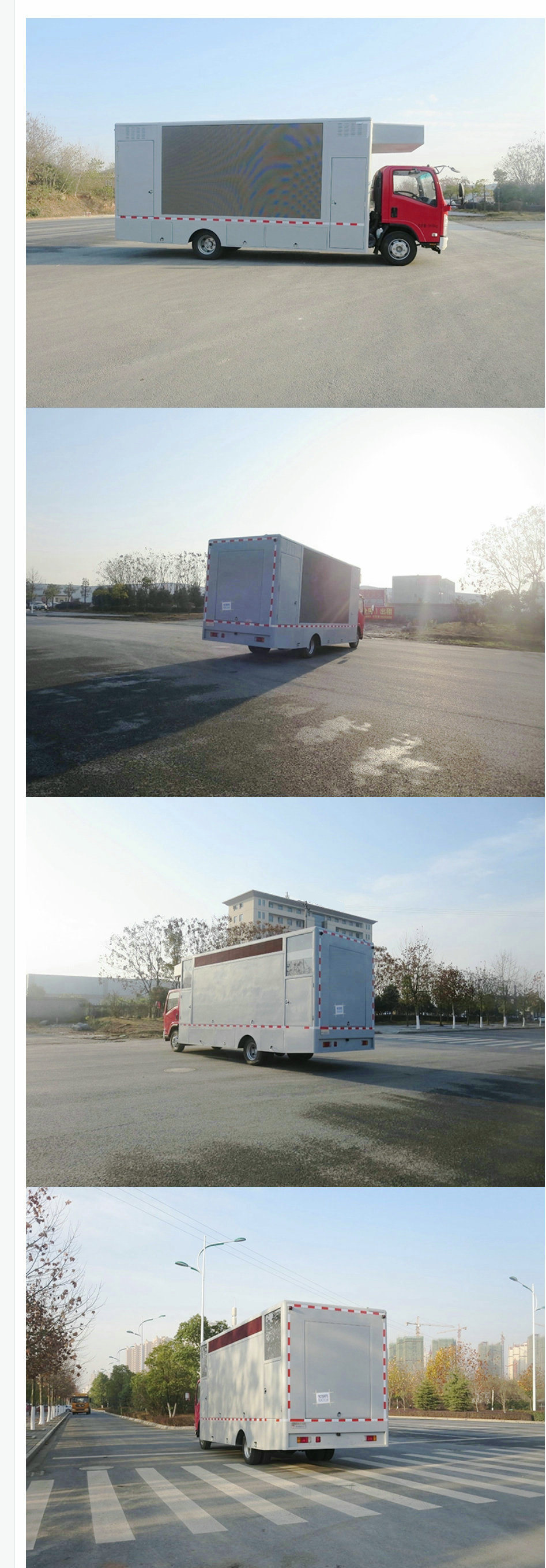

Isuzu Advertising Truck with Two Side LED Screen LED BOARD: HIGH QUALITY SCREEN ,WITH HIGH ANTI-SEISMIC AND HIGH RESOLUTION RATIO;
SINOTRUK CHASSIS: First CLASS STEADY CHASSIS,NO.1 SALES WITH BEST SERIVE.
LESS NOISE;
CUSTOMIZED DESIGN Mobile LED Screen Truck Pitch 10mm Vehicle Mounted LED Screen / Moblie Advertising Trucks for Sale
ISUZU chasis mobile advertising LED display vehicles/digital advertising vans for leasing
| LED Truck Dimensions | wheelbase | LED Billboard Body Size |
| 5995×2030×2980 | 3300 | P8 :3840*1792=6.88m2 P6 : 3840*1728=6.65m2 Rear Screen :1280*1440=1.84m2 |
| 5995×2050×3100 | 3308 |
| 5595*2025*2995 | 3360 |
| 5995×2100×3050 | 3300 |
| 5995×2000×2900 | 3360 |
| 5995*2040*2990 | 3360 |
| 5595*2025*2995 | 3360 |
| 5990*1990*2950 | 3300 |
| 5995*2030*3050 | 3360 |
| 5995*2150*2900 | 3360 |
| 8760*2365*3675 | 4700 | P8:5376*2304=12.38m2 P6: 5376*2304=12.38m2 Rear Screen 1600*1600=2.56m2 |
| 7290*2330*3350 | 3800 | P8:4864*2048=10m2 P6: 4800*2112=10.13m2 Rear Screen 1600*1600=2.56m2 |
| 5250*1900*2750 | 2800 | P8:2560*1536=3.93m2 P6:2496*1536=3.83m2 Rear Screen 960*1280=1.64m2 |
| 5100*1710*2640 | 3070 | P8:2304*1536=3.54m2 P6:2496*1536=3.83m2 Rear Screen 960*1280=1.64m2 |
| 5000*1960*2590 | 2900 |
| 4650*1700*2400 | 2765 | P8:2304*1408=3.14m2 P6:2304*1345=3.1m2 |

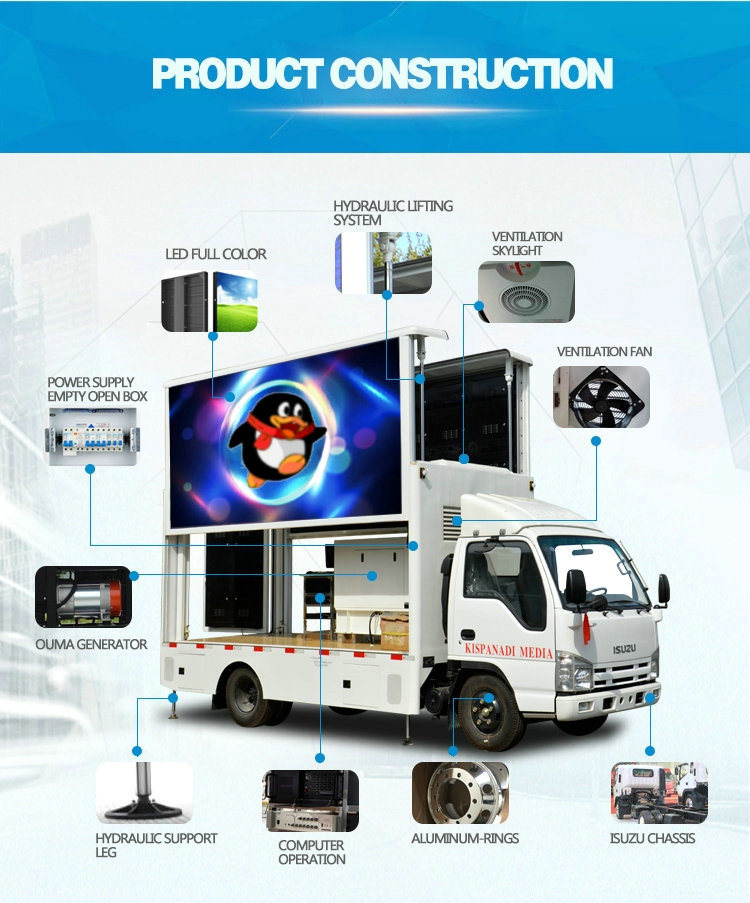

| Equipment configuration | - All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen
2> 5cm composite steel box, wooden floor; 3> Inside and outside the electric distribution box; 4> Loop ventilation cooling system; 5> Ouma silent diesel generator; 6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console. |
| Color & painting | According to customer's requirements |
1.One side 12SQM LED(can be lifted up 2m)
2.Another side a LED strip screen & scrolling light box

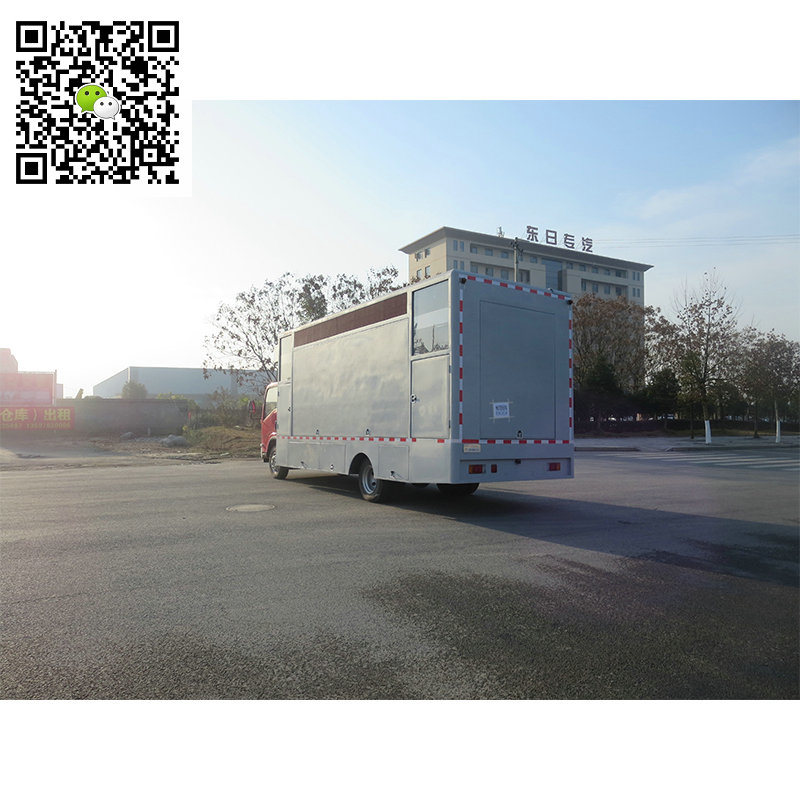

3.a full color LED screen at the rear
3.A negotiation room inside
4.Equipped multimedia playing system
5.Inside generator can supply powers
6.With ISUZU chassis
1 | Weight | 8700Kg |
| 2 | External dimension | 7.1m*2.3m*3.85m |
| 3 | LED screen dimension | 4.8m*2.4m |
| 4 | Scrolling light box dimension | 3.91m*1.5m |
| 5 | Strip screen dimension | 5.44m*0.48m |
| 6 | Rear full color screen dimension | 1.22m*1.83m |
| 7 | Horizontal angle of view | 110° (±55°) |
| 8 | Vertical angle of view | 50° (±25°) |
| 9 | LED display system | P10 full-color outdoor LED display |
| 10 | Multi-media system | IPC+ 15-inch display + professional sound system |
| 11 | Power supply system | outer power or built-in generator power |
| 12 | Input voltage | AC380V±1% 47~64Hz |
| 13 | Average power consumption | 0.5KW/m⊃2;/H |
| 14 | Total power consumption | 9KW/H |
| 15 | Generator | KIPOR KED16SS-15.5KW |
| 16 | Electric system | Standard section:Button control and operate system (standard) |
| Deluxe section: CPU control and operate system (optional) |
| VIP section: touch screen, wireless,upper computer control and operate system(optional) |
| 17 | Mechanism operates system | lifting up & down (1900mm) |
| 18 | Lifting system | power driven screw rod lifting system, afford: 5000Kg |
| 19 | Chassis | Isuzu (Europe IV) |
| 20 | Security system | overheat protection + two fire extinguishers |
Mobile Video Truck Mobile LED Promotion Truck
Applications |
|
|
|
|
|
|
| Press release | news conferences, product launches, channel investment activities, press appearances , etc |
| Activities road show | promotions, public relations activities, product marketing, branding promotion, draft activities, live shows and other sales |
| Live | sporting events, live events, concerts, etc. |
| Parade display | product buildings parade promotion, exhibitions, fairs, shows, etc |
| Forum lecture | forums, conferences and seminars |
| Celebration &ceremony | real estate opening, anniversary celebration, the opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies. |
| Election | promotion for election, policy promotion |
| Other applications | wedding live, auction, etc |
Detailed Parameters:
Model |
ISUZU |
Chassis |
Brand |
ISUZU |
External dimension |
7900mm×2175mm×3750mm |
Power type |
ISUZU |
Curb weight |
3700KG |
Emission standard |
Euro |
Gross mass |
9950KG |
Seat |
single row A1955 |
Wheel base |
4700mm |
Hydraulic lifting & supporting system |
Hydraulic lifting system for LED screen |
Electric putt (Germany technology)
Lifting height: 2000mm,afford 3T,synchronous error:1mm |
Hydraulic supporting system |
Imported hydraulic cylinder
Lifting height: 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up |
Extreme super silent generator set |
External Dimension |
1510mm×900mm×1060mm |
Power |
16KW |
Power type |
Kipor |
Number of cylinders |
Water-cooled inline 4-cylinder |
Air displacement |
1.995L |
Bore*stoke |
84mm x 90mm |
Main LED screen |
Screen size |
4800mm×2400mm |
Module size |
160mm(W) ×160mm(H) |
Chip |
R: Guanglei,G,B:Silan |
Pixel pitch |
10 mm |
Brightness |
≥6000cd/ sq.m |
Max power consumption |
1200 W/sq.m |
Power consumption |
Average :600W/sq.m |
Life span |
100,000hour |
LED screen (back door) |
Screen size |
1220mm×1952mm(SMD) |
Chip |
R: Guanglei,G,B:Silan |
Module size |
244mm(W) ×122mm(H) |
Pixel pitch |
7.62mm |
RED LED bar screen |
External Dimension |
5440mm×480mm |
Pixel pitch |
10 mm |
Chip |
Guanglei |
Module resolution |
32pixel(W) ×16pixel(H) |
Scrolling Light box |
Display size |
3900mm×1500mm |
Roller diameter |
100 mm |
Motor power |
≥80W |
Control mode |
Intelligent remote control |
Power supply |
Input voltage |
three-phase five-wire 380V |
Output voltage |
220V |
Electrical current |
50A |
Power consumption |
average:0.5wh/sq.m |
Multi-media control system |
Industrial PC |
Processor:Dual Core CPU, display card:512,hard disk:320G,CD-ROM:DVD, internal storage:2G |
Monitor |
15-inch LCD display |
Power amplifier |
unilateral output power
:200W |
Speakers |
Max power consumption:200W |
Control system of LD screen |
Linso/ZHOGNQING(technology of point by point correction) |
Outer frame and inner decoration |
Cold rolled metal plate |
1.5mm |
Surface car baking varnish |
pure white |
Inner decoration |
Fire Retardant Board |
Waterproof processing |
Vehicle plastic irrigation processing |
Price: FOB/DAF/CNF/CIF
Related Cases : ISUZU G.W 4~7 T
series | Name | Models tonnage | Engine Model | Wheel Base |
100P EUR 4
Chassis | short | QL10403EARY 1.99T | 4JB1CN
98HP
100P 98-horsepower 4JB1CN Isuzu engine,
five-speed transmission configuration Isuzu MSB / air conditioning / direction of power / 2-2.5 tons front axle, rear axle 3-4.8 tonnes / tires small tonnage Standard 700-15, optional 700R15 tires,, 650-15,650R15;700-16, optional 700R16 tire / frame cross-section: 172 * 65 * 4mm / oil brake with vacuum booster pump / audio: radio with USB | 2490 |
| Double Standard | QL10403EWR1Y 1.25T | 2490 |
| QL10403EWRY 1.75T | 2490 |
| short | QL10403FARY 1.99T | 2765 |
| Double | QL10403FWRY 1.43T | 2765 |
| QL10503FWRY 1.75T | 2765 |
| short | QL10403HARY 1.95T | 3360 |
| QL10503HARY 2.75T | 3360 |
| QL10603HARY 3.15T | 3360 |
| QL10703HARY 3.3T | 3360 |
| Double | QL10403HWRY 1.75T | 3360 |
| QL10503HWRY 2.45T | 3360 |
| short | QL10703KARY 4.5T | 3815 |
| QL10703KAR1Y 4.4T | 3815 |
| Double | QL10703KWRY 4.3T | 3815 |
ISUZU G.W 6~7 T
600P EUR 4 | short | 2490 | 4KH1-TCG40 - 120HP EUR 4
600P All models are equipped with 120-horsepower Isuzu engine 4KH1-TCG4O, equipped with five-speed gearbox ISUZU MSB / air conditioning / Standard direction of power / double front axle 2 tons, 2.5 tons single row of front axle, rear axle are 4.8 tons / small tonnage 650-16 standard tire option 650R16, large tonnage standard 700-16, optional 700R16 / audio: radio with USB / frame cross-section: 172 * 65 * 4 + 3mm / oil brake with vacuum booster pump cab without flipping / saloon car interior | QL1060A1FAY,QL1070A1FAY QL1070A1HAY,QL1040A1HAY QL1070A1HWY,QL1040A1HWY QL1070A1KAY/
QL1070A1KWY QL1070A1KAY |
| Double Standard | 2490 |
| short | 2765 |
| Double Standard | 2765 |
| short | 3360 |
| Double Standard | 3360 |
| short | 3815 |
ISUZU G.W 8~11T
700P EUR 4 | QL10809TKARY/QL10909TKARY/QL11009TKARY | 4HK1-TCG40 - 190HP EUR 4
700P 190 horsepower Isuzu engine 4HK1-TCG40, Isuzu MLD six-speed transmission / air conditioning direction of power / 4 tons front axle, rear axle 7 tons / Standard 825-16 825R16 tire optional 825 20 tire 825R20 or 235 / 75R17.5 tire / oil brake with vacuum booster pump / cab chassis can be flipped-section: 216 * 70 * 6 + 3mm;
Optional air brake | 3815 |
| QL10809TLARY/QL10909TLARY/QL11009TLARY | 4175 |
| QL10909TMARY/QL10919TMARY/QL11009TMARY | 4475 |
| QL10909TPARY/QL11009TPARY | 5200 |
| 700P 4×4 | QL1070TKASY | 4HK1-TCG40 | 3840 |
700P
automatic transmission
QL1080ZKARZY/QL1080ZLARZY | Transmission MYY-6S tire 825-16 , 825R16 | 3815 ;4175; 4475 |
ISUZU G.W 14~16 T
FTR EUR 4 G.W
14~16T | Rate loading 7-8 T
4*2 | QL11409TKFR | 4HK1-TCG40 190HP 4strock
FTR with 190 horsepower Isuzu engine 4HK1-TCG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t / optional tire 900-20, 900R20 tires, 1000-20, 1000R20 tire / standard direction of power / central locking / electric windows / steam brake / USB audio / spacious cab flip / frame cross-section: 258 * 85 * 10 + 4mm | 3900 |
| 7-8 T 4*2 | QL11409TMFR | 4500 |
| 7-8 T 4*2 | QL11409TAFRY | 4700 |
| 7-8 T 4*2 | QL11409TNFR | 5000 |
| 7-8 T 4*2 | QL11409TQFR | 5550 |
| 7-8 T 4*2 | QL51409TRFR | 5800 |
| 8-10T 4*2 | QL11609KFRY | 3900 |
| 8-10T 4*2 | QL11609MFRY | 4500 |
| 8-10T 4*2 | QL11609AFRY | 4700 |
| 8-10T 4*2 | QL11609NFRY | 5000 |
| 8-10T 4*2 | QL11609QFRY | 5550 |
| 8-10T 4*2 | QL5160XXY9RFRY | 5800 |
| FVR EUR 4 | G.W 15~16T 4*2
Rate loading
9~10T | QL1150AKFR
QL1150AMFR
QL1150AQFR QL1160AKFRY QL1160AMFRY QL1160AAFRY QL1160ANFRY
QL1160AQFRY
QL5160XXYAQFR QL5160XXYARFR | 6HK1-TCNG40 - 240HP 6strock
FVR chassis with 240-horsepower Isuzu engine 6HK1-TCNG40, six-speed transmission configuration Isuzu MLD / air conditioning / 6.3 tons front axle, rear axle 13 t /Optional 1000-20 ,1000R20 , 1100-20,1100R20 / standard direction of power / central locking / electric windows / steam brake / USB audio / cab flip / frame cross-section: 258 * 85 * 10 + 4mm | 3900 |
| 4500 |
| 4700 |
| 5000 |
| 5550 |
| 5800 |
| FVR EUR 4 | 19T G.W 4x2 Rate loading
9~10T | QL5190GXFDMFRY | 6HK1-TCSG40 300HP
300-horsepower Isuzu engine 6HK1-TCSG40, configure Fast nine files 9JS119TA transmission, 1100R20 tire, the remaining configuration with the above FVR | 4500 |
TIC TRUCKS , www.truckinchina.com
Related Cases :Specifications
| BJ1049V8ADA-1 | BJ493ZLQ3 | 5995×2000×2860 | 2720*1760 | 4.8 | 2.56 |
| BJ1046V9JB5-H1 | 4A1-68C40 | 5130×1900×2750 | 2800*1600 | 4.6 | 2.56 |
| ZZ1047C3414D145 | 4B2-95C40 | 5995×2025×2995 | 3840*1760 | 6.8 | 2.6 |
| BJ1043V9JEA-A | 4B2-95C40 | 5995×2025×2990 | 3840*1760 | 6.8 | 2.6 |
| HFC1041K7T | 4D25F | 5995×2030×2900 | 3840*1760 | 6.8 | 2.6 |
| BJ1049V9PD6-FE | ISF2.8s4129T | 5995×2000×2860 | 3520*1760 | 6.8 | 2.56 |
| BJ1049V9PD6-FE | CY4102-CE4F | 5995×2000×2900 | 3840*1760 | 6.8 | 2.56 |
| BJ1089VDPFG-SD | YC4E140-31 | 7970×2190×3730 | 4800*2240 | 10.8 | 2.56 |
