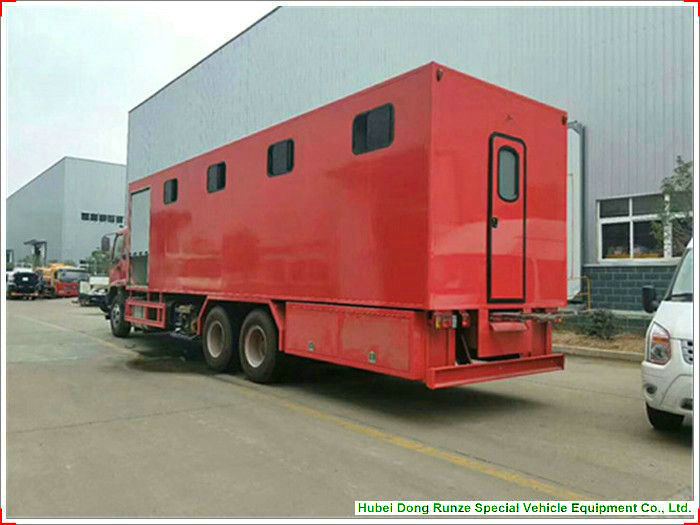

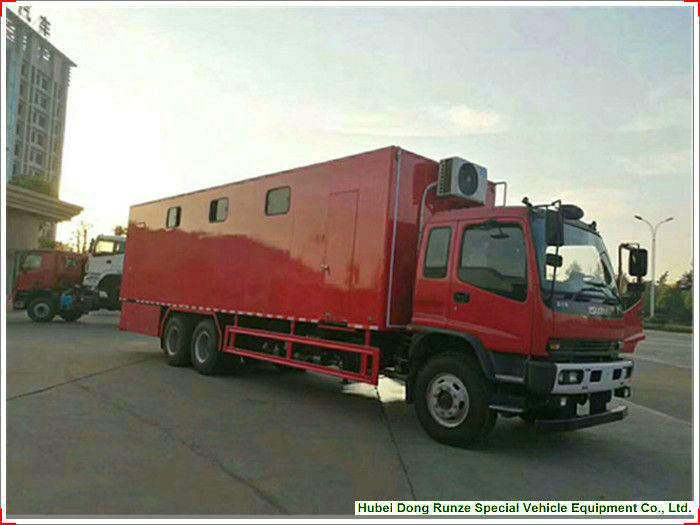

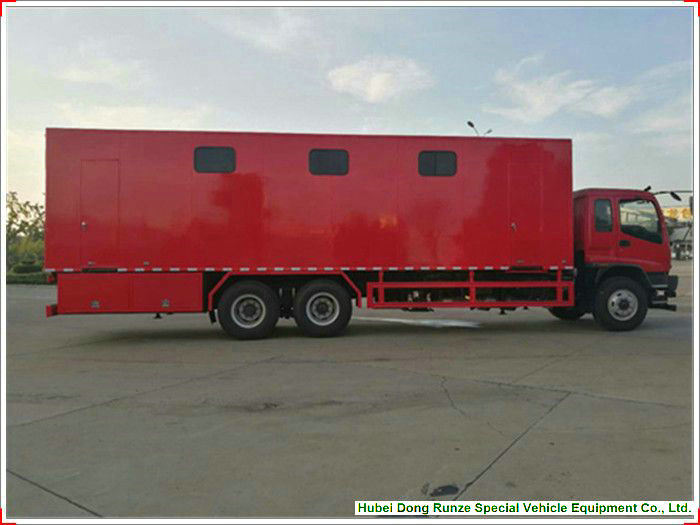

Isuzu Logistics Bath Car, Large Mobile Shower Car (Mobile Bath Shower Van)
Isuzu Logistics Bath Car, Large Mobile Shower Car (Mobile Bath Shower Van)
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
Isuzu Logistics Bath Car, Large Mobile Shower Car Mobile Bath Car Shower Car Truck Customizing
Isuzu Logistics Bath Car, Large Mobile Shower Car (Mobile Bath Shower Van)
Isuzu logistics bathing car, large mobile shower car _ mobile bathing car shower car shower car, army shower car has now been deployed to the army, compared to the field accident car, the field shower car is more magical, the previous field training in a month to wash The problem of not taking a bath has become history now, because the field shower car can guarantee 10 officers and soldiers to take a bath at the same time. It can be said that the small vehicle has great use, and the shower car also separates the shower room and the dressing room to prevent winter. In the cold, there is a warm air duct in the locker room, which makes it easier for the soldiers to train in the wild. In order to prevent bathing in the field without running water, the field shower car can also directly extract water from rivers, rivers and lakes, and use the water purification device and ozone disinfection device equipped on the vehicle to filter and disinfect the water to ensure the bath water. Clean and hygienic
Isuzu shower car chassis configuration: Isuzu FVZ with cab, Isuzu 6HK1-TCH engine, Guowu discharge 300 horsepower, Fast 9-speed transmission, air conditioning, direction assist, central locking, electric windows and doors, front axle 7 tons, after 18 tons of bridge (with two axles), with ABS, standard 1100R20 tires, air brake.

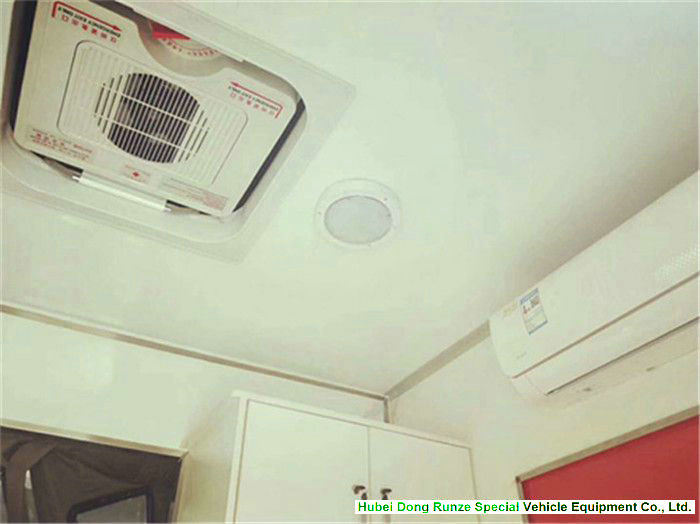

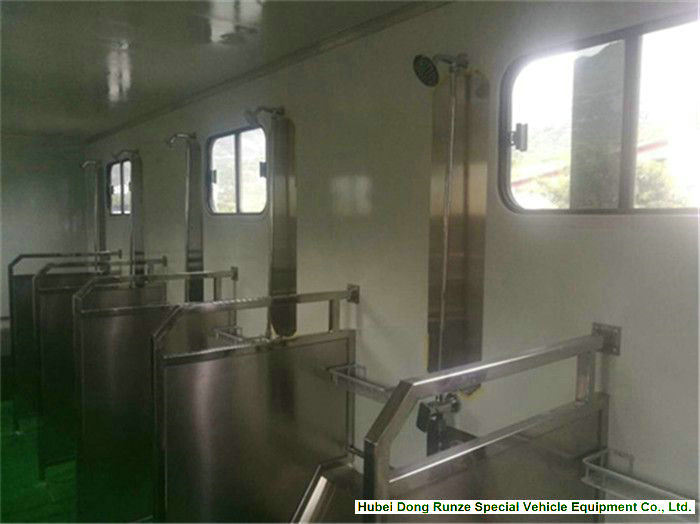

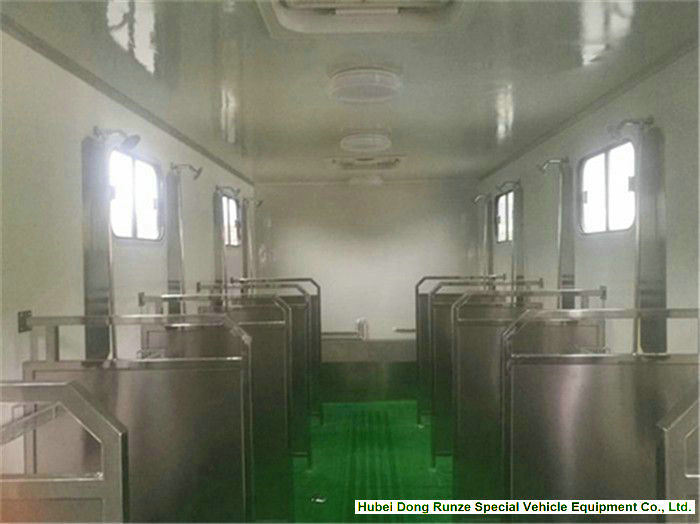

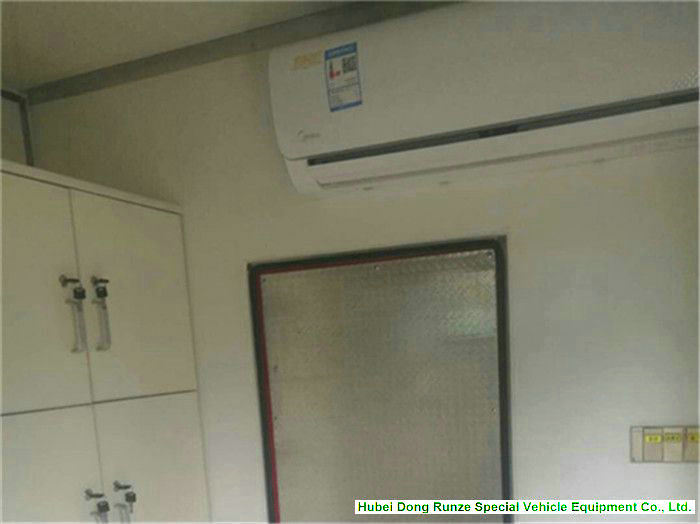

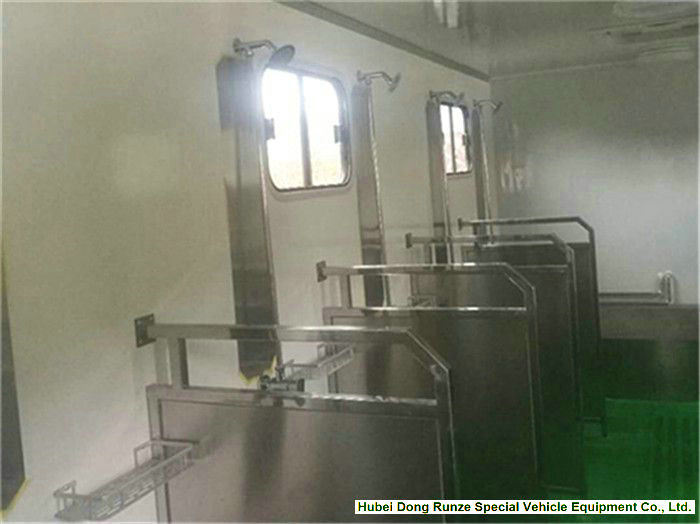

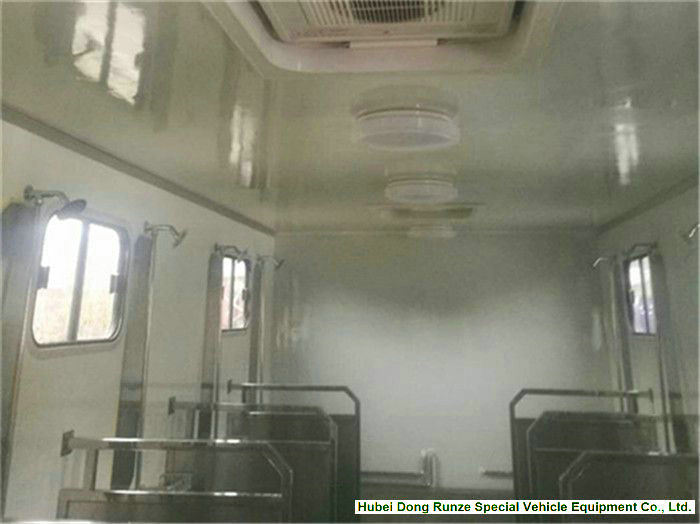

Isuzu shower car top loading configuration: the car is divided into water storage tank, equipment area, dressing area, shower area. The inside of the car meets ≥ every 8 people at the same time shower, each shower is separated, the water storage capacity is ≥2000L. Bathing capacity ≥ 32 people / hour (calculated in 4 batches per hour). The box body adopts anti-corrosion technology to ensure anti-corrosion. The floor is made of waterproof, fireproof and non-slip flooring. Locked lockers with shoes and clothes area.
The upper insulation board is equipped with stainless steel material, and the main functions such as water purification device, shower hot water facility and dressing tent are provided. It is a kind of mobile equipment with strong mobility and independent operation. Mobile bathing car is used to provide bathing service in the field work environment, hot and cold water supply system
Uses: bath, shower Number of occupants/seats: 2 Average fuel consumption: 24 L/100km
Drive mode: rear drive Dimensions (length * width * height): 11750 × 2500 × 3600, 3950 mm Total mass: 25000 kg
*High speed: 105 km/h Fuel type: Diesel Number of tires: 10
Cabinet size: 9200×2350×3200, 3950
| Isuzu Mobile Shower Van truck chassis manufactured in China | |||
| Engine: | 6HK1-TCH | Wheelbase (mm): | 5700+1300 |
| Displacement (cc): | 7790 | Dimensions (mm): | 11575 × 2490 × 2810/3610 |
| Power (kW): | 221 | Gross weight (kg): | 25000 |
| Fuel type: | diesel fuel | Curb weight (kg): | 8100, 8300 |
Offroad Shower Vehicle , Vehicle Mounted Showers ,Hot Camp Showers, Road Shower
ISUZU euro 5 chassis list:
ISUZUseries | wheelbase mm | cabin | Isuzu model | equipments | ||||
ISUZU100P light truck EURO 5 | 2490 | single cabin | QL1040A6EAY | 4KH1CN5LS | ||||
double cabin | QL1040A6EWY | |||||||
2765 | single cabin | QL1040A6FAY | ||||||
double cabin | QL1040A6FWY | |||||||
3360 | single cabin | QL1040A6HAY | QL1042A6HAY | QL1043A6HAY | ||||
QL1045A6HAY | ||||||||
single cabin wider | QL1044A6HAY | |||||||
single with sleeper | ||||||||
double cabin | QL1040A6HWY | QL1042A6HWY | ||||||
3815 | single cabin | |||||||
double cabin | ||||||||
600P | 2490 | single cabin | Isuzu 4KH1CN5HS diesel engine 130hp,Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2.5T, rear axle 4.8T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable, double row cabin can not tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit device, exhaust brake. | |||||
double cabin | QL1040A5EWY | |||||||
2765 | single cabin | QL1070A5FAY | QL1040A5FAY | QL1071A5FAY | ||||
double cabin | QL1040A5FWY | |||||||
3360 | single cabin | QL1070A5HAY | QL1071A5HAY | QL1040A5HAY | ||||
QL1044A5HAY | ||||||||
single cabin | QL1040A7HAY | |||||||
single with sleeper | ||||||||
double cabin | QL1070A5HWY | QL1040A5HWY | ||||||
single cabin wider | QL1043A5HAY | |||||||
3815 | single cabin | QL1070A5KAY | QL1071A5KAY | |||||
QL1060A5KAY | ||||||||
single cabin wider | QL1072A5KAY | |||||||
single with sleeper | ||||||||
double cabin | QL1070A5KWY | |||||||
700P ISUZU middle truck | 3360 oil brake | single cabin | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, double circuit type oil brake. | |||||
3815 oil brake | single cabin | |||||||
single cabin | ||||||||
4175 oil brake | single cabin | |||||||
4475 oil brake | single cabin | |||||||
single cabin | ||||||||
single with sleeper | ||||||||
5200 oil brake | single cabin | QL1080A8PAY | ||||||
single with sleeper | ||||||||
3815air brake | single cabin | QL1100A8KAY | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, exhaust brake. | |||||
4175air brake | single cabin | QL1100A8LAY | ||||||
4475air brake | single cabin | QL1100A8MAY | ||||||
5200air brake | single cabin | QL1100A8PAY | ||||||
FTR ISUZU middle truck | 3900 | single with sleeper | QL1160VKFRY | Isuzu 4HK1-TC50 diesel engine 205hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, tyre 10.00R20 , exhaust brake. | ||||
4500 | single with sleeper | QL1160VMFRY | ||||||
4700 | single with sleeper | |||||||
5000 | single with sleeper | QL1160VNFRY | ||||||
5550 | single with sleeper | QL1160VQFRY | ||||||
5800 | single with sleeper | QL5160XXYVRFRY | ||||||
FVR heavy duty EURO5 | 3900 | single with sleeper | Isuzu 6HK1-TCL diesel engine 240hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, with ABS, tyre 295/80R22.5, exhaust brake. | |||||
4500 | single with sleeper | QL1180XMFRY | ||||||
4700 | single with sleeper | |||||||
5000 | single with sleeper | |||||||
5550 | single with sleeper | QL1180XQFRY | ||||||
5800 | single with sleeper | QL5180XXYXRFRY | ||||||
1850+5650 | single with sleeper | 6HK1-TCL power 240hp | ||||||
4500 | single with sleeper | QL5190GXFWMFRY | 6HK1-TCH power 300hp | |||||
FVZ ISUZU heavy duty EURO5 | 4000+1300 | single with sleeper |
| |||||
4350+1300 | single with sleeper | |||||||
4650+1300 | single with sleeper | QL1250WPFZY | ||||||
4900+1300 | single with sleeper | |||||||
5100+1300 | single with sleeper | QL1250WRFZY | ||||||
5400+1300 | single with sleeper | |||||||
5700+1300 | single with sleeper | QL1250WTFZY | ||||||
VC61 ISUZU heavy duty EURO5 | 4650 | single with sleeper | ||||||
3385+1370 | single with sleeper | QL4250W2NCZ | 6WG1-TCG51 power 450hp | |||||
3600+1300 | single with sleeper | |||||||
4025+1300 | single with sleeper | |||||||
4605+1300 | single with sleeper | |||||||
5100+1300 | single with sleeper | |||||||
5820+1300 | single with sleeper | |||||||
4605+1300 | single with sleeper | |||||||
1850+3320+1300 single with sleeper | 6WG1-TCG51 power 450hp | |||||||
1850+4575+1370 single with sleeper | QL5400GXFW2VCHY | |||||||
