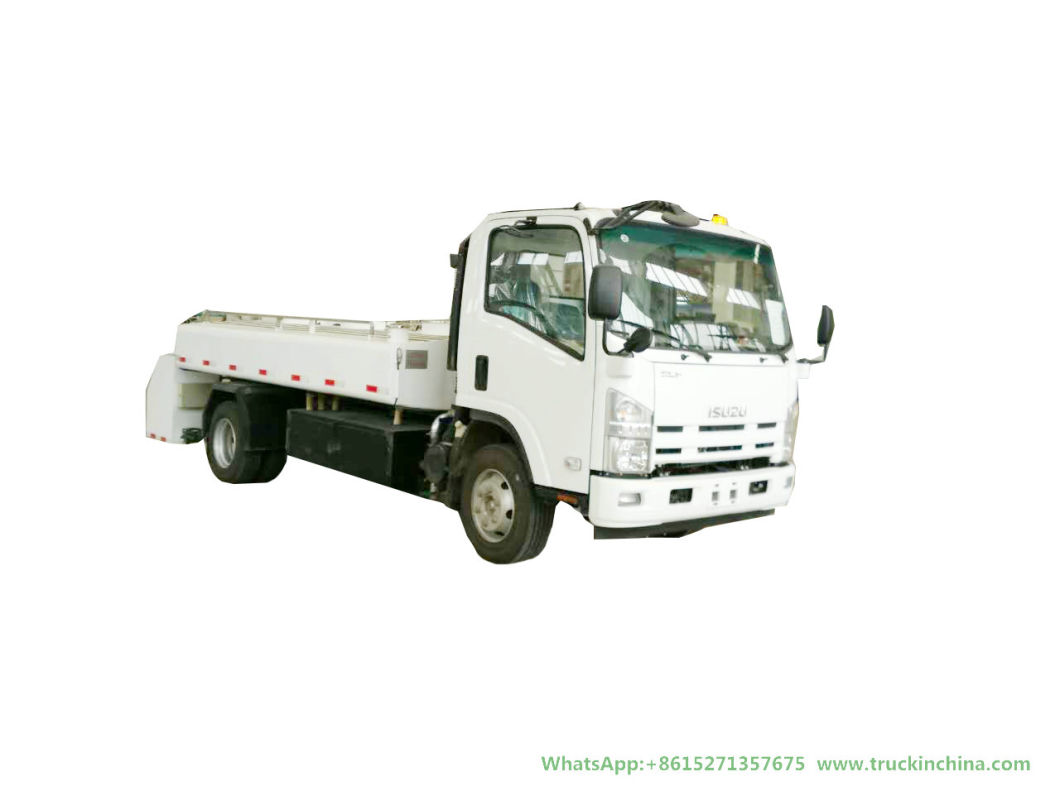

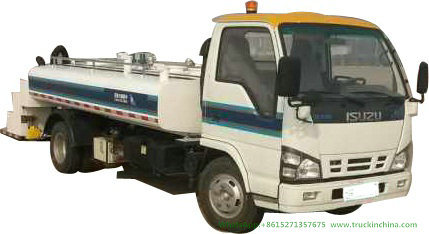

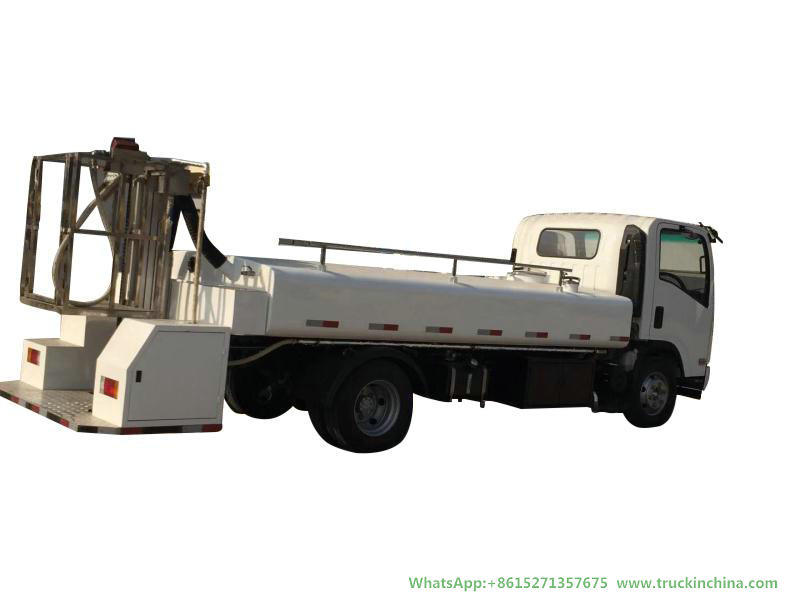

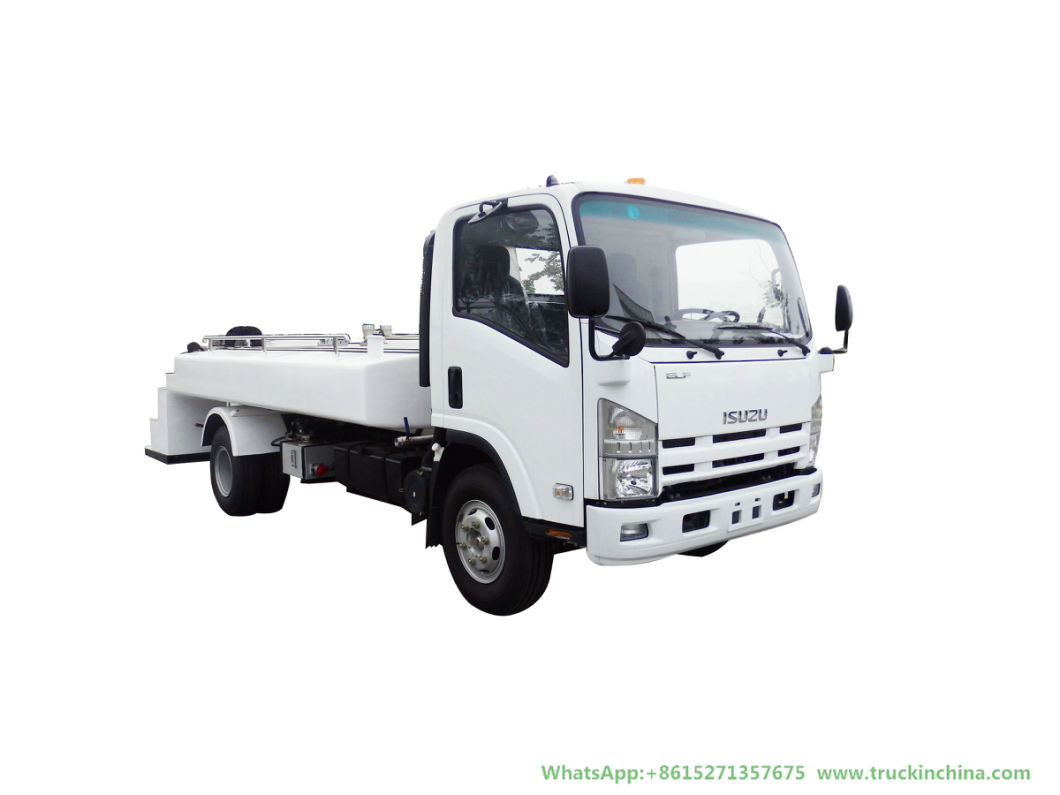

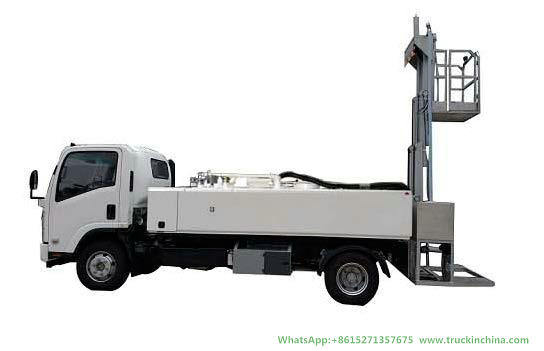

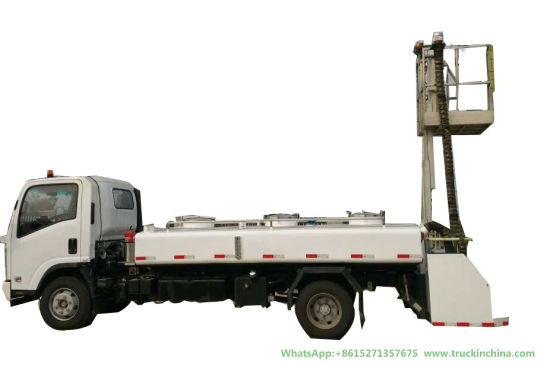

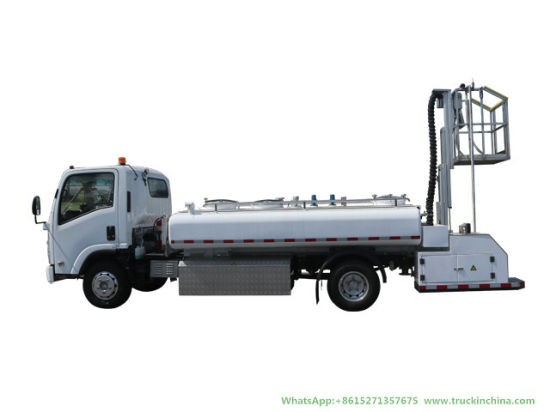

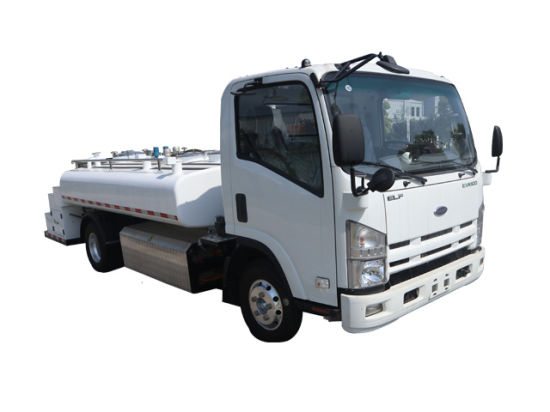

Isuzu Lavatory Service Truck Clean Water Tank 1400L Sewage Tank 2360L (Aircraft Sewage Tanker With Vacuum Pump Electric Diesel Vehicle)
Isuzu Lavatory Service Truck Clean Water Tank 1400L Sewage Tank 2360L (Aircraft Sewage Tanker With Vacuum Pump Electric Diesel Vehicle)
| Quantity: | |
|---|---|
-
DRZ5110
-
ISUZU
-
8705
-
Shanghai, China
-
T/T
-
Roro
ISUZU Lavatory Service Truck Clean Water Tank 1400L Sewage Tank 2360L( Aircraft Sewage Tanker With Vacuum Pump Electric Diesel Vehicle )
Lavatory service truck is designed to withstand the airport complex environment, simply to operated and easy to maintain. The lavatory servicing truck with closed cab and heating systems is equipped with latest electric and hydraulic circuits. The unit is equipped with a lift platform in the rear and used and servicing up to B747. The tank is mounted to the chassis with rubber shock absorbers to insulate it from vibration and shock during driving.
Clean water tank volume (L) 1400
Volume of sewage tank (L): 2480 (with vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 130
Water supply pressure (MPA) 0.345
Curb weight (kg) 4500
MH/T6014-1999 Portable Water Vehicle
IATA AHM 970 Function specification for Portable Water Vehicle IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
IATA AHM 915 Standard Control device
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment CCAR-137-CA-R3 Administrative provisions for civil airport equipment
AP-137-CA-2015-02 Survey arrangement for civil airport equipment GB3847-2005·Emission limits and measurement methods for compressed-combustion engine
GB20891-2014 Emission limits and measurement methods for diesel engine
Applicable aircrafts
n It is applicable to A300,A310,A318,A319,A320,A330,A340,B707, B727,B737,B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,
MD80 type aircraft except A380.
Lavatory Water Service Truck (4000L)
Major Structure and Configuration The aircraft lavatory service truck primarily consists of automotive Isuzu chassis, water tank assembly, power take-off (PTO) drive assembly, sewage system, portable water supply system, tail frame, hydraulic drive system, electrical system.
Aircraft sewage vehicle
Aircraft sewage vehicle (electric type) Main performance indexes:
Electric Powered Water Serve Truck
choose ISUZU chassis type QL1070BEVECDAY, rear lifting platform.water tank capacity is 4.0m3,
it is applicable for all aircraft types except a380.
| No. | Project name | Design value | Note |
| 1 | Total length(mm) | 7315 | |
| 2 | Total width(mm) | 2200 | |
| 3 | Total height(mm) | 2360 | |
| 4 | Wheelbase(mm) | 3815 | |
| 5 | Wheelbase(front/rear)(mm) | 1680/1650 | |
| 6 | Front hanger(mm) | 1100 | |
| 7 | Rear hanger(mm) | 2440 | |
| 8 | Approach angle (°) | 19 | |
| 9 | departure angle (°) | 5 | |
| 10 | Min. ground clearance | 200 | |
| 11 | Curb weight(kg) | 4060 | |
| 12 | Total weight(kg) | 8190 | |
| 13 | Outside diameter of channel round(mm) | 15600 | |
| 14 | Max. speed(km/h) | 60 | |
| 15 | tank volume(L) | 4000 | |
| 16 | Water supply rate(L/min) | ≥150 | |

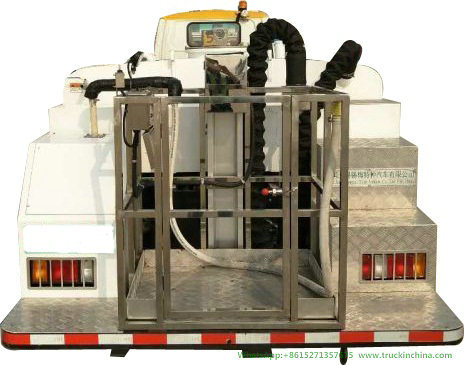

| 17 | Min. height of work platform (mm) | 385 | |
| 18 | Max. height of work platform (mm) | 3800 | |
| 19 | Material of water tank | Stainless steel plate 1Cr18Ni9Ti/4mm |
Project performance index
Clean water tank volume (L) 1400
Volume of sewage tank (L): 2480 (with vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 130
Water supply pressure (MPA) 0.345
Curb weight (kg) 4500
Boundary dimension (L × w × h) (mm): 7240 × 2100 × 2190
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 120 (with vacuum pump) / 0 (without vacuum pump)
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer Bucher hydraulic (Wuxi) Co., Ltd
Model: ybz5-c1.0a1t2/uvsht1
Motor pump controller manufacturer Jiangsu jitaike Electric Co., Ltd
Model: fa4z5.5fal00
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 440-3090
Test temperature condition (ºC) - 35 ~ 60 (- 20 ºC turn on the battery heating system)
JSTY5060GWSE
Main performance indexes:
Project performance index
Clean water tank volume (L) 1400
Volume of sewage tank (L): 2480 (with vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 130
Water supply pressure (MPA) 0.345
Curb weight (kg) 4500
Boundary dimension (L × w × h) (mm): 7240 × 2100 × 2190
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 120 (with vacuum pump) / 0 (without vacuum pump)
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer Bucher hydraulic (Wuxi) Co., Ltd
Model: ybz5-c1.0a1t2/uvsht1
Motor pump controller manufacturer Jiangsu jitaike Electric Co., Ltd
Model: fa4z5.5fal00
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 440-3090
Test temperature condition (ºC) - 35 ~ 60 (- 20 ºC turn on the battery heating system)
JSTY5070GWS
WS-05
XLH5080GWSE JSTY5070GWS
Main performance indexes:
Project performance index
Configuration VI (September 12, 2019) - configuration V
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4hk1-tc51 4hk1-tcg40 4kh1-tcg40 4hk1-tcn2 4KH1-TC
Volume of clean water tank (L): 1400 1400 1400 1400 1400 1400 1400 1400
Sewage tank volume (L) 2360 (with vacuum pump) / 2600 (without vacuum pump) / 2360 (with vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 150 ≥ 150 150 150 130 130
Water supply pressure (MPA) 0.345 0.345 0.345 0.345 0.345 0.345 0.345
Curb weight (kg): 4060 5200 4950 4770 4200 3700
Overall dimension (L × w × h) (mm): 7190 × 2100 × 2260 7295 × 2100 × 2380 7315x2190x2360 7400x2175x225 7330x2220x2400 7050x2100x2160
Maximum speed (km / h) 80 80 70 80 80
Other performance options: vacuum pump options: vacuum pump options: vacuum pump options: vacuum pump options: vacuum pump minimum turning diameter mm: 14000 options: vacuum pump minimum turning diameter mm: 15500 options: vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay, ql1100a8kay, ql11009kary, ql1070a1kay, ql1080zkarzy, nkr77plpacjay
Lifting height of working platform (mm): 385-3760 385-3760 400-3000 385-3760 550-2800 500-2800
Outer diameter of channel circle (mm): 17000 16000 15500 17000 ---
Engine emissions: exhaust pollutants meet the limit requirements of GB 17691-2005 phase V, exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) 240 (with vacuum pump) / 0 (without vacuum pump)
Gearbox manufacturer Qingling Automobile Co., Ltd. Allison transmission Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: msb-5sm allison1000 mld-6q msb-5sm my-6s msb-5sm
WS-05
Main performance indexes:
Project performance index
Configuration II (October 31, 2019) - configuration I (June 1, 2018)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tc
Volume of clean water tank (L) 1500 1500
Volume of sewage tank (L) 2520 2520
Water supply flow (L / min) ≥ 133 133
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 5200 4870
Boundary dimension (L × w × h) (mm): 7380 × 2295 × 2360 7210 × 2295 × 2400
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay ql1100tkaky
Lifting height of working platform (mm): 450-2800 450-2800
Outer diameter of channel circle (mm): 16000 15000
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, exhaust smoke meets the requirements of GB 3847-2005; exhaust pollutants meet the requirements of GB 17691-2005 phase III limit, exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) ---
Gearbox manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model mld-6q mld-6q
WSE3-A
TD40EWS WSE3-A
Main performance indexes:
Project performance index
Clean water tank volume (L) 820
Sewage tank volume (L) 2080
Water supply flow (L / min) 125
Water supply pressure (MPA) 0.345
Curb weight (kg) 4550
Boundary dimension (L × w × h) (mm): 6680 × 2110 × 2350
Maximum speed (km / h) 80
Driving range (km) 260
Other performance--
Chassis manufacturer Foton Automobile Co., Ltd
Model: bj1065evja1
Volume of circulating water tank (L)--
Drive motor manufacturer Foton Motor Co., Ltd
Model fttb060
Drive motor controller manufacturer Foton Motor Co., Ltd
Model: ftivt200
Motor pump manufacturer--
Model--
Motor pump controller manufacturer--
Model--
Energy storage device manufacturer Lishen power battery system Co., Ltd
Model lsft? 104.7kwh? F
Total energy of energy storage device (KWH) 104.7
Table lifting height (mm): 420 ~ 2800
Test temperature condition (ºC) - 20 ~ 50
Main performance indexes:
Project performance index
Clean water tank volume (L) 1400
Sewage tank volume (L) 2700
Water supply flow (L / min) 180
Water supply pressure (MPA) 0.35
Curb weight (kg) 4650
Boundary dimension (L × w × h) (mm): 7050 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 200
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer
Model td-4yc-dc010001a
Motor pump controller
Model td-5dr-d83c
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Table lifting height (mm): 480 ~ 2860
Test temperature condition (ºC) - 30 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
Main performance indexes:
Project performance index
Clean water tank volume (L) 1400
Sewage tank volume (L) 2700
Water supply flow (L / min) 180
Water supply pressure (MPA) 0.35
Curb weight (kg) 4650
Boundary dimension (L × w × h) (mm): 7050 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 200
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer
Model td-4yc-dc010001a
Motor pump controller
Model td-5dr-d83c
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Table lifting height (mm): 480 ~ 2860
Test temperature condition (ºC) - 30 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
Aircraft sewage vehicle (electric type) wxq5060dws
Main performance indexes:
Project performance index
Clean water tank volume (L) 1500
Volume of sewage tank (L) 2800
Water supply flow (L / min) 160
Water supply pressure (MPA) 0.345
Curb weight (kg) 4800
Boundary dimension (L × w × h) (mm): 7400 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 200
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer
Model: wxq5060dws-0620100
Motor pump controller
Model: wxq5060dws-0801002
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 400-3000
Start the battery heating system when the test temperature is - 35-60 (- 20 ºC)
WXQ5090GWS
WXQ5090GWS
Main performance indexes:
Project performance index
Configuration III (October 15, 2019) - configuration II (May 31, 2019)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tcg40 4hk1-tcn2
Volume of clean water tank (L) 1500 1500 1500
Volume of sewage tank (L) 2700 2700 2700
Water supply flow (L / min) 150 150 ≥ 120
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg) 5000 4750 4950
Boundary dimension (L × w × h) (mm): 7545 × 2300 × 2400 7355 × 2300 × 2450 7400 × 2300 × 2480
Maximum speed (km / h) 80 80 80
Other performance optional vacuum pump optional vacuum pump optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql11009kary, ql11080zkarzy
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Outer diameter of channel circle (mm) 15500 15500--
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
Volume of circulating water tank (L) 200 200 200
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q mld-6q myy6s
WGWS40
Sewage Vacuum Truck (also called sewer cleaning truck , sewage tanker , sewer truck , cesspit emptier, gully emptier, vacuum truck , gully emptier, waste vacuum tanker, vacuum tanker, sewage truck ) is used tocollect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such assmall stones, bricks as well. It is suitable for cleaning the sewer , cesspit, cesspool, gully, etc
WGWS40
Main performance indexes:
Project performance index
Configuration III (September 13, 2019) - configuration II - configuration I
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4kh1cn5hs 4kh1-tcg40
Volume of clean water tank (L) 1250 1250 1000
Volume of sewage tank (L) 2800 2800 3000
Water supply flow (L / min) 170 170 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.15 ~ 0.345 0.15 ~ 0.345
Curb weight (kg) 4150 3950 4050
Boundary dimension (L × w × h) (mm): 7500 × 2120 × 2330 7000 × 2120 × 2330 6635 × 2200 × 2400
Maximum speed (km / h) 80 80 80
Other performance: optional vacuum pump, optional vacuum pump, optional vacuum pump, with a minimum turning diameter of 14000mm.
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1070a5hay; ql1070a1hay
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Outer diameter of channel circle (mm) 15000 15000--
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L): 150-200
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5sm msb-5sm MSB
GWS50
GWS50
Main performance indexes:
Project performance index
Configuration II (September 13, 2019) - configuration I
Engine manufacturer man Truck & bus UK Ltd
Model: d0836lfalah d0836lf29
Volume of clean water tank (L) 1500 1500
Sewage tank volume (L) 3500 3500
Water supply flow (L / min) 170 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.25 ~ 0.35
Curb weight (kg) 7200 6000
Boundary dimension (L × w × h) (mm): 8950 × 2350 × 2700 8950 × 2300 × 2860
Maximum speed (km / h) 90 85
Other performance ---
Chassis manufacturer man Truck & bus UK Ltd
Model tgl12.250 tgl12.250
Lifting height of working platform (mm): 450-3000; 400-3000
Outer diameter of channel circle (mm) 15200 18100
The emission of exhaust pollutants from the engine meets the limit value of gb17691-2005 phase V, and the exhaust smoke meets the requirements of gb3847-2005. The exhaust pollutants meet the limit value of gb17691-2005 phase IV, and the exhaust smoke meets the requirements of gb3847-2005.
Volume of circulating water tank (L) ---
Gearbox manufacturer ZF fiedrichshafen AG
Model zf12as1210od zf12as1210od
LTM-900-V
LTM-900-V
Main performance indexes:
Project performance index
Configuration II (September 16, 2019) - configuration I (December 11, 2018)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tc51
Volume of clean water tank (L) 700 750
Volume of sewage tank (L) 1500 4100
Water supply flow (L / min) 140 140
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg): 4760 5960
Boundary dimension (L × w × h) (mm): 5880x2150x2380 7060 × 2200 × 2380
Maximum speed (km / h) 80 80
Other performance optional vacuum pump optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm) - 460 ~ 3050
Outer diameter of channel circle (mm): 16000-16000
The emission of pollutants from the engine meets the limit value requirements of gb17691-2005 phase V, and the exhaust smoke meets the requirements of gb3847-2005.
Volume of circulating water tank (L) - 150
Gearbox manufacturer Allison gearbox company Allison gearbox company
Model Allison 1000 Allison 1000
XLH5070GWSZ
XLH5070GWSZ
Main performance indexes:
Project performance index
Configuration III (January 30, 2019) , configuration II (December 27, 2017) , configuration I (November 25, 2016)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4kh1cn5hs 4kh1-tcg40
Volume of clean water tank (L) 1450 1100 1100
Volume of sewage tank (L) 3700 2600 2600
Water supply flow (L / min) 120 120 120
Water supply pressure (MPA) 0.35 0.35 0.35
Curb weight (kg) 5200 4110 4110
Boundary dimension (L × w × h) (mm): 7370 × 2240 × 2410 7625 × 1980 × 2290 7625 × 1980 × 2160
Maximum speed (km / h) 80 80 80
Other performance optional vacuum pump optional vacuum pump optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql1070a5kay, ql1070a1kay
Lifting height of working platform (mm): 380-2900 380-2900 380-2900 380-2900
Outer diameter of channel circle (mm): 16000 16600 16000
Engine emissions: exhaust pollutants meet the emission limits of the fifth stage of GB 17691-2005; exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) 100 150 150
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q msb-5sm MSB
SZG-WS40
SZG-WS40
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
Volume of clean water tank (L) 1000
Volume of sewage tank (L) 3000
Water supply flow (L / min) ≥ 150
Water supply pressure (MPA) 0.345
Curb weight (kg) 4700
Boundary dimension (L × w × h) (mm): 7100x2160x2440
Maximum speed (km / h) 80
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm): 400 ~ 2800
Outer diameter of channel circle (mm) 15500
Engine emission: exhaust pollutants meet the emission limit requirements of gb17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) 150
Gearbox manufacturer Allison transmission holdings, Inc
Model allison1000
TK-WS50
TK-WS50
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
Volume of clean water tank (L) 1000
Volume of sewage tank (L) 4000
Water supply flow (L / min) ≥ 140
Water supply pressure (MPA) 0.25-0.35
Curb weight (kg) 5200
Boundary dimension (L × w × h) (mm): 7555 × 2200 × 2330
Maximum speed (km / h) 80
Other performance: optional vacuum pump, lifting platform
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm): 400-2800
Outer diameter of channel circle (mm): 16000
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L)--
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q
TK-WS40
TK-WS40
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4hk1-tcg40 4kh1-tcg40
Volume of clean water tank (L) 1500 1000 1500
Volume of sewage tank (L) 2500 3000 2500
Water supply flow (L / min) 120 120 120
Water supply pressure (MPA) 0.25-0.35 0.25-0.35 0.25-0.35 0.25-0.35
Curb weight (kg) 4010 5100 4000
Boundary dimension (L × w × h) (mm): 6955 × 2100 × 2300 7575 × 2180 × 2370 6990 × 2100 × 2310
Maximum speed (km / h) 70 70 70
Other performance options: vacuum pump, lifting platform options: vacuum pump, lifting platform options: vacuum pump, lifting platform options: vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1109kary; ql1070a1hay
Lifting height of working platform (mm): 400 ~ 2800 400 ~ 2800 400 ~ 2800 400 ~ 2800
Outer diameter of channel circle (mm) 15500 15600 15000
Engine emission meets the emission limit of phase V of GB 17691-2005
Volume of circulating water tank (L) 150 150 150
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5sm mld-6q MSB
EQ5080TWSACBEV Aircraft Lavatory Service Vehicles
EQ5080TWSACBEV Aircraft Lavatory Service Vehicles
| LAVATORY SERVICE TRUCK | ||
| Specification | Parameter | |
| Engine | Power | 96 / 2999KW/rpm |
| Compression ratio | 18.3 | |
| Emission | ||
| Overall Length | 6740mm | |
| Overall width | 1875mm | |
| Overall height | 2160mm | |
| Clean water tank capacity | 1300L (SS tank) | |
| Waste water tank capacity | 2600L (SS tank) | |
| Small waste water tank capacity | 150L (SS tank) | |
| Minimum Turning Radius | 6800mm | |
| Lift height range for platform | 400--2800mm | |
| Rated water pump rotation | 2800-3000rpm | |
| Flow | ≥120L/min | |
| Head | ≥30m | |
| Load capacity of work platform | ≥100kg | |
| Height of Lift platform | 450mm - 3200mm | |
Sewage Vacuum Truck (also called sewer cleaning truck , sewage tanker , sewer truck , cesspit emptier, gully emptier, vacuum truck , gully emptier, waste vacuum tanker, vacuum tanker, sewage truck ) is used tocollect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such assmall stones, bricks as well. It is suitable for cleaning the sewer , cesspit, cesspool, gully, etc

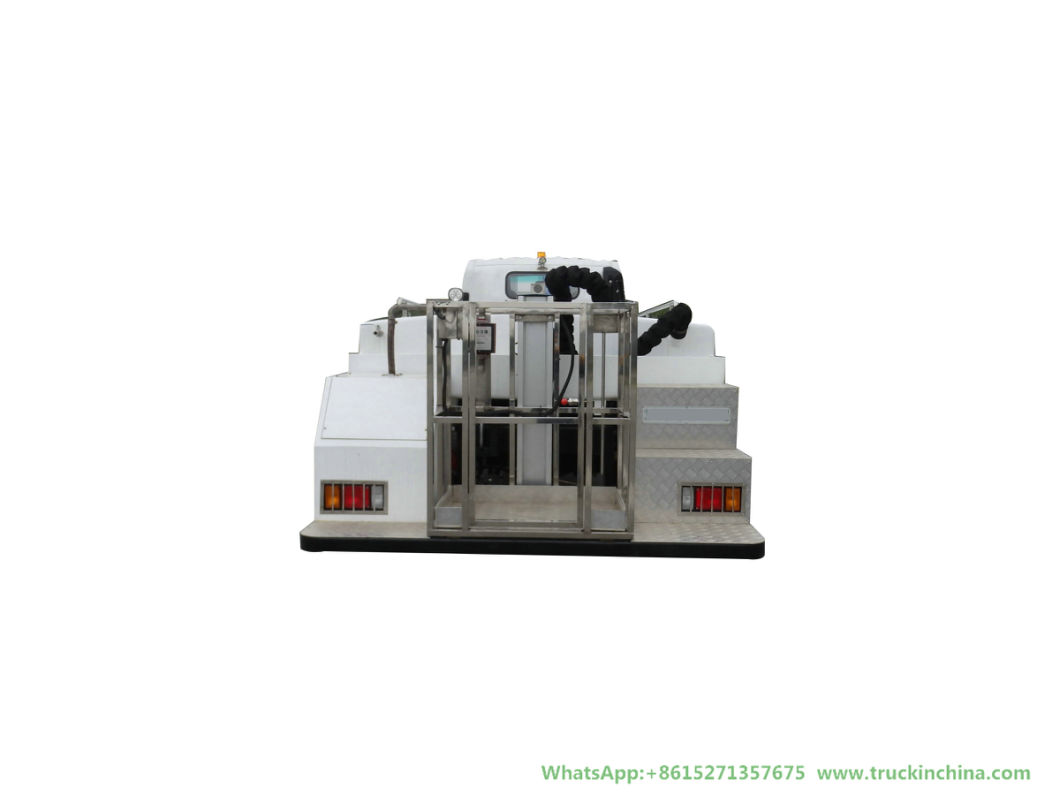

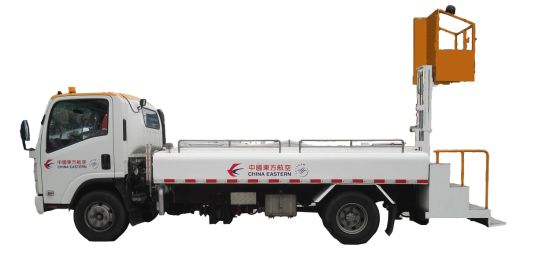

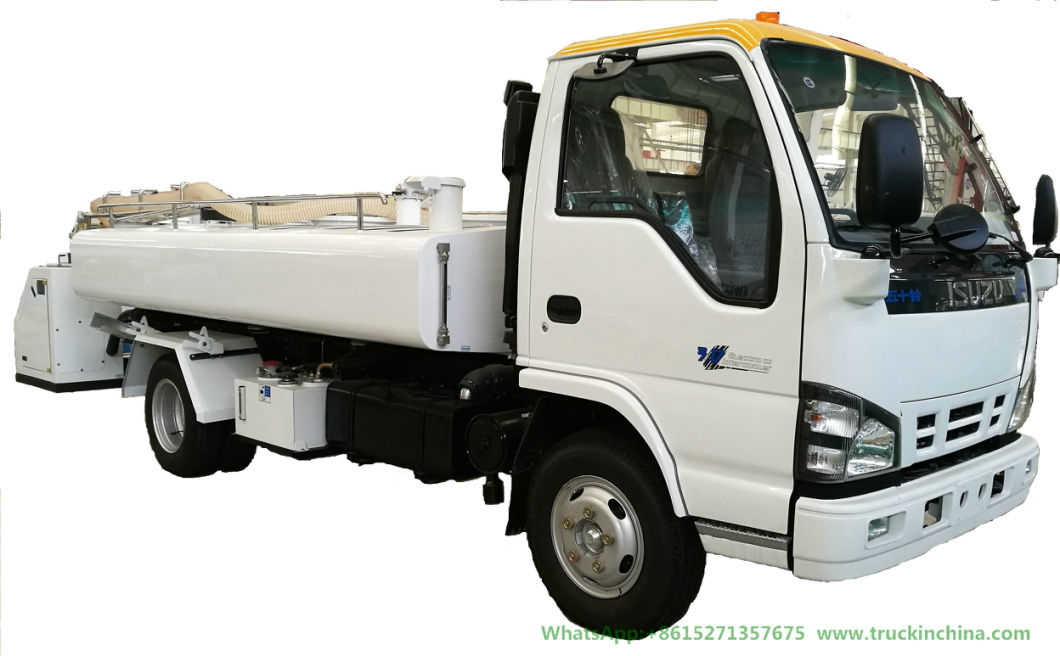

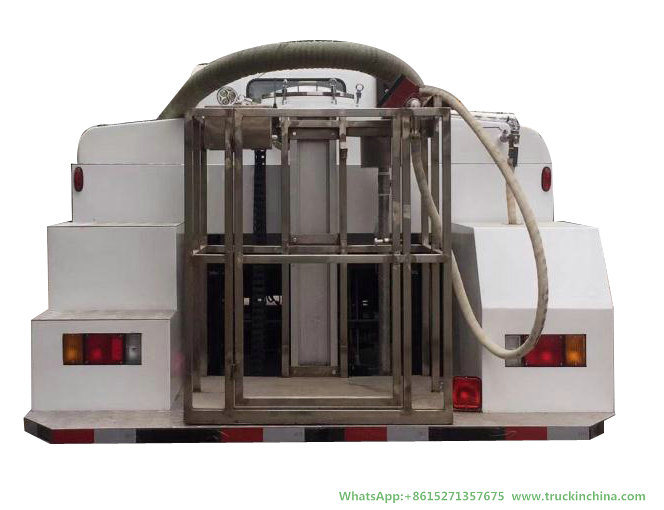

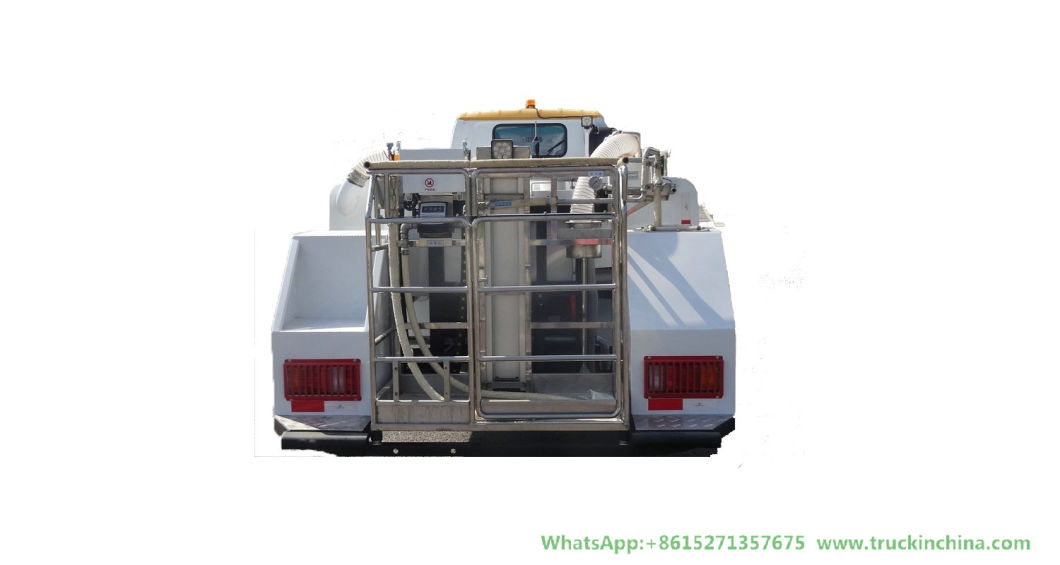

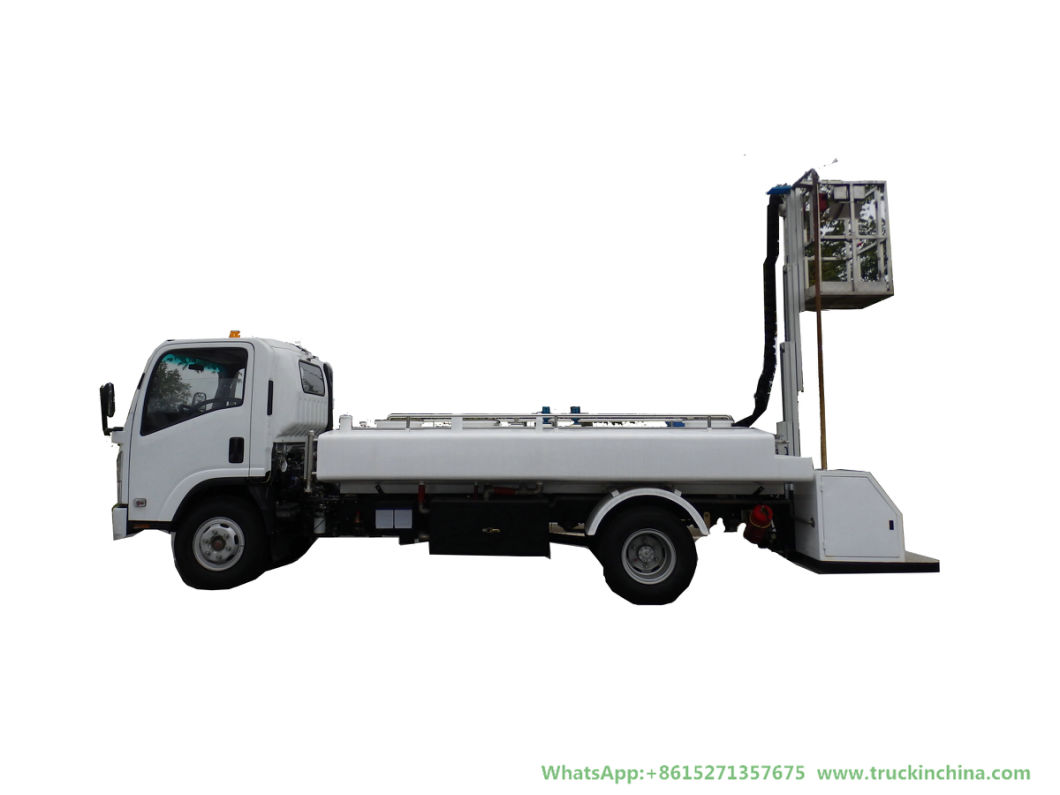

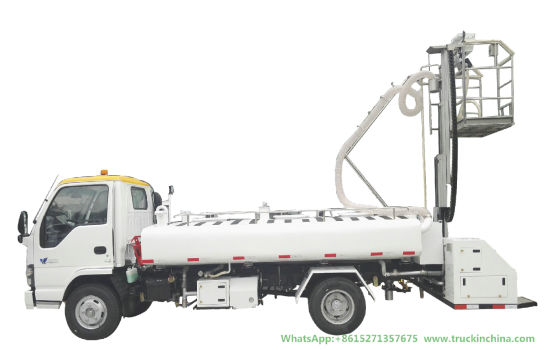

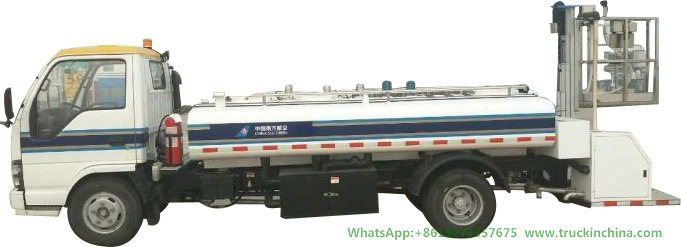

ISUZU Lavatory Service Truck Clean Water Tank 1400L Sewage Tank 2360L( Aircraft Sewage Tanker With Vacuum Pump Electric Diesel Vehicle )
Lavatory service truck is designed to withstand the airport complex environment, simply to operated and easy to maintain. The lavatory servicing truck with closed cab and heating systems is equipped with latest electric and hydraulic circuits. The unit is equipped with a lift platform in the rear and used and servicing up to B747. The tank is mounted to the chassis with rubber shock absorbers to insulate it from vibration and shock during driving.
Clean water tank volume (L) 1400
Volume of sewage tank (L): 2480 (with vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 130
Water supply pressure (MPA) 0.345
Curb weight (kg) 4500
MH/T6014-1999 Portable Water Vehicle
IATA AHM 970 Function specification for Portable Water Vehicle IATA AHM 913 Basic Safety Requirements for Airport Ground Support Equipment
IATA AHM 915 Standard Control device
IATA AHM 910 Basic Requirements for Airport Ground Support Equipment CCAR-137-CA-R3 Administrative provisions for civil airport equipment
AP-137-CA-2015-02 Survey arrangement for civil airport equipment GB3847-2005·Emission limits and measurement methods for compressed-combustion engine
GB20891-2014 Emission limits and measurement methods for diesel engine
Applicable aircrafts
n It is applicable to A300,A310,A318,A319,A320,A330,A340,B707, B727,B737,B747,B757,B767,B777,DC8,1L-18,1L-62,MD11,
MD80 type aircraft except A380.
Lavatory Water Service Truck (4000L)
Major Structure and Configuration The aircraft lavatory service truck primarily consists of automotive Isuzu chassis, water tank assembly, power take-off (PTO) drive assembly, sewage system, portable water supply system, tail frame, hydraulic drive system, electrical system.
Aircraft sewage vehicle
Aircraft sewage vehicle (electric type) Main performance indexes:
Electric Powered Water Serve Truck
choose ISUZU chassis type QL1070BEVECDAY, rear lifting platform.water tank capacity is 4.0m3,
it is applicable for all aircraft types except a380.
| No. | Project name | Design value | Note |
| 1 | Total length(mm) | 7315 | |
| 2 | Total width(mm) | 2200 | |
| 3 | Total height(mm) | 2360 | |
| 4 | Wheelbase(mm) | 3815 | |
| 5 | Wheelbase(front/rear)(mm) | 1680/1650 | |
| 6 | Front hanger(mm) | 1100 | |
| 7 | Rear hanger(mm) | 2440 | |
| 8 | Approach angle (°) | 19 | |
| 9 | departure angle (°) | 5 | |
| 10 | Min. ground clearance | 200 | |
| 11 | Curb weight(kg) | 4060 | |
| 12 | Total weight(kg) | 8190 | |
| 13 | Outside diameter of channel round(mm) | 15600 | |
| 14 | Max. speed(km/h) | 60 | |
| 15 | tank volume(L) | 4000 | |
| 16 | Water supply rate(L/min) | ≥150 | |
| 17 | Min. height of work platform (mm) | 385 | |
| 18 | Max. height of work platform (mm) | 3800 | |
| 19 | Material of water tank | Stainless steel plate 1Cr18Ni9Ti/4mm |
Project performance index
Clean water tank volume (L) 1400
Volume of sewage tank (L): 2480 (with vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 130
Water supply pressure (MPA) 0.345
Curb weight (kg) 4500
Boundary dimension (L × w × h) (mm): 7240 × 2100 × 2190
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 120 (with vacuum pump) / 0 (without vacuum pump)
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer Bucher hydraulic (Wuxi) Co., Ltd
Model: ybz5-c1.0a1t2/uvsht1
Motor pump controller manufacturer Jiangsu jitaike Electric Co., Ltd
Model: fa4z5.5fal00
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 440-3090
Test temperature condition (ºC) - 35 ~ 60 (- 20 ºC turn on the battery heating system)
JSTY5060GWSE
Main performance indexes:
Project performance index
Clean water tank volume (L) 1400
Volume of sewage tank (L): 2480 (with vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 130
Water supply pressure (MPA) 0.345
Curb weight (kg) 4500
Boundary dimension (L × w × h) (mm): 7240 × 2100 × 2190
Maximum speed (km / h) 80
Driving range (km) 210
Other performance--
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 120 (with vacuum pump) / 0 (without vacuum pump)
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer Bucher hydraulic (Wuxi) Co., Ltd
Model: ybz5-c1.0a1t2/uvsht1
Motor pump controller manufacturer Jiangsu jitaike Electric Co., Ltd
Model: fa4z5.5fal00
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 440-3090
Test temperature condition (ºC) - 35 ~ 60 (- 20 ºC turn on the battery heating system)
JSTY5070GWS
WS-05
XLH5080GWSE JSTY5070GWS
Main performance indexes:
Project performance index
Configuration VI (September 12, 2019) - configuration V
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4hk1-tc51 4hk1-tcg40 4kh1-tcg40 4hk1-tcn2 4KH1-TC
Volume of clean water tank (L): 1400 1400 1400 1400 1400 1400 1400 1400
Sewage tank volume (L) 2360 (with vacuum pump) / 2600 (without vacuum pump) / 2360 (with vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump) / 2360 (without vacuum pump) / 2600 (without vacuum pump)
Water supply flow (L / min) ≥ 150 ≥ 150 150 150 130 130
Water supply pressure (MPA) 0.345 0.345 0.345 0.345 0.345 0.345 0.345
Curb weight (kg): 4060 5200 4950 4770 4200 3700
Overall dimension (L × w × h) (mm): 7190 × 2100 × 2260 7295 × 2100 × 2380 7315x2190x2360 7400x2175x225 7330x2220x2400 7050x2100x2160
Maximum speed (km / h) 80 80 70 80 80
Other performance options: vacuum pump options: vacuum pump options: vacuum pump options: vacuum pump options: vacuum pump minimum turning diameter mm: 14000 options: vacuum pump minimum turning diameter mm: 15500 options: vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5kay, ql1100a8kay, ql11009kary, ql1070a1kay, ql1080zkarzy, nkr77plpacjay
Lifting height of working platform (mm): 385-3760 385-3760 400-3000 385-3760 550-2800 500-2800
Outer diameter of channel circle (mm): 17000 16000 15500 17000 ---
Engine emissions: exhaust pollutants meet the limit requirements of GB 17691-2005 phase V, exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) 240 (with vacuum pump) / 0 (without vacuum pump)
Gearbox manufacturer Qingling Automobile Co., Ltd. Allison transmission Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model: msb-5sm allison1000 mld-6q msb-5sm my-6s msb-5sm
WS-05
Main performance indexes:
Project performance index
Configuration II (October 31, 2019) - configuration I (June 1, 2018)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tc
Volume of clean water tank (L) 1500 1500
Volume of sewage tank (L) 2520 2520
Water supply flow (L / min) ≥ 133 133
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg) 5200 4870
Boundary dimension (L × w × h) (mm): 7380 × 2295 × 2360 7210 × 2295 × 2400
Maximum speed (km / h) 80 80
Other performance ---
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay ql1100tkaky
Lifting height of working platform (mm): 450-2800 450-2800
Outer diameter of channel circle (mm): 16000 15000
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, exhaust smoke meets the requirements of GB 3847-2005; exhaust pollutants meet the requirements of GB 17691-2005 phase III limit, exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) ---
Gearbox manufacturer Qingling Automobile Co., Ltd. Qingling Automobile Co., Ltd
Model mld-6q mld-6q
WSE3-A
TD40EWS WSE3-A
Main performance indexes:
Project performance index
Clean water tank volume (L) 820
Sewage tank volume (L) 2080
Water supply flow (L / min) 125
Water supply pressure (MPA) 0.345
Curb weight (kg) 4550
Boundary dimension (L × w × h) (mm): 6680 × 2110 × 2350
Maximum speed (km / h) 80
Driving range (km) 260
Other performance--
Chassis manufacturer Foton Automobile Co., Ltd
Model: bj1065evja1
Volume of circulating water tank (L)--
Drive motor manufacturer Foton Motor Co., Ltd
Model fttb060
Drive motor controller manufacturer Foton Motor Co., Ltd
Model: ftivt200
Motor pump manufacturer--
Model--
Motor pump controller manufacturer--
Model--
Energy storage device manufacturer Lishen power battery system Co., Ltd
Model lsft? 104.7kwh? F
Total energy of energy storage device (KWH) 104.7
Table lifting height (mm): 420 ~ 2800
Test temperature condition (ºC) - 20 ~ 50
Main performance indexes:
Project performance index
Clean water tank volume (L) 1400
Sewage tank volume (L) 2700
Water supply flow (L / min) 180
Water supply pressure (MPA) 0.35
Curb weight (kg) 4650
Boundary dimension (L × w × h) (mm): 7050 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 200
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer
Model td-4yc-dc010001a
Motor pump controller
Model td-5dr-d83c
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Table lifting height (mm): 480 ~ 2860
Test temperature condition (ºC) - 30 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
Main performance indexes:
Project performance index
Clean water tank volume (L) 1400
Sewage tank volume (L) 2700
Water supply flow (L / min) 180
Water supply pressure (MPA) 0.35
Curb weight (kg) 4650
Boundary dimension (L × w × h) (mm): 7050 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 200
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer
Model td-4yc-dc010001a
Motor pump controller
Model td-5dr-d83c
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Table lifting height (mm): 480 ~ 2860
Test temperature condition (ºC) - 30 ~ 60 (start heating system when sample vehicle reaches - 20 ºC)
Aircraft sewage vehicle (electric type) wxq5060dws
Main performance indexes:
Project performance index
Clean water tank volume (L) 1500
Volume of sewage tank (L) 2800
Water supply flow (L / min) 160
Water supply pressure (MPA) 0.345
Curb weight (kg) 4800
Boundary dimension (L × w × h) (mm): 7400 × 2100 × 2360
Maximum speed (km / h) 80
Driving range (km) 210
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070bevecday
Volume of circulating water tank (L) 200
Drive motor manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model: ytd060w23
Drive motor controller manufacturer Shanghai Automotive Electric Drive Co., Ltd
Model ktz50x35s
Motor pump manufacturer
Model: wxq5060dws-0620100
Motor pump controller
Model: wxq5060dws-0801002
Energy storage device manufacturer: Hefei GuoXuan high tech power energy Co., Ltd
Model: gxb2-g7a-6p42s
Total energy of energy storage device (KWH): 96.77
Lifting height of worktable (mm): 400-3000
Start the battery heating system when the test temperature is - 35-60 (- 20 ºC)
WXQ5090GWS
WXQ5090GWS
Main performance indexes:
Project performance index
Configuration III (October 15, 2019) - configuration II (May 31, 2019)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tcg40 4hk1-tcn2
Volume of clean water tank (L) 1500 1500 1500
Volume of sewage tank (L) 2700 2700 2700
Water supply flow (L / min) 150 150 ≥ 120
Water supply pressure (MPA) 0.345 0.345 0.345
Curb weight (kg) 5000 4750 4950
Boundary dimension (L × w × h) (mm): 7545 × 2300 × 2400 7355 × 2300 × 2450 7400 × 2300 × 2480
Maximum speed (km / h) 80 80 80
Other performance optional vacuum pump optional vacuum pump optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql11009kary, ql11080zkarzy
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Outer diameter of channel circle (mm) 15500 15500--
Engine emissions exhaust pollutants meet the requirements of the fifth stage of GB 17691-2005 and exhaust smoke gb3847-2005
Volume of circulating water tank (L) 200 200 200
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q mld-6q myy6s
WGWS40
Sewage Vacuum Truck (also called sewer cleaning truck , sewage tanker , sewer truck , cesspit emptier, gully emptier, vacuum truck , gully emptier, waste vacuum tanker, vacuum tanker, sewage truck ) is used tocollect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such assmall stones, bricks as well. It is suitable for cleaning the sewer , cesspit, cesspool, gully, etc
WGWS40
Main performance indexes:
Project performance index
Configuration III (September 13, 2019) - configuration II - configuration I
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4kh1cn5hs 4kh1-tcg40
Volume of clean water tank (L) 1250 1250 1000
Volume of sewage tank (L) 2800 2800 3000
Water supply flow (L / min) 170 170 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.15 ~ 0.345 0.15 ~ 0.345
Curb weight (kg) 4150 3950 4050
Boundary dimension (L × w × h) (mm): 7500 × 2120 × 2330 7000 × 2120 × 2330 6635 × 2200 × 2400
Maximum speed (km / h) 80 80 80
Other performance: optional vacuum pump, optional vacuum pump, optional vacuum pump, with a minimum turning diameter of 14000mm.
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1070a5hay; ql1070a1hay
Lifting height of working platform (mm): 400-3000 400-3000 400-3000
Outer diameter of channel circle (mm) 15000 15000--
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L): 150-200
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5sm msb-5sm MSB
GWS50
GWS50
Main performance indexes:
Project performance index
Configuration II (September 13, 2019) - configuration I
Engine manufacturer man Truck & bus UK Ltd
Model: d0836lfalah d0836lf29
Volume of clean water tank (L) 1500 1500
Sewage tank volume (L) 3500 3500
Water supply flow (L / min) 170 120
Water supply pressure (MPA) 0.25 ~ 0.35 0.25 ~ 0.35
Curb weight (kg) 7200 6000
Boundary dimension (L × w × h) (mm): 8950 × 2350 × 2700 8950 × 2300 × 2860
Maximum speed (km / h) 90 85
Other performance ---
Chassis manufacturer man Truck & bus UK Ltd
Model tgl12.250 tgl12.250
Lifting height of working platform (mm): 450-3000; 400-3000
Outer diameter of channel circle (mm) 15200 18100
The emission of exhaust pollutants from the engine meets the limit value of gb17691-2005 phase V, and the exhaust smoke meets the requirements of gb3847-2005. The exhaust pollutants meet the limit value of gb17691-2005 phase IV, and the exhaust smoke meets the requirements of gb3847-2005.
Volume of circulating water tank (L) ---
Gearbox manufacturer ZF fiedrichshafen AG
Model zf12as1210od zf12as1210od
LTM-900-V
LTM-900-V
Main performance indexes:
Project performance index
Configuration II (September 16, 2019) - configuration I (December 11, 2018)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4hk1-tc51
Volume of clean water tank (L) 700 750
Volume of sewage tank (L) 1500 4100
Water supply flow (L / min) 140 140
Water supply pressure (MPA) 0.345 0.345
Curb weight (kg): 4760 5960
Boundary dimension (L × w × h) (mm): 5880x2150x2380 7060 × 2200 × 2380
Maximum speed (km / h) 80 80
Other performance optional vacuum pump optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm) - 460 ~ 3050
Outer diameter of channel circle (mm): 16000-16000
The emission of pollutants from the engine meets the limit value requirements of gb17691-2005 phase V, and the exhaust smoke meets the requirements of gb3847-2005.
Volume of circulating water tank (L) - 150
Gearbox manufacturer Allison gearbox company Allison gearbox company
Model Allison 1000 Allison 1000
XLH5070GWSZ
XLH5070GWSZ
Main performance indexes:
Project performance index
Configuration III (January 30, 2019) , configuration II (December 27, 2017) , configuration I (November 25, 2016)
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51 4kh1cn5hs 4kh1-tcg40
Volume of clean water tank (L) 1450 1100 1100
Volume of sewage tank (L) 3700 2600 2600
Water supply flow (L / min) 120 120 120
Water supply pressure (MPA) 0.35 0.35 0.35
Curb weight (kg) 5200 4110 4110
Boundary dimension (L × w × h) (mm): 7370 × 2240 × 2410 7625 × 1980 × 2290 7625 × 1980 × 2160
Maximum speed (km / h) 80 80 80
Other performance optional vacuum pump optional vacuum pump optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay, ql1070a5kay, ql1070a1kay
Lifting height of working platform (mm): 380-2900 380-2900 380-2900 380-2900
Outer diameter of channel circle (mm): 16000 16600 16000
Engine emissions: exhaust pollutants meet the emission limits of the fifth stage of GB 17691-2005; exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) 100 150 150
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q msb-5sm MSB
SZG-WS40
SZG-WS40
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
Volume of clean water tank (L) 1000
Volume of sewage tank (L) 3000
Water supply flow (L / min) ≥ 150
Water supply pressure (MPA) 0.345
Curb weight (kg) 4700
Boundary dimension (L × w × h) (mm): 7100x2160x2440
Maximum speed (km / h) 80
Other performance optional vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm): 400 ~ 2800
Outer diameter of channel circle (mm) 15500
Engine emission: exhaust pollutants meet the emission limit requirements of gb17691-2005 phase V, and exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L) 150
Gearbox manufacturer Allison transmission holdings, Inc
Model allison1000
TK-WS50
TK-WS50
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4hk1-tc51
Volume of clean water tank (L) 1000
Volume of sewage tank (L) 4000
Water supply flow (L / min) ≥ 140
Water supply pressure (MPA) 0.25-0.35
Curb weight (kg) 5200
Boundary dimension (L × w × h) (mm): 7555 × 2200 × 2330
Maximum speed (km / h) 80
Other performance: optional vacuum pump, lifting platform
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1100a8kay
Lifting height of working platform (mm): 400-2800
Outer diameter of channel circle (mm): 16000
Engine emissions: exhaust pollutants meet the requirements of GB 17691-2005 phase V limit, and exhaust smoke meets the requirements of GB 3847-2005
Volume of circulating water tank (L)--
Gearbox manufacturer Qingling Automobile Co., Ltd
Model mld-6q
TK-WS40
TK-WS40
Main performance indexes:
Project performance index
Engine manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd
Model: 4kh1cn5hs 4hk1-tcg40 4kh1-tcg40
Volume of clean water tank (L) 1500 1000 1500
Volume of sewage tank (L) 2500 3000 2500
Water supply flow (L / min) 120 120 120
Water supply pressure (MPA) 0.25-0.35 0.25-0.35 0.25-0.35 0.25-0.35
Curb weight (kg) 4010 5100 4000
Boundary dimension (L × w × h) (mm): 6955 × 2100 × 2300 7575 × 2180 × 2370 6990 × 2100 × 2310
Maximum speed (km / h) 70 70 70
Other performance options: vacuum pump, lifting platform options: vacuum pump, lifting platform options: vacuum pump, lifting platform options: vacuum pump
Chassis manufacturer Qingling Automobile Co., Ltd
Model: ql1070a5hay; ql1109kary; ql1070a1hay
Lifting height of working platform (mm): 400 ~ 2800 400 ~ 2800 400 ~ 2800 400 ~ 2800
Outer diameter of channel circle (mm) 15500 15600 15000
Engine emission meets the emission limit of phase V of GB 17691-2005
Volume of circulating water tank (L) 150 150 150
Gearbox manufacturer Qingling Automobile Co., Ltd
Model: msb-5sm mld-6q MSB
EQ5080TWSACBEV Aircraft Lavatory Service Vehicles
EQ5080TWSACBEV Aircraft Lavatory Service Vehicles
| LAVATORY SERVICE TRUCK | ||
| Specification | Parameter | |
| Engine | Power | 96 / 2999KW/rpm |
| Compression ratio | 18.3 | |
| Emission | ||
| Overall Length | 6740mm | |
| Overall width | 1875mm | |
| Overall height | 2160mm | |
| Clean water tank capacity | 1300L (SS tank) | |
| Waste water tank capacity | 2600L (SS tank) | |
| Small waste water tank capacity | 150L (SS tank) | |
| Minimum Turning Radius | 6800mm | |
| Lift height range for platform | 400--2800mm | |
| Rated water pump rotation | 2800-3000rpm | |
| Flow | ≥120L/min | |
| Head | ≥30m | |
| Load capacity of work platform | ≥100kg | |
| Height of Lift platform | 450mm - 3200mm | |
Sewage Vacuum Truck (also called sewer cleaning truck , sewage tanker , sewer truck , cesspit emptier, gully emptier, vacuum truck , gully emptier, waste vacuum tanker, vacuum tanker, sewage truck ) is used tocollect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such assmall stones, bricks as well. It is suitable for cleaning the sewer , cesspit, cesspool, gully, etc
