Isuzu Insulation Manlift 18m -20m Electric Working
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T
INSULATION MANLIFT ISUZU Trucks Telescopic Boom with 22m-24m height of the platfrom Aerial Working Trucks for Street Lights maintenance
Japan Truck Aerial Work Platform Truck (ISUZU-High Lifting Truck 18 -22meters Manlift Basket)
Brand Japan Crane Truck With Bucket Lift for Electric Companies With I.SUZU Engine Crane Truck With Bucket Lift for Electric Companies
Custermizing Crane Truck With Bucket Lift for Electric working
Telescopic Aerial Platform
fully Hydraulically Operate Arial Work Platforms
20.5m Aerial Working Truck
Color: white Cabin, white Body
Drive type: LHD
Cabin: with A/C
Engine Brand: 4HK1-TC50
Engine power: 151KW / 205HP
Tyre:10.00R20
Max.Working Height: 20m
With A/C Power steering
for street Lights maintenance, Landscping trees.
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
ISUZU INSULATION MANLIFT 18m Specification:
| Specifications ISUZU INSULATION MANLIFT 18m | ||
| Model Engine | Driving type: 4*2 left hand driving Make: ISUZU Diesel 4-stroke direct injection diesel engine, Electronic control Engine model: 4HK1-TC51 , Euro 4 -5 emission standard 4-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output: 192 hp (141 Kw) at 2600 rpm Maximum torque: 510 Nm 1600 r/min Number of cylinder: Displacement: 5.193 L Specific fuel consumption: 132 g/kWh Engine oil filling quantity: 19 l Cooling system filling quantity (long-term filling): 40 l Thermostat with 71ºC opening begin Single cylinder air compressor Rigid fan | |
| Transmission | ISUZU MLD, Manual | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | ISUZU 3T, Steering with doubleT-cross section beam | |
| Rear Axle | ISUZU 6T, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles . Ratio:4.1 or 4.33 | |
Chassis | Frame: U-profile parallel ladder frame, and reinforced subframe all cold riveted cross members, Manganese steel | |
| Front suspension: leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer Aluminium fuel tank: 200 L capacity with locking fuel cap, fitted to the off side of the chassis | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake | |
| Wheels & Tyres | Tire: 235/75R17.5 Radial tire | |
Driver's Cab | Standard cab, with 3 seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, 24V USB, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats | |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | |
Dimensions mm | Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle (0) Departure angle (0) Overall length Overall width Overall height | 3815 1680 1650 1110 2055 20 17 7000 2270 3700 |
Weight kg | Dead weight Maximum Loading Capacity Gross vehicle weight Front axle loading capacity Rear axle loading capacity | 5380 4000 9300 3000 6000 |
Performance | Maximum driving speed (km/h) Maximum gradeability (%) Minimum ground clearance (mm) Fuel consumption (l/100 km) | 80 34 278 18 |
MANLIFT ( China Brand) | Bucket rated load: | 280kg |
| Insulation bucket | Yes | |
| Lower arm insulation length | 0.61m | |
| Upper arm insulation length | 4.40m | |
| Rotation platform | 360° continuous rotation, work bucket ±90° | |
| Swing speed | 0~2 r/min | |
| Wire voltage | 35KV | |
| Maximum Working height | 18.5m | |

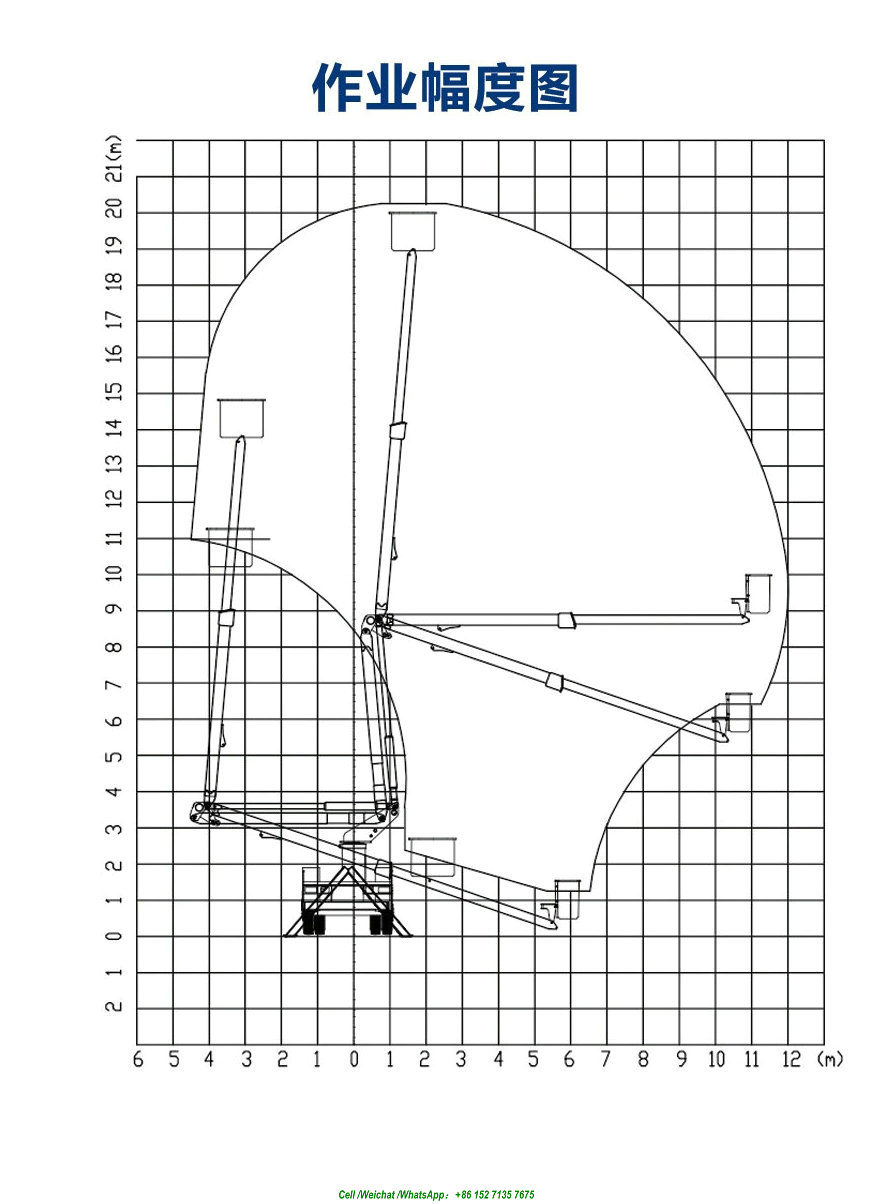

| Operating range at maximum working height | 2.3 m | |
| Work bucket maximum operating range | 11.3m | |
| Working height at maximum working range | 8 m | |
| Rated lifting weight | 454kgs | |
| Lifting height by maximum lifting capacity | 18.5m | |
| Lifting weight by maximum lifting height | 454kgs | |
| (1) Operating system: two operating systems of work bucket and get off; full hydraulic control system; two operations of getting off and working bucket, the upper control adopts three- dimensional single-handle control, and the operation is simple and convenient. It adopts hydraulic and pneumatic control, durable and excellent insulation performance. (2) Hydraulic system: full hydraulic proportional control, stepless speed regulation (3) Safety device: interlocking of upper and lower vehicles, soft leg protection, horizontal leg full extension detection alarm , two-way balancing valve, two-way hydraulic lock, vehicle level (4) leveling system: equal volume cylinder hydrostatic leveling system | ||
| Quotation USD | CIF | $ |
ISUZU INSULATION MANLIFT 20.5m
Maximum operating height: 20.5m
Maximum operating range: 12m
Chassis brand/model: qingling /QL1160VMFRY
Total mass: 13185kg
Engine model: 4hki-tc50
| Maximum working height | 20.5m |
| Maximum operating range | 12m |
| Effective insulation length of upper arm | 4.4m |
| Effective insulation length of lower wall | 0.61m |
| Upper arm running Angle | -19°~+85° |
| Operating Angle of lower arm | -3°~+85° |
| Continuous tyre turnover | 360° |
| A small crane lifts the maximum | 450kg |
| Maximum load bearing of working bucket | 340kg |
| The bucket rotates horizontally | ±90° |
| Chassis brand/model | ISUZU/QL1160VMFRY |
| The total quality | 13185kg |
| Engine model | 4HKI-TC50 |
| Rated power | 151kw |
| The wheelbase | 4500mm |
| CIF | $ |
| Overall dimension: | 8310×2498×3730(mm) | ||
| Total quality: | 13185(Kg) | Packing quality: | 12990(Kg) |
| Packing quality: | 12990(Kg) | Front passenger: | 3 |
| Approach Angle/departure Angle: | 15/15(°) | Front/rear suspension: | 1335/2475(mm) |
| Axial load: | 4365/8820 | Wheel base: | 4500(mm) |
| Shaft: | 2 | Maximum speed: | 105(km/h) |
| Anti-lock system: | yes | Number of spring sheets: | 7/7+5 |
| Tyre number: | 6 | Tyre specifications: | 10.00R20 16PR,11.00R22.5 16PR |
| Before the wheel track: | 1960 | After the wheel track: | 1855 |
Cell /+8615271357675
ISUZU Trucks with 22m-24m height of the platfrom Aerial Working Trucks for Street Lights maintenance
Functions of ISUZU Aerial Platform Truck 22m-24 :
ISUZU Aerial Platform Trucks also Name Bucket Lift Trucks, Articulated boom Lift Truck, Basket crane trucks, Truck Mounted Lift Truck. it used for maintenance of traffic Lights, Steet Lights, ladnscaping trees, cleaning setting signboard and other high aerial works.
we have Knuckled boom Aerial Platform and telescopic platform trucks for choice from 6m to 24m available.
Features of ISUZU Aerial Platform Trucks:
ISUZU Aerial Platform Trucks ensures perfect driving performance;
working cage can be made of structure or reinforced fiberglass (insulated cage);
working cage can rotate 90 degree in left and right;
4pcs outriggers and front support improve operation stability and safety;
safety devices are available, such as relief valves, balance valves, double way hydraulic locks, motor emergency system. ect.
wireless motor control system is availalbe;
Specifications of ISUZU Trucks with 22m-24m height of the platfrom Aerial Working Trucks for Street Lights maintenance :
| Products Technical Specification of Products Technical Specification of Aerial Working Trucks ISUZU FTR street lights maintenance trucks. | |||
| Type | 22m arieal working truck | ||
| Brand | ISUZU 4*2 | ||
| Cab | With A/C, on bed | ||
| Vehicle Description | |||
| Overall dimensions(mm) | 10100*2500*3900 | ||
| Curb weight(vehicle) (kg) | 14300 | ||
| Max speed (Km/h) | 110 | ||
| Engine | |||
| Mode | 4HK1-TC50 | ||
| Type | Diesel, 4-cylinder in line with water cooling, turbo-charging | ||
| Max. power/rotated speed | 151(KW) | ||
| Max. torque | 650(N.m) | ||
| Displacement(ML) | 5193 | ||
| Company of engine | ISUZU Motor | ||
| Emission level | Euro 5 | ||
| Chassis Description | |||
| Wheel base | 4700 | ||
| Front axle | Elliot I-beam type 6.3T | ||
| Rear axle | Driving axle, 13T | ||
| Number of leaf spring of suspension | 15/17 | ||
| Front overhang / rear overhang | 1335/2890 | ||
| Front tread / rear tread | 1960/1855 | ||
| Approach angle /Departure angle | 15/17 | ||
| Gear box | 6-speed with over drive | ||
| Brake system | Air braking | ||
| Operation control system | Power Steering | ||
| Electric system | 24V | ||
| Tyres | 10.00R20 | ||
| Aerial wrking parameter | |||
| Max. working height | 22m | ||
| Max. working radius | 7.5m | ||
| Loading weight of working hook | 200kg | ||
| Swing angle | 360degree | ||
| Swing speed | 0-2r/min | ||
| Supporting legs | 4sets hydraulic supporting legs | ||
Pictures of ISUZU Aerial Platform Trucks for Street Lights Maintenance:
FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height
Color: White Cabin, White Body
Drive type: LHD
Cabin: with A/C
Engine Brand: 4HK1-TCG40 4 cylinder
Engine power: 140KW/190HP Euro 4
Tyre: 9.00-20
Wheelbase: 4500mm
Max. working height:23m
Lifting capacity: 200kgs
With four Stabilizer
FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height:
Main parameter:
1. Working platform can rotary 90degree left and right. Convenient and flexible work, wide range working.
2. The working platform has the weight function and real time display. Overload alarm.
3. Five telescopic boom, four section booms synchronous expansion, high operation efficiency, wide range working.
4. Hexagon section working boom, high strength material produce, better reliability.
5. Equip DC emergency electric pump, to provide emergency protection.
6. Equip with wireless communication, convenient staffs communication on the ground and working platform, to improve working efficiency.
7. Equip with a large screen display on the ground and working platform. Real-time display the vehicle operators.
8. Equip strobe lights, lamp
9. Electric hydraulic operation mode, high operation efficiency
10. The rotating device can be adjusted easily.
11. Rotating platform can be rotated 360 degree.
Specifications of FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height:
| 23m telescopic boom truck | ||||
| Outside dimension | L*W*H | mm | 8720*2350*2950 | |
| weight | Passengers | person | 4 | |
| Total weight | kg | 10800 | ||
| Main parameter | Loading capacity of working platform | kg | 220 | |
| Max. Working height | m | 23 | ||
| Working radius of Max. Working height | m | 5.05 | ||
| Max. Working Radius | m | 12.6 | ||
| Working height of Max. Working radius | m | 5.6 | ||
| Supporting landing | horizontal | mm | 4200 | |
| vertical | mm | 4200 | ||
| Main Equipment of FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height | |
| Working platform and fence | Antiskid walking board and stainless steel fence |
| PTO system | Pneumatic operation |
| Working platform size | 1100x700x1150 |
| Boom style | Five telescopic boom, four section booms synchronous expansion |
| Boom lifting style | Boom lifting up and down |
| Rotation device | 360 degree Continuous rotation |
| Supporting landing | H, adjusted separately |
| Operation | Remote control on the working platform or on the ground, electric operation. Hydraulic operation turntable. |
| Control system | Load sensitive proportional control system, stepless speed regulation. |
| Leveling system | Hydraulic automatic leveling. |
FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height

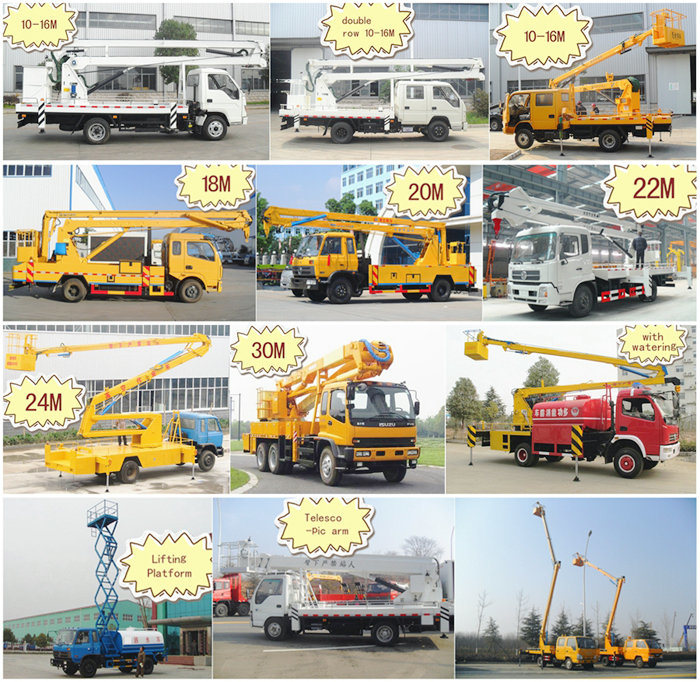

Acutal pictures of FTR ISUZU Telescopic Boom Aerial Working Truck 22 - 23m Working Height
| Product name | Aerial bucket truck | Options | |
| Producer | DRZ | ||
| Brand | Hubei Dong Runze Special Vehicle Equipment Co., Ltd | ||
| Max Working Height | 20 meters | ||
| Overall dimention | 7400x2610x3850(mm) | ||
| Boom Type | Telescopic boom | ||
| Section of Boom | 5-section | 12~32m | |
| Working Raduim | 14.7 meters | ||
| Platform bucket load | max 200kg, 1000x680x1200mm | ||
| Chassis Brand | I.SU.ZU FTR | Dongfeng, Forland,Sinotruk,etc | |
| Drive cab | Single cab, LHD, with a sleeper | ||
| Engine | 190hp Euro 4 diesel engine | ||
| Brake | Air brake | ||
| Steering | Power steering | ||
| Transmission | MT, 6 forward gears and 1 rear gear | ||
| Others | Power window, central lock, A/C | ||
| Wheelbase | 3900mm | ||
| Tire | 9.00-20 radial tire, 6+1 | ||
| Max speed | 90km/h | ||
| Main Safety System | |||
| Emergency pump | Included, When the engine and main pump fail, workers can be sent back to the ground | ||
| Engine on/off on basket | Included | ||
| Automatic interlock device | Basket and gound control lock, the two can't operation at same time | ||
| Level detection function | Real-time detection of whether the vehicle is horizontal | ||
| Emergency stop device | For emergency stop operation | ||
| Night safety warning device | There are engineering strobes and lights on the vehicle | ||
| Vehicle level status tester | Can detect the horizontal and vertical tilt of the vehicle | ||
Specification:
ISUZU mounted Crane truck ( 3.2Ton boom crane SQ3SK2Q) | ||
General | Vehicle Brand | DONG RUN ZE TRUCKS |
Chassis Brand | I.S.U.Z.U | |
Overall Dimension | 6500 * 2100 * 3100 mm | |
GVW / Kerb Weight | 7,300kg / 4,000kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | I.S.U.Z.U | |
Power | 130 HP (88 KW) 4KH1 | |
Displacement | 2999 ml | |
Emission Standard | Euro 4 or 5 | |
Chassis | Drive Type | 4X2, (Left hand drive ONLY) |
Transmission | Manual MSB 5 speed levers with 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tire Specification | 7.00-16 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 90 km/h | |
Paint | Metallic paint | |
Superstructure | Cargo Box Dimension | 4000*1900*500 mm |
Crane Type | Telescpoic boom crane | |
Max Lifting Capacity | 3200 kg | |
Slewing Angle | 360° All rotation | |
Crane Weight | 1229kg | |
Installation Space | 850 mm | |
Control panel | English or Your language | |
All standard accessories: Basic tool kit, English manual... | ||
Optional | ** Knuckle boom crane. ** Hydraulic tipper box. ** Box thickness according to requirement. ** Box height could be nominated | |
| Items | Parameter | ||
| Truck Model | 5070JSQ2 | ||
| Crane Parameter | Max Lifting Capacity | 3200 kg | |
| Max Lifting Moment | 6.8 T.M | ||
| Recommend Power | 14 kw | ||
| Max Oil Flow of Hydraulic System | 25 L/min | ||
| Max Pressure of Hydraulic System | 20 Mpa | ||
| Oil Tank Weight | 30 L | ||
| Crane Weight | 1229 kg | ||
| Installation Space | 850 mm | ||
| Rotation Angle | 360° All Rotation | ||
| Cargo Body | Thickness | Side | 2mm |
| Floor | 3mm | ||
Similar Key Words: hydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck
www.truckinchina.com
PACKING & DELIVERY
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
JMC aerial ladder moving house truck 28-45meters for sale
$39,000.00 - $45,000.00/Set
JMC 12-16m High altitude platform truck/Aerial platform truck
$19,000.00 - $22,000.00/Set
Big order JAC 12m/14m high lifting platform truck for sale Kyrgyzstan
$19,000.00 - $22,000.00/Set
2018 New Aerial working truck with bucket/Aerial platform truck
$19,000.00 - $22,000.00/Set
JAC 14m/16m Overhead working truck/High altitude operation truck
$19,000.00 - $22,000.00/Set
DongFeng Aerial work platform truck/hydraulic lift platform truck
$19,000.00 - $22,000.00/Set
DongFeng 18m Aerial truck with basket/high lifting platform truck
$19,000.00 - $29,000.00/Set
Special Aerial platform truck/truck mounted aerial work platform
$26,000.00 - $36,000.00/Set
Japan truck aerial work platform truck/high lifting truck 18meters for sale
$39,000.00 - $42,000.00/Set
HOWO Aerial platform truck/Aerial working truck 16 meters
$19,000.00 - $24,000.00/Set
JMC truck mounted aerial work platform/aerial platform truck/aerial truck with basket
$25,000.00 - $30,000.00/Set
JMC ladder lift truck/aerial ladder platform truck/aerial ladder trucks
$25,000.00 - $30,000.00/Set
JMC truck mounted lifting ladder/lifting platform truck/high lifting platform truck
$25,000.00 - $30,000.00/Set
JMC aerial work platform truck/truck mounted aerial platforms/telescopic aerial platform truck
$25,000.00 - $30,000.00/Set
JMC aerial working truck/aerial lift truck/aerial truck
$25,000.00 - $30,000.00/Set
Japan 18 meters aerial work platform truck/truck unloading platform
$32,000.00 - $39,000.00/Set
China best seller 18-22m electric aerial work platform truck
$19,000.00 - $29,000.00/Set
Japan 20 meters battery operated platform truck with insulation bucket
$32,000.00 - $39,000.00/Set
China vertical lifting platform truck 6-12m for sale Philippines
$14,000.00 - $17,000.00/Set
New 12m aluminum small lifting platform/weight lifting platform
$14,000.00 - $17,000.00/Set
Cheapest 12-16m aerial lift truck/aerial working truck with basket
$19,000.00 - $22,000.00/Set
Hot sale 2018 manual high lift pallet truck/high lift hydraulic hand pallet truck
$19,000.00 - $22,000.00/Set
China folding arms aerial truck/ Aerial working truck with insulation basket
$19,800.00 - $22,800.00/Set
JMC straight arms aerial work platform price/High altitude working platform truck
$35,500.00 - $36,500.00/Set
Aerial truck with water tank/aerial platform fire truck/truck aerial fire platform
$21,000.00 - $29,000.00/Set
JMC 28 meters ladder rack for truck/aerial ladder truck for sale
$32,000.00 - $38,000.00/Set
JMC 28 meters ladder lift truck/truck ladder rack for sale
$32,000.00 - $38,000.00/Set
Howo 16 meters hydraulic platform truck/platform lift truck/cherry picker
$21,600.00 - $25,000.00/Set
Top quality high lifting platform truck 9-12meters/aerial working platform truck with double cabin
$18,000.00 - $20,000.00/Set
double cabin 6 seats vertical lifting platform truck 6-12meters/high lifting platform truck
$16,000.00 - $20,000.00/Set
22M aerial working platform truck/aerial bucket truck with Dongfeng new cabin
$39,000.00 - $44,000.00/Set
Good quality I suzu aerial platform truck/aerial working truck/truck mounted aerial work platform
$32,000.00 - $39,000.00/Set
Japanese truck mounted High lifting aerial work platform/Hydraulic arm lifting platform
$58,000.00 - $59,900.00/Set
mobile hydraulic high rise aerial work platform operation truck for sale
$7,000.00 - $20,000.00/Set
2019 new white 22m folding jib high aerial working platform truck/high-altitude operation truck for sale
$7,000.00 - $20,000.00/Set
Dongfeng24m High Altitude Operating Truck for sale
$7,000.00 - $20,000.00/Set
Factory supply high altitude operation Street lights maintenance truck for sale
$7,000.00 - $20,000.00/Set
Mobile lite platform 12-18m for aerial working/Telescopic aerial work platform with truck
$35,000.00 - $36,600.00/Set
JAC High Altitude Operation Truck 4x2 12 - 25 m Working Height for sale
$18,000.00 - $25,000.00/Set
JAC High Operation Aerial Platform Truck Left / Right Hand Drive for sale
$18,000.00 - $25,000.00/Set
JAC 16-18m High Operation Aerial Platform Truck for sale
$18,000.00 - $25,000.00/Set
4X2 20 meters high altitude Aerial platform operation bucket truck for sale
$18,000.00 - $25,000.00/Set
18-22 meters high altitude operating truck/overhead working platform truck for hot sale
$18,000.00 - $25,000.00/Set
Dongfeng 22meters truck mounted aerial work platform/aerial lift truck
$38,000.00 - $42,000.00/Set
20meters Telescopic boom aerial work truck/JMC boom lift truck for sale
$48,000.00 - $49,999.00/Set
Foton forland aerial bucket truck 16 meters/truck mounted work lights 12m.14m for sale
$18,000.00 - $20,000.00/Set
Japan brand aerial working platform truck 22meters/platform lift truck
$85,000.00 - $88,000.00/Set
JAC double cabin platform lift truck 16meters/high lifting platform truck with Euro V engine
$24,000.00 - $25,500.00/Set
Aerial working platform truck 14meter/HOWO 4x2 platform lift truck
$21,000.00 - $21,500.00/Set
38meters aerial ladder moving house truck/ladder lift truck
$62,000.00 - $63,000.00/Set
Dongfeng high quality 18-20meters Lifting arm aerial work platform truck for sale
$48,000.00 - $48,600.00/Set
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
INSULATION MANLIFT ISUZU Trucks Telescopic Boom with 22m-24m height of the platfrom Aerial Working Trucks for Street Lights maintenance
Japan Truck Aerial Work Platform Truck (ISUZU-High Lifting Truck 18 -22meters Manlift Basket)
Brand Japan Crane Truck With Bucket Lift for Electric Companies With I.SUZU Engine Crane Truck With Bucket Lift for Electric Companies
Custermizing Crane Truck With Bucket Lift for Electric working
Telescopic Aerial Platform
fully Hydraulically Operate Arial Work Platforms
20.5m Aerial Working Truck
Color: white Cabin, white Body
Drive type: LHD
Cabin: with A/C
Engine Brand: 4HK1-TC50
Engine power: 151KW / 205HP
Tyre:10.00R20
Max.Working Height: 20m
With A/C Power steering
for street Lights maintenance, Landscping trees.
Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
ISUZU INSULATION MANLIFT 18m Specification:
| Specifications ISUZU INSULATION MANLIFT 18m | ||
| Model Engine | Driving type: 4*2 left hand driving Make: ISUZU Diesel 4-stroke direct injection diesel engine, Electronic control Engine model: 4HK1-TC51 , Euro 4 -5 emission standard 4-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output: 192 hp (141 Kw) at 2600 rpm Maximum torque: 510 Nm 1600 r/min Number of cylinder: Displacement: 5.193 L Specific fuel consumption: 132 g/kWh Engine oil filling quantity: 19 l Cooling system filling quantity (long-term filling): 40 l Thermostat with 71ºC opening begin Single cylinder air compressor Rigid fan | |
| Transmission | ISUZU MLD, Manual | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | ISUZU 3T, Steering with doubleT-cross section beam | |
| Rear Axle | ISUZU 6T, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles . Ratio:4.1 or 4.33 | |
Chassis | Frame: U-profile parallel ladder frame, and reinforced subframe all cold riveted cross members, Manganese steel | |
| Front suspension: leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer Aluminium fuel tank: 200 L capacity with locking fuel cap, fitted to the off side of the chassis | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake | |
| Wheels & Tyres | Tire: 235/75R17.5 Radial tire | |
Driver's Cab | Standard cab, with 3 seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, 24V USB, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats | |
Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | |
Dimensions mm | Wheel base Front wheel track Rear wheel track Front overhang Rear overhang Approach angle (0) Departure angle (0) Overall length Overall width Overall height | 3815 1680 1650 1110 2055 20 17 7000 2270 3700 |
Weight kg | Dead weight Maximum Loading Capacity Gross vehicle weight Front axle loading capacity Rear axle loading capacity | 5380 4000 9300 3000 6000 |
Performance | Maximum driving speed (km/h) Maximum gradeability (%) Minimum ground clearance (mm) Fuel consumption (l/100 km) | 80 34 278 18 |
MANLIFT ( China Brand) | Bucket rated load: | 280kg |
| Insulation bucket | Yes | |
| Lower arm insulation length | 0.61m | |
| Upper arm insulation length | 4.40m | |
| Rotation platform | 360° continuous rotation, work bucket ±90° | |
| Swing speed | 0~2 r/min | |
| Wire voltage | 35KV | |
| Maximum Working height | 18.5m | |
| Operating range at maximum working height | 2.3 m | |
| Work bucket maximum operating range | 11.3m | |
| Working height at maximum working range | 8 m | |
| Rated lifting weight | 454kgs | |
| Lifting height by maximum lifting capacity | 18.5m | |
| Lifting weight by maximum lifting height | 454kgs | |
| (1) Operating system: two operating systems of work bucket and get off; full hydraulic control system; two operations of getting off and working bucket, the upper control adopts three- dimensional single-handle control, and the operation is simple and convenient. It adopts hydraulic and pneumatic control, durable and excellent insulation performance. (2) Hydraulic system: full hydraulic proportional control, stepless speed regulation (3) Safety device: interlocking of upper and lower vehicles, soft leg protection, horizontal leg full extension detection alarm , two-way balancing valve, two-way hydraulic lock, vehicle level (4) leveling system: equal volume cylinder hydrostatic leveling system | ||
| Quotation USD | CIF | $ |
ISUZU INSULATION MANLIFT 20.5m
Maximum operating height: 20.5m
Maximum operating range: 12m
Chassis brand/model: qingling /QL1160VMFRY
Total mass: 13185kg
Engine model: 4hki-tc50
| Maximum working height | 20.5m |
| Maximum operating range | 12m |
| Effective insulation length of upper arm | 4.4m |
| Effective insulation length of lower wall | 0.61m |
| Upper arm running Angle | -19°~+85° |
| Operating Angle of lower arm | -3°~+85° |
| Continuous tyre turnover | 360° |
| A small crane lifts the maximum | 450kg |
| Maximum load bearing of working bucket | 340kg |
| The bucket rotates horizontally | ±90° |
| Chassis brand/model | ISUZU/QL1160VMFRY |
| The total quality | 13185kg |
| Engine model | 4HKI-TC50 |
| Rated power | 151kw |
| The wheelbase | 4500mm |
| CIF | $ |
| Overall dimension: | 8310×2498×3730(mm) | ||
| Total quality: | 13185(Kg) | Packing quality: | 12990(Kg) |
| Packing quality: | 12990(Kg) | Front passenger: | 3 |
| Approach Angle/departure Angle: | 15/15(°) | Front/rear suspension: | 1335/2475(mm) |
| Axial load: | 4365/8820 | Wheel base: | 4500(mm) |
| Shaft: | 2 | Maximum speed: | 105(km/h) |
| Anti-lock system: | yes | Number of spring sheets: | 7/7+5 |
| Tyre number: | 6 | Tyre specifications: | 10.00R20 16PR,11.00R22.5 16PR |
| Before the wheel track: | 1960 | After the wheel track: | 1855 |
Cell /+8615271357675
ISUZU Trucks with 22m-24m height of the platfrom Aerial Working Trucks for Street Lights maintenance
Functions of ISUZU Aerial Platform Truck 22m-24 :
ISUZU Aerial Platform Trucks also Name Bucket Lift Trucks, Articulated boom Lift Truck, Basket crane trucks, Truck Mounted Lift Truck. it used for maintenance of traffic Lights, Steet Lights, ladnscaping trees, cleaning setting signboard and other high aerial works.
we have Knuckled boom Aerial Platform and telescopic platform trucks for choice from 6m to 24m available.
Features of ISUZU Aerial Platform Trucks:
ISUZU Aerial Platform Trucks ensures perfect driving performance;
working cage can be made of structure or reinforced fiberglass (insulated cage);
working cage can rotate 90 degree in left and right;
4pcs outriggers and front support improve operation stability and safety;
safety devices are available, such as relief valves, balance valves, double way hydraulic locks, motor emergency system. ect.
wireless motor control system is availalbe;
Specifications of ISUZU Trucks with 22m-24m height of the platfrom Aerial Working Trucks for Street Lights maintenance :
| Products Technical Specification of Products Technical Specification of Aerial Working Trucks ISUZU FTR street lights maintenance trucks. | |||
| Type | 22m arieal working truck | ||
| Brand | ISUZU 4*2 | ||
| Cab | With A/C, on bed | ||
| Vehicle Description | |||
| Overall dimensions(mm) | 10100*2500*3900 | ||
| Curb weight(vehicle) (kg) | 14300 | ||
| Max speed (Km/h) | 110 | ||
| Engine | |||
| Mode | 4HK1-TC50 | ||
| Type | Diesel, 4-cylinder in line with water cooling, turbo-charging | ||
| Max. power/rotated speed | 151(KW) | ||
| Max. torque | 650(N.m) | ||
| Displacement(ML) | 5193 | ||
| Company of engine | ISUZU Motor | ||
| Emission level | Euro 5 | ||
| Chassis Description | |||
| Wheel base | 4700 | ||
| Front axle | Elliot I-beam type 6.3T | ||
| Rear axle | Driving axle, 13T | ||
| Number of leaf spring of suspension | 15/17 | ||
| Front overhang / rear overhang | 1335/2890 | ||
| Front tread / rear tread | 1960/1855 | ||
| Approach angle /Departure angle | 15/17 | ||
| Gear box | 6-speed with over drive | ||
| Brake system | Air braking | ||
| Operation control system | Power Steering | ||
| Electric system | 24V | ||
| Tyres | 10.00R20 | ||
| Aerial wrking parameter | |||
| Max. working height | 22m | ||
| Max. working radius | 7.5m | ||
| Loading weight of working hook | 200kg | ||
| Swing angle | 360degree | ||
| Swing speed | 0-2r/min | ||
| Supporting legs | 4sets hydraulic supporting legs | ||
Pictures of ISUZU Aerial Platform Trucks for Street Lights Maintenance:
FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height
Color: White Cabin, White Body
Drive type: LHD
Cabin: with A/C
Engine Brand: 4HK1-TCG40 4 cylinder
Engine power: 140KW/190HP Euro 4
Tyre: 9.00-20
Wheelbase: 4500mm
Max. working height:23m
Lifting capacity: 200kgs
With four Stabilizer
FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height:
Main parameter:
1. Working platform can rotary 90degree left and right. Convenient and flexible work, wide range working.
2. The working platform has the weight function and real time display. Overload alarm.
3. Five telescopic boom, four section booms synchronous expansion, high operation efficiency, wide range working.
4. Hexagon section working boom, high strength material produce, better reliability.
5. Equip DC emergency electric pump, to provide emergency protection.
6. Equip with wireless communication, convenient staffs communication on the ground and working platform, to improve working efficiency.
7. Equip with a large screen display on the ground and working platform. Real-time display the vehicle operators.
8. Equip strobe lights, lamp
9. Electric hydraulic operation mode, high operation efficiency
10. The rotating device can be adjusted easily.
11. Rotating platform can be rotated 360 degree.
Specifications of FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height:
| 23m telescopic boom truck | ||||
| Outside dimension | L*W*H | mm | 8720*2350*2950 | |
| weight | Passengers | person | 4 | |
| Total weight | kg | 10800 | ||
| Main parameter | Loading capacity of working platform | kg | 220 | |
| Max. Working height | m | 23 | ||
| Working radius of Max. Working height | m | 5.05 | ||
| Max. Working Radius | m | 12.6 | ||
| Working height of Max. Working radius | m | 5.6 | ||
| Supporting landing | horizontal | mm | 4200 | |
| vertical | mm | 4200 | ||
| Main Equipment of FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height | |
| Working platform and fence | Antiskid walking board and stainless steel fence |
| PTO system | Pneumatic operation |
| Working platform size | 1100x700x1150 |
| Boom style | Five telescopic boom, four section booms synchronous expansion |
| Boom lifting style | Boom lifting up and down |
| Rotation device | 360 degree Continuous rotation |
| Supporting landing | H, adjusted separately |
| Operation | Remote control on the working platform or on the ground, electric operation. Hydraulic operation turntable. |
| Control system | Load sensitive proportional control system, stepless speed regulation. |
| Leveling system | Hydraulic automatic leveling. |
FTR ISUZU Telescopic Boom Aerial Working Truck 23m Working Height
Acutal pictures of FTR ISUZU Telescopic Boom Aerial Working Truck 22 - 23m Working Height
| Product name | Aerial bucket truck | Options | |
| Producer | DRZ | ||
| Brand | Hubei Dong Runze Special Vehicle Equipment Co., Ltd | ||
| Max Working Height | 20 meters | ||
| Overall dimention | 7400x2610x3850(mm) | ||
| Boom Type | Telescopic boom | ||
| Section of Boom | 5-section | 12~32m | |
| Working Raduim | 14.7 meters | ||
| Platform bucket load | max 200kg, 1000x680x1200mm | ||
| Chassis Brand | I.SU.ZU FTR | Dongfeng, Forland,Sinotruk,etc | |
| Drive cab | Single cab, LHD, with a sleeper | ||
| Engine | 190hp Euro 4 diesel engine | ||
| Brake | Air brake | ||
| Steering | Power steering | ||
| Transmission | MT, 6 forward gears and 1 rear gear | ||
| Others | Power window, central lock, A/C | ||
| Wheelbase | 3900mm | ||
| Tire | 9.00-20 radial tire, 6+1 | ||
| Max speed | 90km/h | ||
| Main Safety System | |||
| Emergency pump | Included, When the engine and main pump fail, workers can be sent back to the ground | ||
| Engine on/off on basket | Included | ||
| Automatic interlock device | Basket and gound control lock, the two can't operation at same time | ||
| Level detection function | Real-time detection of whether the vehicle is horizontal | ||
| Emergency stop device | For emergency stop operation | ||
| Night safety warning device | There are engineering strobes and lights on the vehicle | ||
| Vehicle level status tester | Can detect the horizontal and vertical tilt of the vehicle | ||
Specification:
ISUZU mounted Crane truck ( 3.2Ton boom crane SQ3SK2Q) | ||
General | Vehicle Brand | DONG RUN ZE TRUCKS |
Chassis Brand | I.S.U.Z.U | |
Overall Dimension | 6500 * 2100 * 3100 mm | |
GVW / Kerb Weight | 7,300kg / 4,000kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | I.S.U.Z.U | |
Power | 130 HP (88 KW) 4KH1 | |
Displacement | 2999 ml | |
Emission Standard | Euro 4 or 5 | |
Chassis | Drive Type | 4X2, (Left hand drive ONLY) |
Transmission | Manual MSB 5 speed levers with 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tire Specification | 7.00-16 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 90 km/h | |
Paint | Metallic paint | |
Superstructure | Cargo Box Dimension | 4000*1900*500 mm |
Crane Type | Telescpoic boom crane | |
Max Lifting Capacity | 3200 kg | |
Slewing Angle | 360° All rotation | |
Crane Weight | 1229kg | |
Installation Space | 850 mm | |
Control panel | English or Your language | |
All standard accessories: Basic tool kit, English manual... | ||
Optional | ** Knuckle boom crane. ** Hydraulic tipper box. ** Box thickness according to requirement. ** Box height could be nominated | |
| Items | Parameter | ||
| Truck Model | 5070JSQ2 | ||
| Crane Parameter | Max Lifting Capacity | 3200 kg | |
| Max Lifting Moment | 6.8 T.M | ||
| Recommend Power | 14 kw | ||
| Max Oil Flow of Hydraulic System | 25 L/min | ||
| Max Pressure of Hydraulic System | 20 Mpa | ||
| Oil Tank Weight | 30 L | ||
| Crane Weight | 1229 kg | ||
| Installation Space | 850 mm | ||
| Rotation Angle | 360° All Rotation | ||
| Cargo Body | Thickness | Side | 2mm |
| Floor | 3mm | ||
Similar Key Words: hydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck
www.truckinchina.com
PACKING & DELIVERY
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
JMC aerial ladder moving house truck 28-45meters for sale
$39,000.00 - $45,000.00/Set
JMC 12-16m High altitude platform truck/Aerial platform truck
$19,000.00 - $22,000.00/Set
Big order JAC 12m/14m high lifting platform truck for sale Kyrgyzstan
$19,000.00 - $22,000.00/Set
2018 New Aerial working truck with bucket/Aerial platform truck
$19,000.00 - $22,000.00/Set
JAC 14m/16m Overhead working truck/High altitude operation truck
$19,000.00 - $22,000.00/Set
DongFeng Aerial work platform truck/hydraulic lift platform truck
$19,000.00 - $22,000.00/Set
DongFeng 18m Aerial truck with basket/high lifting platform truck
$19,000.00 - $29,000.00/Set
Special Aerial platform truck/truck mounted aerial work platform
$26,000.00 - $36,000.00/Set
Japan truck aerial work platform truck/high lifting truck 18meters for sale
$39,000.00 - $42,000.00/Set
HOWO Aerial platform truck/Aerial working truck 16 meters
$19,000.00 - $24,000.00/Set
JMC truck mounted aerial work platform/aerial platform truck/aerial truck with basket
$25,000.00 - $30,000.00/Set
JMC ladder lift truck/aerial ladder platform truck/aerial ladder trucks
$25,000.00 - $30,000.00/Set
JMC truck mounted lifting ladder/lifting platform truck/high lifting platform truck
$25,000.00 - $30,000.00/Set
JMC aerial work platform truck/truck mounted aerial platforms/telescopic aerial platform truck
$25,000.00 - $30,000.00/Set
JMC aerial working truck/aerial lift truck/aerial truck
$25,000.00 - $30,000.00/Set
Japan 18 meters aerial work platform truck/truck unloading platform
$32,000.00 - $39,000.00/Set
China best seller 18-22m electric aerial work platform truck
$19,000.00 - $29,000.00/Set
Japan 20 meters battery operated platform truck with insulation bucket
$32,000.00 - $39,000.00/Set
China vertical lifting platform truck 6-12m for sale Philippines
$14,000.00 - $17,000.00/Set
New 12m aluminum small lifting platform/weight lifting platform
$14,000.00 - $17,000.00/Set
Cheapest 12-16m aerial lift truck/aerial working truck with basket
$19,000.00 - $22,000.00/Set
Hot sale 2018 manual high lift pallet truck/high lift hydraulic hand pallet truck
$19,000.00 - $22,000.00/Set
China folding arms aerial truck/ Aerial working truck with insulation basket
$19,800.00 - $22,800.00/Set
JMC straight arms aerial work platform price/High altitude working platform truck
$35,500.00 - $36,500.00/Set
Aerial truck with water tank/aerial platform fire truck/truck aerial fire platform
$21,000.00 - $29,000.00/Set
JMC 28 meters ladder rack for truck/aerial ladder truck for sale
$32,000.00 - $38,000.00/Set
JMC 28 meters ladder lift truck/truck ladder rack for sale
$32,000.00 - $38,000.00/Set
Howo 16 meters hydraulic platform truck/platform lift truck/cherry picker
$21,600.00 - $25,000.00/Set
Top quality high lifting platform truck 9-12meters/aerial working platform truck with double cabin
$18,000.00 - $20,000.00/Set
double cabin 6 seats vertical lifting platform truck 6-12meters/high lifting platform truck
$16,000.00 - $20,000.00/Set
22M aerial working platform truck/aerial bucket truck with Dongfeng new cabin
$39,000.00 - $44,000.00/Set
Good quality I suzu aerial platform truck/aerial working truck/truck mounted aerial work platform
$32,000.00 - $39,000.00/Set
Japanese truck mounted High lifting aerial work platform/Hydraulic arm lifting platform
$58,000.00 - $59,900.00/Set
mobile hydraulic high rise aerial work platform operation truck for sale
$7,000.00 - $20,000.00/Set
2019 new white 22m folding jib high aerial working platform truck/high-altitude operation truck for sale
$7,000.00 - $20,000.00/Set
Dongfeng24m High Altitude Operating Truck for sale
$7,000.00 - $20,000.00/Set
Factory supply high altitude operation Street lights maintenance truck for sale
$7,000.00 - $20,000.00/Set
Mobile lite platform 12-18m for aerial working/Telescopic aerial work platform with truck
$35,000.00 - $36,600.00/Set
JAC High Altitude Operation Truck 4x2 12 - 25 m Working Height for sale
$18,000.00 - $25,000.00/Set
JAC High Operation Aerial Platform Truck Left / Right Hand Drive for sale
$18,000.00 - $25,000.00/Set
JAC 16-18m High Operation Aerial Platform Truck for sale
$18,000.00 - $25,000.00/Set
4X2 20 meters high altitude Aerial platform operation bucket truck for sale
$18,000.00 - $25,000.00/Set
18-22 meters high altitude operating truck/overhead working platform truck for hot sale
$18,000.00 - $25,000.00/Set
Dongfeng 22meters truck mounted aerial work platform/aerial lift truck
$38,000.00 - $42,000.00/Set
20meters Telescopic boom aerial work truck/JMC boom lift truck for sale
$48,000.00 - $49,999.00/Set
Foton forland aerial bucket truck 16 meters/truck mounted work lights 12m.14m for sale
$18,000.00 - $20,000.00/Set
Japan brand aerial working platform truck 22meters/platform lift truck
$85,000.00 - $88,000.00/Set
JAC double cabin platform lift truck 16meters/high lifting platform truck with Euro V engine
$24,000.00 - $25,500.00/Set
Aerial working platform truck 14meter/HOWO 4x2 platform lift truck
$21,000.00 - $21,500.00/Set
38meters aerial ladder moving house truck/ladder lift truck
$62,000.00 - $63,000.00/Set
Dongfeng high quality 18-20meters Lifting arm aerial work platform truck for sale
$48,000.00 - $48,600.00/Set
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
