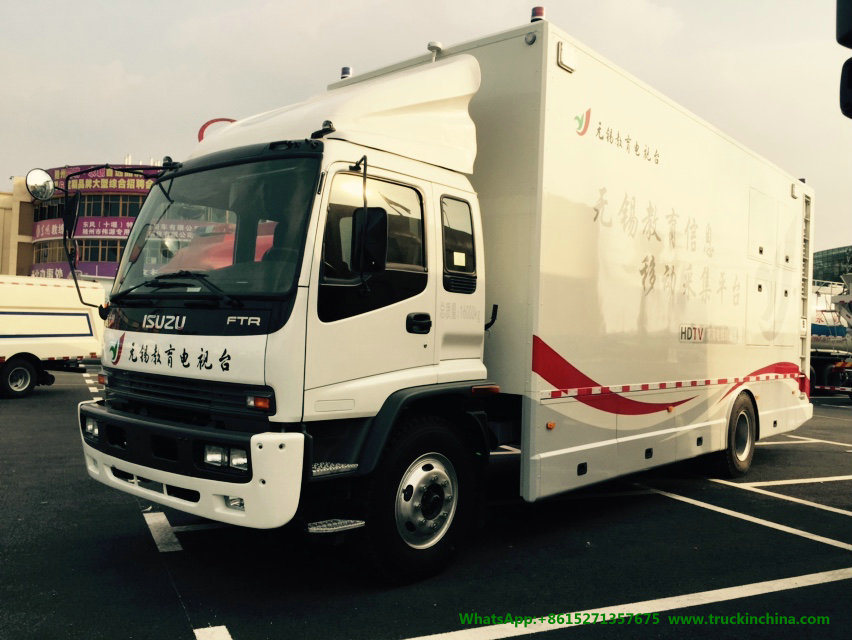

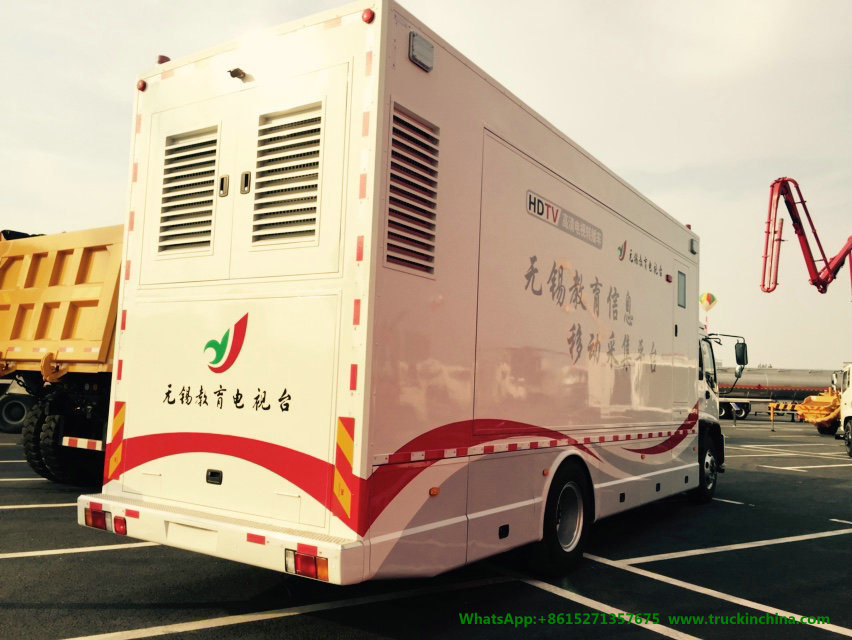

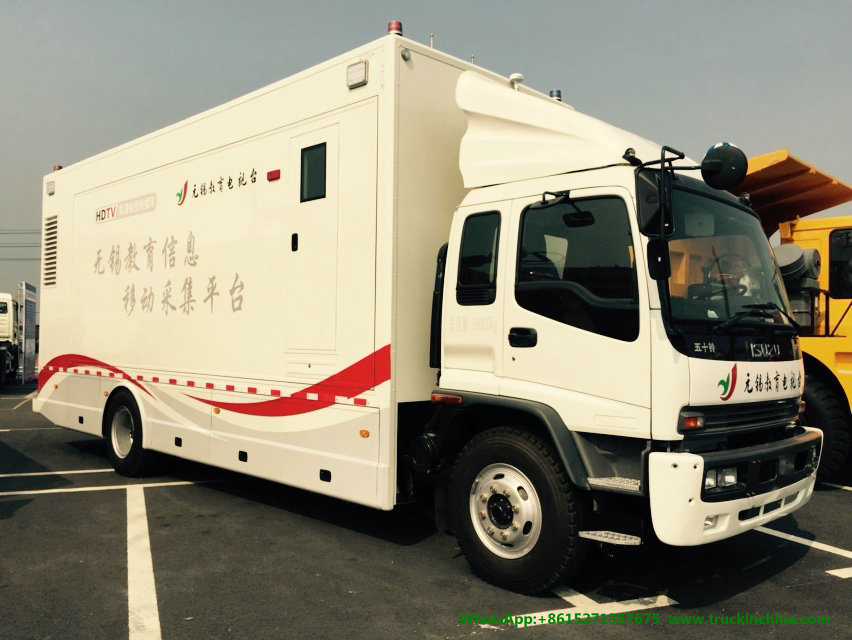

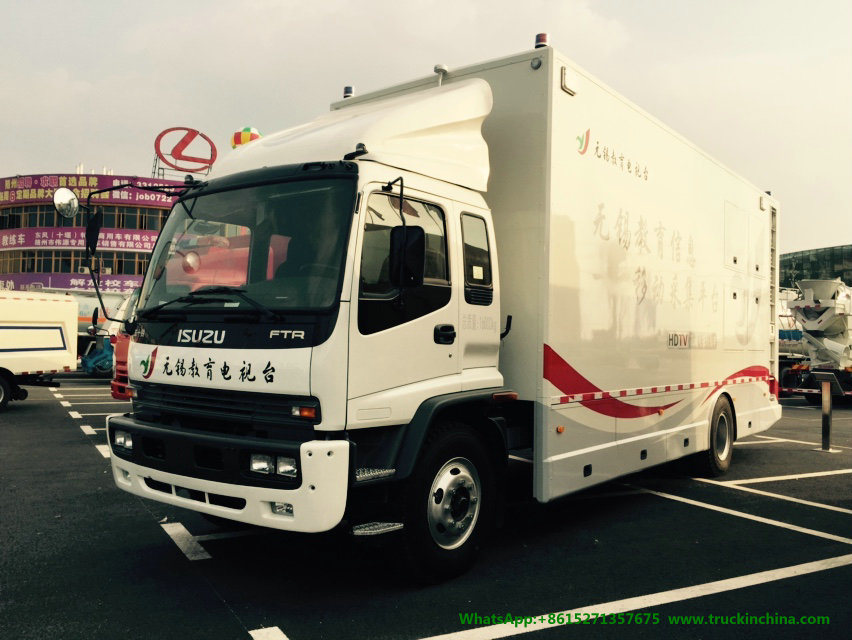

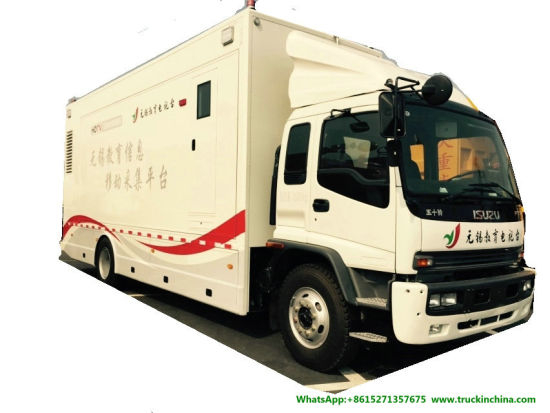

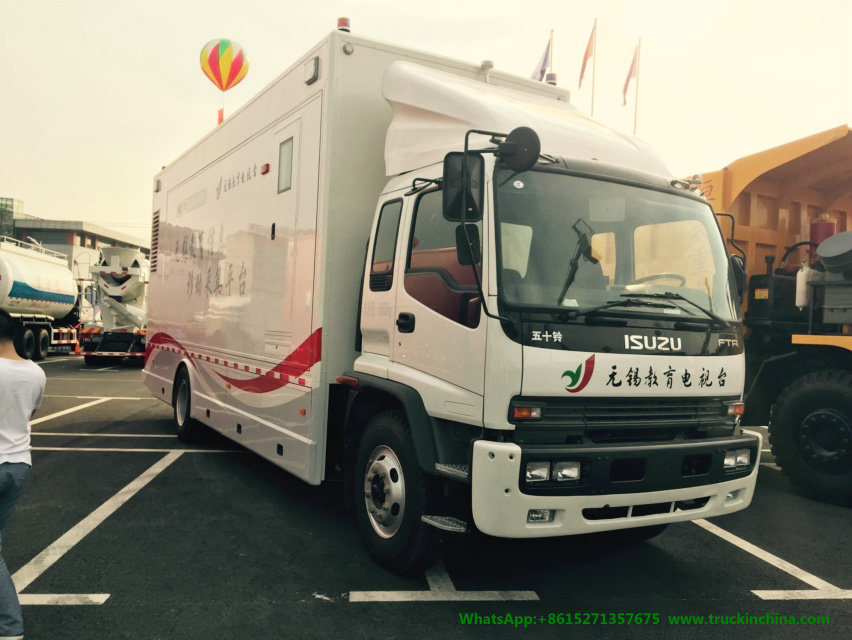

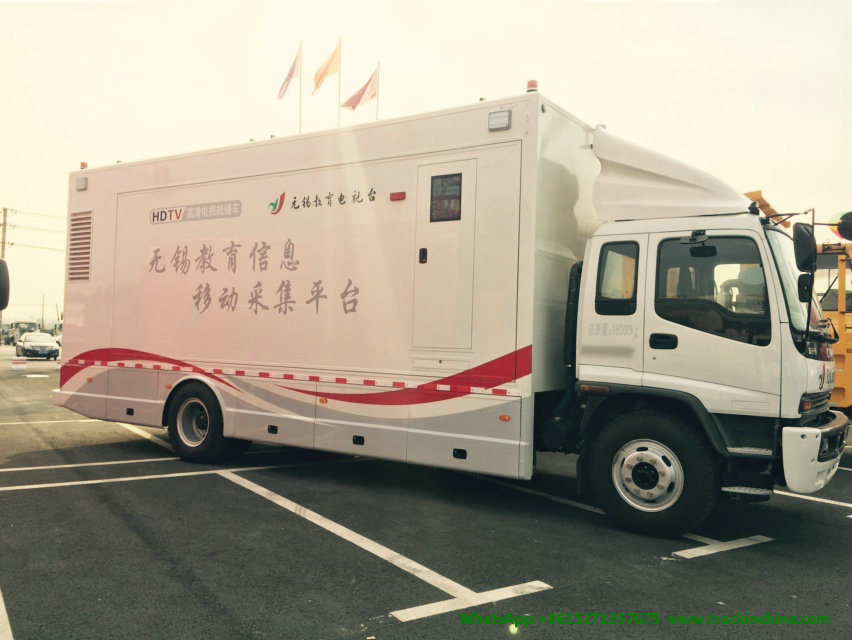

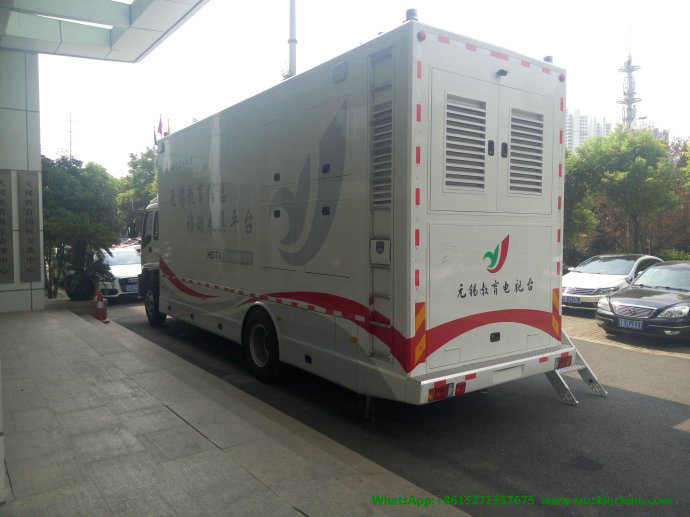

Isuzu HD Ob Van (4 HD HDTV Outdoor Broadcasting OB Van For TV Studio)
OB-Vehicles Isuzu HD Ob Van (4 HD HDTV Outdoor Broadcasting OB Van For TV Studio)
OB vehicle has been built to satisfy the growing demand for live sport, conference and cultural event coverage across the region
OB vehicle has been built to satisfy the growing demand for live sport, conference and cultural event coverage across the region
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
ISUZU HD OB VAN (Outdoor Broadcasting OB Van For TV Studio)
4 HD HDTV broadcast quality camera head with HD and SD outputs Vision mixer 2m/e Switchboard, 32-channel input, 16-way output
Serial number product name quantity brand model details
Configuration, place of origin, manufacturing
Manufacturer's unit price
1. 4.5 m ground station antenna 1. Star Hengtong stap-450k 1, 4.5 m self tracking fixed station antenna, model: stap-450k; 2. Equivalent aperture of antenna: 4.5 m; 3. Working frequency: Rx: 12.25-12.75ghz, TX: 14.0-14.5ghz; 4. ★ antenna gain: Rx: 53.2dbi; TX: 54.3dbi; 5. Cross polarization discrimination rate: Rx: dB, 35tx: db; 6. - 3ddb beam width: Rx: 0.37 °, TX: 0.0.37 °, TX: 0.0-14.5ghz; 4. ★★antennagain: Rx: 53.2dbi; TX: 53.2dbi; TX: 54.3dbi; 5. Cross polarization discrimination rate: Rx: dB, DB, 35tx: db; db;: 0 33 °; 7. Side lobe envelope characteristics: - 14 (first side lobe), 29 - 25 log θ (1 ° ≤ θ < 20 °); 8. Polarization characteristics: linear polarization; VSWR: Reception: 1.25:1 (max), transmission: 1.25:1 (max); 9. ★ antenna rotation range, azimuth: ± 90 °, pitch: 0 ° - 90 °, polarization: ± 90 °; 10 tracking accuracy: better than 1 / 10 receiving beam width; 11. Preset number of stars: 6 12. Controller parameters: 430mm x 442mm x 87.5mm; 13. Operating temperature: outdoor: - 40 ºC ~ + 60 ºC, indoor: + 10 ºC ~ + 30 ºC; L-band interface: n-head. China Star Hengtong 233000.00 233000.00
2. Basic antenna manufacturing 1. Customization. Customization. Customization according to the actual installation environment. China Star Hengtong 35000.00 35000.00
3. Satellite power amplifier 1. Idevantec sspb-k25 1. Satellite power amplifier, ★ saturated output power is 44dbm (25W); 2. Frequency input 950-1450MHZ, output 14.0-14.5ghz; 3. ★ power amplifier system gain: 70 ± 3dB; 4. If input: n type, 50ohm, master; 5. Input standing wave ratio: 1:3:1max; RF output: wr75; 6. Equipment monitoring: RS-485 / RS232 interface, power consumption: 280W; Weight: 4.2kg; 6. Working temperature: - 30 ºC ~ + 55 ºC; storage temperature: - 55 ºC ~ + 85 ºC; 7. Power supply mode: AC 220V ± 10% / 47 ~ 63Hz. China adevantage 145000.00 145000.00
4. LNA: 1. Nosette: 1508hb. LNA: 1508hb1. Input frequency: 12.25-12.75ghz. 2. Output frequency: 950-1450MHZ. 3. Input interface: wr75g. Input VSWR: 2.2:1 max. 4. Output VSWR: 2.2:1 max. 75 Ω. 5. Local frequency: 11.3ghz. Frequency stability: better than 10kHz. 6. Noise coefficient: 0.8db. Gain: 60dB (standard) 7. Phase noise of local oscillator: - 75dbc / Hz (100Hz); - 80dbc / Hz (1kHz); - 90dbc / Hz (10kHz); 8. Power supply: DC 13-24v; working temperature: - 30 ºC ~ + 55 ºC; relative humidity: 5-100%. Nusset, China 5000.00 5000.00
5. Soft waveguide, 1. Star Hengtong, customized. The length is set according to the actual situation on site. Ku band, China Star Hengtong, 15000.00, 15000.00
6. Modem 1. Key equipment of satellite network management center of cdm-570al ministry and bureau, with standard model, can be interconnected with fire department and bureau. Model: cdm-570al1, frequency range: 950-1950 MHz, 100 Hz resolution; 2, data rate range: 2.4 kbps-5mbps; 3, if connector: send: n-type female, 50 ohm, receive: n-type female, 50 ohm; 4, modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; support Vipersat plus network management and G2 function, support VNO management; 5, service Service quality assurance: quality of service (4 level priority) frame header compression; header compression load compression: payload compression distribution list; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
7? Multiplexer? 1? Key equipment of satellite network management center of Kangtai Yida? Cdm564l? Ministry and bureau, with standard model, which can be interconnected with fire department and bureau. 1. Multichannel demodulator cdm564l, 4-way demodulation; 2. Receiving frequency: 950-1950mhz; information rate (IR): 2.4kbps-5mbps (settable), step size: 1bps; 3. Input impedance: 50 ohms, 17dB return loss; 4. Service and management interface: 10 / 100BaseT Ethernet interface, RJ 45. China Kangtai Yida 85000.00 85000.00
8. IDR receiver 1. Key equipment of satellite network management center of ministry and bureau cmr-5975, with standard model, can be interconnected with fire department and bureau. IDR receiver: cmr-59751, demodulation mode: BPSK, QPSK; standard: DVB-S, DVB-S2; 2, forward error correction mode: 1 / 2, 2 / 3, 3 / 4, 5 / 6, 7 / 8; 3, roll off rate: 0.35; symbol rate: 2 to 45msps; input level: - 65dbm to - 25dbm4, working frequency band: 950 to 2150mhz, 100Hz step; 5, connector: F type, 75 Ω; capture time: less than 3S; signal spectrum inversion: self The dynamic identification spectrum is normal / inverted and automatically locked; PID number: 1000 (minimum); 6. Data interface: 10 / 100M Base-T, adaptive; 7. Monitoring mode: RS232, Ethernet; IP packet processing: forwarding IP broadcast, unicast and multicast. China Kangtai Yida 25000.00 25000.00
The 9-modem 1-kangtaiyida cdm-570al is used for interconnection with the static communication / dynamic communication without the help of the fire department and the fire brigade. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support one standard Ethernet 10 / 100M interface and LAN monitoring interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network;
support routing function; have satellite channel encryption function, technical system supports SCPC; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
The 10 modem 1 Kangtai Yida cdm-570al is configured on the original mobile communication support vehicle for interconnection with the ground station. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support one standard Ethernet 10 / 100M interface and LAN monitoring interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network management protocol; support routing function; have satellite channel encryption function, technical system support SCPC; 6, data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or g.70 3 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
11. Video conference terminal 1. Huaping hds2920-fhdv is interconnected with the fire department and bureau, which conforms to the integrated informatization scheme for the public security and fire fighting forces, and the model is designated by the Department and bureau
1. Video input: 1 Full HD input interface of DVI-I with a maximum resolution of 1080p, 1 standard definition input interface and 1 VGA input interface with a maximum resolution of SXGA, with independent audio input interface; 2. Audio input: 2 dedicated active mic interfaces and a group of lines, audio input interface; 3. Video coding: support 264high profile coding; video output: with HDMI, VGA DVI-D three interfaces, two of which can be output at the same time. The maximum output resolution is 1080p4. Frequency data interface: 10M / 100M Ethernet interface; connector: RJ45. Network function: support UDP / IP, TCP / IP protocol supports unicast and multicast functions. Warburg Pincus, China 85000.00 85000.00
12. Power divider 1. Nanjing kuanchao kcadr2150-8n 1. RF power divider 1: 8; 2. Frequency: 950-2150mhz, n-head, insertion loss ≤ 6.5db; 3. One pass through DC and the same pass through 10m; I / O standing wave ratio ≤ 1.5, isolation ≥ 20dB. Nanjing kuanchao, China 5000.00 5000.00
13 - combiner - 1 - labor protection - split-2n; 2 inputs, 1 output, n-head; China - labor protection - 5000.00 - 5000.00
14 voice gateway 1 century Netcom cng1000 can register into VOIP voice gateway gatekeeper of central station of the Ministry and bureau, and support all dispatching functions of gatekeeper.
1. Support SIP protocol; support G.723.1 (5.3k), G.723.1 (6.3k), G.729 (A / B / AB), g.711alaw/ulaw voice coding; 2. Audio interface adopts RJ11, which can carry out FXS and FXO combination of different routes; 3. Can carry out TOS value setting; 4. Appearance: 440x44x230mm; 5. Environment parameters: working temperature: - 10 - 50 ºC, storage temperature: - 30-60 ºC, humidity (non condensing): 10-90%. China century Netcom 5000.00 5000.00
15 spectrum analyzer 1 Guorui antaixin ga4063 1. Frequency range: 9KHz ~ 3GHz; 2. Aging rate: ± 0.1ppm/year; 3. Maximum resolution of cursor frequency counter: 1Hz; frequency scanning range, zero scanning width, 100Hz ~ maximum frequency value; resolution: 1Hz; SSB phase noise < - 95dbc / Hz @ 10kHz; 4. Maximum safety input level: + 30 DBM (1W), DC: ± 25V; 5. Display average noise Level (DANL) pre release ≤ - 148dbm, - 160dBm (typical value); 6. Level measurement error: ± (0.6dB + frequency response); 7. Frequency response: ± 1dB, ± 1dB (typical value), second harmonic distortion < - 70dB, third-order intermodulation distortion < - 70dbc; 8. Scanning time range: 2ms - 3000s (span > 100Hz) / scanning mode: continuous, single / trigger source: free operation, video trigger, external contact Engine 9. RF input: n-type female head: 50 Ω (nominal value); VSWR < 1.5:1 (attenuator setting 10dB); 10. Display size and type: 8.5-inch TFT LCD; language: English, simplified Chinese; 11. Power supply voltage required: 100V ~ 240V; frequency rating: 50 / 60 / 400Hz; power consumption: less than 35W; 12. Weight: less than 7kg; size: 410mm × 210mm × 136mm China guoruian Taixin 65000.00 65000.00
16 switch 1 Huawei s1700-24gr 1, Gigabit Ethernet switch, transmission rate: 10 / 100 / 1000Mbps adaptive; 2, port number: 24 ports; switching mode: store and forward; 3, backplane bandwidth: 48Gbps, packet forwarding rate: 36mpps; 4, network standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, ANSI / IEEE 802.3 Nway, IEEE 802.3x, IEEE 802.3az '5, power: AC 100-2 40V, 50-60Hz, power: 20W; Huawei 2000.00 2000.00
17 " cabinet " 1 " totem " K3 19 inch standard cabinet, including base, tray, cooling fan, cabinet door, etc " China " totem " 5000.00 " 5000.00
18. Installation accessories 1. Sichuan Jiuzhou custom. All kinds of connecting cables and professional connectors. The length and type are determined according to the actual needs. Jiuzhou, Sichuan, China 15000.00 15000.00
19. System integration 1. Sichuan Jiuzhou customization. According to the site and project conditions, integrate all equipment systems to ensure the complete realization of all functions. China Sichuan Jiuzhou 105000.00 105000.00
20 1.2m static medium pass antenna 1 star constant pass stap-120k automatic 1.2m static medium pass antenna:
1. Antenna type: single offset feedforward static medium pass antenna, glass fiber composite reflector; 2. Automatic deployment / collection, automatic positioning, adaptive vehicle platform attitude correction (electronic compass to determine the antenna heading, tilt, roll); 3. Equivalent aperture: 1.2m; weight: ≤ 60kg (excluding power amplifier); 4. Working frequency (GHz): Rx: 10.95-12.75ghz, TX: 13.75-1 4.5ghz; 5. Noise temperature: 45 ° k @ 10 ° elevation; 6. ★ antenna gain: Reception: ≥ 42dbi; emission: ≥ 43dbi; 7. Sidelobe characteristics: - 14 (first sidelobe), 29 - 25 log θ (1 ° ≤ θ < 20 °), 20 ° < θ < 26.3 °, - 3.5 DBI, 26.3 ° < θ < 48 °, 32-25log θ DBI, 48 ° < θ < 180 °, - 10 DBI; 8. Polarization characteristics: linear polarization; 9. VSWR: Reception: 1.3:1 (max ), launch: 1.3:1 (max); 10, ★ cross polarization isolation: ≥ - 35dB; 11, ≥ 90dB; 12, ★ antenna rotation range, azimuth: ± 240 °, pitch: 0 ° ~ 90 °, polarization: ± 95 °; 13, automatic satellite acquisition time: ≥ 3 minutes, satellite change time less than 90 seconds; 14, collection size: 1750x1240x310; 15, tracking accuracy: 1 / 10 lobe width; 16, rotation Speed: azimuth: 0.1-9 ° / s, pitch: 0.1-9 ° / s, polarization: 0.1-9 ° / S; 17. Wind resistance: operation: 54km / h (15m / s), gust: 72km / h (20m / s), deployment: 96km / h (27m / s), collection: 180km / h (50m / s).
18: working temperature: outdoor: - 25 ~ + 55 ºC, indoor: - 10 ~ + 40 ºC; relative humidity: RH 0% - 100% (no condensation); rain resistance: ≤ 100mm / h; 19. Protection grade: IP65; 19. Controller: 19 inch 1U; power supply: 90-260vac, 40-60hz; control: RS232, 10 / 100BaseT Ethernet interface; China Star Hengtong 273000.00 273000.00
21. Satellite power amplifier 1. Idevantec sspb-k40 1. Satellite power amplifier, ★ saturated output power is 47dbm (50W); 2. Frequency input 950-1450MHZ, output 14.0-14.5ghz; 3. ★ power amplifier system gain: 70 ± 3dB; 4. If input: n type, 50ohm, master; 5. Input standing wave ratio: 1:3:1max; RF output: wr75; 6. Equipment monitoring: RS-485 / RS232 interface, power consumption: 280W ; weight: 4.2kg; 6. Working temperature: - 30 ºC ~ + 55 ºC; storage temperature: - 55 ºC ~ + 85 ºC; 7. Power supply mode: AC 220V ± 10% / 47 ~ 63Hz. 175000.00 175000.00 adevantage, China
22 low noise amplifier 1 nosette 1508hb low noise amplifier 1508hb
1. Input frequency: 12.25-12.75ghz; 2. Output frequency: 950-1450MHZ; 3. Input interface: wr75g, input standing wave ratio: 2.2:1 maximum; 4. Output standing wave ratio: 2.2:1 maximum, 75 Ω; 5. Local frequency: 11.3ghz; frequency stability: better than 10kHz; 6. Noise coefficient: 0.8db; gain: 60dB (typical value); 7. Local phase noise: - 75dbc / Hz (100Hz); - 80dB C / Hz (1kHz); - 90dbc / Hz (10kHz); 8. Power supply: DC 13-24v; working temperature: - 30 ºC ~ + 55 ºC; relative humidity: 5-100%. Nusset, China 5000.00 5000.00
23. Soft waveguide, 1. Star Hengtong, customized. The length is set according to the actual situation on site. Ku band, China Star Hengtong, 12000.00, 12000.00
24 modem 1 key equipment of satellite network management center of cdm-570al ministry and bureau, with standard model, can be interconnected with fire department and bureau. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; 2. Data rate range: 2.4 kbps-5mbps; 3. If connector: send: n-type female, 50 ohm, receive: n-type female, 50 ohm; 4. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; support Vipersat plus network management and G2 functions, support VNO management; 5. Service quality assurance: Q Manual of service (4 level priority) frame header compression; header compression load compression: payload compression distribution list: distribution list; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
25. IDR receiver 1. Key equipment of satellite network management center of ministry and bureau cmr-5975, standard model, can be interconnected with fire department. IDR receiver: cmr-5975
1. Demodulation mode: BPSK, QPSK; standard: DVB-S, DVB-S2; 2. Forward error correction mode: 1 / 2, 2 / 3, 3 / 4, 5 / 6, 7 / 8; 3. Roll off rate: 0.35; symbol rate: 2 to 45msps; input level: - 65dbm to - 25dbm4; working frequency band: 950 to 2150mhz, 100Hz step; 5. Connector: F type, 75 Ω; acquisition time: less than 3S; signal spectrum inversion: automatic identification spectrum is normal/ Inversion, automatic locking; PID number: 1000 (minimum); 6. Data interface: 10 / 100M Base-T, adaptive; 7. Monitoring mode: RS232, Ethernet; IP packet processing: forwarding IP broadcast, unicast and multicast. China Kangtai Yida 25000.00 25000.00
26? Modem? 1? Cantaiyida? Cdm-570al? Is configured on the original battle command vehicle (jingzhongtong) for interconnection with the main station of Weihai consumption detachment. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support 1 standard
2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-1950mhz), support LNB DC power supply; 5. Support a standard Ethernet 10 / 100M interface and LAN monitoring Control interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network management protocol; support routing function; have satellite channel encryption function, technical system support SCPC; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
27? Modem 1? Cantaiyida? Cdm-570al? Is configured on the original battle command vehicle (jingzhongtong) for interconnection with Weihai public security main station. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support one standard Ethernet 10 / 100M interface and LAN monitoring interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network management protocol; support routing function; have satellite channel encryption function, technical system support SCPC; 6, data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or g.70 3 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
28. Combiner, 1. Gleo, split-4n, 4 inputs, 1 output, n-head; China gleo, 8000.00, 8000.00
29 power divider 1 Nanjing kuanchao kcadr2150-8n 1, RF power divider 1 minute 8; 2, frequency: 950-2150mhz, n-head, insertion loss ≤ 6.5db; 3, one pass through DC and the same pass through 10m; I / O standing wave ratio ≤ 1.5, isolation ≥ 20dB. Nanjing kuanchao, China 5000.00 5000.00
30 spectrum analyzer 1 Guorui antaixin ga4063 1. Frequency range: 9KHz ~ 3GHz; 2. Aging rate: ± 0.1ppm/year; 3. Maximum resolution of cursor frequency counter: 1Hz; frequency scanning range, zero scanning width, 100Hz ~ maximum frequency value; resolution: 1Hz; SSB phase noise < - 95dbc / Hz @ 10kHz; 4. Maximum safety input level: + 30 DBM (1W), DC: ± 25V; 5. Display average noise Level (DANL) pre release ≤ - 148dbm, - 160dBm (typical value); 6. Level measurement error: ± (0.6dB + frequency response); 7. Frequency response: ± 1dB, ± 1dB (typical value), second harmonic distortion < - 70dB, third-order intermodulation distortion < - 70dbc; 8. Scanning time range: 2ms - 3000s (span > 100Hz) / scanning mode: continuous, single / trigger source: free operation, video trigger, external contact Engine 9. RF input: n-type female head: 50 Ω (nominal value); VSWR < 1.5:1 (attenuator setting 10dB); 10. Display size and type: 8.5-inch TFT LCD; language: English, simplified Chinese; 11. Power supply voltage required: 100V ~ 240V; frequency rating: 50 / 60 / 400Hz; power consumption: less than 35W; 12. Weight: less than 7kg; size: 410mm × 210mm × 136mm China guoruian Taixin 65000.00 65000.00
31 voice gateway 1 century Netcom cng1000 can register into VOIP voice gateway gatekeeper of central station of the Ministry and bureau and support all dispatching functions of gatekeeper.
1. Support SIP protocol; support G.723.1 (5.3k), G.723.1 (6.3k), G.729 (A / B / AB), g.711alaw/ulaw voice coding; 2. Audio interface adopts RJ11, which can carry out FXS and FXO combination of different routes; 3. Can carry out TOS value setting; 4. Appearance: 440x44x230mm; 5. Environment parameters: working temperature: - 10 - 50 ºC, storage temperature: - 30-60 ºC, humidity (non condensing): 10-90%. China century Netcom 5000.00 5000.00
32. Installation accessories 1. Sichuan Jiuzhou custom. All kinds of connecting cables and professional connectors. The length and type are determined according to the actual needs. Sichuan Jiuzhou, China 12500.00 12500.00
33. System integration 1. Sichuan Jiuzhou customization. Integrate and install all communication equipment in the original communication command vehicle to ensure the normal operation of the whole system. 75000.00, Jiuzhou, Sichuan, China 75000.00
34? Portable generator? 1? Kepu? Ig3000? 1, 3KW portable digital generator, rated voltage (V): 230 120 / 240, rated frequency (Hz): 50 / 60; rated current: 12.223.3 / 11.7; 2. Rated speed: 3600r / min; 3. Rated output: 2.8KVA; maximum output: 3.0kva; direct current output: 12v-5.0a; 4. Structural form: open rack; 5. Number of phases: single; structural type: mute; combustion Material capacity: 15L; 6. Starting mode: recoil starting & electric starting; 7. Fuel model: unleaded gasoline for vehicle; engine model: kg205geti; 8. Cylinder diameter x stroke (mm): 68x54; exhaust volume (ML): 196; 8. Engine model: single cylinder, four stroke, air cooling, overhead valve, gasoline engine; 9. Spark plug: F6RTC / wr7dc; net weight: no more than 60kg. Dimensions: 491x400x430, net weight: 38kg; China Cape 8200.00 8200.00
35 " two wheel electric mountain patrol car " 4 " T-Robot " t-robot-wp-c 1. Self weight of the whole vehicle: 65kg; maximum load: 110kg; 2. " maximum speed: 20km / h; maximum climbing angle: 15 °; 3. Maximum mileage: 40km; service temperature: - 10 ° - 50 °; 4. Appearance size: 800mm * 830mm * 1290mm, tire outer diameter: 155 / 70-12; pedal height: 250mm;
5. Head: badge type head handle, LCD human-computer interface display; 6. ★ with: vehicle recorder, pinhole camera, pickup, human body online detection system, accessory box; 7. Lamps: headlight + ALARM + turn signal; wireless key: preliminary mode + sports mode; 8. Battery: lithium ion battery 2 * 5.2ah; charger: 90vac ~ 260vac; parking mechanism: double rear parking Vehicle mechanism; 9. Warning configuration: voice, Chinese (standard) + buzzer; 10. Tire: multi road vacuum tire; 11. Waterproof and dustproof grade: IP65. Shanghai new century robot 75000.00 300000.00
36 - inflatable tent - 1 - customized - customized, 150 square meters inflatable tent, including inflator, foldable, assembled, spliced by two sets of 75 square meters tents, can also be used alone, easy to transport and move. Customized in China 50000.00 50000.00
37. Command folding table 10. Customization. Customization. Foldable conference table, projection size: 1800 * 600, unfolding height: 750mm, folding size: less than 150 mm, convenient for transportation, can be assembled into a large conference table as required. China customized 1500.00 15000.00
38 folding chair 40 customized backrest folding chair combined with folding conference table, beautiful and easy to carry China customized 400.00 16000.00
39 - projector - 1 - Mingji - th670 - 1. Commercial projector, DLP projection technology, in the government's 21st energy saving equipment list; 2. Projection picture size: 60 "- 180"; national standard brightness (ANSI lumen): 3000; 3. Standard resolution: 1920x108dpi, maximum resolution: 1080x1200, contrast: 10000:1; 4. Projection light source: ultra-high pressure mercury bulb, bulb power: 210W; 5 . bulb life: normal mode: 4000 hours, economic mode: 6000 hours, intelligent power saving mode: 10000 hours; 6. Projection lens: F = 2.55 ~ 2.76 f = 22.3 ~ 26.76, illumination uniformity: 70%, zoom: 1.2x; 7. Screen ratio: 16:9, color number: 1.07 billion; 6. Whole power consumption (W): 210W, net weight = 3kg. Mingji, China 8500.00 8500.00
40 - screen - 1 - Meishi - 100 "x-press - 1. Portable and fast self standing screen; 2. Screen size: 100 inches, scale: 4:3 white plastic screen; 3. Screen projection area: 2030mm * 1520mm; 4. Black edge height under screen deployment: 800mm5, net weight: 9.9kg - China - Meishi 3000.00 - 3000.00
41. Projector bracket 1. Nut 1. Upright base projector bracket 2. 360 ° rotation, kg platform type: Panoramic scale damping ball platform (ball diameter 26mm); 3. Chassis diameter: 29cm, self weight bearing: self weight 5.1kg, load-bearing 3kg; 4. Package size: 39.8 * 40 * 9cm, weight (including package): 4.85kg China nut 800.00 800.00
42 LCD TV 2 TCL d55a620ul 55 inch, ultra clear. TCL 6000.00 12000.00 in China
43 LCD TV bracket 2 Sichuan Jiuzhou custom made according to TV size, detachable TV bracket is convenient for moving, transportation, installation, alloy material and light weight. Jiuzhou, Sichuan, China 2000.00 4000.00
44 " TV aviation box " 2 " Sichuan Jiuzhou " customized " customized according to the actual size of TV, with shockproof function, convenient to move, used to store 55 inch LCD TV. Jiuzhou, Sichuan, China 2000.00 4000.00
45 - electric fan - 4 - Gree - ks-0505d-wg 1. Control mode: mechanical type, key type; 2. Wind type mode: normal wind; motor material: ball bearing motor; 3. Wind speed: 4 gears; timing: 2 hours; 4. Noise (DB) ≤ 61db; water shortage protection support; 5. Water tank volume (L): 5L; rated voltage: 220V; 6. Rated frequency: 50Hz; rated power: 65; Rated humidification capacity ml / h: 1100; height: 750mm; 7. Net weight: 7.78kg; China's Gree: 700.00; 2800.00
46 heater 4 Baogong bgo-50a-16 / F 1, 50KW oil fired heater, quantity of heater: 9; 2. Heating mode: electric heating wire; 3. Control mode: mechanical type; waterproof function: support; 4. Fuel type: Diesel / kerosene; 5. Size: 1050x490x615mm China Baogong 4700.00 18800.00
47 mobile lamp 4 ocean king ok-6105e 1. Special portable lamp, average service life: 100000 hours; 2. Rated voltage: 14.4V DC; rated capacity: 9ah; 3. Charging time: 8-10 hours; 4. Continuous discharge time: 8h, working light: 16h; 5. Weight: 6.1kg; size: 250x200x577mm China Ocean king 7500.00 30000.00
48 camera 1 Sony evi-hd1 1. Professional video conference camera with pan tilt, including special tripod; 2. Pixel: 2 million, sensor: 1 / 3 inch CMOS; 3. Optical zoom: 10 times, digital zoom: 4 times; 4. Video output interface: HD-SDI, VGA, etc.; 5. Control mode: RS232, remote control; China Sony China 26500.00 26500.00
49? Portable equipment box? 1? Customized? 1. Customized, special aviation case, built-in 19 inch standard cabinet; 2. Height 6U, easy to move, shockproof. China customized 6000.00 6000.00
The 50 video conference terminal 1 Kodak h700c is matched with the original model and can be interconnected with the original communication command vehicle and command center.
1. Resolution: 1080i / P, 720p, 4cif, CIF, QCIF; 2. Conference rate: 64kbps-8mbps adjustable; 3. Dual stream feature: support H.239 standard dual video stream protocol; 4. Video interface: HD interface: DVI-I (expandable HDMI, YPbPr, VGA), VGA, SD interface: composite C terminal; 5. Audio interface: HDMI, special digital audio, analog audio: Canon (48) V phantom power supply), RCA, 6.35mm, supporting dual channel stereo; 6. Network interface: dual 10 / 100 / 1000m Ethernet;
7. Physical characteristics: 19 inch 1U standard rack design, H × w × D: 44mm × 443mm × 360mm; 8. Power supply: power consumption of the whole machine: ≤ 80W, power supply: AC (voltage 100-240V / frequency 50-60Hz); Suzhou Keda, China 85000.00 85000.00
51 high definition video matrix 1 Xunwei dv-0404 1, 19 inch standard rack type high definition matrix 2, input channels: 8, output channels: 8, China Xunwei 30000.00 30000.00
52 wireless bridge 1 Axel 9800 can communicate with the original command vehicle. Acsel, China 10000.00 10000.00
53 - mixer - 1 - bailinda - mx882 - 1 - 19 inch standard rack type mixer; 2. Frequency band width: 5 Hz to 200 kHz; 3. All sound channels have accurate input / output level display - China - bailinda 3000.00 3000.00
54. Wireless microphone. 1. Desheng. Ts-7200. 1. Conference dedicated wireless microphone, 1 to 2. 2. Frequency response: 80hz-15khz, signal-to-noise ratio: > 70dB. 3. Receiver power supply: DC12V, 300mA, transmitter power supply 9V. China Desheng. 3000.00
55 audio 1 Desheng wda-800 1. Conference dedicated mobile audio, supporting wireless and wired reception, infinite frequency response: 180mhz-270mhz; 2. Rated output power: 20W; 3. Supporting U disk; 4. Built in battery, endurance time: 3-4 hours; China Desheng 2000.00 2000.00
56 optical fiber transceiver 1 Xi'an Guanggu sg-ec-40 1. Optical fiber transceiver, data interface RJ45, data rate: 1000Mbps; 2. Optical fiber interface: FC interface; 3. Transmission distance: 40km; 4. Power supply: AC220V; Xi'an Guanggu China 5000.00 5000.00
57 - optical cable panel - 1 - customized - customized - 1. Indoor optical cable panel, convenient for laying and carrying; 2. Number of optical cable cores: 6; 3. Length: 200m; 4. Interface type: FC interface, including flange, pigtail. Customized in China 5000.00 5000.00
58 wireless router 1 Huasan er3108gw 1. Wireless router: LAN port number: 8, WAN port number: 1; 2. Transmission frequency: 2.4GHz; transmission rate: 300m; 3. Transmission standard: IEEE 802.11n; IEEE 802.11g; IEEE 802.11b; 4. Network protocol: TCP / IP protocol; 5. Power supply: AC100-240V China Huasan 1000.00 1000.00
59 cable auxiliary materials 1 Sichuan Jiuzhou customized special cable auxiliary materials a batch to ensure the normal operation of the system 5000.00 5000.00 Sichuan Jiuzhou China
60 equipment box integration 1 Sichuan Jiuzhou customization for equipment and equipment design special structural parts, panels, PDU sockets, etc. to make the equipment and equipment box perfectly combined, convenient to carry and use. 35000.00 35000.00, Jiuzhou, Sichuan, China
61 Isuzu 1 Isuzu ql1160vqfry refitted chassis: Isuzu ql1160vqfry class II chassis, national 5 emissions;
1. Cab seating capacity (person): 3; 2. Maximum total mass (kg): 16000; 3. Curb mass (kg): 5225; 4. Overall dimension (length × width × height) (mm): 8835 * 2490 * 2750, wheelbase: 5550
5. Maximum speed (km / h): 105; 6. Approach angle / departure angle (°): 15 / 15
7. Rated power (kw): 151, displacement: 5193ml;
8. Front suspension / rear suspension (mm): 1335 / 1950;
9. Front track: 1960mm, rear track: 1855mm;
10. Tire specification: 10.00R20 16pr, 11.00R22.5 16pr;
11. Including the upper shroud of the cab. China Qingling automobile 329000.00 329000.00
62 car frame manufacturing 1 Yutong customized 1. Car frame is made of steel frame, with cathodic electrophoretic anti-corrosion treatment;
2. Form frame structure, assemble, weld and calibrate, polish, and carry out electrophoretic anti-corrosion treatment for the frame;
3. Ensure no corrosion in 8-10 years, Yutong 180000.00 180000.00
63 - car subframe manufacturing - 1 - Yutong - customized - 1. Adopt the special steel welding structure of chassis, assemble, weld, calibrate, polish, carry out electrophoretic anti-corrosion treatment, and spray anti rust paint on the surface;
2. Guarantee no corrosion in 8-10 years, Yutong, China
64 car body corner 1 Yutong customized car body is surrounded by easy to form aluminum alloy profiles, welded and polished China Yutong
65 - outer skin - 1 - Yutong - customized - 1. Material: 3mm thick antirust aluminum plate;
2. Gluing with glue and anti-corrosion treatment for the frame
66 - skirt cabin - 1 - Yutong - customized - 1. The cabin doors are reserved at the lower part of both sides of the body for the installation of generators and accompanying equipment;
2. It does not affect the performance of the whole vehicle, China Yutong 12000.00 12000.00
67 - back door opening - 1 - Yutong - customized - 1. Back door opening, aluminum plate and profile welding structure;
2. The aluminum numerical control machine tool is formed, and the rotary door lock is used. After the door is opened, there is a steel wire rope limit. Yutong, China 25000.00 25000.00
68 car side hanging ladder 2 Yutong customized aluminum alloy with silver powder paint on the surface; China Yutong 2000.00 4000.00
69 car foundation treatment 1 Yutong custom outer mask inner side is coated with anti-seismic adhesive, foamed sound insulation, noise reduction and thermal insulation treatment between frameworks, joint sealing treatment China Yutong 18898.00 18898.00
70 " interior decoration " 1 " Yutong " customized " aluminum plastic plate decoration, reasonable color, can be specified by the user " China " Yutong 37000.00 37000.00
71 - interior floor - 1 - Yutong - customized - 1. Bamboo composite board; small pattern board is laid in the equipment area;
2. The floor color is determined according to the user's requirements, and can be specified by the user as "China Yutong 4500.00 4500.00"
72 side wall wing door opening 2 Yutong customized 1. Side wall lift wing door opening, hydraulic control;
2. Including hydraulic control oil cylinder, pump station and electric control system, China Yutong 30000.00 60000.00
73? Hydraulic tailboard? 1? Kaizhuoli? Customized? 1. Overall customized hydraulic drive, electric control system;
2. Used for loading and unloading equipment - China kaizhuoli 38000.00 38000.00
74 equipment rack 1 Yutong customized high strength equipment rack, user placed equipment 6500.00 6500.00 China Yutong
75 equipment fastening, 1 Yutong, customized fastener and fastening strap, used to fix equipment and equipment, China Yutong 3000.00 3000.00
76 paint and exterior decoration, 1 Yutong, customized, professional paint baking room, with the appearance pasted according to the user's requirements, China Yutong 18000.00 18000.00
77 - fire extinguisher - 2 - Yutong - customized - 2kg fire extinguisher, vehicle special - China - Yutong - 300.00 - 600.00
78 " miscellaneous accessories " 1 " Yutong " customized " special accessories for vehicle modification, customized according to actual needs. China Yutong 10000.00 10000.00
79 battery 1 Yutong customized 12V / 100Ah battery for hydraulic system power supply China Yutong 1600.00 1600.00
80 - exterior lighting - 2 - Yutong - customized - customized, site lighting, can independently control - China - Yutong - 300.00 - 600.00
81 " interior lighting " 1 " Yutong " customized " interior AC and DC dual power lighting of the whole vehicle, including working lighting and emergency lighting " Yutong 2200.00 2200.00 " China "
82 ‚ alarm light ‚ 1 ‚ Yutong ‚ custom ‚ red and blue long row alarm lights, perfect combination with the body, including 200W alarm ‚ Yutong, China ‚ 5000.00 ‚ 5000.00
83 - strobe - 1 - Yutong - customized - four square, red and blue, including lamp control, perfectly combined with the body - Yutong - China - 1000.00 - 1000.00
84 - reverse monitoring system - 1 - Yutong - customized - 1, reverse monitoring camera 1 set;
2. 1 set of color LCD screen, perfect combination with reversing camera Yutong 3000.00 3000.00
85. Labor and manufacturing cost 1. Yutong. Customization. Customization. China Yutong. 100000.00. 100000.00
86 notice 1 notice of new command vehicle declaration after the whole customized vehicle is offline. China Yutong 85000.00 85000.00
| 1.2 | VAN BODY | / | VAN BODY | 1 | pcs | ||||
| 1.3 | Interior Decoration and Design | 1 | pcs | ||||||
| 1.4 | Refrigeration system ≥3200KW | 1 | pcs | ||||||
| 1.5 | Power Distribution System | 380V, 220V 1 ≥6KVA UPS 1 ≥5KVA 1≥15KVA | 1 | pcs | |||||
| 1.6 | Cable Tray | 6( 6 150 ), 1 100 , 1 4 ( 70 )./ | 1 | pcs | |||||
| 1.7 | Lighting system | 1 | pcs | ||||||
| 1.7 | Security system | 1 | pcs |

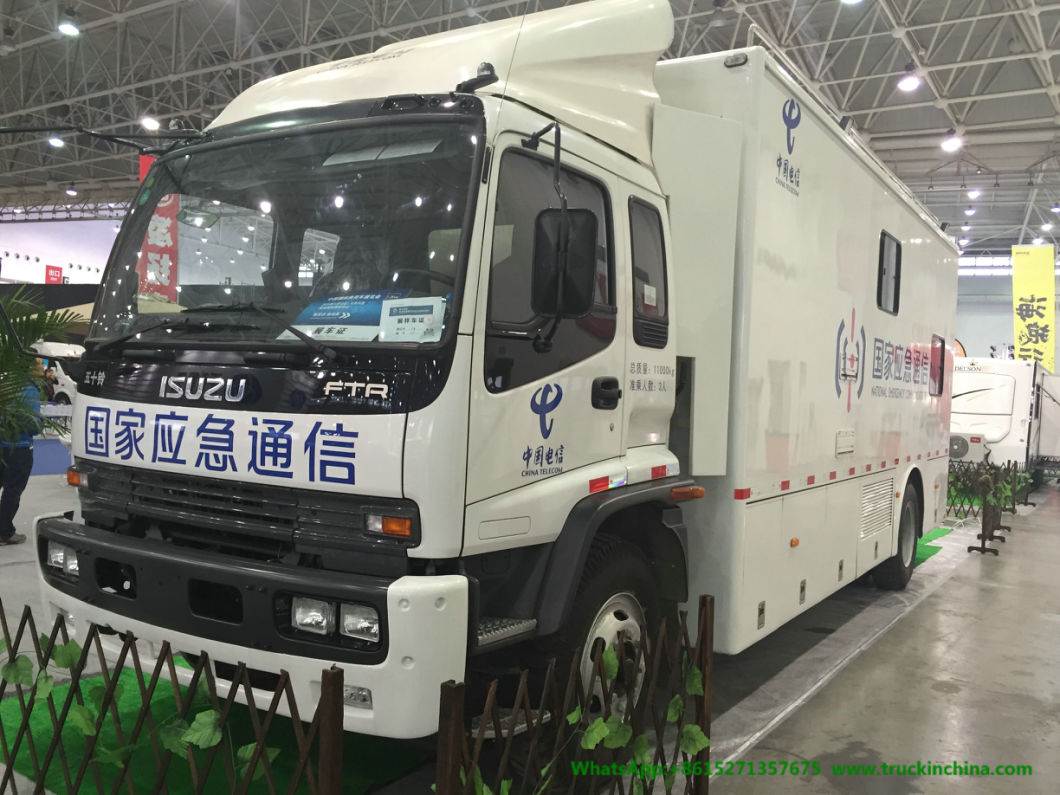

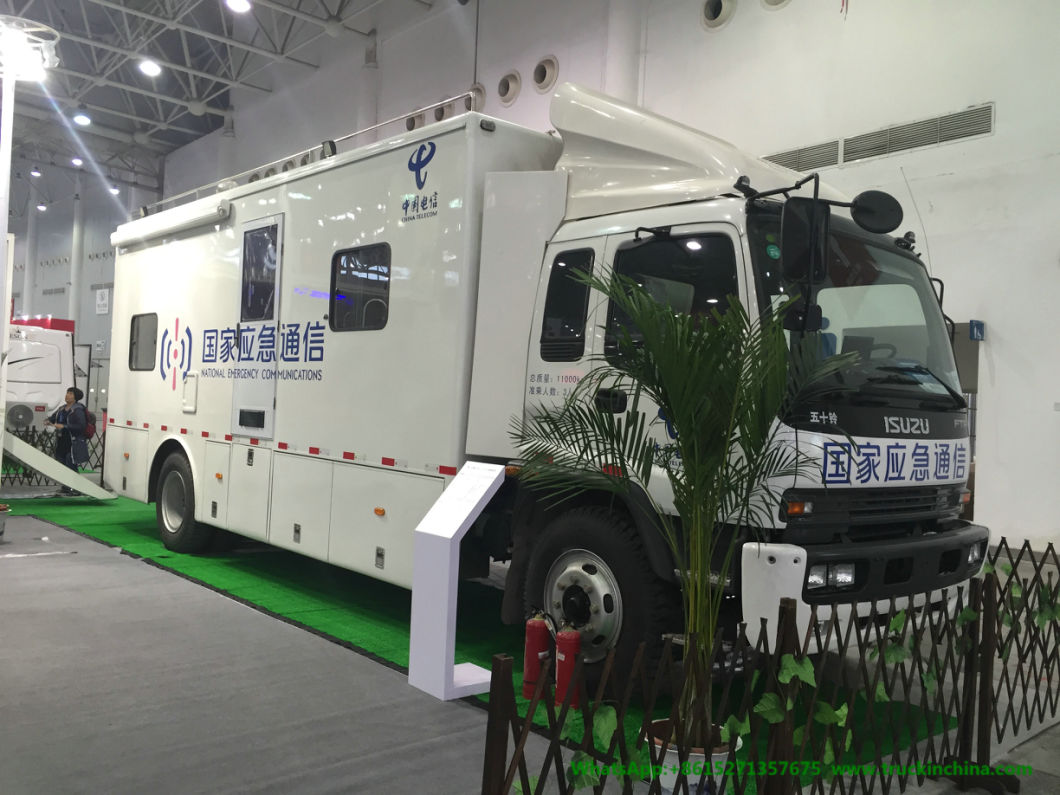

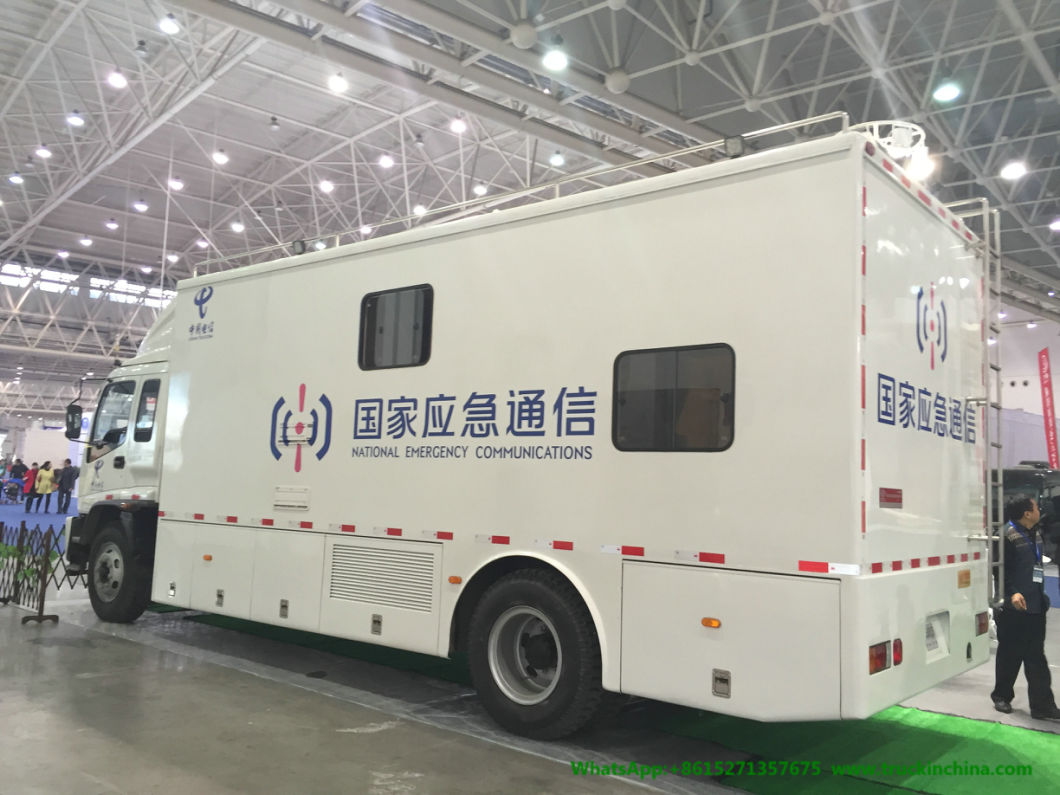

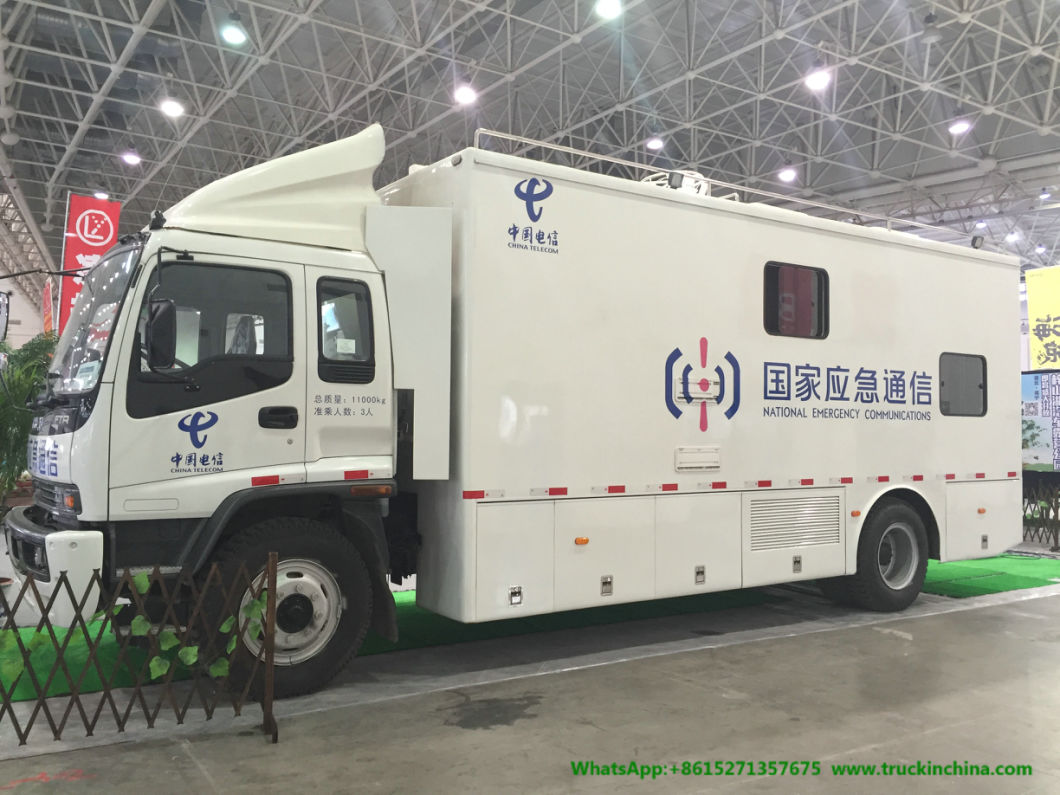

Emergency Satellite Communications Command Vehicle
ISUZU HD OB VAN (Outdoor Broadcasting OB Van For TV Studio)
4 HD HDTV broadcast quality camera head with HD and SD outputs Vision mixer 2m/e Switchboard, 32-channel input, 16-way output
Serial number product name quantity brand model details
Configuration, place of origin, manufacturing
Manufacturer's unit price
1. 4.5 m ground station antenna 1. Star Hengtong stap-450k 1, 4.5 m self tracking fixed station antenna, model: stap-450k; 2. Equivalent aperture of antenna: 4.5 m; 3. Working frequency: Rx: 12.25-12.75ghz, TX: 14.0-14.5ghz; 4. ★ antenna gain: Rx: 53.2dbi; TX: 54.3dbi; 5. Cross polarization discrimination rate: Rx: dB, 35tx: db; 6. - 3ddb beam width: Rx: 0.37 °, TX: 0.0.37 °, TX: 0.0-14.5ghz; 4. ★★antennagain: Rx: 53.2dbi; TX: 53.2dbi; TX: 54.3dbi; 5. Cross polarization discrimination rate: Rx: dB, DB, 35tx: db; db;: 0 33 °; 7. Side lobe envelope characteristics: - 14 (first side lobe), 29 - 25 log θ (1 ° ≤ θ < 20 °); 8. Polarization characteristics: linear polarization; VSWR: Reception: 1.25:1 (max), transmission: 1.25:1 (max); 9. ★ antenna rotation range, azimuth: ± 90 °, pitch: 0 ° - 90 °, polarization: ± 90 °; 10 tracking accuracy: better than 1 / 10 receiving beam width; 11. Preset number of stars: 6 12. Controller parameters: 430mm x 442mm x 87.5mm; 13. Operating temperature: outdoor: - 40 ºC ~ + 60 ºC, indoor: + 10 ºC ~ + 30 ºC; L-band interface: n-head. China Star Hengtong 233000.00 233000.00
2. Basic antenna manufacturing 1. Customization. Customization. Customization according to the actual installation environment. China Star Hengtong 35000.00 35000.00
3. Satellite power amplifier 1. Idevantec sspb-k25 1. Satellite power amplifier, ★ saturated output power is 44dbm (25W); 2. Frequency input 950-1450MHZ, output 14.0-14.5ghz; 3. ★ power amplifier system gain: 70 ± 3dB; 4. If input: n type, 50ohm, master; 5. Input standing wave ratio: 1:3:1max; RF output: wr75; 6. Equipment monitoring: RS-485 / RS232 interface, power consumption: 280W; Weight: 4.2kg; 6. Working temperature: - 30 ºC ~ + 55 ºC; storage temperature: - 55 ºC ~ + 85 ºC; 7. Power supply mode: AC 220V ± 10% / 47 ~ 63Hz. China adevantage 145000.00 145000.00
4. LNA: 1. Nosette: 1508hb. LNA: 1508hb1. Input frequency: 12.25-12.75ghz. 2. Output frequency: 950-1450MHZ. 3. Input interface: wr75g. Input VSWR: 2.2:1 max. 4. Output VSWR: 2.2:1 max. 75 Ω. 5. Local frequency: 11.3ghz. Frequency stability: better than 10kHz. 6. Noise coefficient: 0.8db. Gain: 60dB (standard) 7. Phase noise of local oscillator: - 75dbc / Hz (100Hz); - 80dbc / Hz (1kHz); - 90dbc / Hz (10kHz); 8. Power supply: DC 13-24v; working temperature: - 30 ºC ~ + 55 ºC; relative humidity: 5-100%. Nusset, China 5000.00 5000.00
5. Soft waveguide, 1. Star Hengtong, customized. The length is set according to the actual situation on site. Ku band, China Star Hengtong, 15000.00, 15000.00
6. Modem 1. Key equipment of satellite network management center of cdm-570al ministry and bureau, with standard model, can be interconnected with fire department and bureau. Model: cdm-570al1, frequency range: 950-1950 MHz, 100 Hz resolution; 2, data rate range: 2.4 kbps-5mbps; 3, if connector: send: n-type female, 50 ohm, receive: n-type female, 50 ohm; 4, modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; support Vipersat plus network management and G2 function, support VNO management; 5, service Service quality assurance: quality of service (4 level priority) frame header compression; header compression load compression: payload compression distribution list; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
7? Multiplexer? 1? Key equipment of satellite network management center of Kangtai Yida? Cdm564l? Ministry and bureau, with standard model, which can be interconnected with fire department and bureau. 1. Multichannel demodulator cdm564l, 4-way demodulation; 2. Receiving frequency: 950-1950mhz; information rate (IR): 2.4kbps-5mbps (settable), step size: 1bps; 3. Input impedance: 50 ohms, 17dB return loss; 4. Service and management interface: 10 / 100BaseT Ethernet interface, RJ 45. China Kangtai Yida 85000.00 85000.00
8. IDR receiver 1. Key equipment of satellite network management center of ministry and bureau cmr-5975, with standard model, can be interconnected with fire department and bureau. IDR receiver: cmr-59751, demodulation mode: BPSK, QPSK; standard: DVB-S, DVB-S2; 2, forward error correction mode: 1 / 2, 2 / 3, 3 / 4, 5 / 6, 7 / 8; 3, roll off rate: 0.35; symbol rate: 2 to 45msps; input level: - 65dbm to - 25dbm4, working frequency band: 950 to 2150mhz, 100Hz step; 5, connector: F type, 75 Ω; capture time: less than 3S; signal spectrum inversion: self The dynamic identification spectrum is normal / inverted and automatically locked; PID number: 1000 (minimum); 6. Data interface: 10 / 100M Base-T, adaptive; 7. Monitoring mode: RS232, Ethernet; IP packet processing: forwarding IP broadcast, unicast and multicast. China Kangtai Yida 25000.00 25000.00
The 9-modem 1-kangtaiyida cdm-570al is used for interconnection with the static communication / dynamic communication without the help of the fire department and the fire brigade. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support one standard Ethernet 10 / 100M interface and LAN monitoring interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network;
support routing function; have satellite channel encryption function, technical system supports SCPC; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
The 10 modem 1 Kangtai Yida cdm-570al is configured on the original mobile communication support vehicle for interconnection with the ground station. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support one standard Ethernet 10 / 100M interface and LAN monitoring interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network management protocol; support routing function; have satellite channel encryption function, technical system support SCPC; 6, data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or g.70 3 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
11. Video conference terminal 1. Huaping hds2920-fhdv is interconnected with the fire department and bureau, which conforms to the integrated informatization scheme for the public security and fire fighting forces, and the model is designated by the Department and bureau
1. Video input: 1 Full HD input interface of DVI-I with a maximum resolution of 1080p, 1 standard definition input interface and 1 VGA input interface with a maximum resolution of SXGA, with independent audio input interface; 2. Audio input: 2 dedicated active mic interfaces and a group of lines, audio input interface; 3. Video coding: support 264high profile coding; video output: with HDMI, VGA DVI-D three interfaces, two of which can be output at the same time. The maximum output resolution is 1080p4. Frequency data interface: 10M / 100M Ethernet interface; connector: RJ45. Network function: support UDP / IP, TCP / IP protocol supports unicast and multicast functions. Warburg Pincus, China 85000.00 85000.00
12. Power divider 1. Nanjing kuanchao kcadr2150-8n 1. RF power divider 1: 8; 2. Frequency: 950-2150mhz, n-head, insertion loss ≤ 6.5db; 3. One pass through DC and the same pass through 10m; I / O standing wave ratio ≤ 1.5, isolation ≥ 20dB. Nanjing kuanchao, China 5000.00 5000.00
13 - combiner - 1 - labor protection - split-2n; 2 inputs, 1 output, n-head; China - labor protection - 5000.00 - 5000.00
14 voice gateway 1 century Netcom cng1000 can register into VOIP voice gateway gatekeeper of central station of the Ministry and bureau, and support all dispatching functions of gatekeeper.
1. Support SIP protocol; support G.723.1 (5.3k), G.723.1 (6.3k), G.729 (A / B / AB), g.711alaw/ulaw voice coding; 2. Audio interface adopts RJ11, which can carry out FXS and FXO combination of different routes; 3. Can carry out TOS value setting; 4. Appearance: 440x44x230mm; 5. Environment parameters: working temperature: - 10 - 50 ºC, storage temperature: - 30-60 ºC, humidity (non condensing): 10-90%. China century Netcom 5000.00 5000.00
15 spectrum analyzer 1 Guorui antaixin ga4063 1. Frequency range: 9KHz ~ 3GHz; 2. Aging rate: ± 0.1ppm/year; 3. Maximum resolution of cursor frequency counter: 1Hz; frequency scanning range, zero scanning width, 100Hz ~ maximum frequency value; resolution: 1Hz; SSB phase noise < - 95dbc / Hz @ 10kHz; 4. Maximum safety input level: + 30 DBM (1W), DC: ± 25V; 5. Display average noise Level (DANL) pre release ≤ - 148dbm, - 160dBm (typical value); 6. Level measurement error: ± (0.6dB + frequency response); 7. Frequency response: ± 1dB, ± 1dB (typical value), second harmonic distortion < - 70dB, third-order intermodulation distortion < - 70dbc; 8. Scanning time range: 2ms - 3000s (span > 100Hz) / scanning mode: continuous, single / trigger source: free operation, video trigger, external contact Engine 9. RF input: n-type female head: 50 Ω (nominal value); VSWR < 1.5:1 (attenuator setting 10dB); 10. Display size and type: 8.5-inch TFT LCD; language: English, simplified Chinese; 11. Power supply voltage required: 100V ~ 240V; frequency rating: 50 / 60 / 400Hz; power consumption: less than 35W; 12. Weight: less than 7kg; size: 410mm × 210mm × 136mm China guoruian Taixin 65000.00 65000.00
16 switch 1 Huawei s1700-24gr 1, Gigabit Ethernet switch, transmission rate: 10 / 100 / 1000Mbps adaptive; 2, port number: 24 ports; switching mode: store and forward; 3, backplane bandwidth: 48Gbps, packet forwarding rate: 36mpps; 4, network standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, ANSI / IEEE 802.3 Nway, IEEE 802.3x, IEEE 802.3az '5, power: AC 100-2 40V, 50-60Hz, power: 20W; Huawei 2000.00 2000.00
17 " cabinet " 1 " totem " K3 19 inch standard cabinet, including base, tray, cooling fan, cabinet door, etc " China " totem " 5000.00 " 5000.00
18. Installation accessories 1. Sichuan Jiuzhou custom. All kinds of connecting cables and professional connectors. The length and type are determined according to the actual needs. Jiuzhou, Sichuan, China 15000.00 15000.00
19. System integration 1. Sichuan Jiuzhou customization. According to the site and project conditions, integrate all equipment systems to ensure the complete realization of all functions. China Sichuan Jiuzhou 105000.00 105000.00
20 1.2m static medium pass antenna 1 star constant pass stap-120k automatic 1.2m static medium pass antenna:
1. Antenna type: single offset feedforward static medium pass antenna, glass fiber composite reflector; 2. Automatic deployment / collection, automatic positioning, adaptive vehicle platform attitude correction (electronic compass to determine the antenna heading, tilt, roll); 3. Equivalent aperture: 1.2m; weight: ≤ 60kg (excluding power amplifier); 4. Working frequency (GHz): Rx: 10.95-12.75ghz, TX: 13.75-1 4.5ghz; 5. Noise temperature: 45 ° k @ 10 ° elevation; 6. ★ antenna gain: Reception: ≥ 42dbi; emission: ≥ 43dbi; 7. Sidelobe characteristics: - 14 (first sidelobe), 29 - 25 log θ (1 ° ≤ θ < 20 °), 20 ° < θ < 26.3 °, - 3.5 DBI, 26.3 ° < θ < 48 °, 32-25log θ DBI, 48 ° < θ < 180 °, - 10 DBI; 8. Polarization characteristics: linear polarization; 9. VSWR: Reception: 1.3:1 (max ), launch: 1.3:1 (max); 10, ★ cross polarization isolation: ≥ - 35dB; 11, ≥ 90dB; 12, ★ antenna rotation range, azimuth: ± 240 °, pitch: 0 ° ~ 90 °, polarization: ± 95 °; 13, automatic satellite acquisition time: ≥ 3 minutes, satellite change time less than 90 seconds; 14, collection size: 1750x1240x310; 15, tracking accuracy: 1 / 10 lobe width; 16, rotation Speed: azimuth: 0.1-9 ° / s, pitch: 0.1-9 ° / s, polarization: 0.1-9 ° / S; 17. Wind resistance: operation: 54km / h (15m / s), gust: 72km / h (20m / s), deployment: 96km / h (27m / s), collection: 180km / h (50m / s).
18: working temperature: outdoor: - 25 ~ + 55 ºC, indoor: - 10 ~ + 40 ºC; relative humidity: RH 0% - 100% (no condensation); rain resistance: ≤ 100mm / h; 19. Protection grade: IP65; 19. Controller: 19 inch 1U; power supply: 90-260vac, 40-60hz; control: RS232, 10 / 100BaseT Ethernet interface; China Star Hengtong 273000.00 273000.00
21. Satellite power amplifier 1. Idevantec sspb-k40 1. Satellite power amplifier, ★ saturated output power is 47dbm (50W); 2. Frequency input 950-1450MHZ, output 14.0-14.5ghz; 3. ★ power amplifier system gain: 70 ± 3dB; 4. If input: n type, 50ohm, master; 5. Input standing wave ratio: 1:3:1max; RF output: wr75; 6. Equipment monitoring: RS-485 / RS232 interface, power consumption: 280W ; weight: 4.2kg; 6. Working temperature: - 30 ºC ~ + 55 ºC; storage temperature: - 55 ºC ~ + 85 ºC; 7. Power supply mode: AC 220V ± 10% / 47 ~ 63Hz. 175000.00 175000.00 adevantage, China
22 low noise amplifier 1 nosette 1508hb low noise amplifier 1508hb
1. Input frequency: 12.25-12.75ghz; 2. Output frequency: 950-1450MHZ; 3. Input interface: wr75g, input standing wave ratio: 2.2:1 maximum; 4. Output standing wave ratio: 2.2:1 maximum, 75 Ω; 5. Local frequency: 11.3ghz; frequency stability: better than 10kHz; 6. Noise coefficient: 0.8db; gain: 60dB (typical value); 7. Local phase noise: - 75dbc / Hz (100Hz); - 80dB C / Hz (1kHz); - 90dbc / Hz (10kHz); 8. Power supply: DC 13-24v; working temperature: - 30 ºC ~ + 55 ºC; relative humidity: 5-100%. Nusset, China 5000.00 5000.00
23. Soft waveguide, 1. Star Hengtong, customized. The length is set according to the actual situation on site. Ku band, China Star Hengtong, 12000.00, 12000.00
24 modem 1 key equipment of satellite network management center of cdm-570al ministry and bureau, with standard model, can be interconnected with fire department and bureau. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; 2. Data rate range: 2.4 kbps-5mbps; 3. If connector: send: n-type female, 50 ohm, receive: n-type female, 50 ohm; 4. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; support Vipersat plus network management and G2 functions, support VNO management; 5. Service quality assurance: Q Manual of service (4 level priority) frame header compression; header compression load compression: payload compression distribution list: distribution list; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
25. IDR receiver 1. Key equipment of satellite network management center of ministry and bureau cmr-5975, standard model, can be interconnected with fire department. IDR receiver: cmr-5975
1. Demodulation mode: BPSK, QPSK; standard: DVB-S, DVB-S2; 2. Forward error correction mode: 1 / 2, 2 / 3, 3 / 4, 5 / 6, 7 / 8; 3. Roll off rate: 0.35; symbol rate: 2 to 45msps; input level: - 65dbm to - 25dbm4; working frequency band: 950 to 2150mhz, 100Hz step; 5. Connector: F type, 75 Ω; acquisition time: less than 3S; signal spectrum inversion: automatic identification spectrum is normal/ Inversion, automatic locking; PID number: 1000 (minimum); 6. Data interface: 10 / 100M Base-T, adaptive; 7. Monitoring mode: RS232, Ethernet; IP packet processing: forwarding IP broadcast, unicast and multicast. China Kangtai Yida 25000.00 25000.00
26? Modem? 1? Cantaiyida? Cdm-570al? Is configured on the original battle command vehicle (jingzhongtong) for interconnection with the main station of Weihai consumption detachment. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support 1 standard
2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-1950mhz), support LNB DC power supply; 5. Support a standard Ethernet 10 / 100M interface and LAN monitoring Control interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network management protocol; support routing function; have satellite channel encryption function, technical system support SCPC; 6. Data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or G.703 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
27? Modem 1? Cantaiyida? Cdm-570al? Is configured on the original battle command vehicle (jingzhongtong) for interconnection with Weihai public security main station. Model: cdm-570al
1. Frequency range: 950-1950 MHz, 100 Hz resolution; data rate range: 2.4 kbps-5mbps; 2. Modulation and demodulation mode: BPSK, QPSK; forward error correction mode: TPC FEC, rates 1 / 2, 3 / 4, 7 / 8; 3. Decoding and error correction mode: l support turbo product codec, Viterbi, Reed Solomon and TCM, TPC, 5 / 16, 21 / 44, 3 / 4, 7 / 8; 4. Receive if interface: L-band interface (950-19 50MHz), support LNB DC power supply; 5, support one standard Ethernet 10 / 100M interface and LAN monitoring interface; support TCP / IP network protocol, support network multicast protocol, support SNMP network management protocol; support routing function; have satellite channel encryption function, technical system support SCPC; 6, data interface: IP interface, eia422 / 530, V.35, synchronous eia-232, G.703 T1, or g.70 3 E1 balanced or unbalanced; 7. Power supply: 100-240 VAC 50 / 60Hz. China Kangtai Yida 75000.00 75000.00
28. Combiner, 1. Gleo, split-4n, 4 inputs, 1 output, n-head; China gleo, 8000.00, 8000.00
29 power divider 1 Nanjing kuanchao kcadr2150-8n 1, RF power divider 1 minute 8; 2, frequency: 950-2150mhz, n-head, insertion loss ≤ 6.5db; 3, one pass through DC and the same pass through 10m; I / O standing wave ratio ≤ 1.5, isolation ≥ 20dB. Nanjing kuanchao, China 5000.00 5000.00
30 spectrum analyzer 1 Guorui antaixin ga4063 1. Frequency range: 9KHz ~ 3GHz; 2. Aging rate: ± 0.1ppm/year; 3. Maximum resolution of cursor frequency counter: 1Hz; frequency scanning range, zero scanning width, 100Hz ~ maximum frequency value; resolution: 1Hz; SSB phase noise < - 95dbc / Hz @ 10kHz; 4. Maximum safety input level: + 30 DBM (1W), DC: ± 25V; 5. Display average noise Level (DANL) pre release ≤ - 148dbm, - 160dBm (typical value); 6. Level measurement error: ± (0.6dB + frequency response); 7. Frequency response: ± 1dB, ± 1dB (typical value), second harmonic distortion < - 70dB, third-order intermodulation distortion < - 70dbc; 8. Scanning time range: 2ms - 3000s (span > 100Hz) / scanning mode: continuous, single / trigger source: free operation, video trigger, external contact Engine 9. RF input: n-type female head: 50 Ω (nominal value); VSWR < 1.5:1 (attenuator setting 10dB); 10. Display size and type: 8.5-inch TFT LCD; language: English, simplified Chinese; 11. Power supply voltage required: 100V ~ 240V; frequency rating: 50 / 60 / 400Hz; power consumption: less than 35W; 12. Weight: less than 7kg; size: 410mm × 210mm × 136mm China guoruian Taixin 65000.00 65000.00
31 voice gateway 1 century Netcom cng1000 can register into VOIP voice gateway gatekeeper of central station of the Ministry and bureau and support all dispatching functions of gatekeeper.
1. Support SIP protocol; support G.723.1 (5.3k), G.723.1 (6.3k), G.729 (A / B / AB), g.711alaw/ulaw voice coding; 2. Audio interface adopts RJ11, which can carry out FXS and FXO combination of different routes; 3. Can carry out TOS value setting; 4. Appearance: 440x44x230mm; 5. Environment parameters: working temperature: - 10 - 50 ºC, storage temperature: - 30-60 ºC, humidity (non condensing): 10-90%. China century Netcom 5000.00 5000.00
32. Installation accessories 1. Sichuan Jiuzhou custom. All kinds of connecting cables and professional connectors. The length and type are determined according to the actual needs. Sichuan Jiuzhou, China 12500.00 12500.00
33. System integration 1. Sichuan Jiuzhou customization. Integrate and install all communication equipment in the original communication command vehicle to ensure the normal operation of the whole system. 75000.00, Jiuzhou, Sichuan, China 75000.00
34? Portable generator? 1? Kepu? Ig3000? 1, 3KW portable digital generator, rated voltage (V): 230 120 / 240, rated frequency (Hz): 50 / 60; rated current: 12.223.3 / 11.7; 2. Rated speed: 3600r / min; 3. Rated output: 2.8KVA; maximum output: 3.0kva; direct current output: 12v-5.0a; 4. Structural form: open rack; 5. Number of phases: single; structural type: mute; combustion Material capacity: 15L; 6. Starting mode: recoil starting & electric starting; 7. Fuel model: unleaded gasoline for vehicle; engine model: kg205geti; 8. Cylinder diameter x stroke (mm): 68x54; exhaust volume (ML): 196; 8. Engine model: single cylinder, four stroke, air cooling, overhead valve, gasoline engine; 9. Spark plug: F6RTC / wr7dc; net weight: no more than 60kg. Dimensions: 491x400x430, net weight: 38kg; China Cape 8200.00 8200.00
35 " two wheel electric mountain patrol car " 4 " T-Robot " t-robot-wp-c 1. Self weight of the whole vehicle: 65kg; maximum load: 110kg; 2. " maximum speed: 20km / h; maximum climbing angle: 15 °; 3. Maximum mileage: 40km; service temperature: - 10 ° - 50 °; 4. Appearance size: 800mm * 830mm * 1290mm, tire outer diameter: 155 / 70-12; pedal height: 250mm;
5. Head: badge type head handle, LCD human-computer interface display; 6. ★ with: vehicle recorder, pinhole camera, pickup, human body online detection system, accessory box; 7. Lamps: headlight + ALARM + turn signal; wireless key: preliminary mode + sports mode; 8. Battery: lithium ion battery 2 * 5.2ah; charger: 90vac ~ 260vac; parking mechanism: double rear parking Vehicle mechanism; 9. Warning configuration: voice, Chinese (standard) + buzzer; 10. Tire: multi road vacuum tire; 11. Waterproof and dustproof grade: IP65. Shanghai new century robot 75000.00 300000.00
36 - inflatable tent - 1 - customized - customized, 150 square meters inflatable tent, including inflator, foldable, assembled, spliced by two sets of 75 square meters tents, can also be used alone, easy to transport and move. Customized in China 50000.00 50000.00
37. Command folding table 10. Customization. Customization. Foldable conference table, projection size: 1800 * 600, unfolding height: 750mm, folding size: less than 150 mm, convenient for transportation, can be assembled into a large conference table as required. China customized 1500.00 15000.00
38 folding chair 40 customized backrest folding chair combined with folding conference table, beautiful and easy to carry China customized 400.00 16000.00
39 - projector - 1 - Mingji - th670 - 1. Commercial projector, DLP projection technology, in the government's 21st energy saving equipment list; 2. Projection picture size: 60 "- 180"; national standard brightness (ANSI lumen): 3000; 3. Standard resolution: 1920x108dpi, maximum resolution: 1080x1200, contrast: 10000:1; 4. Projection light source: ultra-high pressure mercury bulb, bulb power: 210W; 5 . bulb life: normal mode: 4000 hours, economic mode: 6000 hours, intelligent power saving mode: 10000 hours; 6. Projection lens: F = 2.55 ~ 2.76 f = 22.3 ~ 26.76, illumination uniformity: 70%, zoom: 1.2x; 7. Screen ratio: 16:9, color number: 1.07 billion; 6. Whole power consumption (W): 210W, net weight = 3kg. Mingji, China 8500.00 8500.00
40 - screen - 1 - Meishi - 100 "x-press - 1. Portable and fast self standing screen; 2. Screen size: 100 inches, scale: 4:3 white plastic screen; 3. Screen projection area: 2030mm * 1520mm; 4. Black edge height under screen deployment: 800mm5, net weight: 9.9kg - China - Meishi 3000.00 - 3000.00
41. Projector bracket 1. Nut 1. Upright base projector bracket 2. 360 ° rotation, kg platform type: Panoramic scale damping ball platform (ball diameter 26mm); 3. Chassis diameter: 29cm, self weight bearing: self weight 5.1kg, load-bearing 3kg; 4. Package size: 39.8 * 40 * 9cm, weight (including package): 4.85kg China nut 800.00 800.00
42 LCD TV 2 TCL d55a620ul 55 inch, ultra clear. TCL 6000.00 12000.00 in China
43 LCD TV bracket 2 Sichuan Jiuzhou custom made according to TV size, detachable TV bracket is convenient for moving, transportation, installation, alloy material and light weight. Jiuzhou, Sichuan, China 2000.00 4000.00
44 " TV aviation box " 2 " Sichuan Jiuzhou " customized " customized according to the actual size of TV, with shockproof function, convenient to move, used to store 55 inch LCD TV. Jiuzhou, Sichuan, China 2000.00 4000.00
45 - electric fan - 4 - Gree - ks-0505d-wg 1. Control mode: mechanical type, key type; 2. Wind type mode: normal wind; motor material: ball bearing motor; 3. Wind speed: 4 gears; timing: 2 hours; 4. Noise (DB) ≤ 61db; water shortage protection support; 5. Water tank volume (L): 5L; rated voltage: 220V; 6. Rated frequency: 50Hz; rated power: 65; Rated humidification capacity ml / h: 1100; height: 750mm; 7. Net weight: 7.78kg; China's Gree: 700.00; 2800.00
46 heater 4 Baogong bgo-50a-16 / F 1, 50KW oil fired heater, quantity of heater: 9; 2. Heating mode: electric heating wire; 3. Control mode: mechanical type; waterproof function: support; 4. Fuel type: Diesel / kerosene; 5. Size: 1050x490x615mm China Baogong 4700.00 18800.00
47 mobile lamp 4 ocean king ok-6105e 1. Special portable lamp, average service life: 100000 hours; 2. Rated voltage: 14.4V DC; rated capacity: 9ah; 3. Charging time: 8-10 hours; 4. Continuous discharge time: 8h, working light: 16h; 5. Weight: 6.1kg; size: 250x200x577mm China Ocean king 7500.00 30000.00
48 camera 1 Sony evi-hd1 1. Professional video conference camera with pan tilt, including special tripod; 2. Pixel: 2 million, sensor: 1 / 3 inch CMOS; 3. Optical zoom: 10 times, digital zoom: 4 times; 4. Video output interface: HD-SDI, VGA, etc.; 5. Control mode: RS232, remote control; China Sony China 26500.00 26500.00
49? Portable equipment box? 1? Customized? 1. Customized, special aviation case, built-in 19 inch standard cabinet; 2. Height 6U, easy to move, shockproof. China customized 6000.00 6000.00
The 50 video conference terminal 1 Kodak h700c is matched with the original model and can be interconnected with the original communication command vehicle and command center.
1. Resolution: 1080i / P, 720p, 4cif, CIF, QCIF; 2. Conference rate: 64kbps-8mbps adjustable; 3. Dual stream feature: support H.239 standard dual video stream protocol; 4. Video interface: HD interface: DVI-I (expandable HDMI, YPbPr, VGA), VGA, SD interface: composite C terminal; 5. Audio interface: HDMI, special digital audio, analog audio: Canon (48) V phantom power supply), RCA, 6.35mm, supporting dual channel stereo; 6. Network interface: dual 10 / 100 / 1000m Ethernet;
7. Physical characteristics: 19 inch 1U standard rack design, H × w × D: 44mm × 443mm × 360mm; 8. Power supply: power consumption of the whole machine: ≤ 80W, power supply: AC (voltage 100-240V / frequency 50-60Hz); Suzhou Keda, China 85000.00 85000.00
51 high definition video matrix 1 Xunwei dv-0404 1, 19 inch standard rack type high definition matrix 2, input channels: 8, output channels: 8, China Xunwei 30000.00 30000.00
52 wireless bridge 1 Axel 9800 can communicate with the original command vehicle. Acsel, China 10000.00 10000.00
53 - mixer - 1 - bailinda - mx882 - 1 - 19 inch standard rack type mixer; 2. Frequency band width: 5 Hz to 200 kHz; 3. All sound channels have accurate input / output level display - China - bailinda 3000.00 3000.00
54. Wireless microphone. 1. Desheng. Ts-7200. 1. Conference dedicated wireless microphone, 1 to 2. 2. Frequency response: 80hz-15khz, signal-to-noise ratio: > 70dB. 3. Receiver power supply: DC12V, 300mA, transmitter power supply 9V. China Desheng. 3000.00
55 audio 1 Desheng wda-800 1. Conference dedicated mobile audio, supporting wireless and wired reception, infinite frequency response: 180mhz-270mhz; 2. Rated output power: 20W; 3. Supporting U disk; 4. Built in battery, endurance time: 3-4 hours; China Desheng 2000.00 2000.00
56 optical fiber transceiver 1 Xi'an Guanggu sg-ec-40 1. Optical fiber transceiver, data interface RJ45, data rate: 1000Mbps; 2. Optical fiber interface: FC interface; 3. Transmission distance: 40km; 4. Power supply: AC220V; Xi'an Guanggu China 5000.00 5000.00
57 - optical cable panel - 1 - customized - customized - 1. Indoor optical cable panel, convenient for laying and carrying; 2. Number of optical cable cores: 6; 3. Length: 200m; 4. Interface type: FC interface, including flange, pigtail. Customized in China 5000.00 5000.00
58 wireless router 1 Huasan er3108gw 1. Wireless router: LAN port number: 8, WAN port number: 1; 2. Transmission frequency: 2.4GHz; transmission rate: 300m; 3. Transmission standard: IEEE 802.11n; IEEE 802.11g; IEEE 802.11b; 4. Network protocol: TCP / IP protocol; 5. Power supply: AC100-240V China Huasan 1000.00 1000.00
59 cable auxiliary materials 1 Sichuan Jiuzhou customized special cable auxiliary materials a batch to ensure the normal operation of the system 5000.00 5000.00 Sichuan Jiuzhou China
60 equipment box integration 1 Sichuan Jiuzhou customization for equipment and equipment design special structural parts, panels, PDU sockets, etc. to make the equipment and equipment box perfectly combined, convenient to carry and use. 35000.00 35000.00, Jiuzhou, Sichuan, China
61 Isuzu 1 Isuzu ql1160vqfry refitted chassis: Isuzu ql1160vqfry class II chassis, national 5 emissions;
1. Cab seating capacity (person): 3; 2. Maximum total mass (kg): 16000; 3. Curb mass (kg): 5225; 4. Overall dimension (length × width × height) (mm): 8835 * 2490 * 2750, wheelbase: 5550
5. Maximum speed (km / h): 105; 6. Approach angle / departure angle (°): 15 / 15
7. Rated power (kw): 151, displacement: 5193ml;
8. Front suspension / rear suspension (mm): 1335 / 1950;
9. Front track: 1960mm, rear track: 1855mm;
10. Tire specification: 10.00R20 16pr, 11.00R22.5 16pr;
11. Including the upper shroud of the cab. China Qingling automobile 329000.00 329000.00
62 car frame manufacturing 1 Yutong customized 1. Car frame is made of steel frame, with cathodic electrophoretic anti-corrosion treatment;
2. Form frame structure, assemble, weld and calibrate, polish, and carry out electrophoretic anti-corrosion treatment for the frame;
3. Ensure no corrosion in 8-10 years, Yutong 180000.00 180000.00
63 - car subframe manufacturing - 1 - Yutong - customized - 1. Adopt the special steel welding structure of chassis, assemble, weld, calibrate, polish, carry out electrophoretic anti-corrosion treatment, and spray anti rust paint on the surface;
2. Guarantee no corrosion in 8-10 years, Yutong, China
64 car body corner 1 Yutong customized car body is surrounded by easy to form aluminum alloy profiles, welded and polished China Yutong
65 - outer skin - 1 - Yutong - customized - 1. Material: 3mm thick antirust aluminum plate;
2. Gluing with glue and anti-corrosion treatment for the frame
66 - skirt cabin - 1 - Yutong - customized - 1. The cabin doors are reserved at the lower part of both sides of the body for the installation of generators and accompanying equipment;
2. It does not affect the performance of the whole vehicle, China Yutong 12000.00 12000.00
67 - back door opening - 1 - Yutong - customized - 1. Back door opening, aluminum plate and profile welding structure;
2. The aluminum numerical control machine tool is formed, and the rotary door lock is used. After the door is opened, there is a steel wire rope limit. Yutong, China 25000.00 25000.00
68 car side hanging ladder 2 Yutong customized aluminum alloy with silver powder paint on the surface; China Yutong 2000.00 4000.00
69 car foundation treatment 1 Yutong custom outer mask inner side is coated with anti-seismic adhesive, foamed sound insulation, noise reduction and thermal insulation treatment between frameworks, joint sealing treatment China Yutong 18898.00 18898.00
70 " interior decoration " 1 " Yutong " customized " aluminum plastic plate decoration, reasonable color, can be specified by the user " China " Yutong 37000.00 37000.00
71 - interior floor - 1 - Yutong - customized - 1. Bamboo composite board; small pattern board is laid in the equipment area;
2. The floor color is determined according to the user's requirements, and can be specified by the user as "China Yutong 4500.00 4500.00"
72 side wall wing door opening 2 Yutong customized 1. Side wall lift wing door opening, hydraulic control;
2. Including hydraulic control oil cylinder, pump station and electric control system, China Yutong 30000.00 60000.00
73? Hydraulic tailboard? 1? Kaizhuoli? Customized? 1. Overall customized hydraulic drive, electric control system;
2. Used for loading and unloading equipment - China kaizhuoli 38000.00 38000.00
74 equipment rack 1 Yutong customized high strength equipment rack, user placed equipment 6500.00 6500.00 China Yutong
75 equipment fastening, 1 Yutong, customized fastener and fastening strap, used to fix equipment and equipment, China Yutong 3000.00 3000.00
76 paint and exterior decoration, 1 Yutong, customized, professional paint baking room, with the appearance pasted according to the user's requirements, China Yutong 18000.00 18000.00
77 - fire extinguisher - 2 - Yutong - customized - 2kg fire extinguisher, vehicle special - China - Yutong - 300.00 - 600.00
78 " miscellaneous accessories " 1 " Yutong " customized " special accessories for vehicle modification, customized according to actual needs. China Yutong 10000.00 10000.00
79 battery 1 Yutong customized 12V / 100Ah battery for hydraulic system power supply China Yutong 1600.00 1600.00
80 - exterior lighting - 2 - Yutong - customized - customized, site lighting, can independently control - China - Yutong - 300.00 - 600.00
81 " interior lighting " 1 " Yutong " customized " interior AC and DC dual power lighting of the whole vehicle, including working lighting and emergency lighting " Yutong 2200.00 2200.00 " China "
82 ‚ alarm light ‚ 1 ‚ Yutong ‚ custom ‚ red and blue long row alarm lights, perfect combination with the body, including 200W alarm ‚ Yutong, China ‚ 5000.00 ‚ 5000.00
83 - strobe - 1 - Yutong - customized - four square, red and blue, including lamp control, perfectly combined with the body - Yutong - China - 1000.00 - 1000.00
84 - reverse monitoring system - 1 - Yutong - customized - 1, reverse monitoring camera 1 set;
2. 1 set of color LCD screen, perfect combination with reversing camera Yutong 3000.00 3000.00
85. Labor and manufacturing cost 1. Yutong. Customization. Customization. China Yutong. 100000.00. 100000.00
86 notice 1 notice of new command vehicle declaration after the whole customized vehicle is offline. China Yutong 85000.00 85000.00
| 1.2 | VAN BODY | / | VAN BODY | 1 | pcs | ||||
| 1.3 | Interior Decoration and Design | 1 | pcs | ||||||
| 1.4 | Refrigeration system ≥3200KW | 1 | pcs | ||||||
| 1.5 | Power Distribution System | 380V, 220V 1 ≥6KVA UPS 1 ≥5KVA 1≥15KVA | 1 | pcs | |||||
| 1.6 | Cable Tray | 6( 6 150 ), 1 100 , 1 4 ( 70 )./ | 1 | pcs | |||||
| 1.7 | Lighting system | 1 | pcs | ||||||
| 1.7 | Security system | 1 | pcs |
Emergency Satellite Communications Command Vehicle
