Isuzu Fuel Oil Bowser Tanker (Carbon Steel Stainless Steel Gasoline Tank Truck with Flow Meter 1000 Gallon)
Isuzu Fuel Oil Bowser Tanker (Carbon Steel Stainless Steel Gasoline Tank Truck with Flow Meter 1000 Gallon)
| Quantity: | |
|---|---|
- Shanghai, China
- 3000
- T/T
ISUZU Fuel Oil Bowser Tanker ( Carbon Steel Stainless Steel Gasoline Tank Truck with Flow Meter 1000 Gallon ) ISUZU Stainless Steel Tankers
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
| Tank Body | |||
| Shape | Mono block Cylinder | ||
| Total Volume(m3) | 10CBM | ||
| Tanker Body Material | 5mm carbon steel | ||
| End plate | 5mm carbon steel | ||

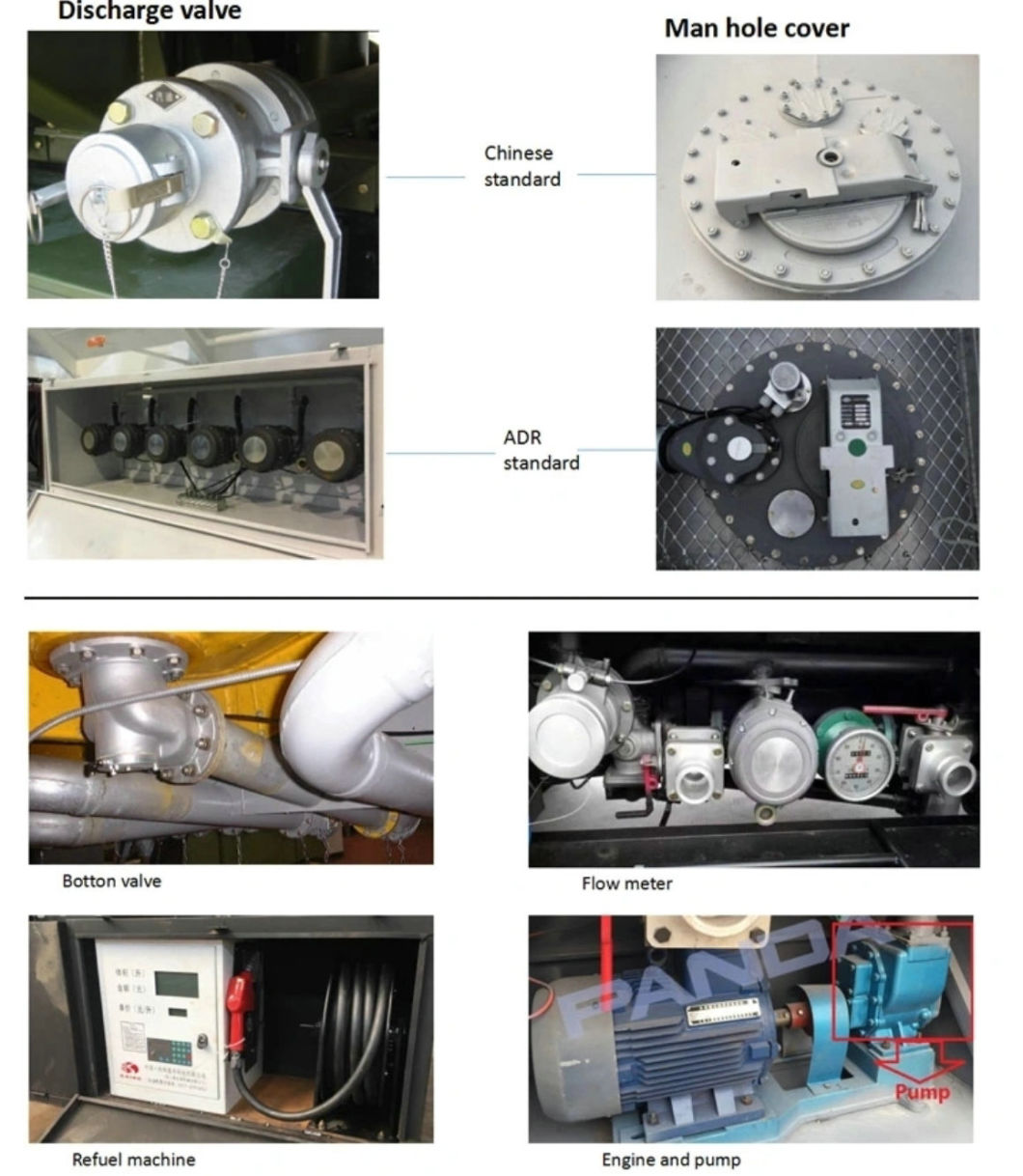

| Manhole cover | Aluminum manhole cover, ∮500mm ,1 set with 1 breather valve | ||
| Bottom Valve | 1 set | ||
| Discharging valve | 1 set ∮80mm discharging valve | ||
| Tire | 7.50R16 with one spare tire, total 7 pieces | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||
| Fire Distingwish | 2 sets | ||
| Accessories | One standard tool box | ||

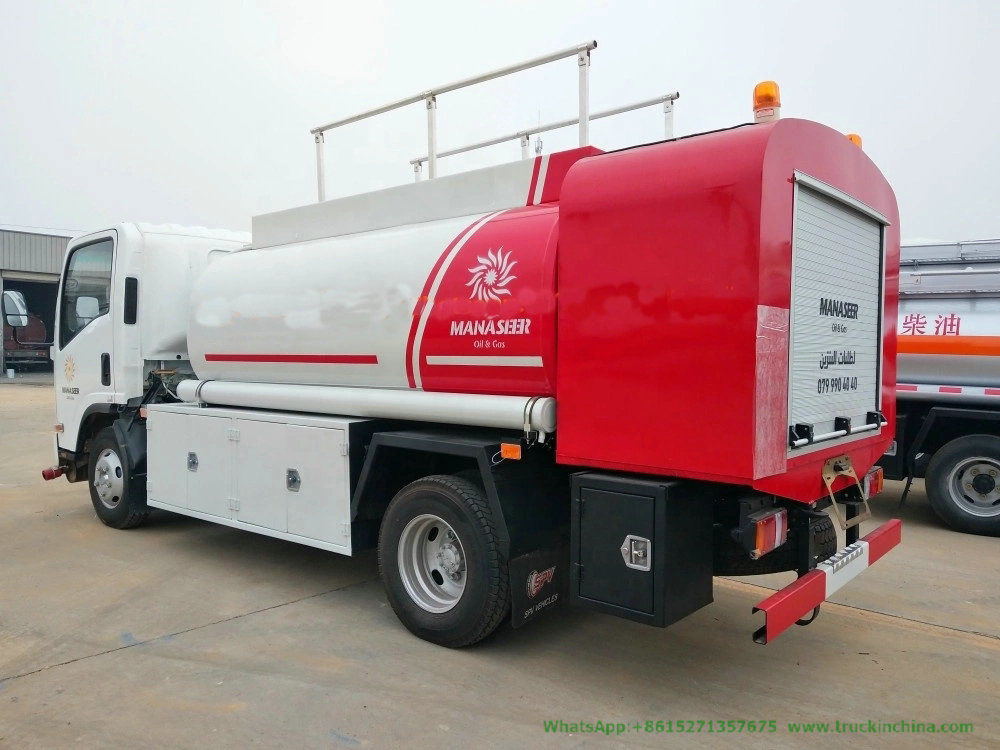

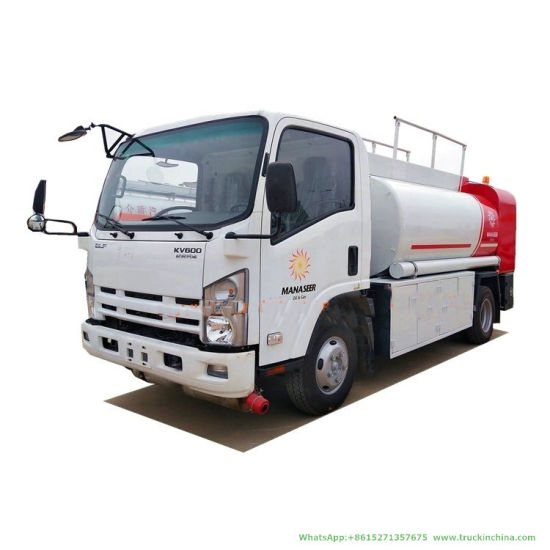

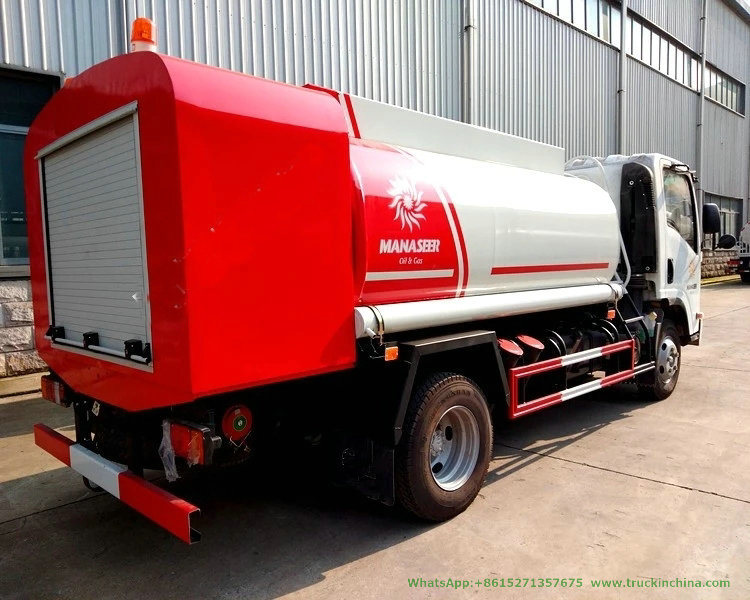

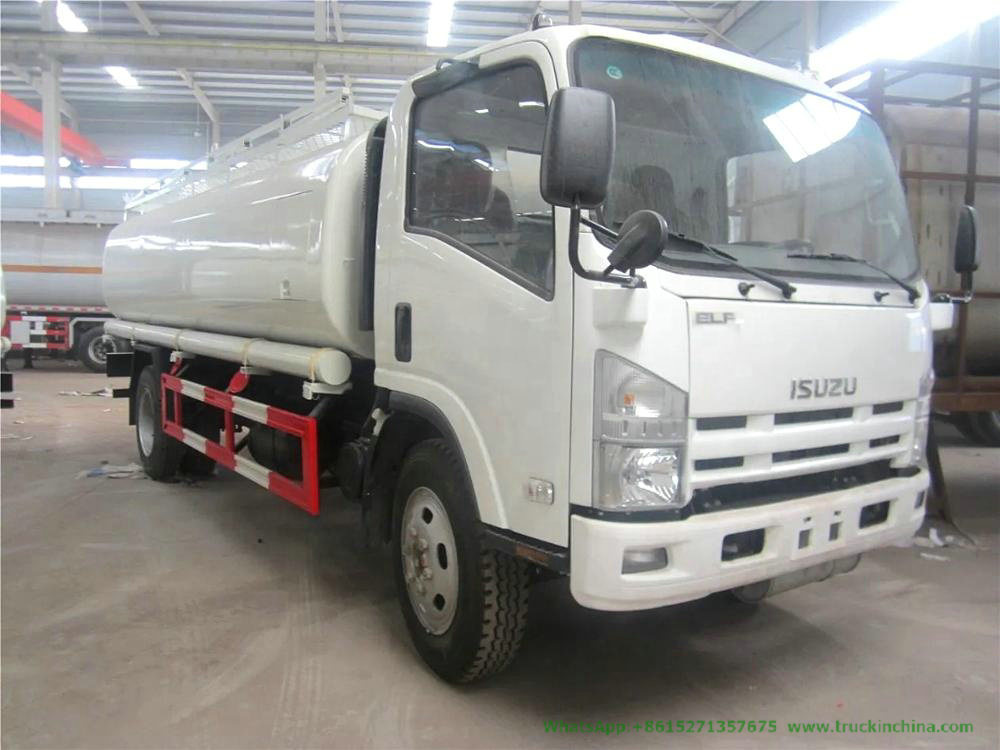

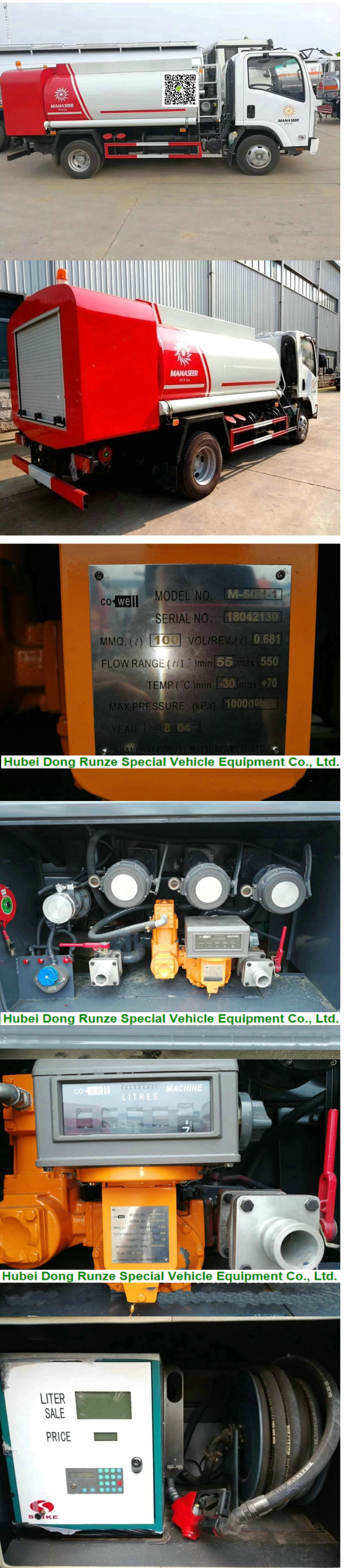

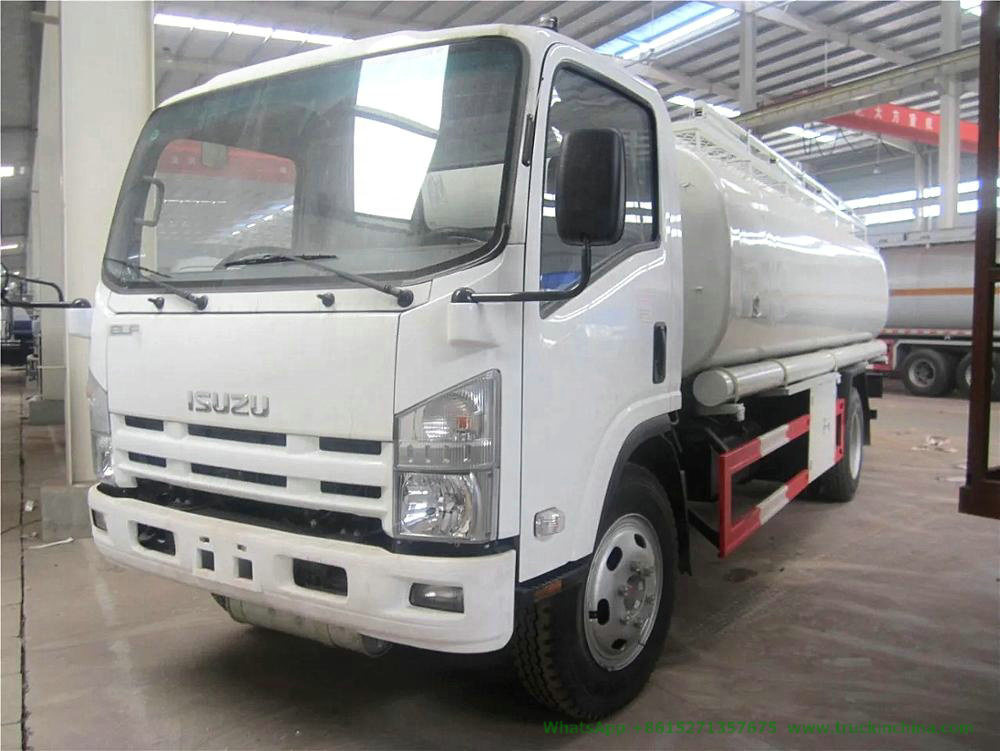

Reference pictures of ISUZU gasoline refueling tanker truck, Petrol refueling tanker truck,mobile refueling truck, 3000~5000 liter, 6 wheel 10000 Liter Fuel Tank Truck 10000L Oil Refueling bowser Truck
Specificaiton of fuel tank truck
| Product | Fuel tanker | Fuel tanker | Fuel tanker |
| Model | FVR | 100P/600P | 700P |
| Tank capacity | 20-40 m3 | 2- 10m3 | 10-15m3 |
| Tank dimensions | 9150x2500x1900 | 3800x1560x1090 | 4700x1950x1330 |
| Transmitter | diesel fuel oil, gasoline | diesel fuel oil, gasoline | diesel fuel oil, gasoline |
| Optional | Air conditioner, Fuel pump, flow meter, fuel cannon | Refueling machine, Subsea valves | European standard jar, emergency shutoff valve |
| Brand | ISUZU | ISUZU | ISUZU |
| Engine model | ISUZU engine | ISUZU engine | ISUZU engine |
| Engine power | 290hp, 450hp | 100hp, 130hp | 190hp |
| Engine displacement | 7146cc | 2834cc | 3900cc |
| Fuel type | Diesel | Diesel | Diesel |
| Chassis brand | I S U Z U | ||
| Chassis name | tanker truck | tanker chassis | tanker chassis |
| Chassis category | heavy duty class | middle class | middle class |
| Gross weight(kg) | 31000 | 7300 | 15000 |
| Curb weight(kg) | 11305 | 3900 | 5000 |
| Rated passenger (person) | 3 or 2 person | 2 | 3 |
| Max speed(km/h) | 79 | 80 | 80 |
| Approach/departure angle | 18, 12 | 19/15 | 17/13 |
| Front/rear overhang | 1400/2700 | 1032/1658 | 1210/1890 |
| Wheelbase(mm) | 1950+4550+1350 | 3300 | 3800 |
| Axle weight | 6500/6500/18000(duel-axle) | 2920/4380 | 4595/6900 |
| Axle number | 4 | 2 | 2 |
| Spring number | 3/3/11 | 8/9+5 | 8/10+7 |
| Tire number | 12 | 6 | 6 |
| Tire type | 10.00-20 11.00-20 16PR | 7.00-16 14PR | 8.25-20 14PR |
| Front tread | 1950/1950 | 1506 | 1770 |
| Rear tread | 1847/1847 | 1466 | 1640 |
| Chassis standard | Euro 5-6 | Euro 5-6 | Euro5-6 |
Janpan brand 4x2 Carbon Steel stainless steel Fuel Oil Tank truck Gasoline tanker Bowser vehicle 3cbm to 60cbm
Oil tank truck/Fuel tank truck
Oil tank truck, also known as mobile fuel trucks, fuel tankers, fuel tank truck, oil tankers,oil transport truck and edible oil tankers,
According to different uses and use environments, there are a variety of refueling or oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions. Can be designed as a chemical transportation vehicle.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy.
For oil tank truck, according to the transport medium, the configuration and different places, there are many different titles, such as: tanker, tank truck, oil tanker, refueling truck, tax-control refueling truck, fuel tanker, Petrol tanker, coal tar carrier, lube oil carrier, crude oil transporter, heavy oil transporter, oil transporter and so on.
According to the appearance, the oil truck can be divided into: flat head tanker, pointed tanker, single bridge tanker, rear double-bridge tanker, double-bridge tanker, double rear-axle tanker, light tanker, small tanker, medium tanker, large tanker, semi-trailer tanker, small three-axle tanker, double former-axle with single rear-axle tanker, four former-axle with four rear-axle tanker, four former-axle with eight rear-axle tanker and so on.
According to brand, the oil truck can be divided into: Dongfeng tanker, Futian tanker, Sino tanker, North Benz tanker, Jianghuai oil tanker, Shaanqi oil tanker, CAMC oil tanker, Isuzu tanker, Qingling tanker, Jiangling tanker and so on.
According to transportation medium: the truck suitable for the transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar oil and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The material of tank body is made of 4-6mm thick carbon steel with high quality . GB sheet can choose carbon steel and stainless steel or aluminum alloy, pure aluminum can, lined with rubber, rotomolding, plastic, glass steel and so on.
The tank shape: square-round, oval, round;
Pump can be choose self-priming pump, gear pump or double pump; the pump can help the oil pump in and out or self-flow.
Other function: can be designed for chemical transport vehicles;
Special design: can be designed to an independent sub-warehouse to transport different oil with the same time. 15 meters refueling reel (can automatically return to position), the tank is equipped with many anti-wave boards to keep the tank with high strength, stable center of gravity, delivery safety and other characteristics in the transportation.

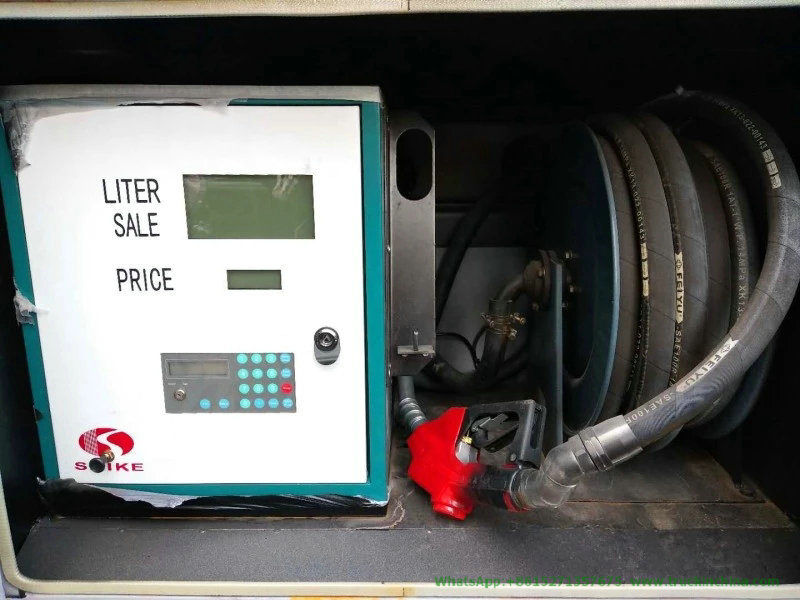

Optional equipment: All tankers can be designed into chemical trucks, different kinds of heating and insulation series tank; all tankers can be equipped with computer and flow-meter.
Cell :+8615271357675
