Isuzu FTR 20 Meters-38 Meters Telescopic Aerial Platform Truck
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5160ITPV5
-
ISUZU FTR
-
8705909990
Isuzu FTR 20 Meters-38 Meters Telescopic Aerial Platform Truck
Isuzu 20 meters Telescopic Aerial Platform Truck

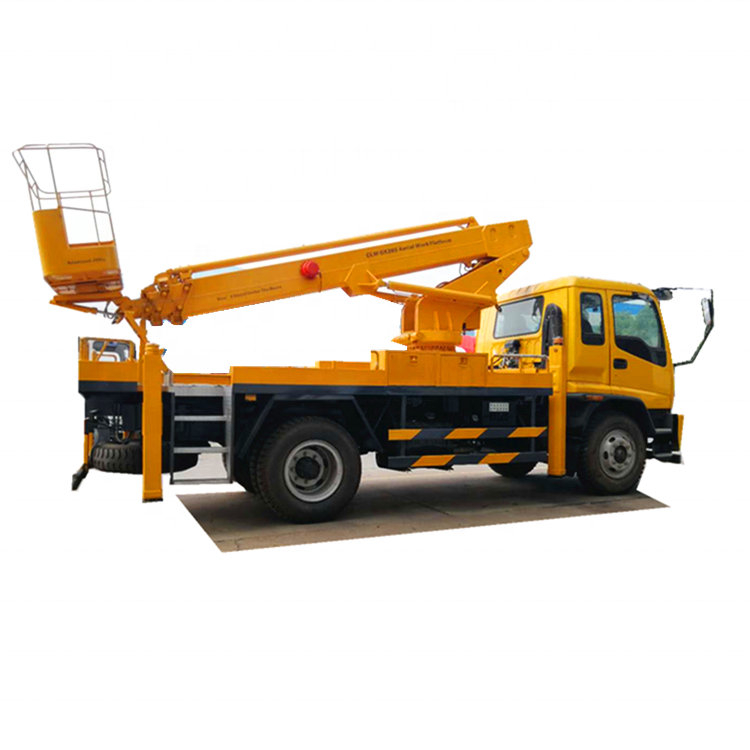

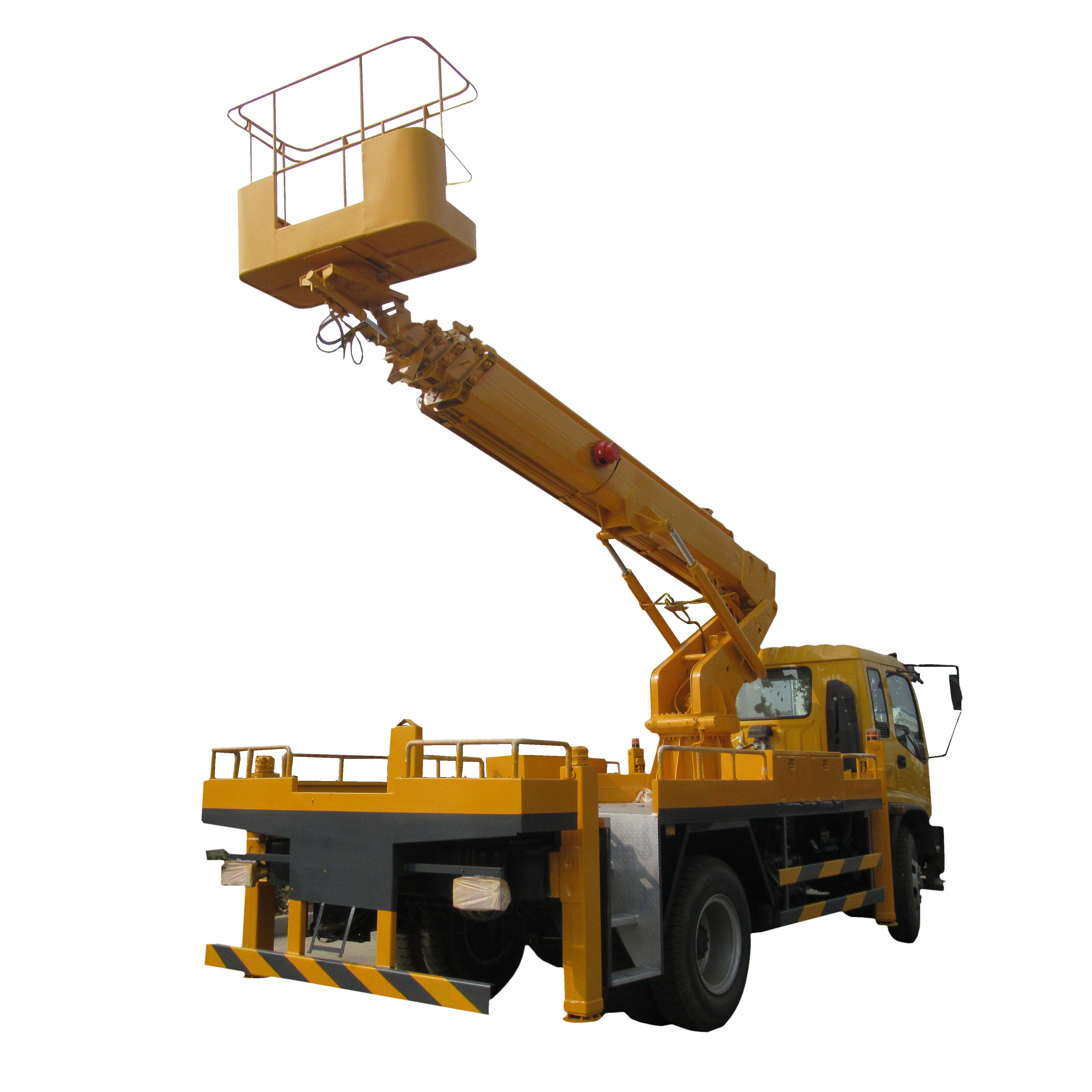

Isuzu 20 meters Telescopic Aerial platform truck, This is telescopic aerial platform mounted on isuzu truck, and the height can be high as 20 meters, The Telescopic Aerial platform truck with 4 outriggers. 4 sections Hydraulic expansion. And a basket bucket on the top of it, which can be loading 200 kg as the most.
1. Model: DRZ5160ITPV5
2. Working Height: 20 meters
3. Vehicle Brand: Isuzu
Technical date:
| Fold | 3 | Material | Carton Steel | Thickness | 4mm | |||
| UP/Down Angle | 0°-70° | Max. Work Height | 20m | Max Work Radius | 7M | |||
| Rotation | 360° | Max. work weight | 900kgs | Winch | (40m)Φ8 | |||
| Hook | 1T | Leg type | H | |||||
| Basket Size | 1080X620X1150mm | Operating System | Manual&Electric | |||||
Overall dimension: | 8310×2498×3730(mm) | ||
Total quality: | 13185(Kg) | Packing quality: | 12990(Kg) |
Packing quality: | 12990(Kg) | Front passenger: | 3 |
Approach Angle/departure Angle: | 15/15(°) | Front/rear suspension: | 1335/2475(mm) |
Axial load: | 4365/8820 | Wheel base: | 4500(mm) |
Shaft: | 2 | Maximum speed: | 105(km/h) |
Anti-lock system: | yes | Number of spring sheets: | 7/7+5 |
Tyre number: | 6 | Tyre specifications: | 10.00R20 16PR,11.00R22.5 16PR |
Before the wheel track: | 1960 | After the wheel track: | 1855 |
Upper arm running Angle | -19°~+85° |
Operating Angle of lower arm | -3°~+85° |
Continuous tyre turnover | 360° |
A small crane lifts the maximum | 450kg |
Maximum load bearing of working bucket | 340kg |
The bucket rotates horizontally | ±90° |
Chassis brand/model | ISUZU/QL1160VMFRY |
The total quality | 13185kg |
Engine model | 4HKI-TC50 |
Rated power | 151kw |
The wheelbase | 4500mm |
