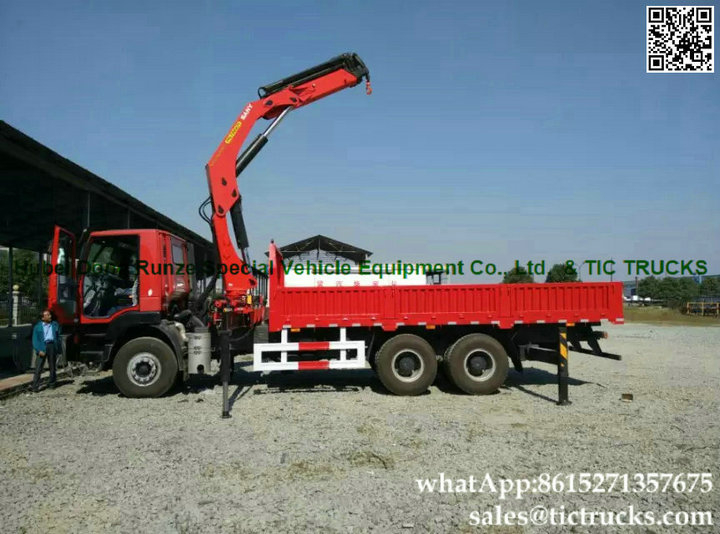

IVECO Truck Mounted Crane Palfinger 6x4
| Availability: | |
|---|---|
| Quantity: | |
IVECO Technology IVECO truck Mounted Crane Palfinger 6x4
Truck Mounted Crane 16T xcmg <Custom LHD > hydraulic manipulator
IVECO Technology IVECO truck Mounted Crane Palfinger 6x4
Truck Mounted Crane 16T xcmg <Custom LHD > hydraulic manipulator
IVECO Technology
Truck loory flatbed Truck Mounted Crane Iveco TRAKKER 6x4 crane Iveco Trakker 8x4 PalfingeSPK8500A
| SQ10ZK3Q Working radius (m) | 2 | 4.17 | 5.99 | 7.87 | 9.75 |
| Lifting capacity (kg) | 10000 | 4600 | 3050 | 2280 | 1700 |
| SQ12ZK3Q Working radius (m) | 2.5 | 4.2 | 6.02 | 7.9 | 9.78 |
| Lifting capacity (kg) | 12000 | 6900 | 4560 | 3410 | 2650 |
| SQ14ZK4Q Working radius(m) | 2.5 | 4.046 | 5.826 | 7.646 | 9.516 | 11.4 |
| Lifting capacity(kg) | 140000 | 8400 | 5478 | 4080 | 3148 | 245 |
| SQ16ZK4Q Working radius(m) | 2.5 | 4.098 | 5.898 | 7.748 | 9.618 | 11.518 |
| Lifting capacity(kg) | 16000 | 9600 | 6600 | 4850 | 3500 | 2600 |
| SQ25ZK6Q Working radius(m) | 2.5 | 4.22 | 5.93 | 7.74 | 9.59 | 11.48 | 13.43 | 15.45 |
| Lifting capacity(kg) | 25000 | 14000 | 9000 | 6500 | 5000 | 4000 | 3000 | 2500 |
| Working radius(m) | 18.63 | 20.31 | 22.02 | 23.76 | 25.53 |
| Lifting capacity(kg) | 1050 | 950 | 800 | 700 | 600 |
| The parameter of xcmg crane (Optional)
| Crane model | Max. lifting weight(KG) | Max. working height (m) |
| SQ5SK2Q, SQ5ZK2Q | 5000 | 10.5 , 8.01 | |
| SQ5SK3Q ,SQ5ZK3Q | 5000 | 12.5 , 9.92 | |
| SQ6.3SK2Q, SQ6.3ZK2Q | 6000 | 11.0 , 8.01 | |
| SQ6.3SK3Q, SQ6.3ZK2Q | 6000 | 12.8 , 9.92 | |
| SQ8SK3Q,SQ8ZK3Q | 8000 | 13.5 , 9.755 | |
| SQ10SK3Q,SQ10SK3Q | 10000 | 14.0 ,9.75 | |
| SQ12SK3Q ,SQ12SK3Q | 12000 | 14.5 ,9.78 | |
| SQ14SK4Q ,SQ14SK3Q | 14000 | 17.8 , 11.4 | |
| SQ16SK4Q , SQ16SK3Q | 16000 | 17.85 , 11.518 | |
| FOB(Shanghai)/CIF | $ 58600 ~ 118800 | ||
M:8615271357675
TIC TRUCKS , www.truckinchina.com
IVECO Technology
Truck loory flatbed Truck Mounted Crane Iveco TRAKKER 6x4 crane Iveco Trakker 8x4 PalfingeSPK8500A
| SQ10ZK3Q Working radius (m) | 2 | 4.17 | 5.99 | 7.87 | 9.75 |
| Lifting capacity (kg) | 10000 | 4600 | 3050 | 2280 | 1700 |
| SQ12ZK3Q Working radius (m) | 2.5 | 4.2 | 6.02 | 7.9 | 9.78 |
| Lifting capacity (kg) | 12000 | 6900 | 4560 | 3410 | 2650 |
| SQ14ZK4Q Working radius(m) | 2.5 | 4.046 | 5.826 | 7.646 | 9.516 | 11.4 |
| Lifting capacity(kg) | 140000 | 8400 | 5478 | 4080 | 3148 | 245 |
| SQ16ZK4Q Working radius(m) | 2.5 | 4.098 | 5.898 | 7.748 | 9.618 | 11.518 |
| Lifting capacity(kg) | 16000 | 9600 | 6600 | 4850 | 3500 | 2600 |
| SQ25ZK6Q Working radius(m) | 2.5 | 4.22 | 5.93 | 7.74 | 9.59 | 11.48 | 13.43 | 15.45 |
| Lifting capacity(kg) | 25000 | 14000 | 9000 | 6500 | 5000 | 4000 | 3000 | 2500 |
| Working radius(m) | 18.63 | 20.31 | 22.02 | 23.76 | 25.53 |
| Lifting capacity(kg) | 1050 | 950 | 800 | 700 | 600 |
| The parameter of xcmg crane (Optional)
| Crane model | Max. lifting weight(KG) | Max. working height (m) |
| SQ5SK2Q, SQ5ZK2Q | 5000 | 10.5 , 8.01 | |
| SQ5SK3Q ,SQ5ZK3Q | 5000 | 12.5 , 9.92 | |
| SQ6.3SK2Q, SQ6.3ZK2Q | 6000 | 11.0 , 8.01 | |
| SQ6.3SK3Q, SQ6.3ZK2Q | 6000 | 12.8 , 9.92 | |
| SQ8SK3Q,SQ8ZK3Q | 8000 | 13.5 , 9.755 | |
| SQ10SK3Q,SQ10SK3Q | 10000 | 14.0 ,9.75 | |
| SQ12SK3Q ,SQ12SK3Q | 12000 | 14.5 ,9.78 | |
| SQ14SK4Q ,SQ14SK3Q | 14000 | 17.8 , 11.4 | |
| SQ16SK4Q , SQ16SK3Q | 16000 | 17.85 , 11.518 | |
| FOB(Shanghai)/CIF | $ 58600 ~ 118800 | ||
M:8615271357675
TIC TRUCKS , www.truckinchina.com
SUCCESS CASES
More >>-
2024-04-0910 Units T14 ISOTank Container For Hydrofluoric Acid Export to India10 Units T14 ISOTank Container For Hydrofluoric Acid Export to India 20FT TANK CONTAINER (EMPTY AND NEW TANKS) 20 FT TANK CONTAINER FOR HYDROCHLORIC ACID UN1789 HCL, HYDROFLUORIC ACID UN1790 HF ACID CARON STEEL AND LINED WITH 16MM LLDPE TANKS CAPACITY 21 KL FOR ROAD INLAND MOVEMENTS
-
2023-12-226 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
-
2024-01-29Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to VietnamCustomized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
-
2023-02-226 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
-
2023-12-246 Units 40KL 44KL 40FT ISO Steel Lined PE Dilute Sulfuric Acid Tank Container To Kazakhstan6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
-
2023-09-222 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
-
2023-09-1510 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
-
2023-08-1417m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
-
2023-07-104 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
-
2022-12-2780Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
-
2023-04-056 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
-
2023-03-063 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
-
2023-01-054PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
-
2023-02-0812PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
-
2022-12-282 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
