ISUZU sewer Jetting Trucks flushing truck tanker
| Quantity: | |
|---|---|
ISUZU sewer flushing truck tanker truck Sewer Jetting and Water Jetting Trucks Vacuum truck Combined Jetting
Application and Use of ISUZU 5 CBM sewer jetting truck Combined jetting vehicle
Hydrodynamic sewer and pipeline dredging and cleaning.
Hydrodynamic drain line dredging and cleaning.
High pressure surface cleaning.
High pressure industrial cleaning.
Combined jetting vehicle ISUZU sewer flushing truck tanker truck Sewer Jetting and Water Jetting Trucks Vacuum truck Combined Jetting TRUCKS ISUZU 5 CBM combination jetting truck can be used for removing and transporting sand, stones, grease, sludge and other debris from sewage pipelines and/or sanitary sewer by the flushing action of single –plunger high pressure water.
This vehicle can remarkably fulfill jobs in city’s various working conditions due to its exquisite design. In western countries, it also widely used in the suction, loading and transporting of industrial dust, waste liquid and toxic substances etc.
Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

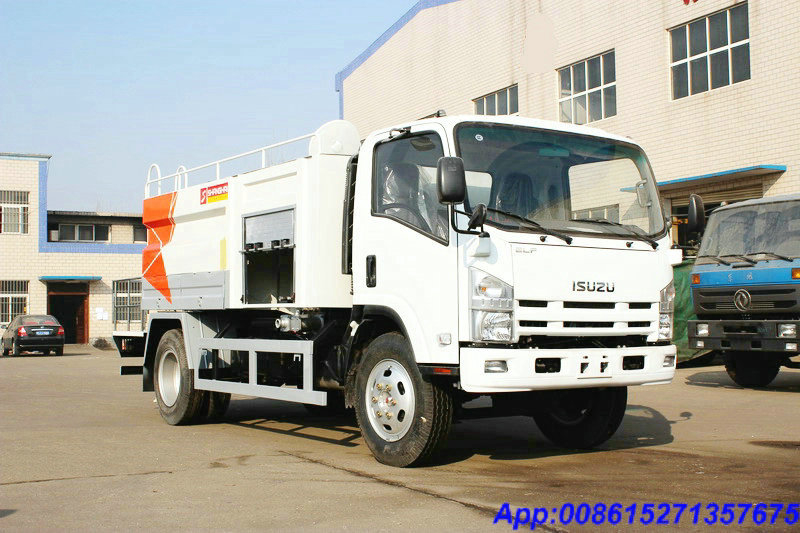

ISUZU 5 CBM sewer jetting truck
| Water tank | ||
| Material | SS304 steel | |
| Capacity (CBM) | 3--12 | |
| Thickness ( mm) | 4 | |
| Protection | 1）Overflow、2）Too low level、3）No water | |
| OPTIONAL: VACCUM TANKER | ||
| Sewage tank | ||
| Material | Q345 steel | |
| Volume ( CBM ) | 5--12 | |
| Thickness | 6 | |
| Design pressure | 100% vacuum | |
| Working pressure | -0.92 | |
| Drain valve | 4 inch | |
| Safety | Anti overflow system | |
| Lifting cylinder | Front lifting system ，50 degree working angle | |
| Lock | Hydraulic | |
| Sealing | Robber | |
| Single plunger pressure pump | ||
| Type | three-throw ram pump | |
| Manufacturer | Pratissoli Italy | |
| Model | MW40 | |
| Flow capacity (L/MIN) | 212 | |
| Pressure (bar) | 190 (adjustable ) | |
| Power | 85 KW | |
| Stroke | 18 tims/min | |
| Driven device | Mesh and separate by main control panel | |
| Tank body protection | 1）too low ater；2）water density protection；3）anti frozen protection | |
| Pressure control | 0-190 | |
| Meshing control | Pneumatic control | |
| Vacuum pump | ||
| Manufacturer | JUROP OR MEC vacuum pump | |
| Model | PN106D OR MEC 9000 ，MEC 11000 ,MEC 13500 | |
| Air flow CBM/H | 910 ~ | |
| Vacuum | -0.92 | |
| Max rotation speed RPM | 1200 ~1400 | |
| Driven device | Mesh and separate by main control panel | |
| Pump protection | 1）Vacuum protection；2）air filtration protection | |
| Sewage suction cooling | 2”cooling pipe，level controlled by 2”valve | |
| series | cab | Models tonnage | EngineModel | Wheel Base |
| 100P EUR 3 | short | QL10408EARY 1.45T | 4JB1-TC1 | 2490 |
| Double Standard | QL10408EWRY 1.25T | 4JB1-TC1 | 2490 | |
| short | QL10408FARY 1.99T | 4JB1-TC1 | 2765 | |
| Double | QL10508FWRY 1.43T | 4JB1-TC1 | 2765 | |
| short | QL10508HARY 2.75T | 4JB1-TC1 | 3360 | |
| QL10408HARY 1.75T | 4JB1-TC1 | 3360 | ||
| Double | QL10508HWRY 2.45T | 4JB1-TC1 | 3360 | |
| QL10408HWRY 1.49T | 4JB1-TC1 | 3360 | ||
| 600P EUR 3 | short | QL1040HEARY 1.45T | 4KH1-TC | 2490 |
| Double Standard | QL1040HEWRY 1.25T | 4KH1-TC | 2490 | |
| QL1041HEARY 1.75T | 4KH1-TC | 2490 | ||
| short | NKR77GLLACJAY 3.5T | 4KH1-TC | 2765 | |
| NKR77GLNACJAY 4T | 4KH1-TC | 2765 | ||
| KNR77GLEACJAY 1.95T | 4KH1-TC | 2765 | ||
| Double | NKR77GLCWCJAY 1.48T | 4KH1-TC | 2765 | |
| short | KNR77LLLACJAY 3.5T | 4KH1-TC | 3360 | |
| NKR77LLNACJAY 4T | 4KH1-TC | 3360 | ||
| NKR77LLPACJAY 4.5T | 4KH1-TC | 3360 | ||
| NKR77LLDACJAY 1.85T | 4KH1-TC | 3360 | ||
| NKR77LLGACJAY 2.5T | 4KH1-TC | 3360 | ||
| Double | NKR77LLLWCJAY 3.5T | 4KH1-TC | 3360 | |
| NKR77LLGWCJAY 2.5T | 4KH1-TC | 3360 | ||
| NKR77LLEWCJAY 1.95T | 4KH1-TC | 3360 | ||
| NKR77LLCWCJAY 1.75T | 4KH1-TC | 3360 | ||
| short | NKR77PLLACJAY 3.5T | 4KH1-TC | 3815 | |
| NKR77PLNACJAY 4T | 4KH1-TC | 3815 | ||
| NKR77PLPACJAY 4.5T | 4KH1-TC | 3815 | ||
| Double | NKR77PLLWCJAY 3.5T | 4KH1-TC | 3815 | |
| short | NKR77PLNACJAKY 4T | 4KH1-TC | 3815 | |
| QL1060HKARY 2.35T | 4KH1-TC | 3815 | ||
| 700P EUR 3 | QL1080TKARY/QL1090TKARY/QL1100TKARY | 4HK1-TC | 3815 | |
| QL1080TLARY/QL1090TLARY/QL1100TLARY | 4HK1-TC | 4175 | ||
| QL1090TMARY/QL1091TMARY/QL1100TMARY | 4HK1-TC | 4475 | ||
| QL1090TPARY/QL1100TPARY | 4HK1-TC | 5200 | ||
| 700P 4×4 | QL1070TKASY | 4HK1-TCN1 | 3840 | |
| 700P automatic transmission QL1080ZKARZY/QL1080ZLARZY | 4HK1-TCN2 | |||
| FTR EUR 3 | 7-8 T 4*2 | QL1140TKFR | 4HK1-TC | 3900 |
| 7-8 T 4*2 | QL1140TMFR | 4HK1-TC | 4500 | |
| 7-8 T 4*2 | QL1140TAFRY | 4HK1-TC | 4700 | |
| 7-8 T 4*2 | QL1140TNFR | 4HK1-TC | 5000 | |
| 7-8 T 4*2 | QL1140TQFR | 4HK1-TC | 5550 | |
| 7-8 T 4*2 | QL5140TRFR | 4HK1-TC | 5800 | |
| FVR EUR 3 | 7-8 T 4*2 | QL1150WKFR FVR34G2 | 6HK1-TCN | 3900 |
| 7-8 T 4*2 | QL1150WMFR 、 FVR34J2 | 6HK1-TCN | 4500 | |
| 7-8 T 4*2 | QL1160WAFRY | 6HK1-TCN | 4700 | |
| 7-8 T 4*2 | QL1160WNFRY | 6HK1-TCN | 5000 | |
| 7-8 T 4*2 | QL1150WQFR 、 FVR34P2 | 6HK1-TCN | 5550 | |
| 7-8 T 4*2 | QL1160WRFRY | 6HK1-TCN | 5800 | |
| FVZ EUR 3 | 14-15T 6*4 | QL1250RPFZ 、 FVZ34Q | 6HK1-TCS | 4.65+1.3 |
| 14-15T 6*4 | QL1250RQFZY | 6HK1-TCS | 4.9+1.3 | |
| 14-15T 6*4 | QL1250RRFZ 、 CXA34T | 6HK1-TCS | 5.1+1.3 | |
| 14-15T 6*4 | QL1250RSFZY | 6HK1-TCS | 5.4+1.3 | |
| 14-15T 6*4 | QL1250RTFZ 、 FVZ34V | 6HK1-TCS | 5.7+1.3 | |
| series | Name | Models tonnage | Engine Model | Wheel Base |
| 100P EUR 4 | short | QL10403EARY 1.99T | 4JB1CN | 2490 |
| Double Standard | QL10403EWR1Y 1.25T | 4JB1CN | 2490 | |
| QL10403EWRY 1.75T | 4JB1CN | 2490 | ||
| short | QL10403FARY 1.99T | 4JB1CN | 2765 | |
| Double | QL10403FWRY 1.43T | 4JB1CN | 2765 | |
| QL10503FWRY 1.75T | 4JB1CN | 2765 | ||
| short | QL10403HARY 1.95T | 4JB1CN | 3360 | |
| QL10503HARY 2.75T 1.75T | 4JB1CN | 3360 | ||
| QL10603HARY 3.15T | 4JB1CN | 3360 | ||
| QL10703HARY 3.3T | 4JB1CN | 3360 | ||
| Double | QL10403HWRY 1.75T | 4JB1CN | 3360 | |
| QL10503HWRY 2.45T | 4JB1CN | 3360 | ||
| short | QL10703KARY 4.5T | 4JB1CN | 3815 | |
| QL10703KAR1Y 4.4T | 4JB1CN | 3815 | ||
| Double | QL10703KWRY 4.3T | 4JB1CN | 3815 | |
| 600P EUR 4 | short | |||
| Double Standard | ||||
| short | ||||
| short | ||||
| short | ||||
| Double | ||||
| short | ||||
| Double | ||||
| short | ||||
| 700P EUR 4 | QL10809TKARY/QL10909TKARY/QL11009TKARY | 4HK1-TCG40 | 3815 | |
| QL10809TLARY/QL10909TLARY/QL11009TLARY | 4HK1-TCG40 | 4175 | ||
| QL10909TMARY/QL10919TMARY/QL11009TMARY | 4HK1-TCG40 | 4475 | ||
| QL10909TPARY/QL11009TPARY | 4HK1-TCG40 | 5200 | ||
| 700P 4×4 | QL1070TKASY | 3840 | ||
| 700P automatic transmission QL1080ZKARZY/QL1080ZLARZY | ||||
| FTR EUR 4 | 7-8 T 4*2 | QL11409TKFR | 4HK1-TCG40 | 3900 |
| 7-8 T 4*2 | QL11409TMFR | 4HK1-TCG40 | 4500 | |
| 7-8 T 4*2 | QL11409TAFRY | 4HK1-TCG40 | 4700 | |
| 7-8 T 4*2 | QL11409TNFR | 4HK1-TCG40 | 5000 | |
| 7-8 T 4*2 | QL11409TQFR | 4HK1-TCG40 | 5550 | |
| 7-8 T 4*2 | QL51409TRFR | 4HK1-TCG40 | 5800 | |
| 8-10T 4*2 | QL11609KFRY | 4HK1-TCG40 | 3900 | |
| 8-10T 4*2 | QL11609MFRY | 4HK1-TCG40 | 4500 | |
| 8-10T 4*2 | QL11609AFRY | 4HK1-TCG40 | 4700 | |
| 8-10T 4*2 | QL11609NFRY | 4HK1-TCG40 | 5000 | |
| 8-10T 4*2 | QL11609QFRY | 4HK1-TCG40 | 5550 | |
| 8-10T 4*2 | QL5160XXY9RFRY | 4HK1-TCG40 | 5800 | |
| FVR EUR 4 | 7-8 T 4*2 | QL1150AKFR | 6HK1-TCNG40 | 3900 |
| 7-8 T 4*2 | QL1150AMFR | 6HK1-TCNG40 | 4500 | |
| 8-10T 4*2 | 6HK1-TCNG40 | 4700 | ||
| 8-10T 4*2 | 6HK1-TCNG40 | 5000 | ||
| 7-8 T 4*2 | QL1150AQFR | 6HK1-TCNG40 | 5550 | |
| 8-10T 4*2 | 6HK1-TCNG40 | 5800 | ||
| FVZ EUR 4 | 14-15T 6*4 | QL1250DPFZ | 6HK1-TCSG40 | 4.65+1.3 |
| 14-15T 6*4 | 6HK1-TCSG40 | 4.9+1.3 | ||
| 14-15T 6*4 | QL1250DRFZ | 6HK1-TCSG40 | 5.1+1.3 | |
| 14-15T 6*4 | 6HK1-TCSG40 | 5.4+1.3 | ||
| 14-15T 6*4 | QL1250DTFZ | 6HK1-TCSG40 | 5.7+1.3 | |
- gully emptier
- slurry tankers
