Views: 1723 Author: ISUZU Truck Customizing Publish Time: 2017-07-01 Origin: ISUZU Truck Customizing

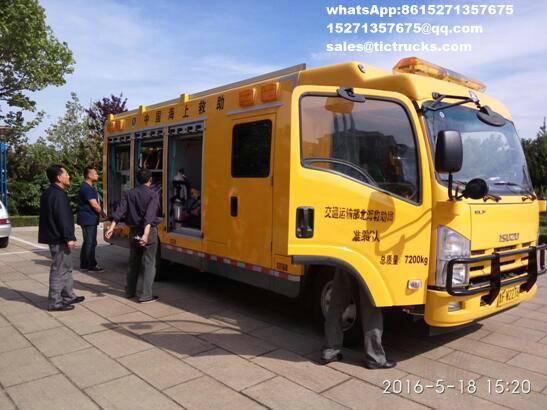

ISUZU salvage rescue Vehicle 700P multi-functional mobile rescue platform export price
export price FOB:$295000-CIF$315500USD
Mobile multifunctional salvage platform for Marine rescue,salvage rescue Vehicle,Marine rescue Vehicle,
ISUZU 700P Multifunctional mobile rescue platforms at sea
Vehicle configuration | |||||
1 | Chassis | Qingling ISUZU 700P single row of two-class chassis modifications ,wheelbase 4715mm, EURO5 | pcs | 1 | |
2 | Integration of cab and box body modification | Dimensions length width 7305 2320 high 2900 (3150). 5-6 people | pcs | 1 | |
3 | Chassis anti-corrosion treatment | Chassis corrosion protection, armored | pcs | 1 | |
4 | Chassis hydraulic shoring systems | DC24V, electro-hydraulic power station starts, single set of support ≮4T. | Set | 4 | |
5 | Car body: | 1) streamlined integration of cab and cab design. CAB top is closed, not open. 2) envelope for the diver to rest, in the front of the control room, rear cabin for your device.Fire equipment cabin side depending on the size of the device configuration alloy aluminum rolling doors and 2 groups, group 1 at the back (with the key mortise deadlock). Rear left and right large equipment, can easily access the device using a dedicated device. 3) equipment cabin floors and interior is paved with small wood grain aluminum panels. 4) skeleton of aluminum profiles for well-known brands. 5) enclosed bus skirt design can do under step. Can be placed inside small equipment. 6) divers rest, before the left side of the control pod to open a saloon cars (equipped with key mortise deadlock), the cabin about installing 2 RV-specific window.Interior car layout. 7) envelope material thickness of not less than 1.5mm industrial grade 304 stainless steel skeleton is made of stainless steel rectangular steel tube welding, internal and external welding of plate and overall. | pcs | 1 | |
6 | Heavy equipment loading and unloading device | Sliding or lifting, carrying not less than 300kg. | Set | 1 | |
7 | Hydraulic lifting platform cart | Host 500KG, hydraulic lift. | pcs | 1 | |
8 | Tank insulation | Between internal and external cover plate with 40mm sound and heat insulation, fireproof material | pcs | 1 | |
9 | Aluminum alloy fire roller shutter doors | Aluminum special fire roller shutter door, open, flexible and convenient, no lag. Each 2 sets of rear 1 sets | Set | 5 | |
10 | Divers resting, control room | Flooring waterproof, non-slip, abrasion-resistant leather for floor installation of long rows of leather seats 1 and rotate the seat 1.Internal standard decoration. With 2 Windows, a single door. | pcs | 1 | |
11 | Electrical comprehensive control system integration | Schneider Electric, air switch, DC voltage, AC voltage, sockets and other integration. | Set | 1 | |
12 | Equipment cabinets and counter | Special equipment cabinet with 1.2 mm thick cold rolled steel CNC shaping skeleton, the whole machine spray treatment; console with solid wood production, luxury and beauty, safe, reliable, and reasonable design; for equipment installation, save the car space. | pcs | 1 | |
13 | Hard disk recorder | Matched with the HD camcorder | pcs | 1 | |
14 | Screen splitters | pcs | 1 | ||
15 | 19-inch LCD monitor | pcs | 1 | ||
16 | Standard rack-online | Output power capacity of 2100 w/3000 VA | pcs | 1 | |
17 | Spare battery pack DC12V100AH | Piece | 4 | ||
18 | 5KVA precision purifying AC regulated power supply | pcs | 1 | ||
19 | Multifunction printer/scanner/copier/fax machine | pcs | 1 | ||
20 | Laptop | CPU: I7, hard disk: 500G with 16G SSD, genuine WINDOW software. | pcs | 1 | |
21 | Desktop VHF | ICOM Japan; | pcs | 1 | |
22 | High gain very high frequency (VHF) antennas | Import antenna | pcs | 1 | |
23 | Explosion-proof high-frequency handset | ICOM Japan; | pcs | 5 | |
24 | Multifunctional medical kit | Set | 1 | ||
25 | Car air conditioner | Car roof mounted air conditioner | pcs | 1 | |
26 | On-board equipment fixed, shock-proof system | Fixed using special fixing devices of the car fire tie, firmly and reliably fixed. Precision instrument installed at the bottom shock absorber damping. | pcs | 1 | |
27 | Equipment of aluminum alloy profile | Imported German 40-heavier-type aluminum alloy profiles and connection accessories, anti-corrosion, good, light weight, high strength, can be adjusted according to the device's small. | pcs | 1 | |
28 | 220V/380V/12V power multifunction system | Schneider Electric, with controller. | pcs | 1 | |
29 | Internal and external lighting system DC12V/AC220V | LED lamp 15W, rounded, with switch, you can switch according to the usage. | pcs | 1 | |
30 | Electric lift lighting camera: rise by 4 metres, 2*500W dysprosium lamp and camera bracket | Hidden in the car while driving, when using exposure. Raising and lowering leaking out the top of the car to automatically operation is convenient, fast, good waterproof, seal the deal. Manual and electric.Material: high strength aluminum alloy tube, wire rope for DIN3089; stainless steel screw length 4 m, retracting length can be hidden in the car, self-33kg, bear 25kg; 2*250W dysprosium lamps, multifunctional rotating head, camera bracket can be rotated 360 degrees, up and down the pitch. | pcs | 1 | |
31 | Sony high definition color camera | Sony's machine, plus 1 set the control panel SD HD. | pcs | 1 | |
32 | From a pan/tilt aluminum shield | From a head shield. Power supply AC24V±10%, 50/60Hz | pcs | 1 | |
33 | Safety devices: grounding and lightning protection lightning protection systems, in-vehicle fire extinguisher | Grounded steel; the vehicle fire extinguisher 2; lightning protection lightning protection system. | pcs | 1 | |
34 | Rear stainless steel ladder | Stainless steel welding and fabrication, safe and reliable, with non-slip device can be moved up and down. | pcs | 1 | |
35 | Long rows of lights LED: | Yellow LED, 100W, 14 flashing | pcs | 1 | |
36 | LED strobe lights around: | Yellow LED flashing, left and right box 4, rear 5 | pcs | 13 | |
37 | Strobe modules | 16-channel | Set | 1 | |
38 | Machine GPS+ reversing monitor system: GPS navigation, one camera | Qingling ISUZU 700P machine | Set | 1 | |
39 | Multi-purpose aluminium telescopic ladder | Dual-use telescopic ladder 5 meter man ladder, can also be straightened into a ladder. Ladder height: 5M,Ladder height: 2.42m | pcs | 1 | |
40 | Generator 10KW, 220V and 380V | Silent type diesel generator set | pcs | 1 | |
41 | On-board water tank system | 100L with electric anti-freeze function, hide-washing basin. | pcs | 1 | |
42 | Install stainless steel bumper front bumper | And 6 mm steel plate welding of stainless steel pipe, collision avoidance capability. | Set | 1 | |
43 | Vehicle electric winches | Voltage: 24V DC, rally: 4532kg | pcs | 1 | |
44 | Spray | Exterior spray paint and logo, spray paint for stainless steel, engineering, yellow | pcs | 1 | |
45 | Portable standby fuel tank | 60L | pcs | 1 | |
Second, diving equipment | |||||
1 | Head-underwater video | United States imports. | Set | 1 | |
2 | Underwater lighting | Power > 50W, DC voltage < 36V, depth > 300 m cable length > 120 m. | Set | 1 | |
3 | Medium pressure oil-free air compressor | Includes a set of filters, fittings and so on. | pcs | 1 | |
4 | -Tubes for diving equipment | High pressure gas cylinders | Carbon fiber, 55 litres, pressure > 30Mpa. | pcs | 4 |
Valve train components | Including decompression, and out of gas fittings, pressure gauge and take over. | Set | 4 | ||
The umbilical cord | United States, 120 meters long, three-wire (gas supply, communication cable with strengthening rope and sounding pipes), floating. | Set | 2 | ||
Cable car | Stainless steel, bidirectional variable speed motor-driven and manual turning two modes of operation, can accommodate up to 120 m cord, one end of the cable with 2 stainless steel quick coupling for connecting high pressure gas cylinders, and with the cable car turn supplied. Installation of communication and sounding extension connector on the other end. Cable car to install 4 wheels on the bottom for easy mobility. | pcs | 2 | ||
Control Panel | United States imports | Set | 1 | ||
Lead | Tuba, 2Kg/block, a total of 10 pieces. | Long things | 2 | ||
Diving knife | The | 2 | |||
Equipment packages | Canvas, used to carry small tools. | pcs | 2 | ||
Emergency gas cylinders | United States, steel, 7 liters, pressure > 200MPa, brought back. | pcs | 2 | ||
Emergency gas bottle regulator | US imports, including a-level regulator and hose. | Group | 2 | ||
KMB18 helmet | United States, | pcs | 2 | ||
Dry diving suit | UK imports | Parts | 2 | ||
Dry diving fins | United States imports. | Parts | 2 | ||
Vest | United States imports. | Parts | 2 | ||
Diving telephone | United States imports | Set | 2 | ||
5 | -Bring their own dive equipment | Gas cylinders | Aluminum bottles, 12 liters, pressure of 200Mpa. | pcs | 2 |
Breathing apparatus | US imports, including a-level regulator, high pressure tubes, two-stage pressure reducer, spare regulator. | Group | 2 | ||
Quadruple table | United States imports. | Set | 2 | ||
Mirror | United States imports. | pcs | 2 | ||
Wig | pcs | 2 | |||
Buoyancy vest | Large, medium | Parts | 2 | ||
Beach shoes | Large, medium, a double | set | 6 | ||
Fins | Large, medium | set | 2 | ||
Wet diving suit | Set | 2 | |||
Small lead | 1Kg/blocks, a total of 10 pieces | Set | 2 | ||
6 | Diving signal wire | 120 m enhanced cable, cable car. | pcs | 2 | |
7 | Composite repair tools | Include openings of various sizes, active and Allen wrench, screwdriver, hacksaw bows, hammer, pliers, wire cutter, pipe wrench, etc. | Set | 1 | |
8 | Rescue emergency tool | Including the fire axe, crowbar, 12-pound sledgehammer | Set | 1 | |
9 | Underwater divers portable lighting flashlights | Rechargeable > power; 10W LED light | pcs | 2 | |
10 | Tent | 6, canvas | Set | 1 | |
11 | Rubber dinghy | 3-4, inflatable, folding, with oars | Set | 1 | |
12 | Folding chair | A stainless steel frame, backrest and leather | The | 2 | |
13 | Portable life jackets | Inflatable | Set | 6 | |
14 | Life buoy | pcs | 2 | ||
15 | Divers lift system | Used to promote decentralization and divers. Including bidirectional variable speed motor, winch, 50-meter steel wire ropes, pulleys, and other accessories for steel rods, tension > 2000Kg. Usually split down to the car, when installed in the rear | Set | 1 | |
Quotes |
1) Strong communication function:
2 ) Real-time monitoring features:
3) Alarm function :
4 ) All lighting functions:
5 ) Wireless image transmission function for individual:
6) Site features:
7) 3 power supply features:
8) Field command-and-control functions:
9 ) Features:
10 ) Fresh water washing wetsuit features:
11 ) Divers dive and landing electric lifting function:
12 ) Video in real time, the data acquisition function:
13) Pressure and high pressure gas features in real time:
14 )-Bring their own dive function:
15 ) Cord capstan motor winding and unwinding function:
16 ) Save, drag a barrier function:
17 ) Hydraulic leveling of vehicle chassis features:
18 ) Diver sea Save function:
19 ) On-board equipment of vehicle construction site safety and security features:
20 ) Simple medical self-help rescue features:
21 ) A large, heavy-equipment with hydraulic platform the car away from the vehicle to achieve long-distance features:
22 ), Underwater lighting functions:
23 ) Camping features:
24 ) Erosion, rust-proof function:
25 ) Electrical control function:
26 ) Tube air supply circuit control functions:
27 ) Emergency function:
