Views: 1635 Author: ISUZU Truck Customizing Publish Time: 2017-07-01 Origin: ISUZU Truck Customizing

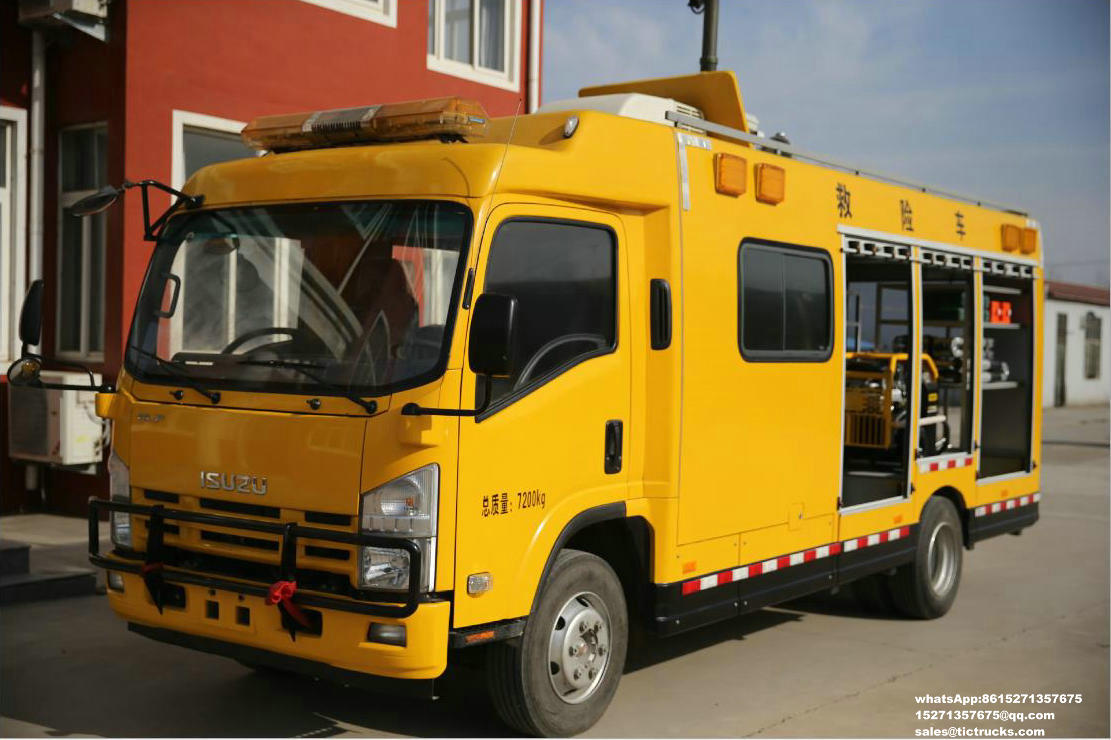

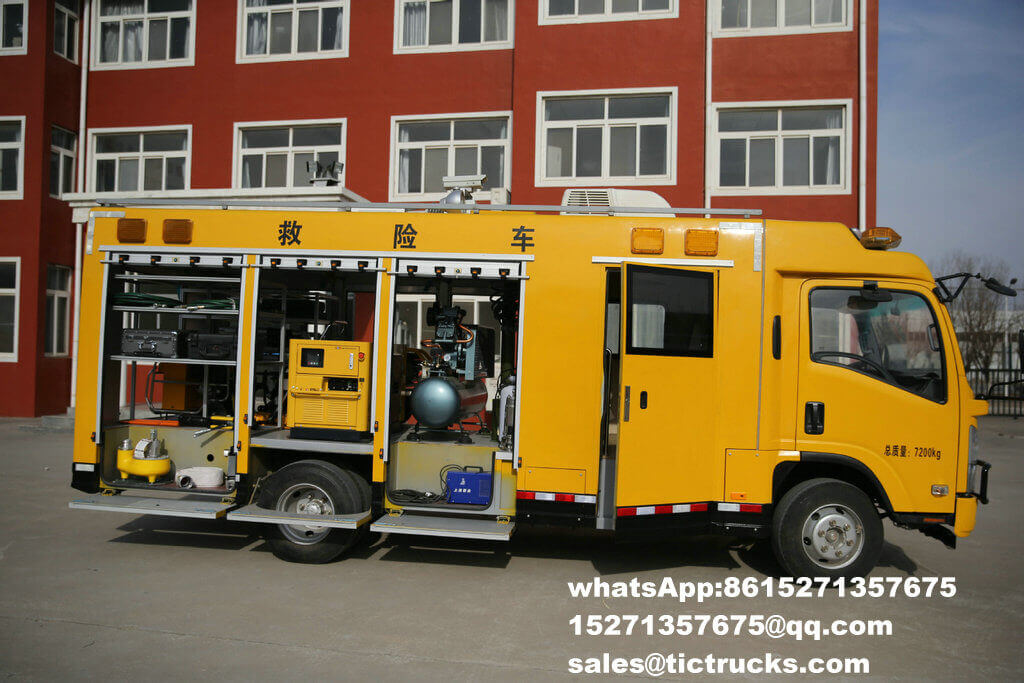

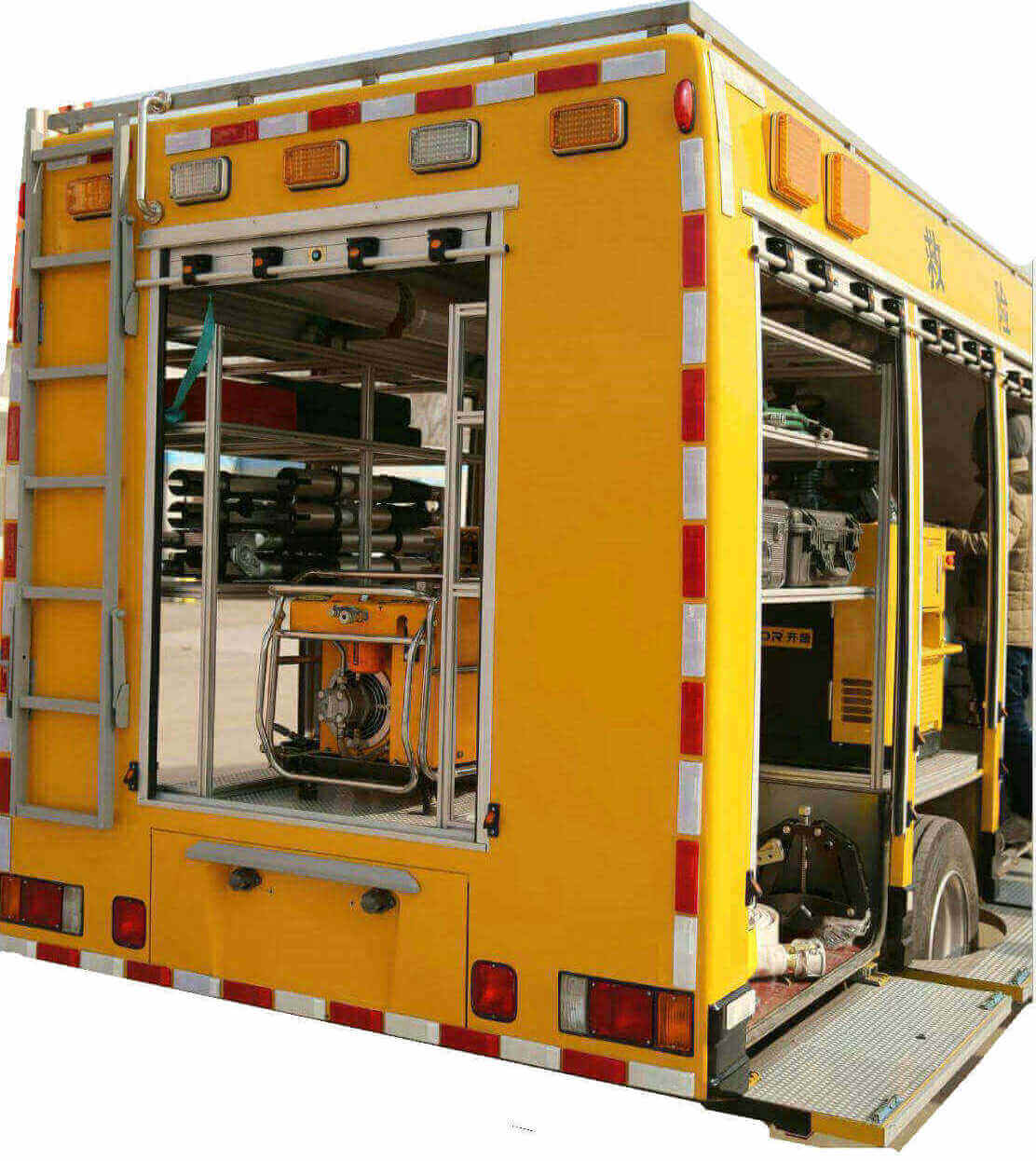

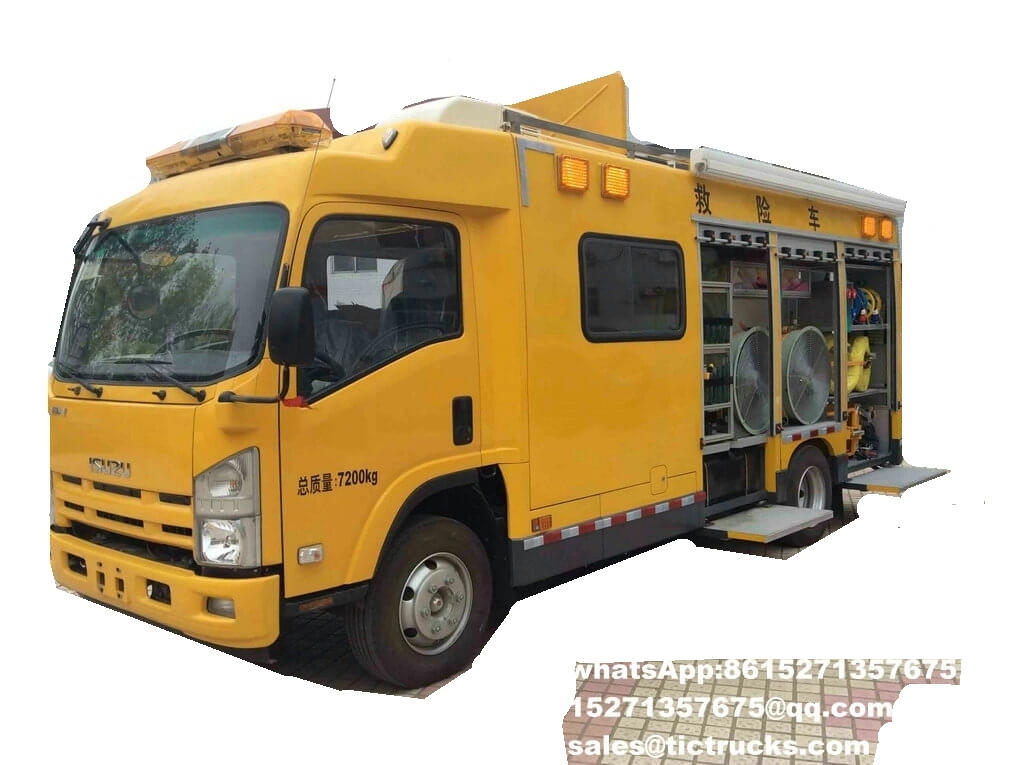

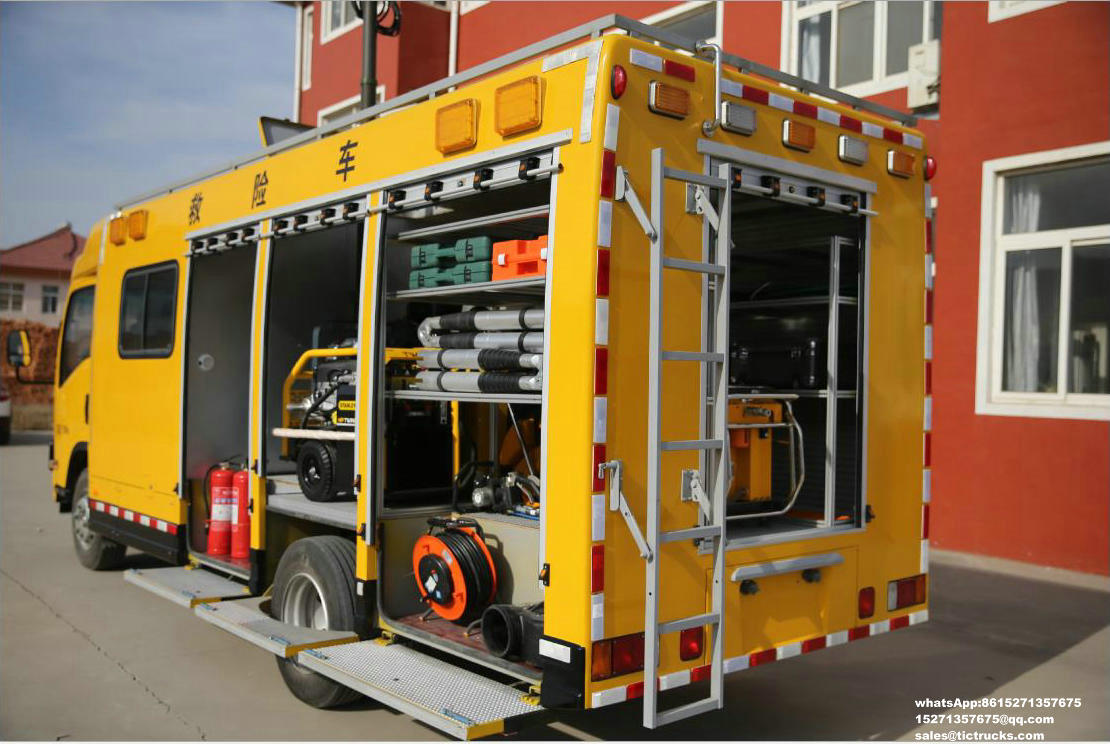

ISUZU Thermal multifunctional rescue vehicles 700P export price
export price FOB:$185000-CIF$198500USD
ISUZU Thermal multifunctional rescue vehicles 700P Engineering Thermodynamic Emergency vehicle,ISUZU Engineering Thermal Emergency Rescue Vehicle | ||||
Serial number | System Assembly | Modified and the name of the project | The number of | Work unit |
1 | Chassis and cab conversion | 700P: Qingling ISUZU 700P class chassis. Overall dimensions: length 7305 width 2320 high 2900 (3150); diesel fuel, five discharged; wheelbase: 4175, by 5~6 who: 139kW. (Chassis, car body, roller shutter doors, Outrigger, warning lights, seats, doors, Windows, trim, the control room the control room desk (the Cabinet), the front glass top components, structure Accessories 7 units, paint, electrical integration; | 1 | pcs |
Combination cabinet: imports of aluminum extrusions, pulling device | 1 | pcs | ||
Side awning, 3500mm, pull out the extension 2000mm | 2 | Set | ||
On-board equipment | ||||
1 | Network data acquisition and transmission system | HD camera and jammers | 1 | Set |
DVR surveillance system | 1 | Set | ||
19 "LCD monitor | 1 | Set | ||
2 | Vehicle-mounted elevating emergency lighting system | 4*150W metal halide lamps, with camera bracket. Multifunctional liftable Console audio/video power cord, could rise 4.5 meters, cable, wireless remote control. | 1 | Set |
3 | Electrical control system | Vehicle-mounted UPS: 3000W | 1 | pcs |
Spare battery pack | 4 | Piece | ||
Electrical control cabinets and appliances, wire layout | 1 | pcs | ||
4 | Power generation power system | Mute-35KW diesel generator set | 1 | pcs |
Auxiliary tank 100L | 1 | pcs | ||
Power conversion device | 1 | pcs | ||
30 meter cable, 380V | 1 | Set | ||
30 meter cable, 220V | 1 | Set | ||
30 meters of electric cable, DC24V | 1 | Set | ||
30.16-meter square meter copper wire, three-phase four-wire system, with plug | 1 | Set | ||
Stainless steel mobile power box, outlet and air switch | 1 | Set | ||
Vehicle rescue equipment | Hydraulic lift carts 300kg | 1 | Set | |
Aluminum foil heat protective clothing, 1000 degrees | 2 | Set | ||
New fire helmet, 1000 degrees | 2 | Set | ||
Firefighters boots, 1000 degrees | 2 | Set | ||
High temperature gloves, 1000 degrees | 2 | Pcs | ||
One-piece leather pants | 2 | Set | ||
Waterproof clothing | 2 | Set | ||
Fire blanket | 2 | Set | ||
Rescue Tripod (150-200 kg) | 1 | Set | ||
Hidden vehicle electric winches | 1 | Set | ||
8 | Office systems | Laptop | 1 | pcs |
Print, scan, and copy machine | 1 | pcs | ||
9 | Living systems | Car drinking water machine | 1 | pcs |
Control indoor flip bed rest; | 1 | pcs | ||
Control top-mounted air conditioning system | 1 | pcs | ||
10 | Security system | Safety helmet | 6 | Set |
Dry powder fire extinguisher 2kg | 2 | Set | ||
Automotive medicine cabinet | 1 | Set | ||
Traffic signs | 5 | Set | ||
Electrical grounding system | 1 | pcs | ||
Comprehensive lightning protection system | 1 | pcs | ||
LED traffic signs | 1 | pcs | ||
GPS monitoring reversing machine | 1 | pcs | ||
11 | Communication systems | Car imports | 1 | pcs |
Explosion-proof high-frequency handset | 2 | pcs | ||
12 | Fixed equipment and integration costs | 1 | pcs | |
ISUZU Thermal multifunctional rescue vehicles 700P ,Engineering Thermodynamic Emergency vehicle,ISUZU Engineering Thermal Emergency Rescue Vehicle,ISUZU Thermal rescue truck,Emergency vehicle,ISUZU Engineering Emergency rescue vehicle
wheelbase mm | cabin | Isuzu model | equipments | |||||
ISUZU100P light truck EURO 5 | 2490 | single cabin | QL1040A6EAY | 4KH1CN5LS | ||||
double cabin | QL1040A6EWY | |||||||
2765 | single cabin | QL1040A6FAY | ||||||
double cabin | QL1040A6FWY | |||||||
3360 | single cabin | QL1040A6HAY | QL1042A6HAY | QL1043A6HAY | ||||
QL1045A6HAY | ||||||||
single cabin wider | QL1044A6HAY | |||||||
single with sleeper | ||||||||
double cabin | QL1040A6HWY | QL1042A6HWY | ||||||
3815 | single cabin | |||||||
double cabin | ||||||||
600P | 2490 | single cabin | Isuzu 4KH1CN5HS diesel engine 130hp,Euro 5 emission, MSB five gears transmission, with A/C, hydraulic assist, front axle 2.5T, rear axle 4.8T, with ABS, tyre 7.00R16, double circuit type oil brake. single row cabin tiltable, double row cabin can not tiltable. hazardous chemicals transport truck chassis add disc brake, front mounted exhuast pipe, speed limit device, exhaust brake. | |||||
double cabin | QL1040A5EWY | |||||||
2765 | single cabin | QL1070A5FAY | QL1040A5FAY | QL1071A5FAY | ||||
double cabin | QL1040A5FWY | |||||||
3360 | single cabin | QL1070A5HAY | QL1071A5HAY | QL1040A5HAY | ||||
QL1044A5HAY | ||||||||
single cabin | QL1040A7HAY | |||||||
single with sleeper | ||||||||
double cabin | QL1070A5HWY | QL1040A5HWY | ||||||
single cabin wider | QL1043A5HAY | |||||||
3815 | single cabin | QL1070A5KAY | QL1071A5KAY | |||||
QL1060A5KAY | ||||||||
single cabin wider | QL1072A5KAY | |||||||
single with sleeper | ||||||||
double cabin | QL1070A5KWY | |||||||
700P ISUZU middle truck | 3360 oil brake | single cabin | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, double circuit type oil brake. | |||||
3815 oil brake | single cabin | |||||||
single cabin | ||||||||
4175 oil brake | single cabin | |||||||
4475 oil brake | single cabin | |||||||
single cabin | ||||||||
single with sleeper | ||||||||
5200 oil brake | single cabin | QL1080A8PAY | ||||||
single with sleeper | ||||||||
3815air brake | single cabin | QL1100A8KAY | Isuzu 4HK1-TC51 diesel engine 190hp, Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, front axle 4T, rear axle 7T, tyre 235/75R17.5, exhaust brake. | |||||
4175air brake | single cabin | QL1100A8LAY | ||||||
4475air brake | single cabin | QL1100A8MAY | ||||||
5200air brake | single cabin | QL1100A8PAY | ||||||
FTR ISUZU middle truck | 3900 | single with sleeper | QL1160VKFRY | Isuzu 4HK1-TC50 diesel engine 205hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, tyre 10.00R20 , exhaust brake. | ||||
4500 | single with sleeper | QL1160VMFRY | ||||||
4700 | single with sleeper | |||||||
5000 | single with sleeper | QL1160VNFRY | ||||||
5550 | single with sleeper | QL1160VQFRY | ||||||
5800 | single with sleeper | QL5160XXYVRFRY | ||||||
FVR heavy duty EURO5 | 3900 | single with sleeper | Isuzu 6HK1-TCL diesel engine 240hp,Euro 5 emission, MLD six gears transmission, with A/C, hydraulic assist, central lock,power window, front axle 6.3T, rear axle 13T, with ABS, tyre 295/80R22.5, exhaust brake. | |||||
4500 | single with sleeper | QL1180XMFRY | ||||||
4700 | single with sleeper | |||||||
5000 | single with sleeper | |||||||
5550 | single with sleeper | QL1180XQFRY | ||||||
5800 | single with sleeper | QL5180XXYXRFRY | ||||||
1850+5650 | single with sleeper | 6HK1-TCL power 240hp | ||||||
4500 | single with sleeper | QL5190GXFWMFRY | 6HK1-TCH power 300hp | |||||
FVZ ISUZU heavy duty EURO5 | 4000+1300 | single with sleeper | | |||||
4350+1300 | single with sleeper | |||||||
4650+1300 | single with sleeper | QL1250WPFZY | ||||||
4900+1300 | single with sleeper | |||||||
5100+1300 | single with sleeper | QL1250WRFZY | ||||||
5400+1300 | single with sleeper | |||||||
5700+1300 | single with sleeper | QL1250WTFZY | ||||||
VC61 ISUZU heavy duty EURO5 | 4650 | single with sleeper | ||||||
3385+1370 | single with sleeper | QL4250W2NCZ | 6WG1-TCG51 power 450hp | |||||
3600+1300 | single with sleeper | |||||||
4025+1300 | single with sleeper | |||||||
4605+1300 | single with sleeper | |||||||
5100+1300 | single with sleeper | |||||||
5820+1300 | single with sleeper | |||||||
4605+1300 | single with sleeper | |||||||
1850+3320+1300 single with sleeper | 6WG1-TCG51 power 450hp | |||||||
1850+4575+1370 single with sleeper | QL5400GXFW2VCHY |
