Isuzu QL5190GXFWMFRY(batch #289)
Isuzu fire truck chassis
Engine: 6HK1-TCH
Displacement (cc): 7790
Power (kW): 221
Gross weight (kg): 19000
Wheelbase (mm): 4500
 |
Share to:

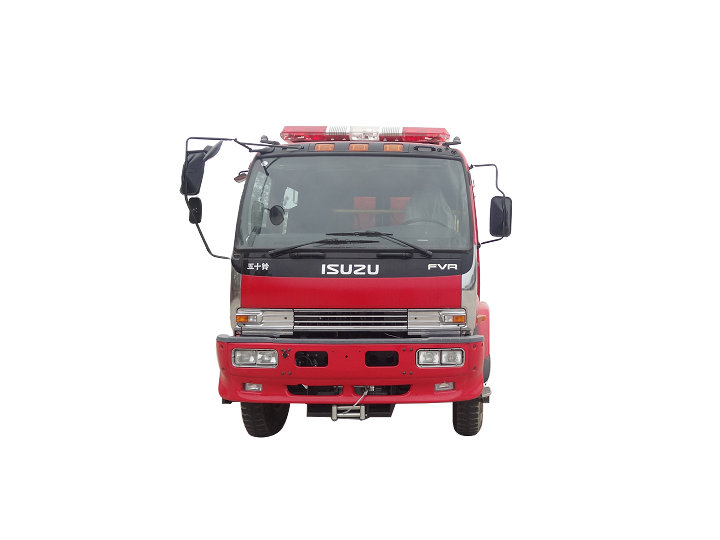

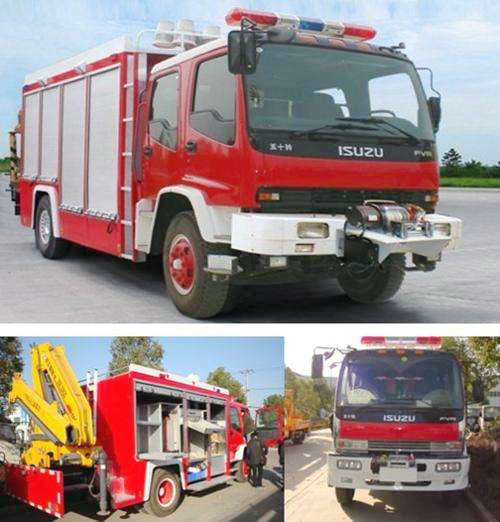

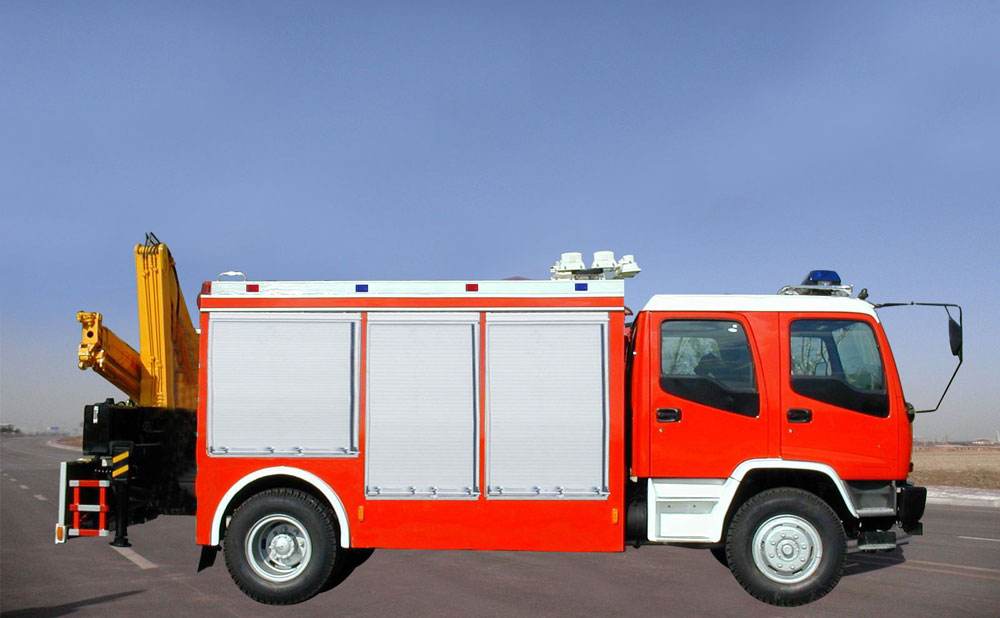

ISUZU Multi-function Rescue Fire Truck Euro 5
ISUZU Emergency rescue fire vchicle 4x2 / 4x4/ LHD / RHD
Light power . 4 x 1000/w
Lifting height 8.9m
Generator power. 10.5 kw
crane SQ5ZK2
Lifting weight /kg 5000
Working range 7m
The traction Winch Towing 5000kg Euro 5 Price Negotiated
Light power . 4 x 1000/w
Lifting height 8.9m
Generator power. 10.5 kw
crane SQ5ZK2
Lifting weight /kg 5000
Working range 7m
The traction Winch Towing 5000kg Euro 5 Price Negotiated
Price: $ 70000 - 108000
Discount Price: $ 63330 - 100000
| FOB: | |
|---|---|
| Quantity: | |
|
| |
-
DRZ5161TXFJY40
-
King Run
-
8705309000
ISUZU Multi-function Rescue Fire Truck Euro 5 Price Negotiated

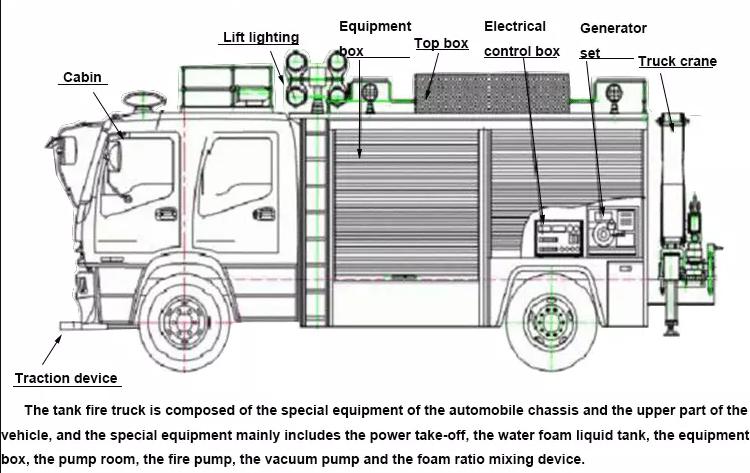

The vehicle has power generation, lighting, lifting, traction and other functions. The car is a double-row cab, which can carry 1+1+4 crew members and is comfortable to ride. The upper body is welded with high quality section steel, which is firm and durable. The equipment box is made of curtain door structure and easy to operate. Large space, can assemble a large number of emergency rescue, personal protection, preventive washing and elimination equipment as required; The equipment is firmly clamped, arranged and easy to use
Technical specifications
Isuzu QL1160VQFRY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5550 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5225 |
Isuzu QL1160VKFRY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 3900 |
Displacement (cc): | 5193 | Dimensions (mm): | 6435 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 4990 |
Isuzu QL1100A8PAY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 5200 |
Displacement (cc): | 5193 | Dimensions (mm): | 8912 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3310 |
Isuzu QL1100A8KAY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 3815 |
Displacement (cc): | 5193 | Dimensions (mm): | 6980 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10000 |
Fuel type: | diesel fuel | Curb weight (kg): | 3180 |
Isuzu QL1180XMFRY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 4500 |
Displacement (cc): | 7790 | Dimensions (mm): | 7570 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5500 |
Isuzu QL1180XQFRY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 6HK1-TCL | Wheelbase (mm): | 5550 |
Displacement (cc): | 7790 | Dimensions (mm): | 8855 × 2490 × 2810 |
Power (kW): | 177 | Gross weight (kg): | 18000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5730 |
Isuzu QL1160VMFRY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 4500 |
Displacement (cc): | 5193 | Dimensions (mm): | 7570 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5090 |
Isuzu QL1100A8LAY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC51 | Wheelbase (mm): | 4175 |
Displacement (cc): | 5193 | Dimensions (mm): | 7430 × 2170 × 2330 |
Power (kW): | 141 | Gross weight (kg): | 10055 |
Fuel type: | diesel fuel | Curb weight (kg): | 3200 |
Isuzu QL1160VNFRY
Isuzu truck chassis manufactured in China | |||
Manufacturer: | Dong Runze Special Vehicle | ||
Engine: | 4HK1-TC50 | Wheelbase (mm): | 5000 |
Displacement (cc): | 5193 | Dimensions (mm): | 8835 × 2490 × 2750 |
Power (kW): | 151 | Gross weight (kg): | 16000 |
Fuel type: | diesel fuel | Curb weight (kg): | 5210 |
QL5190GXFWMFRY
QL5190GXFWMFRY Technical specifications
| # | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
|---|---|---|---|---|---|---|---|
| 1 | 6HK1-TCH | 7790 cc | 7.8 L | 476 cu in | 221 kW | 301 hp | Isuzu Qingling (Chongqing) Engine Co., Ltd. |
| Performance | ||||
|---|---|---|---|---|
| Fuel | diesel fuel | |||
| Maximum speed | 105 km/h | 66 mph | ||
| ABS | have | |||
| Weights and Ground pressure | ||||
|---|---|---|---|---|
| Curb weight | 5750 kg | 5.8 t | 12,677 lbs | |
| Gross vehicle weight rating | 19000 kg | 19 t | 42,000 lbs | |
| Axle load distribution | 7000 kg / 12000 kg 7 t / 12 t 15,000 lbs / 26,000 lbs | |||
| Dimensions | ||||
|---|---|---|---|---|
| Overall length | 8160 mm | 26′10″ | ||
| Overall width | 2490 mm | 8′3″ | ||
| Overall height | 2810 mm | 9′3″ | ||
| Undercarriage and Suspension | ||||
|---|---|---|---|---|
| Number of axles | 2 | |||
| Wheelbase | 4500 mm | 14′10″ | ||
| Front track | 1960 mm | 6′6″ | ||
| Rear track | 1855 mm | 6′2″ | ||
| Front overhang | 1335 mm | 4′5″ | ||
| Rear overhang | 2325 mm | 7′8″ | ||
| Angle of approach | 15° | |||
| Angle of departure | 13° | |||
| Leaf springs | 9 / 7+7 | |||
| Tyres and Wheels | ||||
|---|---|---|---|---|
| Number of tyres | 6 | |||
| Tyres dimension | 11.00R20 18PR | |||
| Miscellaneous | ||||
|---|---|---|---|---|
| Seating capacity | 3 | |||
| Steering control | steering wheel | |||
