ISUZU LED truck for Outdoor Mobile LED Display Promotion

Views: 1091     Author: Dong Runze Special Vehicle      Publish Time: 2017-06-21      Origin: Dong Runze Special Vehicle

ISUZU LED truck for Outdoor Mobile LED Display Promotion

China Isuzu Outdoor Mobile LED Display Promotion Truck  truck mounted Two  /

three Side LED Screen

98HP EURO4 :FOB Shanghai $33000USD-$34500USD

98HP EURO5:FOB Shanghai $34500USD-$35500USD


  ISUZU chasis mobile advertising LED display vehicles/digital advertising vans for leasing

1.One side 12SQM LED(can be lifted up 2m)
2.Another side a LED strip screen & scrolling light box
3.a full color LED screen at the rear
3.A negotiation room inside
4.Equipped multimedia playing system
5.Inside generator can supply powers
6.With ISUZU chassis

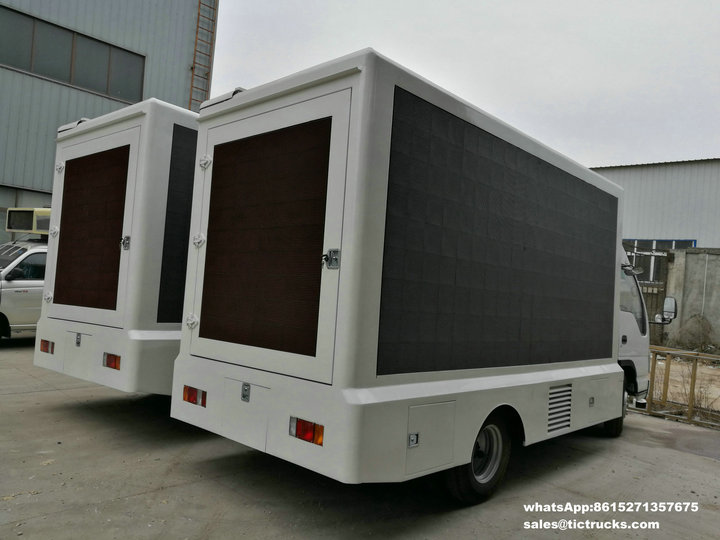

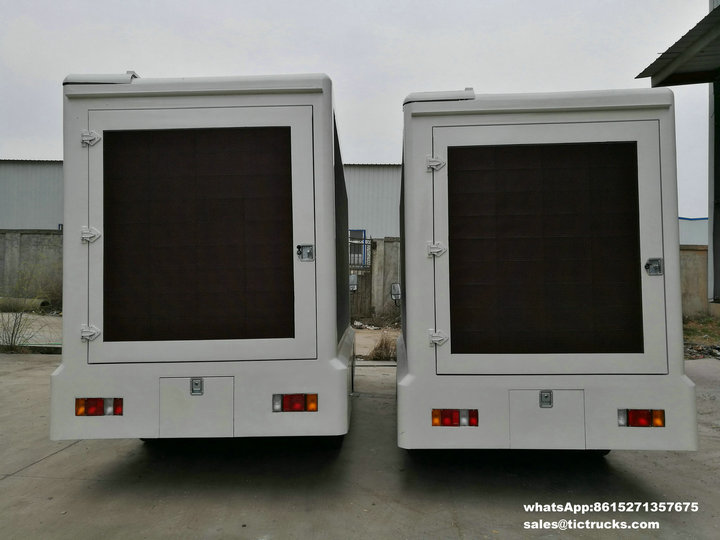

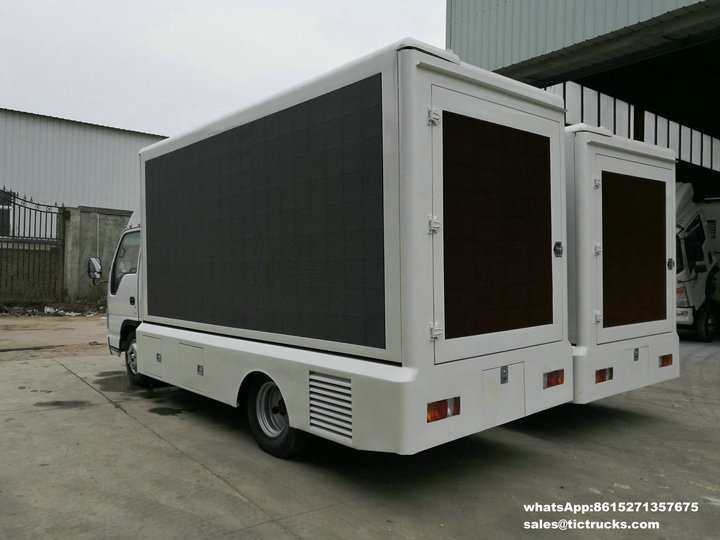

 ISUZU LED truck -12_1.jpgISUZU LED truck -13_1.jpgISUZU LED truck -14_1.jpgISUZU LED truck -15_1.jpg




Mobile Video Truck Mobile LED Promotion Truck


  Applications





Press release

news conferences, product launches, channel investment   activities, press appearances , etc

Activities road show

promotions, public relations activities, product   marketing, branding promotion, draft activities, live shows and other sales

Live

sporting events, live events, concerts, etc.

Parade display

product buildings parade promotion, exhibitions, fairs,   shows, etc

Forum lecture

forums, conferences and seminars

Celebration &ceremony

real estate opening, anniversary celebration, the   opening ceremony, festivals, ribbon-cutting ceremony, award ceremonies.

Election

promotion for election, policy promotion

Other applications

wedding live, auction, etc


  Hydraulic lifting & supporting system


  Hydraulic lifting system for LED screen


  Electric putt (Germanytechnology)
  Lifting height: 2000mm,afford 3T,synchronous error:1mm


  Hydraulic supporting system


  Imported hydraulic cylinder
  Lifting height: 300mm,each afford 5T,its wind-proof level can reach to   maximum level 8 when screen is lifted up


  Extreme super silent generator set


  External Dimension


  1510mm×900mm×1060mm


  Power


  16KW


  Power type


  Kipor


  Number of cylinders


  Water-cooled inline 4-cylinder


  Air displacement


  1.995L


  Bore*stoke


  84mm x 90mm


  Main LED screen


  Screen size


  3840*1760=6.8


  Module size


  160mm(W) ×160mm(H)


  Chip


  R: Guanglei,G,B:Silan


  Pixel pitch


  10 mm


  Brightness


  ≥6000cd/ sq.m


  Max power consumption


  1200 W/sq.m


  Power consumption


  Average :600W/sq.m


  Life span


  100,000hour


  LED screen (back door)


  Screen size


1280*1440=1.84(SMD)


  Chip





  Module size


  244mm(W) ×122mm(H)


  Pixel pitch


  7.62mm


  RED LED bar screen  optional


  External Dimension


  5440mm×480mm


  Pixel pitch


  10 mm


  Chip


  Guanglei


  Module resolution


  32pixel(W) ×16pixel(H)


  Scrolling Light box optional


  Display size


  3900mm×1500mm


  Roller diameter


  100 mm


  Motor power


  ≥80W


  Control mode


  Intelligent remote control


  Power supply


  Input voltage


  three-phase five-wire 380V


  Output voltage


  220V


  Electrical current


  50A


  Power consumption


  average:0.5wh/sq.m


  Multi-media control system


  Industrial PC


  Processor:Dual Core CPU, display card:512,hard disk:320G,CD-ROM:DVD, internal   storage:2G


  Monitor


  15-inch LCD display


  Power amplifier


  unilateral output power
  :200W


  Speakers


  Max power consumption:200W


  Control system of LD screen


  Linso/ZHOGNQING(technology of point by point correction)


  Outer frame and inner decoration


  Cold rolled metal plate


  1.5mm


  Surface car baking varnish


  pure white


  Inner decoration


  Fire Retardant Board


  Waterproof processing


  Vehicle plastic irrigation processing


 Detailed Parameters:



Vehicle brand

ISUZU

Overall dimension(mm)：

5995x2040x2990

Chassis model

QL10403HARY

LED Screen dimension(mm)：

3840*1760

Total mass(kg)

4475

Approach/departure angle(° )

24/12

Rated payload (kg)

3000

Front/rear suspension(mm)：

1015/1620

Curb mass(kg)

4345

Max speed(km/h)：

98

Axle load(kg)

1800/2675



Chassis model

Chassis model

QL10403HARY

Manufacturer

ISUZU

Axle nos.

2

Fuel type

Diesel

Wheelbase(mm)：

3360

Front tread(mm)：

1385

Driver cab person

3

Rear tread(mm)：

1425

Tyre

6*7.00-15 10PR

Steel spring

8/6+5



Steering gear

power steering

Brake system

Service brake

Drum brake (hydraulic dual circuits)

Parking brake

Central drum brake

Wheels and tyre size

7.00-15 10PR(Double rear tire)

Electric device

Rated voltage

24V

Fuel tank (L)

80

Basic equipment

radio,spare wheel,adjustable steering wheel,electrical controlled engine stop



Engine model

four-cylinder,in-line,water-cooling,DI,four-stroke,supercharger , diesel engine

Engine model

Manufacturer

displacement（ml）

power（kw）

4JB1CN

ISUZU engine

2771

72kw/98HP

Emission standard

 Euro

Fuel type

Diesel





Items

Descriptions

Parameters

Screen

Screen Dimensions LxH (mm)

3840*1760

Lateral Screen Area(m²)

6.8

Screen Resolution

P10

Working Temperature(℃)

-25~50

Farthest Viewing Distance(m)

62.4

suitable Viewing Distance(m)

3~30

Protective Device

Material

Metal framework and fiberglass

Other Devices

One side of full-color P10 waterproof screen, one side, fan cooling system, generator set, external power line, power amplifier, sound system, waterproof sound box,   recorders, control computer, control board.






  series

Wheel Base

100P EUR 4/5 Chassis

4JB1CN/4KH1CN5LS
98HP
100P  98-horsepower 4JB1CN Isuzu engine,
 five-speed transmission configuration Isuzu MSB / air conditioning / direction of power / 2-2.5 tons front axle, rear axle 3-4.8 tonnes /  tires small tonnage Standard 700-15, optional 700R15 tires,, 650-15,650R15;700-16, optional 700R16 tire / frame cross-section: 172 * 65 * 4mm / oil brake with vacuum booster pump / audio: radio with USB

2490

2490

2490

2765

2765

2765

3360

3360

3360

3360

3360

3360

3815

3815

3815

 ISUZU G.W 6~7 T



  600P EUR4 4KH1-TCG40 120HP

 EUO5 4KH1CN5HS 130HP

600P All models are equipped with 120-130   horsepower Isuzu engine 4KH1-TCG4O,  equipped with five-speed gearbox ISUZU MSB / air conditioning

2490

2490

2765

2765

3360

3360

3815



hot sale LED truck list

Chassis model

  Engine Model

wheelbase

vehicle size mm

Side screen size ㎡

Rear screen size㎡

BJ1030V4JV2-X1

LJ465Q-2AE

2370

4410*1770*2750

2240*1440=3.22

960*1280=1.23

BJ1030V4JV2-X1

LJ465Q-2AE

2700

4840*1770*2750

2880*1660=4.8

960*1280=1.23

SC1022DB4N

JL466Q4

2750

4650*1695*2600

2240*1440=3.22

960*1280=1.23

SQR1021-1E

SQR472WF

2600

4640*1740*2390

2240*1440=3.22

960*1280=1.23

BJ1042V9JB-X1

4B1-82C40

2600

5380*1690*2800

3200*1760=5.6

1280*1280=1.64

BJ1043V9JEA-A

4B2-95C40

3360

5995*2025*2990

3840*1760=6.8

1280*1440=1.84

SY1044DAVSQ

YN27CRD1

3350

5995*2065*3150

3840*1760=6.8

1280*1440=1.84

DFA1041SJ35D6

CY4102-CE4F

3360

5990*1990*2950

3840*1760=6.8

1280*1440=1.84

BJ1043V9JEA-A

CA4DC2-10E4

3360

5995*2025*2995

3840*1760=6.8

1280*1440=1.84

ZZ1047C3414D145

4DW93-84E4

3360

5995*2025*2995

3840*1760=6.8

1280*1440=1.84

BJ1049V8JDA-AA

4J28TC(ISUZU)

3360

5995*2150*2900

3840*1760=6.8

1280*1440=1.84

BJ1049V9PD6-FE

ISF2.8s4129T

3360

5995*2000*2860

3520*1760=6.2

1280*1440=1.84

QL10403HARY

4JB1CN

3360

5990*1990*2950

3840*1760=6.8

1280*1440=1.84

DFA1080SJ12D3

CY4102-CE4C

3800

7290*2330*3350

4800*2080=10

1600*1600=2.56

BJ5129XXC-F1

ISF3.8s3168

4700

8760*2365*3675

5120*2440=11.5

1600*1600=2.56

Dolly trailer

7000*2500*3500

4800*2400=11.52

BJ1049V8ADA-1

BJ493ZLQ3

5995×2000×2860

2720*1760=4.8

2.56

BJ1046V9JB5-H1

4A1-68C40

5130×1900×2750

2800*1600=4.6

2.56

ZZ1047C3414D145

4B2-95C40

5995×2025×2995

3840*1760=6.8

2.6

BJ1043V9JEA-A

4B2-95C40

5995×2025×2990

3840*1760=6.8

2.6

HFC1041K7T

4D25F

5995×2030×2900

3840*1760=6.8

2.6

BJ1049V9PD6-FE

ISF2.8s4129T

5995×2000×2860

3520*1760

6.8

2.56

BJ1049V9PD6-FE

CY4102-CE4F

5995×2000×2900

3840*1760

6.8

2.56

BJ1089VDPFG-SD

YC4E140-31

7970×2190×3730

4800*2240

10.8

2.56



keywords: Mobile LED Display van ,ISUZU LED truck ,Isuzu 4*2 LED truck,isuzu truck led Van,ISUZU Advertising  Truck  ,Two Side LED Screen van, truck mounted Two Side LED Screen ,truck mounted  LED Screen,  ISUZU mobile advertising LED display vehicles,digital advertising vans,
