ISUZU FTR Freezer Truck 15T~16T 38.77m3<Customization>
| Availability: | |
|---|---|
| Quantity: | |

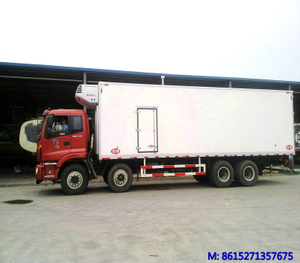

ISUZU FTR Freezer Truck 15T~16T
choose the freezer unit -18C refrigerated trucks
Online
Tom
FACT LOADING: 15-16 Ton;
TomVAN VOLUME: 35~38.77 CBM; 7180*2250*2400 ;6500*2450*2200
ENGINE: 190HP,diesel engine,EURO IV; 4HK1-TCG40
TRANSMISSION:6speed with over drive;
TIRE SPECIFICATION: 9.00-20 、10.00-20； 6+1;
With insulation van and refrigeration unit ;
Refrigerated truck is mainly used to transport fresh meat, vegetables and seafood etc. Special ones can also transport dangerous chemicals.
Can be designed as you want. Chassis parts: Chongqing Qingling chassis, Isuzu engine, color steel outer and inner envelope using glass and steel production, intermediate 8 cm thick polyurethane insulation panels, door frames and door trim all use Stainless steel, stainless steel corners, aluminum extrusions edging, with the dome light and bumper blocks, rather the point of non-independent air-conditioning unit, inside the minimum temperature 0 ℃ to-5 ℃;-5 ℃to-18 ℃; optional :independent air-conditioning unit
ISUZU FTR Freezer Truck 15T~16T
choose the freezer unit -18C refrigerated trucks
Online Tom
FACT LOADING: 15-16 Ton;
VAN VOLUME: 35~38.77 CBM; 7180*2250*2400 ;6500*2450*2200
ENGINE: 190HP,diesel engine,EURO IV; 4HK1-TCG40
TRANSMISSION:6speed with over drive;
TIRE SPECIFICATION: 9.00-20 、10.00-20； 6+1;
With insulation van and refrigeration unit ;
Refrigerated truck is mainly used to transport fresh meat, vegetables and seafood etc. Special ones can also transport dangerous chemicals.
Can be designed as you want. Chassis parts: Chongqing Qingling chassis, Isuzu engine, color steel outer and inner envelope using glass and steel production, intermediate 8 cm thick polyurethane insulation panels, door frames and door trim all use Stainless steel, stainless steel corners, aluminum extrusions edging, with the dome light and bumper blocks, rather the point of non-independent air-conditioning unit, inside the minimum temperature 0 ℃ to-5 ℃;-5 ℃to-18 ℃; optional :independent air-conditioning unit
2. Super impetus
3. Environmental friendliness
4. Comfort and big carrying capacity
| Model | QL5140XLCTQFRJ | QL5140XLCTNFRJ | QL5140XLCTRFRJ | ||
| Weight | Gross. Wet. | kg | 14000 | 14000 | 14000 |
| Loading Wet. | kg | 6650 | 6750 | 6630 | |
| Curb Wet. | kg | 7155 | 7055 | 7175 | |
| Wheel base | mm | 5550 | 5000 | 5800 | |
| Overall Dimension | Length | mm | 9765 | 9000 | 10000 |
| Width | mm | 2470/2530 | 2470/2530 | 2470/2530 | |
| Height | mm | 3935 | 3935 | 3935 | |
| Cargo body size | Length | mm | 7180 | 6415 | 7345 |
| Width | mm | 2250 | 2250 | 2250 | |
| Height | mm | 2400/2370 | 2400/2370 | 2400/2370 | |
| Volume | m3 | 38.77 | 34.64 | 39.66 | |
| Refrigeration system | Temperature | Medium temperature | -5℃ | -5℃ | -5℃ |
| low temperature | -18℃ | -18℃ | -18℃ | ||
| Type | SUPRA 850,EJ6 | SUPRA 850,SF4,EJ6 | SUPRA 850,EJ6 | ||
| Isuzu engine | Type | 4HK1-TC | 4HK1-TC | 4HK1-TC | |
| Output | kW/r/min | 129/2600 | 129/2600 | 129/2600 | |
| Torque | N.m/r/min | 500/1500~2000 | 500/1500~2000 | 500/1500~2000 | |
| Fuel | Diesel | Diesel | Diesel | ||
| Max. speed | km/h | 95 | 95 | 95 | |
| Seats | 3 | 3 | 3 | ||
| Tyre | 9.00-20 16PR | 9.00-20 16PR | 9.00-20 16PR | ||
| 9.00R20 16PR | 9.00R20 16PR | 9.00R20 16PR | |||
you can choose the freezer unit your self:
Refrigerated: insulation thickness 8CM, meat hook rail plus $300 / m, meat hooks $10 / pcs, meat hooks standard three rails, ventilation slots $300 / m, open side door plus $400, excluding the price of other requirements
control system in the can for freezer unit
TIC TRUCKS , www.truckinchina.com
| mimi refrigerated trucks(2015) | |||||||
| 2 | Product Type | Vehicle Type | Chassis Type | Engine Model | Vehicle Dimensions | Compartment internal dimensions | Vehicle offer unit price FOB |
|---|---|---|---|---|---|---|---|
| 3 | Chang refrigerated trucks | 5020XLC4 | SC1026DAN4 | JL466Q1 | 4380 * 1580 * 2390 | 2550 * 1410 * 1490 | $10000 |
| 4 | Yu Ling refrigerated trucks | 5020XLC-A | BJ1020V3JV2-X | LJ465Q-2AC | 4360 * 1600 * 2400 | 2580 * 1390 * 1470 | $9000 |
| 5 | Landscape refrigerated trucks | 5036XLC-XA | BJ6536B1DWA-X1 | BJ491EQ4 | 5320 * 1690 * 2225 | 3.5m⊃3; | $18000 |
| 6 | Gold refrigerated trucks | 5033XLCL-W1SBH | Unibody | 4G22D4B | 5400 * 1690 * 2425 | 5m⊃3; | $20000 |
| 7 | JAC good micro refrigerated trucks | 5020XLCPW4E1B1D | HFC1020PW4E1B1D | LJ474Q3E2 | 4850 * 1640 * 2580 | 3100 * 1520 * 1650 | $11000 |
| 8 | JMC refrigerated trucks | 5040XLCJ4 | JX1040TGB24 | JX493ZLQ4 | 5995 * 1950 * 2900 | 4150 * 1750 * 1750 | $19000 |
| 9 | Dongfeng sharp bell refrigerated trucks | 5040XLC39D6AC | DFA1041SJ39D6 | ZD30D13-4N | 5995 * 2070 * 2980 | 4000 * 1870 * 1800 | $18000 |
| 10 | JAC refrigerated trucks handsome Ling | 5041XLCP73K2C3-1 | HFC5041XLCP73K2C3-1 | HFC4DA1-2C | 5995 * 1960 * 2900 | 4080 * 1810 * 1850 | $21000 |
2. Super impetus
3. Environmental friendliness
4. Comfort and big carrying capacity
| Model | QL5140XLCTQFRJ | QL5140XLCTNFRJ | QL5140XLCTRFRJ | ||
| Weight | Gross. Wet. | kg | 14000 | 14000 | 14000 |
| Loading Wet. | kg | 6650 | 6750 | 6630 | |
| Curb Wet. | kg | 7155 | 7055 | 7175 | |
| Wheel base | mm | 5550 | 5000 | 5800 | |
| Overall Dimension | Length | mm | 9765 | 9000 | 10000 |
| Width | mm | 2470/2530 | 2470/2530 | 2470/2530 | |
| Height | mm | 3935 | 3935 | 3935 | |
| Cargo body size | Length | mm | 7180 | 6415 | 7345 |
| Width | mm | 2250 | 2250 | 2250 | |
| Height | mm | 2400/2370 | 2400/2370 | 2400/2370 | |
| Volume | m3 | 38.77 | 34.64 | 39.66 | |
| Refrigeration system | Temperature | Medium temperature | -5℃ | -5℃ | -5℃ |
| low temperature | -18℃ | -18℃ | -18℃ | ||
| Type | SUPRA 850,EJ6 | SUPRA 850,SF4,EJ6 | SUPRA 850,EJ6 | ||
| Isuzu engine | Type | 4HK1-TC | 4HK1-TC | 4HK1-TC | |
| Output | kW/r/min | 129/2600 | 129/2600 | 129/2600 | |
| Torque | N.m/r/min | 500/1500~2000 | 500/1500~2000 | 500/1500~2000 | |
| Fuel | Diesel | Diesel | Diesel | ||
| Max. speed | km/h | 95 | 95 | 95 | |
| Seats | 3 | 3 | 3 | ||
| Tyre | 9.00-20 16PR | 9.00-20 16PR | 9.00-20 16PR | ||
| 9.00R20 16PR | 9.00R20 16PR | 9.00R20 16PR | |||
you can choose the freezer unit your self:
Refrigerated: insulation thickness 8CM, meat hook rail plus $300 / m, meat hooks $10 / pcs, meat hooks standard three rails, ventilation slots $300 / m, open side door plus $400, excluding the price of other requirements
control system in the can for freezer unit
TIC TRUCKS , www.truckinchina.com
| mimi refrigerated trucks(2015) | |||||||
| 2 | Product Type | Vehicle Type | Chassis Type | Engine Model | Vehicle Dimensions | Compartment internal dimensions | Vehicle offer unit price FOB |
|---|---|---|---|---|---|---|---|
| 3 | Chang refrigerated trucks | 5020XLC4 | SC1026DAN4 | JL466Q1 | 4380 * 1580 * 2390 | 2550 * 1410 * 1490 | $10000 |
| 4 | Yu Ling refrigerated trucks | 5020XLC-A | BJ1020V3JV2-X | LJ465Q-2AC | 4360 * 1600 * 2400 | 2580 * 1390 * 1470 | $9000 |
| 5 | Landscape refrigerated trucks | 5036XLC-XA | BJ6536B1DWA-X1 | BJ491EQ4 | 5320 * 1690 * 2225 | 3.5m⊃3; | $18000 |
| 6 | Gold refrigerated trucks | 5033XLCL-W1SBH | Unibody | 4G22D4B | 5400 * 1690 * 2425 | 5m⊃3; | $20000 |
| 7 | JAC good micro refrigerated trucks | 5020XLCPW4E1B1D | HFC1020PW4E1B1D | LJ474Q3E2 | 4850 * 1640 * 2580 | 3100 * 1520 * 1650 | $11000 |
| 8 | JMC refrigerated trucks | 5040XLCJ4 | JX1040TGB24 | JX493ZLQ4 | 5995 * 1950 * 2900 | 4150 * 1750 * 1750 | $19000 |
| 9 | Dongfeng sharp bell refrigerated trucks | 5040XLC39D6AC | DFA1041SJ39D6 | ZD30D13-4N | 5995 * 2070 * 2980 | 4000 * 1870 * 1800 | $18000 |
| 10 | JAC refrigerated trucks handsome Ling | 5041XLCP73K2C3-1 | HFC5041XLCP73K2C3-1 | HFC4DA1-2C | 5995 * 1960 * 2900 | 4080 * 1810 * 1850 | $21000 |
