ISUZU Aerial Platform Truck Bucket Lift 14m -16m
Views: 2025 Author: DRZ Publish Time: 2018-03-19 Origin: www.truckinchina.com

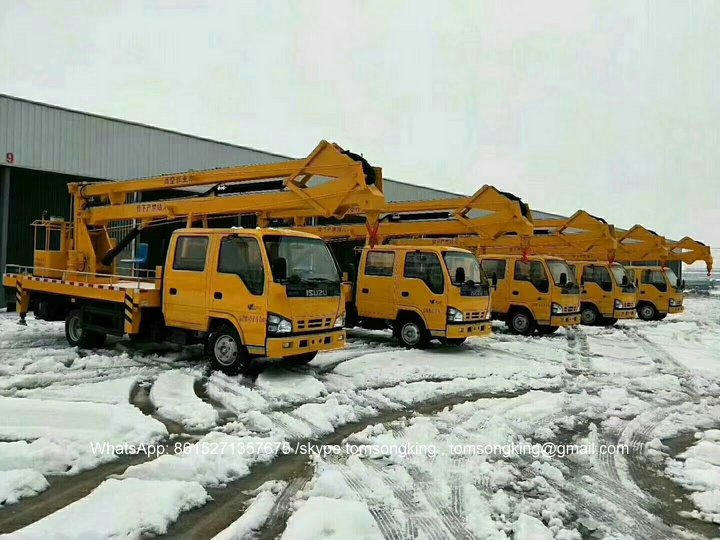

Aerial Platform Truck Bucket Lift 14m -16m
ISUZU aerial work platform truck has lowest overall height facilitates entering tunnels and underground parking lots.
FOB Price:US $33,400 - 38,000 / Set
– Uni-body frame with high stiffness minimizes twist of chassis.
– Digitalization of RPM accelerator results quicker operation.
– Double derrick cylinder gives excellentlifting capacity.
– Double boom slewing hydraulic reductionminimizes boom’s wobble when the boom rotates.
– PLVC system and CAN communication/networkcontrol system enable superior quality of fine movement.
– High end exterior aluminum checker platesare attached on the relevant parts.
– Rubber dampers are installed on the boomrest for the protection of the derrick cylinder.
max operation height:14m,
max operation radius:5.7m,
max working platform height:11.5m-16m
working platform rating loading=200kg,
working platform rating allowable passengers=2,
working platform dimension:1100*570*1000mm,
360°turning(left or right),
4 H-shape legs for optional
Original: Suizhou, Hubei, China
| Chassis model | QL1090 | ||
| Overall dimensions | mm | 7800×2180×3210 | |
| Fact loading | kg | 200 | |
| Mass in working order | kg | Appro×4000 | |
| Body internal dimensions | mm | / | |
| Wheel base | 3360 | ||
| F/R track base | 1506/1404 | ||
| Approach/departure angle | ° | 11 －19 | |
| Exhaust/kw | ml/kw | 2999/88 | |
| Max speed | km/h | 105 | |
| Tire specification | 7.00-16 | Engine type | 4KH1-TCG40 |
| Traction system | 4×2 | transmission | MSB 5-speed Manual |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2+3 |
| Equipment | max operation height:14m, max operation radius:5.7m, max working platform height:11.5m-16m working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm, 360°turning(left or right), 4 H-shape legs for optional | ||
| Engine | ISUZU brand diesel engine | ||
| Production cycle | 15-20 days | ||
| Warranty | 12 month, from the date of supply | ||
Max working height: 12-16 m Rated platform load: 200 kg Rated manned platform: 2 Slewing angle(Left,Right): 360° Outrigger type / Q'ty: H-type, 4 pcs Transmission: 5 forward gears, 1 reverse gear power: 88 kw Curb weight: 5855 kg Truck name: High altitude working truck Chassis brand: ISUZU
