ISUZU 6x4 Dust Control Water Truck 20m3

Views: 8088 Author: Site Editor Publish Time: 2022-08-30 Origin: Site

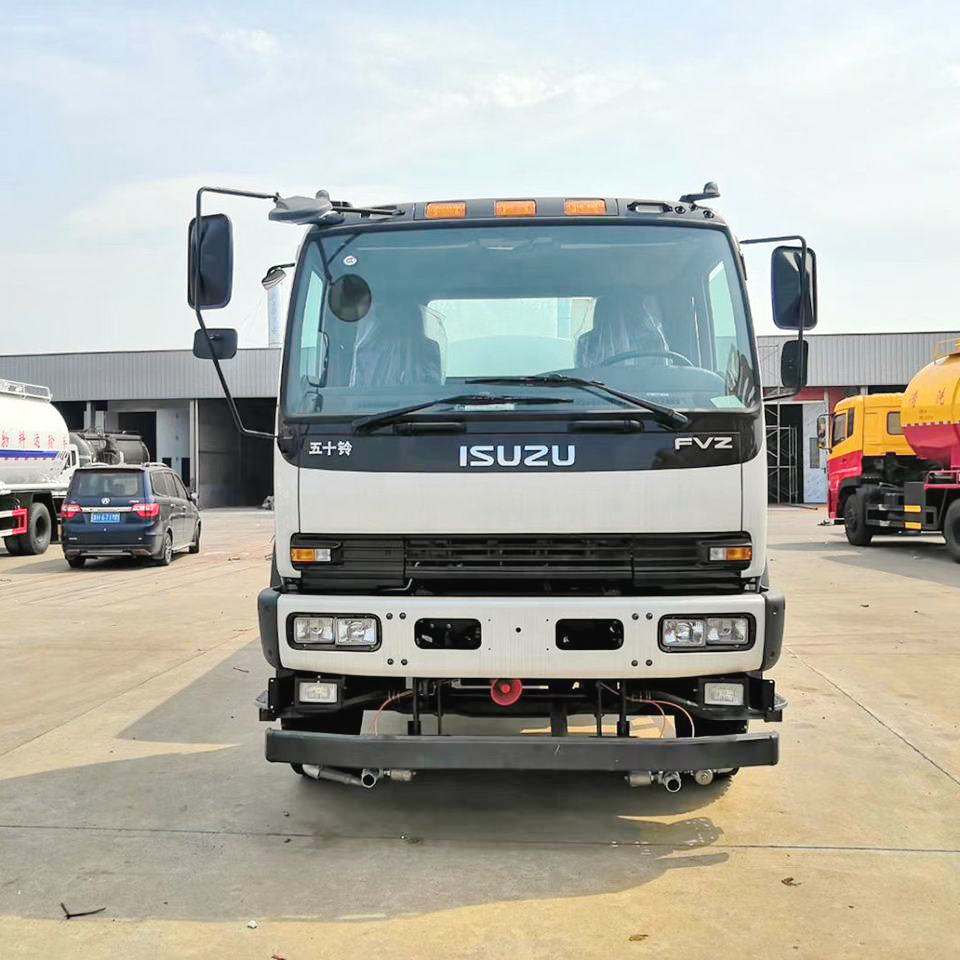

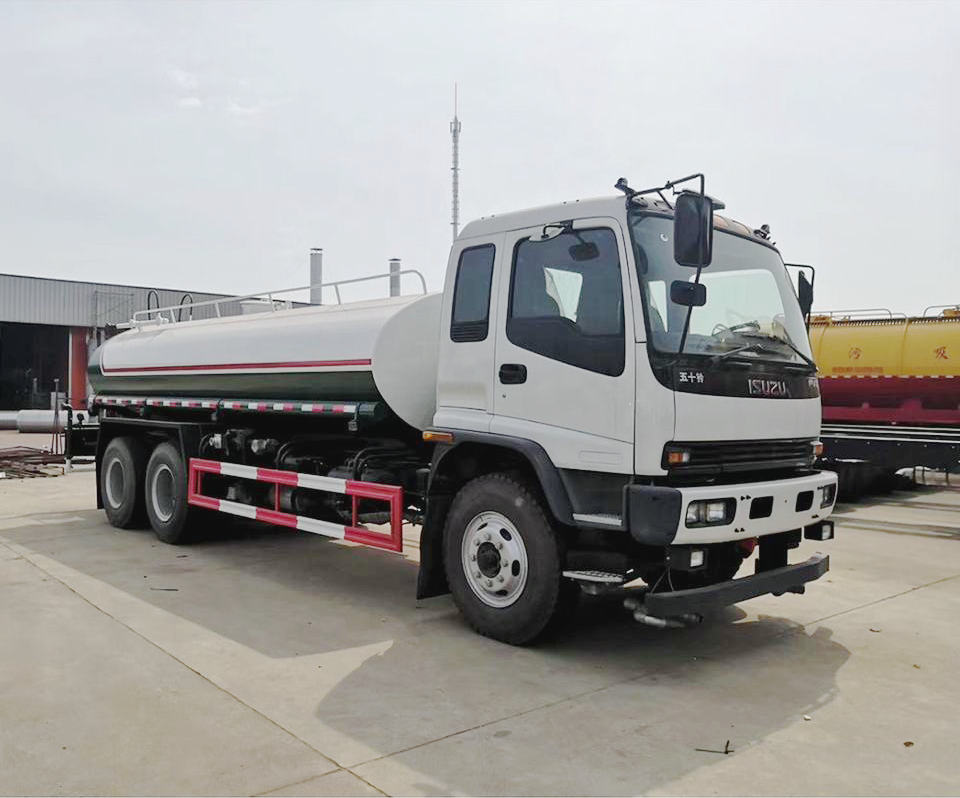

ISUZU Water Tank Truck (4) ISUZU Water Tank Truck (3)

Water bowser truck has the functions of flushing, watering, transporting water and fire fighting. IS.UZU water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.
Water Tank Sprinckle for Drinking Water And Non Drinking Water - Wast water 14m3 -22m3)

Item	Water Tank Truck		Chassis Brand	IS.UZU
Vehicle parameters	GVW(kg)	25000	Overall Dimension (mm)	9630×2500×3300
	Curb weight (kg)	11325	Steering Wheel	LHD
	Wheelbase (mm)	4650+1300	Driving Type	6*4
Engine parameters	Engine Brand	IS.UZU
	Model	6HK1-TCH	Emission Standard	Diesel, Euro 5
	Horse Power(hp)	300	Displacement	7790
	4 stroke,6-cylinders in line, water cooling
Gear Box	9 speed, Manual
Performance Parameter	Max Speed (km/h)	95	Front Axle	2015
	Cab Seat	3,2	Rear Axle	1830
	Leaf Spring	11/10	Front Suspension	1320
	Tire No.	10	Rear Suspension	2360
	Tire Specification	11.00R20	Approach Angle	13
	Axle No.	3	Departure Angle	12
Special Function	Water tank	20000L
Special Function	Tank parameter	1. Tank Thickness 5/5/3.5mm, Carbon Steel 2.Nozzle Sprinkling Width ≥14m 3.Range of water cannon ≥28m
Standard configuration	Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder.
Selective configuration	stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights
Extended model	water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc.

Multifuction Street Washing Water Irrigation Truck Tanker (18T-20T Stainless Steel/Aluminum Alloy SUZU Water Tank Truck)
