ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

Quantity:
  • Shanghai, China
  • 3000
  • T/T
  • Bulk Cement Tank Container
  • New
  • 6058*2438*2591mm, 12192*;2438*2438/2591
  • DRAU
  • Road
  • ISO Tank
  • China
  • 8609009000
  • Storage Pressure Vessel
  • Bulk Cement
  • Carbon Steel
  • 0.1MPa≤p<1.6MPa
  • Flammable/Toxic
  • Low Pressure (0.1MPa≤p<1.6MPa)

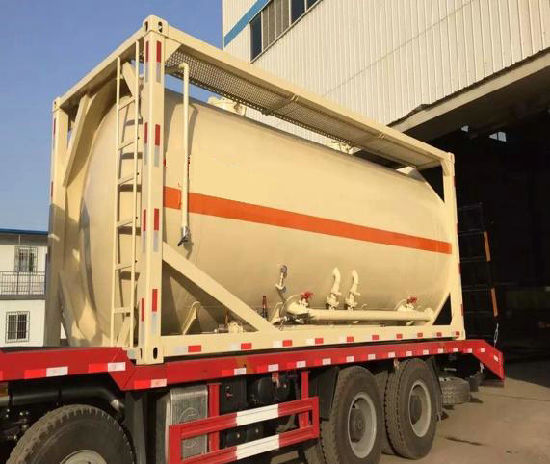

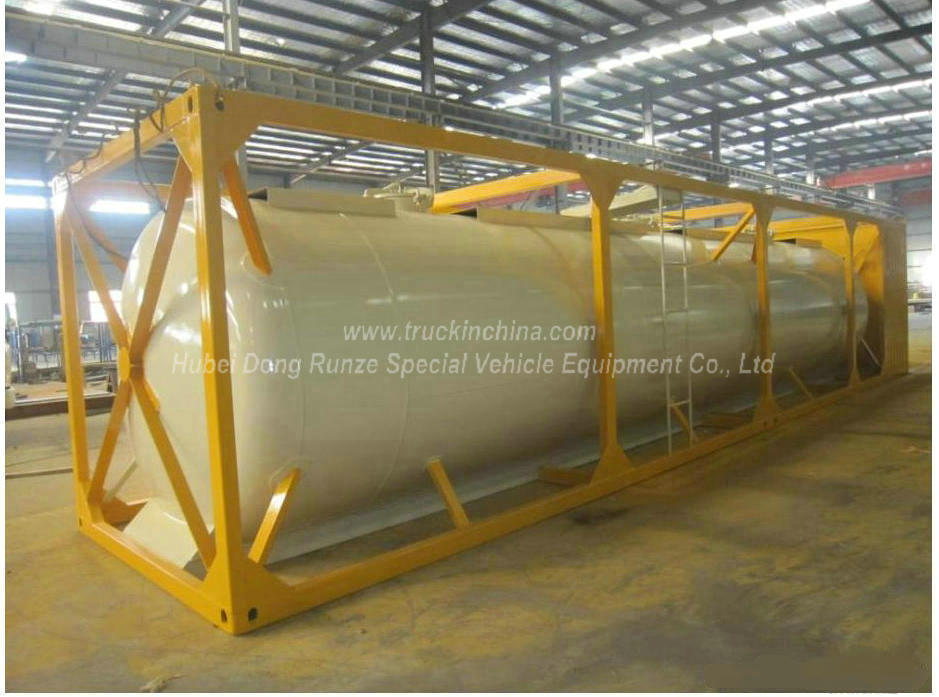

ISO Bulk Cement Tank Container 20FT 20000L

Custermizing
material: steel container

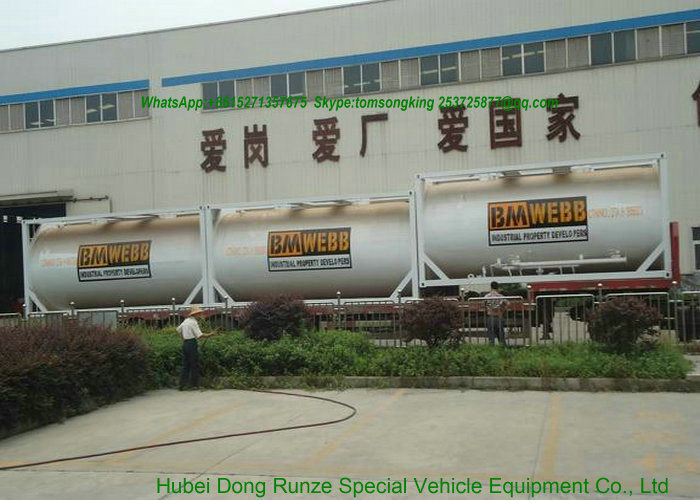

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

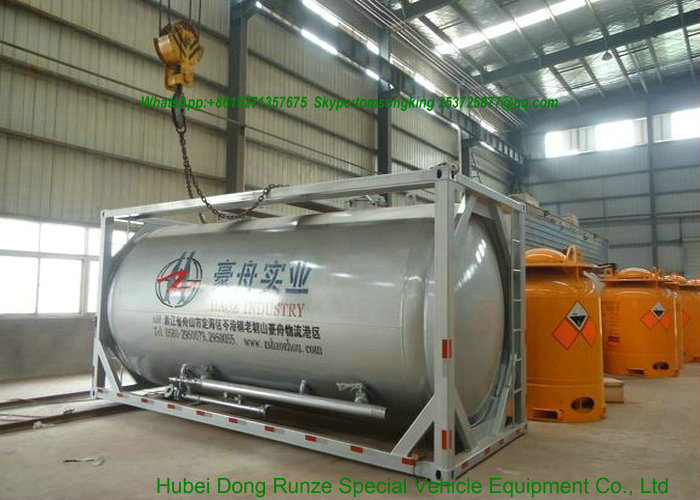

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

Type: powder particle structure: closed container

Load: 30 tons container volume: 20000L

Internal dimensions: 2380*5900 model: 20 feet

External dimension: 6058*2438*2591 volume: 20000L

Total weight: 36000KG box size: 6058*2438*2591

Case type: 20 feet dead weight: 5000KG



Cell +8615271357675

The pictures are for your reference only.

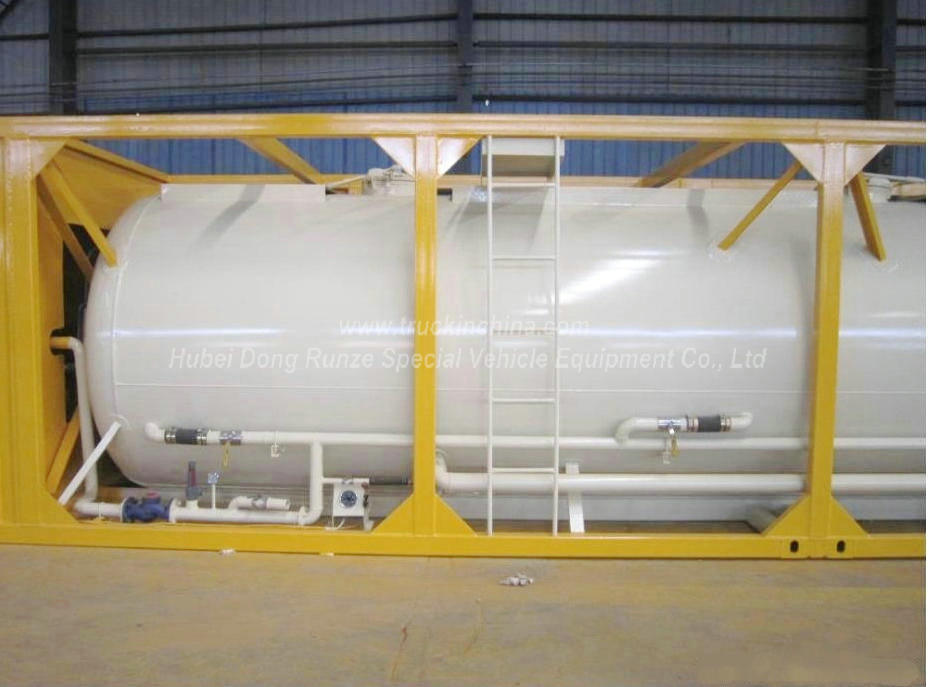

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

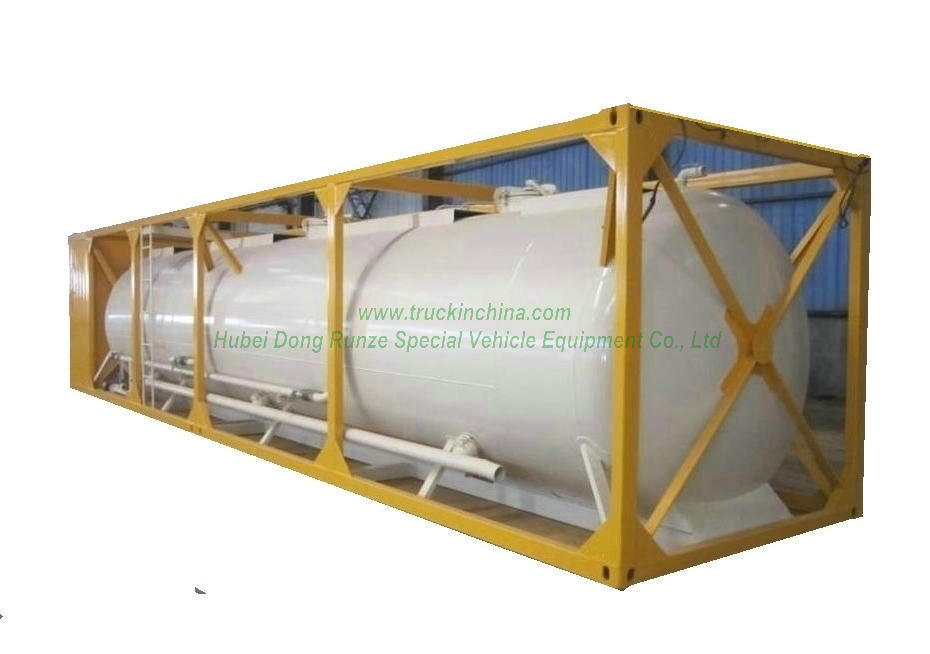

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

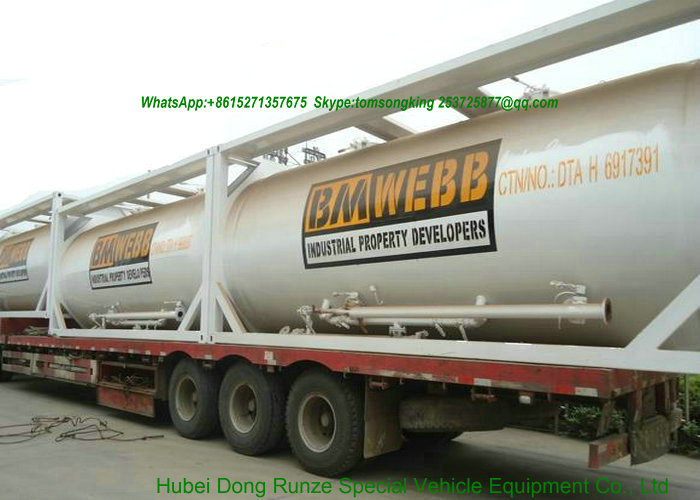

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

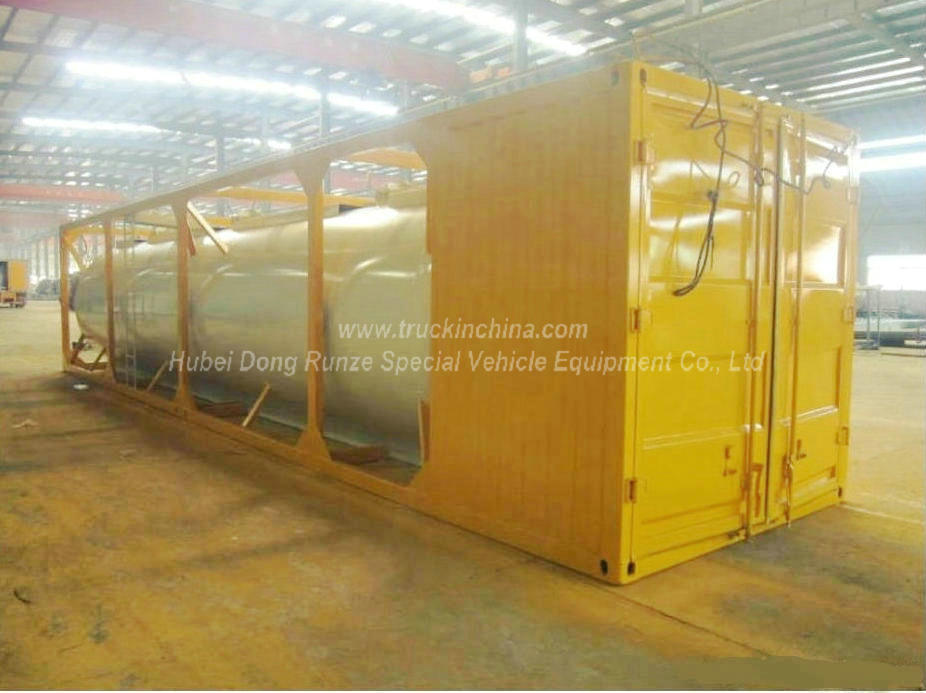

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)




ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)
ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

The specification as below:
Bulk cement tank container: tank internal design concept: the use of domestic advanced production technology, innovative design, strong and durable. Air bag type bearing capacity, unloading speed, small residual. Integrated synthesis of the tank with high overall strength, good rigidity, good pressure, good performance and so on. The fluidized bed in the tank is designed scientifically and arranged reasonably, which can effectively shorten the discharging time, up to 1.4t /min, improve the volume utilization rate of the tank, reduce the ash remaining rate, and the ash remaining rate is 0.2%. The tank body of bulk cement carrier adopts double cone internal tilting horizontal structure, double pipe inlet and double cylinder feeding, and its discharging speed and surplus rate all meet the requirements of industry standards.
Dong Run Ze 20feet tank container Unit DRAU
Ext. Length mm 6058
Ext. Width mm 2438
Ext. Height mm 2591
M.G.W kg 30,480
Tare kg 4,950
Max. Payload kg 25,530
Cubic Capacity 20;22.5
Stacking Unit high 5
Air Source Pressure Mpa 0.25
Air Supply m³/min 20
Air Inlet Dia. mm 50
Cargo Inlet Dia. mm 450
Cargo Outlet Dia. mm 150
Loading Temp. °C <80
Ave. Speed of Discharging (pump into silo in 30m far and 30m high) t/min 2.0-2.5
Residual Ratio ≤3
Standard Fittings:

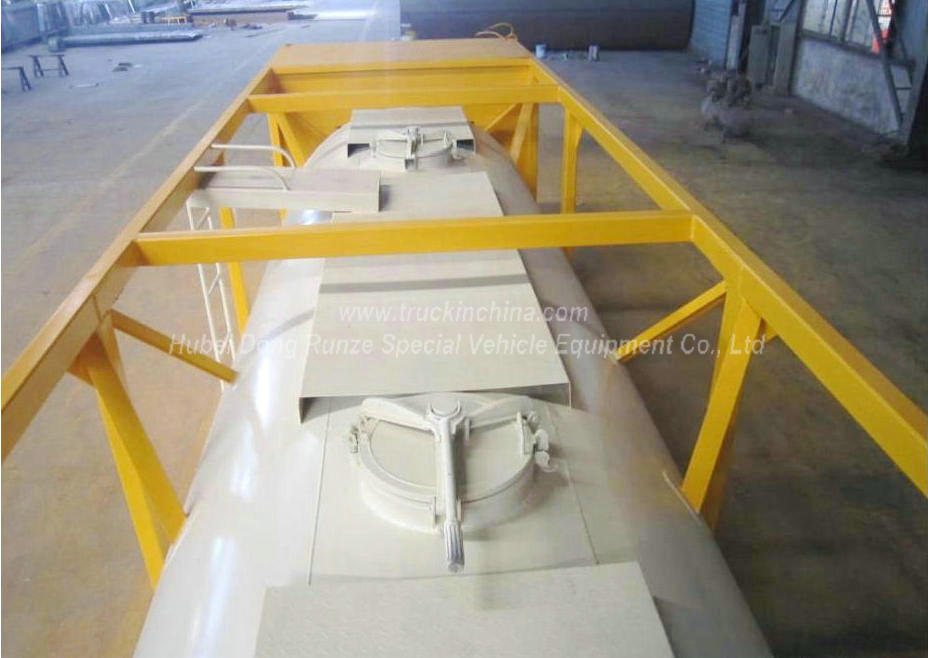

Manlid 500mm (20") diameter, 6 point fixing, 14mm x 12mm seal, located centre.
Air-inlet diameter 100mm cam lock type joint.
Outlet diameter 4" male adaptor.
Average speed of discharge (conveying cement to the place 30m high, 30m far) Cement: 1.0~1.5 t/min.
Remnant Ratio % cement: ≤0.3 (Cement: Not more than 100kg).
Gaskets & Seals Parts in contact with cargo, PTFE/Teflon.
Pipe System The dry compressed airflow via 100 mm cam-lock type joint enters into a main pipe with a 2.5" one-way valve, a 2" safety valve, 1/2"safety valve and a pressure gauge, then goes into two air cavities at each side of the inside of the tank through two branch pipes which separately connected to the tank and main pipe. Another airflow goes through a 1" ball valve and a 1" one-way valve into the unloading pipe in order to speed up unloading cement. The diameter of maim pipe is 76mm and the branch pipe is 57mm.

Unloading pipe
4" steel pipe. One discharge butterfly valve and one 4" male adaptor are fixed on the discharge pipe.
Data Plate / Markings Stainless steel data plate detailing specifications fitted rear end.
Frame Frame is composed of front and rear end frames, top and bottom. Each end frame is constructed by two (2) corner posts, top and bottom end rails, and
four (4) thick diagonal corner plates.
side rails, two (2) barrel supports, two (2) saddle s, eight (8) corner fittings.
Walkway 400MM-wide non-slip steel. One longitudinal walkway and three short transverse walkways at the front and rear




External dimensions: 6058mm * 2438mm * 2591mm

For Hydrochloric acid 5% Hydrochloric acid 20% Hydrochloric acid 35% Hydrocyanic acid Hydrofluoric acid Hydrofluoric acid 4% Hydrofluoric acid 48% Hydrogen peroxide 3% Hydrogen peroxide 30%
Isobutyl alcohol Phosphoric acid 10%

Phosphoric acid 85% Sodium hydroxide 50%
Sodium hypochlorite 15%
Sodium nitrate
Sodium sulphate
Sucrose
Sulphide
Sulfuric acid 6%
Sulfuric acid 20%
Sulfuric acid 60%
Sulfuric acid 98%
Chromic acid 10% Chromic acid 50%

Custermizing acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA
Custermizing Portable iso Tank Container tank container

Tank container main Technical Parameters
20FT tankcontainer 30FT tank container 40FT tank container
Overall dimension(mm) 6058×2438×2438/2591 9144×2438×2438/2591 12192×2438×2438/2591
Working temperature(ºC) -12C-50C


ISO Tank Container 20 FT For Hazardous Liquids

Road transport Tank Container

T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank;

Size : 20 feet
Length : +6.058- 6.06 m
Width : +2.438- 2.44 m
Height : 2.438/2.591- 2.60 m

Hydrochloric acid iso Tank

- See more at: http://www.truckinchina.com/20ft-Hydrochloric-acid-Tank-container-export-afirica-CIF-price-id583793.html#sthash.edNWhv9m.dpuf

Hydrochloric acid, Sodium hypochlorite Tank Containers 30ft


ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

ISOTANK List

The Main Technical Parameters of Tanks (ASME Standard)


Item

Loading Medium

Model

Capacity
(m3)

Design
Pressure
(Mpa)

Design
Temperature
(c)

Tank Material

Nominal Tank
Thickness (mm)

Insulation

Tare weight
(Kg)

Max. Gross Weight
(Kg)

Dimension
(LX WX H)(mm)

Loading Method

1

R134a

T50

24

1.38

-40 /+55

SA-612N

11

Sunshade

6400

34000

6058 X 2438 X2591

Down load unload

2

R22

22

2.1

-40/+50

18

8800

3

R143a

22

2.42

20

9500

4

R125

22

2.75

21

9500

5

R32

20

3.44

25

10900

6

AHF

T19

21

1.0

-40/+55

SA516M NGr.485

12

No

6900

Up load unload

7

Trichlorosilan

T14

21

0.5

-40/+50

Q345R
(16MnR)

12

No

6780

34000

6058 X 2438 X2591

8

Liquid Chlorine

T50

20

1.7

-40/+50

16

8300

9

21.72

1.62

16

8900

10

Liquid
Ammonia

T50

21.6

2.2

-40/+50

06Cr19Ni10

22

Packing Insulation

11970

11

SO2

T20

21

1.03

40 /+60

16MnDR

12

No

6900

12

Cryogenic Liquid

T75

19.8,20

0.75-2.35

-196/+50

Inner Tank: 06Cr19Ni10
Outside Tank:Q345R

Vacuum With Mutli-wrapped

8600/12880

Down load unload

The Main Technical Parameters of Tanks (China Standard)


Item

Loading Medium

Model

Capacity
(m3)

Design
Pressure
(Mpa)

Design
Temperature
(c)

Tank Material

Nominal Tank
Thickness (mm)

Insulation

Tare weight
(Kg)

Max. Gross Weight
(Kg)

Dimension
(LX WX H)(mm)

Loading Method

1

R134a

T50

24

1.38

-40 /55

Q345 (16MnR)

12

Sunshade

6500

34000

6058 X 2438 X2591

Down load unload

2

R22

20

2.1

-40/+50

16

7850

3

24

18

9100

4

R125

22

2.75

22

9900

5

R32

22

3.44

28

12000

6

23.7

-40 /55

12700

20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K
Mob :008615271357675

1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5. certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA

Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers

Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers

Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers

Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers

Food Products Iso Containers, Stainless Steel Iso Tank Containers

Solvents Iso Containers, Stainless Steel Iso Tank Containers

Oils Iso Containers, Stainless Steel Iso Tank Containers

Resins Iso Containers, Stainless Steel Iso Tank Containers

Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers

Mo 1 Iso Containers, Stainless Steel Iso Tank Containers

Imo Iso Containers, Stainless Steel Iso Tank Containers

Imo 5 Iso Containers, Stainless Steel Iso Tank Containers

Imo 7 Iso Containers, Stainless Steel Iso Tank Containers

Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers

Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers

Iso Containers, Stainless Steel Iso Tank Containers Hazardous.

Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.

Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers

Vertical Iso Containers, Stainless Steel Iso Tank Containers

The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.

There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.

T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol

ISO Tank - IMO 1
ISO Tank - IMO 2
ISO Tank - IMO5
ISO Tank - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank - Bitumen tank containers 21,000 litres
ISO Tank - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of:
ISO Tank - Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 2
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of:
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating
ISO Tank - Cooling by Glycol
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 0
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12000 - 26500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of
ISO Tank - Wine
ISO Tank - Fruit Juices
ISO Tank - Vegetable Oils
ISO Tank - Mineral Oils
ISO Tank - Non-hazardous Oils
ISO Tank - Available in 20 foot / 6 metres
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 5
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 15,000 - 25,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of gases, including:
ISO Tank - Propane
ISO Tank - Butane
ISO Tank - Refrigerants
ISO Tank - Available in 20, 30 or 40 foot sizes
ISO Tank - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation. (Contact Details above)IMO 7
ISO Tank - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank - Capacity of 20,000 - 24,000 litres nominal
ISO Tank - MAWP of 8 bar
ISO Tank - For transport of cryogenic gases, including:
ISO Tank - LNG
ISO Tank - Available in 10, 20, 30 or 40 foot sizes
ISO Tank - Cooling by glycolPlease contact us if you require further information and/or a quotation. (Contact Details above)
Bitumen Tank Containers
ISO Tank - Shell made from Carbon Steel
ISO Tank - Capacity of 20,000-25,000 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 20 or 30 foot sizes
ISO Tank - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation. (Contact Details above)
Cement Containers
ISO Tank - Capacity of 17.5 - 25 cubic metres
ISO Tank - Pressure dischargeOffshore
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 2,000 - 10,000 litres
ISO Tank - MAWP of 5 bar
ISO Tank - For transport of gases, including:
ISO Tank - Hazardous chemicals
ISO Tank - Acid
ISO Tank - Petroleum
ISO Tank - Available in 8 x 8 x 10 sizes
ISO Tank - Heated by steam or electric (optional)


The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.

Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.

ISO Tank, ISO Tank Containers

Manufacturers & Exporters

ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.

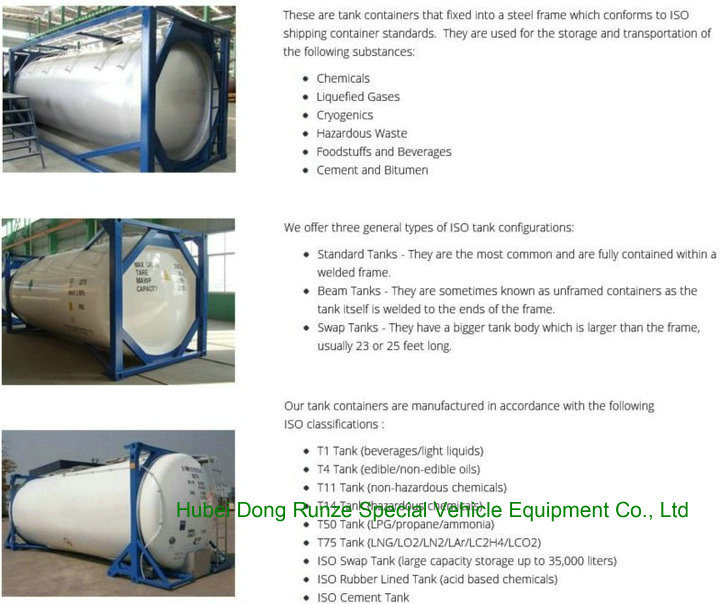

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)

The bulk liquids that can be transported in an ISO tank include :

Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long

Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products

ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported

ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases

Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders

T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)

T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)

T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers

T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers

T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers

SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers

Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers

PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.

Hazardous chemicals

Acid

Petroleum

ISO Tank

ISO 40' LNG Tank Container

Bitumen tank container

ISO 20' Tank Container

IMO 1
Shell made from 316 Stainless Steel
Capacity of 12,000 - 26,500 litres nominal
MAWP of 4 bar
For transport of: Hazardous liquids
Available in 7.65, 10, 20, or 30 foot sizes
Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
Heating by steam or electric heating (optional)

IMO 0
Shell made from 316 Stainless Steel
Capacity of 12000 - 26500 litres nominal
MAWP of 4 bar
For transport of
Wine
Fruit Juices
Vegetable Oils
Mineral Oils
Non-hazardous Oils
Available in 20 foot / 6 metres
Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
Heating by steam or electric heating (optional)


IMO 2
Shell made from 316 Stainless Steel
Capacity of 12,000 - 26,500 litres nominal
MAWP of 1.75 bar
For transport of:Low Hazardous liquids
Available in 7.65, 10, 20, or 30 foot sizes
Swap-bodies 7.65m and 7.82 (30,000-35,000 L)
Heating by steam or electric heating

Bitumen Tank Containers
Shell made from Carbon Steel
Capacity of 20,000-25,000 litres nominal
MAWP of 1.75 bar
Low Hazardous liquids
Available in 20 or 30 foot sizes
Heating by direct flame, hot oil or electric heating

Cement Containers
Capacity of 17.5 - 25 cubic metres
Pressure discharge
Road transport tank container
T4,T6,T7,T8,T9, T10,T11,T14,T50 portable tank;

PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.

IMO 5
Shell made from 316 Stainless Steel
Capacity of 15,000 - 25,500 litres nominal
MAWP of 1.75 bar
For transport of gases, including:
Propane
Butane
Refrigerants
Available in 20, 30 or 40 foot sizes
IMO 7
Shell made from 316 Stainless Steel or Carbon Steel
Capacity of 20,000 - 24,000 litres nominal
MAWP of 8 bar
For transport of cryogenic gases, including:
LNG
Available in 10, 20, 30 or 40 foot sizes
Offshore
Shell made from 316 Stainless Steel
Capacity of 2,000 - 10,000 litres
MAWP of 5 bar
For transport of gases, including:
Hazardous chemicals
Acid
Petroleum
Available in 8 x 8 x 10 sizes

Highly Hazardous UN Portable ISO Tank Containers 14,600 - 24,000 Liters

Highly Hazardous UN Portable ISO Tank Containers
IMO 1, T11 / T14 / T20 / T22 UN portable tank container (14,600 - 24,000 liters

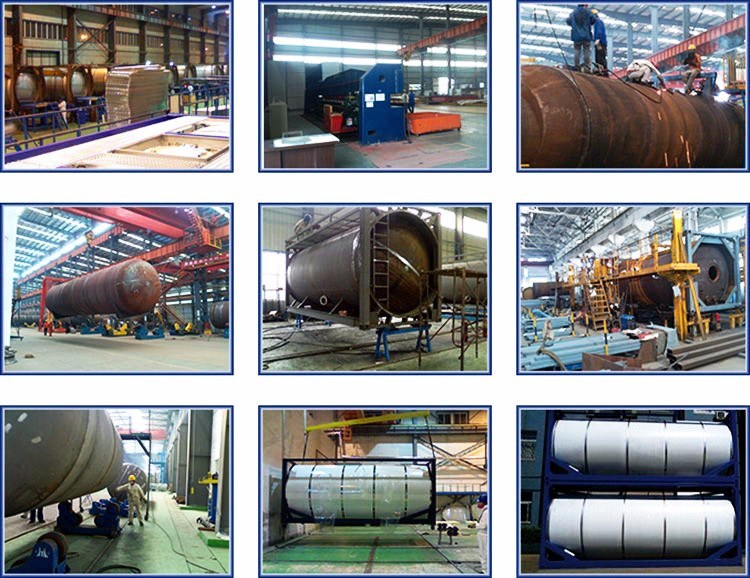

ISO Bulk Cement Tank Container 20FT (20000L) , 40FT (40000Liters)


Cell :+8615271357675

Related Products

SUCCESS CASES

More >>

Contact Us

EMAIL:Sale@tictrucks.com
TEL: 86-152-71357675
 WeiChat:king253725877
truck in china weichat made in china truck
 Add:Wuhan Office 1: No.1 Taizong Avenue Gaoqiao Industry Park Taiwanese  Investment Area Dongxihu District Wuhan City, Hubei Province, P.R China
Address CRRC Factory : No. 8 Jiliangdadao,Zengdu Economic Development Zone,Suizhou City, Hubei Province, P.R China P.O. Box 441300
Address Yuchai DTA Truck Factory : No. 121, Liangshui 1St Road, Zengdu Economic Development Zone Suizhou City, P.R. China  P.O. Box 441300  .......

Hubei Dong Runze Special Vehicle Equipment Co., Ltd. All rights reserved. 2009-2020 XML webmail
