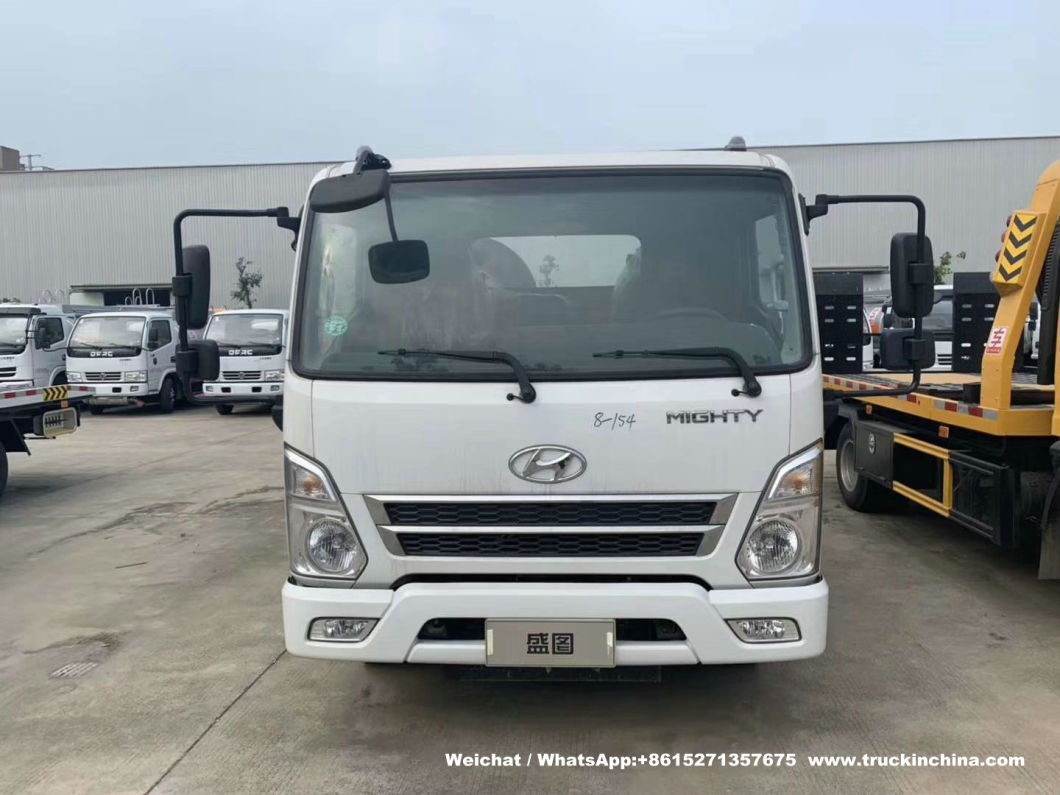

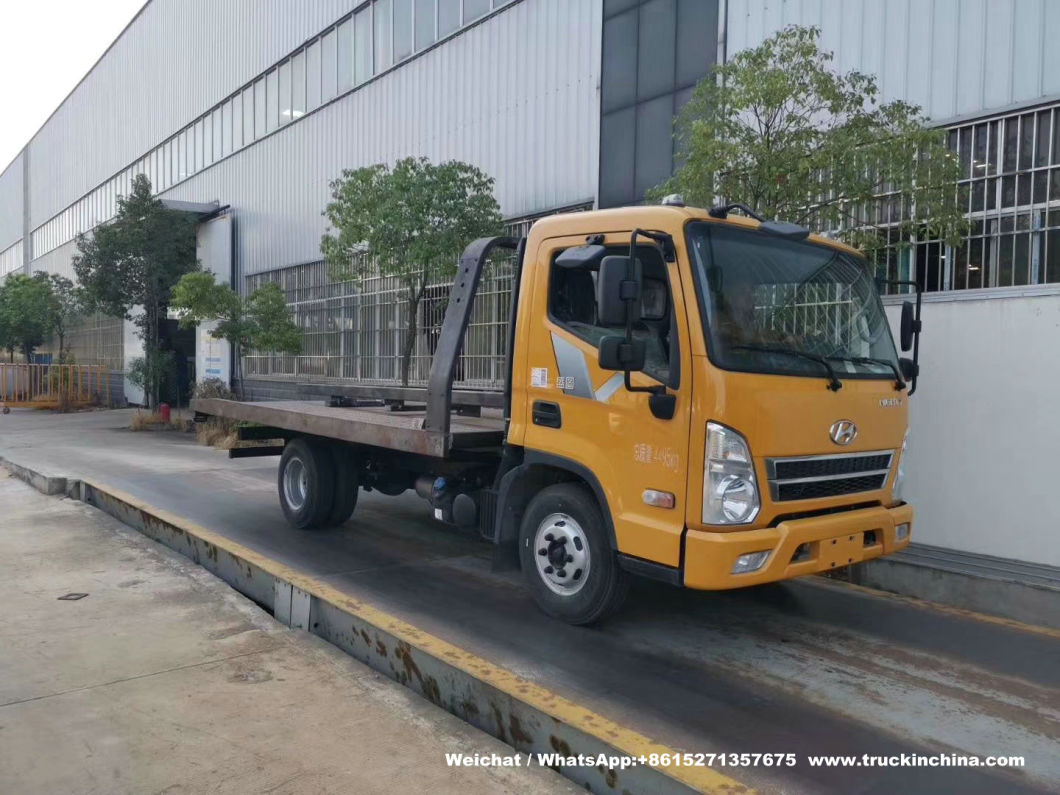

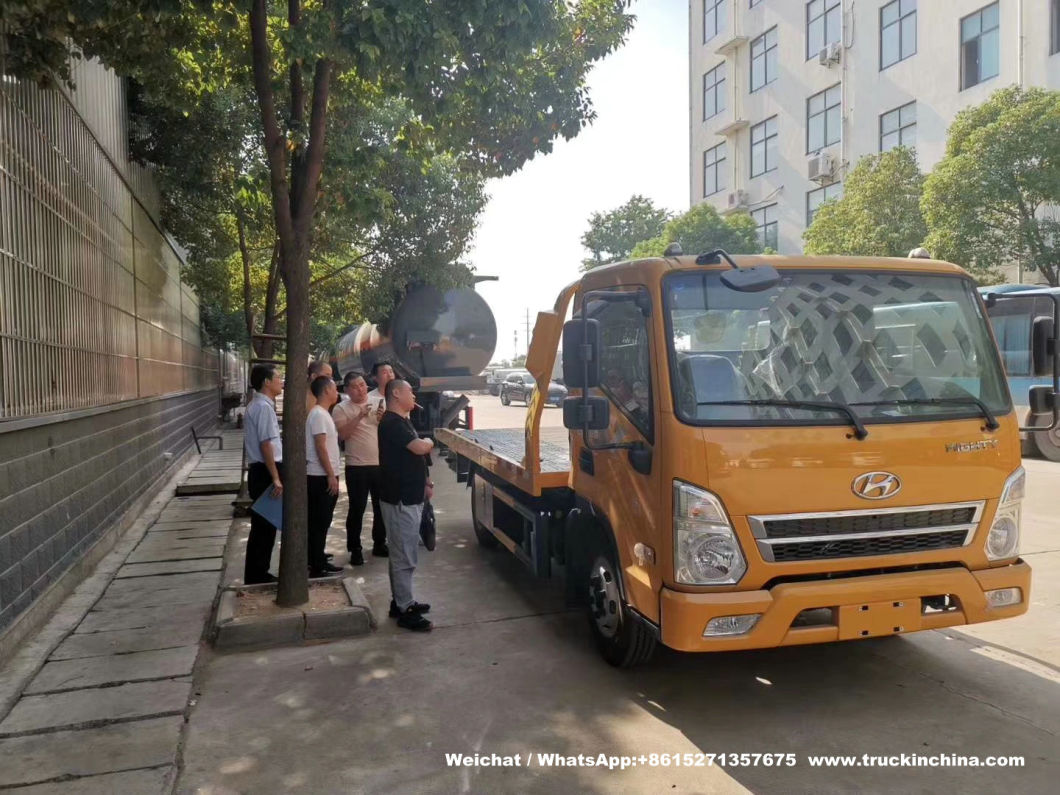

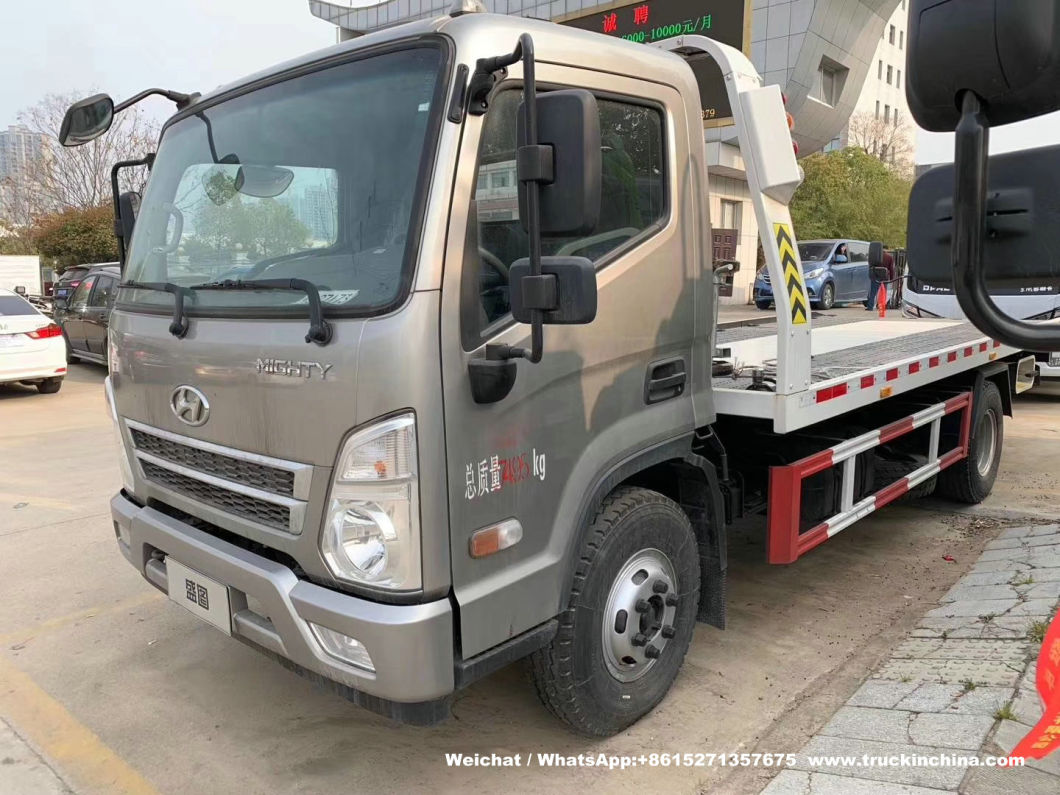

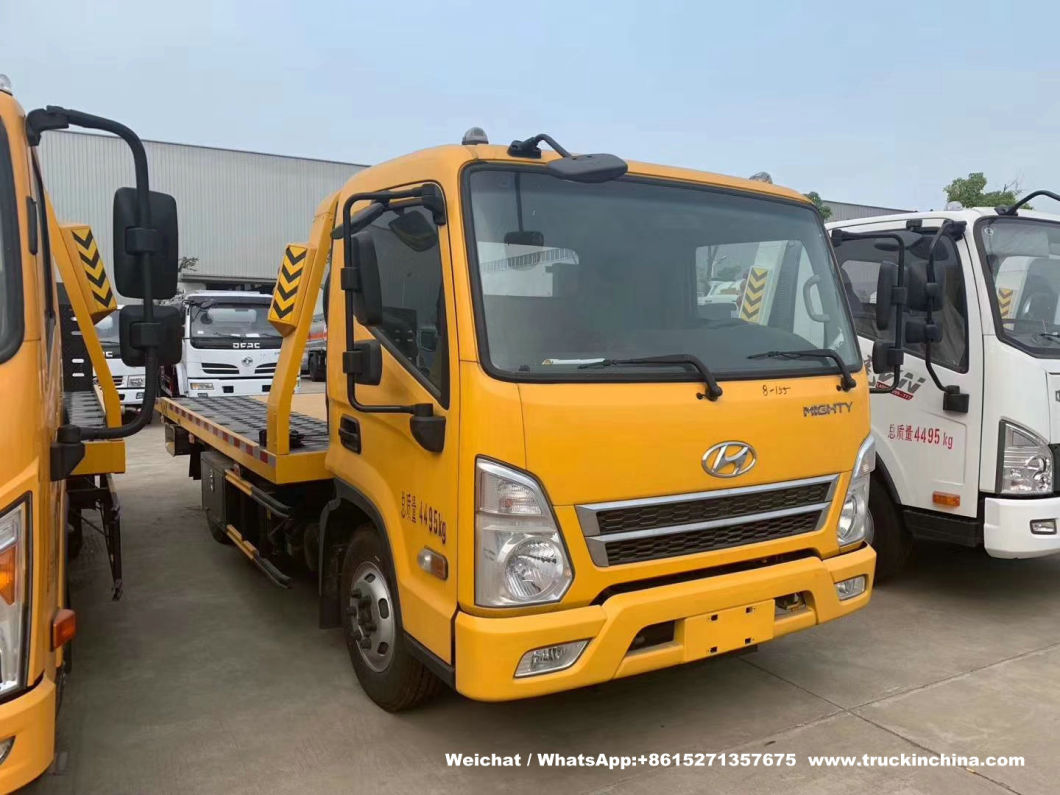

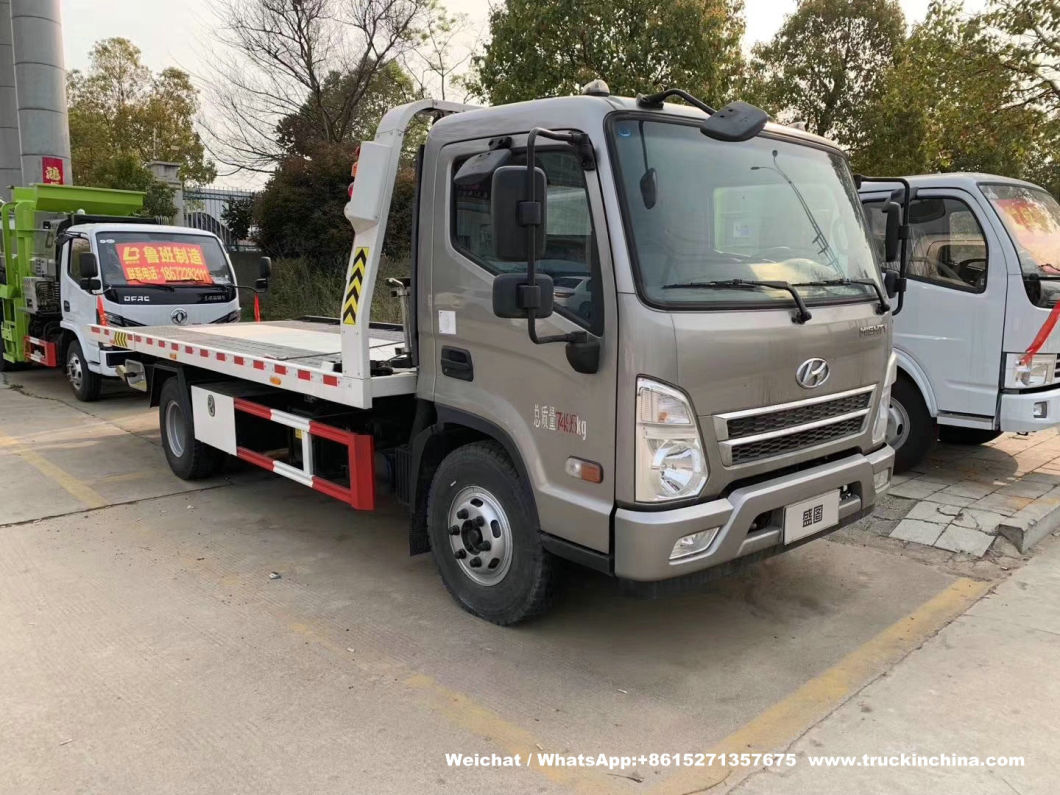

Hyundai 6t Flatbed Car Carrier Road Recovery Tow Truck (4 ton winch 5m Tilt Deck Tray Light Duty Wrecker)
Hyundai 6t Flatbed Car Carrier Road Recovery Tow Truck (4 ton winch 5m Tilt Deck Tray Light Duty Wrecker)
| Quantity: | |
|---|---|
-
Shanghai, China
-
1000
-
T/T
Wrecker Truck Mounted with Crane For Road Recovery Sevice Tow 5 Ton
Ask for better price Products Show:
Hyundai Light Duty Flatbed Road Recovery Tow Truck Wrecker for Sale
Cummins engine
Products details
| Specification of wrecker | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | wrecker | Overall Dimension (mm) | 7475×2300×2580 |
| Truck Brand | Gross / Curb Weight (kg) | 7495/5360 | |
| Truck Model | DRZ5070TQZPXD | Rated Loading Weight(kg) | |
| Cab | Cab Capacity | 3 | |
| Approach / Departure Angle (°) | 23/11 | Front / Rear Overhang (mm) | 1125/2500 |
| Front / Rear Axle Load (kg) | 2840/4655 | Wheelbase (mm) | 3850 |
| Number of Axles | 2 | Max. Speed (km/h) | 110 |
| Quantity of Tyre | 6 | Tyre Model | 7.50R16 16PR,8.25R16 16PR,7.50R16 14PR,8.25R16 14PR |
| Front Wheel Tread (mm) | 1700,1720,1745 | Rear Wheel Tread (mm) | 1630 |
| Leaf Spring | 6/6+4,8/8+4,4/8+4 | Traction System | steering wheel |
| Chassis | |||
| Chassis Brand | Hyundai | Chassis Model | CHM1070GDC38V |
| Type of Fuel | diesel | Emission Standard | euro 3 |
| Engine (Motor) | |||
| Model | Displacement (ml) | Max. Power (KW/hp) | Brand |
| ISF3.8s5154 | 3760 | 115/156 | Cummins |
| Truck Body | |||
| Tank Capacity (L) | Tank Material | ||
Painting | Optional | ||
New Sinotruk howo 3ton, 5ton flatbed wrecker truck, road wrecker

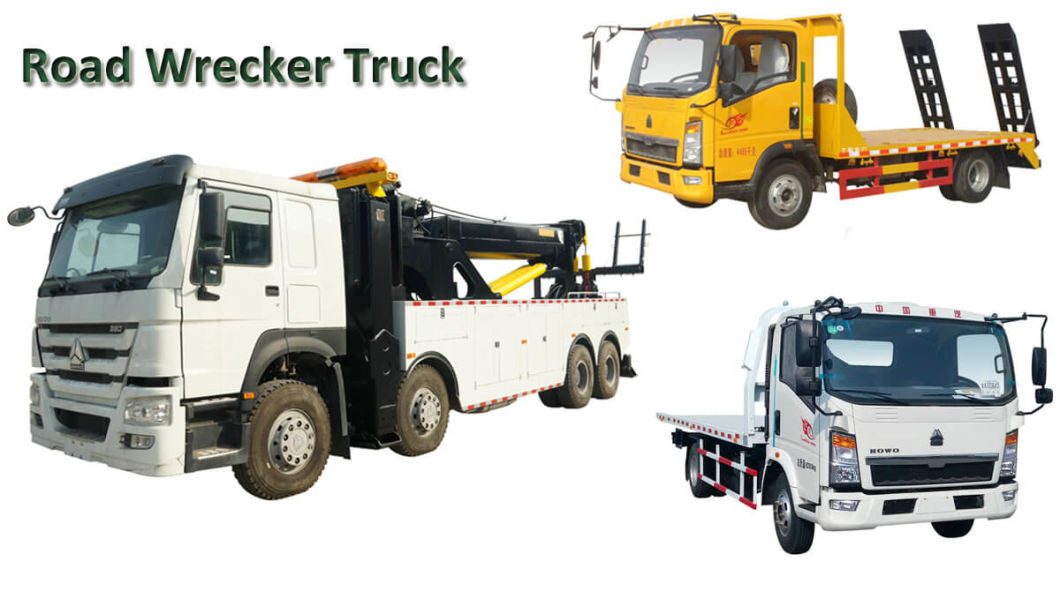

1. Road Wrecker,towing truck, Road-block removal truck, which is used for dealing with the cars and trucks in accident. Currently there are tow mainly design for wrecker trucks, flat bed model and towing model.

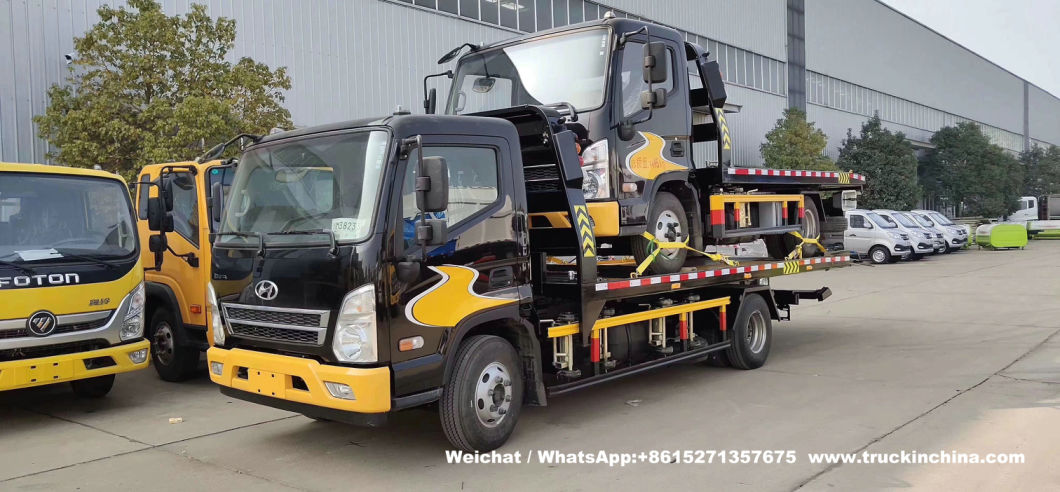

2. flat bed model is mainly designed for cars, which could transport two units cars, with the weight design 5 tons around.
2. flat bed model is mainly designed for cars, which could transport two units cars, with the weight design 5 tons around.
3. Towing model is mainly designed for deal with heavy duty vehicles, with the weight above 10 tonne.
The pictures are for your reference only.
Technical parameter
A OVERVIEW
| |||
| Product name | slide tray truck | Product brand | DRZ |
| Conditon | New | Color | white gray |
| Overall size | 5995X2310X2430(mm) | Flatbed size | 5200*2300(mm) |
| total mass | 7000(kg) | Curb quality | 4500(kg) |
| Cab | 2 seats | ABS | with |
| Approximate angle / departure angle | 23/15 (°) | Front suspension / rear suspension | 1125/2500 (mm) |
| Axle load | 2300/4000(kg) | Wheelbase | 3850,3300(mm) |
| Number of axes | 2 | Maximum speed | 90 (km / h) |
| Number of springs | 6/6+4,8/8+4 | Drive type | 4*2 LHD |
| Number of tires | 6+1 | Tire specifications | 7.00R16 |
| Front /Rear track | 1700/1630mm) | Brake | Oil brake ,Air brake |
B CHASSIS
| |||
| FUEL TYPE | Diesel | Emission Standard | EURO 5 |
| Engine Model | Displacement (ml) | Power (hp) | Engine brand |
| ISF2.8 | 3760 | 129 | CUMMINS |
C BODY OF THE VEHICLE
| |||
| 1.FLATEBED SIZE: 6TON MIAN TRAY 7300*2480MM ,3 TON TOP TRAY4600*2350MM CUSTOMIZED SIZE IS AVAILABLE | |||
| 2.REMOTE CONTROL FUNCTION TO OPERATE | |||
| 3.The vehicle with a 6 ton hydraulic winch, 25 meters of wire rope, one set of lights megaphone, band 8, a tractor, a toolbox, 6 tons after trailing arm type L tire holding a pair of frame. | |||
