Howo Sino 20CBM Sewage Suction Truck
| Quantity: | |
|---|---|
sewage tank sewage tanker Cesspool Emptying Truck
Sinotruk HOWO 15000 liters sewage suction tank truck
| Technical Parameters | |||
| Total Mass(kg) | 25000 | Curb Weight(Kg) | 11870 |
| Rated Quality(kg) | 13000 | Chassis Model | ZZ125 |
| Approach/ Departure Angle | 165 | Front /Rear Overhang | 1500/2650 |
| Dimensions(mm) | 10100*2490*3850 | compression volume | 20CBM |
| Number of axes | 3 | Maximum speed(km/h) | 90 |
| Tire Specifications | 11,00-20,12.00-20 | Number of Tires | 10 |
| Front track(mm) | 2022 | Rear track(mm) | 1830/1830 |
| Wheelbase(mm) | 4600+1350 | Number of spring | 10/12 |
| Emission standards | Euro 3 | Type of fuel | Diesel |
| Engine Parameters | |||
| Engine Model | WD615.95 | Engine Manufacturer | China national heavy duty truck group co., LTD |
| Engine displacement | 9726ml | Engine Power | 247(KW) |
| Brief Description | 1.Volume:20CBM tank by 5-6mm special plateto make | ||
| 2.Equipped with high-power vacuum suction sewage pump.single pump/double pump（out and in） | |||

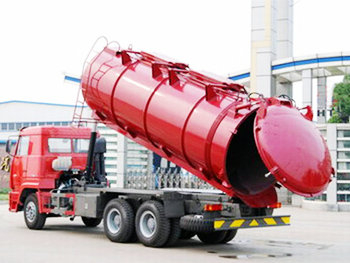

| 3.Tanker with lifting founction,with double hydraulic cylinder,rear cover can hydraulic open,with self-flowing valve. | |||
| Vacuum tanker | |
| Material | Q235, 6、8mm optional Aluminum / midd Steel Stainless Steel Vaccum |
| Capacity(L) | 4000~12000L |
| Tank dimensions(mm) | 6600*1850*1850 |
| Vacuum pump | |
| Model | Dual 50QZXDG-45/400 |
| flux(L/S) | 45 |
| Min pressure | 400 P |
| 15000 liters sewage suction tank truck（6x4 drive type,266hp） | |||
| Emission Standard | EUR 2 | ||
| Driving Type | 6×4 | ||
| Sewage tank volume (L) | 15000 liters | ||
| Dimensions | |||
| Wheelbase(mm) | 4325+1350 | ||
| Overall Dimension(mm) | 8400×2480×3460 | ||
| Weight parameters | |||
| GVW(kg) | 25000 | ||
| Rated Payload (kg) | 13350 | ||
| Curb weight(kg) | 11650 | ||
| Front axle load(T) | 7 Ton front axle load capacity | ||
| Rear axle load(T) | Styre 16x2 Ton rear axle load capacity | ||
| Front axle span(mm) | 1939 | ||
| Rear axle span(mm) | 1800/1800 | ||
| Front/rear overhang(mm) | 1560/2133 | ||
| Max speed(km/h) | 90 | ||
| Engine performance | |||
| Engine model | WD615 series | ||
| Engine manufacture | CNHTC | ||
| Engine type | Straight in-line,6 cylinders,water-cooling,direct injection With exhaust braking Charge inter-cooling(after-cooling) | ||
| Displacement(L | 9.726L | ||
| Max. output(kw/Hp) | 196kw/266hp | ||
| Drive line system | |||
| Clutch | GF420J styre technology, Dry-type single shock spring clutch | ||
| Transmission | 9 forwarder,1 reverse gear, Mechanical control, manual operation | ||
| Spring suspension type—Leaf spring mechanical suspension | |||
| No. of leaf of spring | 6/10/12+1 | ||
| Brake system | |||
| Service braking | Pneumatic braking system | ||
| Parking braking | Spring brake, acting on the front and rear axle, emergency braking | ||
| Cab description | |||
| Crew cut, one and half cab,3 passengers allowed, air-conditioner, the cab can be tippable Forwardly, all metal enclosed cab. | |||
| Tire specification | |||
| Tire specification | 11.00-20,total 10 tires | ||
| Sewage suction tanker system description | |||
| Suction pump | Vacuum sewage suction pump | ||
| Vacuum degree (kpa) | 90Kpa | ||
| Pump type | vacuum pump model:50QZXDG-30/40 | ||
| Rated speed (R/min) | 500r/min | ||
| Pump speed (L/s) | 318m3/h | ||
| Suction range (m) | »8m | ||
| Lift angle of tank (°) | 30° | ||
| Tank material | Q235A | ||
| Full suction time (m) | About 6 minutes | ||
| Absolute working pressure (Mpa) | 10Mpa | ||
| Inlet /outlet hole diameter (mm) | DN100 | ||
