Hot Diesel Burner Heaed Bitumen Tanker Trailer Withtri-Axle
| Quantity: | |
|---|---|
- 1000
- T/T, Western Union
- OTC / Frt / Roro Ship

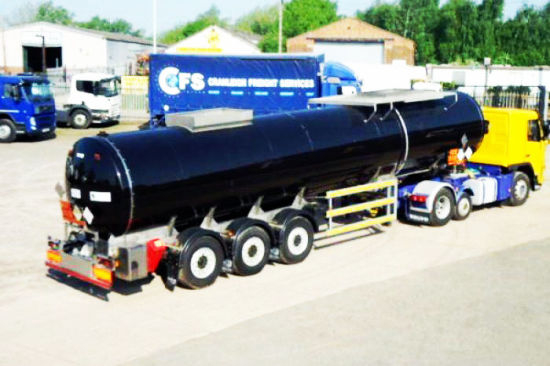

45T bitumen tank for sale Tri-axle bitumen tanker trailer
Hot Bitumen Carrier Tanker Modified Bitumen tanker semi trailer factory sale Call:86-15271357675 Asphalt tank equipped with heating system, diesel oil burner,diesel generator
Tyre Specifications | 12R22.5 |
No. Of the Tyres | 12 pcs ISO Certificated |
Axle | 13Tonnage |
No. Of the Axles | 3 pcs |
Landing Gear | 28 ton capacity Fuwa with static capacity of 80T |
Suspension | Heavy duty mechanic suspension with 10 pcs leaf spring |
King Pin | 2' and 3.5' interchangable traction pin |
Departure Angle | 15 |
Front/Rear Overhang | 1900 mm |
Material of the Main Beam | Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded |
Brake System | Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber. |
Colour | As the buyers' request |
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher |
Tanker side thickness | 6mm carbon steel |
Net Weight | 12 T |
Oil tanker | 1000 liters Round Shape |
Spare tire carrier | 1 set |
Electrical System | 24V, 7core socket, lights according to European standards. |
Tool Box | 1 box of standard tools |
Heat Preservation System | Electrical or Diesel |
Total Weight (T) | 31 | 45 | 50 |
Asphalt Tank Capacity (m3) | 20~26 | 30,~35~45 | 40~45~50 |
Asphalt Tank Rated Load (T) | |||
Asphalt Heating Mode | Diesel Oil Burner | Diesel Oil Burner | Diesel Oil Burner |
Burner Thermal Capacitykcal/h | 14×104 | 26×104 | 2×18×104 |
Heat-Pereservation Capability/h | Average Temp. Fall ≤1 | Average Temp. Fall ≤1 | Average Temp. Fall ≤1 |
Overall Dimensions (L×W×H)m | 11.53×2.5×3.8 | 12.4×2.5×3.7 | 12.7×2.5×3.8 |
