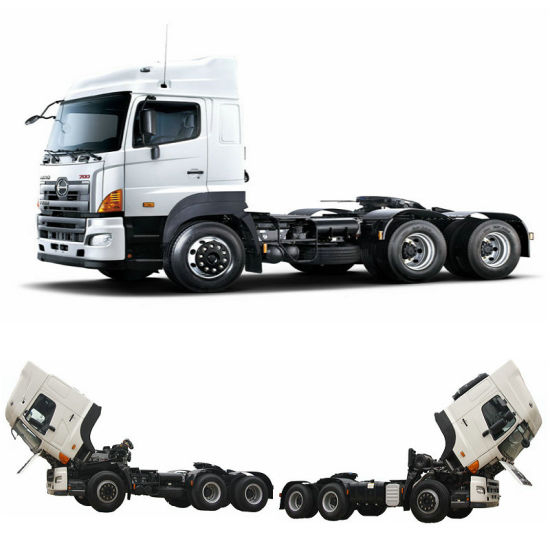

Hino 700 Tractor Head Truck 6X4 E13c-Tr -450HP; P11c-Ur-380HP; P11c-Uj-350HP

Quantity:
  • 10000
  • Nil
  • T/T, Western Union
  • 2538
  • 351-450hp
  • >8L
  • ISO
  • Tubeless
  • New
  • Hino Technology
  • 12js1600t,12-Speed, Zf16s221 -16
  • 9550,9400kg
  • 3150 + 1410;3400 + 1410
  • E13c-Tr -450HP; P11c-Ur-380HP;P11c-Uj-350HP
  • P11c-Vk 350HP/ P11c-Vl-380HP
  • 330,400, Aluminum,Steel
  • 11.00r20;295 / 80r22.5
  • 90,50
  • 6770X2495X3520
  • SHAC MAN
  • military standard.
  • China
  • 8701200000
  • Manual
  • Diesel
  • 41-50t
  • Euro 3
  • 6×4
  • 3

6*4 Emission Standards EURO 3 /4 tractor heard

Technique parameter: ( HINO Technology)


Product Categories Tractor
SS2P
Product Type SS2PKUA-LSW SS2PKUA-LSW SS2PKUA-LSW SS2PKUA-LUW SS2PKUA-MSW SS2PKUA-MSW
Configuration coding W1-RJ00 W1-RK00 W1-RM00 W1-RZ00 W1-SJ00 W1-SK00
Drive mode 6x4
Quasi-total mass of trailer (kg) 39470 39470 39470 39470 39470 39470
Maximum gross weight (kg) 25,000 25,000 25,000 25,000 25,000 25,000
Cab Standard Standard Standard High-top Standard Standard
Dimensions
(Length x width x height) (mm)
6770x2495x3030 6770x2495x3030 6770x2495x3030 6770x2495x3520 6770x2495x3030 6770x2495x3030
Wheelbase (mm) 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410
Front / rear track (mm) 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855
Front / rear overhang (mm) 1410/800 1410/800 1410/800 1410/800 1410/800 1410/800
Minimum ground clearance (mm) ≥200 ≥200 ≥200 ≥200 ≥200 ≥200
Minimum turning diameter (m) ≤17 ≤17 ≤17 ≤17 ≤17 ≤17
Curb weight (kg) 9400 9400 9400 9400 9400 9400
Maximum speed (km / h) 75,90,120 75,90,121 75,90,122 75,90,123 75,90,124 75,90,125
Engine Model P11C-UJ P11C-UJ P11C-UJ P11C-UJ P11C-UJ P11C-UJ
Rated Power (PS) kW / r / min (350) 259/2100 (350) 259/2100 (350) 259/2100 (350) 259/2100 (350) 259/2100 (350) 259/2100
Maximum torque Nm / r / min 1454/1100 1454/1100 1454/1100 1454/1100 1454/1100 1454/1100
Displacement L 10.52 10.52 10.52 10.52 10.52 10.52
Clutch Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430
Transmission RT11509C RT11509C RT11509C RT11509C DC12J150T DC12J150T
Front / rear axle THD17 THD17 THD17 THD17 THD17 THD17
Rear axle Save Ratio 4.875 5.285 5.285 5.285 5.285 4.555
Tire





Emission standards State III State III State III State III State III State III
Product Categories Tractor
SS2P
Product Type SS2PKUA-YSW SS2PKUA-YSW SS2PKUA-YSW SS2PKUA-MUW SS2PKUA-YUW SS2PKUA-YUW
Configuration coding W1-EW00 W1-FA00 W1-FL00 W1-SM00 W1-FM00 W1-FX00
Drive mode 6x4
Quasi-total mass of trailer (kg) 39470 39470 39470 39470 39470 39470
Maximum gross weight (kg) 25,000 25,000 25,000 25,000 25,000 25,000
Cab Standard Standard Standard High-top High-top High-top
Dimensions
(Length x width x height) (mm)
6770x2495x3030 6770x2495x3030 6770x2495x3030 6770x2495x3520 6770x2495x3520 6770x2495x3520
Wheelbase (mm) 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410
Front / rear track (mm) 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855
Front / rear overhang (mm) 1410/800 1410/800 1410/800 1410/800 1410/800 1410/800
Minimum ground clearance (mm) ≥200 ≥200 ≥200 ≥200 ≥200 ≥200
Minimum turning diameter (m) ≤17 ≤17 ≤17 ≤17 ≤17 ≤17
Curb weight (kg) 9400 9400 9400 9400 9400 9400
Maximum speed (km / h) 75,90,126 75,90,127 75,90,128 75,90,129 75,90,130 75,90,131
Engine Model P11C-UJ P11C-UJ P11C-UJ P11C-UJ P11C-UJ P11C-UJ
Rated Power (PS) kW / r / min (350) 259/2100 (350) 259/2100 (350) 259/2100 (350) 259/2100 (350) 259/2100 (350) 259/2100
Maximum torque Nm / r / min 1454/1100 1454/1100 1454/1100 1454/1100 1454/1100 1454/1100
Displacement L 10.52 10.52 10.52 10.52 10.52 10.52
Clutch Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430
Transmission 12JSD160TA 12JSD160TA 12JSD160TA DC12J150T 12JSD160TA 12JSD160TA
Front / rear axle THD17 THD17 THD17 THD17 THD17 THD17
Rear axle Save Ratio 3.9 3.9 3.9


Tire





Emission standards State III State III State III State III State III State III
Product Categories Tractor
SS2P
Product Type SS2PKUA-ASW SS2PKUA-ASW SS2PKUA-ASW SS2PKUA-ASW SS2PKUA-AUW SS2PKUA-AUW
Configuration coding W1-SE00 W1-SF00 W1-RL00 W1-SG00 W1-SH00 W1-SL00
Drive mode 6x4
Quasi-total mass of trailer (kg) 39470 39470 39470 39470 39470 39470
Maximum gross weight (kg) 25,000 25,000 25,000 25,000 25,000 25,000
Cab Standard Standard Standard Standard High-top High-top
Dimensions
(Length x width x height) (mm)
6770x2495x3030 6770x2495x3030 6770x2495x3030 6770x2495x3030 6770x2495x3520 6770x2495x3520
Wheelbase (mm) 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410 3150 + 1410
Front / rear track (mm) 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855
Front / rear overhang (mm) 1410/800 1410/800 1410/800 1410/800 1410/800 1410/800
Minimum ground clearance (mm) ≥200 ≥200 ≥200 ≥200 ≥200 ≥200
Minimum turning diameter (m) ≤17 ≤17 ≤17 ≤17 ≤17 ≤17
Curb weight (kg) 9400 9400 9400 9400 9400 9400
Maximum speed (km / h) 75,90,132 75,90,133 75,90,134 75,90,135 75,90,136 75,90,137
Engine Model P11C-UR P11C-UR P11C-UR P11C-UR P11C-UR P11C-UR
Rated Power (PS) kW / r / min (380) 280/2100 (380) 280/2100 (380) 280/2100 (380) 280/2100 (380) 280/2100 (380) 280/2100
Maximum torque Nm / r / min 1594/1100 1594/1100 1594/1100 1594/1100 1594/1100 1594/1100
Displacement L 10.52 10.52 10.52 10.52 10.52 10.52
Clutch Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430
Transmission ZF16S1650 ZF16S1650 ZF16S1650 ZF16S1650 ZF16S1650 ZF16S1650
Front / rear axle THD17 THD17 THD17 THD17 THD17 THD17
Rear axle Save Ratio





Tire





Emission standards State III State III State III State III State III State III
Product Categories Tractor
SS1E
Product Type SS1EKUA-FSW SS1EKUA-FSW SS1EKUA-FUW
Configuration coding W1-EX00 W1-EY00 W1-EZ00
Drive mode 6x4 6x4 6x4
Quasi-total mass of trailer (kg) 39320 39320 39320
Maximum gross weight (kg) 25,000 25,000 25,000
Cab Standard Standard High-top
Dimensions
(Length x width x height) (mm)
6770x2495x3030 6770x2495x3030 6770x2495x3520
Wheelbase (mm) 3150 + 1410 3150 + 1410 3150 + 1410
Front / rear track (mm) 2060/1855/1855 2060/1855/1855 2060/1855/1855
Front / rear overhang (mm) 1410/800 1410/800 1410/800
Minimum ground clearance (mm) ≥200 ≥200 ≥200
Minimum turning diameter (m) ≤17 ≤17 ≤17
Curb weight (kg) 9550 9550 9550
Maximum speed (km / h) 100,120 100,120 100,120
Engine Model E13C-TR E13C-TR E13C-TR
Rated Power (PS) kW / r / min (450) 331/1800 (450) 331/1800 (450) 331/1800
Maximum torque Nm / r / min 1912/1100 1912/1100 1912/1100
Displacement L 12.913 12.913 12.913
Clutch Dry dual-chip 380x2 Dry dual-chip 380x2 Dry dual-chip 380x2
Transmission ZF16S221 ZF16S221 ZF16S221
Front / rear axle THD17 THD17 THD17
Rear axle Save Ratio


Tire


Emission standards State III State III State III
EURO4
Product Categories Tractor
Product Type SS2PLUA-DSZ SS2PLUA-DUZ SS2PLUA-HSZ SS2PLUA-HUZ SH2PEUA-NSZ SH2PEUA-NUZ
Configuration coding W1-LK00 W1-MA00 W1-NC00 W1-NG00 W1-HZ00 W1-HV00
Drive mode 6x4 4x2
Quasi-total mass of trailer (kg) 39470 39470 39470 39470 34470 34470
Maximum gross weight (kg) 25,000 25,000 25,000 25,000 18,000 18,000
Cab Standard High-top Standard High-top Standard High-top
Dimensions
(Length x width x height) (mm)
6770x2495x3030 6770x2495x3520 6770x2495x3030 6770x2495x3520 5875x2495x3030 5875x2495x3520
Wheelbase (mm) 3400 + 1410 3400 + 1410 3400 + 1410 3400 + 1410 3450 3450
Front / rear track (mm) 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855/1855 2060/1855 2060/1855
Front / rear overhang (mm) 1410/800 1410/800 1410/800 1410/800 1410/1015 1410/1015
Minimum ground clearance (mm) ≥200 ≥200 ≥200 ≥200 ≥200 ≥200
Minimum turning diameter (m) ≤17.6 ≤17.6 ≤17.6 ≤17.6 ≤14.5 ≤14.5
Standard cab ride (person) Twenty three Twenty three Twenty three Twenty three Twenty three Twenty three
Curb weight (kg) 9400,8800 9400,8800 9400,8800 9400,8800 7400,6800 7400,6800
Maximum speed (km / h) 100, 90 100, 90 100, 90 100, 90 100 100
Engine Model P11C-VK P11C-VK P11C-VL P11C-VL P11C-VL P11C-VL
Rated Power (PS) kW / r / min (350) 259/1900 (350) 259/1900 (380) 280/1900 (380) 280/1900 (380) 280/1900 (380) 280/1900
Maximum torque Nm / r / min 1483/1100 1483/1100 1483/1100 1483/1100 1415/1100 to 1600 1415/1100 to 1600
Post-processing system SCR SCR
Displacement L 10.52 10.52 10.52 10.520 10.520 10.520
Clutch Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430 Dry-type single DSF-430
Transmission 12JSD159TA 12JSD159TA ZF16S1650 ZF16S1650 12JSD180TA 12JSD180TA
Rear axle THD18 THD18 THD18 THD18 SH19 SH19
Main gear ratio 4.555 3.900 3.900 3.900 4.333 3.727
Tire 295 / 80R22.5 11.00R20 11.00R20 11.00R20 11.00R20 11.00R20
Emission standards State IV State IV State IV State IV State IV State IV
Fuel tank capacity (L) 380 380 380 380 380 380
tractor trucks, dump trucks and bogie suspension semitrailers that worked very well in Congo, Alegeria, Nigeria, Tanzania, Kenya and south africa.
