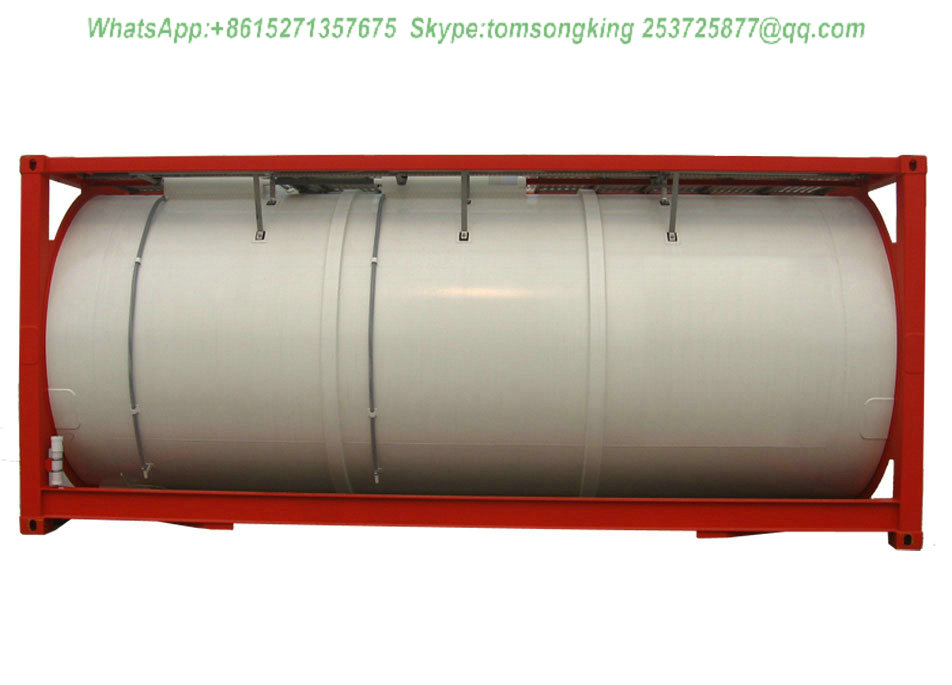

Highly Hazardous UN Portable ISO Tank Containers 14,600 – 24,000 Liters

Highly Hazardous UN Portable ISO Tank Containers
IMO 1, T11 / T14 / T20 / T22 UN portable tank container (14,600 – 24,000 liters)

Price: $ 25800
Discount Price: $ 20000
FOB:
Quantity:

  • T11 ,T12, T13, T14
  • DRAU
  • 8609001200

Highly Hazardous UN Portable ISO Tank Containers

IMO 1, T11 / T14 / T20 / T22 UN portable tank container (14,600 – 24,000 liters)


 ISO tank containers-12
Size : 20 feet
Length : +6.058- 6.06 m
Width : +2.438- 2.44 m
Height : 2.438/2.591- 2.60 m





The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.

Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.

ISO Tank, ISO Tank Containers

Manufacturers & Exporters

 ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.


The bulk liquids that can be transported in an ISO tank include :

Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long

Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products

ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported

ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases

Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders

T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)

T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)

T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers

T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers

T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers

SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers

Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers


Hazardous ISO Tank Container  UN Portable

30 feet container type tank, 33 cubic volume, square shape, material of Q235B / 6 mm thickness of tank,  Both end head Q235B/6 mm

Two sets of PE manhole device on the top of the tank.

ISO Tank container-205.jpgISO Tank container-206.jpgISO Tank container-207.jpgISO Tank container-208.jpgISO Tank container-232.jpgISO Tank container-233.jpgISO Tank container-272.jpgISO Tank container-273.jpgISO Tank container-274.jpgISO Tank container-276.jpgISO Tank container-284.jpgISO Tank container-285.jpgISO Tank container-286.jpgISO Tank container-287.jpgISO Tank container-303.jpg

The tank top is made of double coaming, acid plate is connected, acid pipe is installed, and the tank top SBS anticorrosion treatment. 2-inch PE ball valve on the left side of the tank body and a 2.5-inch PE ball valve on the right side.  outlet quick thread connection,  with one built-in valve. The pipe at the bottom of the tank  4-inch lined plastic steel pipe.  static wire coil.

 steps anti-skid platform standard galvanized network with a thickness of 5 *5mm and a width of 400mm.
