TIC5153GJS
unit
1
Application

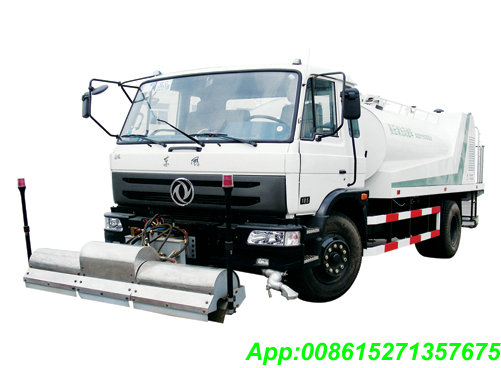

This high pressure watering and dredging truck is multi-functional equipment combined with water spraying, cleaning of road surface, curbs, handrails, billboard, verge by high pressure water, emergency firefighting, spraying dust, watering the green belt, clearing the sewer outfall and cleaning industrial cleaner. This kind of machine can be widely used in daily work of variable grades of highway, municipal administration, and sanitation.
Structural feature
★ Emission standard EUROIII, EUROIV
★ Water tank is designed as elliptical cross section with advanced preservative treatment on the surface, being equipped with flow meter; level gauge and low water level alarm inside, the power will be cut down automatically when water level reaches the lowest limit.
★ Low pressure waterway system realizes cleaning of road surface, water spraying, watering the green belt, and firefighting.
★ High-power water spraying truck is driven by self-priming centrifugal with large flow and high lift.
Front spraying and back impacting function, high pressure back impacting by 20m cleaning width. Controlled by air-control ball valve, can be operated inside cab.
Back spraying gun can be turned by 360°
★ High pressure waterway system realizes front impacting, left & right spraying in corners, spraying dust device, handheld-gun operation and draining.
★ Safety valve and overflow valve, double protection to high pressure water pump.
★ Front water spraying device can be stretched and turned left and right.
★ All nozzles are imported parts, fine spraying particles, large spraying range.
★ Draining, hose retracted by hydraulic reel.
Jetting System Technical Specification | |
Cleaning Width (mm) | 2500-3500 |
Cleaning Speed (km/h) | 3-25 |
Cleaning water Flow Rate(L/min) | 130 |
Water Tank | DTA |
Tank Capacity (m3) | 8~9 |
Tank Overall (L*W*H) (mm) | 4200*2300*1350 |
Tank Material | Q235 A, Carbon steel ; (Optional stainless SS304 ) |
Pump | |
Model | High Pressure, stainless (Optional) |
Pipe Rolling Speed (m/min) | 20 |
Rating Pressure (Mpa) | 15 |
Working Length (M) | 60-150 |
Chassis Specification | |
Truck Model | EQ1110GLJ |
Engine | |
Model | YC4E160-30 |
Type | Four-cylinder, water-cooled, mechanical injection |
Rated power (Hp) | 160 |
Transmission | |
Model | DF-6 |
Type | 6 Forward & 1 Reverse Speed |
Travelling | |
Drive Model | 4x2 |
Steering Wheel Position | Left hand drive |
Max. Travelling speed | 90 |
Dimension | |
Overall Size (mm) | 8600 x 2490 x 2980 |
Tyre Size | 7.00-16 |
Wheel Base(mm) | 3950 |
Weight | |
Curb Weight (kg) | 6300 |
Payload Capacity (kg) | 8000 |
Sewer Jetting Machines are used to clear blockades in Sewer Lines. The unit consists of a High Pressure Jetting Pump powered by a truck engine through PTO or an Auxiliary engine, a water tank and a High Pressure Jetting Nozzle connected to one end of a Jetting Pipe. DTA uses high quality Italian Pumps to power the jetting nozzle through a Sewer line. Water is pumped at high pressure through the Jetting Nozzle which forces the nozzle forward and removes any blockade in the path of the nozzle. In order to ensure performance of the machine and to ensure safety of the user Jetting pump, Hydraulic Pump, Hydraulic Accessories and Safety Valves are all imported from leading European Manufacturers and adhere to highest quality standards. DTA has supplied over 30 Jetting Machines to various clients. |
