High Pressure Jetting Combined Sewer VAC Tanker Truck 6cbm Vacuum Sewage Tank, 4cbm Jetting Water Tank
| Quantity: | |
|---|---|
- DRZ5160
- DF
- 8705
- Shanghai, China
- 800
- T/T
High Pressure Jetting Combined Sewer Truck 6cbm Vacuum Sewage Tank 4cbm Jetting Water Tank
carbon - stainless steel
RHD OR LHD 4x4 - 4x2

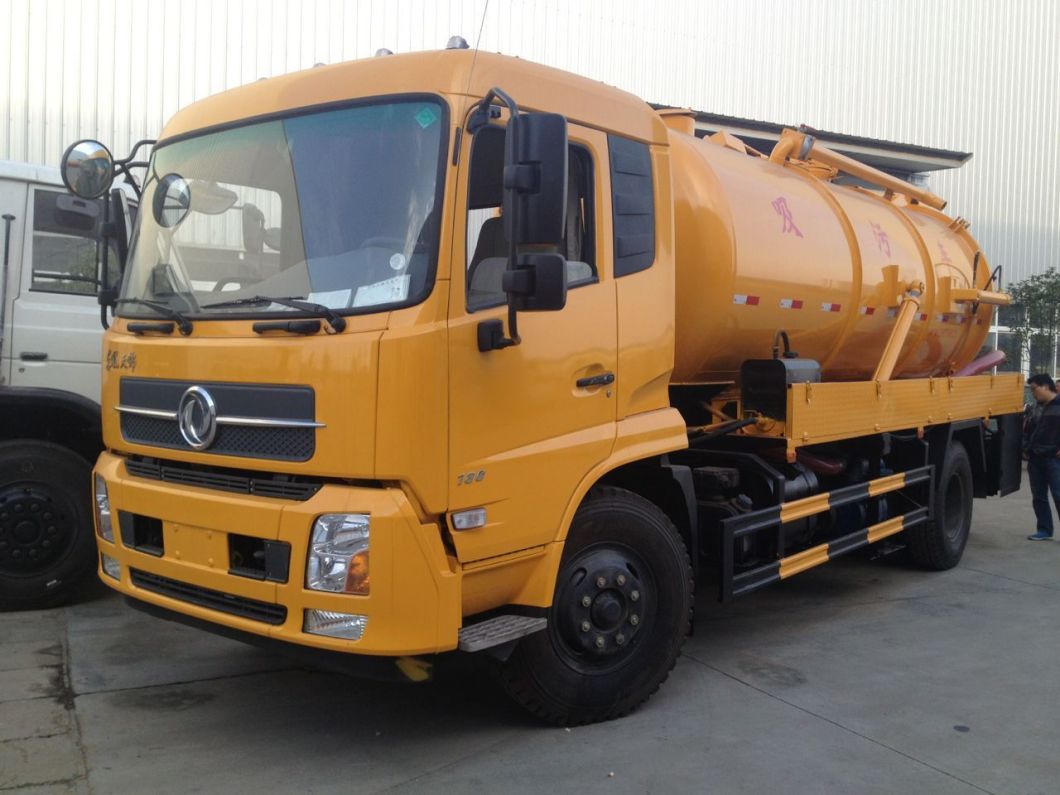

Dongfeng original chassis, cummins 190HP engine. good performance.

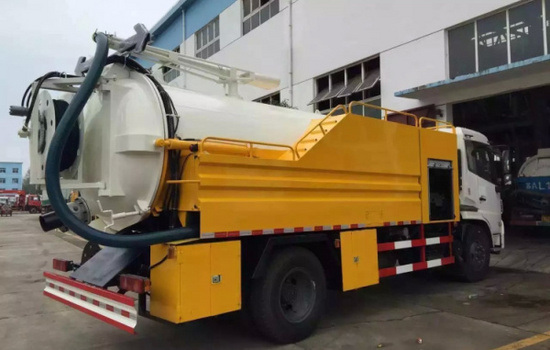

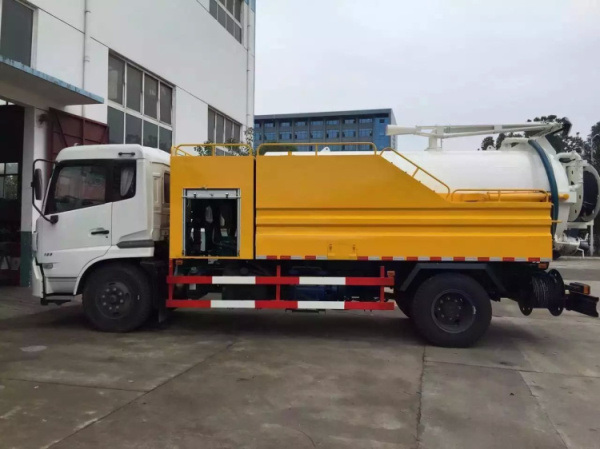

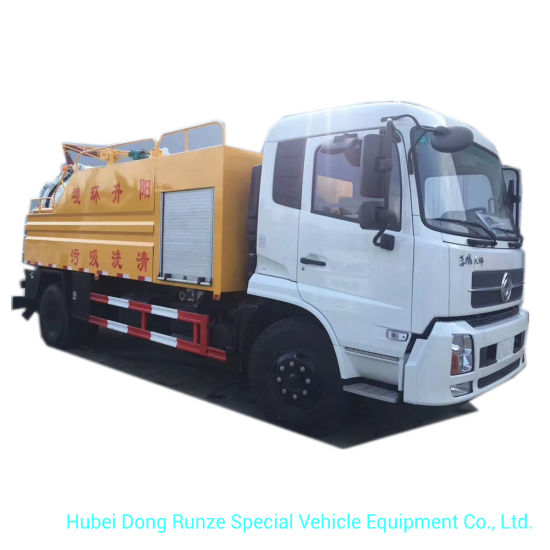

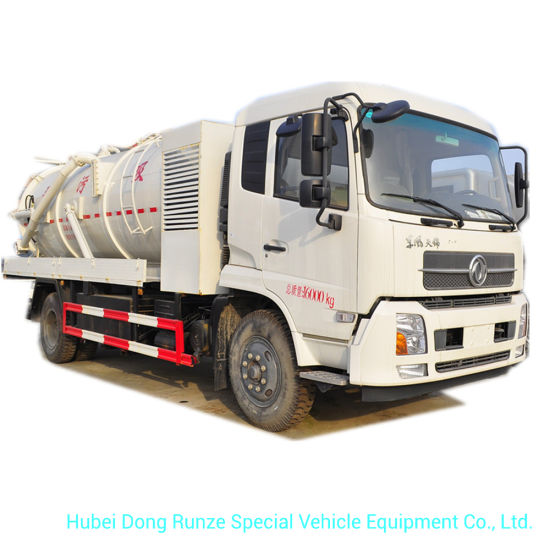

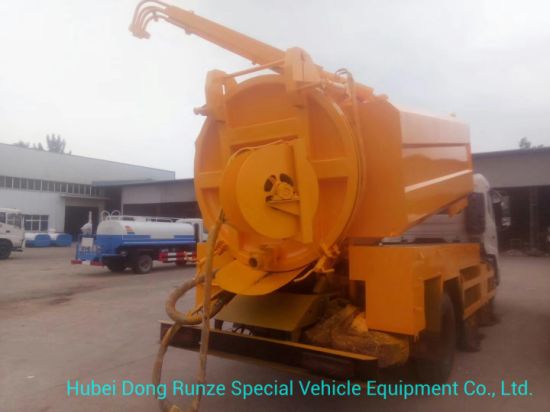

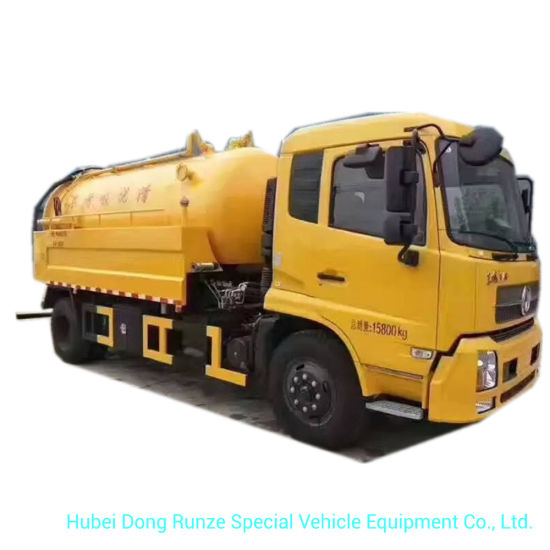

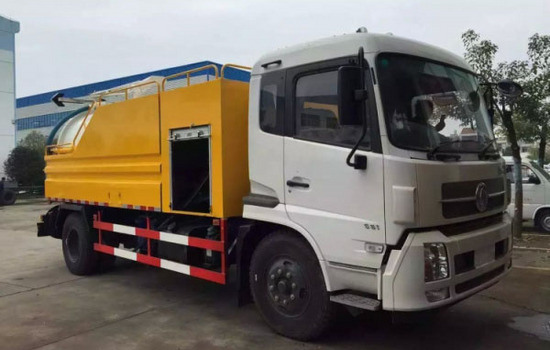

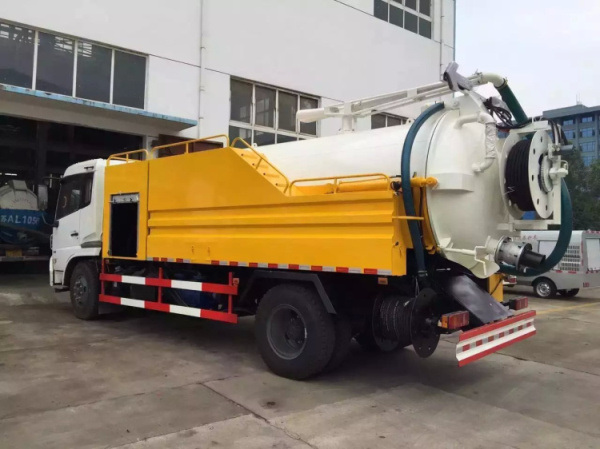

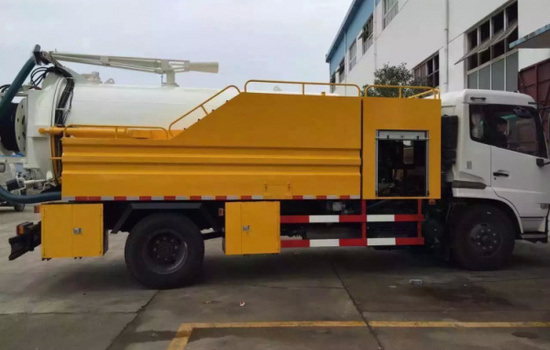

combined vacuum jetting truck, multi function vacuum suction sewage truck, with dirty water tank and clean water tank.
combined vacuum jetting truck, mounted two different pump, high pressure cleaning pump and vacuum suction sewage pump.
6000Liters dirty water tank and 4000Liters clean water tank.
combined vacuum jetting truck, dirty water tank and clean water tank is Integral.
hydraulic operation by handle, easily operate.
combined vacuum jetting truck is especially suitable for suck load and discharge the deposits in the sewer, suck sewage, mud , stones, bricks and other large objects. cleaning industrial drainage pipes, walls and so on.
and also can be used as sprinkler, water transport and flushing high way, emergency fire fighting.
RHD OR LHD Truck
The pictures are for your reference only.

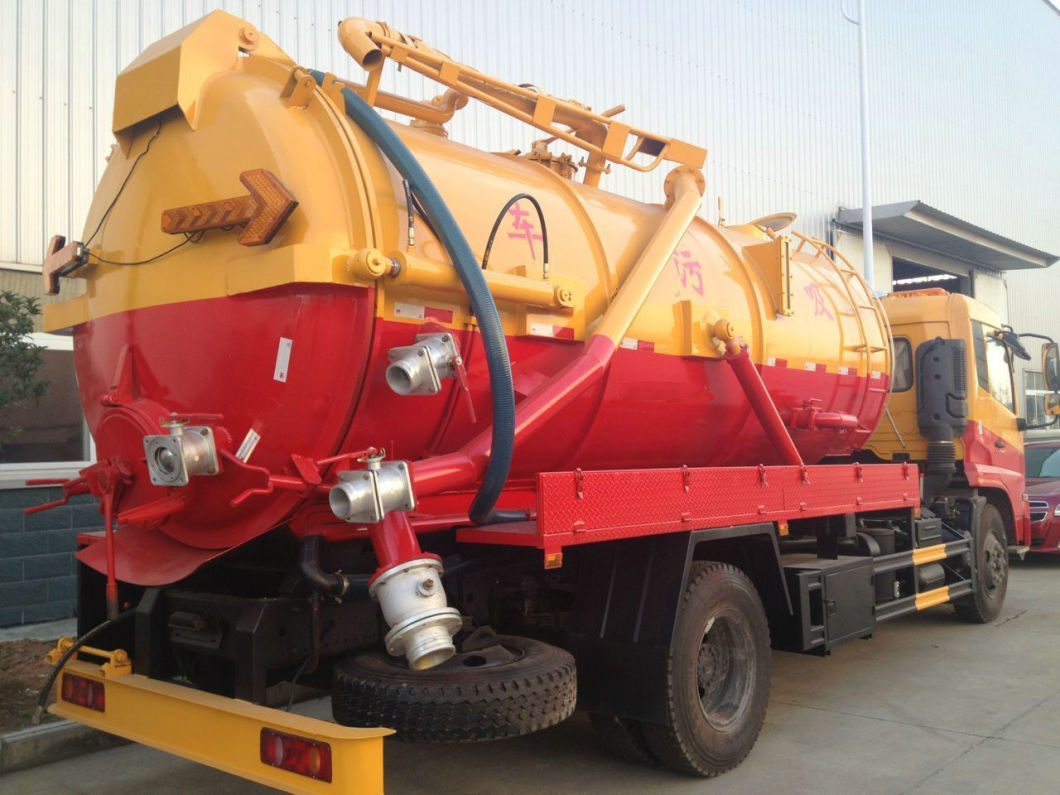

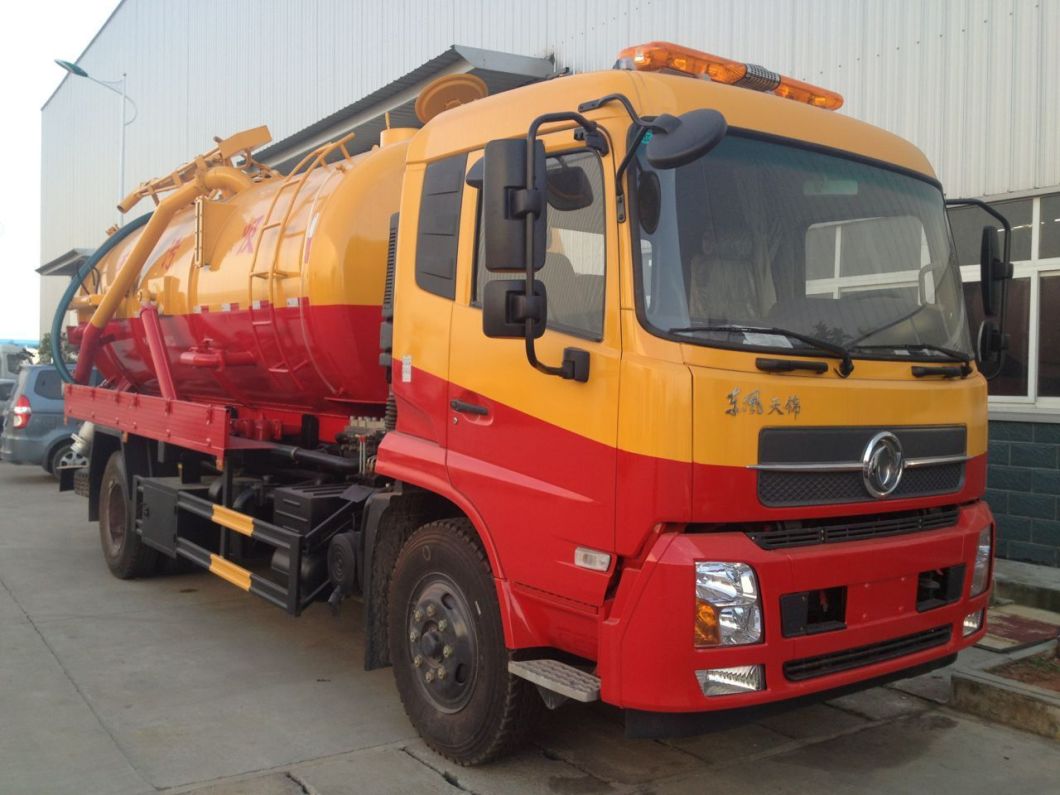

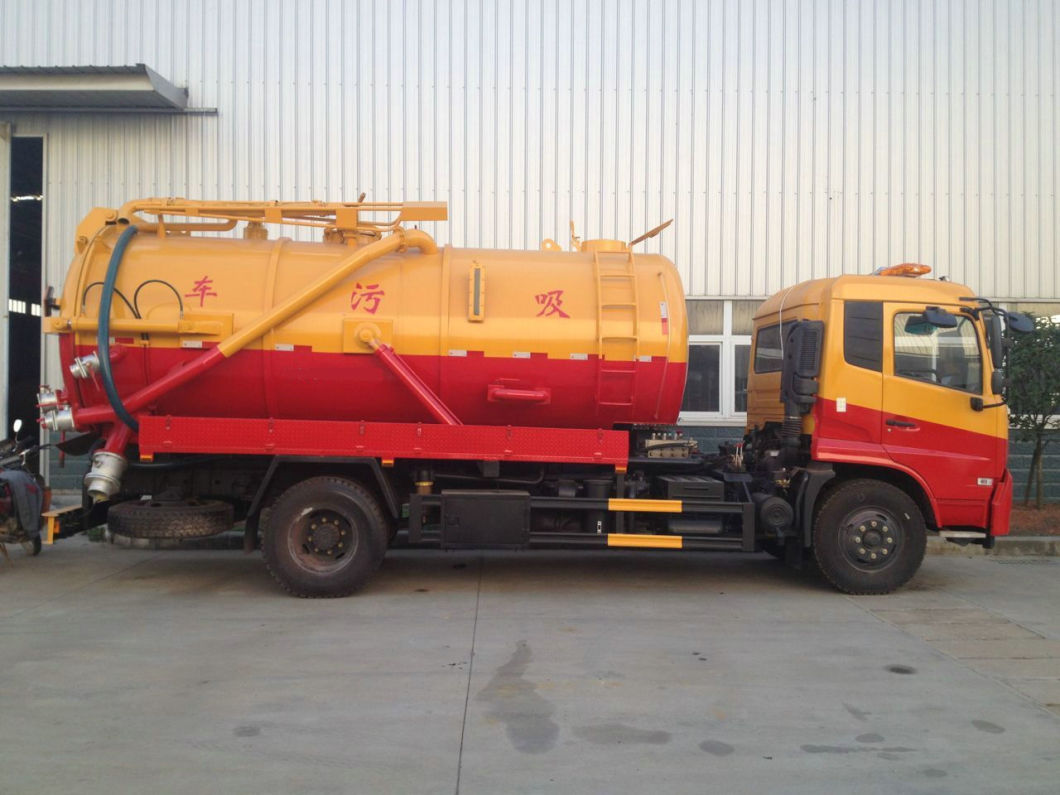

septic tank truck, sewage suction truck, toilet truck,sewer truck, vacuum truck Detailed Product Description
Vacuum Sewage Suction Combined Jetting Sewer Cleaning Trucks 8Tons Joint dredge Trucks Euro 5
| outside dimension (L×W×H)mm | 8600×2500×3000 | |
| Kerb mass | 5,900Kg | |
| Chassis Model /Manufacturer | KingRun white color | |
| driving type | 4×2 | |
| Cabin | With one bed | |
| Wheelbase | 4700mm | |
| Engine | ||
| model | ISB180 50 | |
| Type | Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control, Euro IV | |
| Max. power/rotated speed | 132(KW) /2500(rpm) | |
| Max. torque | 630(N.m) /1500(rpm) | |
| Cylinder bore×Stroke(mm) | 102×120 | |
| Displacement(ML) | 5900CC | |
| Company of engine | Dongfeng Cummins | |
| Compression ratio | (17.3±0.5):1 | |
| Emission level | Euro 5 | |
| Gear box Dongfeng six Forwards ,one reverse. | ||
| Front axle | 4.5T | |
| Rear axle | 9T | |
| Tyre | 9.00R20 | |
| Max Speed | 90 Km/h | |
| air condition | With | |
| Capacity of tank body | Joint dredge truck is composed of two independent body. 3000Liters clean water tank and 8500L dirty water tank. Adopts the turtle type design, can effectively prevent deformation. | |
High pressure cleaning system: good quality high pressure pump, made in China or Made in Germany, ( 16Mpa, 160L/min).
Chinese brand sewage suction vacuum pump( 20Mpa, 210L/min),
with 80m high pressure cleaning hose,
10pcs high pressure jetting nozzle.
Spraying cleaning width: 2.5-3.5m
Water jet deflection angle about 30degree
High pressure : 9Mpa
Basic equipment of sludge tank truck
Imported vacuum pump, power-take-off, hydraulic cylinders, control valves , pressure gauge,
water gas separator , oil water separator, level inspection window, suction hose,pipeline system,etc.

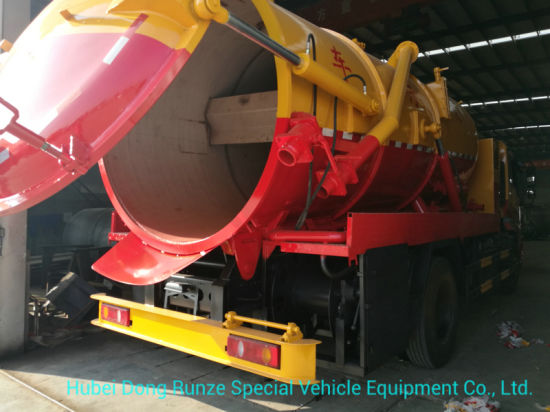

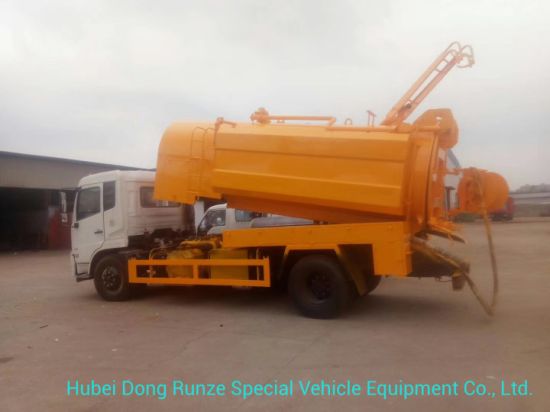

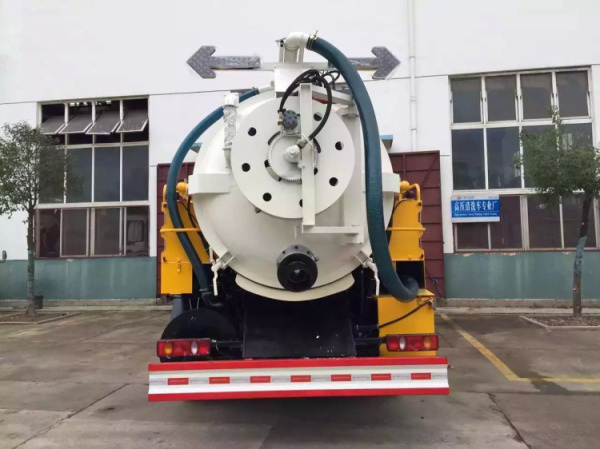

1.Tank can be lifted hydraulically to 40 to 45 degree.Rear door can be opened&closed
hydraulically. With full opening design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
3.Super power of vacuum pump, seamless die casted sheel cover, designing for container with high ability of pressure-resistance,double hydraulic jack system, morestrength then cesspit
emptier.
brand new high pressure vacuum suction truck
Dongfeng 4*2 combined sewer jetting truck | ||
# | Descriptions | Specifications and types |
General | Truck Brand | Dong Run Ze |
Chassis Brand | Dongfeng | |
Approx. Dimension | 6200*2030*2650 mm | |
GVW./Kerb Wt. | 7360/ 4930 kg | |
Cab | Cab Capacity | 3 persons' seat |
Air Conditioner | Air Conditioner is optional | |
Chassis | Drive Type | 4X2,right hand drive or left hand drive |
Fuel Type | Diesel | |
Engine Make & Model | Chaochai engine | |
Power | 120HP | |
Displacement | 3760 ml | |
Emission Standard | Euro 2 | |
Wheelbase/No.of axle | 3360 mm / 2 | |
Tyre Specfication | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre |
| Axles weight | Front axle 2.4 ton rear axle 4.2 ton |
| Transmission | WLY6T46 6 forwards 1 reverse |
Max Speed | 80 km/h | |
Paint | Automative metallic paint | |
Upper part | Clean water Tank Capacity | 2500 Litres |
Sewer water tank capacity | 5500 litres | |
High pressure pump | High pressure pump pressure 16mpa, flow rate 130L/min | |
Vacuum pump | China famous brand water ring pump sk-6 | |
Equipped PTO. pressure gauges, one water-gas separator, one oil-gas separator ,one oil tank reservoir, a lever inspection window and a piece of 6m suction hose , rear cover open , sewage tank lifting ,etc | ||
The above information is for reference only. We can produce according to your needs so, If you have any questions you can contact me at any time.
| Specification of DF Sewage Suction Truck DLK | |||
| Item | Specification | Item | Specification |
| General | |||
| Truck Name | Sewage Suction Truck | Overall Dimension (mm) | 6500×2120×2700 |
| Truck Brand | DF | Gross / Curb Weight (kg) | 8495 / 4300 |
| Truck Model | DFA1080SJ11D3 | Approach / Departure Angle (°) | 24 / 12 |
| Max. Speed (km/h) | 90 | Front / Rear Overhang (mm) | 1210 / 1490 |
| Chassis | |||
| Chassis Brand | DF | Chassis Model | DFA1080SJ11D3 |
| Wheel Base (mm) | 3800 | Leaf Spring | 8/10+7; 11/9+7 |
Traction System | 4 x 2 | Quantity of Axles | 2 |
| Cab Capacity | 1-3 | Front / Rear Axle Load (kg) | 3390 / 5105 |
| Transmission | manual | Front / Rear Wheel Tread (mm) | 1770 / 1586 1831 / 1640 |
| Tyre Model | 7.50-16 12PR, 8.25-16 14PR, 7.50R16 12PR, 8.25R16 14PR | Quantity of Tyre | 6 |
| Engine (Motor) | |||
| Brand | DF | Type of Fuel | Diesel |
| Model | CY4102- | Displacement (ml) | 3856 |
| Max. Power (KW/hp) | 100 / 136 | Emission Standard | Euro 3-5-6 |
| Cylinder Stator | 4, all cylinders arranged vertically in line | Max Torque (N.m) | 420 |
| Quantity of Valves Per Cylinder | 4 | Maximum Torque Speed (rpm) | 1300-1500 |
| Cylinder Diameter × Stroke (mm) | 102 x 118 | Motor Rated Rotating Speed (rmp) | 2800 |
| Full Load Minimum Fuel Consumption Rate (g/KW.h) | ≤200 | Engine Type | Electric control high pressure common rail, water cooling, vertical. |
| Compression Ratio | 17 : 1 | Noise From 1 Meter (dB) | 114 |
| Motor Net Weight (kg) | 430 | ABS | yes |
| Equipments | |||
| Tank Effective Capacity (L) | 5500 | Tank Material | carbon / stainless steel |
| Tank Dimension (length x diameter) (mm) | 3780×1300 | Time to fulfill the tank (min) | ≤5 |
| Suction Height (m) | ≥10 | ||
NOTE: 1. Any part can be customized depending on customers' demand. 2. 12 months whole vehicle warranty 3. We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance. 4. MOQ: 1 unit | |||
Looking forward to receiving your inquiry!
