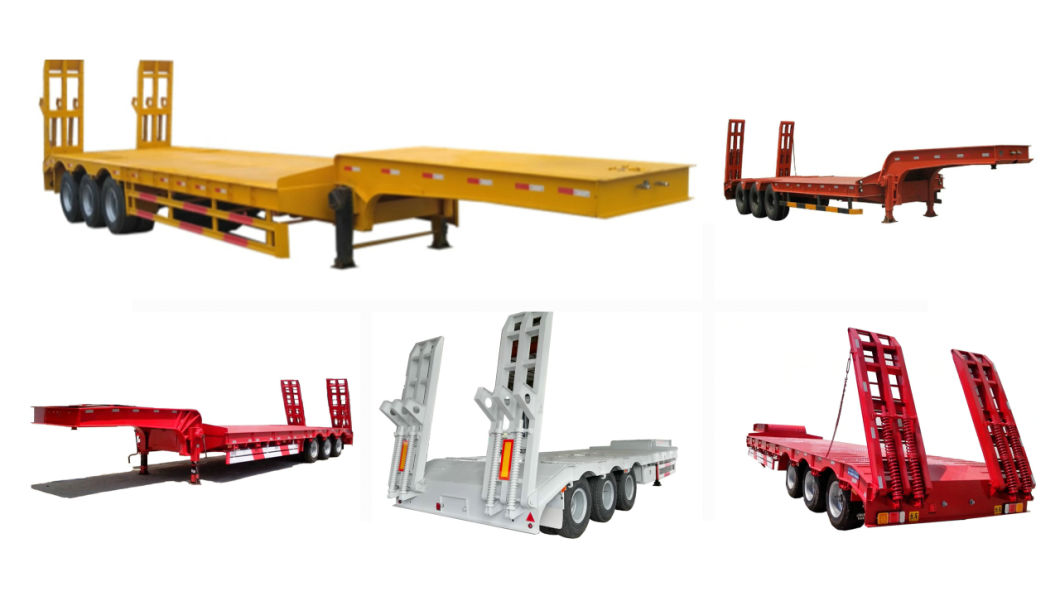

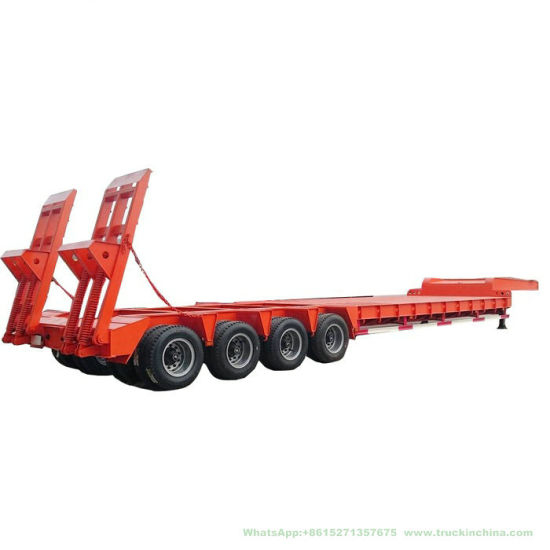

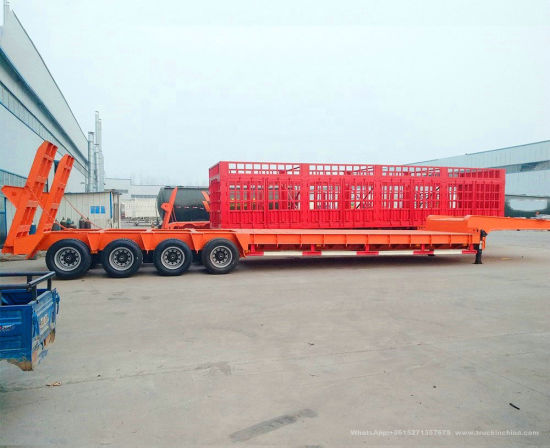

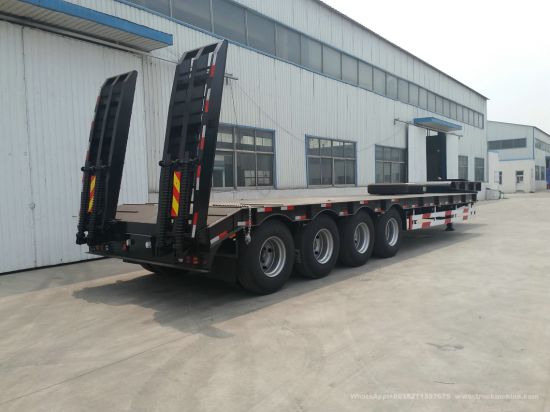

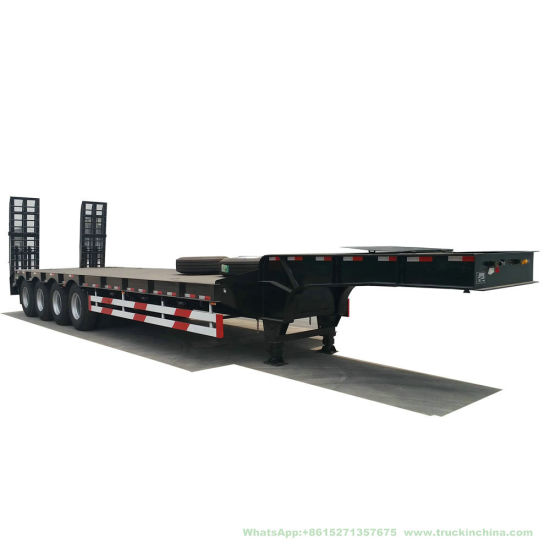

Heavy Haul Equipment Trailer 4 Axles Low Bed Semi Trailer 60ton 80ton 100ton
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T, Western Union

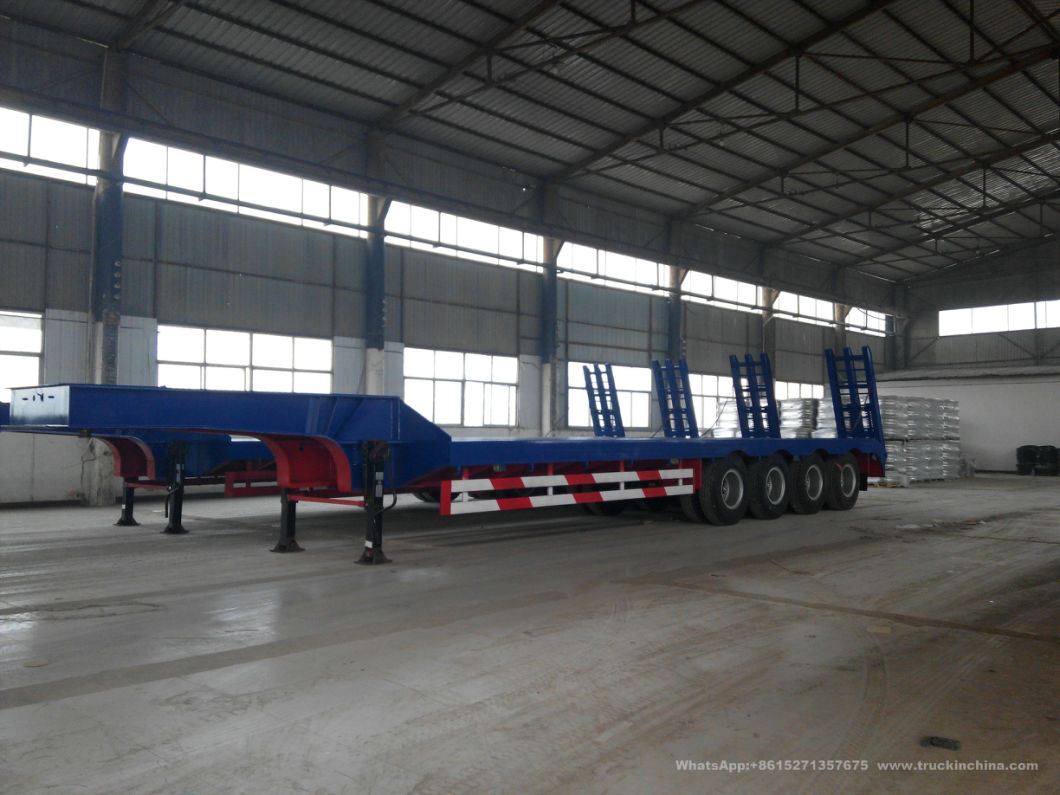

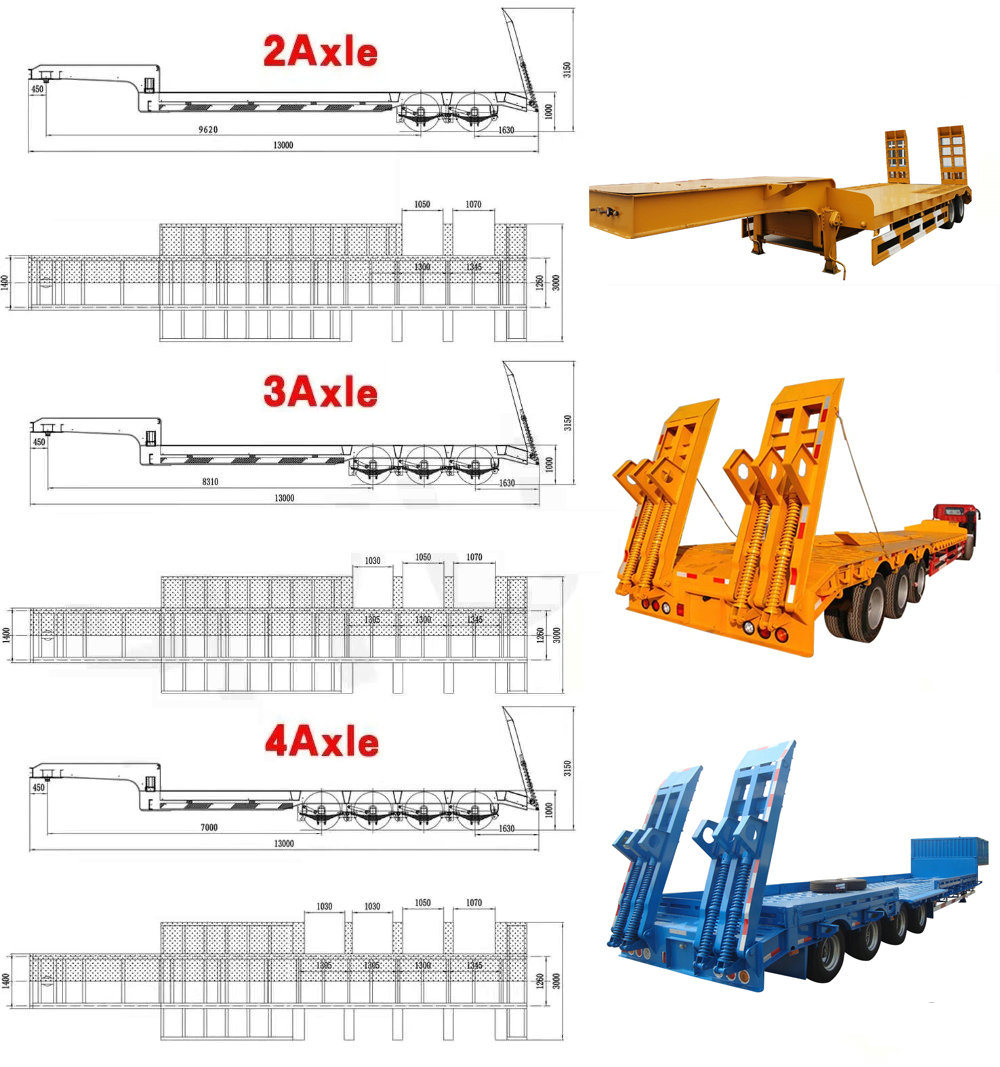

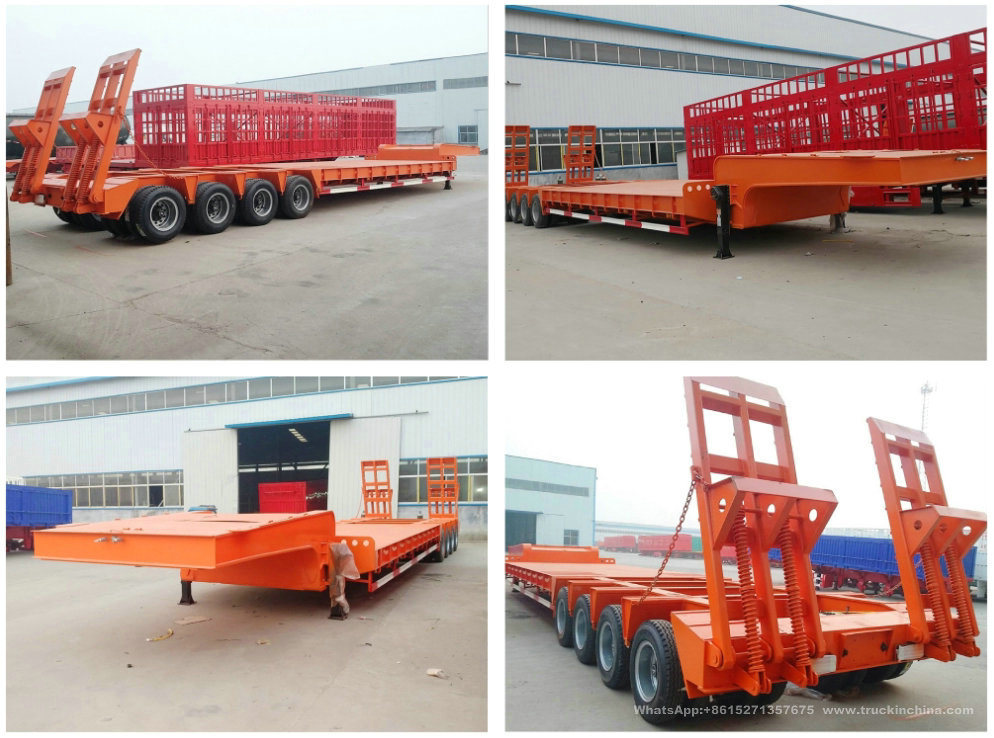

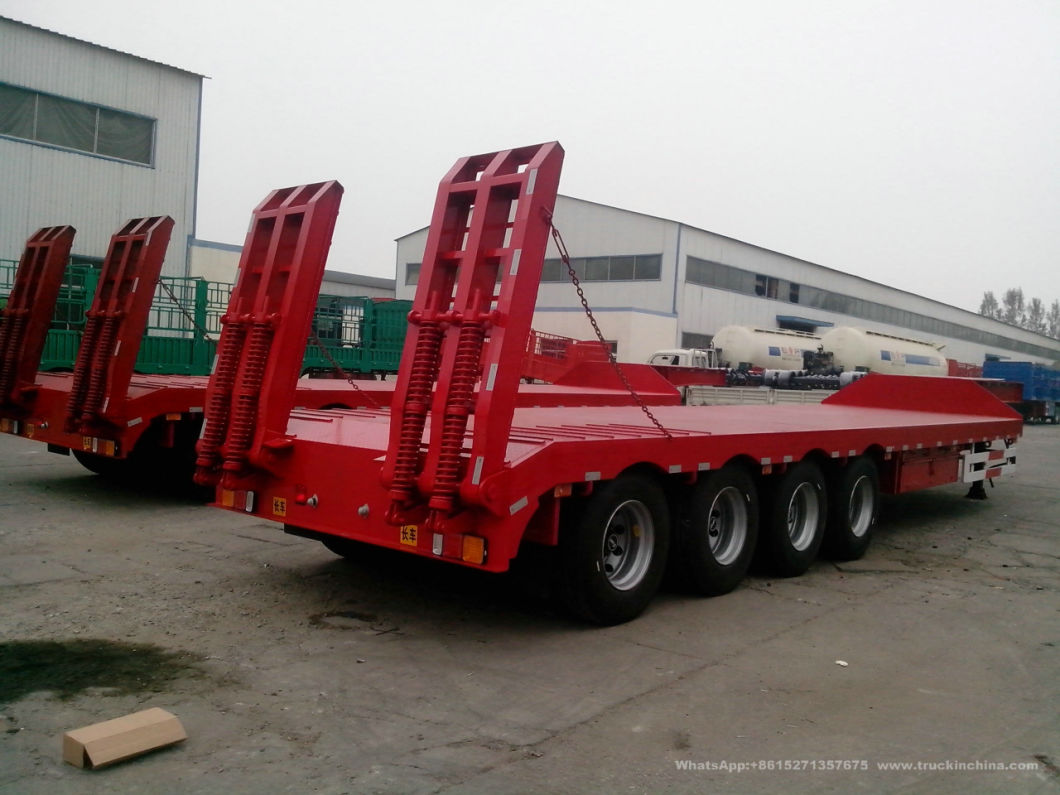

Heavy Haul Equipment Trailer 4Axles Low Bed Semi Trailer 60ton 80ton 100ton
Hydraulic Modular Trailers, Multi Axle Trailer 80T- 250T
Multi Axle Steering Axle Low Bed Trailer
| Size | 13000x2800x2500mm |
| leaf-spring Pcs | 10 |
| Axle | 13/16/18 T |
| Suspension | Heavy Duty Mechanic Suspension with Leaf Springs |
| Main Beam Material | Q345B manganese plates, automatic submerged arc welded |
| Brake System | Dual line braking system with automatic braking system/chambers |
| Brake Air Chamber | Double Model |
| Kingpin | 2' or 3.5' Interchangeable |
| Landing gear | 28T loading capacity with 80T static lifting capacity. |
| Platform | 4-6 mm diamond steel plate |
| Brake System | Dual Lines Braking System With Automatic Air Chambers |
| Brake Air Chamber | Four double and two single chamber |
| Electrical System | 24V, 7core socket, lights according to European standards. |
| Tool Box | 1 box of standard tools |
| Spare tire carrier | 2 sets |
| Color and Logo | Depends on the buyer's requirement. |
| Pin Height | According to the height of the tractor saddle. |
| Tire | 12.00R20 |
Chassis (I beam) | Top flange plate | Material and thickness | Q345B 25mm | |
| Bottom flange plate | Material and thickness | Q345B 25mm | ||
| Middle flange plate | Material | Q345B | ||
| Thickness | 16mm | |||
| Height | 530mm | |||
| Side beam height | Type | U-steel | ||
| Height | 250# U steel | |||
| Ladder | Type | Mechanical | ||
| Width | 650mm | |||
| Board height | 1250mm | (from the top of floor to the ground ) | ||
| Floor | Material | Carbon steel Q235 | ||
| Thickness | 5mm | |||
| Floor type | Checkered plate | |||
| Running mechanism | Container twist lock | NO | ||
| Axle | Brand | FUWA ,BPW ,L1,CIMC | ||
| Type | 20T | |||
| Number | 4pcs | |||
| Rim | Type | 8.5 | ||
| Number | 16pcs | |||
| Tire | Brand | Triangle brand | ||
| Type | 12.00R20 | |||
| Number | 16pcs | |||
| Suspension | Mechaniacal suspension | |||
| Spring Leaf | Leaf width | 100mm | ||
| Leaf thickness | 16mm | |||
| Layer/set | 12 Layer | |||
| Kin pin | Type | Bolts type JOST Brand | ||
| Diameter | 2 inch or 3.5 inch | |||
| Brake system | Air tank | 45L air tanks | ||
| Brake chamber | 8 double spring brake chamber | |||
| Relay Valve | WABCO | |||
| Landing gear | Brand | JOST A400 | ||
| Type | Single speed | |||
| Tools for trailer | Head wrech ;spare wheel crank ; | |||

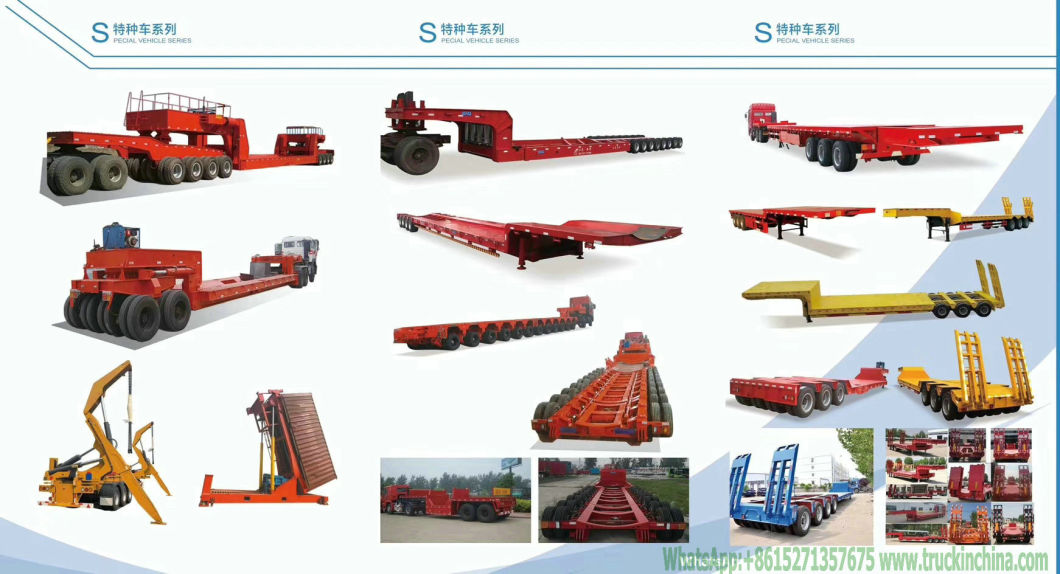

Hydraulic platform Multi-Axles trailer
Hydraulic platform Multi-Axles trailer are mainly used in transporting large and heavy loads, bridge, tunnel engineering ,power engineering, petrochemical engineering and railway construction. Transportation oversize and over weight freights that split apart series hydraulic full trailer that can be assembled into weight from 45 tons to 2200 tons of various series.
We use advanced manufacture technology,make automatic submerged-arc welding for vertical beam,uses shot blasting treatment for integral frame,removes welding stress effectively,uses advanced fixture and technology during the whole production process,and ensure formation and assembly accuracy of work pieces
Customize Truck
3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
