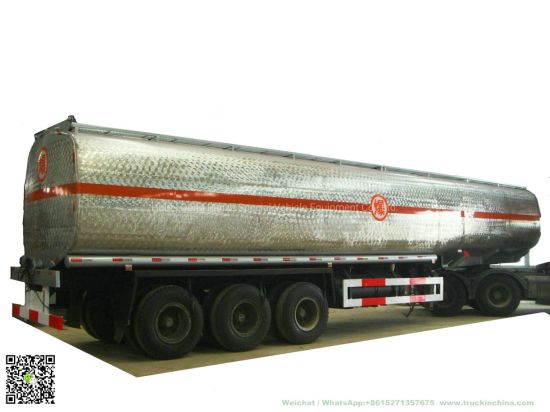

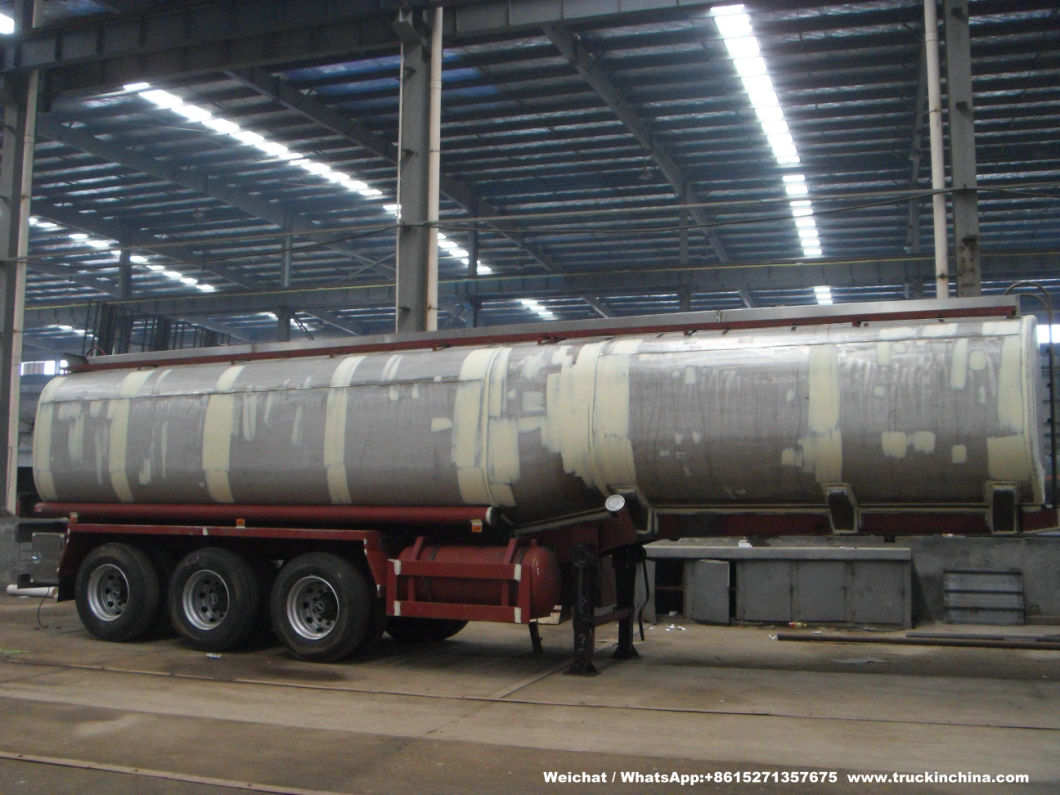

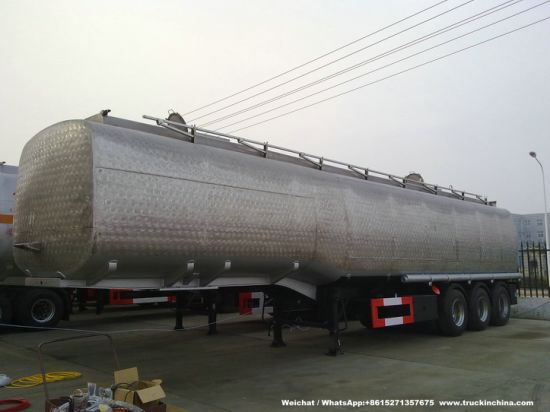

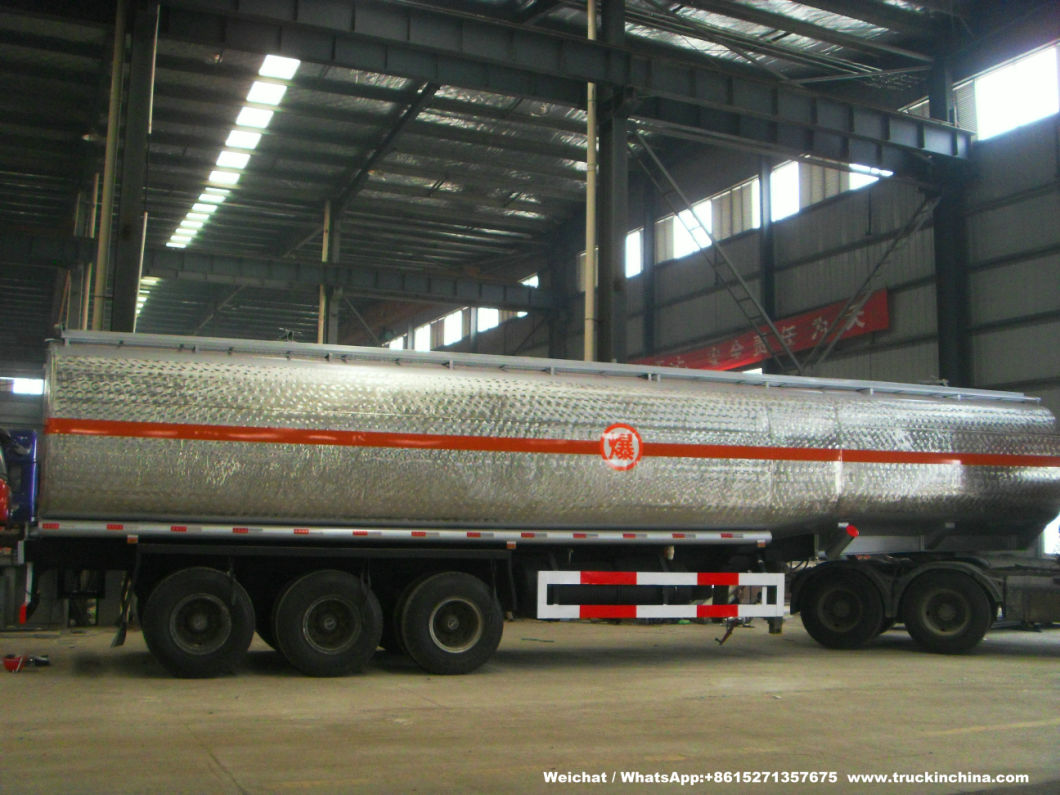

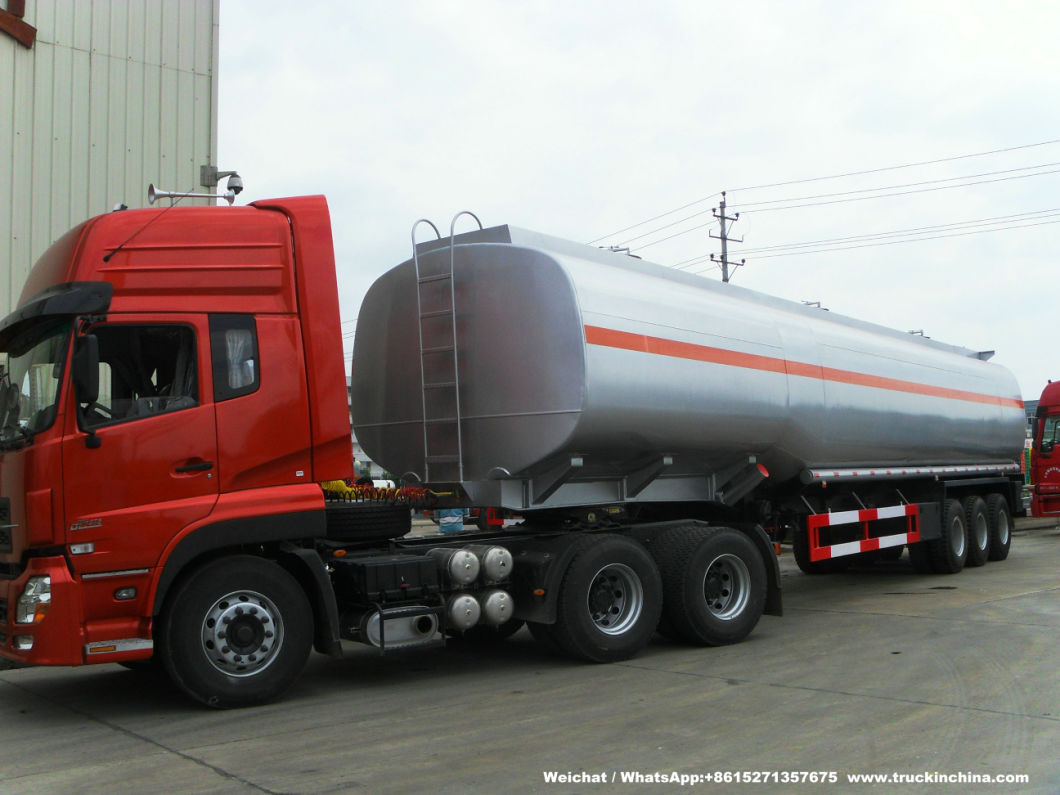

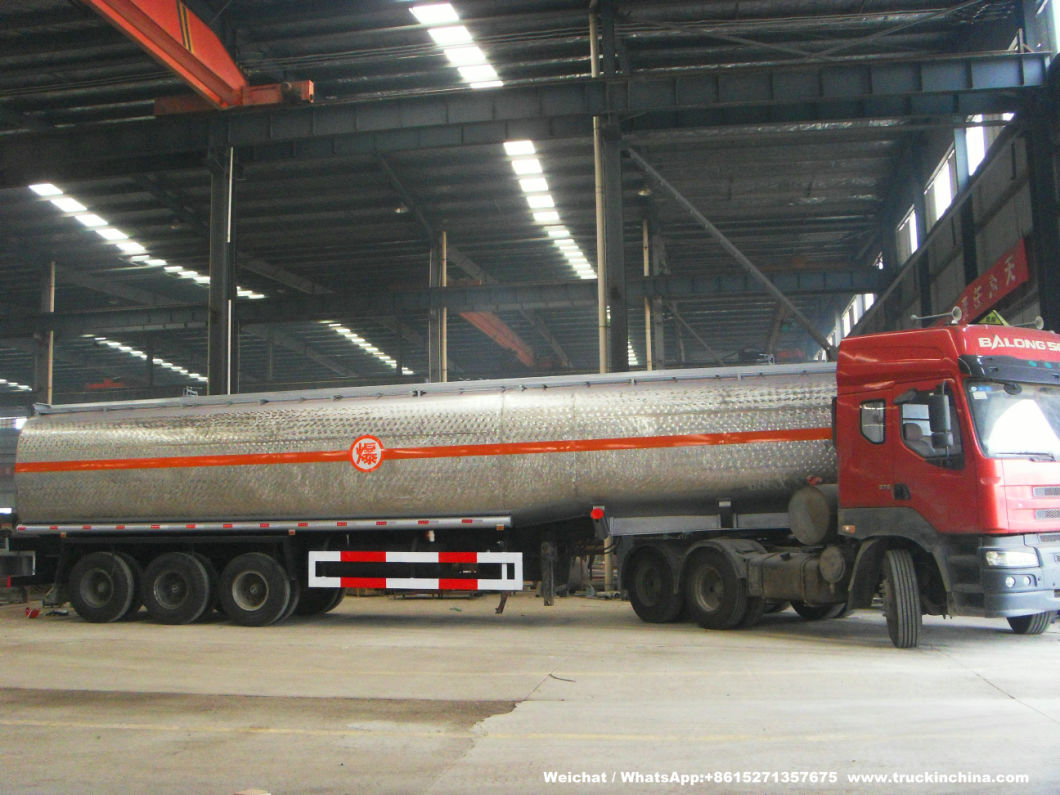

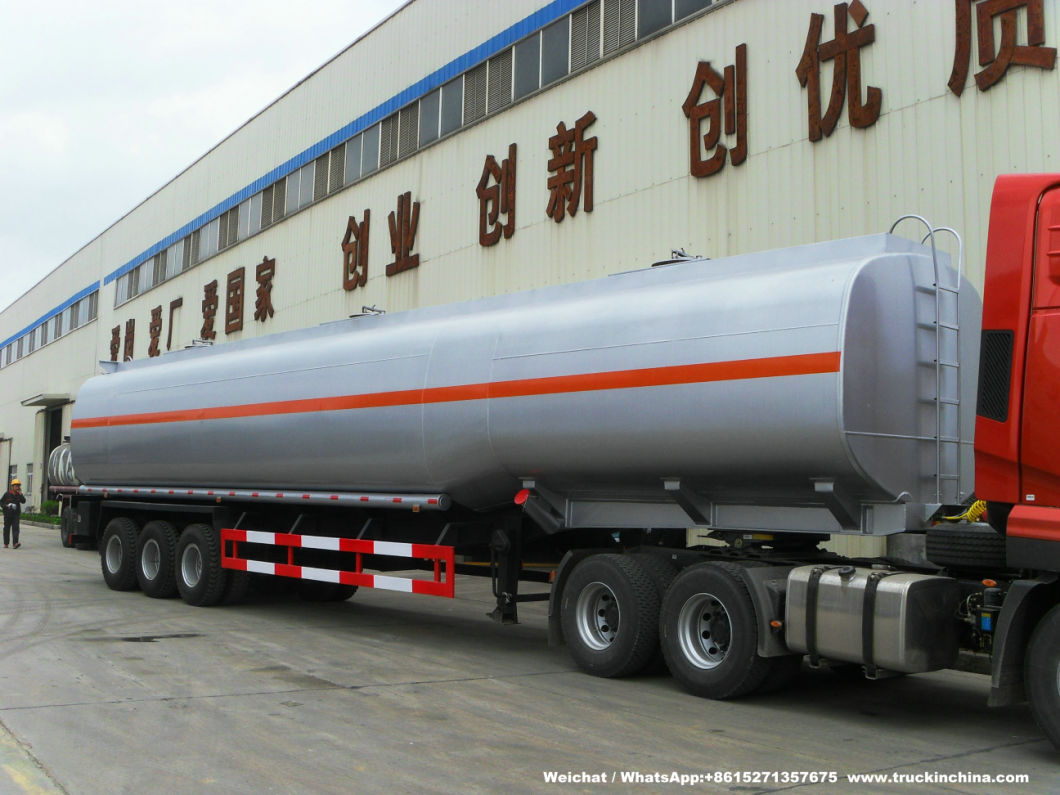

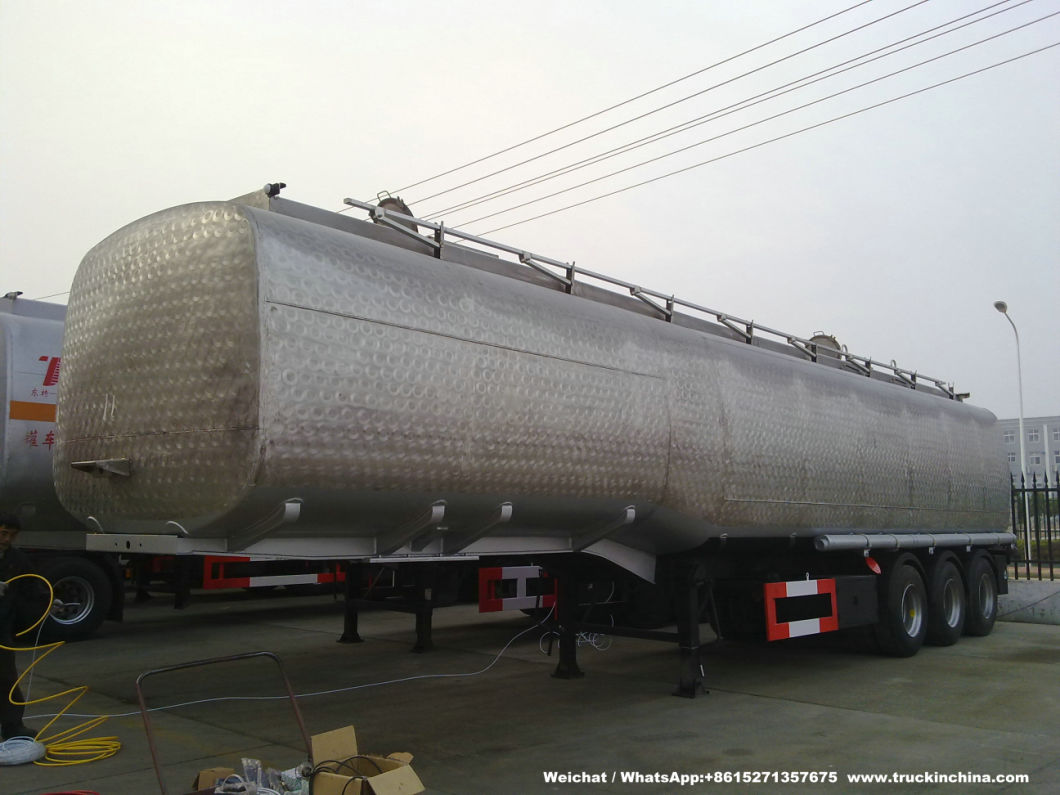

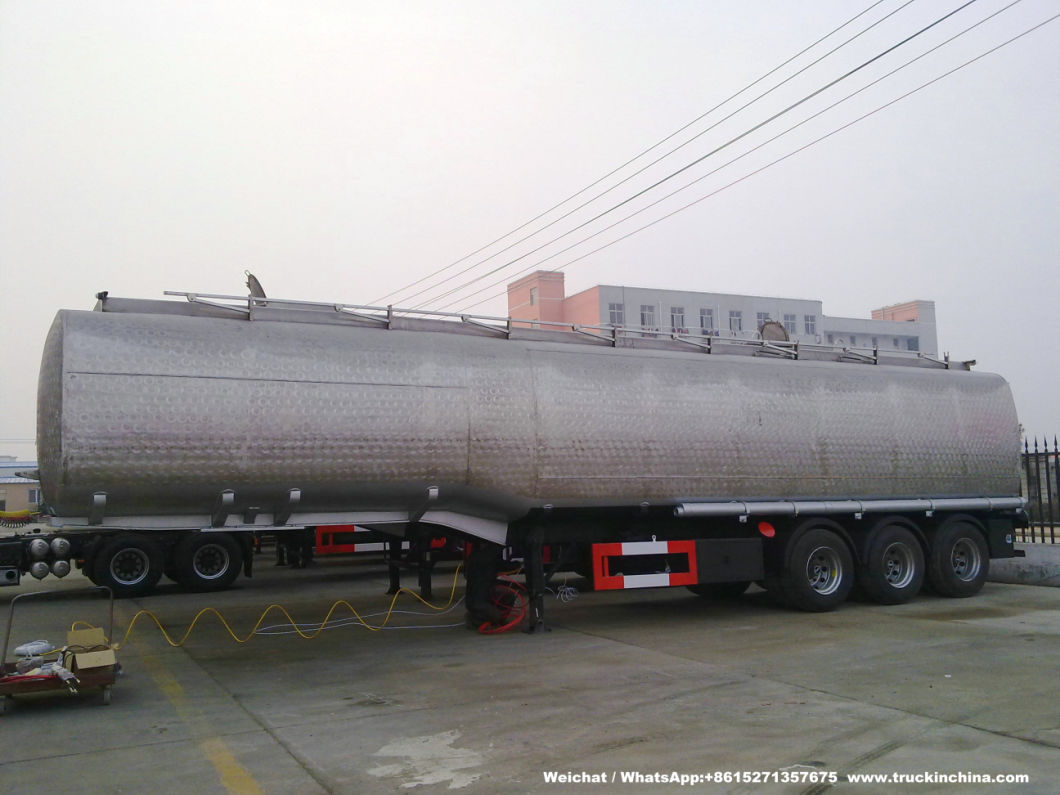

Heavy Duty Stainless Steel Tanker Semi Trailer 60000L for Food Oil, Ethanol, Liquor, Win (40-60T Polished Stainless Tanker)
Heavy Stainless Steel Tank Trailer For Food Oil ,Ethanol ,Liquor,Win ( 40-60T Polished Stainless Tanker)

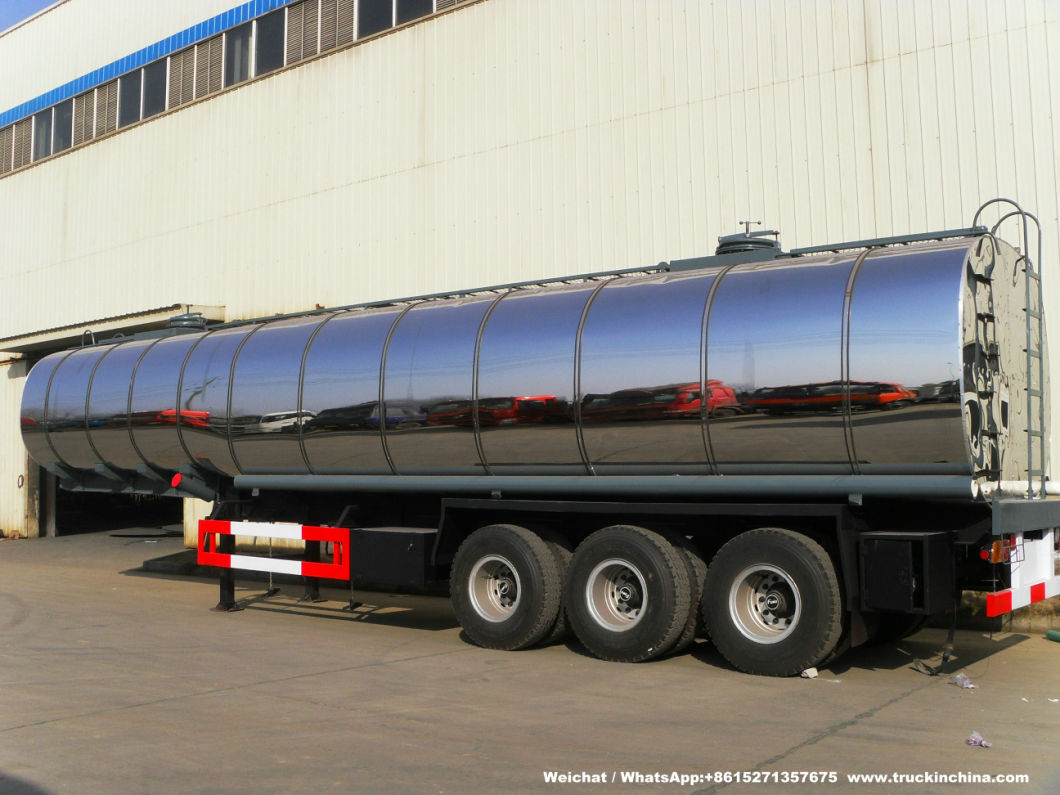

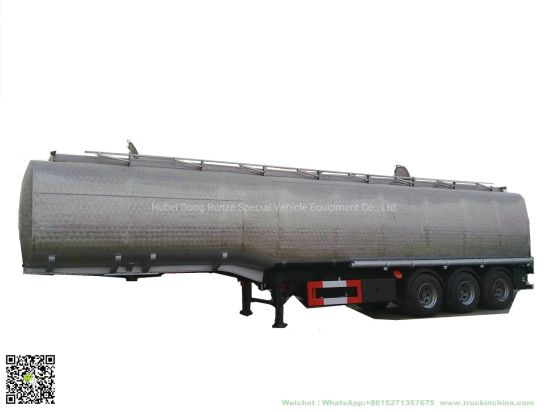

Stainless Steel 304 Food Oil Tanker Semi-Trailer 3 Axles Tank Capacity 45000L to 52000L Shell Polished
Tanker Semi-trailer 4 axles, 55000L,60000L,68000L,72000L Tank Trailer Manufacturers
Steel 4 Axle Tanker Semi-trailer
tanker semi trailer factory sale
Website: www.truckinchina.com
Tanker
Material Steel ,Stainless Steel 304 ,316L, Alloy
Thickness of shell 5mm
Thickness of dish 6mm
Inside baffles 4mm
Compartments 4 to 7 compartments
Volume 35000L to 72000L+ 6% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with

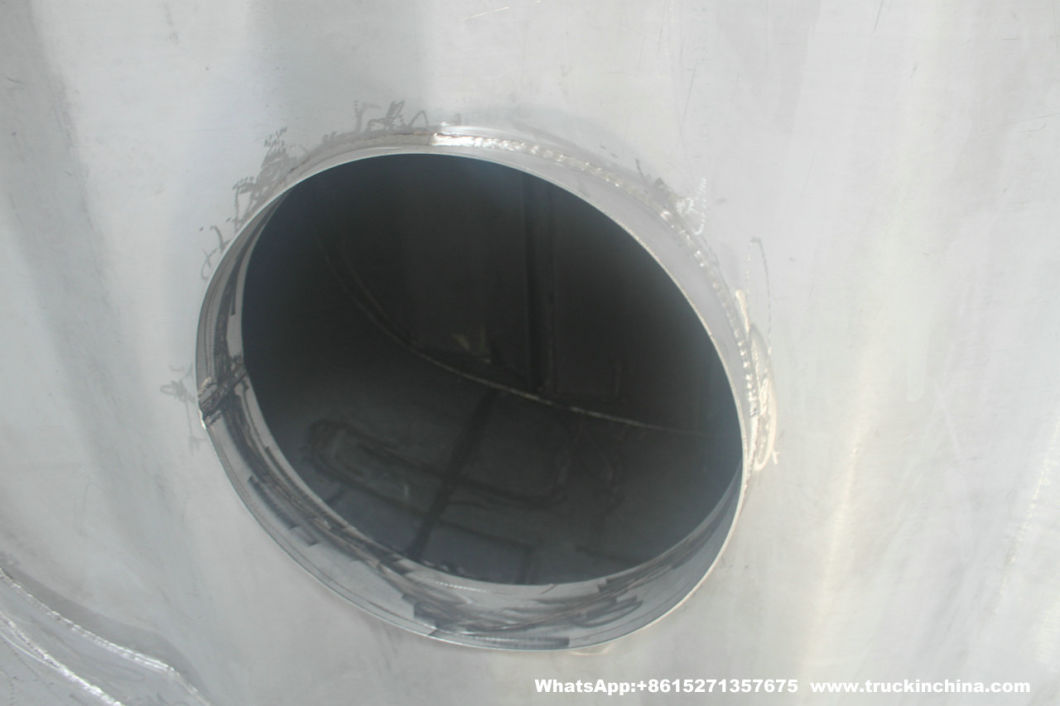

Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker<
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading. Option: Bottom loading
Running Gear
FUWA axle 13T*4 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
16+1 pcs tires 315/80R22.5 Tire (9.0*R22.5 steel rims)
3.5" Jost kingpin Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting
Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
| | | | | | | |
| Truck Model | Chassis Model | m³ | Steel lined PE Tank | Steel Tank | Steel lined PE Tank Steel | Stainless Steel tank | Carbon Steel Tank | Aluminium alloy | Medium |
| DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A9 | 19.36 | 18.5 | / | 5 | / | / | | Sulphuric Acid | |
| DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1161RAPAT | 10.5 | 10.5 | 11.56/12 | 5 | 5 | 6 | | Ammonia | 8600kg |
| DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 13.13 | 14 | / | 5 | / | / | | Hydrochloric Acid | |
| DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | LZ1311QELAT | 22.73 | 20.5 | / | 5 | / | / | | Hydrochloric Acid | 14300kg |
| DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP66K2L7T4E4 | 19.88 | 22.3 | / | 5 | / | / | | Hydrochloric Acid | |
| DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1167PK2BE4A80 | 8.2 | 8.5 | / | 5 | / | / | | Hydrochloric Acid | 7500kg |
| DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | DFA1110SJ11D3 | 6.1 | 6.1 | / | 5 | / | / | | Hydrochloric Acid | 5200kg |
| DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA1311P1K2L6T10BE4A80 | 17.7 | 18 | / | 5 | / | / | | Hydrochloric Acid | 13260kg |
| DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K1L6T4E4 | 19.2 | 20.5 | 21.6 | 5 | 5 | 6 | | Ammonia | 14630kg |
| DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | | 18.83 | 18.5 | 20 | 5 | / | 6 | | Sulphuric Acid | 7620kg |
| DTA9407GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 35 | 37 | 39 | 5 | 5 | 6 | | Ammonia | 10340kg |
| DTA9401GFWC TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 18.83 | 19.5 | 20.5 | 5 | / | 6 | | Sulphuric Acid | 9360kg |
| DTA9406GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 29.5 | 31 | / | 5 | / | / | | Hydrochloric Acid | 11380kg |
| DTA9401GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.95 | 22 | 23.5 | 5 | / | 5 | | Dilute Sulphuric Acid | |
| DTA9402GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 25.67 | 25 | 26.3 | 5 | 5 | 6 | | Caustic Soda | |
| DTA9403GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 27.84 | 27.8 | / | / | / | 5 | | Hydrochloric Acid | |
| DTA9400GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 19.98 | 18 | 20 | 5 | / | 6 | | Dilute Sulphuric Acid | 7620kg |
| DTA9350GFW TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 23.82 | 23 | / | 5 | / | / | | Hydrochloric Acid | |
| DTA5310GRYL4 FLAMMABLE LIQUID TANK TRUCK | LZ1311QELAT | 23.78 | / | 28.6 | / | 5 | 6 | | Diesel Oil | 12200kg |
| DTA5310GRYD10 FLAMMABLE LIQUID TANK TRUCK | DFL1311A10 | 29.15 | / | 30 | / | 5 | 6 | | Hexane | |
| DTA5310GRYD9 FLAMMABLE LIQUID TANK TRUCK | DFL1311A9 | 29.15 | / | 30 | / | 5 | 6 | | Hexane | |
| DTA5310GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP63K2L6T4E4 | 29.25 | / | 29.5 | / | 5 | 6 | | Hexane | |
| DTA5311GRYC4 FLAMMABLE LIQUID TANK TRUCK | CA5310GYYP66K2L7T4E4 | 28.46 | / | 29.5 | / | 5 | 6 | | Hexane | |
| DTA5160GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5163GYY-AB | 13.44 | / | 14.5 | / | 4 | 5 | | Hexane | |
| DTA5250GRYBH4 FLAMMABLE LIQUID TANK TRUCK | BJ5253GYY-XA | 25.3 | / | 25 | / | 5 | 6 | | Hexane | |
| DTA5160GRYD5 FLAMMABLE LIQUID TANK TRUCK | DFL1160BX5 | 14.22 | / | 17/17/15.13 | / | 4 | 5 | | Hexane | |
| DTA5160GRYE4 FLAMMABLE LIQUID TANK TRUCK | EQ1168GLJ3 | 15 | / | 15.7/16.4/16.7 | / | 4 | 5 | | Hexane | |
| DTA5310GRYB4 FLAMMABLE LIQUID TANK TRUCK | BJ5317GYY-XB | 28.45 | / | 29.8 | / | 5 | 6 | | Hexane | |
| DTA5251GRYC4P62 FLAMMABLE LIQUID TANK TRUCK | CA5250GYYP62K1L6T3E4 | 17.09 | | 19.7 | / | 4 | 5 | | Butyl Acetate | 10420kg |
| DTA5311GRYYBJ4 FLAMMABLE LIQUID TANK TRUCK | BJ5312GYY-XB | 21 | | 21.7 | / | 4 | 5 | | Butyl Acetate | 12800kg |
| DTA9390GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | | 41.34 | / | 44.5 | / | 5 | 6 | | Alcohol | |
| DTA9401GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | | 45.25 | / | 43.5 | / | 5 | 6 | | Ethanol | |
| DTA9402GRY FLAMMABLE LIQUID TANK SEMI-TRAILER | | 40.18 | / | 47.5 | / | 5 | 6 | | Butanol | |
| DTA9403GRYB FLAMMABLE LIQUID TANK SEMI-TRAILER | (Whatsapp/ Weichat +86152 71357675) | 45 | / | 44.5 | / | 5 | 6 | | Butyl Ether | 8820kg |
| DTA9401GRYD FLAMMABLE LIQUID TANK SEMI-TRAILER | | 42.6 | / | 40.5 | / | 5 | 6 | | Methanol | |
| DTA9402GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | | 42.39 | / | 47.8 | / | / | / | 9 | Methanol | |
| DTA9406GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | | 47.67 | / | 47.67 | / | / | / | 6 | Butyl Ether | |
| DTA9351GRY ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Round tank | 36.87 | / | 36.5 | / | / | / | 9 | Methanol | |
| DTA9405GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | Announcement needs to be changed | 46 | / | 47.3 | / | / | / | 6 | Butyl Ether | |
| DTA9401GYYC ALUMINUM ALLOY OIL SEMI-TRAILER | | 42 | / | 47 | / | / | / | 6 | Diesel Oil | 6800kg |
| DTA9401GRYA ALUMINUM ALLOY FLAMMABLE LIQUID TANK SEMI-TRAILER | sample vehicle | 42 | / | 42 | / | / | / | 8 | Methanol | 7280kg |
| DTA9351GYY ALUMINUM ALLOY OIL SEMI-TRAILER | | 43.5 | / | 39.9 | / | / | / | 6 | Gasoline | |
| DTA9401GYYB TYPE ALUMINUM ALLOY OIL SEMI-TRAILER | | 47.5 | / | 49 | / | / | / | 6 | Gasoline | |
| DTA9400GSY ALUMINUM ALLOY EDIBLE OIL TRANSPORTATION SEMI-TRAILER | | 43.8 | / | 43.5 | / | / | / | 6 | Edible Oil | |
| DTA5310GYYS4 ALUMINUM ALLOY TANKER | SQR1311D5T6-E1 | 28.2 | / | 30 | / | / | / | 6 | Gasoline | |
| DTA9400GYW TYPE TANK SEMI-TRAILER FOR OXIDIZING GOODS TRANSPORTATION | | 27.3 | / | 32.5 | / | 6 | / | / | Liquid Ammonium Nitrate | 11650kg |
| DTA9401GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 42 | / | 43.5 | / | 5 | 6 | | Methanol | |
| DTA9402GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 21.99 | 20 | 21.7 | 5 | / | 6 | | Sodium Hydroxide | |
| DTA9405GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | | 45.73 | / | 43.2 | / | 5 | 6 | | Sec-Butylamine | |
| DTA9406GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | | 49.89 | / | 55.1 | / | 5 | 6 | | Hexane | |
| DTA9403GHY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | Round tank | 39.37 | / | 39.5 | / | 5 | 6 | | Methanol | |
| DTA9407GY CHEMICAL LIQUID TRANSPORTATION SEMI-TRAILER | | 33 | 33 | / | 5 | / | / | | Diluted Hydrochloric Acid | |
| DTA5251GHYDD CHEMICAL LIQUID TRANSPORT VEHICLE | DFL1250A11 | 21.45 | / | 22 | / | 5 | 6 | | Xylene | |
| DTA9400GYY OIL SEMI-TRAILER | | 47.7 | / | 51.5 | / | 5 | 6 | | Gasoline | |
| DTA5251GYYDD TANKER | DFL1250A11 | 21.6 | / | 20.5 | / | 5 | 6 | | Gasoline | |
| DTA5310GFWD9 TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5250GYYP62K1L6T3E4 | 22.5 | / | 22/21.7 | / | 5 | 6 | | Gasoline | |
| DTA5160GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | DFL1311A10 | 27.65 | / | 29.6 | / | 5 | 6 | | Gasoline | |
| DTA5250GFWCA TANK TRANSPORTER FOR CORROSIVE ARTICLES | CA5310GYYP63K2L6T4E4 | 28.5 | / | 30.4 | / | 5 | 6 | | Gasoline | |
| DTA5311GFWLZ TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1168GLJ3 | 14.24 | / | 15.7/16.3/16.6 | / | 4 | 6 | | Gasoline | |
| DTA5310GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | EQ1070 | 4.8 | / | 7 | / | 4 | 5 | | Gasoline | 4270kg |
| DTA5161GFWC4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 29.9 | 31.5 | 33 | 5 | 6 | 6 | | Sodium Hydroxide | |
| DTA5110GFWDF TANK TYPE TRANSPORT VEHICLE FOR CORROSIVE ARTICLES | | 34.26 | / | 38.7 | / | 5 | 6 | | Glycol | |
| DTA5312GFWCT4 TANK TRANSPORTER FOR CORROSIVE ARTICLES | | 31.5 | 33 | 36 | 5 | 5 | 6 | | Water | |
| DTA5311GFWC TANK TRANSPORTER FOR CORROSIVE ARTICLES | Round tank | 38.39 | / | 39 | / | 5 | 6 | | Methanol Formaldehyde, | |
| DTA9400GFWA TANK SEMI-TRAILER FOR CORROSIVE GOODS | Round tank | 28.8 | 31.5 | 33 | 5 | 5 | / | | Hydrogen Peroxide Solution | |
