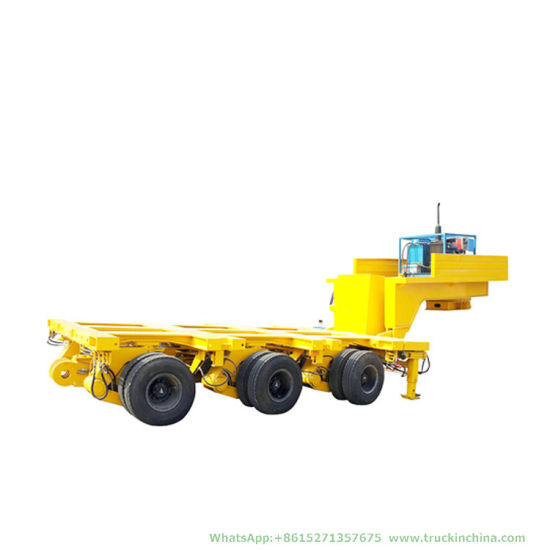

Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)

Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)

Quantity:
  • Shanghai, China
  • 200sets
  • T/T, Western Union

Heavy Duty Self Propelled Modular Trailer (100T 200T SPMT Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)

Heavy Duty Self Propelled Modular Trailer (100T  - 200T SPMT Power Dolly Trailer )
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)

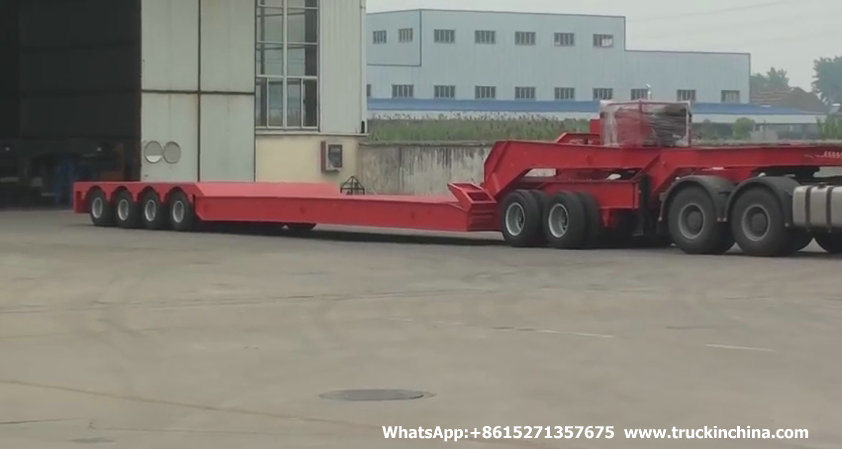

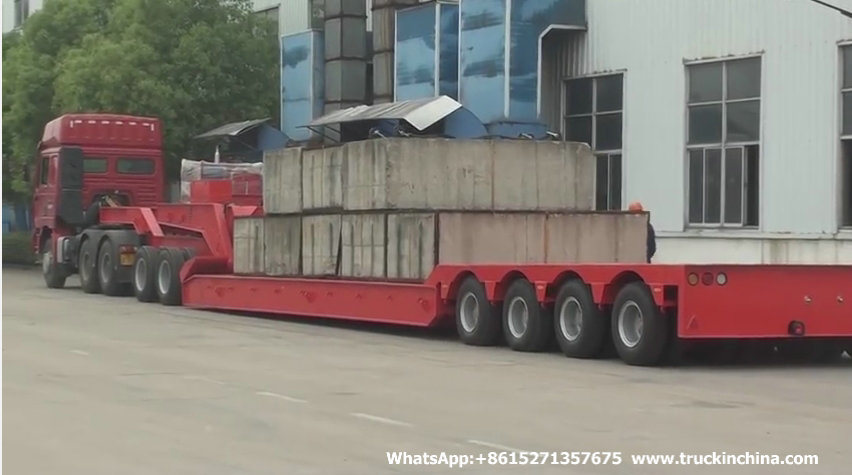

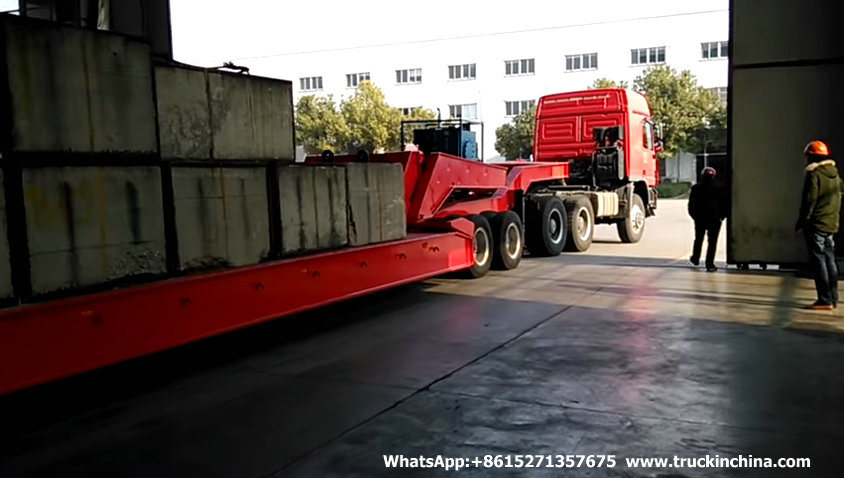

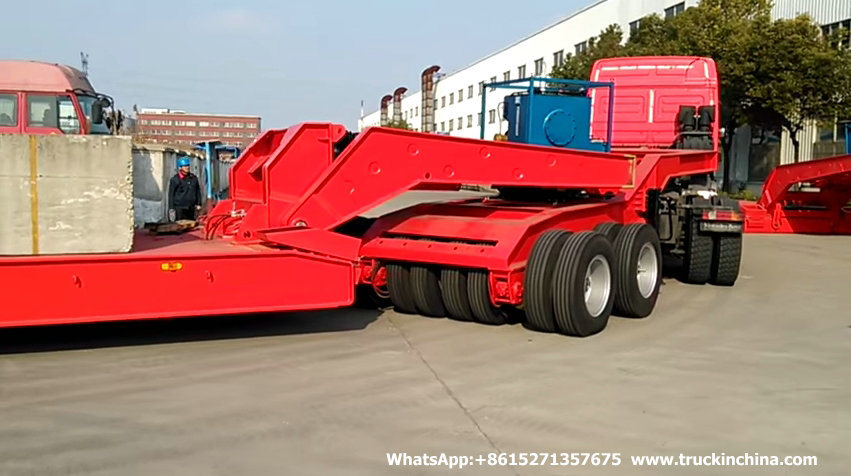

Modular low bed trailer equip power gooseneck/ramp
Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)

Heavy Duty Self Propelled Modular Trailer (100T - 200T SPMT Power Dolly Trailer)

Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With Removable Dolly Trailer with Detachable Gooseneck ( Front loading  Low Boy trailer)



Lowbed Trailer Product Description
Modular low bed trailer equip power gooseneck/ramp
Specification
1. Dimension 5800 x 3000 x 1200 mm
2. Tare weight 20000 kg
3. Payload 96 tons
4. The Max. steering angle 45°
Standard Configuration
1. Axle 10 ton Fuwa brand, 3-line and 6-axle
2. Suspension Hydraulic steering suspension
3. King pin 2", bolt on type
4. Landing gear 28 ton, two speeds
5. Tire 215/75R17.5, 24 units
6. Rim 6.0-17.5, 24 units
7. Braking system

Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle,

30 single chambers on other axles

8. Electrical system Dual circuit, 7-way split pin receptacle plug, LED light
9. ABS None
10. Painting

Blasting sand before painting, one coat primer and two coat finish painting,

colour supplied by customer

11. Mudguard Plastic or steel
12. Others 1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations
1. Air suspension Firestone, Goodyear or Chinese brand
2. ABS system Wabco or Chinese brand
3. Axle BPW 12 ton
4. Ladder operation Hydraulic
5. Modular quantity add or reduce

Usage:To transport  rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)

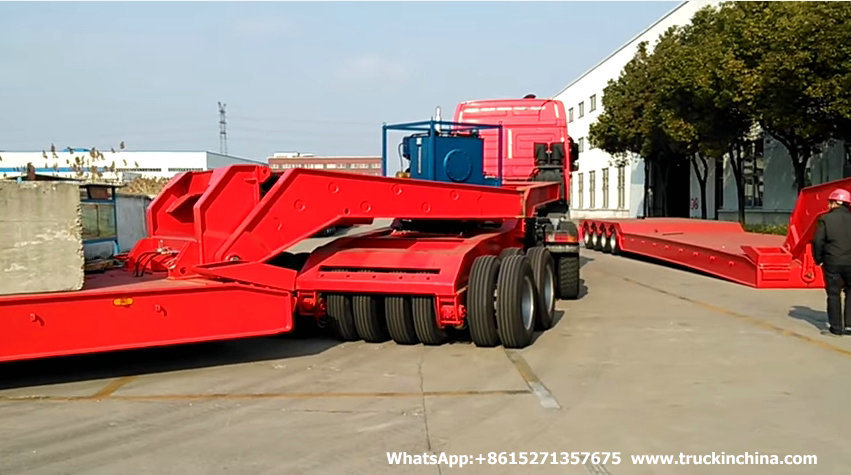

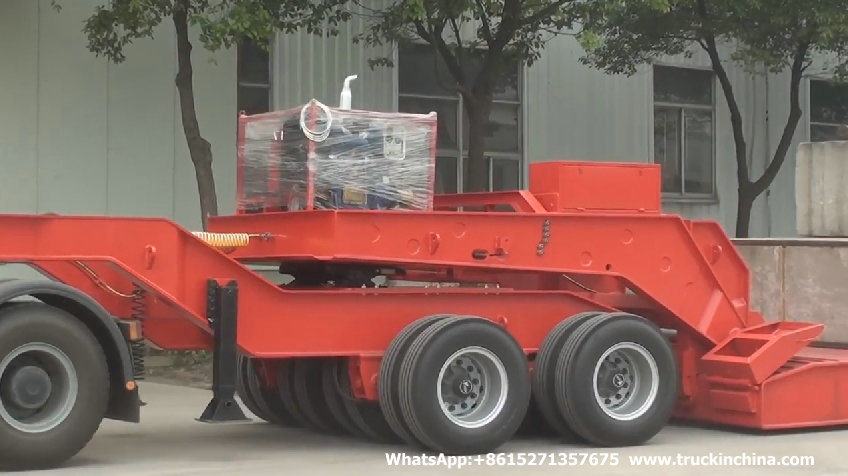

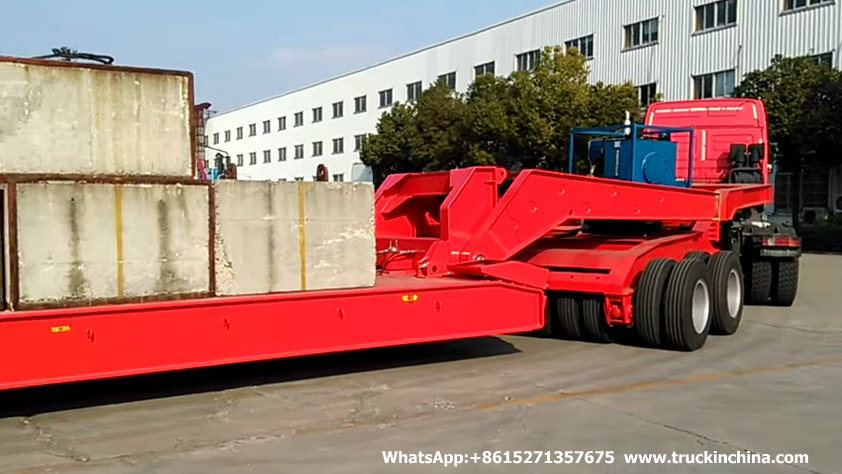

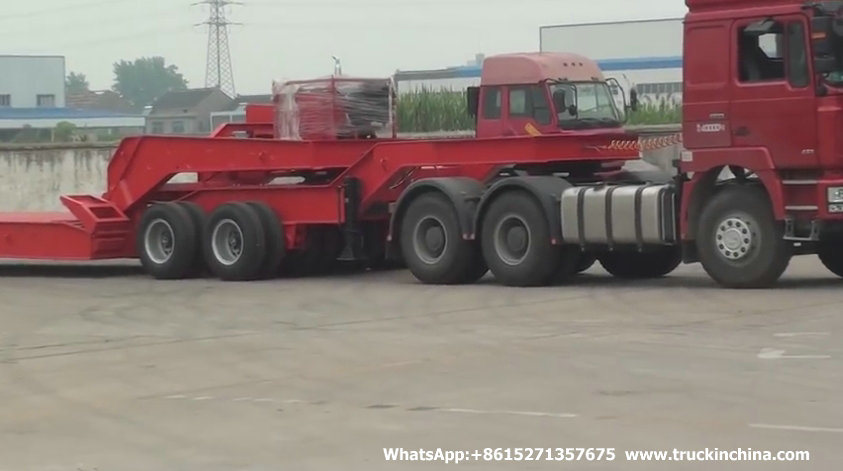

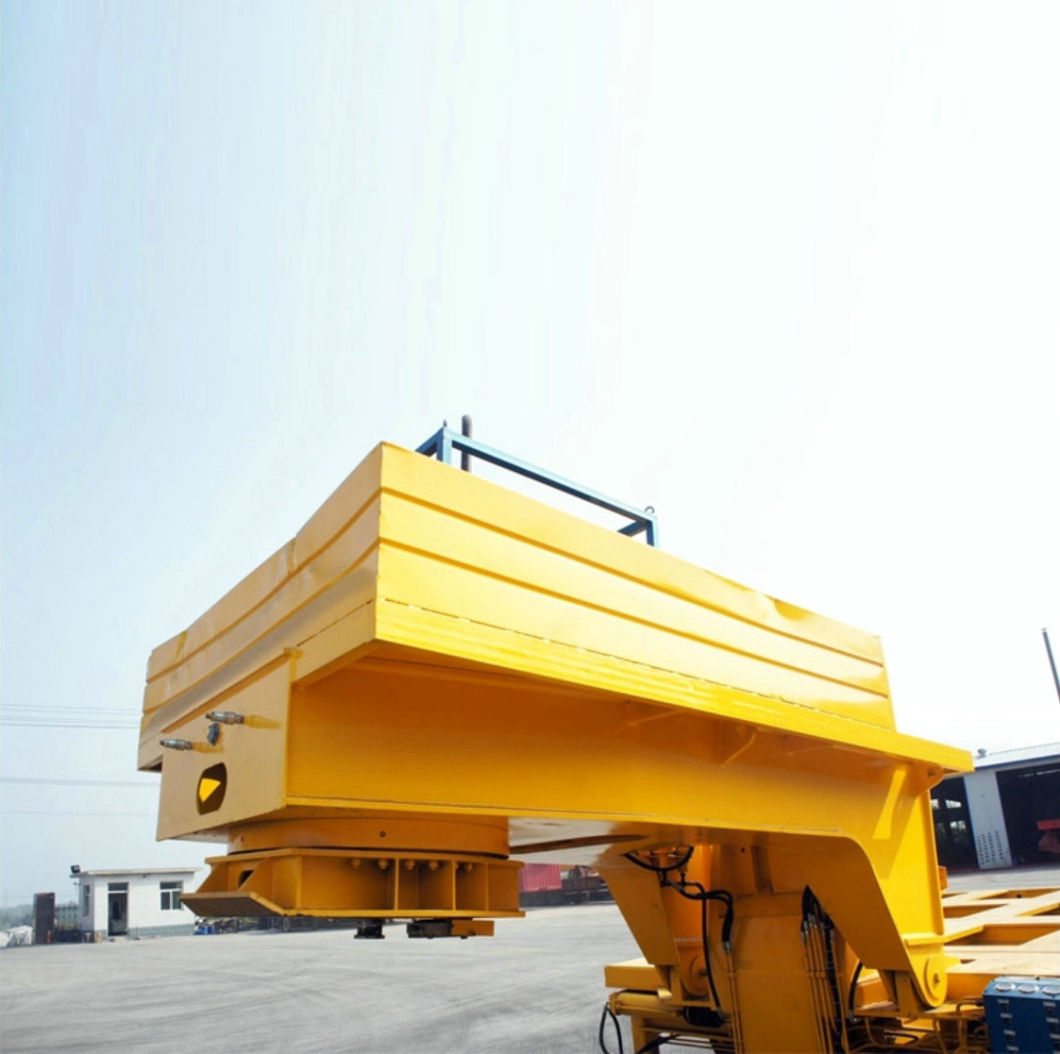

Power gooseneck
Power gooseneck low plate
Four line eight axle trailer


Special 6 Axles Low Bed Modular Semi Trailer for Heavy Equipments Transport
Low Boy trailer 80T -200tons

60 ~160Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer

Lowboy trailer  Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:

LOAD CAPACITY:     50T, 70T, 90T  100T, 160T ,200T

LENGTH:                 13m, 14m ---18-20m

AXLE:                     FUWA AXLE 13T (16T, 20T)    OPTION:L1, BPW AXLE (12T, 13T), ABS

TIRE:                     315/80R22.5 11.00R20 12.00R22.5 315/80R22.5

OPTION: 385/65R22.5 (Single tire)

60~120 Ton Hydraulic-neck low-bed trailer  ,Heavy Haul Equipment Trailer

Trailers Non Ground Bearing Hydraulic Detachable Gooseneck


Lowboy trailer 60 ~150Ton 4~5~6 axles Hydraulic-neck low-bed trailer ,Heavy Haul Equipment Trailer removable gooseneck tridem-axle low-bed trailer

Lowbed Trailer Hydraulic Detachable Gooseneck Lowbed Trailer 4 Axle ,5 Axles ,6 Axles Front Loading With  Removable Dolly Trailer


Removable Gooseneck Lowboy Trailer heavy transport Mine dumper


Hydraulic-neck low-bed trailer Front loading  Low Boy trailer
Detaching lowbed neck Gooseneck Trailer Dropping The Low Bed Trailer
OVERSIZE LOAD - REMOVABLE GOOSENECK
HEAVY & OVERSIZE LOAD - REMOVABLE GOOSENECK - MURRAY SEMI-TRAILER

Detaching Removable Gooseneck Lowboy Trailer shiping transport Photos

OVERSIZE LOAD - REMOVABLE GOOSENECK


Gooseneck hydraulic trailers Feature



REMOVABLE GOOSENECK Lowboy Trailer


Customize  Truck

3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer

Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer  Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
