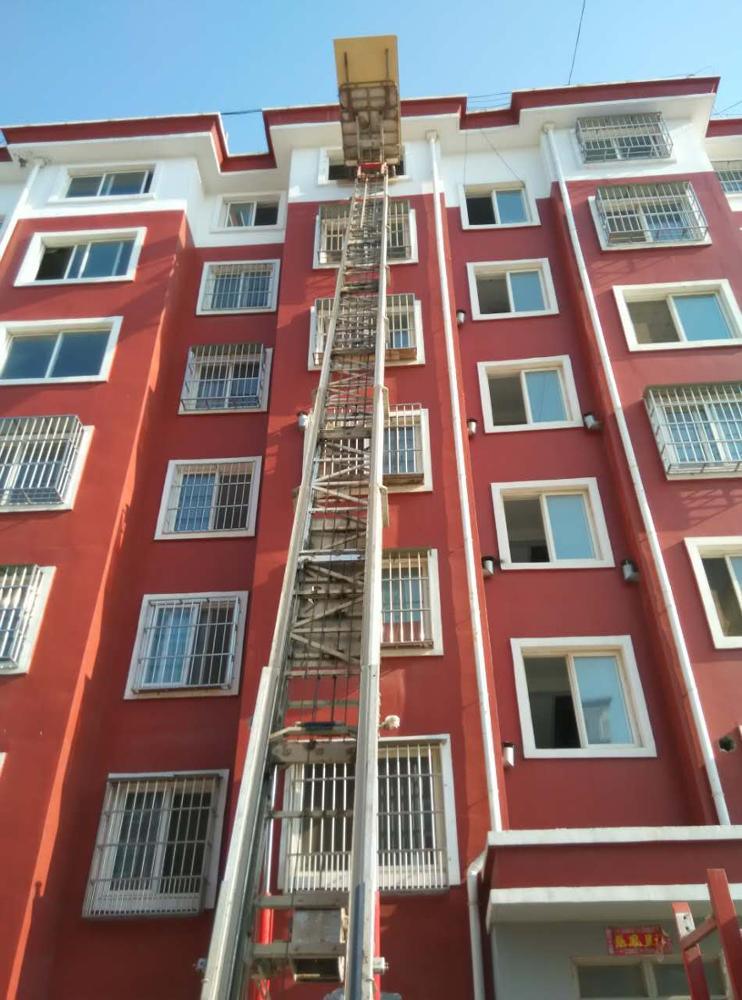

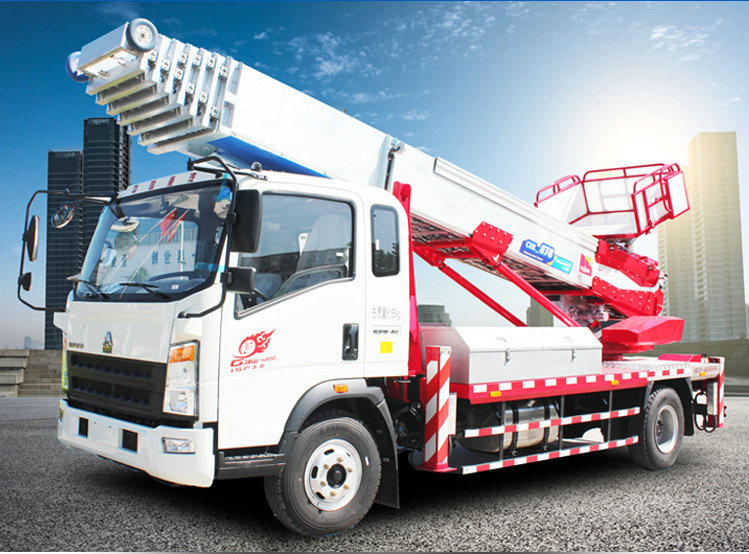

Truck Mounted Telescopic Ladder Truck for House Building Goods Lift and Download (House Furniture Moving Cherry Picker Hydraulic 28 M Aerial Platform Ladder)
Telescopic Aerial Platform
fully Hydraulically Operate Arial Work Platforms
fully Hydraulically Operate Arial Work Platforms
Max operation height 12m,14m,16m ,18m,22m,26m,28m
max operation radius 5.7m, 6.3m,7m
max working platform rating loading=200kg,

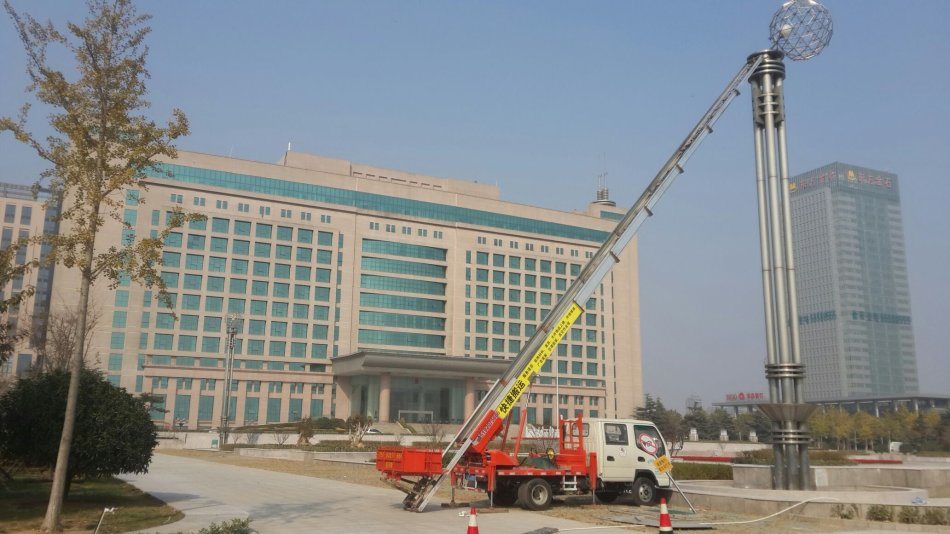

Aerial Working Platform High Altitude Working Truck for Street Lamp Maintenance Function:
Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Specification:
Ask for better price
Cell /+8615271357675
Introduction of truck mounted lifting ladder

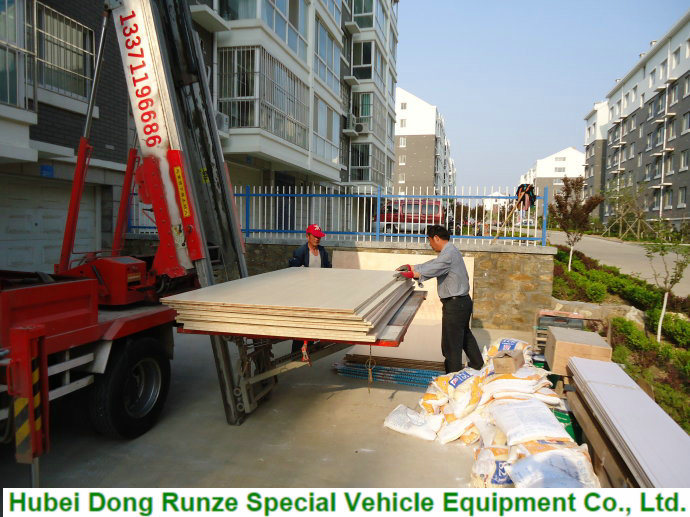

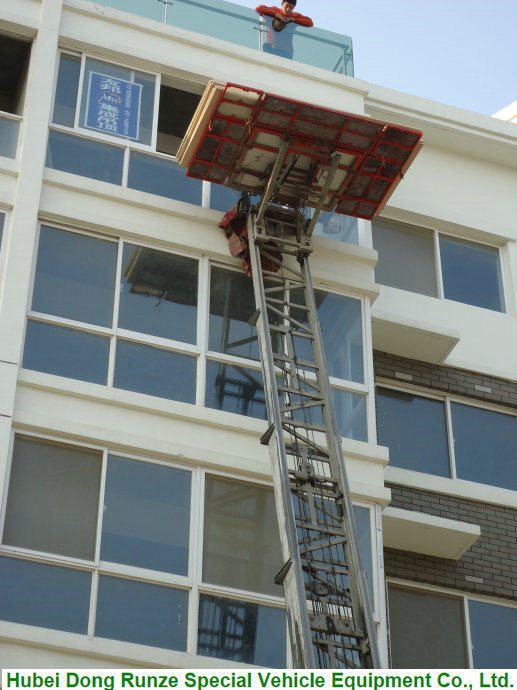

Truck mounted lifting ladder, which is also called ladder truck, aerial house moving truck , hydraulic ladder lift truck, ladder rack truck, aerial ladder lift truck, truck for house moving, etc.
As a professional ladder lift truck manufacturer in China, our aerial moving platform truck is 360 degree rotate .
The hydraulic ladder lift truck for sale is consisted of truck chassis, telescopic boom, hydraulic cylinders, power take off, motor, gear pump, operator seat, multi-way control valve, lifting hook, etc. It mainly used for street light maintenance, power maintenance, communication maintenance, planting by municipal corporation, power section, communication corporation, etc. Mainly used for construction industry.
Technical parameters of crew cabin truck mounted lifting ladder
Items | Descriptions | Specifications and Types |
General | Truck Name | Aerial ladder moving truck |
Drive Type | 4*2 | |
Gross Weight(kg) | 4495 | |
Curb Weight (kg) | 4170 | |
Overall Dimensions L*W*H(mm) | 5810×2010×3250 | |
Engine | Engine Model | CY4102-C3F |
Engine Brand | Chao Chai | |
Fuel Type | Diesel | |
Power | 70kw/95HP | |
Emission Standard | Euro III | |
Displacement(ml) | 3856 | |
Engine Type | 4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling | |
Chassis | Chassis Brand | Dongfeng |
Cabin | Flat roof, single row | |
Tire No. | 6+1 | |
Tire Specification | 7.00-16 Nylon tire | |
Wheelbase (mm) | 3300 | |
Axle No. | 2 | |
Gear Box | 5 speed forward with 1 reverse, manual | |
Brake | Air brake | |
Steering Wheel | Left hand drive with power-assisted | |
Radiator | Suitable for tropical climate | |
Performance | Max lifting height(m) | 28 |
Outrigger No. | 4 | |

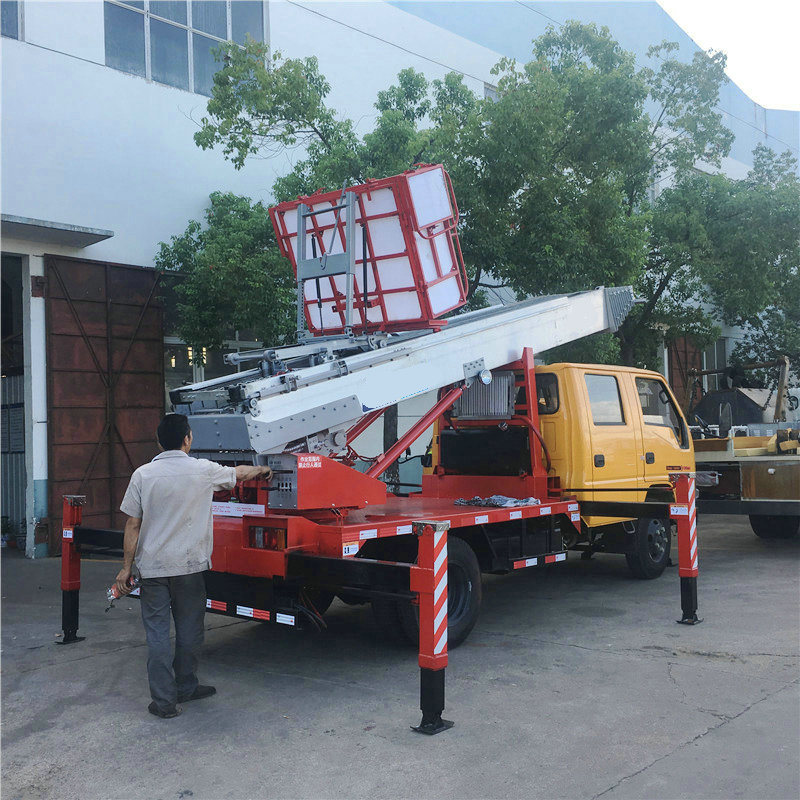

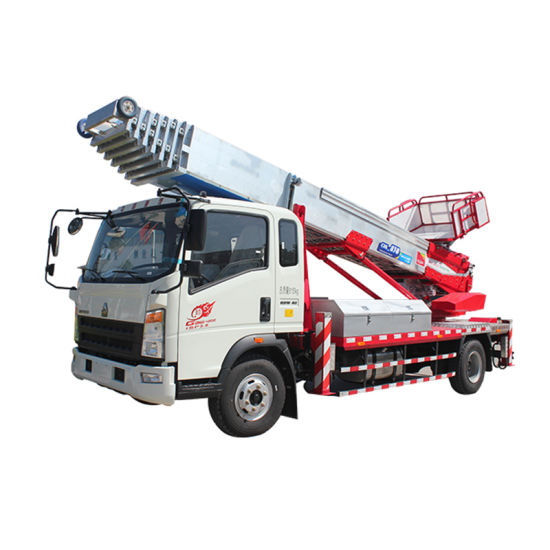

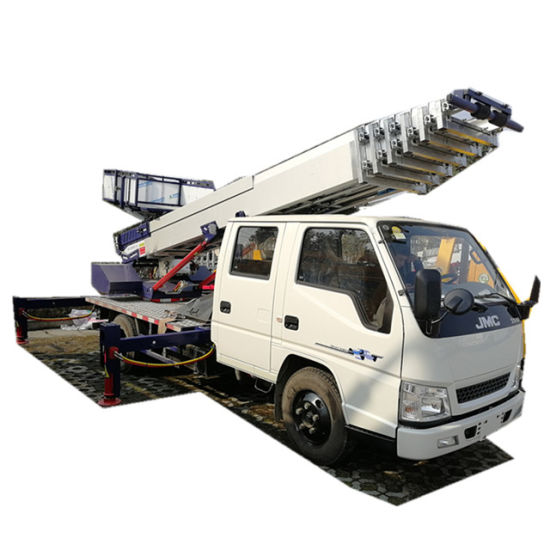

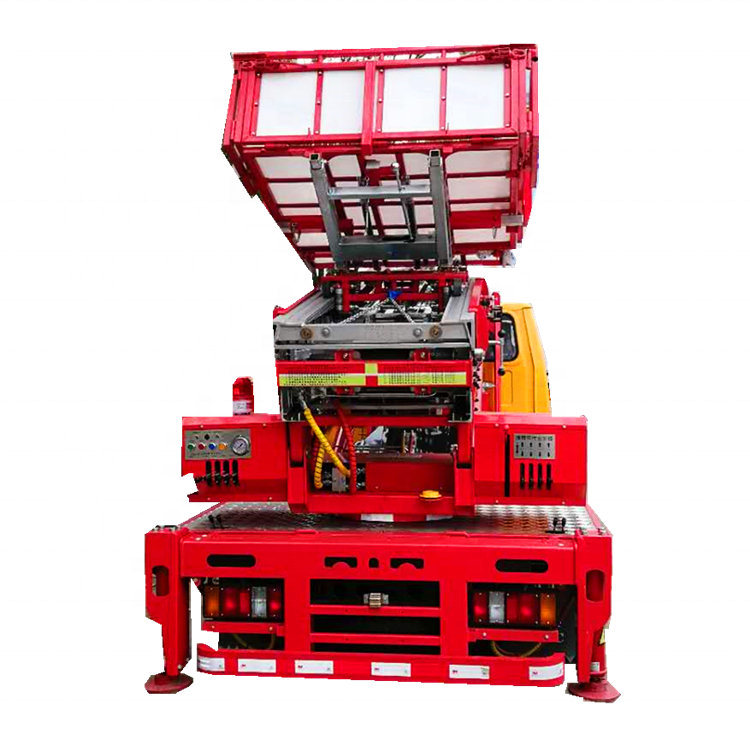

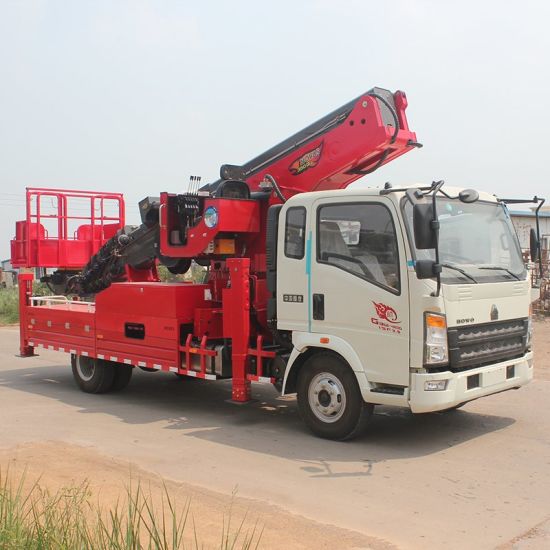

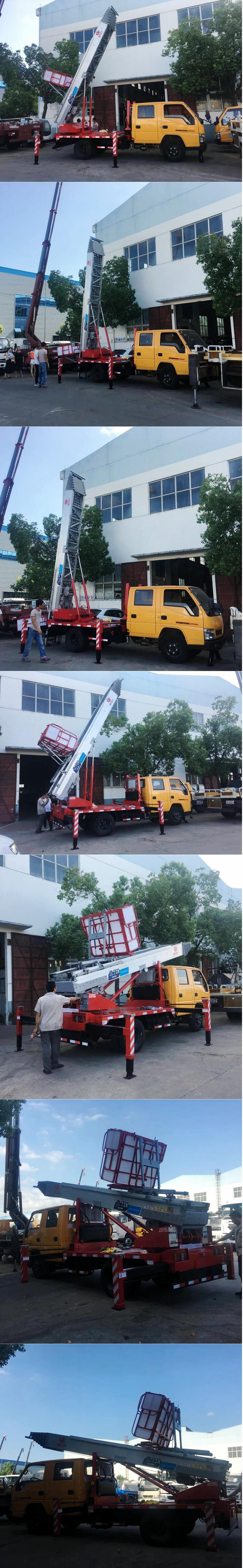

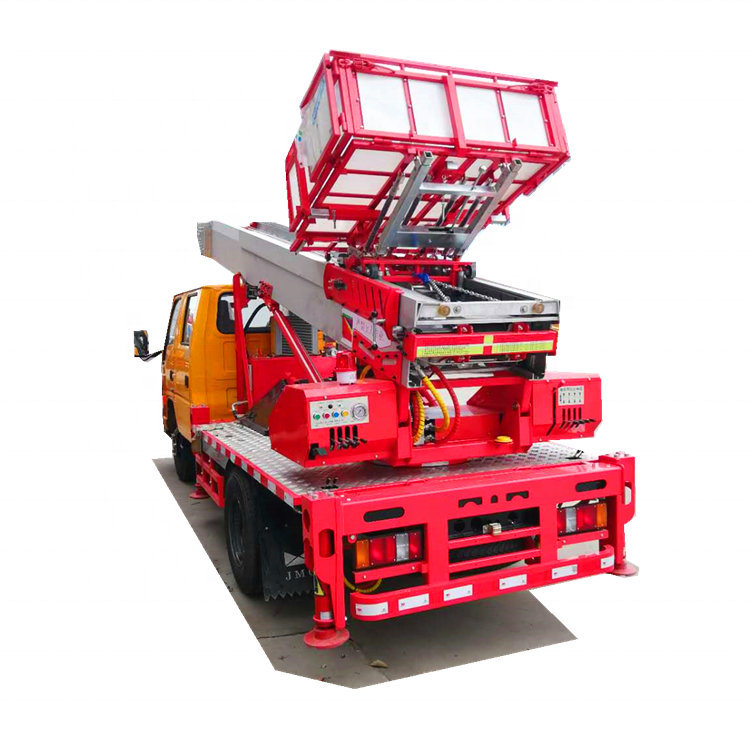

Pictures of new Chinese hydraulic lift ladder truck for sale
Specification:
ISUZU mounted Crane truck ( 3.2Ton boom crane SQ3SK2Q) | ||
General | Vehicle Brand | DONG RUN ZE TRUCKS |
Chassis Brand | I.S.U.Z.U | |
Overall Dimension | 6500 * 2100 * 3100 mm | |
GVW / Kerb Weight | 7,300kg / 4,000kg | |
Cab | Cab Capacity | 2 persons allowed |
Air Conditioner | Heating/cooling air conditioner | |
Engine | Fuel Type | Diesel |
Engine Brand | I.S.U.Z.U | |
Power | 130 HP (88 KW) 4KH1 | |
Displacement | 2999 ml | |
Emission Standard | Euro 4 or 5 | |
Chassis | Drive Type | 4X2, (Left hand drive ONLY) |
Transmission | Manual MSB 5 speed levers with 1 reverse | |
Wheelbase/No. of axle | 3360 mm / 2 | |
Tire Specification | 7.00-16 | |
Tire Number | 6 tires and 1 spare tire | |
Max Speed | 90 km/h | |
Paint | Metallic paint | |
Superstructure | Cargo Box Dimension | 4000*1900*500 mm |
Crane Type | Telescpoic boom crane | |
Max Lifting Capacity | 3200 kg | |
Slewing Angle | 360° All rotation | |
Crane Weight | 1229kg | |
Installation Space | 850 mm | |
Control panel | English or Your language | |
All standard accessories: Basic tool kit, English manual... | ||
Optional | ** Knuckle boom crane. ** Hydraulic tipper box. ** Box thickness according to requirement. ** Box height could be nominated |
Items | Parameter | ||
Truck Model | 5070JSQ2 | ||
Crane Parameter | Max Lifting Capacity | 3200 kg | |
Max Lifting Moment | 6.8 T.M | ||
Recommend Power | 14 kw | ||
Max Oil Flow of Hydraulic System | 25 L/min | ||
Max Pressure of Hydraulic System | 20 Mpa | ||
Oil Tank Weight | 30 L | ||
Crane Weight | 1229 kg | ||
Installation Space | 850 mm | ||
Rotation Angle | 360° All Rotation | ||
Cargo Body | Thickness | Side | 2mm |
Floor | 3mm |
Similar Key Words: hydraulic boomlifter, overhead working truck, truck mounted aerial platform, aerial beam lifter, man lift truck, articulated basket platform, skylift, insulated aerial cage truck
www.truckinchina.com
PACKING & DELIVERY
Aerial platform truck 16m water tank and water pump ,Truck Mounted Aerial Work Platform water tank,Work Platform water tank truck,aerial bucket truck water tank,bucket truck with water tank ,Truck Mounted water tank Aerial Work Platform
Truck mounted aerial platform, which will be used to clean pole mounted solar panels for street lights. So it requires a special arrangement of truck mounted water tank as well as water hose at the basket.
The pole height is 6M so aerial lift should be 8-10M.
Water tank capacity can be 3000Ltr
Truck may be medium light truck of 3.% ton.
Welcome all around world customer visit our factory
