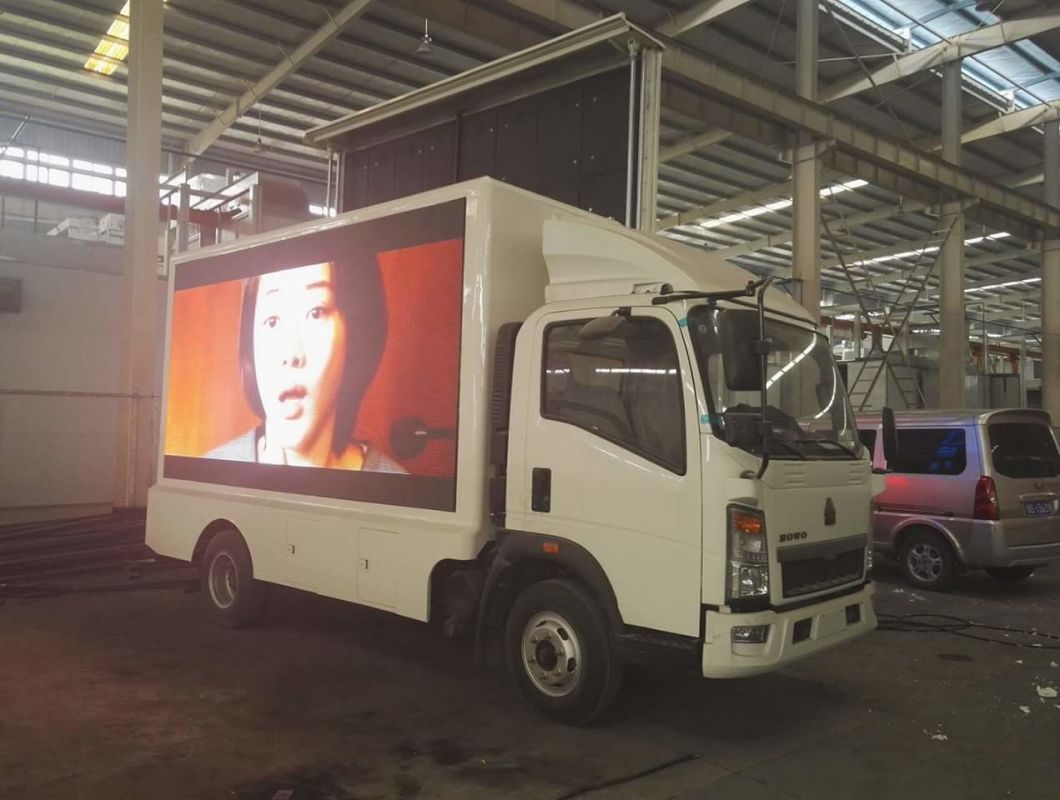

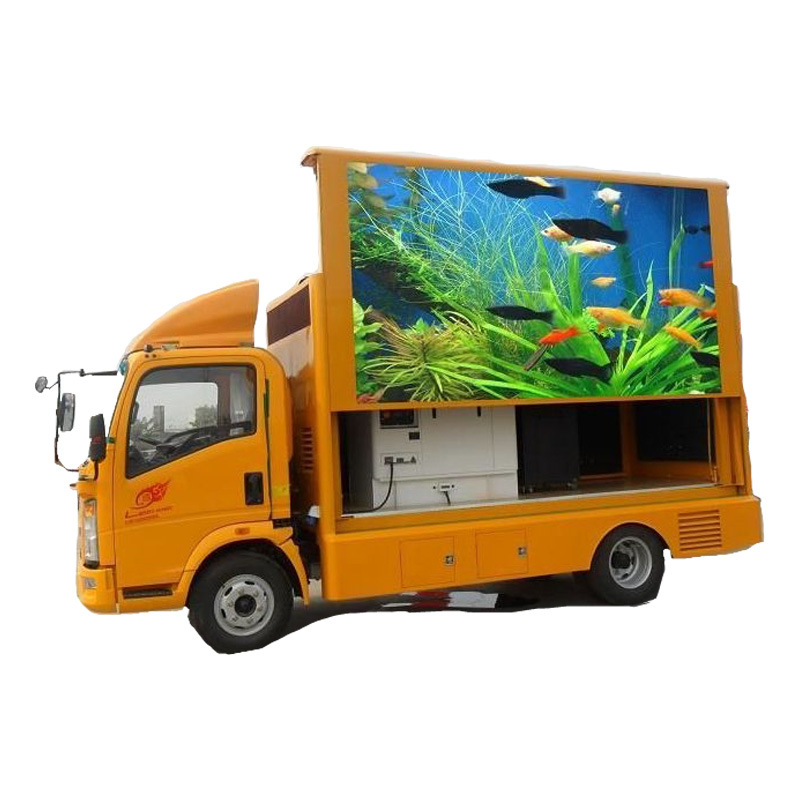

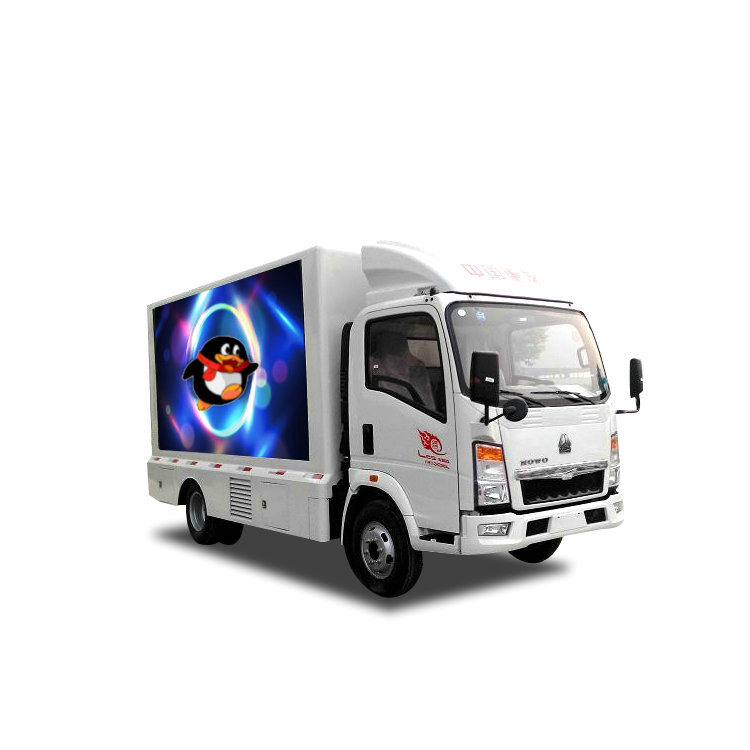

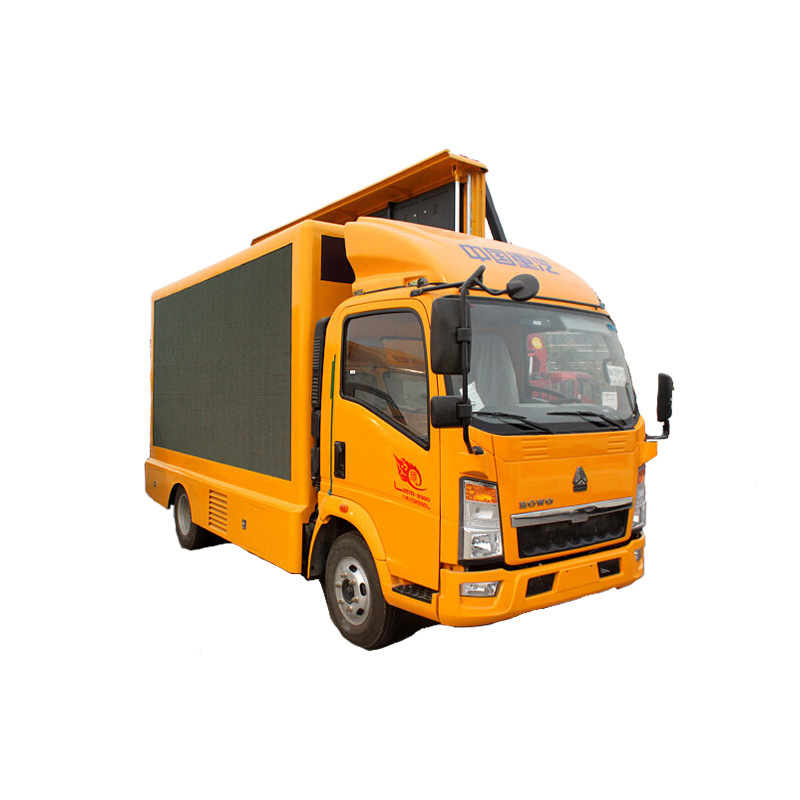

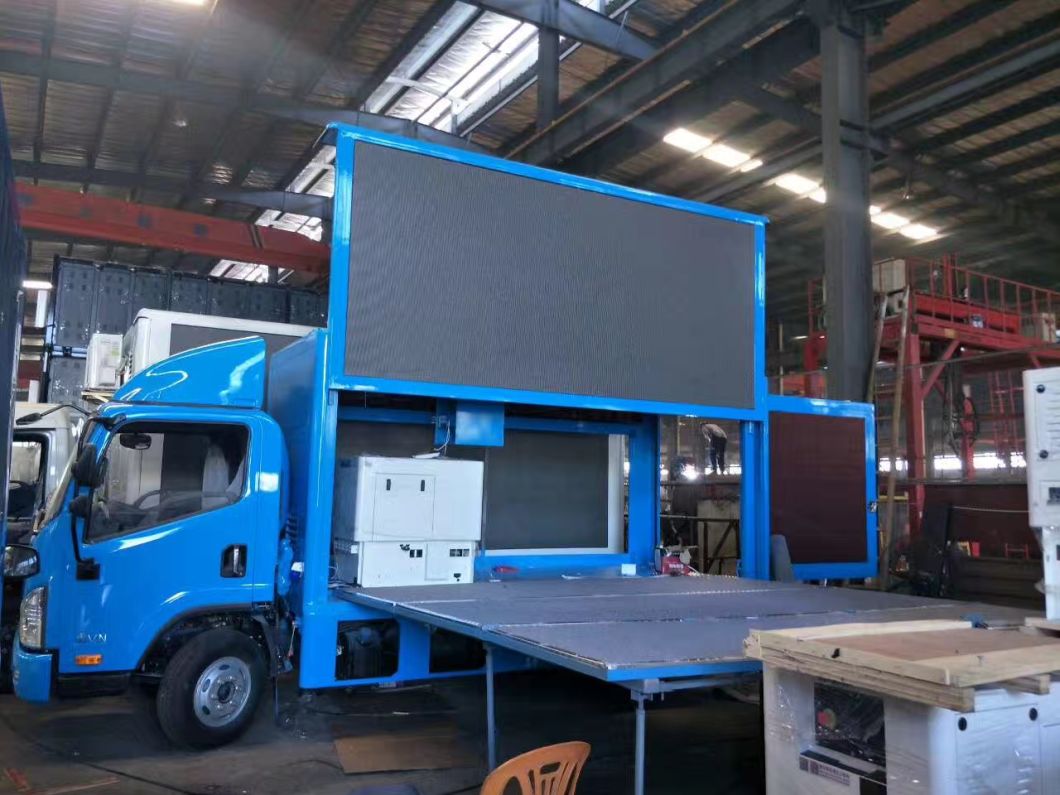

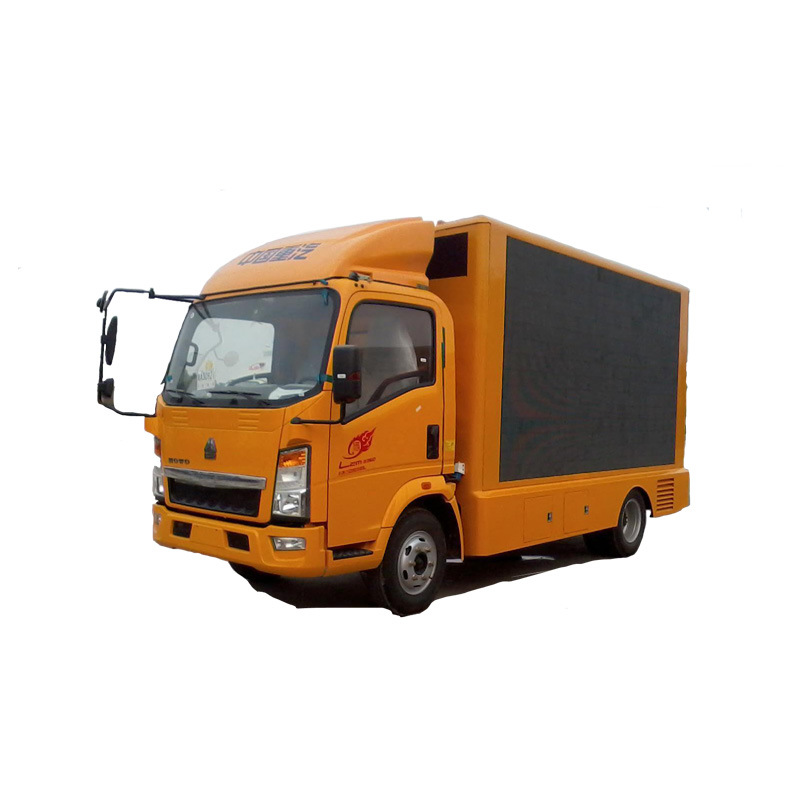

HOWO Truck Mounted Outdoor Advertising with LED Billboard Display Screen
HOWO Mobile LED Stage Truck
Outdoor LED Advertising Truck HOWO Mobile LED Stage Truck
1. Factory direct sale led truck, high quality at competitive price.
2. Optional P5/P6/P8 lifting screen, good visual effect.

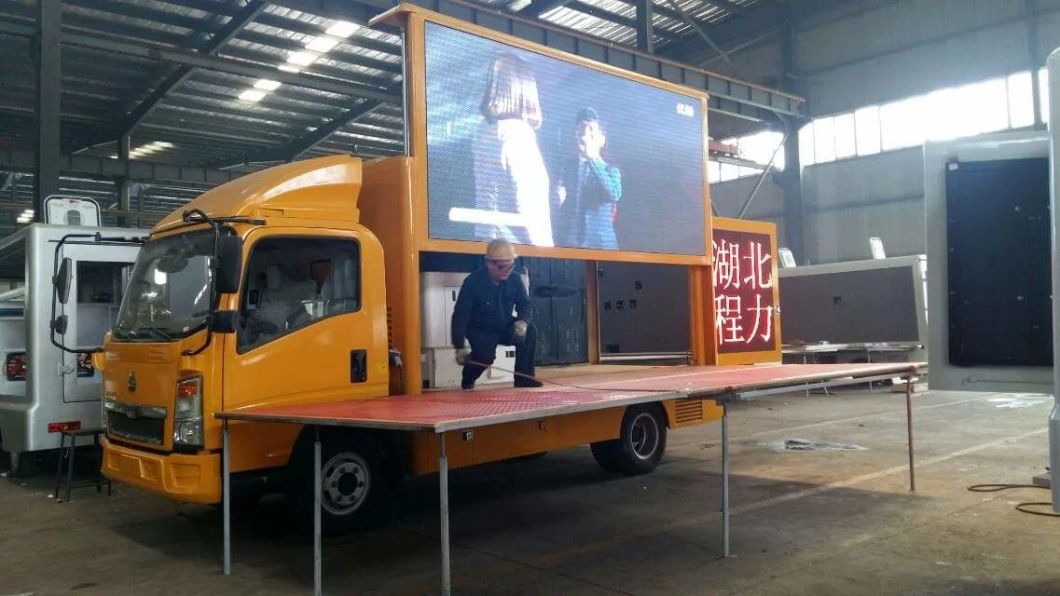

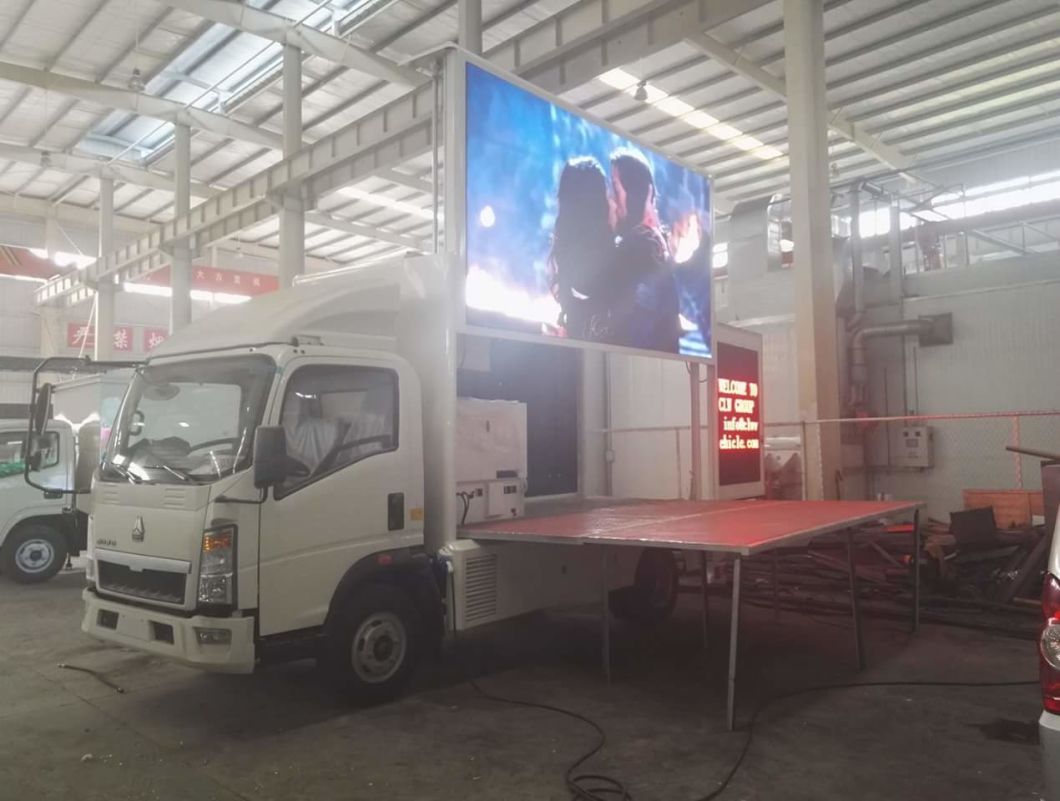

3. Optional foldable stage with different size, multi-functional usage.
4. World famous chassis brand SINOTRUCK HOWO, most popular for export.
LED Billboard Truck Box Boby Customizing
Ask for better price
Cell /+8615271357675
The pictures are for your reference only.
Detailed images
Specifications
Classification | Item | Unit | Parameter |
Vehicle | Vehicle model | DRZ5047XXCZZ4 led advertising truck | |
Manufacturer | Dong Runze Special Vehicle | ||
Overall dimensions | mm | 5995×2025×2995 | |
Curb weight | kg | 4300 | |
Traction system | 4×2 | ||
Max speed | km/h | 90 | |
Chassis | Chassis model | ZZ1047C3414D145 | |
Manufacturer | ZhongQi Automobile Co., Ltd | ||
Number of axles | 2 | ||
Wheel base | mm | 3360 | |
Tire specification | 7.00-16LT 8PR | ||
Number of tires | 6 | ||
F/R track base | mm | 1605/1520 | |
Engine | Engine model | 4DW93-84E4 | |
Fuel type | Diesel | ||
Power | kw | 64 | |
Engine horse power | hp | 87.04 | |
Displacement | ml | 2540 | |
emission standard | Euro III | ||
Driver's cab | Brand | HOWO | |
Model | Flat head, single row | ||
Allowable seats | 2 | ||
Steering | Left hand drive | ||
Transmission | 5-speed with over drive | ||
Operation control system | Electrically hydraulic control | ||
Air-conditioning | Optional | ||

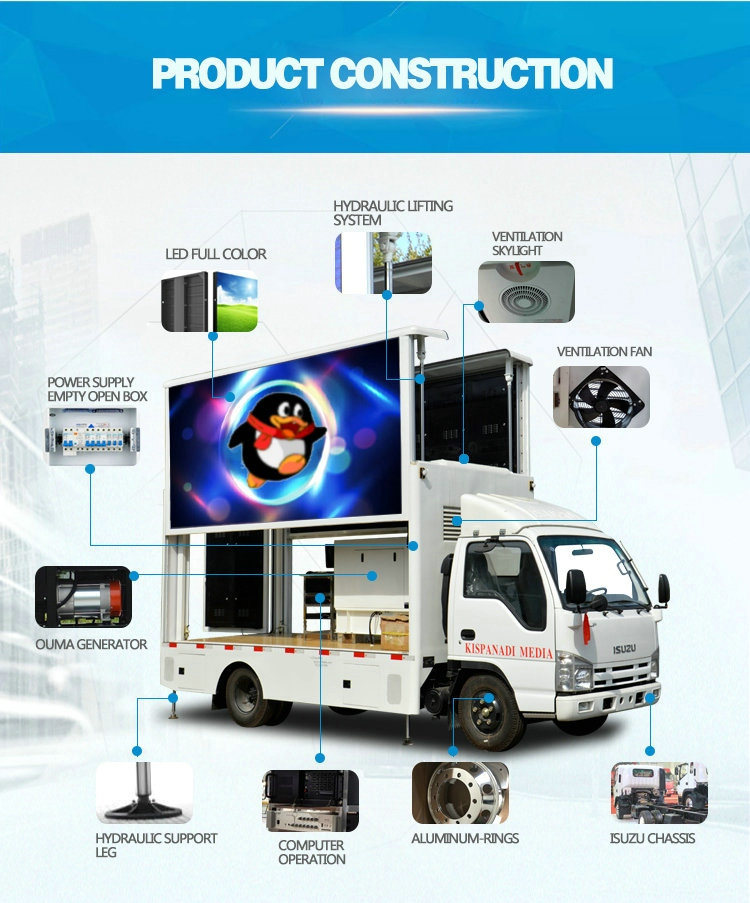

Standard equipment | 1> One side waterproof P8 full color led screen; 2> The other side advertising light box with subtitle; 3> The rear side monochrome screen to display the text; 4> 5cm composite steel box, wooden floor; 5> Inside and outside the electric distribution box; 6> Loop ventilation cooling system; 7> Ouma silent diesel generator; 8>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier, 1 console. | ||
Color & Painting | According to customer's requirements | ||
FOB Shanghai | USD |

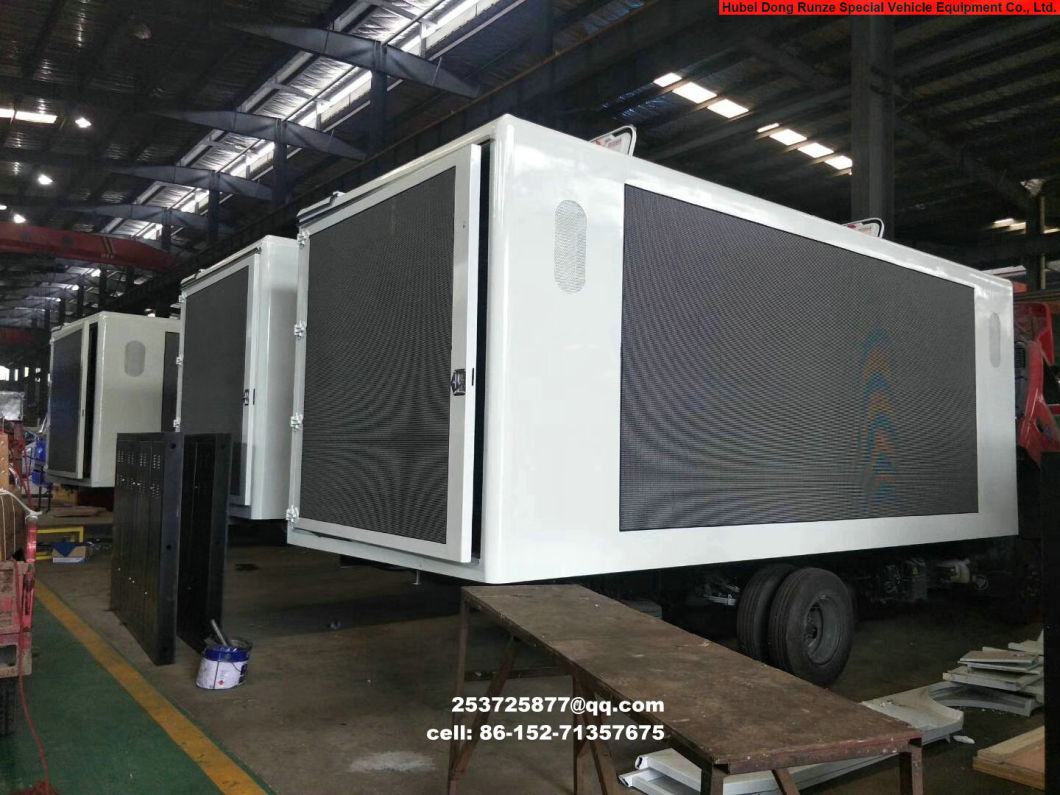

LED Billboard Truck Box Boby Customizing
led screen left and right size 3840*1760mm ( 6.8m2) | rear door led screen size 1280*1440mm (1.84 m2) | ||
Equipment configuration | 1> All 3-sides(right, left, rear side) waterproof P5/P6 full color led screen 2> 5cm composite steel box, wooden floor; 3> Inside and outside the electric distribution box; 4> Loop ventilation cooling system; 5> Ouma silent diesel generator; 6>1 industrial computer with control system, 4 waterproof speakers, 1 amplifier . | ||
Color & painting | According to customer's requirements | ||
Price | P5 full color screen x all 3 sides, $22000-$27000FOB | ||
P6 full color screen x all 3 sides, $20000-$25000FOB | |||
Options | (1) Lifting system 1.5m height for side led screen, add$900/one side |
other
LED Truck | wheelbase | LED Billboard body size |
5995×2030×2980 | 3300 | P8 :3840*1792=6.88 P6 : 3840*1728=6.65 Rear Screen :1280*1440=1.84 |
5995×2050×3100 | 3308 | |
5595*2025*2995 | 3360 | |
5995×2100×3050 | 3300 | |
5995×2000×2900 | 3360 | |
5995*2040*2990 | 3360 | |
5595*2025*2995 | 3360 | |
5990*1990*2950 | 3300 | |
5995*2030*3050 | 3360 | |
5995*2150*2900 | 3360 | |
8760*2365*3675 | 4700 | P8:5376*2304=12.38 P6: 5376*2304=12.38 Rear Screen 1600*1600=2.56 |
7290*2330*3350 | 3800 | P8:4864*2048=10 P6: 4800*2112=10.13 Rear Screen 1600*1600=2.56 |
5250*1900*2750 | 2800 | P8:2560*1536=3.93 P6:2496*1536=3.83 Rear Screen 960*1280=1.64 |
5100*1710*2640 | 3070 | P8:2304*1536=3.54 P6:2496*1536=3.83 Rear Screen 960*1280=1.64 |
5000*1960*2590 | 2900 | |
4650*1700*2400 | 2765 | P8:2304*1408=3.14 P6:2304*1345=3.1 |
1. Mobile LED advertising trucks is also named as mobile LED screen trucks, LED advertising vehicles, LED mobile advertising vehicles, LED media cars, LED propaganda vehicles, LED stage trucks, digital led screen display trucks, etc.
2. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
3. One side waterproof P6/P8/P10 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
4. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
Cell :+8615271357675
