HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)

Quantity:
  • Shanghai, China
  • 8000
  • T/T
  • Howo Synchronous chipsealer
  • 351-450hp
  • >8L
  • Asphalt Chip Mixer
  • ISO
  • Radial
  • New
  • 11950X2500X3800
  • 12.00-20 16pr
  • 2 Burner
  • Synchronous Chip Sealer Truck
  • Synchronous Gravel Seal
  • Gasoline Engine
  • 12000 -14000liters
  • 8000-9000 Liters
  • 0.3~3.5mm
  • 2.4~4.2 M
  • American Technology
  • Micro Surfacing, Slurry Selaing, PCA Road, Color R
  • SINO HOWO
  • Nil
  • OEM
  • Cn
  • 8705090990
  • Manual
  • Diesel
  • 11-20t
  • Euro 3-6
  • 5001-10000L
  • 8×4
Road Construction 12 wheels Howo Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt )


Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6CBM Asphalt Tank
Cell: 0086 152 7135 7675

HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)
HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)


Shacman Asphalt Synchronous Chip Sealer
China Truck HOWO Shacman FAW 10wheels Bitumen Sprayer Chip Spreader Synchronous Fiber Chip Sealer

HOWO Shacman FAW 10wheels Bitumen Sprayer Chip Spreader Synchronous Chip Sealer

Shacman 20m3 Chip Sealing Tank Truck Asphalt Synchronous Chip Sealer

HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)
HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)
HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)

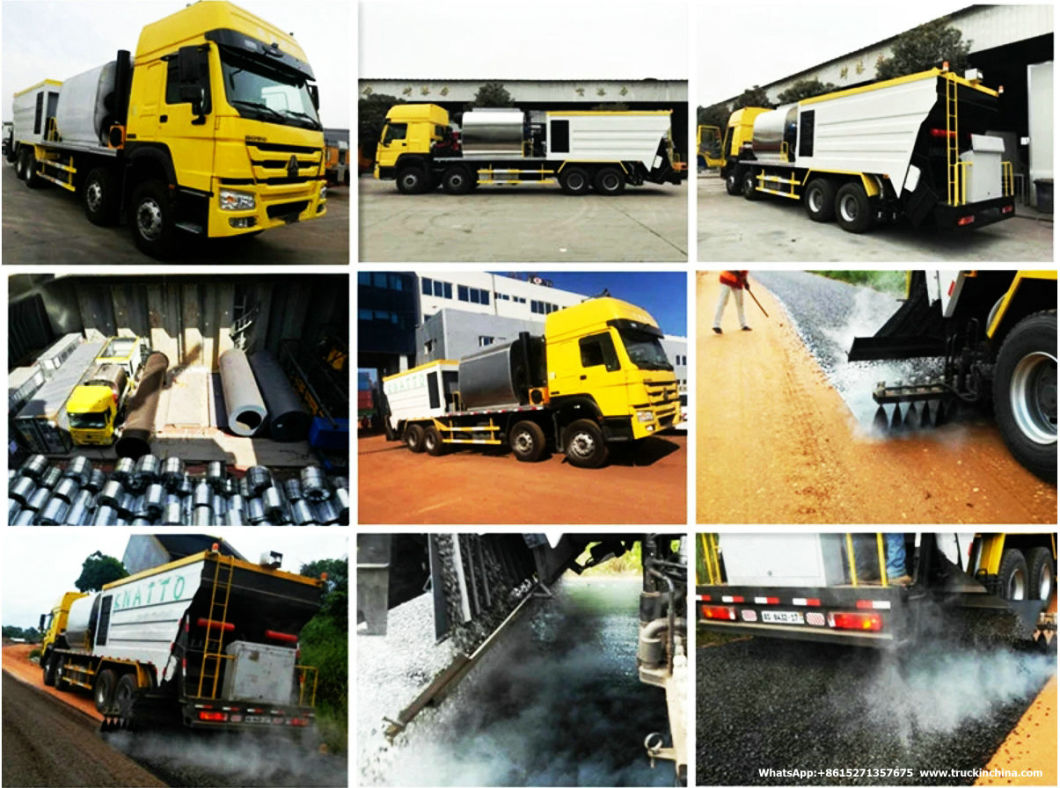

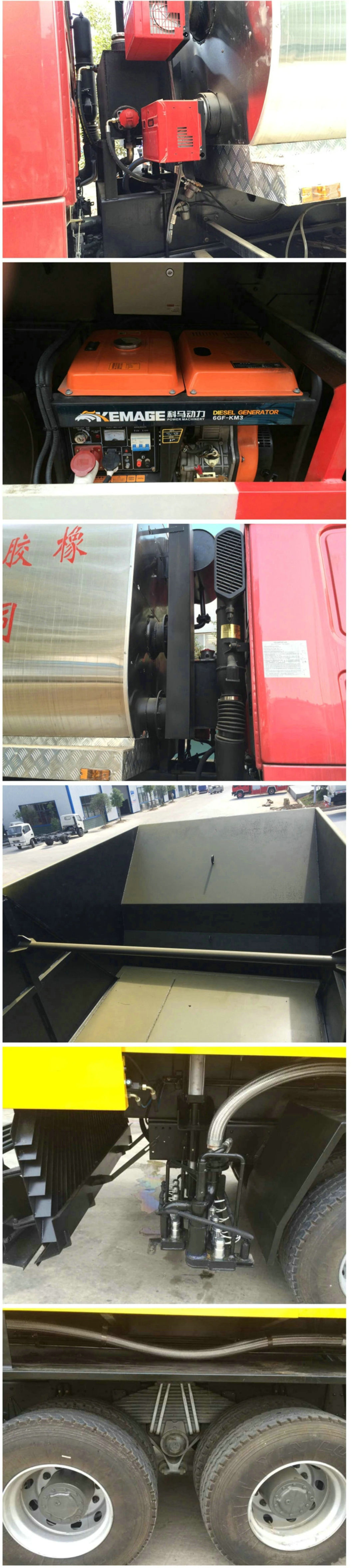

Product Photos

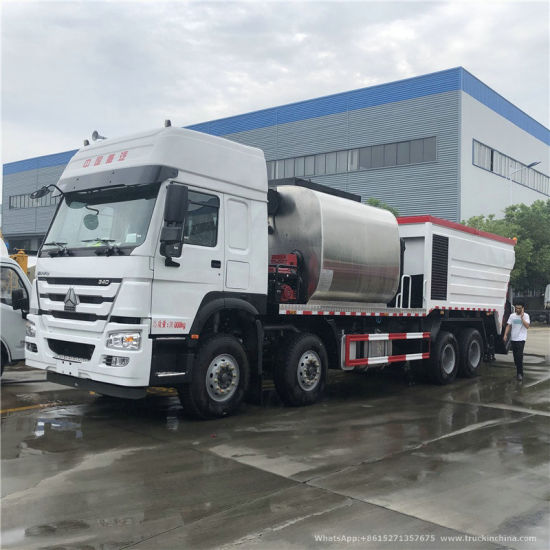

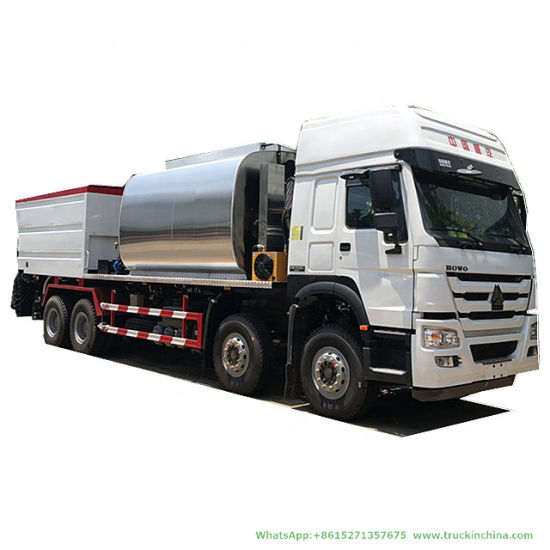

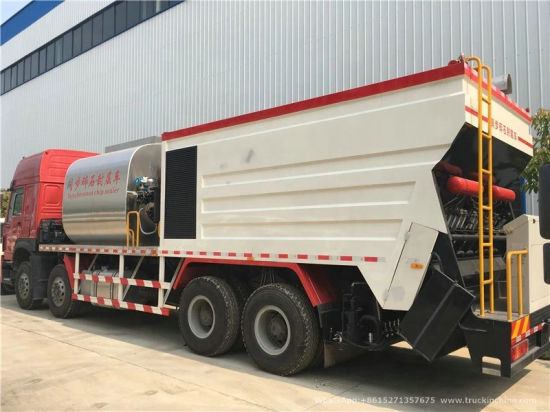

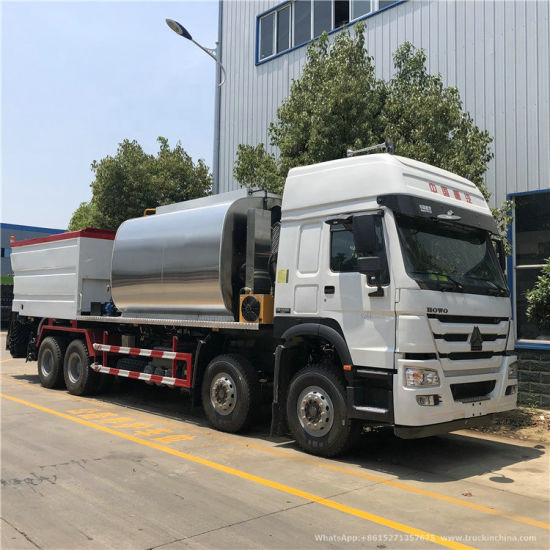

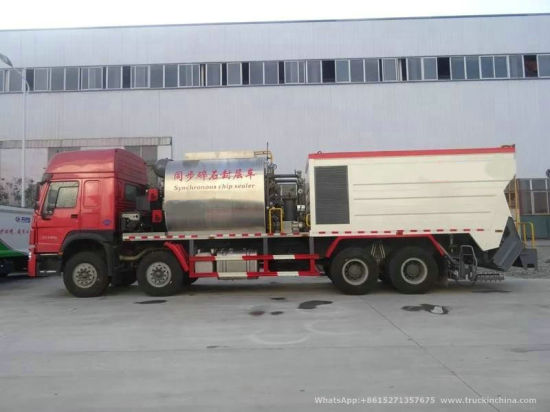

HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt) HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)

1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:

a. Common type

b. Standard type

c. Smart type(domestic main components)

d. Smart type(import main components)

(See more details in the comparation table below)

3. Capacity of spraying asphalt:

Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.

Rubber asphalt: need special equipment and customized.

Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)

Spraying width: 4.5~6m

Spraying area: 0.2~0.3 liters/cbm

4. Structure of our asphalt spray truck:

Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.

ITEM UNIT PARAMETER
Vehicle DRZ Howo Synchronous chipsealer
Overall dimensions mm 11950x2500x3800
Asphalt tank dimention 2500x2400x2020 /ellipse
Insulating layer 80
Asphalt tank capacity m3 8
Gravel tank capacity 12
GVW kg Appro×42870
Curb weight Appro×20870
Payload Appro×22000
Approach/departure angle ° 16/14
Max speed km/h 95
Front and middle axle HF9 Rear axle HC16
Drive system 8x4 Steel Power, sino
Tire specification 12.00-20 16PR Number of axles 4
Engine model Manufacturer China National Heavy Duty Truck Group Co ., Ltd
Model WD615.47
Emission/kw 9726ml/273Kw, 371hp
Gear box 10F&2R
Asphalt tank Stainless steel scrub, with Insulating layer
Spray medium Hot asphalt, emulsified asphalt and residual oil
The Parameters of Equipment for Rubber Asphalt Synchronous Chip Sealer
16 CBM Version 20 CBM Normal Version 20 CBM Advance Version 26 CBM Normal Version 26 CBM Advance Version
Asphalt Tank 6 CBM 8 CBM 8 CBM 10 CBM 10 CBM
Gravel Tank 10 CBM 12 CBM 12 CBM 16 CBM 16 CBM
Asphalt Pump QGB680 high viscosity asphalt pump QGB950 high viscosity asphalt pump TGG185-125 asphalt pump (Belgium) QGB950 high viscosity asphalt pump TGG185-125 asphalt pump (Belgium)
Hydraulic Motor for Asphalt Pump 05-130-BD31 05-130-BD31 05-130-BD31 05-130-BD31 05-130-BD31
Hydraulic Pump 50-20-16 50-20-16 German Rexroth hydraulic pump A11V060EP20D-10L 50-20-16 German Rexroth hydraulic pump A11V060EP20D-10L

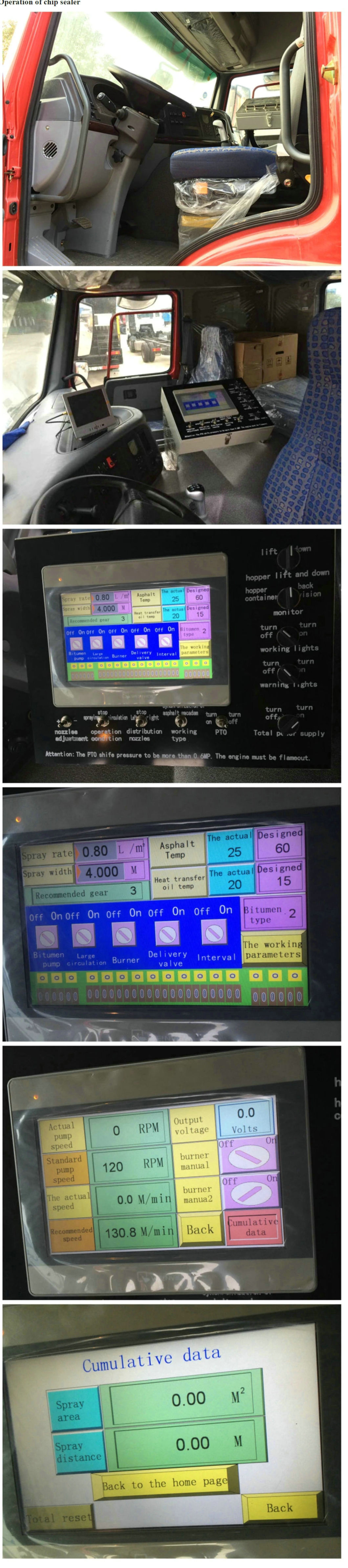

Control System Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one. Siemens control system, computer intelligentized control, one control one.
Nozzles 32 intelligentized nozzles 32 intelligentized nozzles 32 intelligentized nozzles 32 intelligentized nozzles 32 intelligentized nozzles
Heating Mode Transfer oil automatic heating Transfer oil automatic heating Transfer oil automatic heating Transfer oil automatic heating Transfer oil automatic heating
Heating Burner G20 (Italy) G20 (Italy) G20 (Italy) G20 (Italy) G20 (Italy)
Radiator Sunrise Sunrise Sunrise Sunrise Sunrise
Heat Transfer Oil Pump 40-25-160 40-25-160 40-25-160 40-25-160 40-25-160
Gasoline Engine Generator 6 kilowatt 6 kilowatt 5.5 Honda kilowatt 6 kilowatt 5.5 Honda kilowatt
Spreading Width 4 meters 4 meters 4.5-6 meters 4.5 meters 4.5 meters
Spreading Volume 0.3-3.5 L/m2 0.2-3.5 L/m2 0.2-4.0 L/m2 0.3-3.5 L/m2 0.3-4.0 L/m2

Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank

The overall description of our Synchronous Chipsealer Truck series

Automatic Asphalt Distributor/Bitumen Sprayer The main fitting adopts the most advanced components with computer system controlled spraying. Our intelligent asphalt distributor's accuracy meets Euro standards. Together with the advantages of asphalt distributors in the world, with automatic asphalt distributor, we innovated four new technologies

1. Any asphalt used is displaced.
2. Asphalt nozzle is multilayer filtrate and keeps the quality of spray.
3. Asphalt spraying is controlled by computer system.
4. Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.
5.Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
6. The whole asphalt spraying process can be finished in the cab.
7. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
8. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability ofasphalt spray.


Parameters of Semi-Automatic Asphalt Distributor.


Model

5251GLQ

5162GLQ

5161GLQ

5120GLQ

5111GLQ

5090GLQ

5081GLQ

Truck

Cab-over-engine 6*4

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Cab-over-engine 4*2

Chassis Model

ZZ1257M4647C

DFL1160BX

BJ5163ELFFD

BJ1123VJPEG-S

EQ1110TJ12D5

EQ1090T9ADJ3AC

HFC1081KT

Burner model

G20

G20

G20

G20

G20

G20

G20

Asphalt capacity

12000

8000

8000

6600

5400

4500

5000

Spray bar variable(m)

0-6M

0-6M

0-6M

0-6M

0-6M

0-6M

0-5.5M

Spray bar value(kg)

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

0.3-3.0

Dimension

10500*2496*3350

8995*2490*3200

8785*2455*3015

8990*2350*2855

7998*2260*2870

7445*2285*2560

7350*2010*2460
Configuration Type Details of Asphalt truck
Normal configuration Simple type 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Burner: G10 imported from Italy
4. Temperature control: AI-218 microcomputer temperature controller;
5. Spreading width: 1.2m ~ 4.5m, optional 6m
6. Spray control: manual adjustment
7. Asphalt pipeline compressed air cleaning function
Ordinary configuration 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: manual flow control valve imported;
5. Burner: G10 imported from Italy
6. Temperature control: AI-218 microcomputer temperature controller;
7. Spreading width: 1.2m ~ 4.5m, optional 6m
8. Sprinkler control: manually adjust asphalt pipe
9. Asphalt pipeline compressed air cleaning function
Ordinary upgrade configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray ,
9. Spraying quantity control: manually adjust asphalt nozzle;
10. Asphalt pipeline compressed air cleaning function
Semi-intelligent configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil
7. Temperature control: AI microcomputer temperature controller;
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle,
9. Sprinkler control: front and background potentiometer adjustment, digital display;
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump;
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: F563 aluminum alloy gear pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7.temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
Full intelligent configuration
imported Pump
  1. Asphalt pump: European TGGP-86-100 heat preservation pump
2. Asphalt pump drive motor: GM05 series high-torque plunger motor;
3. Hydraulic pump: Germany leisler plunger variable pump;
4. Hydraulic system: imported proportional flow control valve;
5. Burner: G10 imported from Italy
6. Heating method: automatically heating by heat-conduction oil with selective heating function
7. temperature control: Germany Siemens temperature control module, computer temperature control
8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle,
9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system.
10. Asphalt pipeline compressed air cleaning function
11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle,

Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air

5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
HOWO Synchronous Chipsealer (Sinotruk 9m3 Bitumen Tank and 14m3 Gravel Tank asphalt)

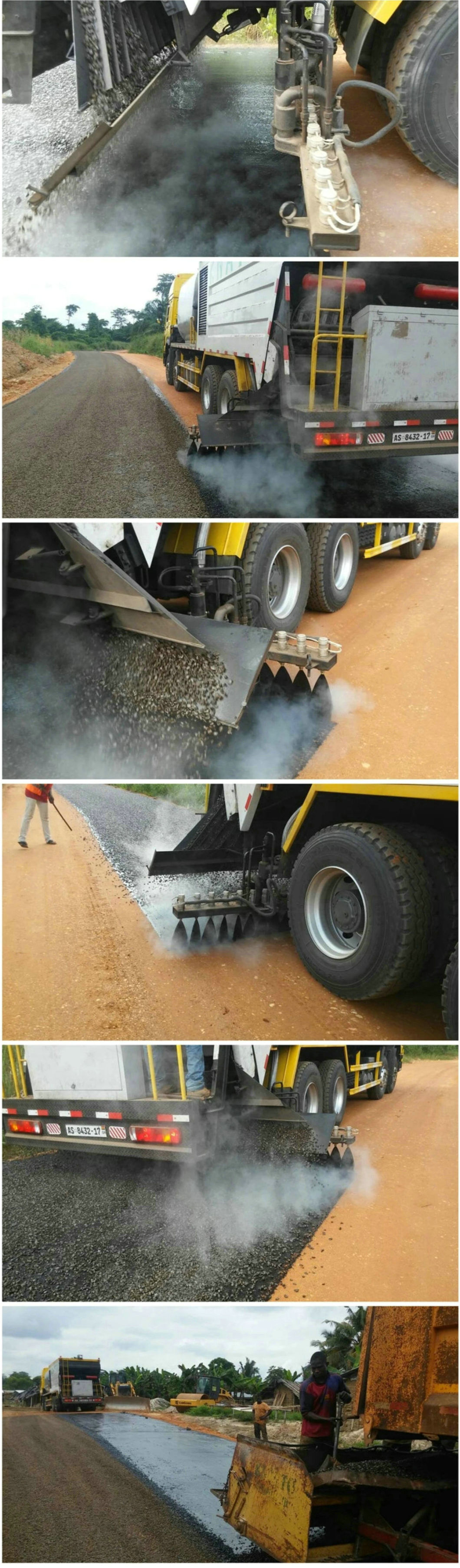

Synchronous gravel seal is to use a special equipment, namely synchronous gravel sealer, to spread the gravel and bonding materials (modified asphalt or modified emulsified asphalt) on the road surface, and form a single layer of asphalt through natural driving. The gravel wear layer, which is mainly used as a pavement surface layer, and can also be used for low-grade road surface layers. The biggest advantage of the synchronous gravel sealing technology is that the bonding material and the stone material are simultaneously laid, and the high-temperature bonding material sprayed on the road surface can be combined with the gravel immediately without cooling, thereby ensuring the bonding material and the stone material. A strong bond between the two.
Synchronous gravel seal has good anti-sliding performance and anti-seepage performance, can effectively cure road poor oil, falling particles, slight cracks, rutting, subsidence and other diseases, mainly used for preventive maintenance and corrective maintenance of roads. As well as improving the anti-slip performance of high-grade roads, this new maintenance technology can be used on both expressways and ordinary roads. More than 95% of roads in France and Europe use synchronous gravel seals for pavement maintenance. In addition, the synchronous gravel seal can also be used as a low-grade road surface layer. In France, more than 40% of the roads directly use the gravel seal as the road surface, and the current use effect is good. Therefore, in the case of insufficient funds for road construction, the use of low-cost synchronous gravel seals as low-grade road pavement is undoubtedly an effective measure to improve the road pavement rate.

1, manual/automatic control enhanced additionally and width, each nozzle can be individually controlled, determinant nozzle free combination, so as to realize arbitrary adjust the width of spray. In the cab for distributing control or the rear of the platform.

2, the automatic control system can measure the speed of the car and according to the input amount of spill cloth and spraying width and asphalt type, automatic calculation of asphalt pump revolution to adjust the asphalt pump pump automatically by the system.
3, vehicular rapid heating system (10-15 ºC / h), can improve the heating efficiency and reduce the auxiliary time of construction, ensure that makes temperature;
4, blunt the nozzle of the system residual asphalt by diesel with high pressure air nozzle can be blown out, prevent asphalt to freeze in the nozzle, improve the service life of the nozzle.
