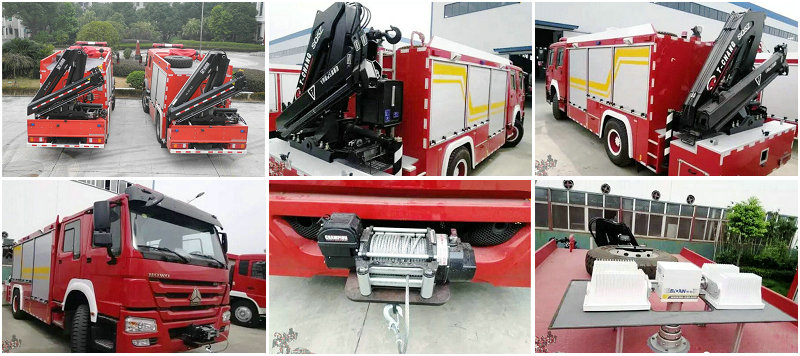

HOWO Rescue Vehicle 4x2 / 4x4/ LHD / RHD
HOWO ChassisZZ5207M4617D1 ZZ5207TXFV471GE
The Parameters of 4x2 HOWO Rescue Fire Engine | |
Overview | |
Name | Rescue Fire Engine |
Overall Dimension(LxWxH) | 8400X2490X2950 mm 9000×2500×3480mm |
Total Mass | 16800Kg |
Rated Payload | 10000Kg |
Kerb Weight | 6800Kg |
Cab | Double Cab |
Passenger | 6 |
Approach/Departure Angle | 19/15 |
The Parameters of Chassis | |
Manufacture/Model | Sinotruck/ ZZ5207M4617D1 ZZ5207TXFV471GE |
Driving Type | 4*2 left/right hand drive |
Wheel Base | 4600 mm |
Gearbox | Nine speed lever with eight speed forward and one reverse, manual |
Front/Rear Track | 1625/1620(mm) |
Tyre | 11.00-20 |
The Number of Tyre | 6+1(spare tyre) |
Front/ Rear Suspension | 1160/1375 (mm) |
Leaf Spring Number | 3/5+3,8/9+6,11/9+7,11/11+7 |
The Paremeters of Engine | |
Manufacturer/Model | Sinotruck |
Rated Power | 260hp |
Fuel Type | Diesel oil |
Displacement/Capacity | 8300ml |
Emission Standard | Euro 3 /4 /5 |
Cylinder | Straight/6/watercooling |
Max. torque | 700N.m |
Velocity | 2000rpm |
The Parameters of Equipment | |
Front Towing | 3 - 5 tons |
Rear Knuckle Crane | 3 - 7 tons |
Lighting | 6 - 8 meters |
Other Equipment | Firefighting devices and clamp, etc. |
Light power /w. 4 x 1000
Lifting height /m8.9
Generator power /kw. 10.5
crane SQ5ZK2
Lifting weight /kg 5000
Working range /m7
The traction Winch Towing /kg 5000
External dimension /mm 8050 * 2480 * 2480
Full load quality /kg 15000
Chassis ZZ5207M4617D1
# | Engine model | Engine displacement | Engine power | Engine manufacturer | |||
---|---|---|---|---|---|---|---|
1 | D10.27-40 | 9 726 cc | 9.7 L | 594 cu in | 198 kW | 269 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
2 | D10.30-40 | 9 726 cc | 9.7 L | 594 cu in | 221 kW | 300 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
3 | D10.28-40 | 9 726 cc | 9.7 L | 594 cu in | 206 kW | 280 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
4 | D10.31-40 | 9 726 cc | 9.7 L | 594 cu in | 228 kW | 310 hp | China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) |
Performance | ||||
---|---|---|---|---|
Fuel | diesel fuel | |||
Environmental standard | ||||
Maximum speed | 80 km/h | 50 mph | ||
ABS | have |
Capacity | ||||
---|---|---|---|---|
Rated load capacity | 7760 kg | 7.8 t | 17,108 lbs |
Weights and Ground pressure | ||||
---|---|---|---|---|
Curb weight | 11590 kg | 11.6 t | 25,552 lbs | |
Gross vehicle weight rating | 19800 kg | 19.8 t | 43,700 lbs | |
Axle load distribution | 6800 kg / 13000 kg 6.8 t / 13 t 15,000 lbs / 29,000 lbs |
Dimensions | ||||
---|---|---|---|---|
Overall length | 8470 mm | 27′10″ | ||
Overall width | 2500 mm | 8′3″ | ||
Overall height | 3360 mm | 11′1″ |
Undercarriage and Suspension | ||||
---|---|---|---|---|
Number of axles | 2 | |||
Wheelbase | 4600 mm | 15′2″ | ||
Front track | 2022 mm | 6′8″ | ||
Rear track | 1830 mm | 6′1″ | ||
Front overhang | 1500 mm | 5′0″ | ||
Rear overhang | 2280 mm | 7′6″ | ||
Angle of approach | 16° | |||
Angle of departure | 14° | |||
Leaf springs | 10 / 9+6 |
Tyres and Wheels | ||||
---|---|---|---|---|
Number of tyres | 6 | |||
Tyres dimension | 12.00-20, 12.00R20, 315/80R22.5 |
Miscellaneous | ||||
---|---|---|---|---|
Seating capacity | 2+4 | |||
Steering control | steering wheel |
