HOWO Mobile advertising LED billboard truck

Views: 1925     Author: Dong Runze Special Vehicle     Publish Time: 2017-09-25      Origin: Dong Runze Special Vehicle

 HOWO Mobile advertising LED billboard truck

 HOWO Mobile advertising LED  billboard truck

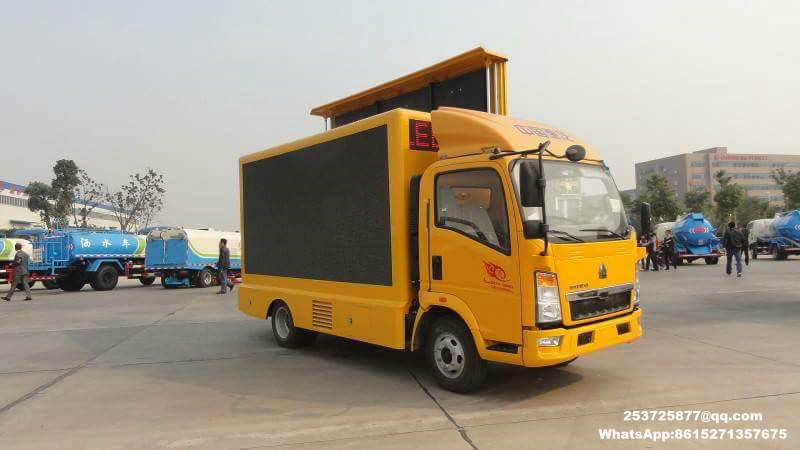

Howo Mobile advertising -1-mobile billboard-truck_1.jpg

HOWO Digital mobile billboard advertising trucks

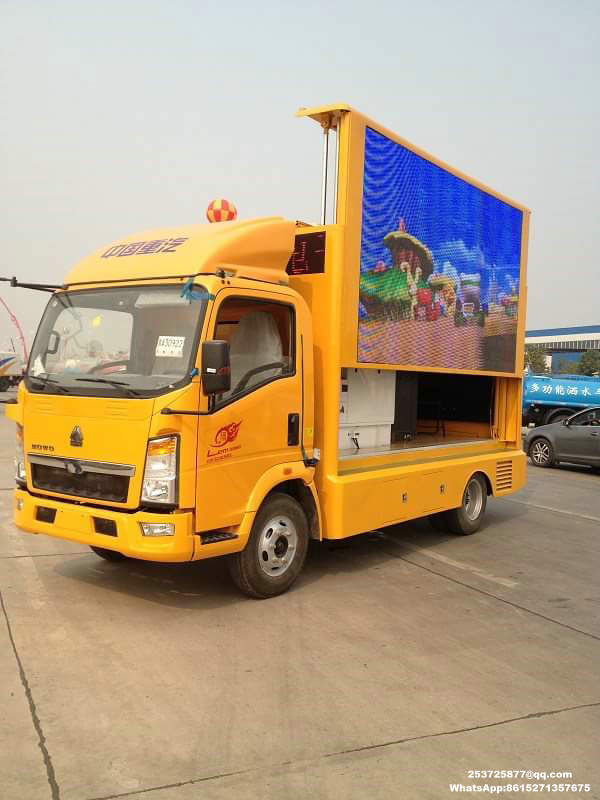

Howo Mobile advertising -1-mobile billboard-truck_0002_1.jpg



             Technical parameters




             Total Mass(kg)




             4495




              Curb Weight(kg)




             4300




             Rated quality(kg)




              xx




              Chassis Model




             ZZ1047C3414D145




              Approach/departure angle




             20/13




              Front/ rear overhang




             1160/1475




              Dimensions(mm)




             5995*2025*2995




              Number of spring




             3/5+3,8/9+6,11/9+7,11/11+7




              Number of axes




              2




              Maximum speed




             90




              Tire Specifications




             7.00-16LT 8PR,7.00R16LT 8PR




              Number of tires




              6




              Front track




             1605




              Rear track




             1520,1540




              Wheelbase(mm)




             3360




              Axle load




             1790/2705




             Emission Standards




              Euro III/Euro IV




              Type of fuel




              Diesel




             Engine parameters




              Engine Model




             4DW93-84E4




              Engine Manufacturer




              FAW Wuxi diesel engine factory




              Engine Displacement(ml)




             2540




              Engine power(kw)




             64




              Chassis
              Description




             1. 4x2 chassis, with left/right hand drive optional, flat cab with air conditioner
             2.4 cylinders diesel engine and Euro III / Euro IV,  6 shift gearbox
             3.steering control and air break




              Modified
              Description




             1. All-color LED panel at two sides(Water proof high light P10 vehicle-mounted LED screen), screen size:3840x1760mm, area: 6.8 m3.



             2. 5mm composite steel frame box, outside with cold  roll steel sheets and aluminum



             sheet inside, wood floor, top grade plastic flooring;



             3.Four hydraulic landing legs, mechatronics control; Circulating ventilation cooling system;



             High performance silent diesel generator set; Kilometer streaming media control system control system




             Component




             chassis, screen, power supply system(380V),hydraulic system(partly),operating system




             Purpose




             This truck is commonly used in product promotion,  brand promotion, draft activities,



             sales demonstrations, sporting event, concerts etc.




              Product advantage




              High quality with best price.
