HOWO Mobile Workshop 6x6 Off Road Service Trucks Customizing

Multifunctional Maintainging Truck WorkShop Truck Customizing
Road Repair Mobile Workshop

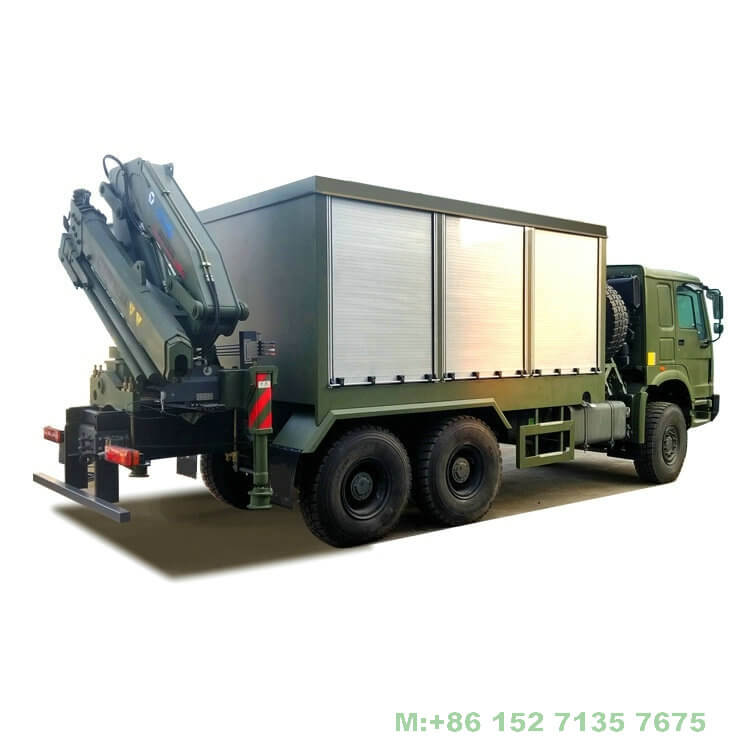

HOWO Mobile Workshop 6x6 Off Road Service Trucks

Price: $ 66000  -  89000
Discount Price: $ 60000  -  81000
FOB:
Quantity:

  • DRZ5290TW66
  • HOWO
  • 87059099.90

HOWO Mobile Workshop Truck

Multifunctional Maintainging Truck WorkShop Truck Customizing

 Road Repair Mobile Workshop

HOWO Mobile Workshop 6x6 Off Road Service Trucks

HOWO Mobile Workshop -00

Equipments:

50Kw generator, air conoressor, charger, portable generator, are welding machine, plasma cutting machine, eletric winch, desk drill, desk grinding machine, 1 ton crane, 200kg hand chain hoist and slide rail, pneumatic tyre spanner

maintenance vehicle,Emergency repair car,road service car,maintenance truck

Hydraulic drive, reliable, safe and noise-free;
Latest fan-shaped nozzle, three overlapping design;

High power rear lights for night operation

option 2

Device

Model

Specifications

Dimensions

Chassis

ZZ2152M4367LA

ZZ2152M4367LA



Pressure Washer

DL40-type

22L/MINPressure:210kg Flow: 22L/MIN

Motor:11kw

Spray gun: 1 unit

High-pressure hose:10 m nozzle: 5 unit

350kgWeight:350kg

Length:1500mm

Width:650mm

Height:500mm

Oil drum with a suction pump

JK-3BGeneral

40L/minPower:0.12kw

Flow: 40L/min

Head:2.5m Entrance and Exit: 25/32mm

Voltage:220V


40KWdiesel generator set

40GF-440GF-4

Engine Model: R4110D40-1

Generator Type:TZH-40

Rated Power:40kw

Rated Voltage:400/230V

Rated Frequency:50HZ

Rated current: 72.2A

Output Mode:3-phase 4-wire

Weight:850kg

1820— x636x — 1320

ZX7SCRWelding Machine

ZX7-400SZX7-400S

Voltage:380V, 3 phase, 50/60HZ

CurrentRange:25-250A

Input Capacity: 14.5KVA

Working environment:-10 ~ +40. C C

475—x 280 —x 400




Sinotruk Howo 6x4 Road Repair Mobile Workshop Maintenance Truck for Sale


HOWO Vehicle Mobile Workshop 6x4

Max WG:29000kg  ZZ1257N4341W

Complete
Vehicle

Tare Weight

16,000 Kg

Loading Capacity

13000 Kg

Drive Type

6X4

Tyres

10+ 1; 12.00R20 STEEL TYRE,

Max. Speed

75 KPH

Max. Gradeability

40%

Minimum Ground Clearance

298 mm

Overall Dimensions

9890、10350 x 2520 x 3660 mm

Wheel Base

4325+1350 ;4600+1350 mm

Fuel Tank Capacity

300L

Engine

WD615.62; WD615.92;(D12.27) 6 Cylinder in Line, Water Cooling Diesel Engine, Turbo Charged with Intercooler; 266hp/2200rpm;

Gearbox

FULLER RT-11509C; 9 Forwards & 1 Reverse

Equipment

Power Set
(Generator)

Model: 40GF ; Rated Power 40KW; Voltage 400/230V;
Frequency 50 Hz; Rated Current 72.2A; 3-Phase 4-Line;
Diesel Engine R4100ZD; Generator TZH-40

Welding Set

Model: ZX7 SCR  , (ZX5-250B); Voltage 380V; Initial Current 29.6A;
Range 25 ~ 250 A; Input 19.2 KVA

Air Compressor

Model: AW3608; Voltage 380V; Power 3KW;
Pressure 0.7MPa; Capacity 0.36M3/mm

Drilling Machine

Model: ZQJ4119AD; Bore Range 3 ~ 16mm; Power 700W

Vice

Size: 150mm

Grinding Machine

Model: MQ3225; Size 250mm; Power 700W

Gas Welding & Cutting Set

Oxygen Cylinder 40L; Accetylene Cylinder 20L

Working Bench

Steel Panel, 2,300mm x 550mm x 780mm

Lifting Device

Roof Mounted, Retractable Cantilever, 2-Ton Chain Block

General tools

2 sets

Working light

15m

Color: green

SINOTRUK Mobile Workshop Truck

Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675





         Equipment for Mobile Workshop




         Item




         Description




         Technical Data




         Measurement




         Weight




         Qty.




         1




         Chassis




         As Option





         2




         Power Set
         (Generator)




         Model: 40GF74-4




         2030x650x1255(mm)




         1030kg




         1




         Rated Power: 40KW




         Rated Voltage: 400/230V




         Rated Frequency: 50Hz




         Rated Current: 72.2A




         Output: 3-phase, 4-line




         Diesel Engine: R4100ZD




         Generator Model: TZH-40




         3




         Welding Set




         Model: ZX5-250B




         406x530x840(mm)




         160kg




         1




         Voltage: 380V




         Phase: 3




         Frequency: 50/60Hz




         Initial Current: 29.6A




         Range: 25-250A




         Input: 19.2KVA




         Working Ambient: -10--+40oC




         4




         Air Compressor




         Model: AW3608




         1180x410x850(mm)




         130kg




         1




         Voltage: 380V




         Frequency: 50Hz




         Power: 3KW




         Pressure: 0.7MPa




         Capacity: 0.36M3/mm




         5




         Drilling Machine




         Model: ZQJ4119AD




         760x490x260(mm)




         57kg




         1




         Bore Range: 3--16mm




         Power: 700W




         6




         Vice




         Size: 150mm





         7




         Grinding Machine




         Model: MQ3225




         1




         Size: 250mm




         Power: 700W




         8




         Oxygen Cylinder




         Volume: 40L




         1




         9




         Acetylene Cylinder




         1




         10




         Gas Welding Set




         1




         11




         Working Bench




         Steel Panel




         2300x550x780(mm)




         1




         12




         Hand Tools




         M6--16 drilling set; Hack Saw;





         Hammer; Portable Oil Pump;




         3--16mm Thread Tapper;




         Spanner sets; Socket Spanner Sets




         Files; Clamps



13

Grease Pump

Heavy Duty  AIR OPERATED grease pump with hose and grease gun



1


14

Oil Pump

Heavy duty air operated oil pump with hose and oil guns



1



Equipment for Mobile Workshop



Equipments for Mobile Workshop

Item

Description

Technical Data

Measurement

Weight

Qty.

1

Power Set
(Generator)

Model: 40GF74-4

2030x650x1255(mm)

1030kg

1

Rated Power: 40KW

Rated Voltage: 400/230V

Rated Frequency: 50Hz

Rated Current: 72.2A

Output: 3-phase, 4-line

Diesel Engine: R4100ZD

Generator Model: TZH-40

2

Welding Set

Model: ZX5-250B

406x530x840(mm)

160kg

1

Voltage: 380V

Phase: 3

Frequency: 50/60Hz

Initial Current: 29.6A

Range: 25-250A

Input: 19.2KVA

Working Ambient: -10--+40oC

3

Air Compressor

Model: AW3608

1180x410x850(mm)

130kg

1

Voltage: 380V

Frequency: 50Hz

Power: 3KW

Pressure: 0.7MPa

Capacity: 0.36M3/mm

4

Drilling Machine

Model: ZQJ4119AD

760x490x260(mm)

57kg

1

Bore Range: 3--16mm

Power: 700W

5

Vice

Size: 150mm




6

Grinding Machine

Model: MQ3225



1

Size: 250mm

Power: 700W

7

Oxygen Cylinder

Volume: 40L



1

8

Acetylene Cylinder




1

9

Gas Welding Set




1

10

Working Bench

Steel Panel

2300x550x780(mm)


1

11

Mobile cable

380V/220V;50m



1

12

Lifting Device

Roof Mounted, Retractable Cantilever, 2-Ton Chain Block



1

13

Folding chair

steel



2

14

Wall type fan




1



Tools for Mobile Workshop

Item

Name

Specification

Qty.

1

Bow Saw Frame


2

2

Hacksaw Blade

18 tine; 32 tine

Each 1

3

Manual Oil Gun


1

4

Oil Pot

300cc

1

5

Hand Electric Drill

220V  0.6-6mm

1

6

Pipe Expansion Ware


1 set

7

Electrical maintance kits

With multimeter

1 set

8

Screw Tap

Coarse thread M4;M5;M6;M8;M10;M12

6/set

9

Screw Tap

Fine Thread M8;M10;M12

3/set

10

Screw Tap Holder

180mm; 280mm

Each 1 set

11

Screw Die

Coarse Thread M4;M5;M6;M8;M10;M12

6/set

12

Screw Die

Fine Thread M8;M10;M12

3/set

13

Drill

1-10mm (at intervals of) 0.5mm

2 set

14

Drill

11-16mm

2 set

15

Drill

3.4; 4.2; 5.1; 6.8; 8.5; 10.2

Each 1 set

16

Steel Ruler

150mm, 300mm

Each 1

17

Vernier Caliper

150mm, 250mm

1

18

Screw Thread Gauge

The metric system; british system

Each 1













 SINOTRUK Mobile Workshop Truck  Product

Tags:workshop truck       howo workshop truck       sinotruk workshop truck       4x2 workshop truck    www.truckinchina.com

keywords: Road Repair Mobile Workshop , Mobile Workshop Maintenance Truck, Howo 6x4 Road Repair Mobile Workshop,HOWO 4X4 Workshop Truck for Mobile Repair, ChinaWorkshop Truck,Howo 25ton Mobile Welding Workshop Truck, 6X4 Workshop manufacturer ,Sinotruk Mobile Workshop Truck,HOWO Special Mobile Workshop Heavy Truck, Light mobile workshop truckmobile maintanence light truck, Mobile Repair Vehicle,
