Availability: | |
---|---|
Quantity: | |
Shanghai, China
10000
T/T, Western Union

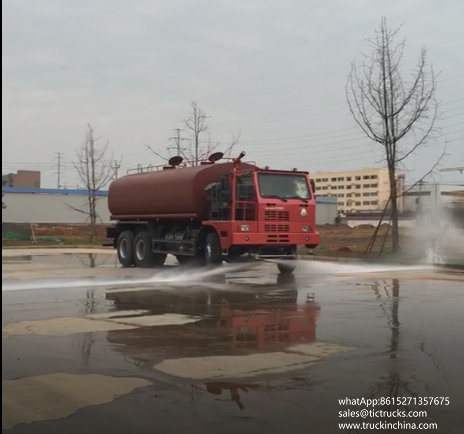

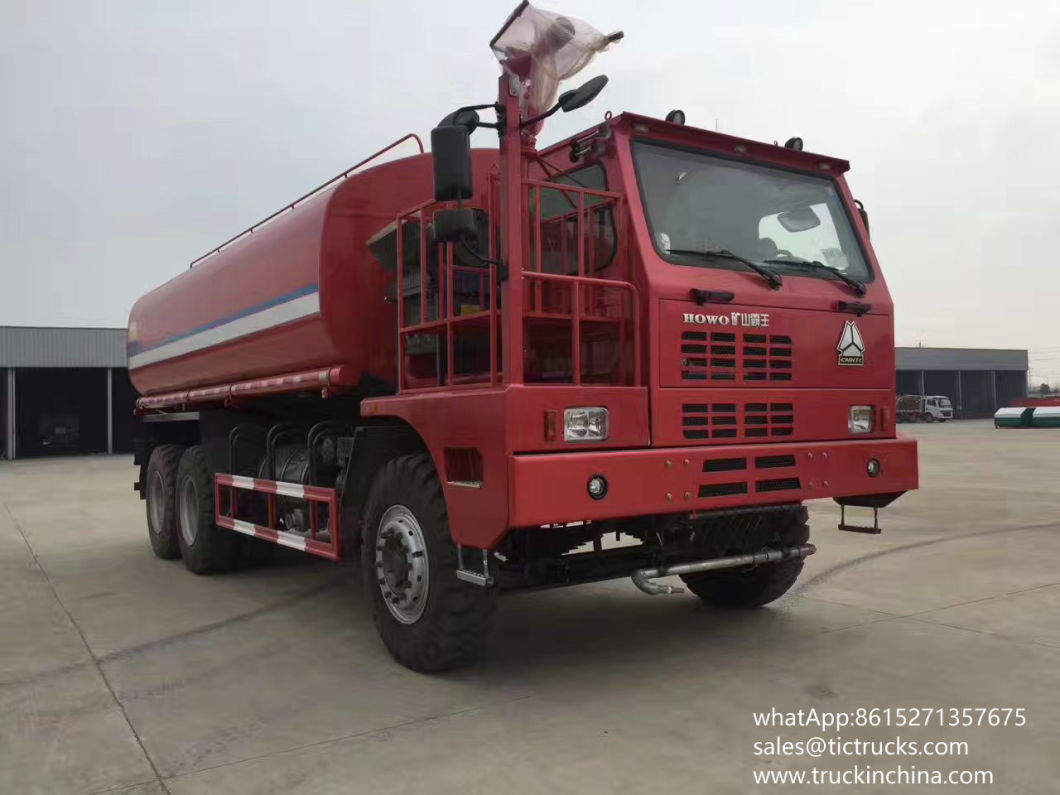

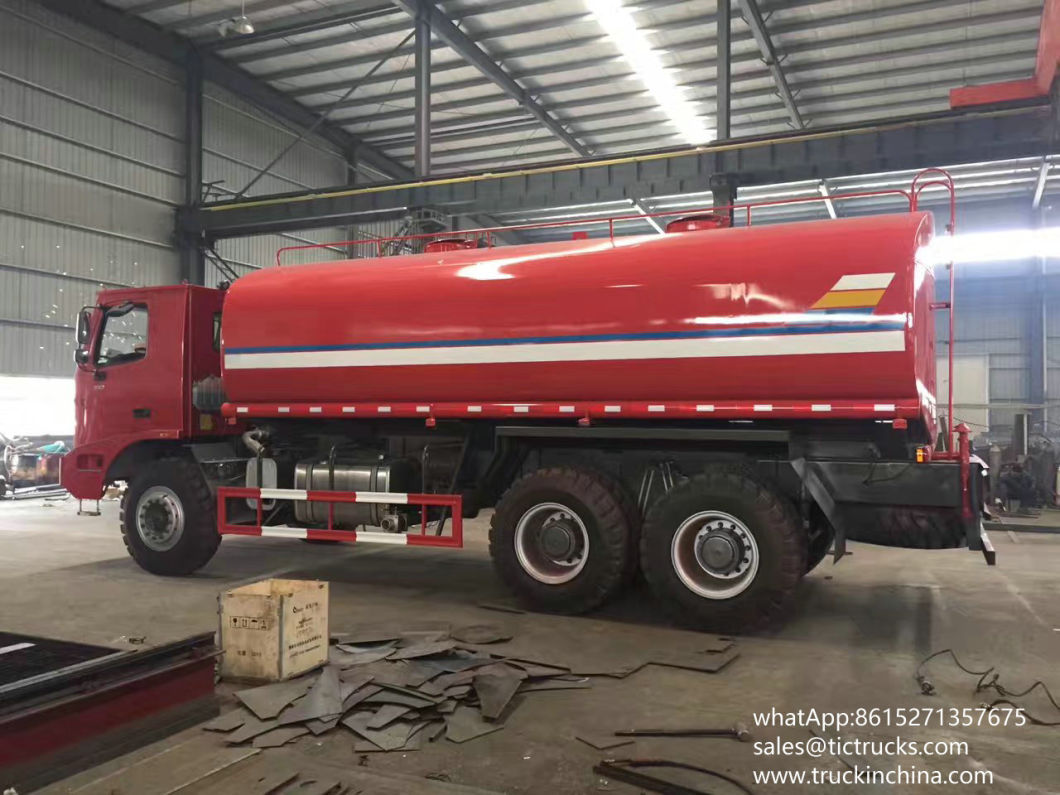

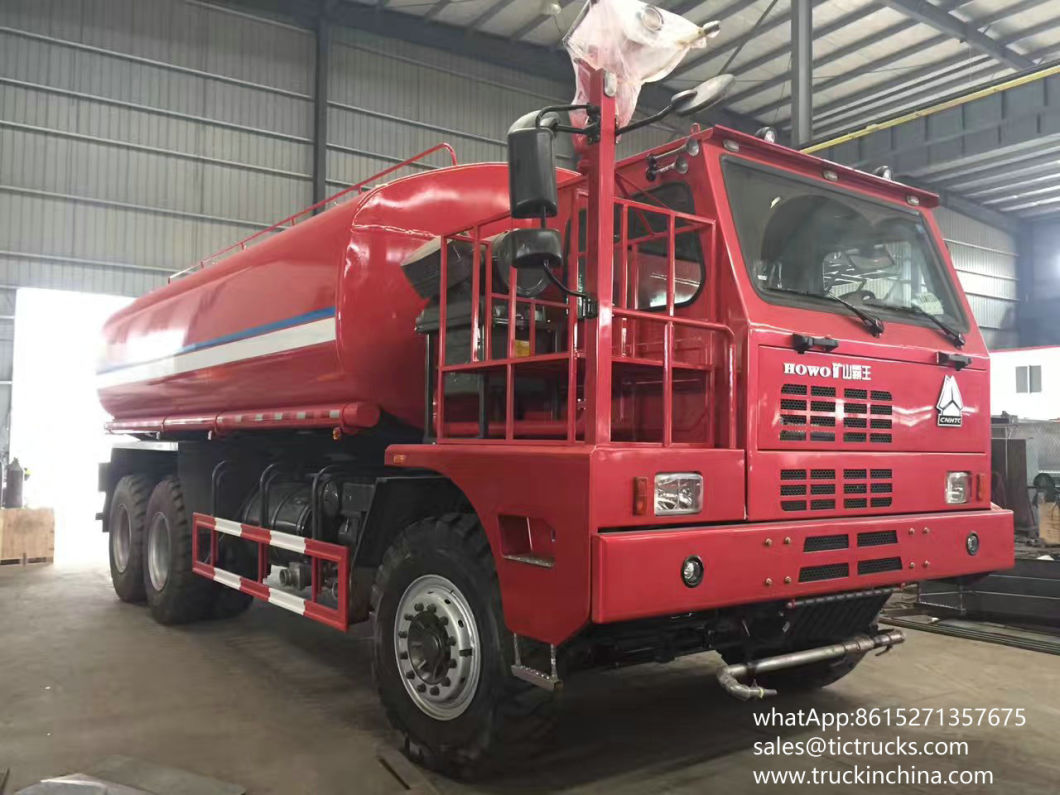

GVW 60000kg Driving Type 6x4 | ||||
Model | DRZ5707GSSZ | |||
Cab | HOWO7D cab, mining cab | |||
Engine(Hp) | 370 | |||
Power(Kw) | 273 | |||
Wheelbase | 3800+1500 | |||
Front/Rear Suspension | 1500/ 2600 | |||
Steering | Power steering | |||
Approach/departure angle | 32/40 | |||
Wheels & tire | 14.00-25 | |||
Tire number | 10+1 | |||
Tank Dimensions(mm) | ||||
Cubage (m3) | 40 | |||
Steel thickness of tank(mm) | 5 | |||
RHD or LHD | optional | |||
Overall Dimensions(mm) | 10000x3165x3900 | |||
Curb weight (Kg) | 25000 | |||
Engine | Model | WD615.47 | ||
Horsepower | 370 | |||
Maximum output Kw | 273 | |||
Maximum torque N.m | ||||
Type | 6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | |||
Displacement | 9.726L | |||
Sinotruk brand, Euro 2 | ||||
Driving passenger | 2,3 | |||
Transmission | HW19710,10 forwards,2 reverse | |||
Front Axle | HF 9 | |||
Rear Axle | HC 16 | |||
Brake System | air brake | |||
Color and LOGO | customized | |||
Electric system | 24V | |||
Tank material | Carbon steel, stainless steel, aluminum, etc. alloy, etc. | |||
Sprinkler width | 14m each side | Suction height | 7m | |
Standard configuration | carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. | |||
Optional configuration | Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | |||
Delivery date | Within 20 days after receipt advance | |||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |

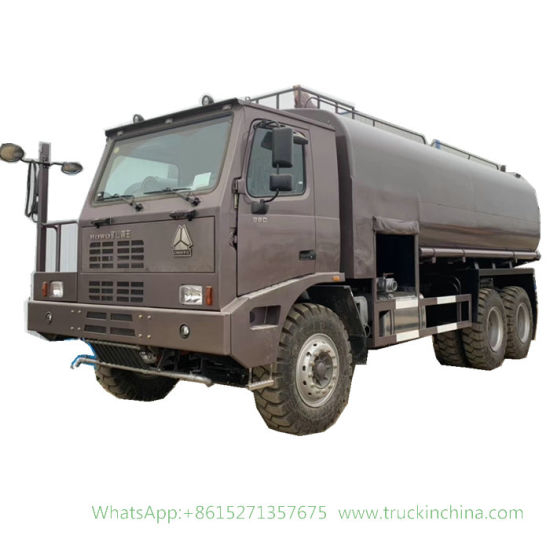

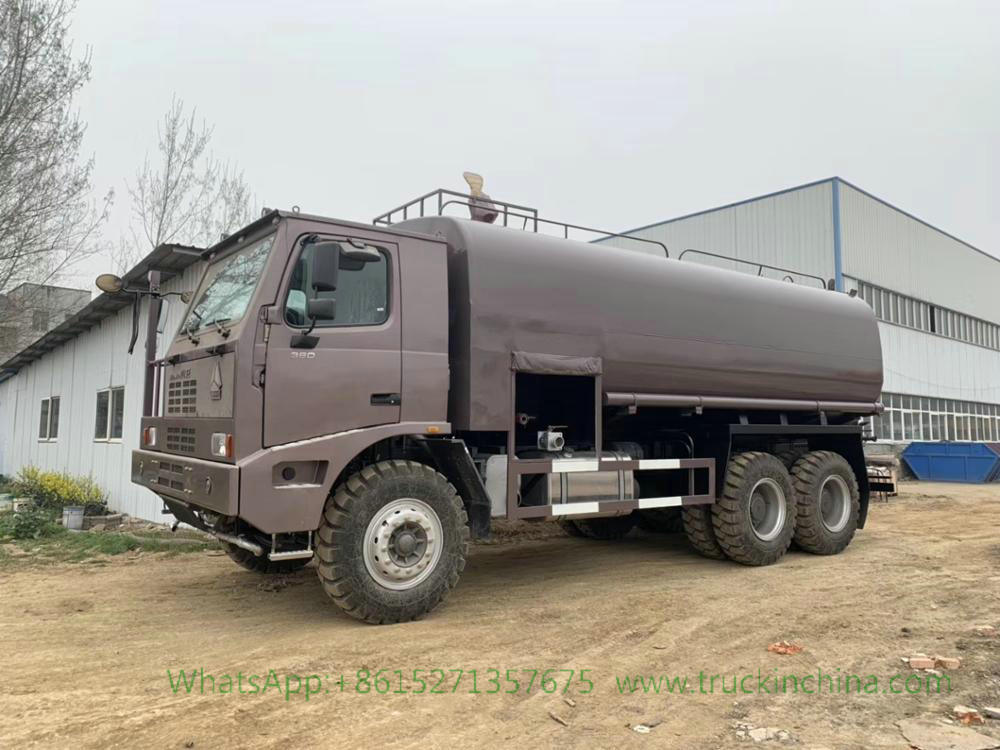

SINOTRUK HOWO Off -Road 6X4 371HP 35CBM WATER TANKER TRUCK FOR MINING PURPOSE MODEL ZZ5707S4640AJ.
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Model | ZZ5707S4640AJ | |
Cabin | HW7D, with one seat, with Air Conditioner | |
Engine | Model | WD615.47 |
Horse Power (Hp/rpm) | 371/2000, Euro II Emission Standard | |
Max.Toruqe(Nm/rpm) | 1460/1200-1500 | |
Displacement L | 9.726 | |
Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | |
Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
Front Axle | HF10, Steering with double T-cross section beam, Loading Capacity: 10,000kgs | |
Driving Axle | AC16, Pressed axle housing, central reduction, Loading Capacity: 4,200kgs | |
Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
Steering System | Hydraulic steering with power assistance | |
Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
Tire | 13.00-25 | |
Fuel Tank Capacity (L) | 500L Diesel Tank | |
Kurb Weight (kg) | 20,000 | |
Loading Capacity (kg) | 35,000 | |
Gross Vehicle Weight (kg) | 55,000 | |
Overall Dimension(L*W*H)(mm) | 9600×3000×3400 | |
Tank Capacity(L) | 35,000 | |
Tank Material | Carbon Steel | |
Nos of Compartment | 1 | |
Wheelbase(mm) | 4600+1500 | |
Max. Speed (km/h) | 35 |
HOWO 6X6 Water Tanker Features and Specifications
• 18000-24,000 liters capacity
• Available in steel, stainless steel and aluminum
• Offset baffle opening to prevent sloshing
• Tanks designed to carry potable and non-potable water
• Chassis frame mounted rear platform area
This HOWO 10cbm water tank truck is exported to in Africa. It mainly use for transporting clean water, drink water or other liquid. Please kindly noted that it's not the water sprinkler truck. It only transport water, which is popular in Africa.
Main advantages of water transport tank truck, water sprinkler truck :
Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. Large load capacity 15-25ton
4. LHD or RHD are optional
5. Volume of tanker 15-20cbm
6. One year for three key parts (engine ,gear-box, axle)
The pictures of Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck:
Parameter of water tank truck, water sprinkler truck:
• Rear mounted hydrant fill with an air space
• High quality, little maintenance, competitive price
• Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
• Numerous chassis available
SINOTRUK HOWO 6X6 371HP 20CBM WATER TANKER TRUCK FOR OFF ROAD PURPOSE MODEL ZZ2257N4657A.
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Model | ZZ2257N4657A | |
Cabin | HW76 Long Cab, with two seats and one bed, with Air Conditioner and electric window. | |
Engine | Model | WD615.47 |
Horse Power (Hp/rpm) | 371/2000, Euro II Emission Standard | |
Max.Toruqe(Nm/rpm) | 1460/1200-1500 | |
Displacement L | 9.726 | |
Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke common raildiesel engine | |
Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
Front Axle | HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs | |
Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 | |
Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer | |
Steering System | ZF8118, Hydraulic steering with power assistance | |
Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
Tire | 12.00R20 | |
Fuel Tank Capacity (L) | 400L Diesel Tank | |
Kurb Weight (kg) | 12,800 | |
Loading Capacity (kg) | 28,200 | |
Gross Vehicle Weight (kg) | 41,000 | |
Overall Dimension(L*W*H)(mm) | 10200×2500×3320 | |
Tank Capacity(L) | 20,000 | |
Tank Material | Carbon Steel | |
Nos of Compartment | 1 | |
Accessories | 2 nos of duck-billed sprinklers (in front), 2 nos of cylindrical sprinklers (at rear), 2 nos of 2.5" pressure water discharge, 1 nos of 3" water sucking mouth, 1 nos of high shooting spray rod, 2 nos of 3" 3m pipe, | |
Wheelbase(mm) | 4625+1350 | |
Max. Speed (km/h) | 90 |
water truck Sprinkles standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.
2.The main Brand Partner: Dongfeng, SINO HOWO, HOWO, Beiben, Faw, Foton, Forland, Hyundai, Hino, Iveco, JAC, JMC, Shacman, Honyan, Genlyon
3.Driving Type: 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 10 wheel , 12 wheeler , 18 wheel
4.Capacity: 3000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 18000L, 20000L.....30000L
5.Steering Wheel: Left Hand Drive and Right Hand Drive
Descriptions | Parameter | ||
General | Truck Name: | SINOTRUK HOWO WATER TRUCK | |
Curb weight(kg) | 12500 | ||
Fact loading(kg) | 18000 | ||
Overall size(mm) | 9750×2500×3350 | ||
Cab | Cab allowance | 2 seat with 1 bed | |
Air condition(hot/cool) | Yes | ||
Chassis | F/R overhang(mm) | 1500/2425 | |
Fuel type: | Diesel | ||
Engine manufacturer/model | Sinotruk diesel engine/WD615 87 | ||
Power | 213kw/290hp | ||
Displacement | 9726ml | ||
Transmission | HW13710(10 forward 2 reverse) | ||
Emission standard | EURO 2 | ||
F/R tread(mm) | 2041/1830 | ||
Tank size(mm) | 6280*2350*1680 | ||
Approach/departure angle | 16/20 | ||
Wheelbase(mm) | 4300+1350 | ||
Axle load | 7000/16000/16000 | ||
Tire specification/No. | 12.00-20 | ||
Max speed(km/h) | 95km/h | ||
Number of axles | 3 | ||
Spring leaf no(F/R) | 9/10 | ||
Others | Transport medium:Water;Valid capacity by tank:20,000L Tank made material carbon steel Q235, 5mm Equipped with water pump,OPO drive pump self suction water,fire valve, water valve both side, and filter gauze safety ladder, water pipe 2 pcs , manhole, tool box, gravity valve and so on |
water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.
ater truck special function | A. Water tank capacity(L):16000L 25,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |
Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% |
Model | DS-120 |
Throw | 120m without wind |
Volume Flow | 120L-160L/min |
Fog Droplet Size (Adjustable ) | 30-300μm |
Water Pressure(Mpa) | 2.5-3.5Mpa |
Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
Pitching Angle (Adjustable ) | -10°~45° |
Coverage Area | 34000~40000m² without wind |
Product Size(L*W*H) | L295*W154*H275 (cm) |
Water Tank Capacity (Optional) | 4000-20000L |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
Warranty | 1year |
Model | DS-100 |
Throw (m) | 100 |
Volume Flow (L/min) | 120~160 |
Water Pressure (MPa) | 2.5~3.5 |
Fog Droplet Size ( um ) | 30-200 |
Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
Pitching Angle (Remote Control) | -10°~45° |
Coverage Area | 23000~27000m² without wind |
Degree of Protection | Not less than IP55 |
Overall Dimensions (L*W*H) | L277*W154*H271cm |
Water Tank Capacity (Optional) | 4000-20000L |
Model | DS-30 |
Throw | Horizontal: 30m; Vertical: 20m (without wind) |
Volume Flow | 9-18L/min |
Fog Droplet Size (Adjustable ) | 50-150 μm |
Water Pressure (Mpa) | 1.5~3.0MPa |
Pitching Angle | -10~90° |
Horizontal Rotation Angle | 180° Manual |
Overall Dimensions | L130 * W115 * H148 (cm) |
Water Tank Capacity (Optional) | 400-2000L |
Auxiliary Power Unit | Diesel generator, plunger pump, motor |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
Model | DS-35 |
Throw Distance | Horizontal: 35m; Vertical: 20m |
Volume Flow | 9-18L/min |
Fog Droplet Size (Adjustable ) | 50-150μm |
Water Pressure (Mpa) | 1.5~3.0MPa |
Pitching Angle | -10~90° |
Horizontal Rotation Angle | 360° Automatic |
Overall dimension | L145 * W113 * H176 (cm) |
Water Tank Capacity (Optional) | 400-2000L |
Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
Model | DS-40 |
Throw | Horizontal: 40m; Vertical: 25m (no wind) |
Volume Flow | 16-24L/min |
Fog Droplet Size (Adjustable ) | 50-150μm |
Water Pressure (Mpa) | 1.5~3.0MPa |
Pitching Angle | -10~45° |
Horizontal Rotation Angle | 180° Manual / 360° Automatic |
Overall Dimension | L1560 * W750 * H1700 (mm) |
Water Tank Capacity (Optional) | 400-4000L |
Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
Model | DS-50 |
Max Throw | 50m*no wind condition |
Discharge (Adjustable) | 16~30L/min (less water consumption) |
Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
Horizontal Rotation Angle | 180°manual control / 320°remote control |
Pitching Angle | -10°~40° |
Coverage Area | 5000~7000m² without wind |
Water Pressure | 1.5~3.5MPa |
Auxiliary Power Unit | 20KW Diesel Generator Set |
Dimensions(L*W*H) | 158×145×175cm |
Sprayer Tank | According to customer's requirements |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
Water Tank Capacity (Optional) | 4000-20000L |
ZZ1317N466MD1B | T7H-F | MC11.32-40 | HF9 | HW19710 | AC16 | 12.00R20 | 1950+3800+1400,1950+3825+1350,1950+4600+1400,1950+4625+1350 | 8×4 |
MC11.36-40 | ||||||||
T7H-U | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
T7H-M | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
ZZ3257M4347D1 | HW76 | D10.28-40 | HF9 | HW15710 | AC16 | 11(12) | 4325+1350 | 6×4 |
D10.31-40 | 12(11) | |||||||
HW79 | D10.28-40 | 11(12) | ||||||
D10.31-40 | 12(11) | |||||||
ZZ1257M4347D1 | HW76 | D10.31-40 | HF9 | HW15710 | HC16 | 12(11) | 4325+1350,4300+1400 | 6×4 |
HW79 | ||||||||
ZZ3257N4647D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 4625+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1167M4617D1 | HW70 | D10.28-40 | HF7 | HW13710CL | MCY13 | 295/80R22.5 (11/12) | 4600,5600 | 4×2 |
D10.31-40 | 295/80R22.5 (12/11) | |||||||
HW76 | D10.28-40 | 295/80R22.5 (11/12) | ||||||
D10.31-40 | 295/80R22.5 (12/11) | |||||||
ZZ1317M466GD1 | T5G-W | MC07.24-40 | 153 | HW13710C | 153 (457) (4.875) | 10.00R20 (11/295) | 1800+4600+1350,1800+4575+1400 | 8×4 |
MC07.28-40 | ||||||||
T5G-V | MC07.24-40 | |||||||
MC07.28-40 | ||||||||
ZZ1317N466GD1 | T5G-W | MC07.31-40 | 153 | HW13710C | 153 (457) (4.875) | 10.00R20 (11/295) | 1800+4600+1350,1800+4575+1400 | 8×4 |
MC07.34-40 | ||||||||
T5G-V | MC07.31-40 | |||||||
MC07.34-40 | ||||||||
ZZ3257N4147D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 4125+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3257N3647D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 3625+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3257N4347D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 4325+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3317N4667D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 1800+4600+1350 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | |||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1LH | HW76 | T10.34 | HF9 | HW15710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400 | 8×4 |
T12.38 | HW19710 | |||||||
HW79 | T10.34 | HW15710 | ||||||
T12.38 | HW19710 | |||||||
ZZ1257N5847D1 | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 5825+1350,5800+1400 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257M5847D1 | HW76 | D10.31-40 | HF9 | HW15710 | HC16 | 12(11) | 5825+1350,5800+1400 | 6×4 |
HW79 | ||||||||
ZZ5507N31B7D1 | HW76 | D10.38-40 | HF9 | HW19710 | HC16 | 12 | 1950+3075+1375+1350,1950+4575+1375+1350 | 10×4 |
D12.38-40 | ||||||||
D12.42-40 | ||||||||
ZZ3255N3846D1 | H16 | D10.34-40 | HF9 | HW15710 | AC16 | 12.00R20 (11.00R20) | 3800+1350 | 6×4 |
D10.38-40 | HW19710 | |||||||
ZZ1257N4347D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4325+1350,4300+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N5847D1 | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 5825+1350,5800+1400 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N4047D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257M464GD1 | T5G-M | MC07.24-40 | 153 | HW13710C | 457(4.875) | 11 (10,295) | 4075+1400,4100+1350,4275+1400,4300+1350,4575+1400,4600+1350 | 6×4 |
MC07.28-40 | ||||||||
MC07.24-40 | ||||||||
MC07.28-40 | ||||||||
ZZ1257K56CGD1 | T5G-W | MC05.21-40 | 153 | DC7J100TC-1083(8.4/0.79) | 153(5.143) | 10.00R20(11) | 1800+4200,1800+4800,1800+5600 | 6×2 |
MC07.21-40 | ||||||||
MC07.24-40 | ||||||||
T5G-V | MC05.21-40 | |||||||
MC07.21-40 | ||||||||
MC07.24-40 | ||||||||
ZZ1317N466MD1B | T7H-F | MC11.32-40 | HF9 | HW19710 | AC16 | 12.00R20 | 1950+3800+1400,1950+3825+1350,1950+4600+1400,1950+4625+1350 | 8×4 |
MC11.36-40 | ||||||||
T7H-U | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
T7H-M | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
ZZ1317N466GD1 | T5G-W | MC07.31-40 | 153 | HW13710C | 153 (457) (4.875) | 10.00R20 (11/295) | 1800+4600+1350,1800+4575+1400 | 8×4 |
MC07.34-40 | ||||||||
T5G-V | MC07.31-40 | |||||||
MC07.34-40 | ||||||||
ZZ2257N4657D1 | HW76 | D10.34-40 | STR | HW19710 | ST16 | 12.00-20 | 3800+1400,4300+1400,4600+1400 | 6×6 |
D12.38-40 | ||||||||
ZZ1257M4647D1 | HW76 | D10.31-40 | HF9 | HW15710 | HC16 | 12(11) | 4600+1350,4575+1400 | 6×4 |
HW79 | D10.31-40 | |||||||
ZZ3257N3447D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 3425+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1B | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N3847D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 3825+1350,3800+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N4047D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3317N3867D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 1800+3800 +1350 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N4047D1L | HW76 | T10.32 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
T10.34 | ||||||||
T12.38 | HW19710 | |||||||
ZZ1257N4047D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 |
Model | DS-60 |
Throw | ≥60m |
Volume Flow | 70L-80L/min |
Fog Droplet Size (Adjustable ) | 30-150 µm |
Water Pressure(Mpa) | 2.0~3.5Mpa |
Water Pressure(bar) | 20-35bar |
Water Pressure(kg) | 20-35kg |
Motor RPM | 2900 |
Horizontal Rotation Angle | ±160° Automatic |
Pitching Angle | -10°~45° |
Coverage Area | 8,000 ~10,000m2 |
Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
Water Tank Capacity (Optional) | 4000-20000L |
Model | DS-80 |
Throw | 80m no wind |
Volume Flow (Adjustable) | 105L-118L/min |
Fog Droplet Size (Adjustable ) | 30-150um |
Water Pressure (Mpa) | 2.5~3.5Mpa |
Horizontal Rotation Angle | ±160° Automatic |
Pitching Angle | 10° +45° |
Coverage Area | 15000~17000m² without wind |
Overall Dimensions (L*W*H) | L241*W153*H250(cm |
GVW 60000kg Driving Type 6x4 | ||||
Model | DRZ5707GSSZ | |||
Cab | HOWO7D cab, mining cab | |||
Engine(Hp) | 370 | |||
Power(Kw) | 273 | |||
Wheelbase | 3800+1500 | |||
Front/Rear Suspension | 1500/ 2600 | |||
Steering | Power steering | |||
Approach/departure angle | 32/40 | |||
Wheels & tire | 14.00-25 | |||
Tire number | 10+1 | |||
Tank Dimensions(mm) | ||||
Cubage (m3) | 40 | |||
Steel thickness of tank(mm) | 5 | |||
RHD or LHD | optional | |||
Overall Dimensions(mm) | 10000x3165x3900 | |||
Curb weight (Kg) | 25000 | |||
Engine | Model | WD615.47 | ||
Horsepower | 370 | |||
Maximum output Kw | 273 | |||
Maximum torque N.m | ||||
Type | 6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine | |||
Displacement | 9.726L | |||
Sinotruk brand, Euro 2 | ||||
Driving passenger | 2,3 | |||
Transmission | HW19710,10 forwards,2 reverse | |||
Front Axle | HF 9 | |||
Rear Axle | HC 16 | |||
Brake System | air brake | |||
Color and LOGO | customized | |||
Electric system | 24V | |||
Tank material | Carbon steel, stainless steel, aluminum, etc. alloy, etc. | |||
Sprinkler width | 14m each side | Suction height | 7m | |
Standard configuration | carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. | |||
Optional configuration | Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | |||
Delivery date | Within 20 days after receipt advance | |||
Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. |
SINOTRUK HOWO Off -Road 6X4 371HP 35CBM WATER TANKER TRUCK FOR MINING PURPOSE MODEL ZZ5707S4640AJ.
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Model | ZZ5707S4640AJ | |
Cabin | HW7D, with one seat, with Air Conditioner | |
Engine | Model | WD615.47 |
Horse Power (Hp/rpm) | 371/2000, Euro II Emission Standard | |
Max.Toruqe(Nm/rpm) | 1460/1200-1500 | |
Displacement L | 9.726 | |
Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine | |
Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
Front Axle | HF10, Steering with double T-cross section beam, Loading Capacity: 10,000kgs | |
Driving Axle | AC16, Pressed axle housing, central reduction, Loading Capacity: 4,200kgs | |
Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
Steering System | Hydraulic steering with power assistance | |
Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
Tire | 13.00-25 | |
Fuel Tank Capacity (L) | 500L Diesel Tank | |
Kurb Weight (kg) | 20,000 | |
Loading Capacity (kg) | 35,000 | |
Gross Vehicle Weight (kg) | 55,000 | |
Overall Dimension(L*W*H)(mm) | 9600×3000×3400 | |
Tank Capacity(L) | 35,000 | |
Tank Material | Carbon Steel | |
Nos of Compartment | 1 | |
Wheelbase(mm) | 4600+1500 | |
Max. Speed (km/h) | 35 |
HOWO 6X6 Water Tanker Features and Specifications
• 18000-24,000 liters capacity
• Available in steel, stainless steel and aluminum
• Offset baffle opening to prevent sloshing
• Tanks designed to carry potable and non-potable water
• Chassis frame mounted rear platform area
This HOWO 10cbm water tank truck is exported to in Africa. It mainly use for transporting clean water, drink water or other liquid. Please kindly noted that it's not the water sprinkler truck. It only transport water, which is popular in Africa.
Main advantages of water transport tank truck, water sprinkler truck :
Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. Large load capacity 15-25ton
4. LHD or RHD are optional
5. Volume of tanker 15-20cbm
6. One year for three key parts (engine ,gear-box, axle)

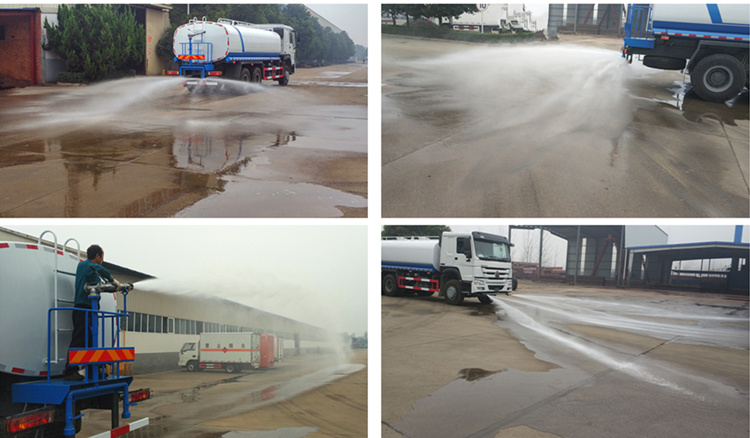

The pictures of Sinotruck HOWO 6x4 336hp 371hp 15000L 18000L 20000L water tank truck 15 tons 18 tons 20 tons water sprinkler truck:
Parameter of water tank truck, water sprinkler truck:
• Rear mounted hydrant fill with an air space
• High quality, little maintenance, competitive price
• Numerous spray head, spray bar(front, rear and side) and water cannon(monitor, 360° rotatable) options available
• Numerous chassis available
SINOTRUK HOWO 6X6 371HP 20CBM WATER TANKER TRUCK FOR OFF ROAD PURPOSE MODEL ZZ2257N4657A.
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
Model | ZZ2257N4657A | |
Cabin | HW76 Long Cab, with two seats and one bed, with Air Conditioner and electric window. | |
Engine | Model | WD615.47 |
Horse Power (Hp/rpm) | 371/2000, Euro II Emission Standard | |
Max.Toruqe(Nm/rpm) | 1460/1200-1500 | |
Displacement L | 9.726 | |
Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke common raildiesel engine | |
Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
Front Axle | HF9, Steering with double T-cross section beam, Loading Capacity: 9,000kgs | |
Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 | |
Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer | |
Steering System | ZF8118, Hydraulic steering with power assistance | |
Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
Tire | 12.00R20 | |
Fuel Tank Capacity (L) | 400L Diesel Tank | |
Kurb Weight (kg) | 12,800 | |
Loading Capacity (kg) | 28,200 | |
Gross Vehicle Weight (kg) | 41,000 | |
Overall Dimension(L*W*H)(mm) | 10200×2500×3320 | |
Tank Capacity(L) | 20,000 | |
Tank Material | Carbon Steel | |
Nos of Compartment | 1 | |
Accessories | 2 nos of duck-billed sprinklers (in front), 2 nos of cylindrical sprinklers (at rear), 2 nos of 2.5" pressure water discharge, 1 nos of 3" water sucking mouth, 1 nos of high shooting spray rod, 2 nos of 3" 3m pipe, | |
Wheelbase(mm) | 4625+1350 | |
Max. Speed (km/h) | 90 |
water truck Sprinkles standard configuration: former blunt sprinkling, take lateral jet after sprinkled with tank after, after work platform, platform after install greening sprinkling, guns regt can rotate 360 degrees, but even after adjusting heavy rain, rain, drizzle, mist shape, straight strong shape, range 30 meters. Take self-priming, since row function, take fire interface, with their valves, install screen.
2.The main Brand Partner: Dongfeng, SINO HOWO, HOWO, Beiben, Faw, Foton, Forland, Hyundai, Hino, Iveco, JAC, JMC, Shacman, Honyan, Genlyon
3.Driving Type: 4*2, 6*4, 8*4, 4*4 , 6*6 , 4wd , off-road , 10 wheel , 12 wheeler , 18 wheel
4.Capacity: 3000L, 4000L, 5000L, 6000L, 8000L, 10000L, 12000L, 15000L, 18000L, 20000L.....30000L
5.Steering Wheel: Left Hand Drive and Right Hand Drive
Descriptions | Parameter | ||

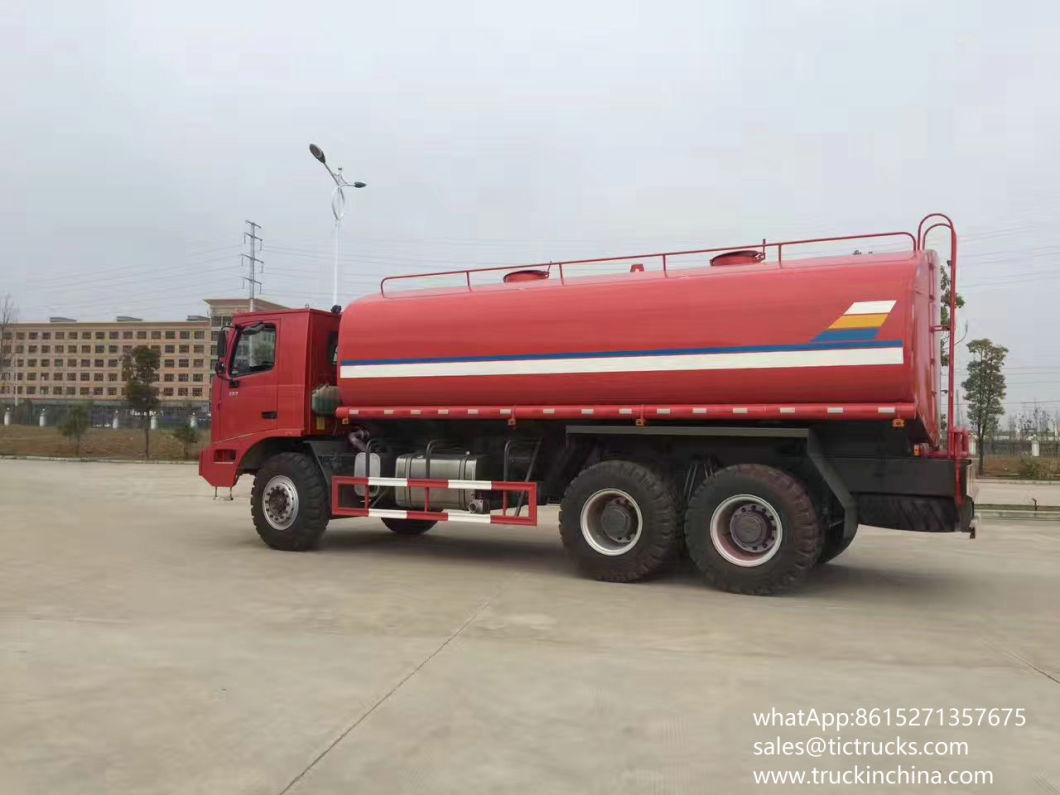

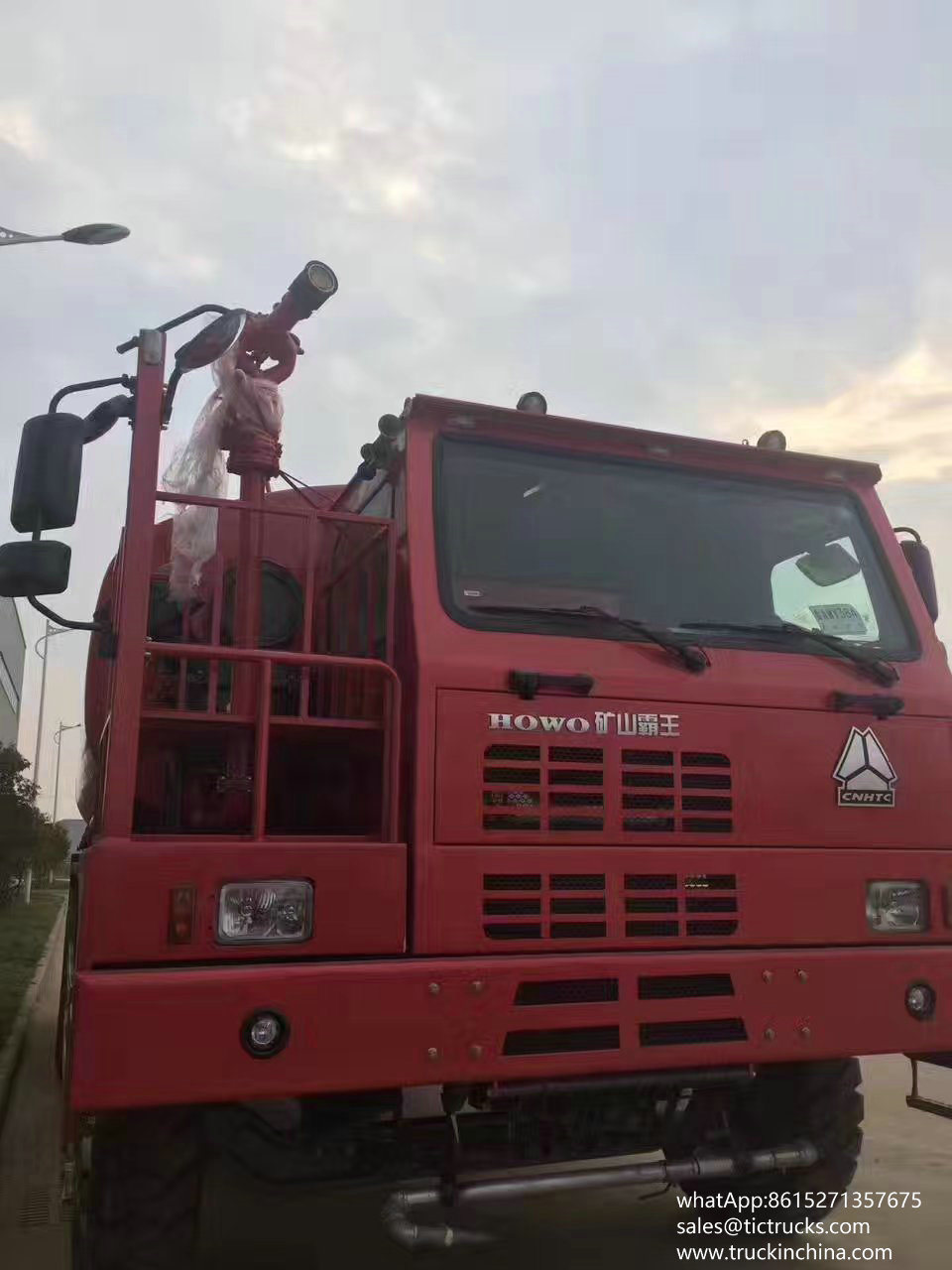

General | Truck Name: | SINOTRUK HOWO WATER TRUCK | |
Curb weight(kg) | 12500 | ||
Fact loading(kg) | 18000 | ||
Overall size(mm) | 9750×2500×3350 | ||
Cab | Cab allowance | 2 seat with 1 bed | |
Air condition(hot/cool) | Yes | ||
Chassis | F/R overhang(mm) | 1500/2425 | |
Fuel type: | Diesel | ||
Engine manufacturer/model | Sinotruk diesel engine/WD615 87 | ||
Power | 213kw/290hp | ||
Displacement | 9726ml | ||
Transmission | HW13710(10 forward 2 reverse) | ||
Emission standard | EURO 2 | ||
F/R tread(mm) | 2041/1830 | ||
Tank size(mm) | 6280*2350*1680 | ||
Approach/departure angle | 16/20 | ||
Wheelbase(mm) | 4300+1350 | ||
Axle load | 7000/16000/16000 | ||
Tire specification/No. | 12.00-20 | ||
Max speed(km/h) | 95km/h | ||
Number of axles | 3 | ||
Spring leaf no(F/R) | 9/10 | ||
Others | Transport medium:Water;Valid capacity by tank:20,000L Tank made material carbon steel Q235, 5mm Equipped with water pump,OPO drive pump self suction water,fire valve, water valve both side, and filter gauze safety ladder, water pipe 2 pcs , manhole, tool box, gravity valve and so on |
water truck oblique configuration: medicine dish, medication pumps, anticorrosion, tank intersectorial inlet and outlet water joint, solenoid valves, pneumatic valves, etc.
ater truck special function | A. Water tank capacity(L):16000L 25,000 Liters B. Sprinkling area(m):14-16m C. Suction lift(m):≥7m Water cannon range description Water cannon installed on the rear of the truck,also with operation platform,that operator can work on the platform.It can be used to clean road,trees,and also for emergency fire fighting. Water cannon range:≥60m,it can rotation with 360° degree freely | |
Manhole size(mm) | Man way access hole on top of tank; manhole diameter:¢500mm | |

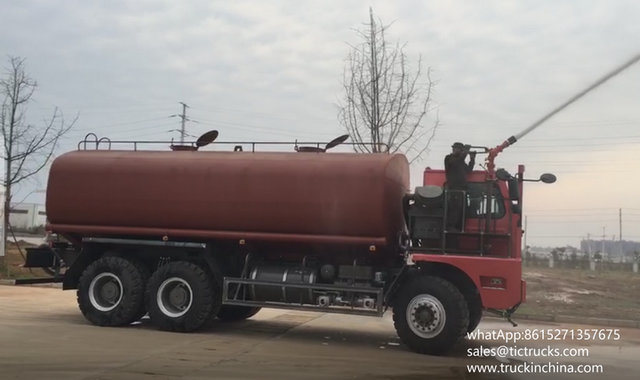

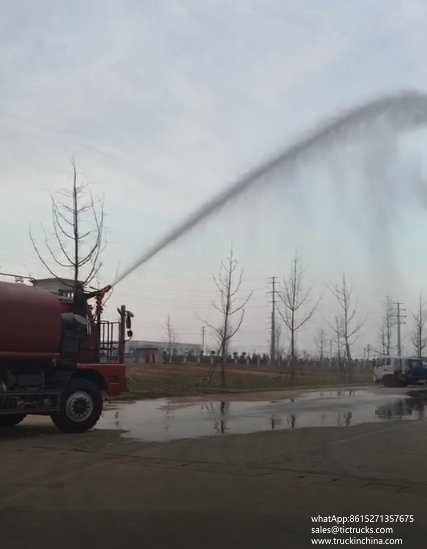

Front spray function | Front spray bar with fan sprayer,spray range: ≥20m | |
Man walk way | With skid resistance man walk way on top of tank | |
Water pump model | 80QZB(F)-60/90S | |
Flow rate(L/m) | 1000 | |
Head of delivery(m) | 60 | |
Shaft power | 22.5 | |
Suction height (m) | 6.5 | |
Efficiency(%) | 95% |
Model | DS-120 |
Throw | 120m without wind |
Volume Flow | 120L-160L/min |
Fog Droplet Size (Adjustable ) | 30-300μm |
Water Pressure(Mpa) | 2.5-3.5Mpa |
Horizontal Rotation Angle (Adjustable ) | ±160° Automatic |
Pitching Angle (Adjustable ) | -10°~45° |
Coverage Area | 34000~40000m² without wind |
Product Size(L*W*H) | L295*W154*H275 (cm) |
Water Tank Capacity (Optional) | 4000-20000L |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
Warranty | 1year |
Model | DS-100 |
Throw (m) | 100 |
Volume Flow (L/min) | 120~160 |
Water Pressure (MPa) | 2.5~3.5 |
Fog Droplet Size ( um ) | 30-200 |
Horizontal Rotation Angle (Remote Control) | ±160° Automatic |
Pitching Angle (Remote Control) | -10°~45° |
Coverage Area | 23000~27000m² without wind |
Degree of Protection | Not less than IP55 |
Overall Dimensions (L*W*H) | L277*W154*H271cm |
Water Tank Capacity (Optional) | 4000-20000L |
Model | DS-30 |
Throw | Horizontal: 30m; Vertical: 20m (without wind) |
Volume Flow | 9-18L/min |
Fog Droplet Size (Adjustable ) | 50-150 μm |
Water Pressure (Mpa) | 1.5~3.0MPa |
Pitching Angle | -10~90° |
Horizontal Rotation Angle | 180° Manual |
Overall Dimensions | L130 * W115 * H148 (cm) |
Water Tank Capacity (Optional) | 400-2000L |
Auxiliary Power Unit | Diesel generator, plunger pump, motor |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
Model | DS-35 |
Throw Distance | Horizontal: 35m; Vertical: 20m |
Volume Flow | 9-18L/min |
Fog Droplet Size (Adjustable ) | 50-150μm |
Water Pressure (Mpa) | 1.5~3.0MPa |
Pitching Angle | -10~90° |
Horizontal Rotation Angle | 360° Automatic |
Overall dimension | L145 * W113 * H176 (cm) |
Water Tank Capacity (Optional) | 400-2000L |
Auxiliary Power Unit | Gasoline generator, plunger pump, motor |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
Model | DS-40 |
Throw | Horizontal: 40m; Vertical: 25m (no wind) |
Volume Flow | 16-24L/min |
Fog Droplet Size (Adjustable ) | 50-150μm |
Water Pressure (Mpa) | 1.5~3.0MPa |
Pitching Angle | -10~45° |
Horizontal Rotation Angle | 180° Manual / 360° Automatic |
Overall Dimension | L1560 * W750 * H1700 (mm) |
Water Tank Capacity (Optional) | 400-4000L |
Auxiliary Power Unit | diesel generator set (optional), plunger pump, motor |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer, pickup car etc. |
Model | DS-50 |
Max Throw | 50m*no wind condition |
Discharge (Adjustable) | 16~30L/min (less water consumption) |
Fog Droplet Size (Adjustable) | 30um-50um /50um-100um |
Horizontal Rotation Angle | 180°manual control / 320°remote control |
Pitching Angle | -10°~40° |
Coverage Area | 5000~7000m² without wind |
Water Pressure | 1.5~3.5MPa |
Auxiliary Power Unit | 20KW Diesel Generator Set |
Dimensions(L*W*H) | 158×145×175cm |
Sprayer Tank | According to customer's requirements |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailer vehicle, etc. |
Water Tank Capacity (Optional) | 4000-20000L |
ZZ1317N466MD1B | T7H-F | MC11.32-40 | HF9 | HW19710 | AC16 | 12.00R20 | 1950+3800+1400,1950+3825+1350,1950+4600+1400,1950+4625+1350 | 8×4 |
MC11.36-40 | ||||||||
T7H-U | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
T7H-M | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
ZZ3257M4347D1 | HW76 | D10.28-40 | HF9 | HW15710 | AC16 | 11(12) | 4325+1350 | 6×4 |
D10.31-40 | 12(11) | |||||||
HW79 | D10.28-40 | 11(12) | ||||||
D10.31-40 | 12(11) | |||||||
ZZ1257M4347D1 | HW76 | D10.31-40 | HF9 | HW15710 | HC16 | 12(11) | 4325+1350,4300+1400 | 6×4 |
HW79 | ||||||||
ZZ3257N4647D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 4625+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1167M4617D1 | HW70 | D10.28-40 | HF7 | HW13710CL | MCY13 | 295/80R22.5 (11/12) | 4600,5600 | 4×2 |
D10.31-40 | 295/80R22.5 (12/11) | |||||||
HW76 | D10.28-40 | 295/80R22.5 (11/12) | ||||||
D10.31-40 | 295/80R22.5 (12/11) | |||||||
ZZ1317M466GD1 | T5G-W | MC07.24-40 | 153 | HW13710C | 153 (457) (4.875) | 10.00R20 (11/295) | 1800+4600+1350,1800+4575+1400 | 8×4 |
MC07.28-40 | ||||||||
T5G-V | MC07.24-40 | |||||||
MC07.28-40 | ||||||||
ZZ1317N466GD1 | T5G-W | MC07.31-40 | 153 | HW13710C | 153 (457) (4.875) | 10.00R20 (11/295) | 1800+4600+1350,1800+4575+1400 | 8×4 |
MC07.34-40 | ||||||||
T5G-V | MC07.31-40 | |||||||
MC07.34-40 | ||||||||
ZZ3257N4147D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 4125+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3257N3647D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 3625+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3257N4347D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 4325+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3317N4667D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 1800+4600+1350 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | |||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1LH | HW76 | T10.34 | HF9 | HW15710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400 | 8×4 |
T12.38 | HW19710 | |||||||
HW79 | T10.34 | HW15710 | ||||||
T12.38 | HW19710 | |||||||
ZZ1257N5847D1 | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 5825+1350,5800+1400 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257M5847D1 | HW76 | D10.31-40 | HF9 | HW15710 | HC16 | 12(11) | 5825+1350,5800+1400 | 6×4 |
HW79 | ||||||||
ZZ5507N31B7D1 | HW76 | D10.38-40 | HF9 | HW19710 | HC16 | 12 | 1950+3075+1375+1350,1950+4575+1375+1350 | 10×4 |
D12.38-40 | ||||||||
D12.42-40 | ||||||||
ZZ3255N3846D1 | H16 | D10.34-40 | HF9 | HW15710 | AC16 | 12.00R20 (11.00R20) | 3800+1350 | 6×4 |
D10.38-40 | HW19710 | |||||||
ZZ1257N4347D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4325+1350,4300+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N5847D1 | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 5825+1350,5800+1400 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N4047D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257M464GD1 | T5G-M | MC07.24-40 | 153 | HW13710C | 457(4.875) | 11 (10,295) | 4075+1400,4100+1350,4275+1400,4300+1350,4575+1400,4600+1350 | 6×4 |
MC07.28-40 | ||||||||
MC07.24-40 | ||||||||
MC07.28-40 | ||||||||
ZZ1257K56CGD1 | T5G-W | MC05.21-40 | 153 | DC7J100TC-1083(8.4/0.79) | 153(5.143) | 10.00R20(11) | 1800+4200,1800+4800,1800+5600 | 6×2 |
MC07.21-40 | ||||||||
MC07.24-40 | ||||||||
T5G-V | MC05.21-40 | |||||||
MC07.21-40 | ||||||||
MC07.24-40 | ||||||||
ZZ1317N466MD1B | T7H-F | MC11.32-40 | HF9 | HW19710 | AC16 | 12.00R20 | 1950+3800+1400,1950+3825+1350,1950+4600+1400,1950+4625+1350 | 8×4 |
MC11.36-40 | ||||||||
T7H-U | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
T7H-M | MC11.32-40 | |||||||
MC11.36-40 | ||||||||
ZZ1317N466GD1 | T5G-W | MC07.31-40 | 153 | HW13710C | 153 (457) (4.875) | 10.00R20 (11/295) | 1800+4600+1350,1800+4575+1400 | 8×4 |
MC07.34-40 | ||||||||
T5G-V | MC07.31-40 | |||||||
MC07.34-40 | ||||||||
ZZ2257N4657D1 | HW76 | D10.34-40 | STR | HW19710 | ST16 | 12.00-20 | 3800+1400,4300+1400,4600+1400 | 6×6 |
D12.38-40 | ||||||||
ZZ1257M4647D1 | HW76 | D10.31-40 | HF9 | HW15710 | HC16 | 12(11) | 4600+1350,4575+1400 | 6×4 |
HW79 | D10.31-40 | |||||||
ZZ3257N3447D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 3425+1350 | 6×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1B | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N3847D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 3825+1350,3800+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N4047D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ3317N3867D1 | HW76 | D10.34-40 | HF9 | HW19710 | AC16 | 12(11) | 1800+3800 +1350 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1257N4047D1L | HW76 | T10.32 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
T10.34 | ||||||||
T12.38 | HW19710 | |||||||
ZZ1257N4047D1 | HW76 | D10.34-40 | HF9 | HW13710 | HC16 | 12(11) | 4025+1350,4000+1400 | 6×4 |
D10.38-40 | HW19710 | |||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
ZZ1317N4667D1H | HW76 | D10.34-40 | HF9 | HW19710 | HC16 | 12(11) | 1800+4600+1350,1800+4575+1400,2150+4600+1350,2150+4575+1400 | 8×4 |
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 | ||||||||
HW79 | D10.34-40 | |||||||
D10.38-40 | ||||||||
D12.34-40 | ||||||||
D12.38-40 |
Model | DS-60 |
Throw | ≥60m |
Volume Flow | 70L-80L/min |
Fog Droplet Size (Adjustable ) | 30-150 µm |
Water Pressure(Mpa) | 2.0~3.5Mpa |
Water Pressure(bar) | 20-35bar |
Water Pressure(kg) | 20-35kg |
Motor RPM | 2900 |
Horizontal Rotation Angle | ±160° Automatic |
Pitching Angle | -10°~45° |
Coverage Area | 8,000 ~10,000m2 |
Product Size ( L * W * H) | L220 * W154 * H239 (cm) |
Vehicle Matching | Agricultural vehicle,truck,watering cart,trailed vehicle, etc. |
Water Tank Capacity (Optional) | 4000-20000L |
Model | DS-80 |
Throw | 80m no wind |
Volume Flow (Adjustable) | 105L-118L/min |
Fog Droplet Size (Adjustable ) | 30-150um |
Water Pressure (Mpa) | 2.5~3.5Mpa |
Horizontal Rotation Angle | ±160° Automatic |
Pitching Angle | 10° +45° |
Coverage Area | 15000~17000m² without wind |
Overall Dimensions (L*W*H) | L241*W153*H250(cm |
6 pcs Metal Alky T21 UN3394 UN3399 Portable Tank TEAL DEAC MAO to SGP Max. gross weight : 4000 kg Tare : 1050 kg Payload : 2950 kg Portable Tank instruction : T21 ADR/RID tank code : N/A Special provisions : TP2 TP7 TP36 TP41 Model : KS1880-T21 ISO size/type code : N/A Type : UN Portable Tank Dimensions : 1148(E.D) x2128 (L) x1388 (H) mm Nominal capacity : 1880 L Measured capacity : 1880 L at 20°C Maximum allowable working pressure : 14 bar Test pressure : 21 bar APPROVALS ADR/RID: F/9151/BV/23 IMDG: F/BV/23/194-T21 US DOT: UN Portable Tank TIR*: GB/C 26839 BV/2023 SUBSTANCES SUITABLE FOR TRANSPORT: In accordance with the requirements of the applicable regulations and the construction of the tank and its equipment. (Substances not compatible with the tank and/or its accessories are excluded for transport) UN3394 & UN3399
Customized Hydrochloric Acid HCL Tank Container Lined PE 24m3 for Trailer Mounted to Vietnam TANK CONTAINER VOLUME 24M3 STEEL SHEET 5MM, HEAD 6MM,Lined LLDPE 16mm for Hydrochloric Acid, Sulfuric Acid Transport 3 CHAMBERS HS CODE: 7309.00
6 units Metal Alky C480 Portable Tank TEAL DEAC Cylinder for Singapore 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFF DN15 PN 40), 360 DEG. ROTATABLE TOP FLANGE VALVE (KV-MTFE DN20 PN 40) K4430 Gaskets
6 Units 40KL 44KL 40FT ISO Steel Lined PE dilute sulfuric acid Tank Container to Kazakhstan40FT Tank Container PE Lined TankUsed to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc…Sulphuric Acid Tank Capacity: 40,000 Liters;44,000 LitersSteel sheet 6mm, head 6mmLiner thickness: 16mm PE01p
2 Sets HOWO Offroad AWD 6x6 Mixing And Charging ANFO Explosive Trucks Delivery
10 Units Hydrochloric Acid HCL PE LINED ISO Tank Containers to Vietnam 20FT Tank Container PE Lined Tank Used to contain: HCl (max 35%), NaOH (max 50%), PAC (max 17%),H2SO4(max 94%) etc… Tank Capacity: 21,900 Liters Steel sheet 6mm, head 6mm Liner thickness: 16mm PE
17m3 , 22m3 Lined PE Tank Container for Hydrochloric Acid HCL to Vietnam 20FT TANK CONTAINER TANK VOLUME/ STEEL THICKNESS 22M3/ 6MM (SOC / EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DRAU2308018 STORAGE TANK CONTAINER TANK FOR HCL CARGO TRUCK TANK VOLUME/STEEL THICKNESS:17M3/ 6MM ( EMPTY AND NEW TANKS) BRAND: DONG RUNZE MODEL: DTA5260 HS CODE : 7309000000
4 Sets Polyethylene Lined Steel Offshore T14 Tanks For Hydrochloric Acid Transport to Kazakhstan Marks DTAU2305012 DTAU2305028 DTAU2305033 DTAU2305049
80Units Metal Alky C480 UN Portable Tank T21 TEAL Cylinders to USA 80Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 to USA Adr/Rid Organometallic Substance, Liquid, Water- Reactive C-430 Saddle Type Portable Tank , tank capacity 1630L C-480 Saddle Type Portable Tank, tank capacity 1880L C-1980 TEAL TMGa ,TEGa,TMIn, TMAl DEAC Metal Alky C-1980 T21 Metal Alky 7495L
6 Sets Polyethylene Lined Steel Tanks 6600Gallon For Hydrochloric Acid Storage Transport Hydrochloric Acid (HCl) to SAU Chemical Factory This the 4th LOT HCL ,NaCLO Tanks For this SAU Chemical Facttory . The 1 st Order date will go back to Date 13-1-2021. CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000
3 Sets Lined PE Tanks 6604Gallon For Storage Transport Sodium Hypochlorite to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. + Port of loading : WUHAN PORT + Port of unloading :DAMMAM CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:730900 10.2x2.1x2.5*3 160.65cbm 3X40HQ
4PCS Power Take-off PTO FOR JMC TRANSMISSION MODEL DN3-7003-EC 6MT1420 to URUGUAY Sdq51/65 (Gearbox Power Take off For ISUZU QINGLING Transmission DN3-70030-E0, 6MT1420 PTO Assembly) HWP-G32/65CHQ ,32/65 PQ1
12PCS PTO Wanliyang Transmission Power Take-off For WLY6T40 WLY6TS40 to Mexico 1 PC SDQ211/60LGQ1 PTO FOR 6DS60T-D TO SAUDI ARABIA
2 Units Righ Hand Drive Shacman F3000 Hydro Excavators Truck Combined Vacuum Sewer Jetting to Suva Port Fiji Shacman F3000 Hydro Excavators Truck Sewer Jet Suction Units (RHD 13500L Sewage+4000L Clean Water ) PTO, transmission shaft, vacuum pump, tanker, hydraulic system and jetting pipe system. Combined Sewer Suction & Jetting Unit SZW Aluminium Alloy Liquid Water Ring Compressor Vacuum Pump XW-2800 VAC Flow 2800 M³/h ,1648 Cfm 46.7M3/min 75KW
6 Sets Lined PE Tanks 6604Gallon For Storage Transport Hydrochloric Acid (HCl) to Saudi Arabia FROM WUHAN PORT CHINA TO DAMMAM, SAUDI ARABIA BY SEA. Port of loading : WUHAN PORT + Port of unloading :DAMMAM DONG RUN ZE CAST IRON STORAGE TANK FOR CHEMICAL MATERIALS STORAGE TANK CAPACITY: 25M3 HS CODE:7309000000 9.7x2.2x2.5*6
