HOWO mine tipper truck 10 wheeler dump trucks manufacturer in china.
6 Axles Tipper Trailer For 100 Ton Mangenese And Bouxite Ores Transport

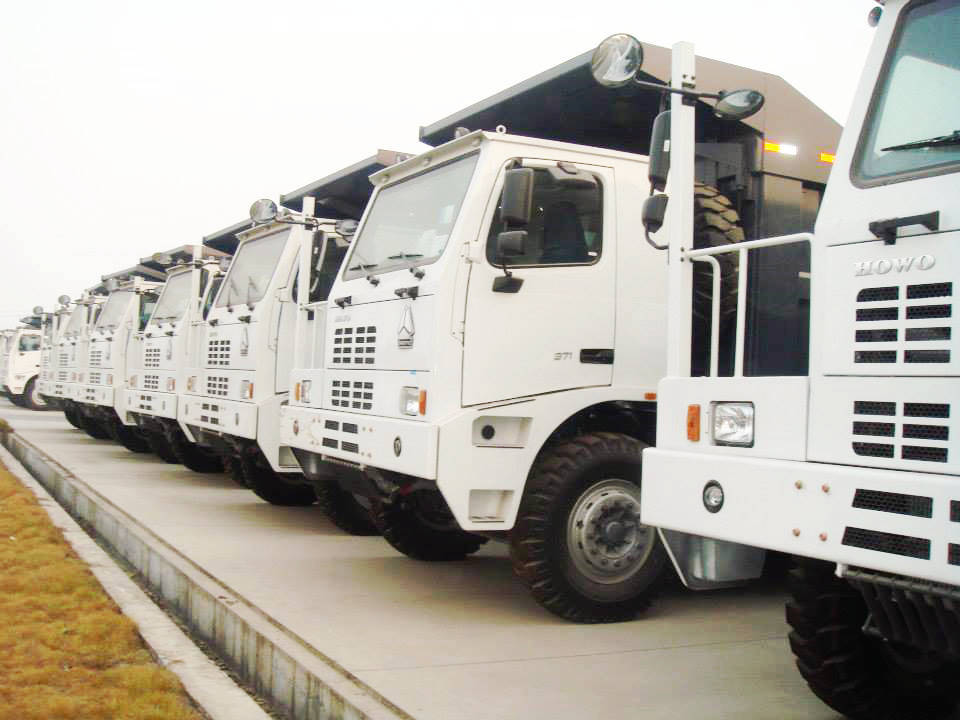

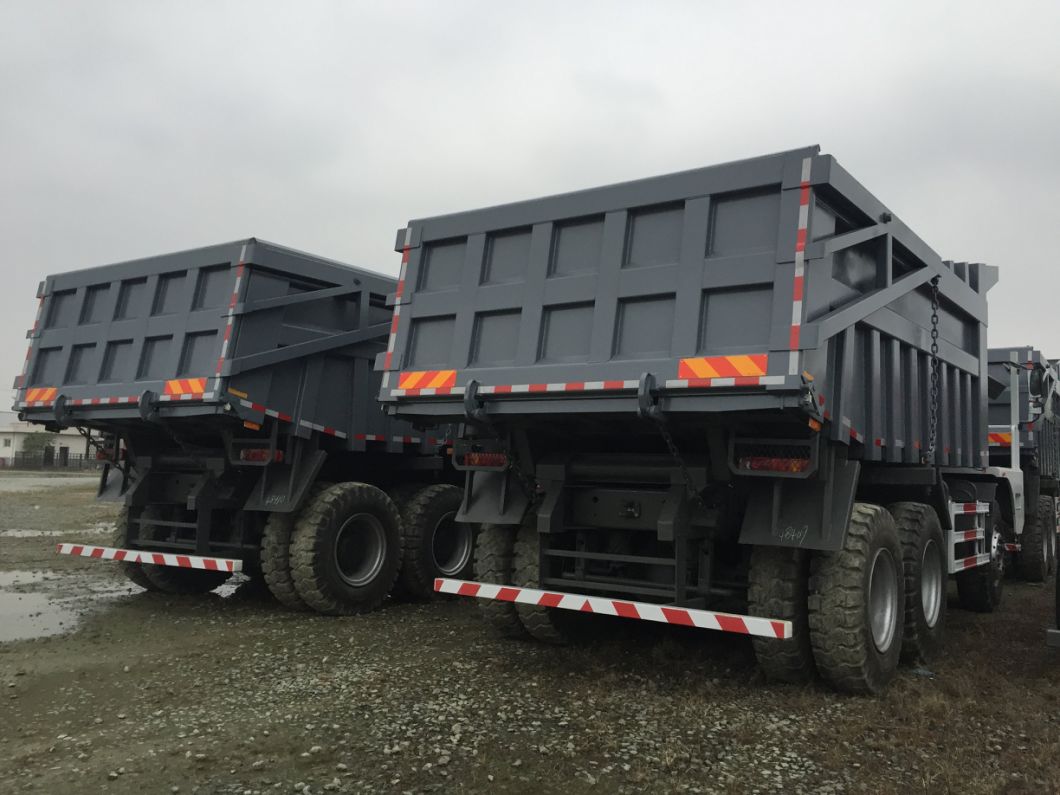

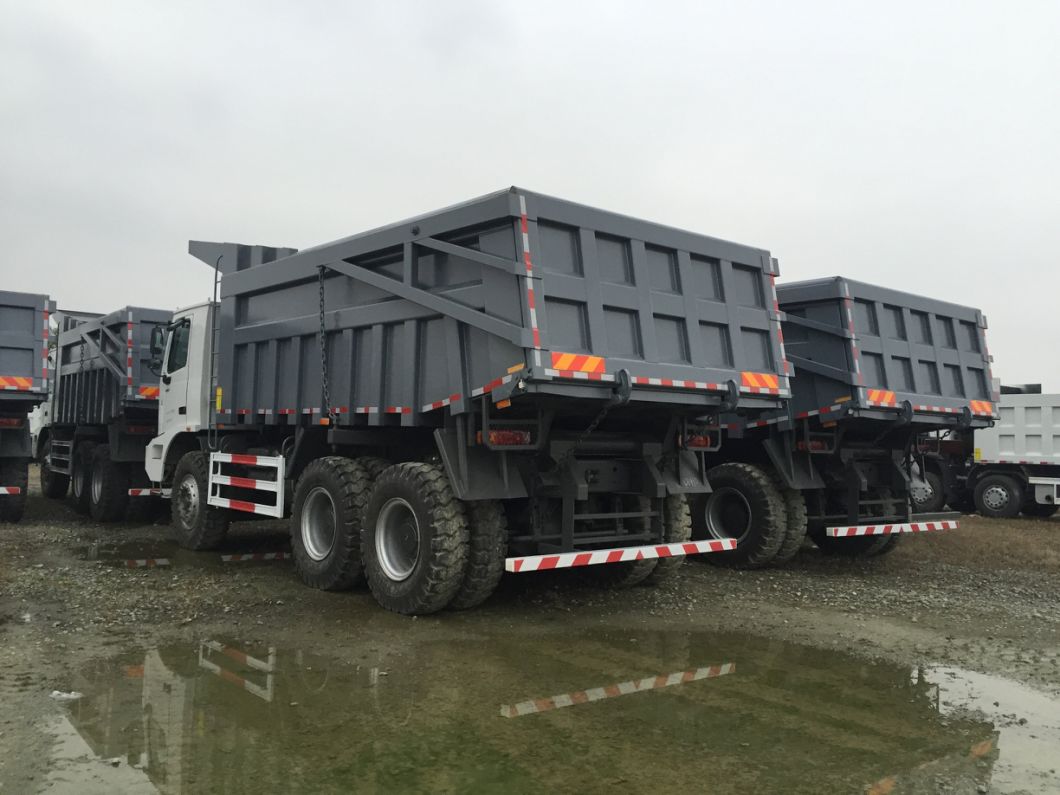

HOWO 6x4 371HP Mining Tipper Truck
| Brand | HOWO (SINOTRUK) |
| Model | ZZ5707S3840AJ |
| Color | daikgray |
| Cabin | HW7D side cabin, with air conditioner |
| Engine | WD615.47, CNHTC brand, EurII, 4 stroke direct injection diesel engine, 6-cylinder in line with water cooling, turbo-charging and intercooling |
| Displacement | 9.726L |
| Max. output | 371hp@2200rpm |
| Max torque | 1500Nm@1100-1600rpm |
| Bore/Stroke(mm) | 126/130 |
| Fuel type | diesel |
| Clutch | diametre Φ 430mm, hydraulically operating with air assistance (1900Nm) |
| Transmission | HW19710, 10 forward, 2 reverse, with HW70 PTO(power take off), torque: 1900Nm |
| Steering | ZF8098 hydraulic steering with power assistance |
| Front axle | HF12 |
| Rear axle | AC26, ratio=10.47 . Tandem axle, STR 26T hub-reduction with differential locks between wheels and axles, enforced STR axle with 4 U bolts. |
| Tyre | 14.00-25 bias tire 36PR |
| Brake system | WABCO, dual brake chamber |
| Curb weight(kg) | 17300 |
| Total mass (kg) | 70000 |
| Wheelbase(mm) | 3800+1500 |
| Front/Rear Wheel track (mm) | 2741/2520 |
| Fuel Tank | 500L D-shape Al-alloy |
| Internal body size | 6000X3100X1800MM |
| Capacity | 33.48CBM |
| Thickness of steel | Bottom 14mm side& back 8mm, Mn steel. |
| Lifting system | Front lift, HYVA tipping system |
| Dimension (mm) | 8800*3300*3670 |
excellent performance with reasonable price.

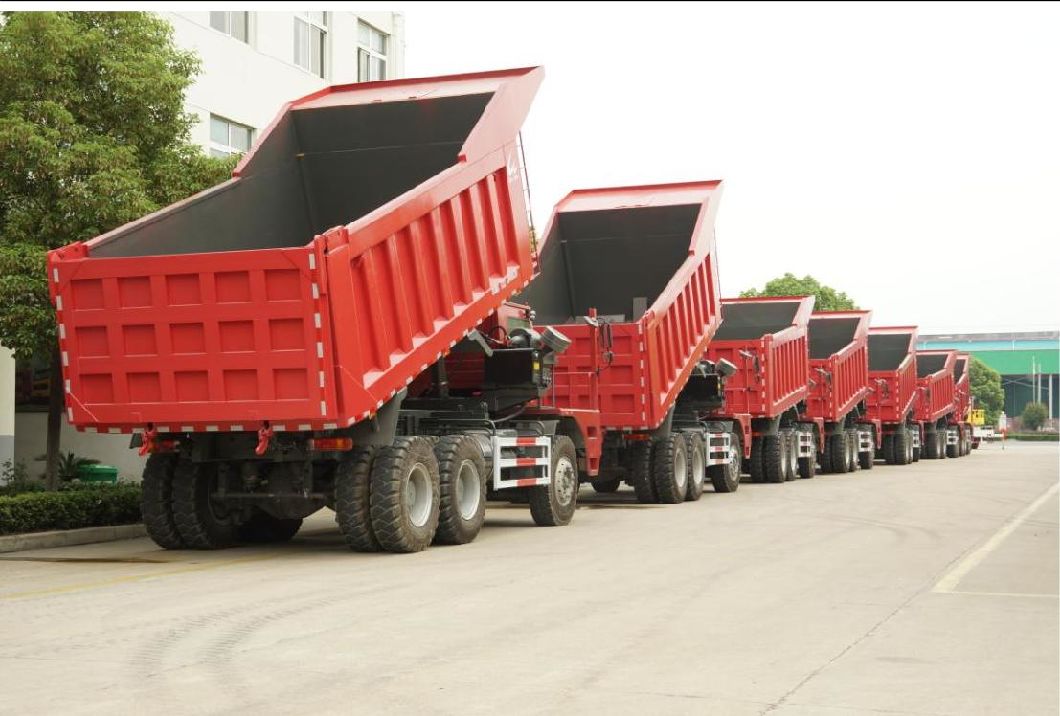

SINOTRUK--HOWO 70t MINING DUMP TRUCK 6X4 SERIES
Driving Type: 6X4
Rated Loading Capacity: 70t
Engine: EuroII 371PS; EuroIII 375PS, 380PS, 420PS
Transmission: Manul 10 forward & 2 reverse
Front Axle: 12t cast steel I-shaped front axle
Rear Axles: 26t double reduction tandem axles with differential locks between wheels and axles, ratio: 10.47, option 8.51
Steering: ZF8098 hydraulic steering with power assistance
Tyres: 14.00-25
Cab: Half cab with framework covering, hydraulically tiltable to front, air conditioner
Wheelbase (mm): 3600, 3800
Internal Dimensions (LxWxH) (mm): 5600X3100X1800, 5900X3100X1800
The configurations can be changed, just let we know your needs (working condition, loading capacity, etc.),we will design the type according to your need.

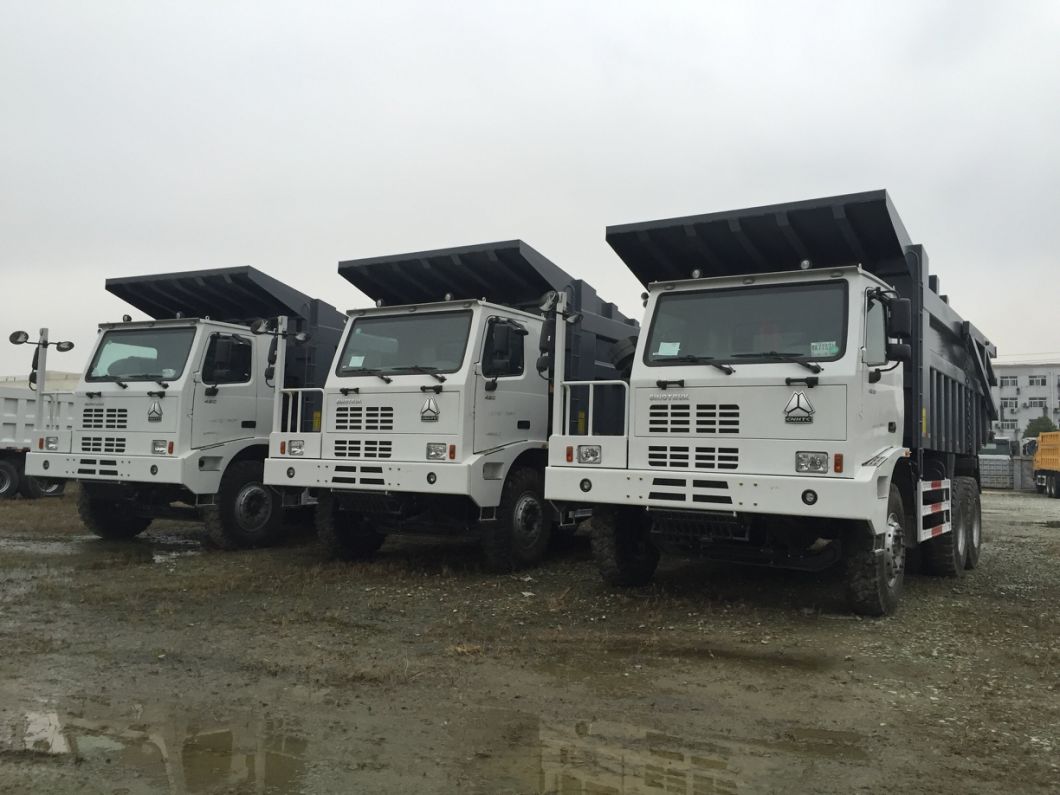

SINOTRUK--HOWO 70t MINING DUMP TRUCK 6X4 SERIES

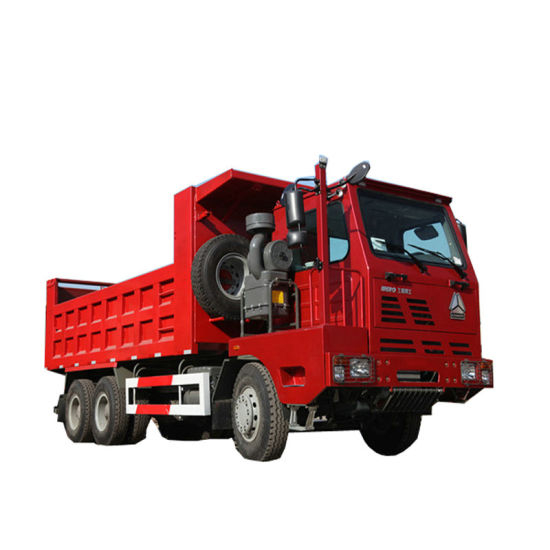

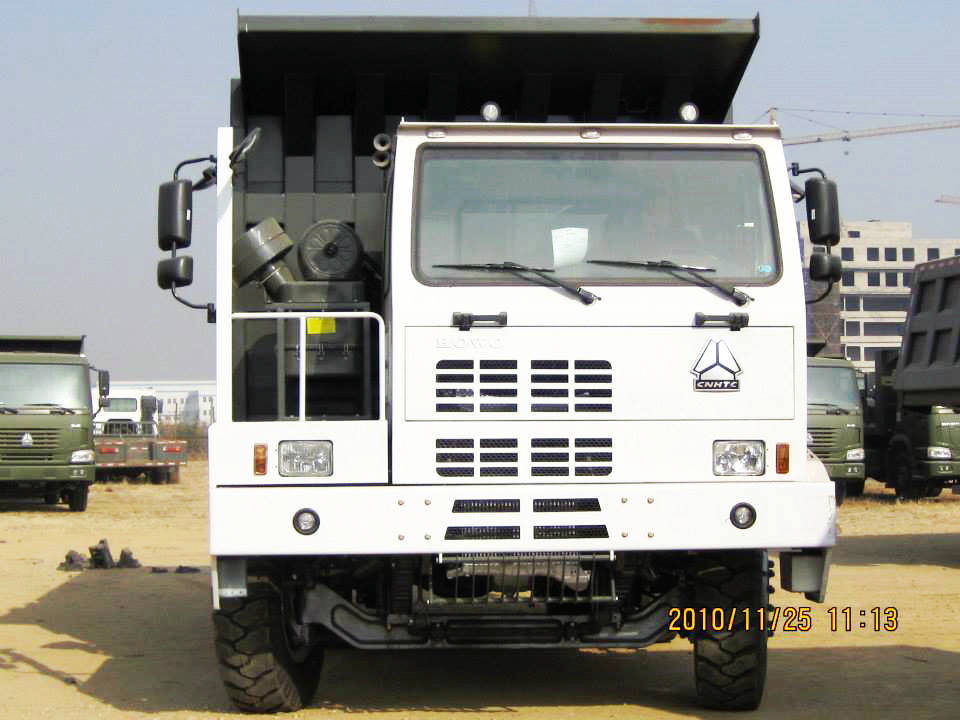

SINOTRUK HOWO 6X4 Mine overlord dump truck
Pictures are only for reference
Model:ZZ5707S3840AJ
Manufacturer of chassis:SINOTRUK
Drive aheel:6x4
Wheel base:3800+1500mm
Overall dimension:8630*3360*4100mm
GVW:70000kg
Kerb weight:29000kg
Max speed:50km/h
Engine:
Model:WD615.47
Emission standard:GB17691-2001,THE SECOND GRADATION,GB3847-2005
Rated power/speed:273/2200(371HP)
Chassis:
Cabin :HW7D cabin,ari-conditioner,white color
Gear box:HW19710
Steering wheel:ZF8118
Clutch:430
Front axle/rear axle:HF12/AC26
Size&number of tyre:14.00-25Nylon tyre:11pieces
Cargo body:
Lifting system: HYVA196,front lifting
Carriage dimensions:5800*3100*1700mmm,bottom:14 mm,side:12mm.
Description of SINOTRUK--HOWO 70t MINING DUMP TRUCK 6X4 SERIES
1.Technical Assurance
Advanced means of production technology and perfect testing equipment to protect the product overall structure is reasonable, reliable performance. Well-known brand axles, suspension systems, high performance, and reliable to use, ensure the good performance of HOWO 70t Mining Dump Truck.
2.Supply Capacity
We produce the truck as soon as your order puts. Production of 50000 units/year insures your needs.HOWO 70t Mining Dump Truck fully comply with relevant national standard, at the same time to meet the individual needs of customers.
3. After-sale Service
Any question will be solved at the prompt time. We also offer relative technical support. Our spare parts will be available at any time.

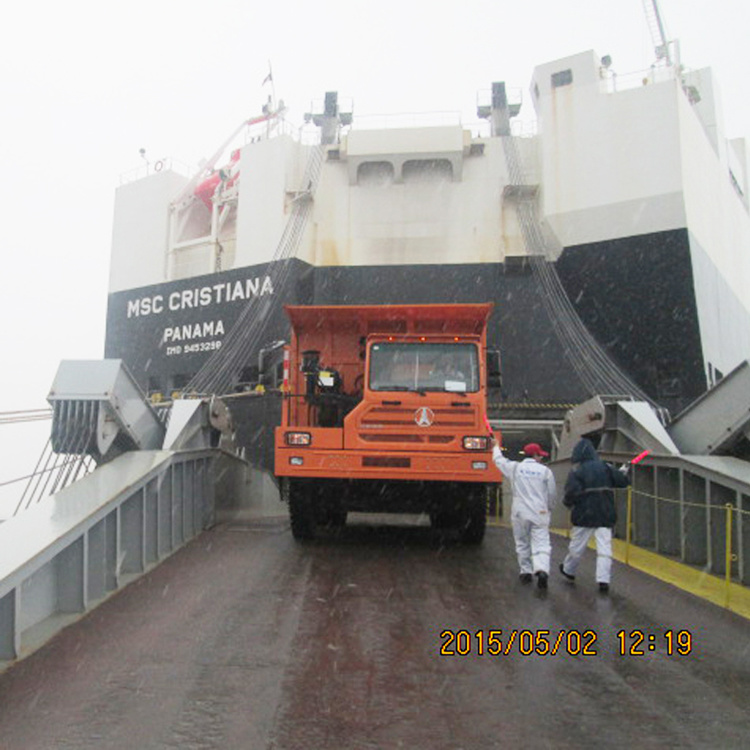

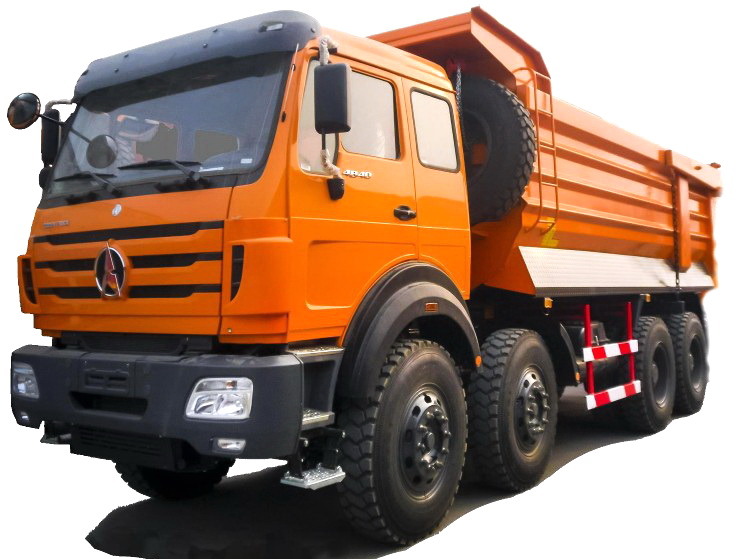

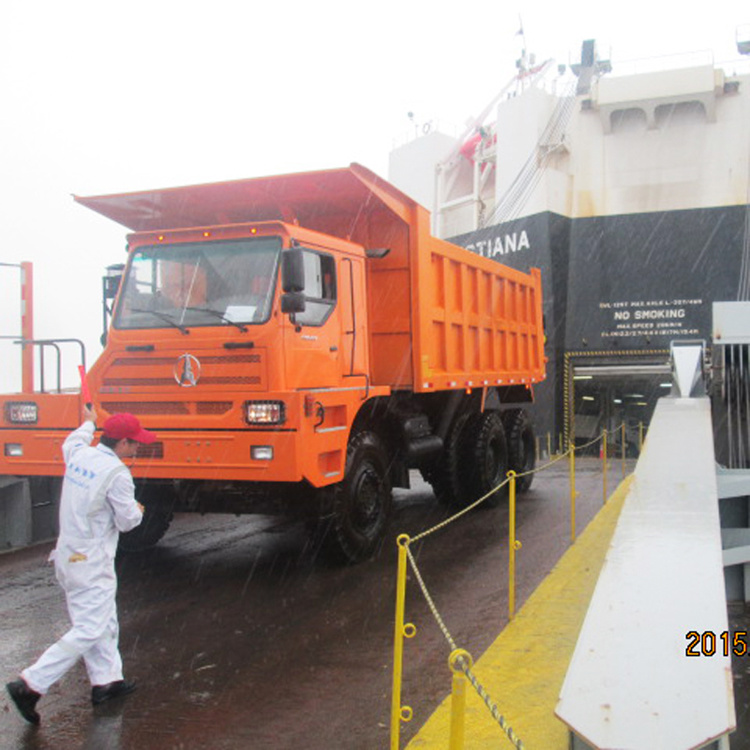

Beiben (NorthBenz)70 ~90ton 7042KK / 9042KK
| Beiben | mining dump truck | ||
| / Vehicle code number | ND37000B38 | ||
| / Sales code number | 7042KK | ||
| /Outlook size(mm) | 8420*3450*3650,5800*3300*1700 | ||
| / Spread of axies | 3775+1700 | ||
| / Axis number | 3 | ||
| / Chassis axle load quality | / Before, | 25 | |
| , | 40 | ||
| / Complete bikes permission biggest axle load quality(kg) | / Before, | 25000 | |
| , | 40000 | ||
| / Tyre size | 14.00--25 | ||
| / Wheel felloe specification | 10.0V | ||
| / Tire number | 10 | ||
| / Cab pattern | ,/ Sets flatly, may pour out | ||
| / Air-conditioner | / Built-in air conditioning | ||
| / The cab rides the population() | 1 | ||
| / Acoustics | MP3(SD,USP) | ||
/ Engine | / Engine model | WD12.420 | |
| (kw/r/min) | 305/2200 | ||
| (nm/r/min) | 1250/1400-1600 | ||
| / Engine Production enterprise | / Wei River firewood | ||
| / Fuel grade | Diesel oil | ||
| / Emission standard | Country two | ||
| / Average fuel oil consumption | 52L/100km | ||
| / Fuel tank volume | 400L | ||
| 567000 | |||
