HOWO Military 6X6 Fuel Tanker Truck for Amy Fuel Transport 18,000L Oil Bowser
For oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Capacity of tank body18-25CBM
Thickness of tank body5mm,With 5 cabin
Gear oil pump, flow meter, flash hider, fire extinguisher
Overall dimension9200×2500×3150mm
$72000-$77000
Ask for better price
Cell /+8615271357675 The pictures are for your reference only.

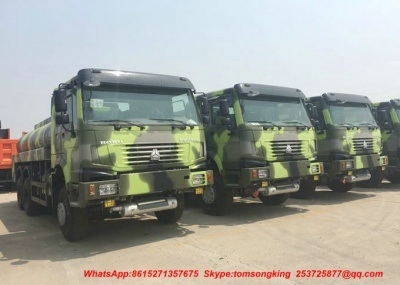

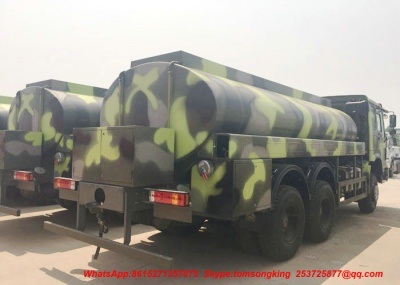

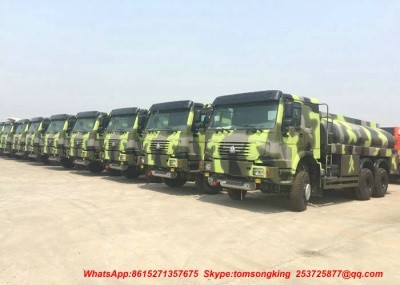

HOWO Military 6X6 Fuel Tanker Truck for Amy Fuel Servicing
| SINOTRUK HOWO Military Fuel Tanker Truck 16-25CBM 6X6 336HP / 380HP for Army |
| Chassis Model | ZZ2257N4657D1 |
| Drive Type | 6×6 |
| Engine | WD615.69, 336HP ; 380HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 12.00R20, Radial tyre |
| Wheel base | 4600+1350(mm) |
| Capacity of tank body | 16-25CBM |
| Thickness of tank body | 5mm,With 5 cabin |
| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 9200×2500×3150mm |
| The curb weight | 11940(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
EURO4
ZZ2257N4657D1 | HW76 | D10.34-40 D12.38-40 | STR | HW19710 | ST16 | 12.00-20 | 3800+1400, 4300+1400, 4600+1400 | 6×6 |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
According to a variety of gas or oil, and the use of different environment with the oil, pump oil, a variety of oil equipment, put the function. Tanker special part is composed of a tank, PTO, drive shaft, gear pump, pipeline system components. Pipes system is composed of an oil pump, three through four ball valve, two-way valve. Filter pipe.
Our Oil Tank Truck adopts advanced butt welding technology, the
high pressure gas after the forming of the tank test leak detection, the tank has high
strength, stable center of gravity, vehicle safety and stable; tank welding after shot
blasting pretreatment process, rust, paint adopts advanced baking technology, durable and
beautiful appearance.
Competitive Advantage:
1) competitive price, cost-effective
2) quick delivery time
3) professional export and import procedure dealing
4) Using SINOTRUK HOWO 6X6 all wheels driving truck chassis,
5) Strong more power
6) Good off-road performance
7) Our Oil tank truck with advanced butt welding technology, after the forming
of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,
safe and stable vehicle characteristics;
8) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,
9) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,
insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
10) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
11) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
12) with all kinds of truck model, which can fulfill your requirement
13) the key parts adopt the world's top technology products
14) based on strong technical support and top level technology make the trucks with high quality and
more reliable
All Wheel Drive off road Fuel Tanker Truck
